Convergence Systems CS3151TC User Manual

User Manual of CSL RTLS System

CS3151TC Tag

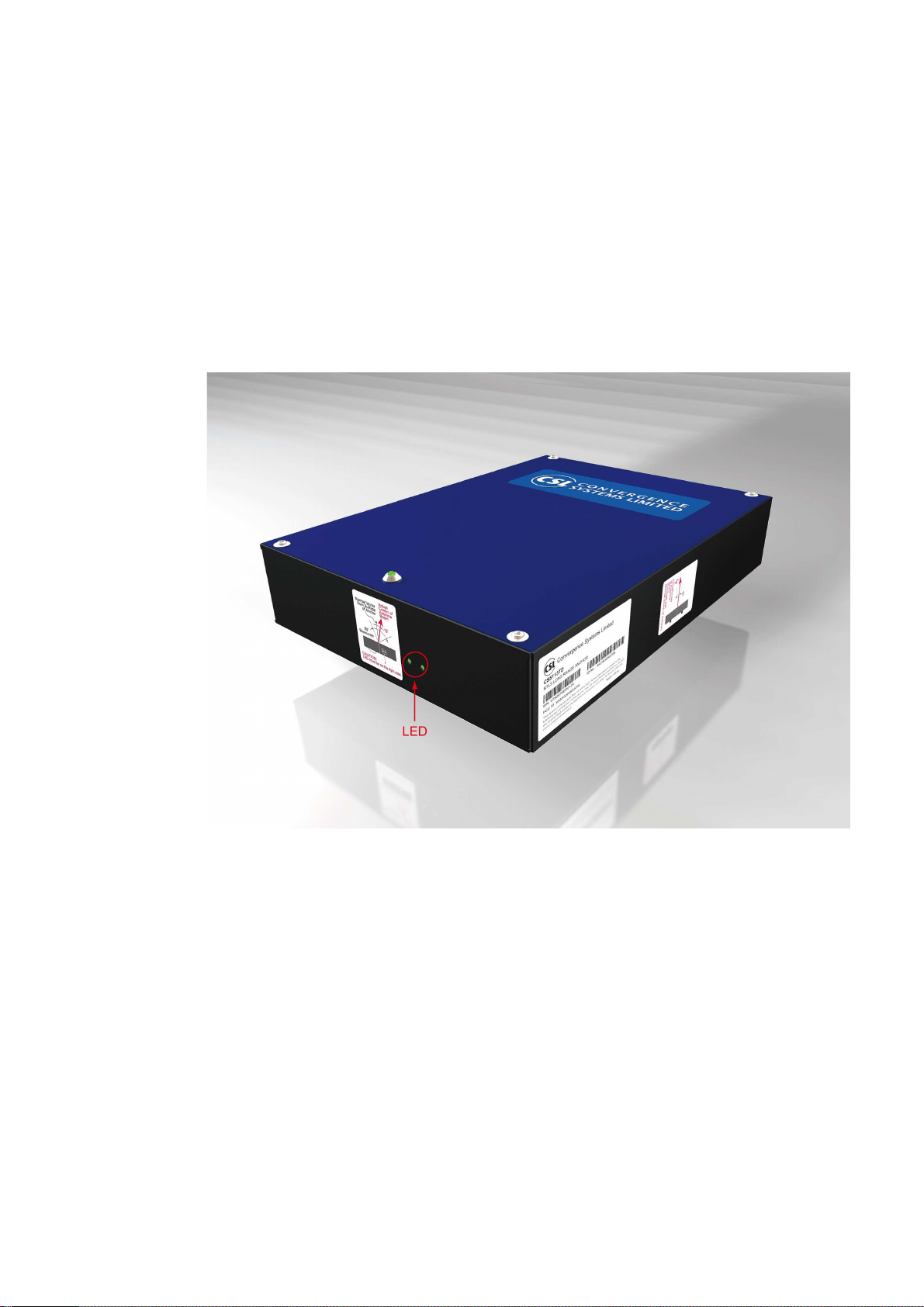

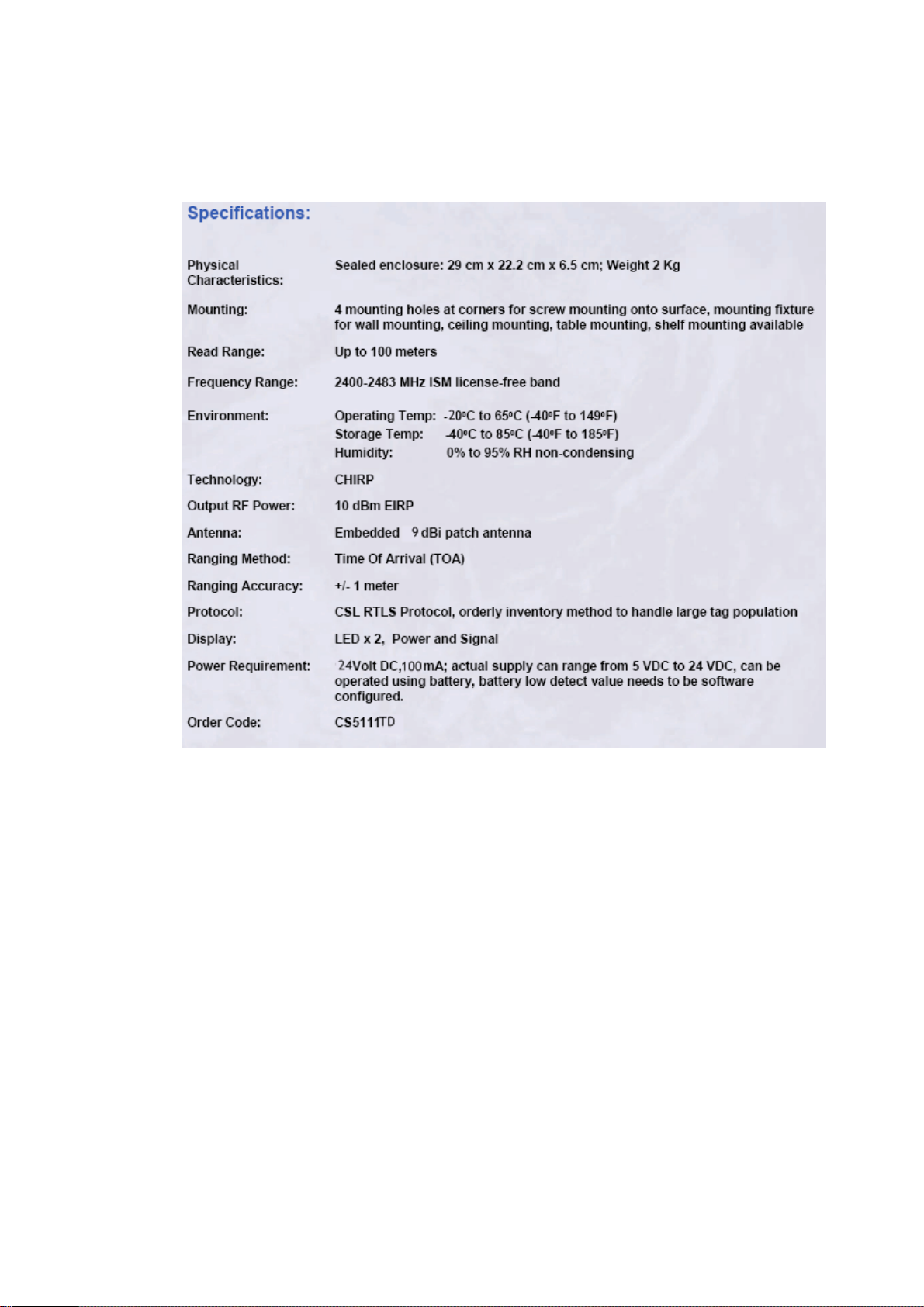

CS5111TD Reader
CS5112TD Reader

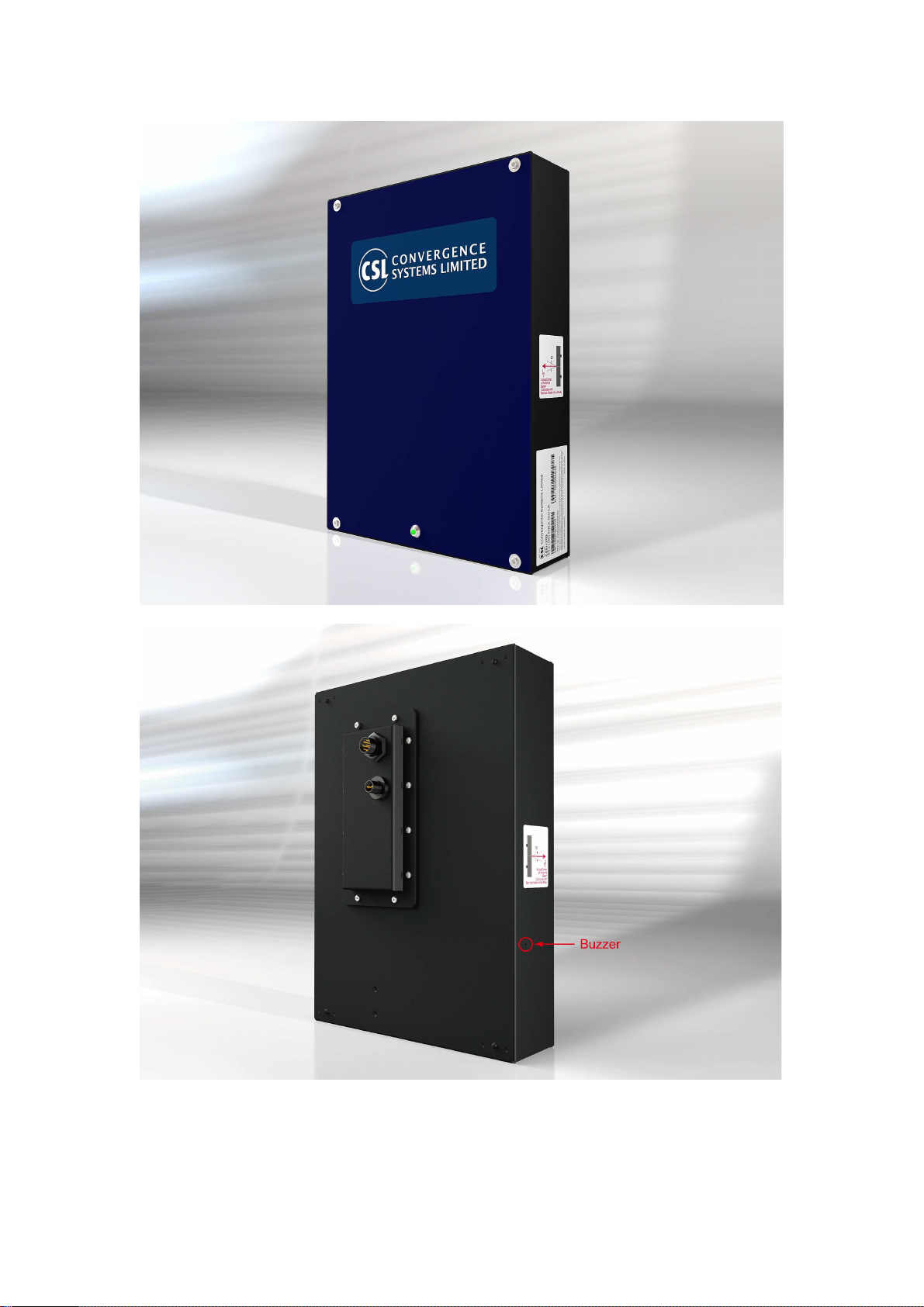

CS5113TD Reader with Ethernet Bridge
CS5114TD Reader with Ethernet Bridge

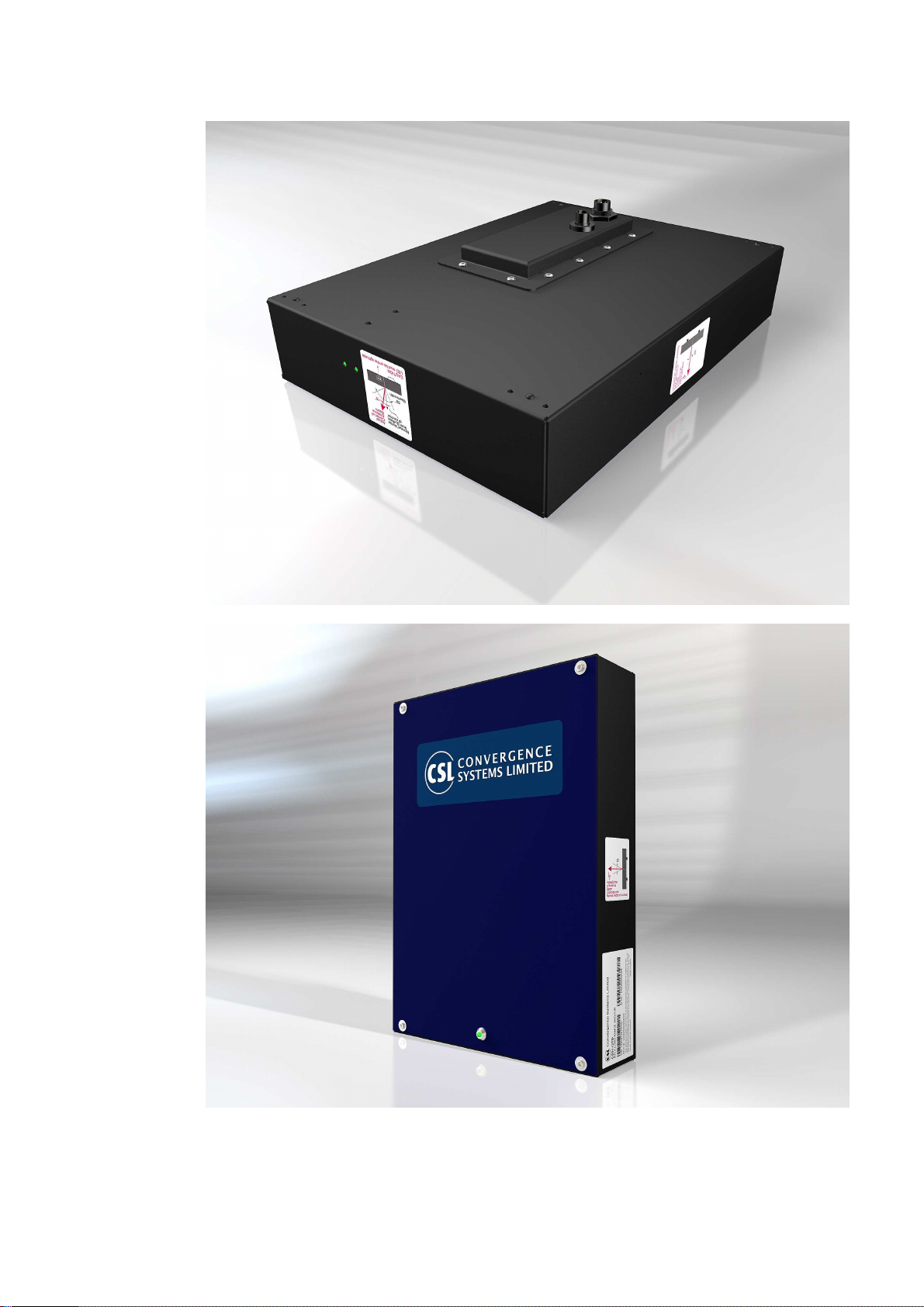

CS5116TD Reader
CS5118TD Reader with Ethernet Bridge

1

Table of Content

User Manual of CSL RTLS System...............................................................................1

Introduction..................................................................................................................3

1 System Component Description..........................................................................4

1.1 CS3151TC..................................................................................................4

1.1.1 Product Description .......................................................................4

1.1.2 Installation Procedure ....................................................................4

1.1.3 Product Specification.....................................................................5

1.1.4 Antenna Properties.........................................................................5

1.2 CS5111TD/CS5112TD ..............................................................................7

1.2.1 Product Description .......................................................................7

1.2.2 Installation Procedure ....................................................................9

1.2.3 Product Specifications .................................................................10

1.2.3.1 CS5111TD Product Specifications ..............................................10

1.2.3.2 CS5112TD Product Specifications..............................................11

1.3 CS5113TD/CS5114TD ............................................................................12

1.3.1 Product Description .....................................................................12

1.3.2 Installation procedure...................................................................14

1.3.3 Product Specifications .................................................................15

1.3.3.1 CS5113TD Product Specifications..............................................15

1.3.3.2 CS5114TD Product Specifications..............................................16

1.4 CS5118/CS5116.......................................................................................17

1.4.1 Product Description .....................................................................17

1.4.2 Installation procedure...................................................................17

1.4.3 CS5118/CS5116 Product Specifications......................................18

1.4.3.1 CS5118 Product Specifications....................................................18

1.4.3.2 CS5116 Product Specifications....................................................19

2

Introduction

The CSL RTLS solution is based on the application of time of arrival technology.

In the RTLS, an anchor is the device installed in a known position inside a zone,
normally, at the corners of the zone. The moving tag inside the zone can measure the
range to each anchor so as to obtain its absolute position inside the zone.

Tag

A Zone

Anchor

AnchorAnchor

Anchor

In a minimum system, 4 anchors – 3 slave anchors CS5111TD/CS5112TD and 1
master anchor CS5113TD/CS5114TD- are installed in a zone. However, the more the
anchors are installed, the higher the accuracy of the tag position to be obtained.
The accuracy of positioning is +/-1 meter.

3

1 System Component Description

1.1 CS3151TC

1.1.1 Product Description

CS3151TC is a battery-operated active RFID tag. Three AAA size primary
batteries ( either alkaline or lithium/Iron Disulfide )or Ni-MH rechargeable
batteries can be installed for normal function.

CS3151TC is designed so that it can be attached to the tracking assets or simply
hanging on the moving objects, depending on the applications. There are four
holes on the corners of the tag housing that can allow the tag to be bolted firmly
on the asset. Both of the facets have light indicators so either face can be attached
to the asset.

1.1.2 Installation Procedure

When batteries are initially installed, CS3151TC tags will be in listening
mode. In this mode, the CS3151TC tags will listen to the commands from
CS5113TD/CS5114TD master anchor for configuration.
Once configuration is completed, CS3151TC is in the operating mode and
ready for RTLS tracking.

4

Plastic sealed enclosure: 36 mm x 36 mm x 12 mm;

CSL RTLS Protocol, orderly inventory method to handle

1.1.3 Product Specification

Specifications:
Physical
Characteristics:
Read Range: Up to 100 meters depending on reader power
Frequency: 2400-2483 MHz ISM license-free band
Environment:

Technology: CHIRP
Output RF Power:
Ranging Method: Time Of Arrival (TOA)
Ranging Accuracy:
Protocol:

Battery: Internal rechargeable Li Polymer battery
Order Code: CS3151TC

Weight 17 g (without wrist strap), 30 g (with wrist strap)

Operating Temp: -40°°°°C to 65°°°°C (-40°°°°F to 149°°°°F)
Storage Temp: -40°°°°C to 85°°°°C (-40°°°°F to 185°°°°F)
Humidity: 0% to 95% RH non-condensing

2 dBm EIRP

+/- 1 meter

large tag population

1.1.4 Antenna Properties

CS3151TC employs two miniaturized SMD antennas for effective RF
transmission and reception. The antenna properties are as below :

Electrical Items Specifications

Model 3030A5887-01
Type of antenna SMD chip type
Frequency range 2400MHz – 2500MHz
Nominal impedance 50 ohm
Polarization Linear
V.S.W.R 1.5 typically, mounting on CS3151TC
Gain 2dBi typically, mounting on CS3151TC

Mechanical Items Specifications

Dimension in millimeter 12.8(L) x 3.9(W) x 1.1(H)
Weight 0.1gram

5
