User Manual of CSL RTLS System
CS3151BB2 Tag
CS5111LP Reader
CS5113LP Reader with Ethernet Bridge
1
FCC Statement
FCC NOTICE: To comply with FCC part 15 rules in the United States, the system must
be professionally installed to ensure compliance with the Part 15 certification. It is the
responsibility of the operator and professional installer to ensure that only certified
systems are deployed in the United States. The use of the system in any other
combination is expressly forbidden.
2
Table of Content
User Manual of CSL RTLS System...............................................................................1
Introduction..................................................................................................................4
1 System Component Description..........................................................................5
1.1 CS3151BB2 ...............................................................................................5
1.1.1 Product Description .......................................................................5
1.1.2 Installation Procedure ....................................................................5
1.1.3 Product Specification.....................................................................6
1.1.4 Antenna Properties.........................................................................6
1.2 CS5111LP ................................................................................................10
1.2.1 Product Description .....................................................................10
1.2.2 Installation Procedure ..................................................................10
1.2.3 Product Specifications .................................................................11
1.3 CS5113LP................................................................................................12
1.3.1 Product Description .....................................................................12
1.3.2 Installation procedure...................................................................12
1.3.3 Product Specifications .................................................................13
3
Introduction
The CSL RTLS solution is based on the application of time of arrival technology.
In the RTLS, an anchor is the device installed in a known position inside a zone,
normally, at the corners of the zone. The moving tag inside the zone can measure the
range to each anchor so as to obtain its absolute position inside the zone.
Tag
A Zone
Anchor
AnchorAnchor
Anchor
In a minimum system, 4 anchors – 3 normal anchors CS5111LP and 1 master anchor
CS5113LP- are installed in a zone. However, the more the anchors are installed, the
higher the accuracy of the tag position to be obtained.
The accuracy of positioning is +/-1 meter.
4
1 System Component Description
1.1 CS3151BB2
1.1.1 Product Description
CS3151BB2 is a battery-operated active RFID tag. Rechargeable Lithium
Polymer batteries are installed for normal function. Charging interface is a micro
USB connector.

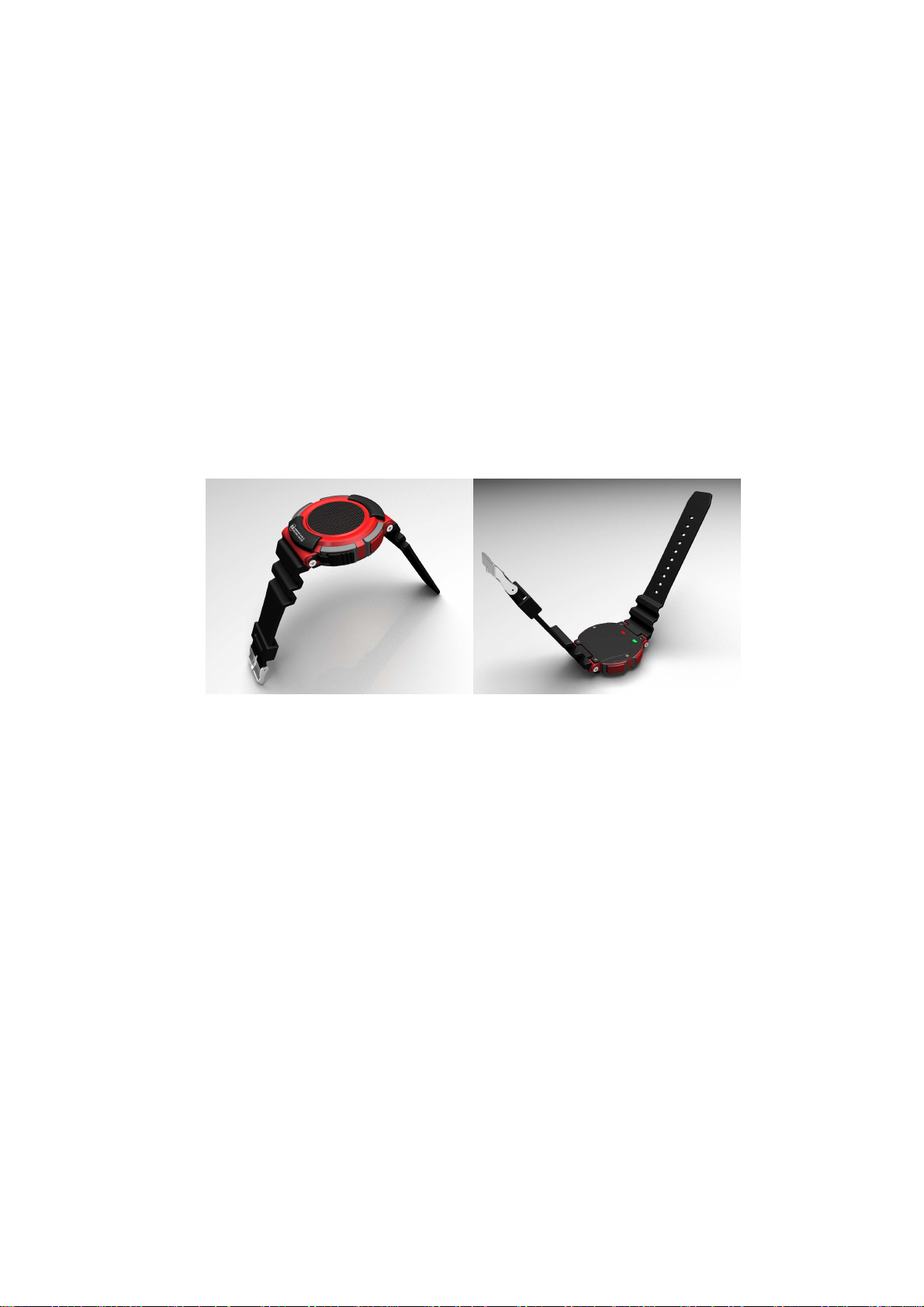

CS3151BB2 are designed so that they can be worn on the wrist of human body to
track the postion of the moving object. There is a button at the front panel of the
tag for various emergency applications. Light indicators are located on the bottom
side.
1.1.2 Installation Procedure
Batteries are preinstalled in factory. When the batteries are recharged, or
when the tag is plugged into the charger, CS3151BB2 tag will be in listening
mode. In this mode, the CS3151BB2 tags will listen to the beacons from
CS5113LP master anchor and commence registration .
Once registration is completed, CS3151BB2 is in the operating mode and
ready for RTLS tracking.
5
sealed enclosure: 36 mm x 36 mm x 12 mm;
orderly inventory method to handle
1.1.3 Product Specification
Specifications:
Physical
Characteristics:
Read Range: Up to 100 meters depending on reader power
Frequency: 2400-2483 MHz ISM license-free band
Environment:
Technology: CHIRP
Output RF Power:
Ranging Method: Time Of Arrival (TOA)
Ranging Accuracy:
Protocol: CSL RTLS Protocol,
Battery: Internal rechargeable Li Polymer battery
Order Code: CS3151BB2
Plastic
Weight 17 g (without wrist strap), 30 g (with wrist strap)
Operating Temp: -40°°°°C to 65°°°°C (-40°°°°F to 149°°°°F)
Storage Temp: -40°°°°C to 85°°°°C (-40°°°°F to 185°°°°F)
Humidity: 0% to 95% RH non-condensing
2 dBm EIRP
+/- 1 meter
large tag population
1.1.4 Antenna Properties

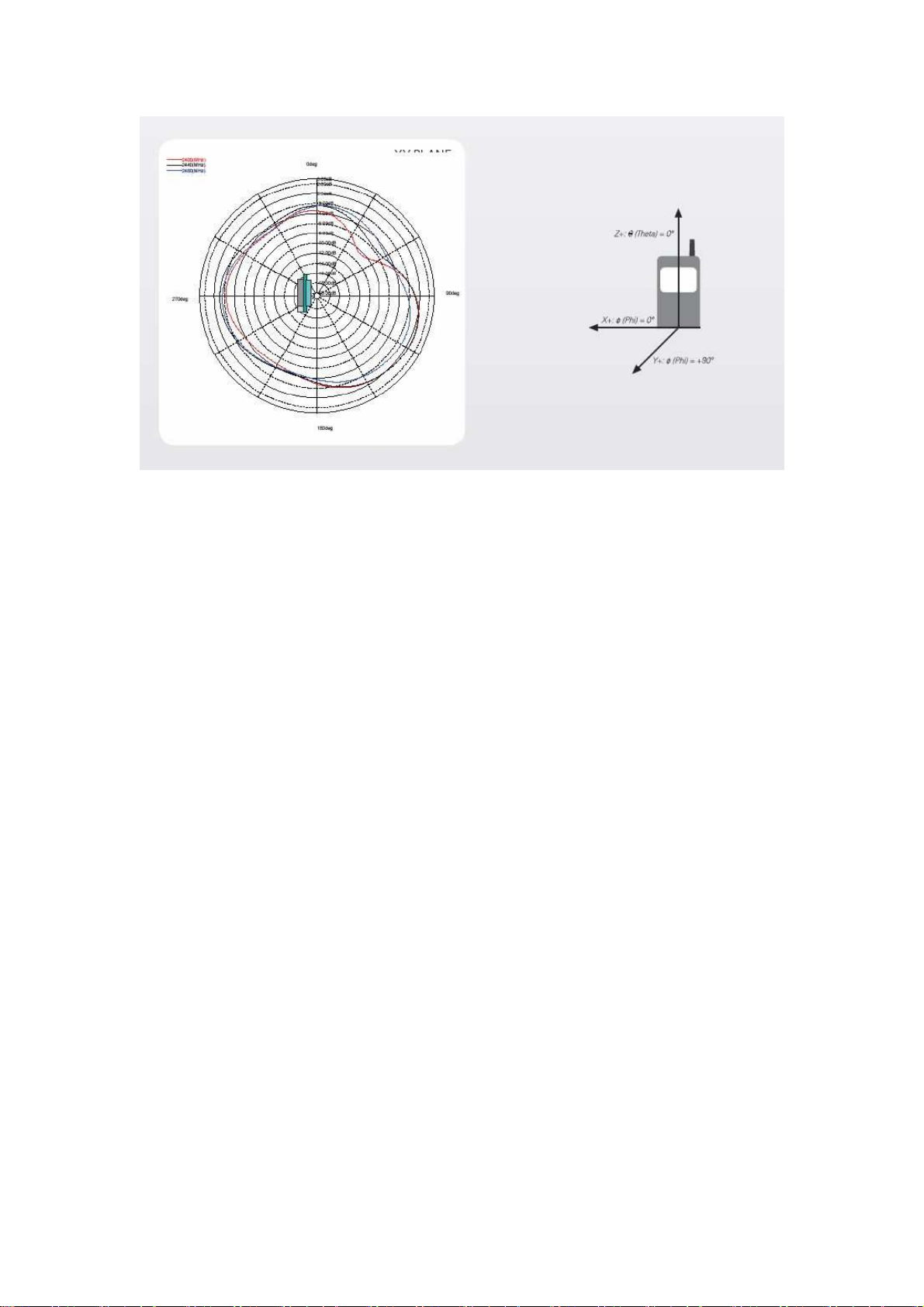

CS3151BB2 employs two miniaturized SMD antennas for effective RF
transmission and reception. The antenna properties are as below :
Antenna 1 :
Electrical Items Specifications
Model 3030A5887-01
Type of antenna SMD chip type
Frequency range 2400MHz – 2500MHz
Nominal impedance 50 ohm
Polarization Linear
V.S.W.R 1.5 typically, mounting on CS3151BB2
Gain 2dBi typically, mounting on CS3151BB2
Mechanical Items Specifications
Dimension in millimeter 12.8(L) x 3.9(W) x 1.1(H)
6
Weight 0.1gram
7
Antenna2 :
Electrical Items Specifications
Model W3108
Type of antenna SMD type
Frequency range 2400MHz – 2500MHz
Nominal impedance 50 ohm
Polarization Linear
V.S.W.R 1.5 typically, mounting on CS3151BB2
Gain 1.5dBi typically, mounting on
CS3151BB2
Mechanical Items Specifications
Dimension in millimeter 5(W) x 2.5(L) x 5.5(H)
Weight 0.14gram
8
9
1.2 CS5111LP
1.2.1 Product Description
CS5111LP is the RTLS anchor( or reader). It integrates the high gain 2.4GHz
ISM band antenna and the electronics PCB into one housing for robustness
and easy installation. CS5111LP is designed to be mounted at the back panel.
1.2.2 Installation Procedure
CS5111LP can be fed with DC voltage ranges from 12V to 34Vdc. The dc
plug is 2.5mm locked type. CS5111LP is fully programmed and ready for
normal operation once power is on. No extra configuration procedure is
required.
10
1.2.3 Product Specifications
11
1.3 CS5113LP
CS5113LP is the RTLS master anchor( or reader). It integrates the high gain
2.4GHz ISM band antenna and the electronics PCB into one housing for
robustness and easy installation. CS5113LP has Ethernet connectivity
function to communicate with the server application. CS5113LP is also a
POE PD that can allow it to be powered through IEEE 802.3 certified PSE.
CS5113LP can be fed with DC voltage ranges from 12V to 34Vdc. The dc
plug is 2.5mm locked type. Once powered on, CS5113LP is ready to
communicate with server through Ethernet port for configuration and RTLS
functions.
CS5113LP can also be powered by a IEEE802.3 certified PSE. When the
POE is in function, the DC adapter should be unplugged from the DC jack.
1.3.1 Product Description
1.3.2 Installation procedure
When connected to the server via Ethernet connection, Shielded-FTP
Ethernet cables should be used to for optimal performance.
12
1.3.3 Product Specifications
13
