Convergence Systems CS3151AAA User Manual

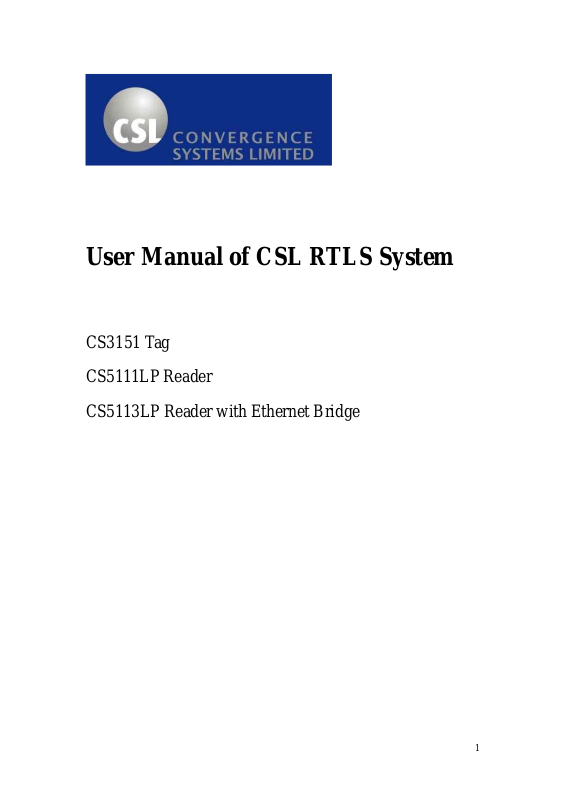

User Manual of CSL RTLS System

CS3151 Tag
CS5111LP Reader
CS5113LP Reader with Ethernet Bridge

1

Table of Content

User Manual of CSL RTLS System...............................................................................1

Introduction..................................................................................................................3

1 System Component Description..........................................................................4

1.1 CS3151.......................................................................................................4

1.1.1 Product Description .......................................................................4

1.1.2 Installation Procedure ....................................................................4

1.1.3 Product Specification.....................................................................5

1.1.4 Antenna Properties.........................................................................5

1.2 CS5111LP ..................................................................................................7

1.2.1 Product Description .......................................................................7

1.2.2 Installation Procedure ....................................................................7

1.2.3 Product Specifications ...................................................................7

1.3 CS5113LP..................................................................................................8

1.3.1 Product Description .......................................................................8

1.3.2 Installation procedure.....................................................................8

1.3.3 Product Specifications ...................................................................9

2

Introduction

The CSL RTLS solution is based on the application of time of arrival technology.

In the RTLS, an anchor is the device installed in a known position inside a zone,
normally, at the corners of the zone. The moving tag inside the zone can measure the
range to each anchor so as to obtain its absolute position inside the zone.

Tag

A Zone

Anchor

AnchorAnchor

Anchor

In a minimum system, 4 anchors – 3 normal anchors CS5111LP and 1 master anchor
CS5113LP- are installed in a zone. However, the more the anchors are installed, the
higher the accuracy of the tag position to be obtained.
The accuracy of positioning is +/-1 meter.
