LEK
LEK
Installation
Instruction
C 450
C 450T
www.contura .eu
Installation Instruction 1
Istruzioni di montaggio 16
Guide d’installation 32
Installationsanleitung 48
GB
IT
FR
DE
GB
PRODUCT
Product type Stove lit with solid biofuels
Type designation Contura 450 / 450T
Manufacturing number See rating plate on the stove
Intended area of use Heating of rooms in residential buildings
Fuel Wood
MANUFACTURER
Name NIBE AB / Contura
Address Box 134, Skulptörvägen 10
SE-285 23 Markaryd, Sweden
CHECKS
According to AVCP System 3
European standard EN 13240:2001 / A2:2004
Test institute Rein-Ruhr Feuerstätten Prüfstelle, NB 1625,
has checked declared performance and issued test report no. RRF-40 05 932
PERFORMANCE DECLARATION
No. C450-CPR-130605-SE-1
DECLARED PERFORMANCE
Essential characteristics Performance Harmonised technical
specification
Reaction to fire A1 WT
Minimum distance to combustible material 100 mm to rear
500 mm to side
Other safety distances according to
the installation instructions
Risk of falling embers Approved
Emissions from combustion CO 0.12%
NOx 25 mg/m
3
OGC 84 mg/m3
PM 67 mg/m
3
Surface temperatures Approved
Cleaning options Approved
Mechanical durability Approved
Emissions of hazardous substances Approved
Nominal output 7 kW
Efficiency 80%
Flue gas temperature in connector at nominal
output
255°C
EN 13240:2001 / A2:2004
The undersigned is responsible for the manufacture and conformity with the declared performance.
Niklas Gunnarsson,
Business area manager NIBE STOVES
Markaryd, 1st July 2013
Contents
Technical details 2
Installation distances to walls and ceiling 3
Air supply 4
Unpacking 5-6
Fitting the fire-box surrond 7
Installing the heat-retaining blocks 8
Top flue connection to steel chimney 9-10
Rear flue connection to masonry chimney 11
High-level rear flue 12-13
Installing the decorative border 14
Fitting extra side panels 14
How to use the stove 15
A warm welcome to Contura
A warm welcome to the Contura family. We hope you
will get a great deal of pleasure from your new stove.
As a new owner of a Contura stove, you have secured
a product with timeless design and long service life.
Contura also has a combustion process that is both
environmentally friendly and efficient, for the best heat
production.
Read through these installation instructions carefully
before installation. Read how to best light your stove
in the lighting instructions.
WARNING!
The stove becomes very hot
During operation, certain surfaces of the stove become
very hot and can cause burn injury if touched. Also,
take heed of the strong heat radiated through the door
glass. Placing flammable material closer than the safe
distance indicated may cause a fire. Smoulder combustion
can cause quick gas ignition with the risk of damage to
property and personal injury.
NOTE!
Report the installation of a stove to your
local authority.
The owner of the house is personally responsible
for ensuring compliance with the mandatory safety
requirements and must have the installation approved
by a qualified inspector. Your local chimney sweep
must also be informed about the installation as this
will affect the routines for regular chimney-sweeping
services.
GB
2
GB
Building permission
It may be necessary for you to apply for building permission from
your local planning authority
before installing a stove or erecting a chimney. Before start ing
installation work, make sure that you check which regulations apply.
Structural support
Check to make sure that the floor is strong enough to support the
weight of the stove and chimney. If you intend to locate the stove on
standard wooden floor joists, contact a professional builder to make
sure that the construction will withstand the load. If the total weight
does not exceed 400 kilos, it is not usually necessary to reinforce the
joists.
Floor plate
To protect the floor from sparks and falling embers the stove must
stand on a non-combustible surface which extends at least 300 mm
in front of the stove and 100 mm along each side. As other statutory
requirements apply in some countries, we recommend that you
consult the relevant authority or an authorised chimney-sweep in
your area.
Chimney
The draught in the chimney must generate a neg ative pressure of at
least 12 Pa. The draught is affected both by the length and crosssectional area of the chimney, and by how well sealed the construction
is. The shor test recommended chimney length is 3.5 metres. The
cross-sectional area of the chimney must be approximately 150–200
cm² (140–160 mm in diameter).
Make sure that there are no gaps around soot hatch es and flue-pipe
connections.
Remember that the draught is reduced in flues with sharp bends or
horizontal sections. A horizontal flue length of up to 1.0 metre is
permissible, provided that the vertical flue is at least 5.0 metres in
height.
It must be possible to clean the flue throughout its entire length, and
the soot hatches must be easily accessible.
LEK
R khylla
Rostertallrik
Gjutgodsbotten
T ckbitar
Sockel
Brasbegr nsare
Askl da
T ljsten
Eldstadsbekl dnad
Pl tprofiler
Fire-box surround
Plinth
Fire-bars
Ash-pan
Smoke baffle
Grate disc
Cast-iron fire-bed
Cover strips
Sheet metal profiles
Soapstone
Technical details
Output 3-9 kW
Efficiency, up to 80%
Weight C 450 164 kg
Weight C 450T 182 kg
Stove width 640 mm
Depth 550 mm
Height 1195 mm
Connecting sleeve (int.) 150 mm dia.
Approved in accordance with the following standards:
European standard EN-13240 class 1
Swedish environmental and qualit y certification,
“P marked” cer t. no. 22 03 07
Norwegian standard NS 3059, certificate no. 043-088
German standard DIN 18.891, RO-91 99 84
Danish standard 887-1, id nr 598
General information
This folder contains instructions on how to assemble and install
stoves in the Contura 450. To guarantee the function and safety
of the stove we recommend that it is installed by a professional.
Our Handöl agents can recommend a suitable installer. The
stove also comes with comprehensive Lighting and Maintenance
Instructions. Please take time to read all this information
carefully and keep it in a safe place for future reference.
The stove meets with the requirements which allow it to be
connected to a chimney with gas temperatures of 350°C. The
connecting sleeve has an external diameter of 150 mm.
To ensure proper combustion, sufficient air must be supplied to
the stove from outdoors.
3
GB
50
50
195
720
Fire-retardant wall of
brick or concrete
270 270
640
1600
300
Min. 2100
2630
1050
Air inlet Ø64
ca 1810
490
550
265
370
1195
360
940
300
ca 1610
2050
1050
Air inlet Ø64
535
*395
452
*312
240
*100
240
*100
910
*770
Air inlet Ø64
Combustible wall
*Only permissible with extra side window. Please see page 14.
50
50
105
Fire-retardant wall of
brick or concrete
365
100
250
450
*305
770
*625
Air inlet Ø64
Combustible wall
Important. An extra side window with a heat-reflect ing
surface must be fitted when placing the stove in a corner with
combustible wall materials or against a wall with a gap of only 300
mm to combustible materials.
Air inlet Ø64 mm
Min 2100 mm to ceiling
Lay the floor plate against the wall. Stand the stove on the plate.
Measure to make sure that the stove is no closer to the wall than the
minimum distances specified in the diagrams below. Allow at least
800 mm from the stove door to any combustible part of the building
structure or interior fittings.
Air inlet Ø64 mm
Installation distances to walls and ceiling
4
GB
Combustion air for the stove can be supplied through a duct
directly from outside, or indirectly through a vent in the wall of
the room where the stove is installe d. The amount of combustion
air used for combustion is approximately 25 m³/h.
The drawings below show a number of ways in which the stove
can be supplied with air.
The air duct connection on the stove has an external diameter
of 64 mm.
Important!
To prevent condensation in air ducts which pass through heated
areas, the duct must be insulated with 30 mm of mineral wool
covered with aluminium tape.
It is important to seal carefully around the duct where it passes
through the wall or floor. Use
jointing compound. For ducts longer than 1 metre, the diameter
must be increased to 100 mm and the size of the air vent
increased correspondingly.
Through the external wall.Indirect air supply through the external wall.
LEK
Through the floor and foundation slab.Through a suspended floor/wall-and-cavity
foundation.
LEK
LEK
LEK
30 mm
Air supply
5
GB
LEK-98
Lift and transport the stove as shown in the sketch.
Loosen the two bottom screws at the
back of the stove to remove the plinth by
sliding it forward.
LEK
LEK
Loosen the screw as illustrated. Then lift up the upper rear panel to separate it from the lower
section of the panel.
Important!
Unscrew the plinth and remove the transport lugs before lifting
the stove off the delivery pallet.
The cast-iron door and fire-bed may be removed
to make the stove lighter and easier to move.
If the stove has soapstone in the hood, remove
this as shown in the diagram on page 8. Remove the plastic film
carefully. (Sharp objects can
damage the lacquered finish.)
Unpacking
LEK
LEK
6
GB
Remove the cast-iron cover strips under the side windows.
Remove the grate disc by lifting up the edge opposite the draught
control fitting.
Lift the cast-iron fire-bed at one side and tilt it so that it
can be removed through the door opening.
max 7 cm
To lift off the door, open it just enough for it to move clear of the
edge of the stove hood. Lift the door upwards until it disengages
from the lower hinge.
Ease the bottom of the door slightly sideways until it
clears the hinge pin. Lower the door to disengage it
completely.
LEK
Unscrew the metal brackets from the rear edge of the side
windows.
7
GB
LEK
Unscrew the metal brackets from the rear edge of the side
windows.
Fitting the fire-box surround
Remove the cast-iron cover strips below the side windows.
LEK
Fit the rear fire-brick.
Fitting the smoke baffle
Raise the folded front edge of the smoke baffle up over the side pegs.
Then lift the rear edge of the baffle up over the vermiculite holder.
IMPORTAN T!
When correctly placed on top of the supporting pegs, the baffle slopes
upwards from the back to the front.
Stödtapp, sida Vermiculitehållare
LEK
Vermiculitehållare
LEK
Slot the two front fire-bricks. Screw the retaining brackets back
into place and replace the cover strips.
Vermiculite holder
Side peg Vermiculite
holder
8
GB
Contura 450
Place the six olivine blocks on the ledge as shown. Lift the blocks
into place, one by one, through the gap above the stove door.
Contura 450T
Carefully remove the soapstone panels from the hood and place
the five olivine blocks as shown. Use the screws against which
the back edge of the soapstone panels rest to adjust the level
of the soapstones in relation to the hood. Carefully replace the
soapstone panels. Use the screws that support the soapstones
from below to make sure that the soapstones are positioned
straight and are properly centred.
Handle the stones with care!
Please bear in mind that soapstone is a fragil e material and
must be handled with care. Any surfac e marks may be removed
with soapy water or undilute d acetone.
Installing the heat-retaining blocks
LEK
10
10
10
10
LEK
!
Sharp edges.
Use protective gloves.
9
GB
LEK
Startrör
Avtätningsplåt
Isoleringsskiva
Övre startrör
Stoppbricka
Övergångsisolering
Skorstensmodul
Chimney module
Stop washer
Insulating panel
Upper start pipe
Sealing plate
Start pipe
Transitional insulation
When connecting the stove to a steel chimney, always refer
to the installation instructions supplied by the chimney
manufacturer. The size of the hole in the ceiling through which
the chimney passes must be adapted to the dimensions of the
chimney shaft itself and to the mandatory “safe distances” to
combustible materials in each individual instance. The sketches
below show the required gap betwee n the chimney and any
combustible material. The stove can support a maximum
chimney weight of 250 kilos. However, we strongly recommend
that you check with the building and planning department of
your local authority to make sure that local buildin g regulation s
permit a steel chimney to rest on a stove.
380
380
380
380
440
440
When the ceiling is flat, the hole in the ceiling must measure
380x380 mm in size and be cut so that it emulates the angle of
the stove, both for installations against a straight wall and in
corners.
When the ceiling slopes and the stove is placed in a corner, the
hole in the ceiling must measure 440x440 mm in size and be cut
parallel to the walls.
380
380
380
380
380
380
Sloping ceiling in corners Flat ceiling
Fit the flue-base (the start-section of flue pipe) to the connecting
sleeve on the stove. Make sure that the seal round the collar is not
dislodged. If further sealing material is required, heat-resistant
sealant may be used.
When using a Premodul chimney system, attach the sealing plate
and insulating panel to the start pipe. Cut out the knockout from
the sealing plate and fold the four tabs down slightly. Move the
upper start pipe down through the sealing plate with all four tabs
trailing against the outside of the pipe. Insert the upper start pipe
down in the start pipe and check that the four tabs are against the
outside of the upper start pipe and on the upper edge of the start
pipe (see enlarged image). Install the insulating panel, stop washer,
transitional insulation and chimney module.
For different chimney systems, the sealing plate can be screwed to
the rear panel and the insulating panel laid on top.
Top flue connection to a steel chimney
10
GB
Screw the ceiling insulation plate into place leaving a gap of 5–6 mm to the chimney
hood. Make sure that the plate fits tight up against the ceiling. Press the rubber
sealing strip into place in the gap between the plate and the top of the chimney
hood. Seal, and lay the insulating blocks at the bottom of the chimney shaft on top of
the ceiling insulation.
Spalt 5-6 mm
LEK
Gap 5–6 mm
LEK

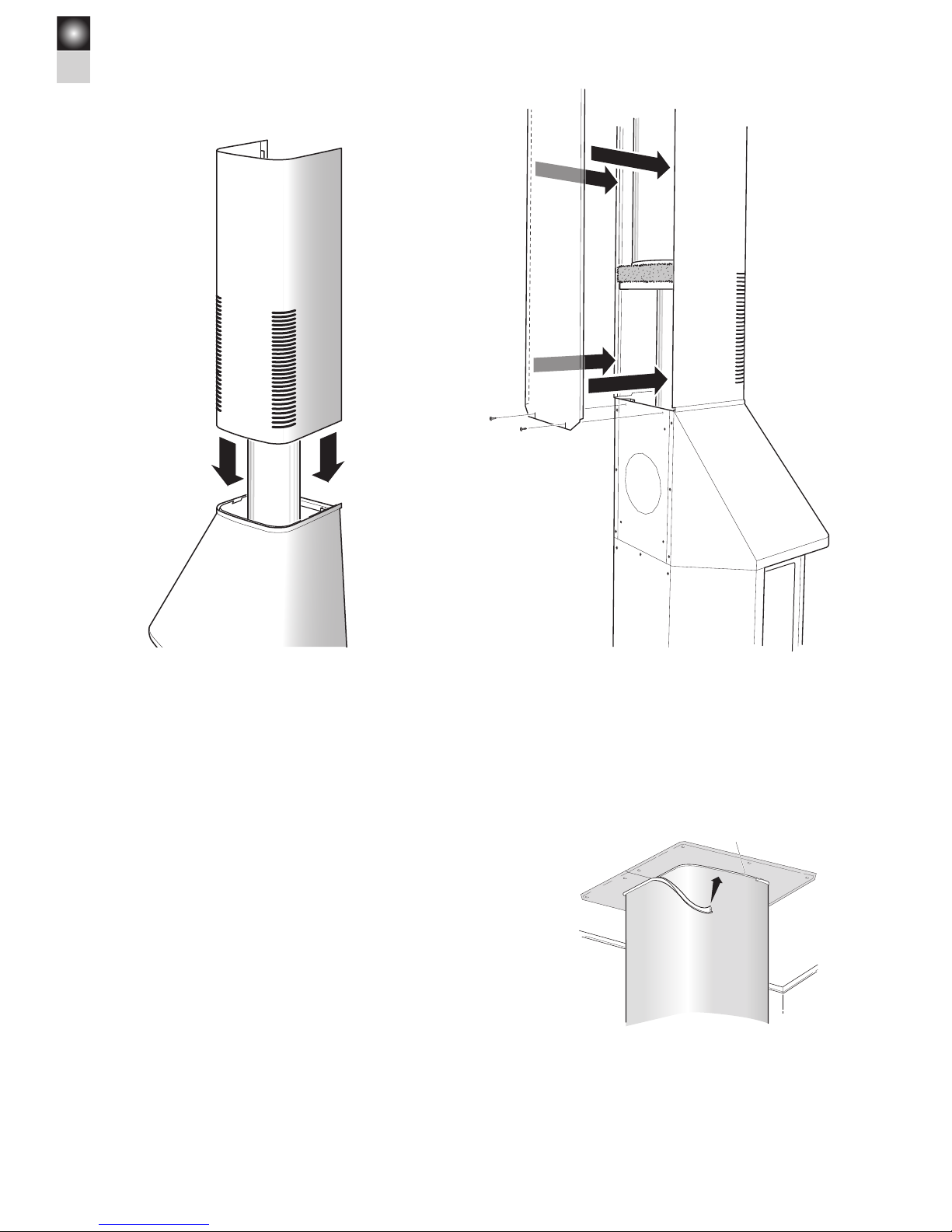

Fit the rear chimney panel by slotting the folded edges into the
grooves on the chimney hood at the same time as you hook the
top edge into place. Screw the bottom edge of the panel into
place against the stove, as shown.
Assemble one or more chimney modules before fitting the
chimney hood into place. Lift the chimney hood up into the
chimney shaft and then slide it gently down into place over the
guides on the stove. Make sure that the insulating panel forms
a good seal around the chimney hood and prevents hot air from
rising up to the ceiling.
11
GB
Mark out the centre of the hole to be made in the wall for a rear
flue connection. Make a hole at least 180 mm in diameter and then
secure the flue sleeve in the wall using heat-proof mortar (not
supplied).
Fit the hot-air vent over the guides on the stove hood.
Check the height to make sure that the hole aligns with the
chimney connection on the rear of the stove. Leave the mortar
to dry before connecting the stove to the flue.
Slide the connecting flue over the collar. Make sure that
the seal round the collar is not dislodged. If further sealing
material is required, heat-resistant sealant may be used.
Cut away the partly punched metal cover on the top section
of the rear panel. The stove has been prepared for top-flue
connection before delivery. For rear flue connections the collar
and cover need to exchange places.
LEK
Brytlock
Övre ryggplåt
Täcklock
LEK
LEK
LEK
Use sealing rope for a safe seal between the flue sleeve and the
connecting flue.
Covering cap for flue
Partly punched cover
Upper rear panel
Rear flue connection to masonry chimney
12
GB
Fit the flue sleeve as described on page 11. To determine the
right height for the hole in the wall, hold the connecting flue in
place against the stove.
LEK
Pannkitt
Pannkitt
Adapt the length of the connecting flue and push it into place
in the flue sleeve. Seal the joint between the sleeve and the
connecting flue with sealing rope.
Cut away the punched metal covers on the rear panel and the
sealing plate and then screw the rear panel and sealing plate
together.
Fix the rear panel securely to the back of the stove with screws.
Slide the connecting flue over the collar. Make sure that the seal
round the collar is not dislodged. If further sealing material is
required, heat-resistant sealant may be used. Place the insulating
piece on the sealing plate.
Heat-resistant sealant
Heat-resistant sealant
High-level rear flue
13
GB
2
1
LEK
LEK
Carefully ease the chimney hood into place on the stove hood,
inserting the pressed metal lugs on the rear panel into the slots
on the chimney hood.
Lock the rear panel in place by securing it as shown with the
retaining clips.
Finally place the soapstone tile on the top of the chimney hood.
It must be possible to remove the chimney hood to provide access
for cleaning. First remove the tile from the top of the chimney
hood. Then lift up the retaining clips and lift off the chimney hood.
14
GB
Hook the retaining brackets for the extra
windows into place on the stove body at
the top and bottom of the side window.
LEK
LEK
LEK
LEK
Fitting extra side panels
Slide the extra glass into place flush
against the rear panel.
Fold down the rim around the border by pulling it straight forward. Place the
soapstone tiles on the ledge as shown. The tiles may be left loose or fixed in place
with silicone (not supplied).
Installing the decorative border
15
GB
Roster
Förbränningsluft
LEK
ÖPPET
ÖPPET
Under normal conditions we recommend that the stove burns
2–2.5 kg of wood per hour. The maximum permissible amount
is 3–3.5 kg per hour. Most types of wood can be used, but wood
from deciduous (broad-leaf) trees is preferable, as this generally
burns more evenly. It is important that the wood is dry and that
logs are of a suitable size: about 25–35 cm long and 7–9 cm in
diameter. Always open and close the door slowly and carefully to
prevent the sudden changes in pressure inside the stove which
otherwise can cause a back-draught of smoke in the room.
1. Open the air supply control by moving the damper spindle to
the right.
2. Place newspaper or a firelighter in the fire box. Then stack
about 3–3.5 kg of fine-split logs on the fire-bed, laid in a
criss-cross pattern as shown.
3. Light the fire.
4. Push the door to, but do not close it until the fire is burning
well (after about 10–15 minutes).
5. Re-stoke the fire with 3 logs weighing about 2–2.5 kg in all.
Lay the first two diagonally over the embers and the third
one at an angle across the other two. To make sure the logs
catch fire quickly, leave the door slightly ajar until the logs are
blazing.
6. If you prefer your fire to burn more slowly, reduce the supply
of air to about half. Make sure,
however, that the fire burns with bright, flickering flames.
Pulling out the damper bar opens the grate disc. It is only
necessary to do this for a short time when
lighting or re-stoking the fire to ensure that the wood catches
light quickly, and when riddling the ash into the ash pan. If the
grate is left open for a long time, the stove and the chimney may
be damaged as a result of the excessive heat.
Important.
It is essential that the wood starts to burn quickly. Smouldering
produces excessive amounts of smoke and may, in exceptional
circumstances, cause the fumes produced to ignite
spontaneously and damage the stove. You can get the logs to
burn quickly by opening the grate disc for a short while after
re-stoking the fire, or by leaving the door open until the wood is
burning.
Important
Read through the separate instructions carefully before
lighting the stove for the first time.
Illustrations: Lars-Erik Karlsson
Grate
Air supply
OPEN
OPEN
How to use the stove
Cont ura reserv es the right t o change dimen sions and
proce dures desc ribed in thes e instruc tions at any
time wi thout speci al notice. Th e current ed ition can be
downloaded from www.contura. eu
NIBE AB · Box 134 · 285 23 Markaryd · Sweden
www.contura.eu
011035 IAV EX C450/C450T-11
2014-01-23
Loading...
