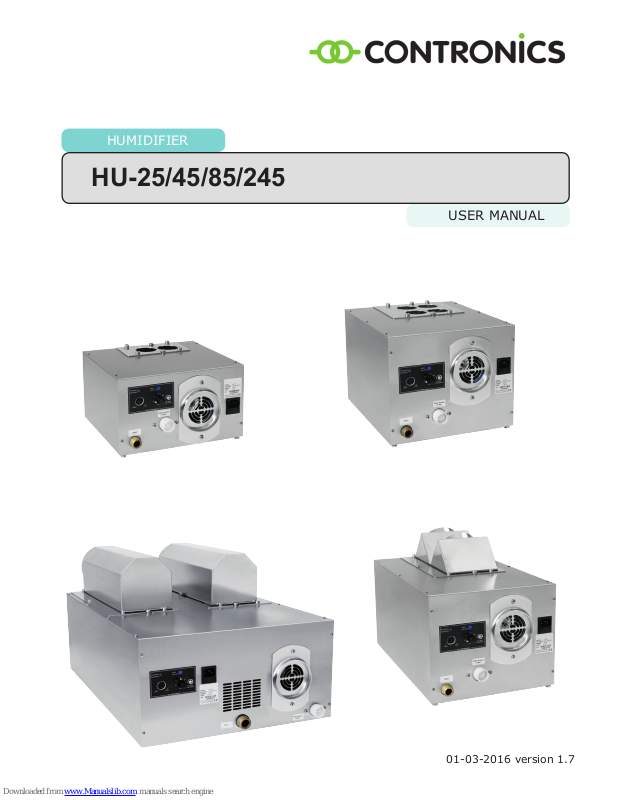

Contronics HU-25, HU-45, HU-85, HU-245 User Manual

01-03-2016 version 1.7

HUMIDIFIER

USER MANUAL

HU-25/45/85/245

2

Contronics Engineering B.V., Ambachtsweg 8, 5492 NJ Sint-Oedenrode, The Netherlands, hereby declares that products HU-25, HU-45, HU-85 and HU-245 produced and delivered by Contronics Engineering B.V., are in accordance with the following CE directives:

EMC-Directive : 2014/30/EU

Directive for low-voltage electrical installation : 2014/35/EU

3

HU-25/45/85/245

Table of contents

1. PREFACE �� 4

2. INTRODUCTION �� 5

3. SAFETY REGULATIONS �� 6

4. PACKING �� 6

5. CONNECTIONS AND FUNCTIONS �� 7

6. INSTALLATION INSTRUCTIONS �� 8

7. ELECTRICAL CONNECTIONS �� 9

8. WATER CONNECTIONS AND FLUSHING CYCLE �� 10

9. AIR CONNECTIONS �� 11

10. SWITCHING ON AND STARTING UP/FUNCTIONAL TEST �� 11

11. OZONE GENERATOR (OPTIONAL) �� 13

12. MAINTENANCE �� 14

13. MAINTENANCE OF THE OZONE GENERATOR (OPTIONAL) �� 14

14. REPLACING SPARE PARTS �� 15

15. APPLICATIONS OF THE HUMIDIFIER ��15

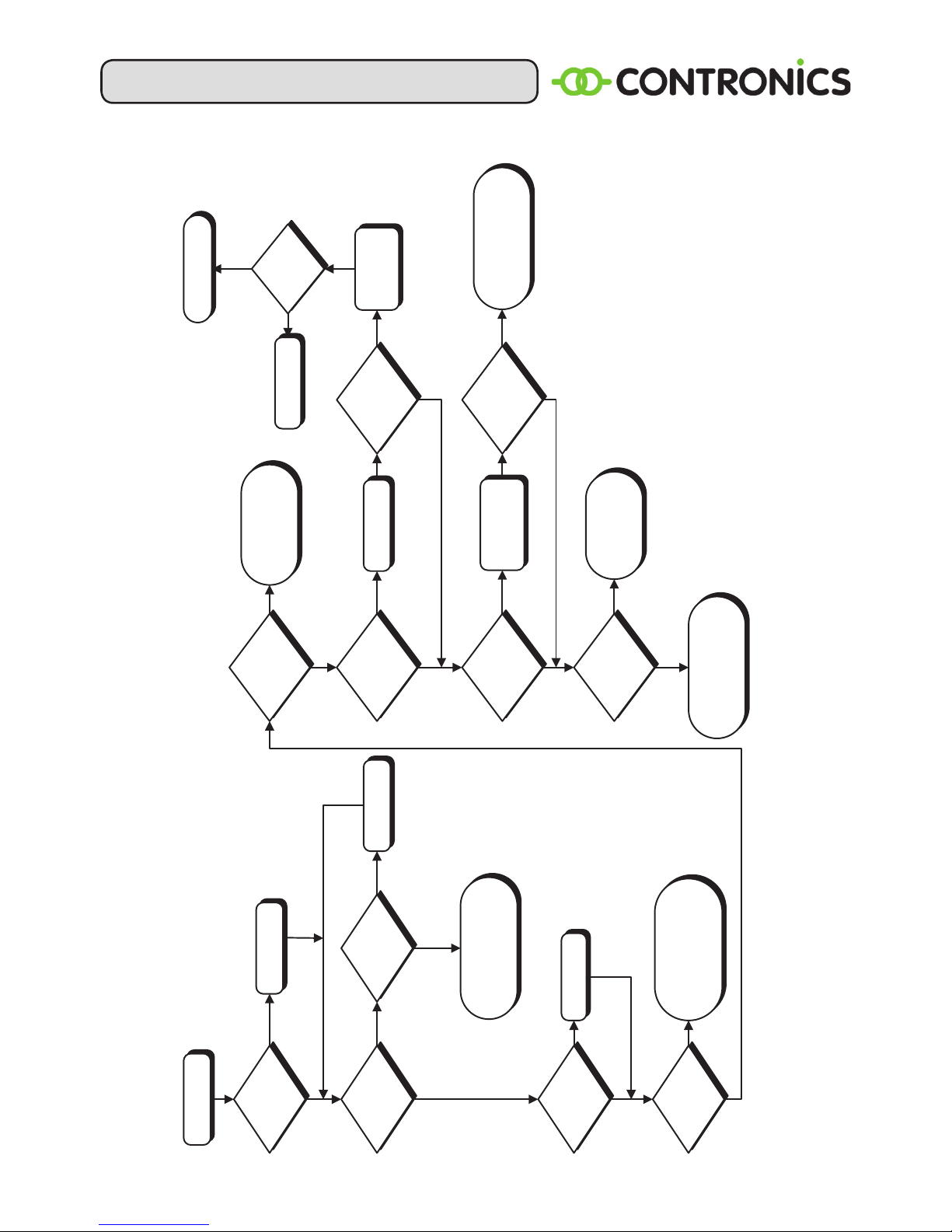

16. MALFUNCTIONS �� 16

17. TECHNICAL SPECIFICATIONS �� 17

HU-25/45/85/245

4

1. PREFACE

This user manual contains the operating, installation and maintenance instructions for

the ultrasonic humidier of types HU-25, HU-45, HU-85 and HU-245.

WARNING

It is possible that bacteria could be present in the humidier’s water supply. Some bacteria (Legionella) could be harmful to health if they are present in the aerosols that are blown out by the humidier.

Through the construction, ushing programme and materials used, Contronics has ensured that the stimulation of bacterial growth is kept to the absolute minimum. In order to ensure the supply of pure water, it is strongly recommended that demineralised water is used (see the Contronics product range). In conditions where bacterial pollution could occur in the surrounding air (e.g. at meat counters) or in areas where hot ambient air could arise (e.g. bakeries), it is also recommended to incorporate an ozone generator in the air supply system (see the Contronics product range). Contronics cannot be held liable for any harm caused by bacteria or micro-organisms. It is the responsibility of the user to regularly carry out maintenance and to check the quality of the supplied water.

IMPORTANT

Although the installation of this product may appear quite simple for experts, the manufacturer urges the installer to carefully read through the instructions

before starting to install the device.

5

HU-25/45/85/245

2. INTRODUCTION

Principle of ultrasonic air humidication

Minute water droplets with a size of 1 to 3 microns are ejected above the water surface

by means of high-frequency vibrations (1.7 MHz). The humidier’s air movement

system ensures that these water droplets are then blown into the area to be

humidied. The major advantages of this humidier are the very low energy

consumption, the limited amount of maintenance required and the low noise level.

Continuously-variable air humidity control (CVH)

The humidier has a dial with which the capacity can be regulated between 0 and the maximum per hour. If a humidity sensor has been connected to the humidier, the

desired humidity can be set between 35% and 95% using the same dial. The CVH

system will then control the humidity proportional to the set value. The humidier is

therefore continuously in operation and ensures that the relative humidity is maintained at the set value. Instead of controlling the humidity with a humidity sensor, it is also

possible to control the humidier externally (0-10V), for example by using the DZR-45 and HTR-10 controllers.

Capacity

There is no limit to the modular expansion of the HU and this can be carried out as and when needed. This means that an unlimited number of modules can be linked together to form one system, thus allowing the capacity to be increased. As a result of the very high frequency of 1.7 MHz, the water droplets are minute, causing them to evaporate

quickly and thereby cause less condensation in the humidier’s distribution pipes on their way towards the area to be humidied.

Water quality

Even though the humidier itself can be connected to plain tap water up to 8° German

hardness, Contronics recommends demineralised water. This will limit the maintenance of the device to a minimum and the service life of the transducer will be considerably extended.

Disinfection

For situations where bacterial purity is necessary (food industry) it is possible to connect an ozone generator. Contronics has an ozone generator in its delivery program.

HU-25/45/85/245

6

3. SAFETY REGULATIONS

4. PACKING

The HU is delivered in recyclable packaging that should be kept for re-shipping the unit for maintenance activities. Any shipment using other packaging could cause damage to the HU for which the manufacturer cannot be held liable.

It is possible that some traces of water could be found in the packaging; all the functions of the HU are thoroughly tested during the quality control and, for this reason, some water could still remain in the HU before it is packed.

The package contains:

- HU humidier.

- Power cord.

- Instructions for use.

IMPORTANT

The humidier has an open water tank. Any overow of the water tank could damage the electronics inside the humidier.

The following measures must always be observed:

- Always disconnect the 230 V mains voltage from the humidier before moving it and/or carrying out maintenance activities.

- Always keep the humidier horizontal and motionless while it is in operation and for up to 2 minutes afterwards.

- Ensure that the water is always discharged via the outlet and ensure that this is never blocked.

- The humidier may only be dismantled by authorized Contronics technicians.

7

HU-25/45/85/245

5. CONNECTIONS AND FUNCTIONS

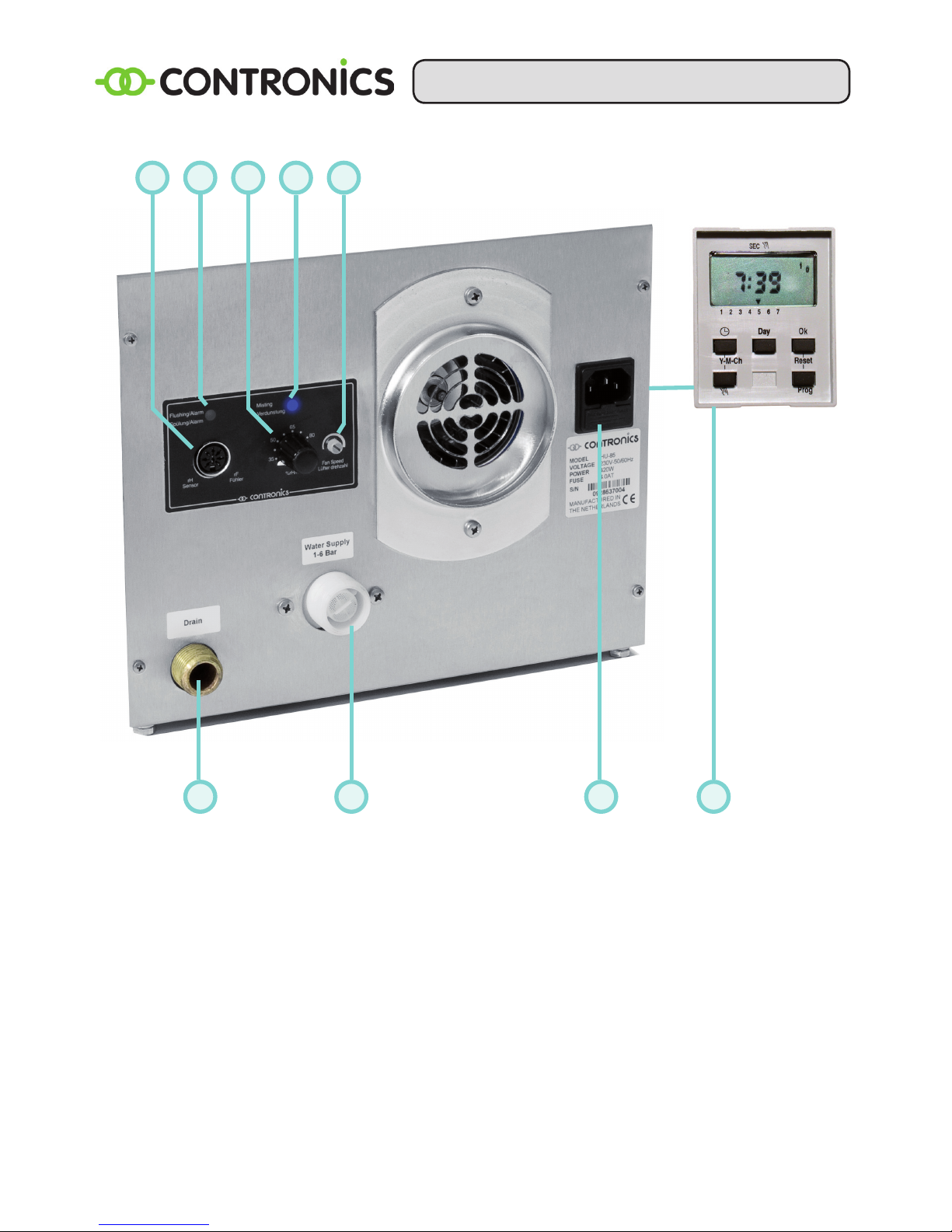

Figure 1 Connections and functions

1 Plug connection for HS-91, DZR-45, HTR-10 or HK-01 (external control 0-10 V).

2. LED for ushing and alarm.

3. Dial for setting the humidity.

4. LED for humidity setting.

5. Dial for setting the airspeed.

6. Water outlet 1/2” free ow-through. (HU-245: 3/4”).

7. Water supply 3/4”, min. 1 bar/max. 6 bar.

8. Mains connection + fuse (230 V± 10%/50-60 Hz).

9. Timer for programming of the ozone generator and humidier (OG option).

1 2 3

5

6 7 8 9

4

HU-25/45/85/245

8

6. INSTALLATION INSTRUCTIONS

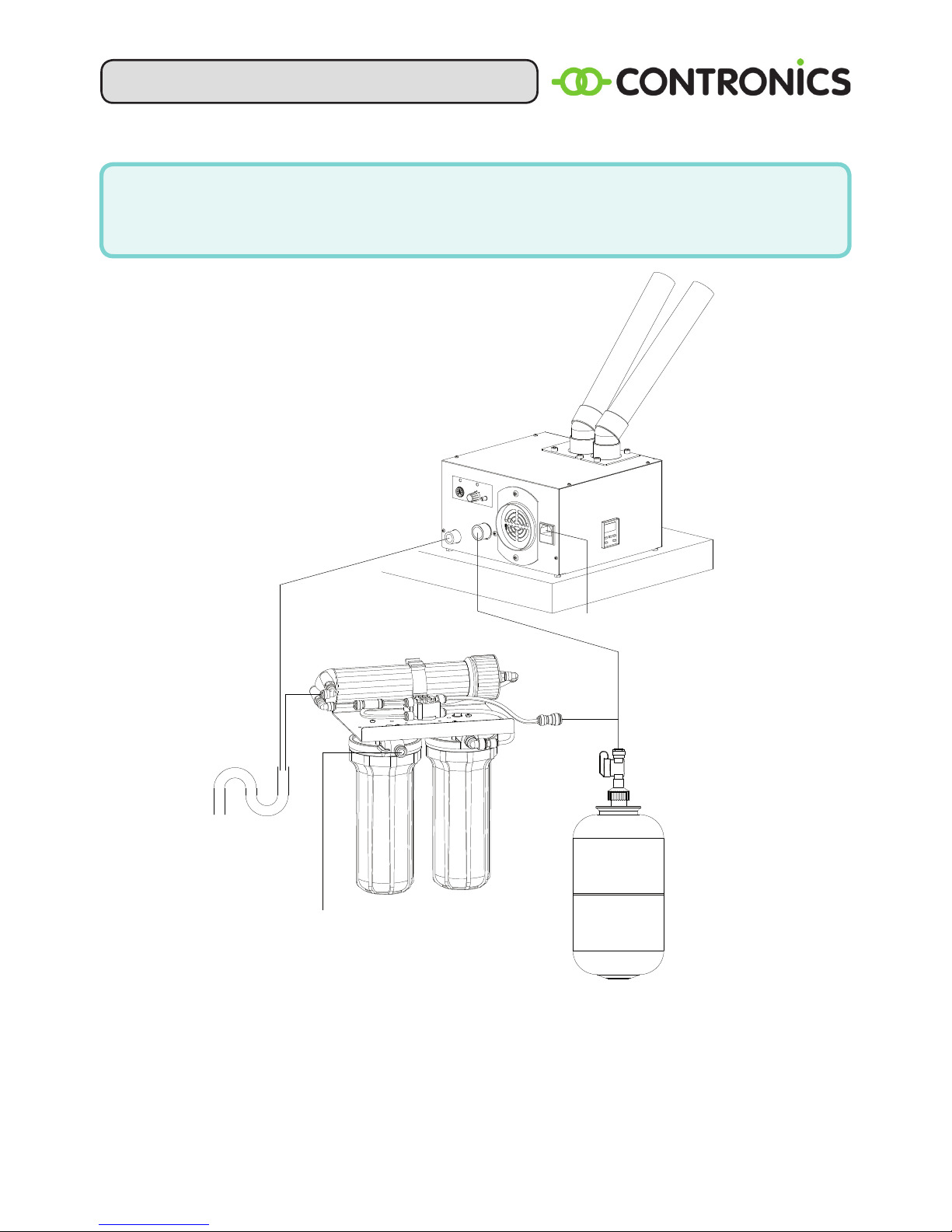

Figure 2 General set-up

1. Place the humidier in an environment with a temperature between 0°C and 35°C

and humidity < 100%.

2. Place the humidier in a level position (2-dimensional).

3. Never place the humidier on a closed tray with raised edges.

IMPORTANT

The guarantee will become void if the humidier is installed incorrectly or if it

is handled in an improper manner.

Air outlet > 75 cm

Length < 50 cm Diameter > ½”

Water outlet

Water supply

Buffer tank

R.O Unit

230 V AC

9

HU-25/45/85/245

7. ELECTRICAL CONNECTIONS

Supply voltage (230V AC ± 10%)

Ensure there is an earthed wall socket next to the humidier. If necessary, connect it in

parallel to any external ventilators. This will ensure that the ventilators and the

humidier switch on and off simultaneously.

Sensor connection

Mount the sensor in a suitable place (for measuring) and connect the DIN plug to the

humidier.

External control voltage

The HU can be controlled via an external control voltage (0-10 Volt). Use the HK-01 cable for this purpose. The DIN plug is connected to the humidier, which can then be

controlled using a direct current of 0 Volt (min.) up to 10 Volt (max.).

The humidier can also be switched on and off using the same signal and HK-01 cable. If there is a short-circuit between the two cables, the humidier will switch to stand-by mode and will not continue to humidify. If the contact is opened, the humidier will

immediately start operating again at the capacity set on the dial (Figure 1, Setting 3).

IMPORTANT

If an external controller has been connected to the DIN plug, the dial on the humidier must be set to 0. This will prevent the humidier from humidifying if

a fault occurs in the controller.

IMPORTANT

The external control signal must be oating with respect to earth (there must never be a connection to “earth”). Set the capacity dial to 0. The output impedance of the external control signal must be < 470Ω.

HU-25/45/85/245

10

8. WATER CONNECTIONS AND FLUSHING CYCLE

Water supply

The humidier has an integrated ow-reduction valve and can handle a water pressure from a minimum of 1 bar to a maximum of 6 bar. The water level in the humidier is controlled by a oat switch and a solenoid valve.

Demineralised (R.O.) water must be used for the humidier and will provide adequate

protection against bacteria. The use of plain tap water will lead to faster contamination of the water tank and transducerss, which will result in a shorter service life. Moreover, the dissolved calcium and mineral particles in ordinary tap water will be blown into the

area to be humidied together with the fog droplets and will be precipitated in the area.

Depending on the hardness of the water, this could cause a layer of dust after only a few days (see also the warning on page 4).

Water discharge

Connect a hose with a maximum length of 50 cm and a minimum diameter of 1/2” to

the humidier’s water discharge connection point so that any excess water can be discharged from the humidier. The outlet of this hose or pipe must be free; the end

may not be hanging in the water (see Figure 2). The water discharge from the

humidier is unpressurised.

Flushing

The standard factory setting for the ushing cycle is once every hour. This may not be suitable for some applications. In these cases, the ushing cycle can be modied to take place once every two hours or set to no ushing cycle at all (consult the

manufacturer).

IMPORTANT

Thoroughly ush out the piping before connecting the humidier in order to prevent installation debris from blocking the intake valve.

IMPORTANT

The water discharge connection point on the humidier must constitute the highest point on the water discharge channel. The water discharge is not pressurised. A blocked outlet could damage the humidier.

A blocked water discharge channel could cause the humidier to overow. For this reason, never place the humidier on a tray with raised edges as this could cause damage to the humidier for which the manufacturer cannot be

held liable.

11

HU-25/45/85/245

Standard cycle

The humidier’s “ushing/alarm” LED will light up every hour. The device will start the ushing cycle:

- The fogging will stop.

- The water tank will be ushed for approx. 15 seconds (depending on the water

pressure).

- The water will be discharged.

- The humidier will be re-lled and will restart normal operation.

- The green LED will blink while this procedure is taking place.

If the humidier is switched off (230V supply voltage switched off), the water content

will be discharged.

9. AIR CONNECTIONS

Air supply

Ensure a clean air supply without water droplets. Any air supply channel must be free from obstructions.

Air outlet

The air outlet must always be extended by a 75 cm pipe to allow larger droplets to be

captured. Mount the outlet so that it slopes towards the humidier to ensure that any condensed fog can ow back.

The connected pipe must be free from dust, dirt and oil residues. If an outlet opening is blocked, the capacity will be reduced. The length of the air outlet channel to the outlet may not exceed 6m with a diameter that remains the same.

10. SWITCHING ON AND STARTING UP/FUNCTIONAL TEST

Switching on

Check the following before the humidier is switched on for the rst time:

- The humidier is positioned level.

- All pipes have been properly connected.

- The mains voltage is correct and connected in parallel with any ventilators that are used.

- The water discharge channel has been connected according to the instructions.

- The water supply has been connected according to the instructions. The water

piping has been ushed in order to prevent any installation debris blocking the

water valve.

IMPORTANT

Never switch the mains voltage on if the humidier is not in the correct position or if it is placed upside-down, as this would cause the transducers to burn.

HU-25/45/85/245

12

Start up and functional test

- Open the water valve

- Set the % RH knob on maximum position

- Switch on the power and check if:

a. The water runs to the humidier b. The water ow stops after about 60 seconds.

c. The production of mist starts after a few seconds

- Switch off the power and check if: a. The water content is drained away. b. After about 1 minute the water reservoir is emptied completely.

- Connect the water drain and check for leakages

- Switch on the main supply again

- Set the % knob in the desired position

- Control if necessary the airspeed with setting 5 (gure 1).

Note: During start up and ushing (water lling) of the humidier the LED “Flushing/alarm” will blink green.This is a normal indication on the humidier during this procedure.

IMPORTANT

If the humidier becomes overheated it will switch off. Once it has cooled down it will automatically switch on again. In case of overheating, the “Flushing/alarm” LED will show red.

The following conditions could cause overheating:

- A blockage in the air inlet.

- A blockage in the air outlet.

- Air intake temperature too high.

- Water temperature too high.

- Water discharge blocked.

- Ambient temperature too high.

- Ventilator speed set too low.

13

HU-25/45/85/245

11. OZONE GENERATOR (OPTIONAL)

As an option, an ozone generator may be integrated in the HU by the manufacturer.

Ozone ensures that any bacteria that are present in the humidier and the connected

piping will be destroyed.

Ozone only takes effect if the humidication is switched off while the ozone generation

is taking place. A programmable timer has been incorporated in the side panel of the

humidier for switching the ozone generator and the humidication on and off.

Contronics sets the timer to a default setting of 2 hours of ozone generation at night,

between 2 a.m. and 4 a.m., while the humidier is switched off. This setting can be changed (see “Applications”).

The timer is independent of the mains supply and has a rechargeable battery incorporated in the ozone module for this purpose.

The following information about the ozone generator can be found on www.contronics.nl:

- Programming the timer.

- What is ozone?

WARNING

Ozone could be harmful to your health if the gas is inhaled over a longer period of time in a higher concentration. However, this concentration only occurs inside the humidier and the connected piping. Once discharged, ozone gas quickly breaks down into ordinary oxygen, without any residual products.

WARNING

If these batteries have to be replaced, the old battery must be disposed off as chemical waste or, alternatively, returned to the manufacturer.

HU-25/45/85/245

14

12. MAINTENANCE

Regular maintenance is important for the optimum operation of the humidier and to

maintain hygiene.

The maintenance interval of the water reservoir will depend on the quality of the water and the purity of the air that is sucked in. The transducers must be replaced after approximately 20,000 operating hours (i.e. after about 2 years in the case of continuous use).

Check the following before starting maintenance or shipping the humidier:

- The mains plug has been removed from the socket and the ventilator is not moving.

- The water supply has been closed.

- The water supply pipe has been removed.

- The humidity sensor plug has been removed.

- The water reservoir is empty and the water discharge hose has been removed.

- The humidier remains horizontal while dismantling.

Cleaning

- Remove the connecting ange.

- Clean the reservoir with a soft brush or cloth.

In the case of water scale, the reservoir can be lled with household vinegar. Allow to soak for 4-12 hours then clean with a soft brush and ush through. Remove the lter from the water inlet. Clean the lter or replace it with a new one. Flush the water

discharge with water and clean it with a round brush.

13. MAINTENANCE OF THE OZONE GENERATOR (OPTIONAL)

The ceramic element must be cleaned once a year:

- The humidier must be disconnected from the mains.

- Remove the screws on the side where the timer is located.

- Remove the side panel and disconnect the timer.

- Remove the 2 Phillips screws (bottom and top) from the stainless steel cover

plate (on the black aluminium casing).

- Remove the ceramic element from the holder.

- Carefully clean the ceramic element on both sides with cleaning spirit or alcohol.

- If the vapour-deposited metal on the ceramic element is damaged, replace the ceramic element.

- Re-assemble in the reverse order.

IMPORTANT

Make sure that the transducers are not damaged during cleaning.

15

HU-25/45/85/245

14. REPLACING SPARE PARTS

Replacing the transducers

The replacement of the transducers can only be done by Contronics or representatives authorised by Contronics.

15. APPLICATIONS OF THE HUMIDIFIER

Various information sheets and drawings are available covering different applications. These can be downloaded from www.contronics.nl.

IMPORTANT

All maintenance must be carried out by Contronics or by an organisation authorized by Contronics.

HU-25/45/85/245

16

16. MALFUNCTIONS

Is the plug in the

socket?

Is the green Flushing

LED blinking?

Is the water supply

tap opened?

Is water flowing into

the water tank?

Is the fuse faulty?

- Float faulty

- Fault in the internal electronics.

Consult Technician

Replace fuse

Open the water

supply tap

- Water pressure too low

- Water pipe dirty

- Water supply valve faulty

(if applied)

- R.O. folter faulty (if applied)

Does the

Flushing LED switch

off when the tank is

filled?

Is there activity but

no humidification?

Is the ventilator

running?

Is the blue Fogging

LED on?

- Float is stuck

- Internal electronics faulty.

Consult Technician

- Transducer worn or faulty

- Internal fuse faulty

- Internal electronics faulty.

Consult Technician

Turn the grey rotary

button to the right.

No. 5 in figure 1.

Turn the %RH dial to

the right

Remove the sensor

plug connection

Is the blue Fogging

LED on?

Is the ventilator

running?

- Float faulty

- Fault in the internal electronics.

Consult Technician

Add a drop of

washing-up liquid

Is the blue

Fogging

LED on?

Sensor faulty

Consult Technician

Humidifier does not

humidify

Insert the plug in the

socket

no

yes

no

yes

no

yes

no

yes

no

yes

no

yes

17

HU-25/45/85/245

17. TECHNICAL SPECIFICATIONS

HU-25 HU-45

Transducer frequency 1,7 MHz 1,7 MHz

Maximum capacity 0-1,2 kg/hour (adjustable) 0-3,0 kg/hour (adjustable)

Service life of the transducers 10.000-20.000 hours 10.000 - 20.000 hours

Size of the water droplets 1-3 micron 1-3 micron

Diameter of outlet ange 2 x 40 mm 4 x 40 mm (or 1 x 80 with

adapter)

Diameter of suction ange 80 mm 80 mm

Air ow Adjustable (0-60 m

3

0 Pa) Adjustable (0-60 m3 0 Pa)

Outlet pipe length 6 meter 6 meter

Water pressure 1-6 bar 1-6 bar

Water connection 3/4" external 3/4" external

Maximum water hardness 8º German hardness

(demineralised water recommended)

8º German hardness

(demineralised water recommended)

Flushing frequency 1x per hour (adjustable) 1x per hour (adjustable)

Water discharge 1/2" external 1/2" external

Content of water tank 300 cm

3

650 cm

3

Mains voltage 230V ± 10% 50/60 Hz 230V ± 10% 50/60 Hz

Power consumption 120 W 250 W

Ambient temperature 0 °C till 35 °C 0 °C till 35 °C

Water temperature 5 °C till 15 °C 5 °C till 15 °C

Ambient temperature compared to supply air temperature

Non condensing Non condensing

Dimensions (LxWxH) 270 x 260 x 160 mm 325 x 265 x 215 mm

Housing Stainless steel 316L Stainless steel 316L

Weight 8 kg 11,5 kg

OG (with integrated ozone generator)

Capacity ozone 0-20 mg/hour (adjustable) 0-20 mg/hour (adjustable)

Controlling ozone Via timer with day programming Via timer with day programming

HU-25/45/85/245

18

HU-85 HU-245

Transducer frequency 1,7 MHz 1,7 MHz

Maximum capacity 0-6,0 kg/hour (adjustable) 0-18,0 kg/hour (adjustable)

Service life of the transducers 10.000-20.000 hours 10.000 - 20.000 hours

Size of the water droplets 1-3 micron 1-3 micron

Diameter of outlet ange 2 x 80 mm or 8 x 40 mm 2 x 110 mm

Diameter of suction ange 80 mm 80 mm

Air ow adjustable (0-60 m

3

0 Pa) adjustable (0-200 m3 0 Pa)

Outlet pipe length 6 meter 12 meter

Water pressure 1-6 bar 1-6 bar

Water connection 3/4" external 3/4" external

Maximum water hardness 8º German hardness

(demineralised water recommended)

8º German hardness

(demineralised water recommended)

Flushing frequency 1x per hour (adjustable) 1x per hour (adjustable)

Water discharge 1/2" external 3/4" external

Content of water tank 1500 cm

3

4000 cm

3

Mains voltage 230V ± 10% 50/60 Hz 230V ± 10% 50/60 Hz

Power consumption 450 W 1,3 KW

Ambient temperature 0 °C till 35 °C 0 °C till 35 °C

Water temperature 5 °C till 15 °C 5 °C till 15 °C

Ambient temperature compared to supply air temperature

Non condensing Non condensing

Dimensions (LxWxH) 450 x 265 x 290 mm 660 x 425 x 290 mm

Housing Stainless steel 316L Stainless steel 316L

Weight 18 kg 43 kg

OG (with integrated ozone generator)

Capacity ozone 0-20 mg/hour (adjustable) 0-20 mg/hour (adjustable)

Controlling ozone Via timer with day programming Via timer with day programming

19

HU-25/45/85/245

DISCLAIMER Contronics works continuously on the further development of its humidiers. We there-

fore reserve the right to modify the design, construction and technology of the product at any time. For this reason, no claims can be made based on the data, illustrations and description in this user manual.

Additional, up-to-date information is available on www.contronics.nl.

HU-25/45/85/245

20

P.O. Box 144 5490 AC Sint-Oedenrode The Netherlands Telephone: +31(0)413-487000 Telefax: +31(0)413-473903 Website: www.contronics.nl E-mail: [email protected]
