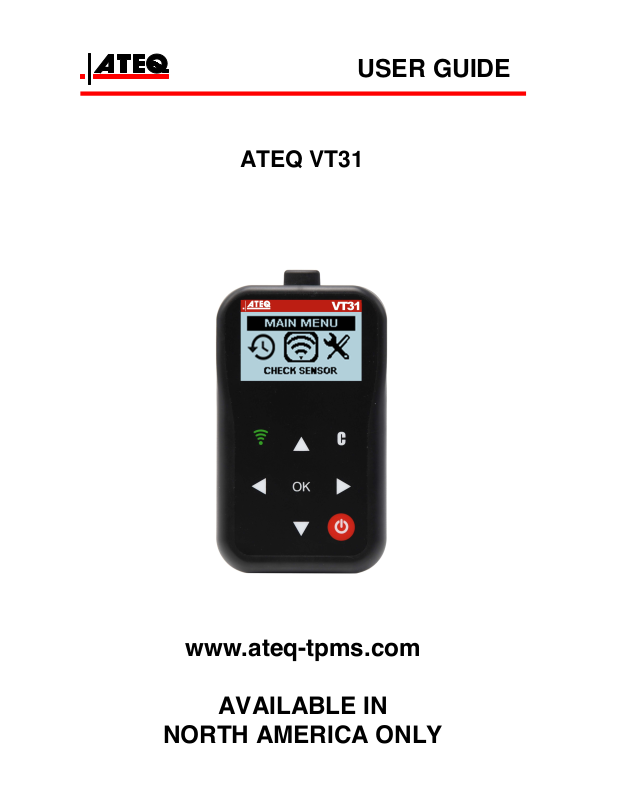

USER GUIDE
ATEQ VT31
www.ateq-tpms.com
AVAILABLE IN
NORTH AMERICA ONLY
VT31 TPMS TOOL user guide
REVISION OF THE ATEQ VT31 MANUAL
Due to continuing improvements, the information contained in this user manual, the features and design of
this device are subject to be changed without prior notice.
Edition/
Revision
Reference
Date
(week/year)
Chapters updated
First edition 8/2017 -----
User manual A
TEQ VT31 Page 1/23
VT31 TPMS TOOL user guide
CONTENTS
User guide 3
VT31 TPMS TOOL .......................................................................................................... 3
1. SPECIFICATIONS ...............................................................................................................................3
2. IMPORTANT SAFETY INSTRUCTIONS .............................................................................................4
3. CAUTION .............................................................................................................................................5
4. FUNCTION KEYS ................................................................................................................................6
5.
POWER ON ..........................................................................................................................................7
OPERATING INSTRUCTIONS ............................................................................................................8
6.
VT31 USE ........................................................................................................................ 9
1. CHECK SENSOR .................................................................................................................................9
2. RECENT SENSOR DATA (SECTION TO COMPLETE) .................................................................. 12
SETTINGS ..................................................................................................................... 13
1. ENTER SETTINGS MENU ................................................................................................................ 13
ABOUT .......................................................................................................................... 18
1. ENTER IN THE ABOUT MENU ........................................................................................................ 18
LANGUAGE .................................................................................................................. 19
1. ENTER LANGUAGES MENU ........................................................................................................... 19
MISCELLANEOUS ........................................................................................................ 20
1. CHARGE ........................................................................................................................................... 20
2. TROUBLESHOOTING ...................................................................................................................... 21
3. LIMITED HARDWARE WARRANTY ................................................................................................ 22
4. RECYCLING...................................................................................................................................... 23
User manual ATEQ VT31 Page 2/23
VT31 TPMS TOOL user guide
User guide
VT31 TPMS TOOL
1. SPECIFICATIONS
Battery Type: Battery 9V PP3 type 6LR61 (not included)
Battery Life: Approximately 150 activations per battery.
Dimensions (Max. L,W,D): 6" x 3.4" x 1.3" (15.3 cm x 8.6 cm x 3.3 cm).
Case Material: High Impact ABS.
Response Frequency: Main frequencies: 315 MHz and 433.92 MHz (supporting
most specific frequencies).
Low Battery Indication: LCD bar graph display.
Weight: Approx. 0.5 lbs.
Temperature: Operating: 14° F to 122° F (-10° C to +50° C).
Storage: -40°F to 140° F (-40° C to +60° C).
Operating Altitude: Up to 6560 ft (2000 m).
User manual ATEQ VT31 Page 3/23
VT31 TPMS TOOL user guide
2. IMPORTANT SAFETY INSTRUCTIONS
Do not discard. Retain for future reference.
Please note that changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
WARNING: This product emits electromagnetic and electronically generated
waves that may interfere with the safe operation of pacemakers.
Individuals that have pacemakers should never use this product.
WARNING:
Do not use on live electrical circuits.
Must read instructions before use.
Wear safety goggles. (User and bystanders).
Risk of entanglement.
Read the Warranty, Safety and Recycling information at the end of this user guide.
User manual ATEQ VT31 Page 4/23
VT31 TPMS TOOL user guide
3. CAUTION
READ THESE INSTRUCTIONS BEFORE USING
Your Tire Pressure Monitoring (TPM) tool has been designed to be durable, safe, and
reliable when properly used.
All TPMS TOOLS are intended to be used only by qualified and trained automotive
technicians or in a light industrial repair shop environment. Please read all instructions
below before using. Always follow these safety instructions. If you have any questions
pertaining to the safe or reliability use of this tool, please call your local dealer.
1. Read All Instructions
All warnings on the tool and in this manual should be adhered to. All operating instructions
should be followed.
2. Retain Instructions
The safety and operating instructions should be retained for future reference.
3. Heed Warnings
User and bystanders must wear safety goggles and must read instructions before use. Do
not use on live electrical circuits, risk of entanglement.
4. Cleaning
Clean with a soft dry cloth, or if necessary, a soft damp cloth. Do not use any harsh
chemical solvents such as acetone, thinner, brake cleaner, alcohol, etc as this may
damage the plastic surface.
5. Water & Moisture
Do not use this tool where contact or immersion in water is a possibility. Never spill liquid
of any kind onto the tool.
6. Storage
Do not use or store the tool in an area where it is exposed to direct sunlight or excessive
moisture.
7. Use
To reduce the risk of fire, do not operate the tool in the vicinity of open containers or
flammable liquids. Do not use if the potential for explosive gas or vapors exists. Keep the
tool away from heat generating sources. Do not operate the tool with the battery cover
removed.
User manual ATEQ VT31 Page 5/23
4. FUNCTION KEYS
Power ON /OFF switch Test or trigger sensor.
Next, continue or confirm. Cancel, previous step.
Navigate to select "up”. Navigate to select “down”.
Navigate to select “left”. Navigate to select “right”.
VT31 TPMS TOOL user guide
Antenna
Screen
Keyboard
er manual ATEQ VT31 Page 6/23
Us
5. POWER ON
Press key to turn on device, the TPMS TOOL
Displays first the VT logo as Fig. 1.
The software version and work zone as Fig. 2.
VT31 TPMS TOOL user guide
Fig. 1
ATEQ VT31
KAUNP1-01-00T
ZONE : AMERICA
Fig. 2
Then reverts to the MAIN MENU as Fig. 3.
MAIN MENU
CHECK SENSOR
Fi
g. 3
User manual ATEQ VT31 Page 7/23
