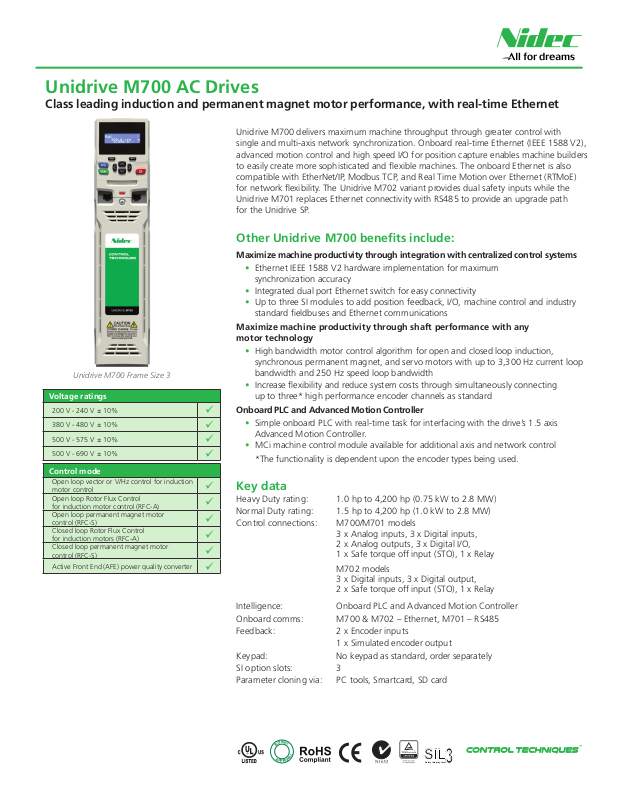

Unidrive M700 AC Drives
P
P
R
S
I
L
3
Safety Integrity Level
Class leading induction and permanent magnet motor performance, with real-time Ethernet
Unidrive M700 delivers maximum machine throughput through greater control with
single and multi-axis network synchronization. Onboard real-time Ethernet (IEEE 1588 V2),
advanced motion control and high speed I/O for position capture enables machine builders
to easily create more sophisticated and flexible machines. The onboard Ethernet is also
compatible with EtherNet/IP, Modbus TCP, and Real Time Motion over Ethernet (RTMoE)
for network flexibility. The Unidrive M702 variant provides dual safety inputs while the
Unidrive M701 replaces Ethernet connectivity with RS485 to provide an upgrade path
for the Unidrive SP.
Other Unidrive M700 benefits include:
Maximize machine productivity through integration with centralized control systems
• Ethernet IEEE 1588 V2 hardware implementation for maximum
synchronization accuracy
• Integrated dual port Ethernet switch for easy connectivity
• Up to three SI modules to add position feedback, I/O, machine control and industry
standard fieldbuses and Ethernet communications
Maximize machine productivity through shaft performance with any
motor technology
• High bandwidth motor control algorithm for open and closed loop induction,
synchronous permanent magnet, and servo motors with up to 3,300 Hz current loop

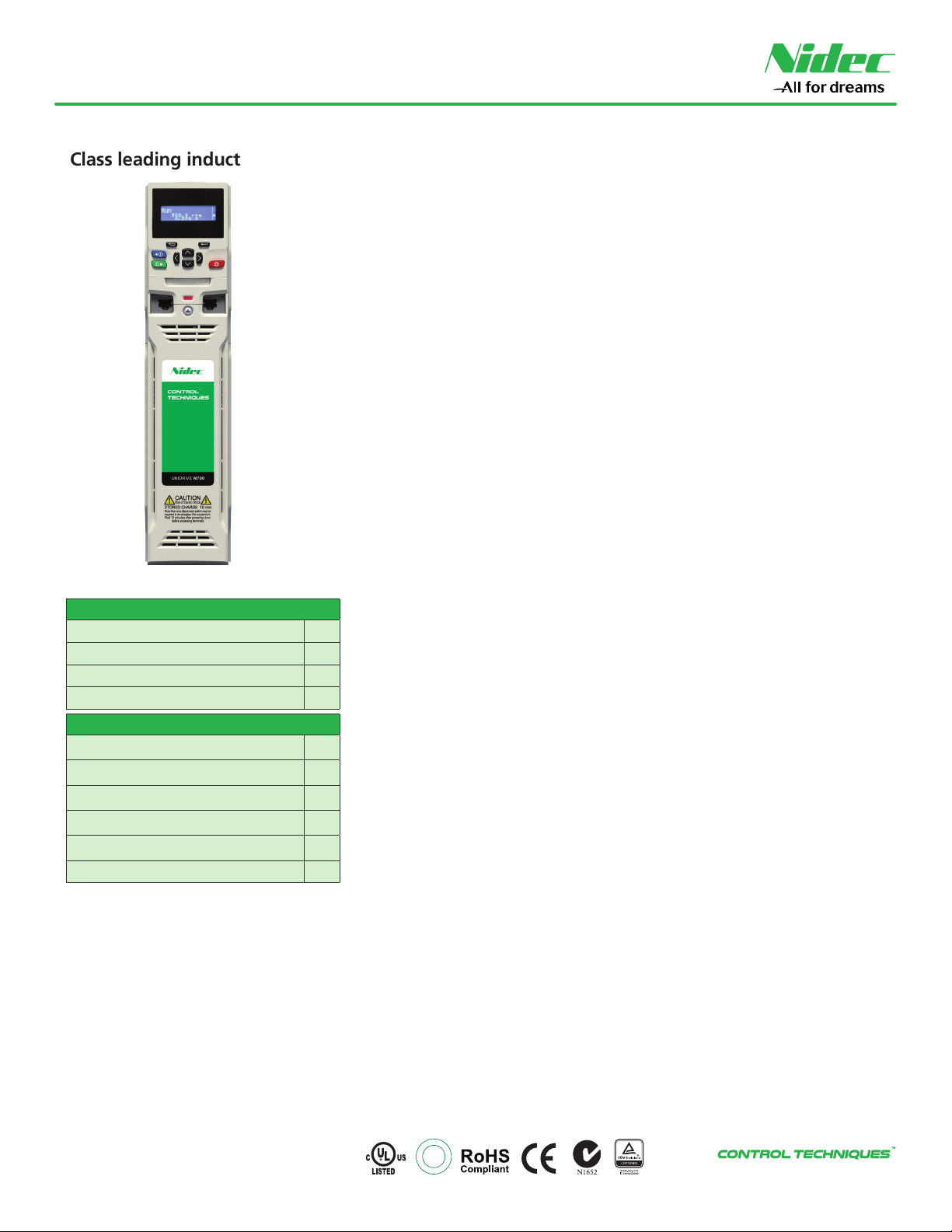

Unidrive M700 Frame Size 3
Voltage ratings
200 V - 240 V ± 10%
380 V - 480 V ± 10%
500 V - 575 V ± 10%
500 V - 690 V ± 10%
Control mode
Open loop vector or V/Hz control for induction
motor control
Open loop Rotor Flux Control
for induction motor control (RFC-A)
Open loop permanent magnet motor
control (RFC-S)
Closed loop Rotor Flux Control
for induction motors (RFC-A)
Closed loop permanent magnet motor
control (RFC-S)
Active Front End (AFE) power quality converter
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
bandwidth and 250 Hz speed loop bandwidth
• Increase flexibility and reduce system costs through simultaneously connecting
up to three* high performance encoder channels as standard
Onboard PLC and Advanced Motion Controller
• Simple onboard PLC with real-time task for interfacing with the drive’s 1.5 axis
Advanced Motion Controller.
• MCi machine control module available for additional axis and network control
*The functionality is dependent upon the encoder types being used.
Key data
Heavy Duty rating: 1.0 hp to 4,200 hp (0.75 kW to 2.8 MW)
Normal Duty rating: 1.5 hp to 4,200 hp (1.0 kW to 2.8 MW)
Control connections: M700/M701 models
3 x Analog inputs, 3 x Digital inputs,
2 x Analog outputs, 3 x Digital I/O,
1 x Safe torque off input (STO), 1 x Relay
M702 models
3 x Digital inputs, 3 x Digital output,
2 x Safe torque off input (STO), 1 x Relay
Intelligence: Onboard PLC and Advanced Motion Controller
Onboard comms: M700 & M702 – Ethernet, M701 – RS485
Feedback: 2 x Encoder inputs
1 x Simulated encoder output
Keypad: No keypad as standard, order separately
SI option slots: 3
Parameter cloning via: PC tools, Smartcard, SD card
0
9
0
1
O
S
I
L
A
A
V
O
Page 2

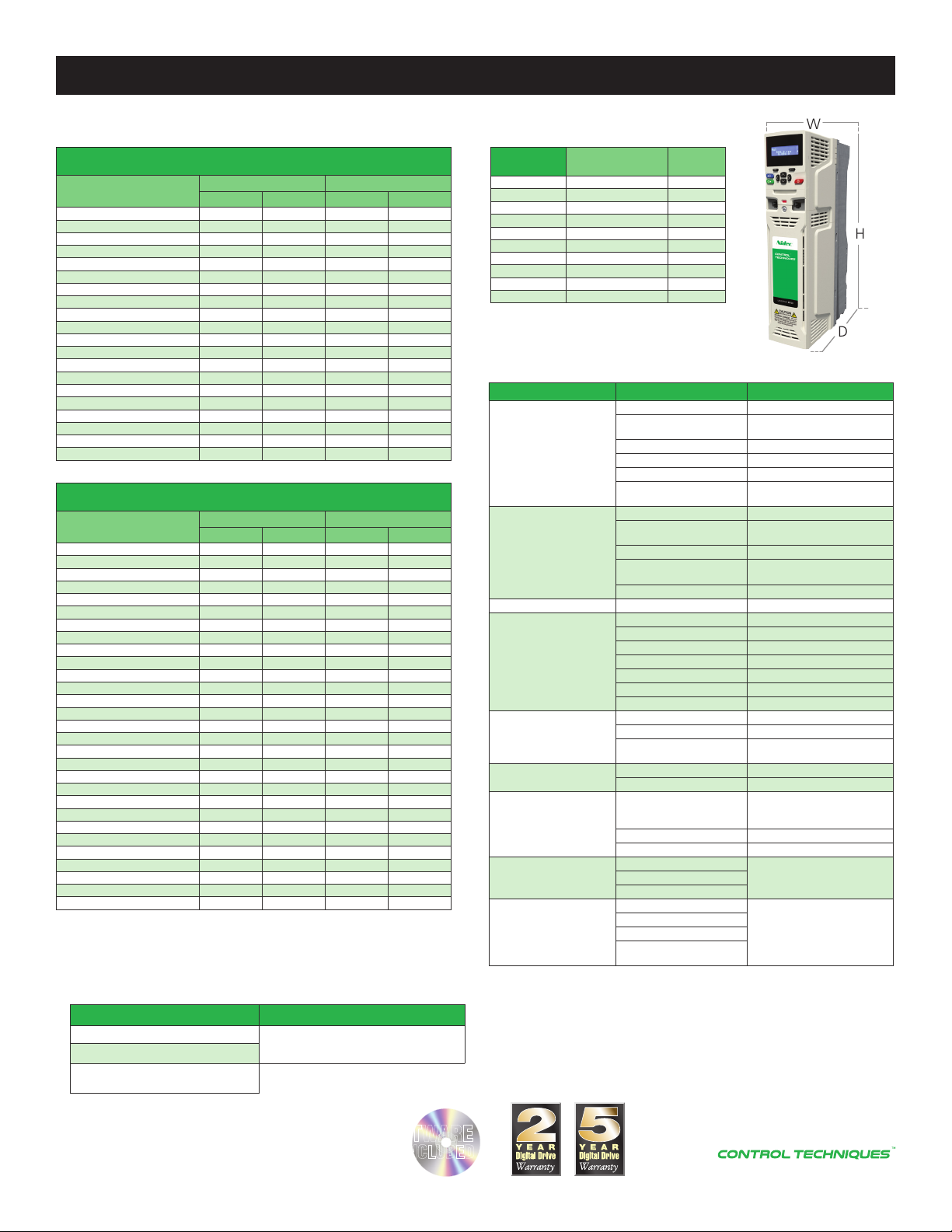

UNIDRIVE M700 AC Drives for Industrial Applications
Dimensions & WeightsOrder Information & Ratings
SOFTW
W
230 VAC, Three Phase Input, 3-Phase Output, 50/60 Hz Input
Unidrive M700
Order Code*
M70x-03200050A 1.5 6.6 1 5
M70x-03200066A 2 8 1.5 6.6
M70x-03200080A 3 11 2 8
M70x-03200106A 3 12.7 3 10.6
M70x-04200137A 5 18 3 13.7
M70x-04200185A 7.5 24 5 18.5
M70x-05200250A 10 30 7.5 25
M70x-06200330A 15 50 10 33
M70x-06200440A 20 58 15 44
M70x-07200610A 25 75 20 61
M70x-07200750A 30 94 25 75
M70x-07200830A 40 117 30 83
M70x-08201160A 50 149 40 116
M70x-08201320A 60 180 50 132
M70x-09201760A 75 216 60 176
M70x-09202190A 100 266 75 219
M70x-09201760E** 75 216 60 176
M70x-09202190E** 100 266 75 219
M70x-10202830E** 125 325 100 283
M70x-10203000E** 150 360 125 300
Normal Duty Heavy Duty
hp Amps hp Amps
460 VAC, Three Phase Input, 3-Phase Output, 50/60 Hz Input
Unidrive M700
Order Code*
M70x-03400025A 1.5 3.4 1 2.5
M70x-03400031A 2 4.5 1.5 3.1
M70x-03400045A 3 6.2 2 4.5
M70x-03400062A 5 7.7 3 6.2
M70x-03400078A 5 10.4 5 7.8
M70x-03400100A 7.5 12.3 5 10
M70x-04400150A 10 18.5 10 15
M70x-04400172A 15 24 10 17.2
M70x-05400270A 20 30 20 27
M70x-05400300A 20 31 20 30
M70x-06400350A 25 38 25 35
M70x-06400420A 30 48 30 42
M70x-06400470A 40 63 30 47
M70x-07400660A 50 79 50 66
M70x-07400770A 60 94 60 77
M70x-07401000A 75 112 75 100
M70x-08401340A 100 155 100 134
M70x-08401570A 125 184 125 157
M70x-09402000A 150 221 150 200
M70x-09402240A 200 266 150 224
M70x-09402000E** 150 221 150 200
M70x-09402240E** 200 266 150 224
M70x-10402000E** 150 221 150 200
M70x-10402240E** 200 266 150 242
M70x-10402700E** 250 320 200 270
M70x-10403200E** 300 361 250 320
M70x-11403770E** 350 437 300 377
M70x-11404170E** 400 487 350 417
M70x-11404800E** 450 507 400 464
*
Add 10101AB100 to the base order code when ordering standard US (60 Hz) default products
**Available to order without dynamic braking transistor, see Unidrive M700 for full product offering.
Notes:
Frames 3-10 are rated at 3 kHz switching frequency.
Frame 11 is rated at 2 kHz switching frequency.
Normal Duty Heavy Duty
hp Amps hp Amps
Order String - Frame Size Key M70x Drive Range:
Example: M70x-XX_ _ _ _ _ _ -Y
XX = Frame Size (03-11 above)
A - built-in reactor
Y =
E - External line reactor
M700 = Ethernet
M701 = Unidrive SP replacement (RS485)
M702 = Dual STO inputs
Frame Size
03 14.4 x 3.3 x 7.9 9.9
04 14.4 x 4.9 x 7.9 14.3
05 14.4 x 5.6 x 7.6 16.3
06 14.4 x 8.3 x 8.9 30.9
07 20 x 10.6 x 11.0 61.7
08 29.7 x 12.2 x 11.4 114.6
09A 41.3 x 12.2 x 11.4 146.6
09E 41.3 x 12.2 x 11.4 101.4
10E 41.3 x 12.2 x 11.4 101.4
11E 46.9 x 12.2 x 12.3 138.9
Dimensions
H x W x D (in)
Weight
(lbs)
D
OPTIONS AT-A-GLANCE
Option Description Order Code
Drive Configuration
& Programming
Operator Interfaces
Input / Output Extended I/O SI-I/O
Communications
Machine Control
Application Programming
Software & Diagnostics
Feedback
Power Accessories
Environmental Protection
& Cable Management
Shielded RS485 patch cable, CAT5e, conductive metal RJ45 connectors, XXX=cable length in
***
5 foot increments (max 330 ft), standard lengths are (005, 010, 015, 025 and 050)
****See Unidrive M700 Brochure for complete product details
See the Unidrive M700 brochure for our full product offering including
575 V, 690 V solutions and high horsepower solutions up to 4,200 hp.
Configuration software UNIDRIVE-M-CONNECT
Drive to PC USB cable
(requires a 485 adaptor)
8 GB SD card CTSD8GB
Smartcard 8k memory SMARTCARD
Smartcard 64k memory SMARTCARD-64
Smartcard with SD card
adaptor, no SD card
Plain text LCD display KI-KEYPAD-LCD
Plain text LCD keypad
with real-time clock
Remote LCD display REMOTE-KEYPAD
Remote LCD display with
real-time clock
Remote display cable UM-LCD-485-XXX***
Modbus RTU KI-485-ADAPTOR
PROFIBUS DP SI-PROFIBUS
DeviceNet SI-DEVICENET
CANopen SI-CANOPEN
PROFINET RT SI-PROFINET-V2
EtherCAT SI-ETHERCAT
EtherNet/IP, Modbus TCP SI-ETHERNET
Applications, SyPTPro SI-APPS-COMPACT
Advanced machine control MCi200
Advanced machine
control, ethernet
PLC programming MACHINE-CONTROL-STUDIO
Digital oscilloscope CTSCOPE
DB15 to terminal breakout
board for encoder
feedback cable
Encoder module**** SI-ENCODER
Universal encoder**** SI-UNI-ENCODER
External EMC filter
Line & load reactors
Dynamic braking resistors
UL Type 1 conduit kits
Retrofit kits for Unidrive SP
Fan replacement kits
IP65 & IP55 through
panel mounting kits
CT-USB-CABLE
SD-CARD-ADAPTOR
KI-KEYPAD-RTC
REMOTE-KEYPAD-RTC
MCi210
SM-ETC
See the Unidrive
M Accessories catalog
See the Unidrive
M700 Brochure
H
ARE
INCLUDED
P/N SEL-M700 12/17
