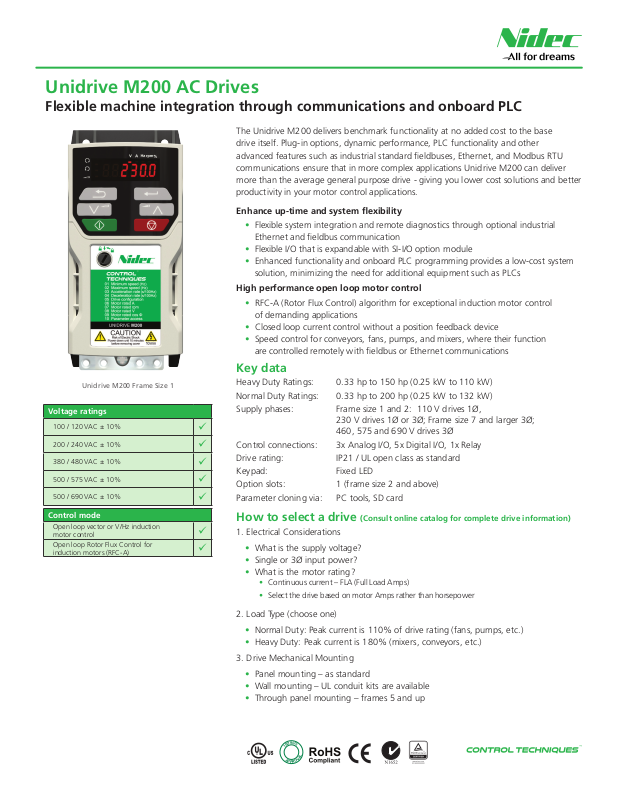

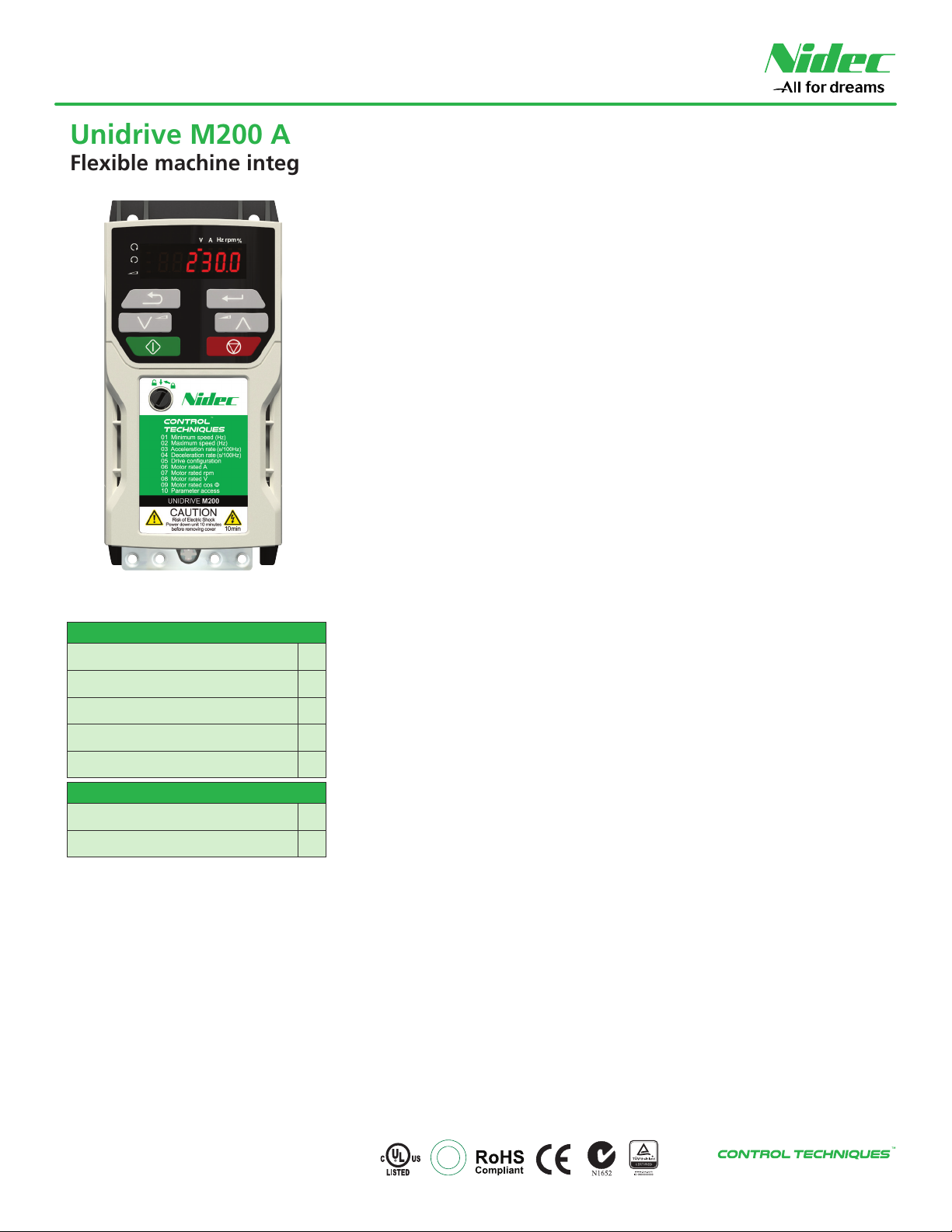

Unidrive M200 AC Drives

Flexible machine integration through communications and onboard PLC

The Unidrive M200 delivers benchmark functionality at no added cost to the base drive itself. Plug-in options, dynamic performance, PLC functionality and other advanced features such as industrial standard ﬁeldbuses, Ethernet, and Modbus RTU communications ensure that in more complex applications Unidrive M200 can deliver more than the average general purpose drive - giving you lower cost solutions and better productivity in your motor control applications.

Enhance up-time and system ﬂexibility

• Flexible system integration and remote diagnostics through optional industrial

Ethernet and ﬁeldbus communication

• Flexible I/O that is expandable with SI-I/O option module

• Enhanced functionality and onboard PLC programming provides a low-cost system

solution, minimizing the need for additional equipment such as PLCs

High performance open loop motor control

• RFC-A (Rotor Flux Control) algorithm for exceptional induction motor control

of demanding applications

• Closed loop current control without a position feedback device

• Speed control for conveyors, fans, pumps, and mixers, where their function

are controlled remotely with ﬁeldbus or Ethernet communications

Key data

Unidrive M200 Frame Size 1

Voltage ratings

100 / 120 VAC ± 10%

200 / 240 VAC ± 10%

380 / 480 VAC ± 10%

500 / 575 VAC ± 10%

500 / 690 VAC ± 10%

Heavy Duty Ratings: 0.33 hp to 150 hp (0.25 kW to 110 kW) Normal Duty Ratings: 0.33 hp to 200 hp (0.25 kW to 132 kW) Supply phases: Frame size 1 and 2: 110 V drives 1Ø,

230 V drives 1Ø or 3Ø; Frame size 7 and larger 3Ø;

460, 575 and 690 V drives 3Ø Control connections: 3x Analog I/O, 5x Digital I/O, 1x Relay Drive rating: IP21 / UL open class as standard Keypad: Fixed LED Option slots: 1 (frame size 2 and above) Parameter cloning via: PC tools, SD card

Control mode

Open loop vector or V/Hz induction motor control

Open loop Rotor Flux Control for induction motors (RFC-A)

How to select a drive (Consult online catalog for complete drive information)

1. Electrical Considerations

• What is the supply voltage?

• Single or 3Ø input power?

• What is the motor rating?

• Continuous current – FLA (Full Load Amps)

• Select the drive based on motor Amps rather than horsepower

2. Load Type (choose one)

• Normal Duty: Peak current is 110% of drive rating (fans, pumps, etc.)

• Heavy Duty: Peak current is 180% (mixers, conveyors, etc.)

3. Drive Mechanical Mounting

• Panel mounting – as standard

• Wall mounting – UL conduit kits are available

• Through panel mounting – frames 5 and up

Page 2

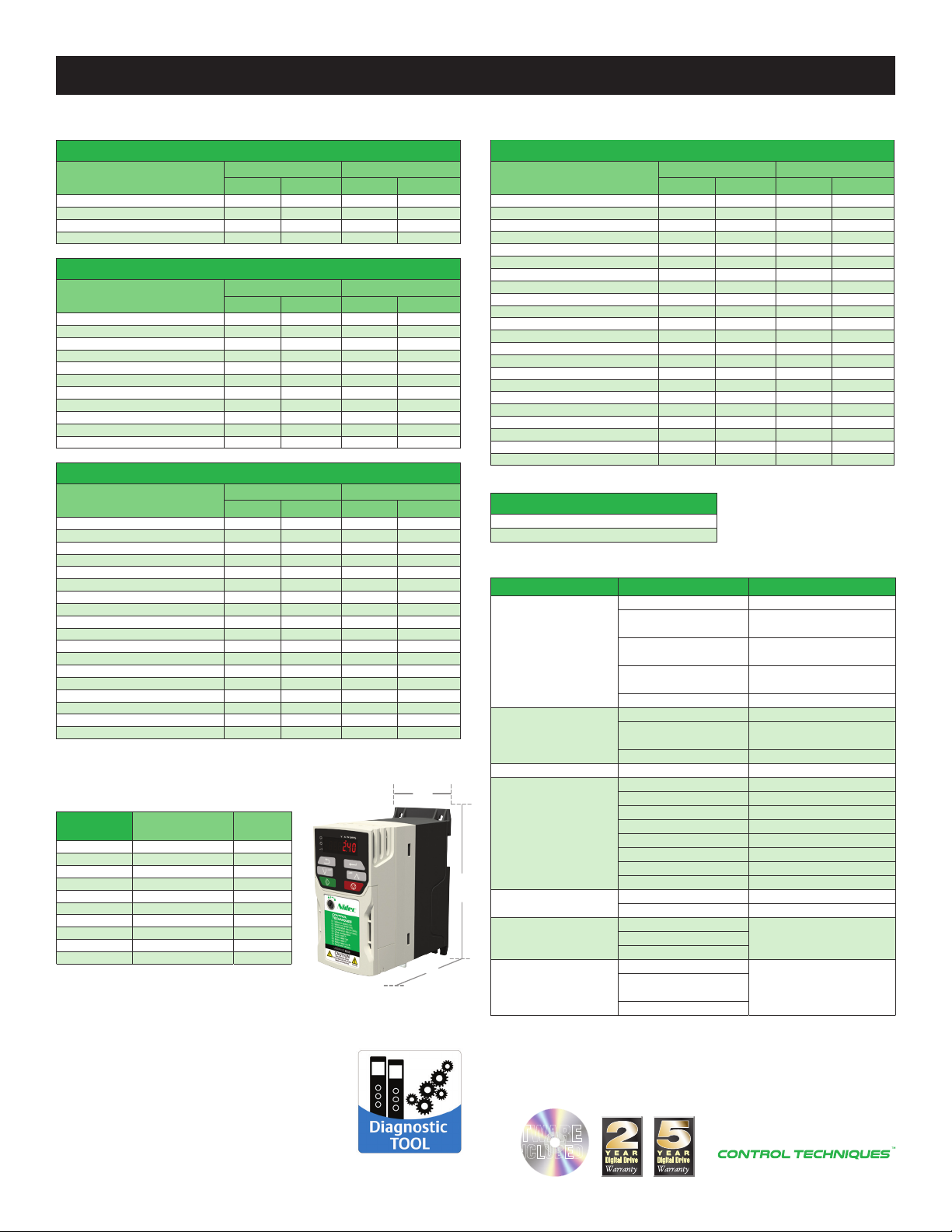

UNIDRIVE M200 AC Drives for Industrial Applications

Order Information & Ratings

SOFTW

115 VAC, Single Phase 50/60 Hz Input, 230 VAC 3-Phase Output

Unidrive M200

Order Code*

M200-01100017A 0.33 1.7 0.33 1.7 M200-01100024A 0.5 2.4 0.5 2.4 M200-02100042A 1 4.2 1 4.2 M200-02100056A 1.5 5.6 1.5 5.6

Normal Duty Heavy Duty

hp Amps hp Amps

230 VAC, Single Phase Input, 3-Phase Output, 50/60 Hz Input

Unidrive M200

Order Code*

M200-01200017A 0.33 1.7 0.33 1.7 M200-01200024A 0.5 2.4 0.5 2.4 M200-01200033A 0.75 3.3 0.75 3.3 M200-01200042A 1 4.2 1 4.2 M200-02200024A 0.5 2.4 0.5 2.4 M200-02200033A 0.75 3.3 0.75 3.3 M200-02200042A 1 4.2 1 4.2 M200-02200056A 1.5 5.6 1.5 5.6 M200-02200075A 2 7.5 2 7.5 M200-03200100A 3 10 3 10 M200-04200133A 3 13.3 3 13.3

Normal Duty Heavy Duty

hp Amps hp Amps

230 VAC, Three Phase Input, 3-Phase Output, 50/60 Hz Input

Unidrive M200

Order Code*

M200-02200024A 0.5 2.4 0.5 2.4 M200-02200033A 0.75 3.3 0.75 3.3 M200-02200042A 1 4.2 1 4.2 M200-02200056A 1.5 5.6 1.5 5.6 M200-02200075A 2 7.5 2 7.5 M200-03200100A 3 10 3 10 M200-04200133A 3 M200-04200176A 5 17.6 5 17.6 M200-05200250A 10 30 7.5 25 M200-06200330A 15 50 10 33 M200-06200440A 20 58 15 44 M200-07200610A 25 75 20 61 M200-07200750A 30 94 25 75 M200-07200830A 40 117 30 83 M200-08201160A 50 149 40 116

M200-08201320A 60 180 50 132 M200-09201760x** 75 216 60 176 M200-09202190x** 100 266 75 219

*Add 10101AB100 to the base order code when ordering standard US (60Hz) default products **x= A or E (9E frame requires an external AC Line Reactor)

Dimensions & Weights

Frame Size

01 6.3 x 3.0 x5.1 1.7 02 8.1 x 3.1 x 5.9 2.2 03 8.9 x 3.5 x 6.3 3.3 04 10.9 x 4.5 x 6.9 6.9 05 15.4 x 5.6 x 7.9 16.3 06 15.4 x 8.3 x 9.0 30.9 07 21.9 x 10.6 x 11.0 61.7

08 31.7 x 12.2 x 11.4 114.6 09E 39.8 x 12.2 x 11.4 101.4 09A 43.6 x 12.2 x 11.4 146.6

Additional distance should be added to the height dimension (H) when the AI options are ﬁtted.

Dimensions

H x W x D (in)

Normal Duty Heavy Duty

hp Amps hp Amps

13.3 3 13.3

Weight

(lbs)

Diagnostic Software

460 VAC, Three Phase Input, 3-Phase Output, 50/60 Hz Input

M200-02400013A 0.5 1.3 0.5 1.3 M200-02400018A 0.75 1.8 0.75 1.8 M200-02400023A 1 2.3 1 2.3 M200-02400032A 1.5 3.2 1.5 3.2 M200-02400041A 2 4.1 2 4.1 M200-03400056A 3 5.6 3 5.6 M200-03400073A 3 7.3 3 7.3 M200-03400094A 5 9.4 5 9.4 M200-04400135A 7.5 13.5 7.5 13.5 M200-04400170A 10 17 10 17 M200-05400270A 20 30 20 27 M200-05400300A 20 30 20 30 M200-06400350A 25 38 25 35 M200-06400420A 30 48 30 42 M200-06400470A 50 63 30 47 M200-07400660A 60 79 50 66 M200-07400770A 75 94 60 77 M200-07401000A 75 112 75 100 M200-08401340A 125 155 100 134

M200-08401570A 150 184 125 157 M200-09402000x** 150 221 150 180 M200-09402240x** 200 255 150 211

**x= A or E (9E frame requires an external AC Line Reactor)

Order String - Frame Size Key

Example: M200-XX_ _ _ _ _ _ _

XX = Frame Size (01-09 above)

OPTIONS AT-A-GLANCE

Option Description Order Code

Drive Conﬁguration

& Programming

Operator Interfaces

Input / Output*** Extended I/O SI-I/O

Communications***

Application Programming

Software & Diagnostics

Power Accessories

Environmental Protection

& Cable Management

***frame sizes 2 and up accept 1 SI option ****Shielded RS485 patch cable, CAT5e, conductive metal RJ45 connectors, XXX=cable length in

5 foot increments (max 330 ft), standard lengths are (005, 010, 015, 025 and 050)

Our Drive Diagnostics APP allows users to

quickly diagnose faults. In the unlikely event that you get a drive error, download our complimentary

See the Unidrive M: General Purpose AC Drives brochure for our full product offering including 575 V and 690 V solutions.

Diagnostics Tool app. Just input the error code on your device and you’ll be given a solution.

INCLUDED

P/N SEL-M200 12/17
