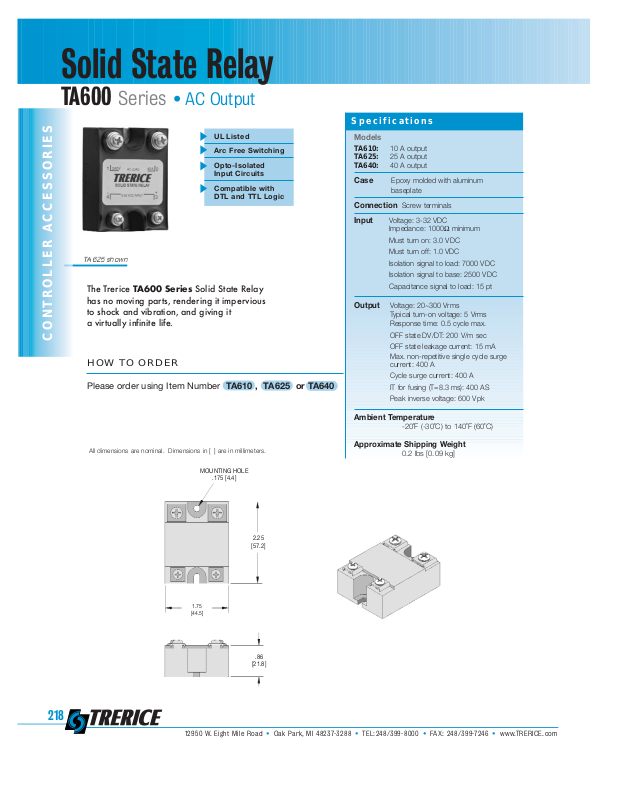

Page 1
TA625 shown
Specifications
Models
TA610:
10 A output
TA625:
25 A output
TA640:
40 A output
Case
Epoxy molded with aluminum
baseplate
Connection
Screw terminals
Input
Voltage: 3-32 VDC
Impedance: 1000Ω minimum
Must turn on: 3.0 VDC
Must turn off: 1.0 VDC
Isolation signal to load: 7000 VDC
Isolation signal to base: 2500 VDC
Capacitance signal to load: 15 pt
Output
Voltage: 20~300 Vrms
Typical turn-on voltage: 5 Vrms
Response time: 0.5 cycle max.
OFF state DV/DT: 200 V/m sec
OFF state leakage current: 15 mA
Max. non-repetitive single cycle surge
current: 400 A
Cycle surge current: 400 A
IT for fusing (T=8.3 ms): 400 AS
Peak inverse voltage: 600 Vpk
Ambient Temperature
-20˚F (-30˚C) to 140˚F (60˚C)
Approximate Shipping Weight
0.2 lbs [0.09 kg]
Solid State Relay
TA600
Series
• AC Output
CONTROLLER ACCESSORIES
UL Listed
Arc Free Switching
Opto-Isolated
Input Circuits
Compatible with
DTL and TTL Logic
The Trerice TA600 Series Solid State Relay
has no moving parts, rendering it impervious
to shock and vibration, and giving it
a virtually infinite life.
MOUNTING HOLE
.175 [4.4]
2.25
[57.2]
1.75
[44.5]
.86
[21.8]
HOW TO ORDER
Please order using Item Number TA610 , TA625 or TA640
All dimensions are nominal. Dimensions in [ ] are in millimeters.
