Control Products SD22-CI User Manual

®
Suction Diffuser Strainer
®
SD 22-CI
Tri-flow Control Check Valve
TF 21-CI
Pump Protection
Titan Flow Control, Inc.
depend on, a guarantee that is
critical when considering the set-
up of expensive equipment within a
pump piping system.
PP-1112
Titan’s durable Suction Diffuser and Tri-ow
Control Check Valve are essential to protecting
and promoting the longevity of pumps. At the same time, these two products are an economical
choice, designed specically to save space, energy,
and installation and maintenance time.
A Titan Suction Diffuser, while functioning as a strainer to prevent foreign particles from harming a pump, also has straightening vanes that reduce
turbulence in the ow and alleviate stress and
erosion on the pump. Titan manufactures each diffuser with a mesh start-up screen that can be removed after the diffuser's start up period. Just one Titan Suction Diffuser replaces three products in a typical pump set up: an elbow, strainer, and an
entry pipe.
The Tri-ow Control Check Valve is a spring-
loaded valve that can be adjusted from full ow
to complete shut-off. With a graduated position
indicator, Titan’s Tri-ow is easy to adjust and control ow and its automatic shut-off helps to prevent waterhammer. The Tri-ow is three
products in one as it takes the place of a balance valve, shut-off valve, and check valve.
TITAN FLOW CONTROL, INC.
290 Corporate Drive E-mail: titan@titanfci.com Lumberton, NC 28358 Web: www.titanfci.com Tel: 910.735.0000 Fax: 910.738.3848
®
PP-1112
Suction Diffuser
SD 22-CI 90˚ Suction Diffuser Strainer Flanged ANSI 125
High quality protection for pumps
Directly mounted to the inlet side of the pump, Titan’s Suction Diffuser Strainer is crucial for protecting expensive pumps. Serving as a strainer, it prevents unwanted debris from entering pump. It also helps to increase the service life of the pump as the straightening vanes on the outlet side of the diffuser help to smooth turbulent
ow before it enters the pump. An optional magnetic insert that attracts metallic particles is also available. The suction diffuser has cast in supporting pads that t standard
support feet so an additional pipe saddle is not necessary.
Energy efcient and economical design
Titan’s Suction Diffuser takes the place of a strainer, reducing elbow, and an entrance pipe.
In addition to these specic parts, using the suction diffuser reduces the amount of piping,
welds, and bolts required in a traditional pump set-up. Not only is it economical as far as the initial investment, but time and money are saved on installation and servicing. The suction diffuser's minimal head loss, as a result of its large open area ratio, can yield savings in energy costs for many years. Straightening vanes on the outlet side of the
diffuser help to maintain a smooth ow throughout the piping system decreasing pressure
loss.
SD 22
CAST IRON
Saves space,
energy, time
and money as it
functions as three
products in one!
SIZES AVAILABLE:
2 x 1 1/4"
through
18 x 18"
Easy to service
The suction diffuser comes with a convenient mesh start-up screen that can be removed after its initial introductory period, thus two screens are not necessary. Quick­ open knobs minimize down time while servicing and provide easy access to the strainer. The standard NPT plug can be replaced with an optional blow down valve for easy cleaning.
CODE DESCRIPTION
ANSI B16.1
ANSI B16.5
MSS SP-6
MSS SP-25
MSS SP-55
ASTM F1199
and Standards
Referenced Codes
ASTM F1200
Cast Iron Pipe Flanges and Flanged Fittings
Pipe Flanges & Flanged Fittings
Standard Finishes for Connecting-end Flanges
Standard Marking System for Valves
Quality Standard for Valve Castings
Standard Specication for
Cast and Welded Pipe Line Strainers
Standard Specication for
Fabricated (Welded) Pipe Line Strainers
Products Eliminated by
the Suction Diffuser:
Strainer
90˚/Reducing Elbow
Entrance Pipe
Titan FCI’s
Suction Diffuser
®
Tri-ow Valve
®
TF 21-CI Tri-ow Control Check Valve Flanged ANSI 125
Economical and convenient design
Titan’s Tri-ow Control Check Valve is three valves in one, replacing a calibrated balance valve, shut-off valve, and silent check valve for a
simplied and inexpensive way to control ow from a pump. Flow through
the valve is adjustable from zero to full by the ACME rising stem. A graduated position indicator on the stem provides an accurate check of the
valve’s position for throttling service, and a hand-wheel is provided with all Tri-ow control
check valves for ease of operation. The Tri-Flow also has a soft-seated, dovetail O-ring groove ensuring a bubble tight seal in the closed position.
Quick closure to reduce water hammer
Silent shut-off is achieved via the fully automatic, spring assisted disc that closes near zero ow velocity when functioning as a check valve. The soft seat and quick closure helps to prevent ow reversal, slamming, and
surges.
CAST IRON
Pump Protection
SIZES AVAILABLE:
2" through 20"
PP-1112
TF 21
High Quality,
Cost-effective
Minimal head loss
The valve’s body has a large body with at least a 2 to 1 ratio to connecting pipe. The disc's low cracking pressure reduces the amount of energy required to open the valve.
MARKETS
Titan FCI’s
Tri-ow Valve
SAVE
with the
SD 22
and TF 21
Products Eliminated
by the Tri-ow Valve:
Balance Valve
Process Industry, Power Industry, Chemical Industry, Water/Oil/Gas, Waste, Mining, Paper
SERVICING
The mesh start-up screen in the suction diffuser should be removed after the initial start-up period. Regular screen cleaning is necessary to clear diffuser of foreign matter build up during normal use and to maintain a low differential pressure. An optional blow down valve is available to assist in screen cleaning.
The Tri-ow can be adjusted as necessary to control the ow. Regular servicing is not
required although some parts, such as spring and O-Ring, should be inspected and replaced as needed.
Applications
Shut-off Valve
Check Valve
TITAN FLOW CONTROL, INC.
290 Corporate Drive E-mail: titan@titanfci.com Lumberton, NC 28358 Web: www.titanfci.com Tel: 910.735.0000 Fax: 910.738.3848

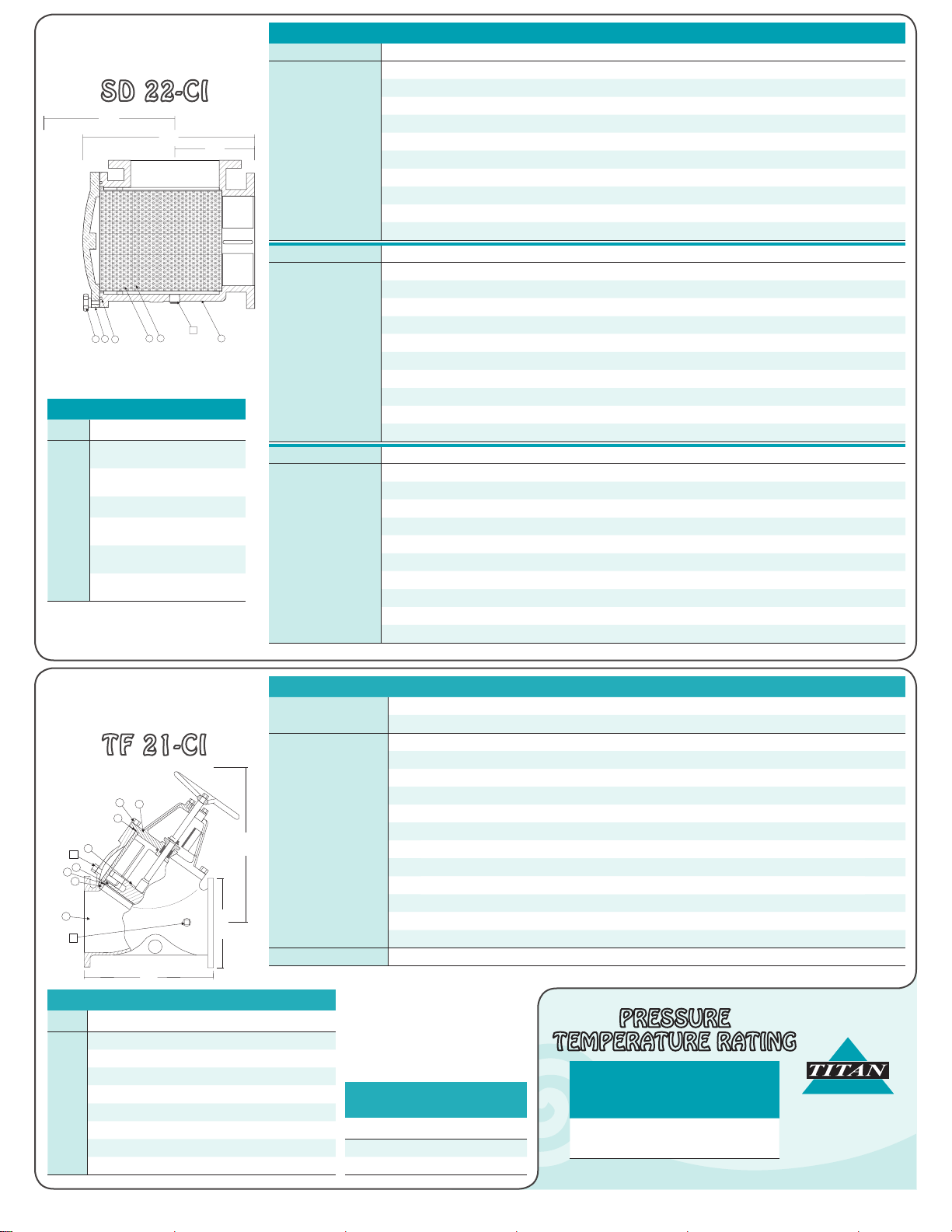

B
A
D
1
3
4
5
6
2
C
REQUIRED FOR SCREEN REMOVA L
A
B
C
E
1
2
4
6
7
8
3
D
5
®
Suction Diffuser
Strainer
SD 22-CI
Illustrations are only representative of the products.
Variations may exist between different sizes.
Please ask for certied drawings when required.
SD 22-CI BILL OF MATERIALS
No. Part SD 22-CI
1 Body
2 Cover
3 O-Ring
Straining
4
Element Start-up
5
Screen
6 Bolt
Cast Iron A126-B
Cast Iron A126-B
(2)
EPDM
Stainless Steel 304
(2)
Stainless Steel 304
(2)
20 Mesh Carbon Steel
AISI 1035
1. Equivalent or better materials may be substituted at the manufacturer's discretion.
2. Denotes recommended spare parts.
(1)
SD 22-CI DIMENSIONS AND PERFORMANCE DATA
SIZE in 2 x 11/42 x 11/22 x 2 21/2 x 2 21/2 x 21/23 x 2 3 x 21/23 x 3 4 x 3 4 x 4
A DIMENSION
TOP OF COVER TO FLANGE
B DIMENSION
CENTER TO FLANGE
C DIMENSION
SCREEN REMOVAL
D DIMENSION
N.P.T.
WEIGHT
(APPROXIMATE)
SIZE in 5 x 4 5 x 5 6 x 4 6 x 5 6 x 6 8 x 5 8 x 6 8 x 8 10 x 8 10 x 10
A DIMENSION
TOP OF COVER TO FLANGE
B DIMENSION
CENTER TO FLANGE
C DIMENSION
SCREEN REMOVAL
D DIMENSION
N.P.T.
WEIGHT
(APPROXIMATE)
SIZE in 12 x 8 12 x 10 12 x 12 14 x 10 14 x 12 14x14 16x12 16x14 16x16 18x16*
A DIMENSION
TOP OF COVER TO FLANGE
B DIMENSION
CENTER TO FLANGE
C DIMENSION
SCREEN REMOVAL
D DIMENSION
N.P.T.
WEIGHT
(APPROXIMATE)
1. Dimensions and weights are for reference only. When required, request certied drawings. * Larger sizes are available. Please consult factory for dimensions.
in 9.25 9.25 9.25 10.0 10.0 9.37 10.75 10.62 12.37 12.0
mm 235 235 235 254 254 238 273 270 314 305
in 4.5 4.5 4.5 5.0 5.0 4.5 5.75 5.75 6.75 6.5
mm 114 114 114 127 127 114 146 146 171 165
in 8.81 8.81 8.81 9.12 9.12 9.62 9.62 9.62 11.5 11.5
mm 224 224 224 232 232 244 244 244 292 292
in 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4 1
mm 20 20 20 20 20 20 20 20 20 25
lb 24.0 26.0 28.0 39.0 40.0 34.0 52.0 53.0 74.0 76.5
kg 10.9 11.8 12.7 17.7 18.1 15.4 23.6 24.0 33.6 34.7
in 15.0 15.25 12.0 15.98 16.5 19.17 16.5 20.75 21.0 27.0
mm 381 387 305 406 419 487 419 527 533 686
in 7.5 7.5 6.5 10.43 8.0 9.0 8.0 9.0 9.0 11.5
mm 191 191 165 265 203 229 203 229 229 292
in 14.87 14.87 16.56 16.56 16.56 16.87 16.87 22.87 22.87 30.25
mm 378 378 421 421 421 429 429 581 581 768
in 1 1 1 3/4 1 1 1 1 1/4 1 1 1/4
mm 25 25 25 19 25 25 25 32 25 32
lb 110.5 112.5 96.0 160.5 155.5 185.0 180.0 298.5 296.0 480.0
kg 50.1 51.0 43.5 72.8 70.5 83.9 81.6 135.4 134.3 217.7
in 21.0 26.68 26.68 25.0 27.0 26.87 32.17 30.25 29.33 36.38
mm 533 678 678 635 686 683 817 768 745 924
in 11.0 11.25 12.0 13.0 13.25 13.25 19.25 14.5 14.33 21.81
mm 280 286 305 330 337 337 489 368 364 554
in 22.87 33.0 28.75 33.0 31.0 33.12 33.66 31.0 33.12 38.75
mm 581 838 730 838 787 841 855 787 841 985
in 1 1/4 1 1/4 1 1/4 1 1/4 1 1/4 1 1/4 1 1 1/2 C/F 1
mm 32 32 32 32 32 32 25.4 40 C/F 25.4
lb 422.0 498.0 588.0 515.0 554.0 564.0 724.0 748.0 C/F 1600
kg 191.4 225.9 266.7 233.6 251.3 255.8 328.4 339.3 C/F 725.8
Tri-flow Control
Check Valve
TF 21-CI
TF 21-CI BILL OF MATERIALS
No. Part TF 21-CI
1 Body Cast Iron, A126-B
2 Cover Cast Iron, A126-B
3 Spring
4 Disc Ductile Iron A536, Plated
5 Disc Seat EPDM O-Ring
6 Bolt Carbon Steel, AISI 1035
7 Seat Guide Ductile Iron A536, Plated
8 O-Ring
(2)
Titan FCI makes every effort to ensure the information presented on our literature accurately reects exact product specications. However, as product changes occur, there may be short-term differences between actual product
specications and the information contained within our literature. Titan FCI reserves the right to make design and specication changes to improve our products without prior notication. When required, request certied drawings.
Stainless Steel, 300 Series
(2)
EPDM
A DIMENSION
FACE TO FACE
ØB DIMENSION
FLANGE DIAMETER
C DIMENSION
CLEARANCE, FULL OPEN
D DIMENSION
N.P.T.
E DIMENSION
N.P.T.
WEIGHT
(APPROXIMATE)
Flow Coefcient C
1. Dimensions and weights are for reference only. When required, request certied drawings.
(1)
TF 21-CI DIMENSIONS AND PERFORMANCE DATA
SIZE
Material Temperature
EPDM
Stainless Steel
in 2 2 1/2 3 4 5 6 8 10 12 14 16 20
mm 50 65 80 100 125 150 200 250 300 350 400 500
in 8.39 9.84 10.05 14.5 16.0 18.0 21.5 25.5 30.12 30.39 33.78 C/F
mm 213 250 255 368 407 457 546 648 765 772 858 C/F
in 6.0 7.0 7.5 9.0 10.0 11.0 13.5 16.0 19.0 21.0 23.5 C/F
mm 152 178 191 229 254 279 343 406 483 533 597 C/F
in 12.0 12.5 14.0 15.5 19.5 21.5 26.0 27.0 32.0 C/F C/F C/F
mm 305 318 356 394 495 546 660 686 813 C/F C/F C/F
in 1/2 3/4 1/2 1/2 1/2 3/4 3/4 1 1 3/4 1 C/F
mm 15 20 15 15 15 20 20 25 25 20 25 C/F
in 1/4 1/4 1/4 1/4 1/4 1/4 1/4 1/4 1/4 1/4 1/4 C/F
mm 8 8 8 8 8 8 8 8 8 8 8 C/F
lb 33.0 42.0 59.0 104.0 170.0 202.0 280.0 442.0 816.0 1112.0 1478.0 C/F
kg 15.0 19.1 26.8 47.2 77.1 91.6 127.0 200.5 370.1 504.4 670.4 C/F
82 128 188 334 528 765 1371 2153 3105 C/F C/F C/F
V
TF 21-CI's
Bill of Materials Notes:
1. Equivalent or better materials may be substituted at the manufacturer's discretion.
2. Denotes recommended spare parts.
SPRING AND SEAT
TEMPERATURE RATINGS
TEMPERATURE RATING
PRESSURE
SD 22 a n D TF 21
CAST IRON
aSTM a126 B - CLaSS 125
WOG (Non-Shock)
-20 °F - 300 °F 450 °F MAX
200 PSI @ 150°F
* These temperatures are theoretical and may vary
during actual operating conditions.
Tel: 910.735.0000
E-mail: titan@titanfci.com
Web: www.titanfci.com
Fax: 910.738.3848
PP-1112
