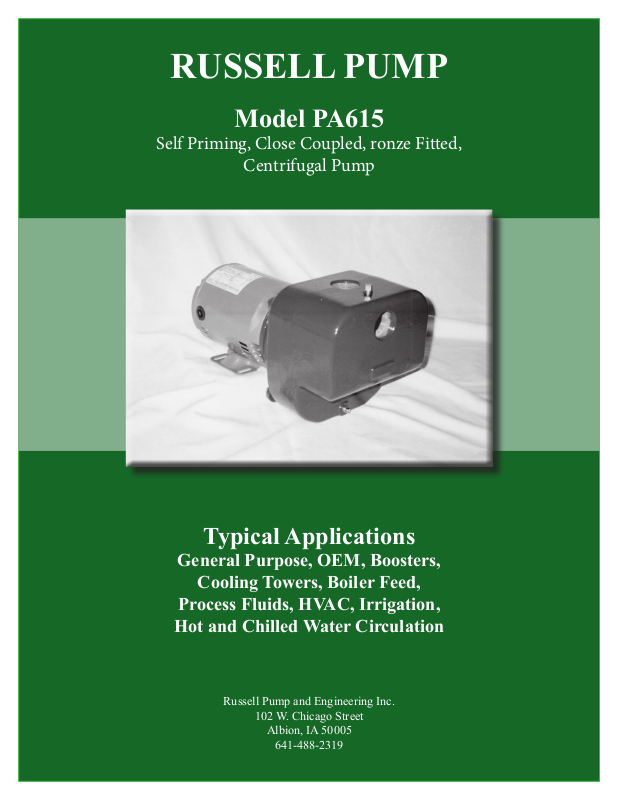

RUSSELL PUMP
Model PA615
Self Priming, Close Coupled, ronze Fitted,
Centrifugal Pump
Typical Applications
General Purpose, OEM, Boosters,
Cooling Towers, Boiler Feed,
Process Fluids, HVAC, Irrigation,
Hot and Chilled Water Circulation
Russell Pump and Engineering Inc.
102 W. Chicago Street
Albion, IA 50005
641-488-2319

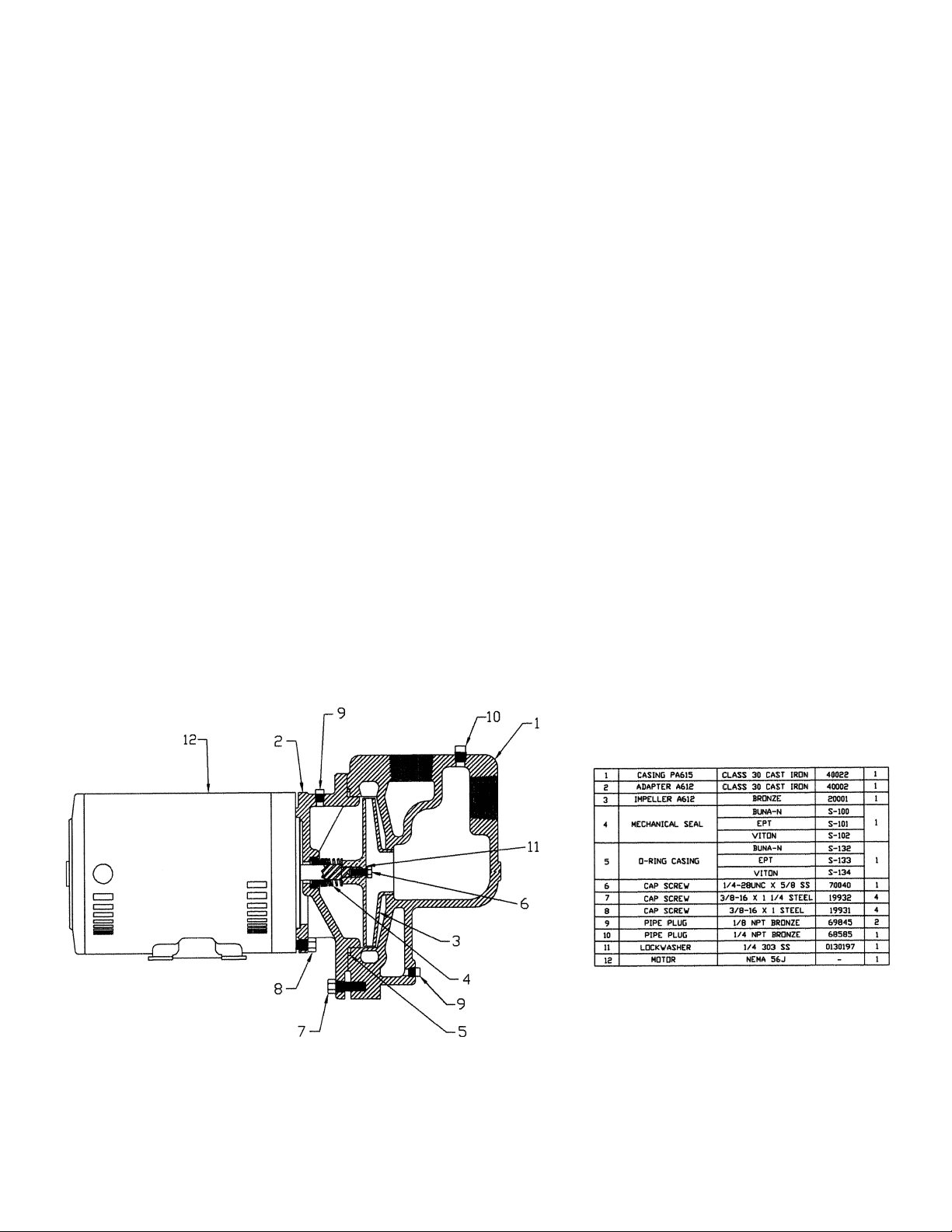

DESIGN FEATURES
CASING Constructed as ASTM A48 class 30 cast iron. Back pull out design allows the
pump to be served without disturbing the piping. 1/4 npt suction guage and 1/8
npt drain tappings are standard. Self venting design prevents air binding within the
pump. After initial priming the pump never needs to be primed again.
MECHANICAL SEAL Type 21 buna-n seal is rated to 225°F and pressures to 175PSI. Carbon seal face
mates with the ceramic seat providing years of trouble free service. Alternate seals
available upon request.
IMPELLER The hydraulic design of the impeller maximizes pressure and gpm while minimiz-
ing horsepower. The enclosed impeller is made of cast bronze.
ADAPTER The precise machining of the adapter allows for easy assembly of the pump. Con-
struction consists of ASTM A48 class 30 cast iron.
MOTOR The NEMA 56J motor utilizes a 416 stainless steel shaft. The motors heavy duty
ball bearings withstand axial and radial thrust loads with no problem. Standard
enclosure type is dripproof but alternates are available.

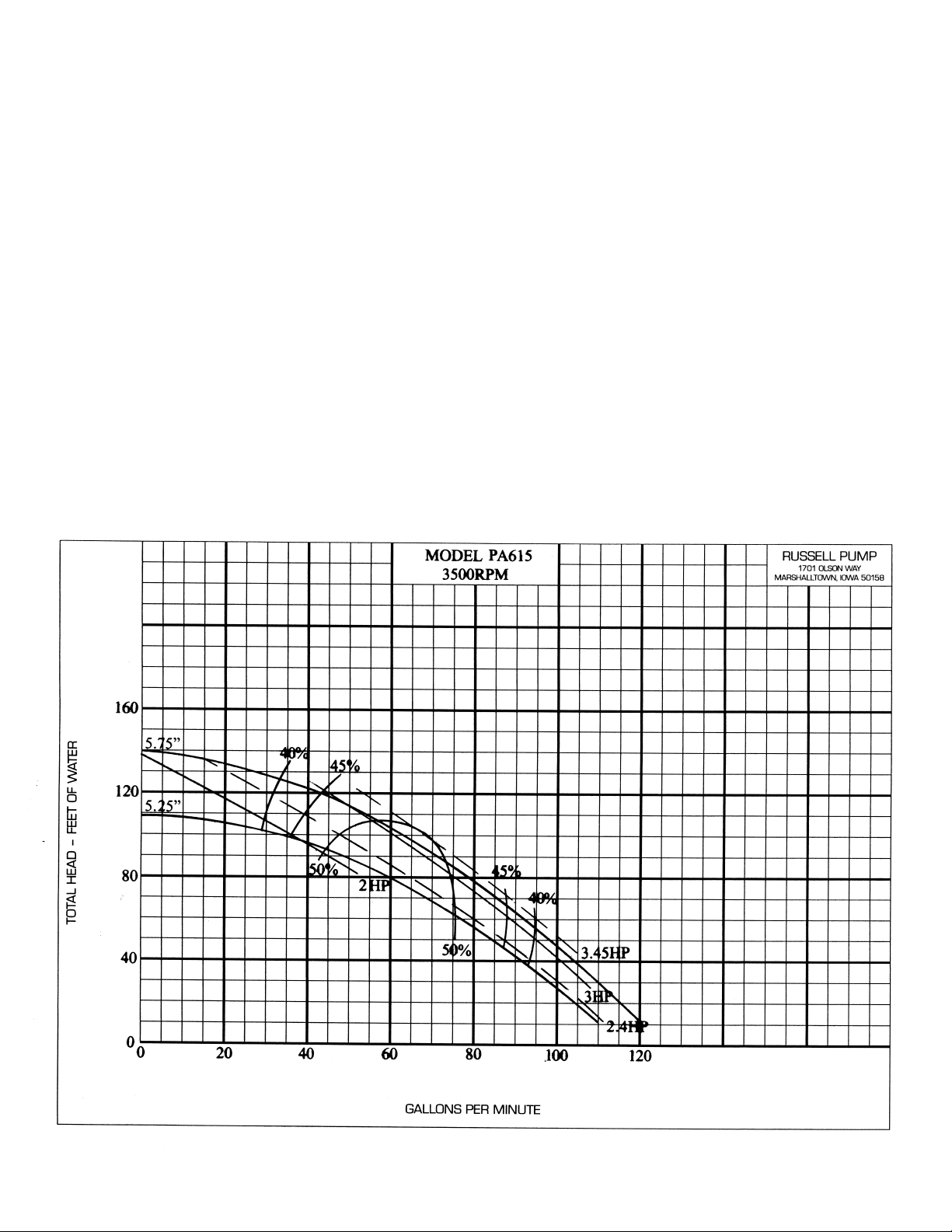

LIMITATIONS
MAXIMUM WORKING PRESSURE - 175PSI
MAXIMUM GALLONS PER MINUTE - 120
MAXIMUM HEAD PRODUCED - 138 FT.
RPM - 3450
MAXIMUM SEAL TEMP BUNA-N - 225°F
EPT - 300°F
VITON - 400°F
MAXIMUM HORSEPOWER - 3
SPECIFICATIONS
The contractor shall furnish (and install as shown on the plans) a Russell Series PA615 self priming, close
coupled, centrifugal, bronze tted pump. Each 11⁄2” x 11⁄2” pump shall have the capacity of ____ GPM when
operated at a total head of ____ feet.
The pump casing shall be radially split, self priming with 1/4 npt suction gauge tappings included. There shall
be a 1/8 npt drain hole in the casing. The casing shall have a self venting design to prevent air or gas binding.
The casing design should be of a back pull out type.
The pump is to be furnished with a mechanical seal which incorporates stainless steel parts. Buna-N elastomers,
ceramic seat, and carbon seal face shall be standard.
The pump shall be close coupled to a NEMA C face _____HP _____PHASE _____HERTZ _____VOLTAGE
_____RPM dripproof motor. The motor shall be sized to prevent overloading at the duty point. The motor shall
have a stainless steel shaft and sealed bearings.
All external cast parts shall have at least one coat of a high grade baked on powder coat paint. Each unit shall be
checked by the contractor to regulate the correct pressure, voltage, and amp draw.
