Pipeline Strainer 1100 S eries
The Trerice Series 1100 Pipeline Strainer is
designed to be installed upstream of regulators,
valves, or other similar equipment. This Y-Type
Strainer removes debris from the line, thereby
providing protection and extending the life of the
regulator or valve. The 1100 Series has a
generously proportioned, cast-iron body and a
1
/
64" perforated, stainless steel screen. Ablow-
out valve should be installed so that the screen
may be cleaned periodically.
Maximum Pressure and Temperature
Application Threaded Class 125 Flanged
Steam 250 psi @ 406°F (208°C) 125 psi @ 450°F (232°C)
Water/Oil/Gas 400 psi @ 150°F (66°C) 200 psi @ 100°F (38°C)
Model
1100
Body
Cast-iron
Connection
3
/
8
" to 2": Threaded
2
1
/2" to 6": Class 125 flanged
Screen
Stainless steel, 1/64" perforations
Cleanout Cover
Threaded Connection: Threaded
Flanged Connection: Bolted
Sample Order Number: G1108S
G11 08 S
Model Connection Size Screen Material
G11 1100 Series 033/8NPT S Stainless steel
04
1
/2NPT
06
3
/
4
NPT
08 1 NPT
10 1
1
/4NPT
12 1
1
/
2
NPT
16 2 NPT
20 2
1
/2" Flange
24 3" Flange
32 4" Flange
40 5" Flange
48 6" Flange
How To Order
Specifications
Cast-Iron
Construction
Stainless Steel
Screen
Y-Type Design
3
/8
" to 6" Sizes
1100 pictured
Pressure Regulators & Acc.
12950 W.Eight Mile Road • Oak Park,MI 48237-3288 • 248/399-8000 • FAX:248/399-7246 • www.trerice.com
1/1/2001
424242
Pipeline Strainer 1100 S eries
Approximate
Item Number A B Shipping Wt.
G1103S 3.18 [81] 2.06 [52] 1.6 lbs [0.73 kg]
G1104S 3.18 [81] 2.06 [52] 1.6 lbs [0.73 kg]
G1106S 3.75 [95] 2.44 [61] 2.4 lbs [1.09 kg]
G1108S 4.00 [102] 2.63 [66] 3.0 lbs [1.36 kg]
G1110S 5.00 [127] 3.38 [85] 5.2 lbs [2.36 kg]
G1112S 5.75 [146] 3.88 [98] 8.0 lbs [3.64 kg]
G1116S 7.00 [177] 4.75 [121] 13 lbs [5.9 kg]
G1120S 10.00 [254] 6.50 [165] 28 lbs [12.7 kg]
G1124S 10.13 [257] 7.00 [178] 34 lbs [15.5 kg]
G1132S 12.13 [308] 8.25 [210] 60 lbs [27 kg]
G1140S 15.63 [397] 11.25 [286] 95 lbs [43 kg]
G1148S 18.50 [470] 13.50 [343] 133 lbs [60 kg]

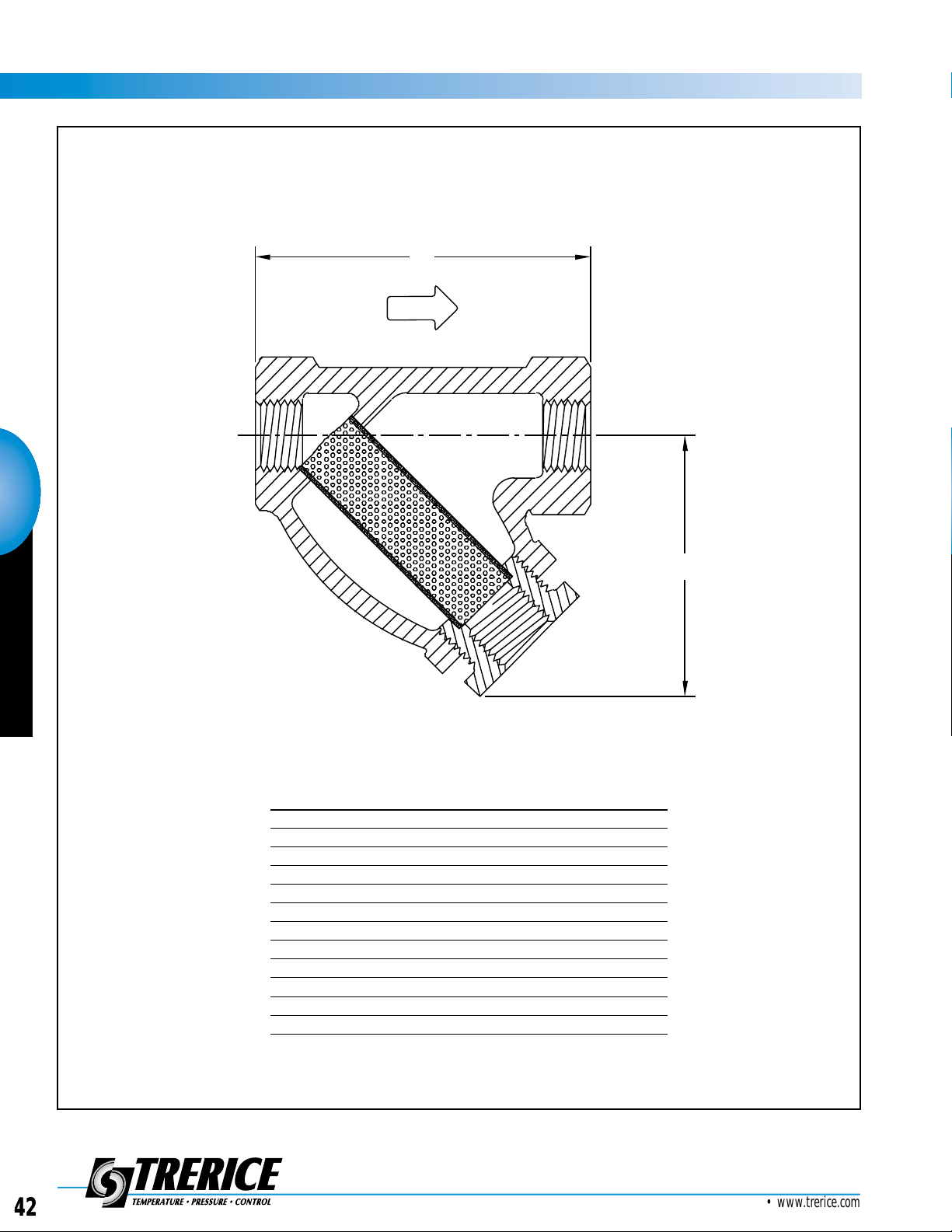

All dimensions are nominal. Dimensions in [ ] are in millimeters.
B
A
Pressure Regulators & Acc.
FLOW
