ACTUATOR PILOT

- 72 -

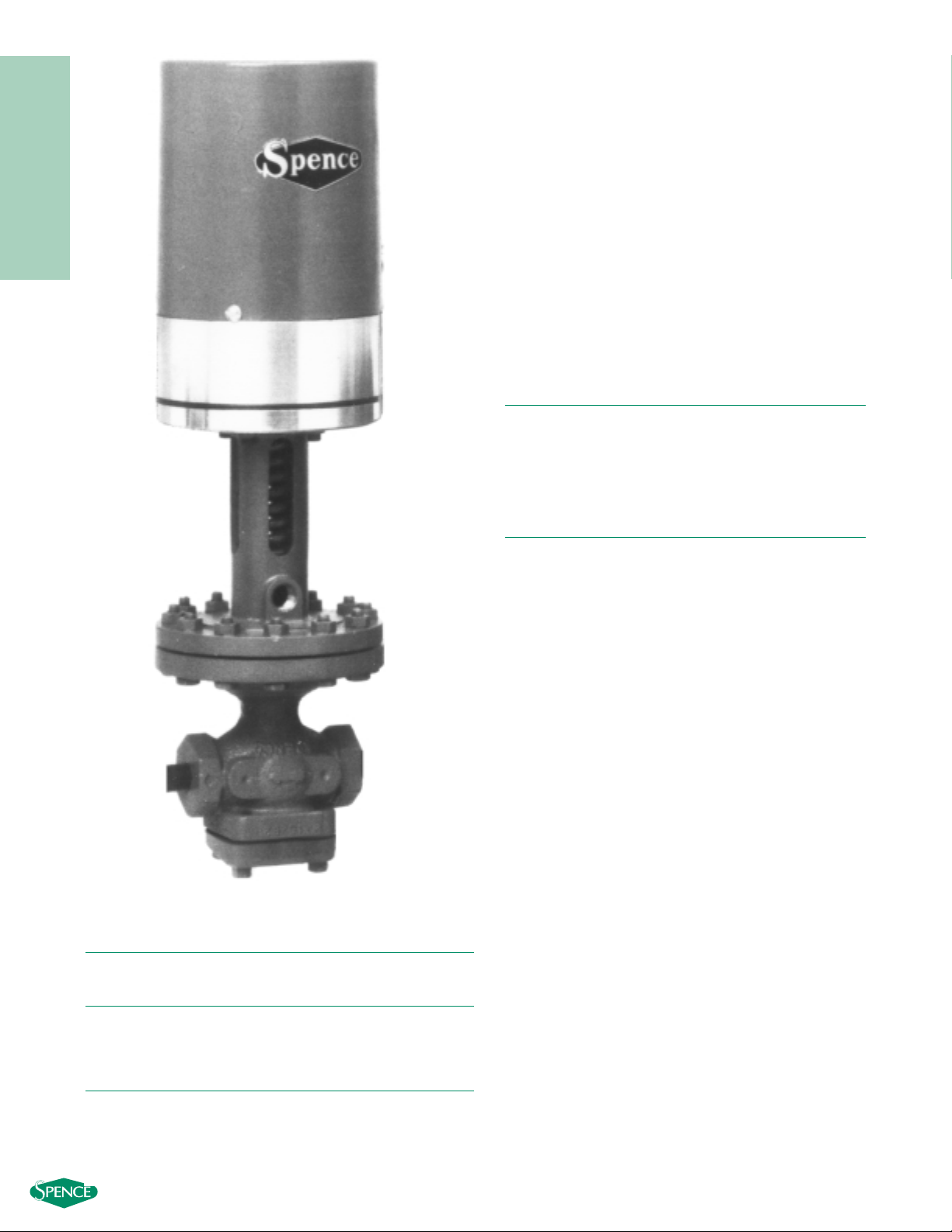

TYPE D210

ELECTRONIC ACTUATOR PILOT

WITH MODULATING

SERVO-AMPLIFIER

CONTROLS to 150 PSIG

●Modulate Process Variable in Relation to

a Proportional Control Input Signal

●Servo-Amplifier provides Continuous

Signal for Immediate Response

●Ambient Temperatures 20 to 120°F (-7 to

49°C)

●For use with Balanced Main Valve only

OPTIONS

●Back-up Power Supply for up to 6 hours continued

service during power failure.

●Explosion proof actuator, NEMA

●Fail-Safe Device to stroke Actuator half or full open on

input signal failure.

TYPICAL CONFIGURATIONS

4-20 M

A PROPORTIONAL CONTROL ………ED210

TYPE D210 ELECTRONIC PILOT ACTUATOR

A

PPLICATIONDATA

●

Building Control Systems

R

ATINGS

D210 120VAC, 50-60HZ, .3 AMPS
Servo-Amplifier 120VAC, 50-60HZ, .3 AMPS
B.U. Power Supply 120VAC, 60HZ, up to 6 AMPS

I

NPUTSIGNALS

1-5mA 10-50mA
4-20mA Selectable from 0-24 VDC

Canadian Registration # OC 0591.9C

TYPE D210

ELECTRONIC ACTUATOR PILOT

WITH MODULATING

SERVO-AMPLIFIER

SPECIFICATION

The Actuator Pilot shall maintain a system and modulate that
system as requirements dictate. A continuous signal (1-5mA, 4­20mA, 10-50mA or 0-24 VCD) is transmitted by the system
control to the Servo-Amplifier which positions the Actuator Pilot.

In the event of a power failure, the Actuator Pilot shall stop in its
present position unless a back-up power supply is specified.
Such backup power supply shall provide a minimum of specified
hours of operation and be maintained in a fully charged standby
condition automatically.
In the event of signal failure, the Actuator Pilot shall close unless
a Fail-Safe Device is specified in the Servo-Amplifier which will be
factory set to stoke the Actuator Pilot half open or full open.

M

ATERIALS OF C

ONSTRUCTION

Body, Cast Iron …………………………ASTM 126 Cl. B
Body, Carbon Steel …………………ASTM 216 Gr. WCB
Stem ……………………303 St. Stl. ASTM 582 Cond. A
Disc …………………440 St. Stl. ASTM 276-75 Cond. A
Seat ……………………304 St. Stl. ASTM 276 Cond. A
Gasket ………………………………………Non-asbestos

TYPE D210 ELECTRONIC

ACTUATOR PILOT

TYPE D210 SERVO-AMPLIFIER

41/2

(114)

3

1

/2

(89)

137/8
(352)

153/4
(400)

17/8
(48)

41/2

(114)

83/4

(222)6(152)

57/16

(149)

111/2 (292)
103/

4 (273)
