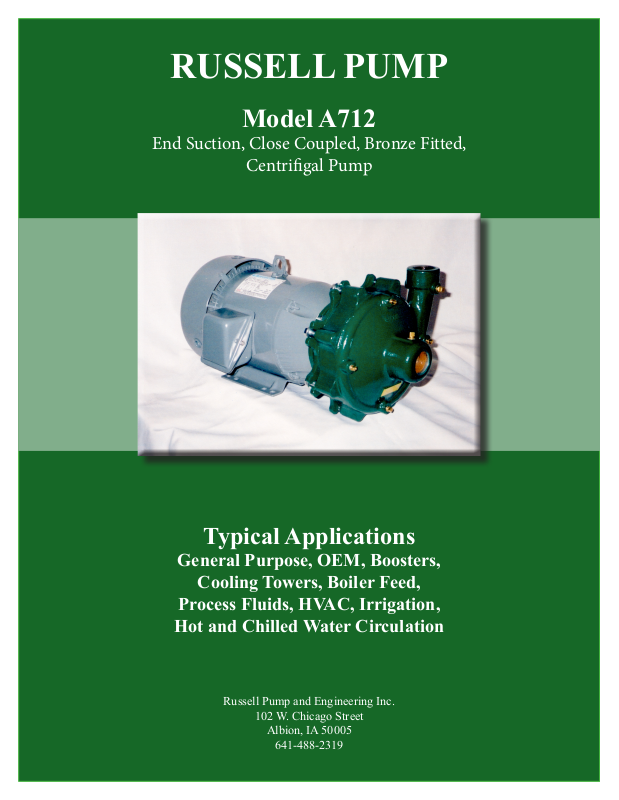

RUSSELL PUMP

Model A712

End Suction, Close Coupled, Bronze Fitted,

Centrigal Pump

Typical Applications

General Purpose, OEM, Boosters,

Cooling Towers, Boiler Feed,

Process Fluids, HVAC, Irrigation,

Hot and Chilled Water Circulation

Russell Pump and Engineering Inc.

102 W. Chicago Street

Albion, IA 50005

641-488-2319

Design Features

CASING Constructed as ASTM A48 class 30 cast iron. The discharge can be mounted in

any 90° position. Drain and air ports are also positioned every 90°, 1/4 npt suc­tion and discharge tappings are standard. Back pull out design allows the pump to
be serviced without disturbing the piping. The volute was designed to maximize

hydraulic efciency.

MECHANICAL SEAL Type 21 buna-n seal is rated to 225°F and pressures to 175PSI. Carbon seal face

mates with the ceramic seat providing years of trouble free service. Alternate seals
available upon request.

IMPELLER The hydraulic design of the impeller maximizes pressure and gpm while minimiz-

ing horsepower. The enclosed impeller is made of cast bronze.

ADAPTER The precise machining of the adapter allows for easy assembly of the pump. A 1/8

npt hole is provided if a seal ush line is added. Construction consists of ASTM

A48 class 30 cast iron.

MOTOR The NEMA JM frame motor utilizes a high carbon steel shaft. The motor’s heavy

duty ball bearings withstand axial and radial thrust loads with no problem. Stan­dard enclosure type is dripproof but alternates are available.

Limitations

MAXIMUM WORKING PRESSURE - 175PSI
MAXIMUM GALLONS PER MINUTE - 175
MAXIMUM HEAD PRODUCED - 253 FT.
RPM - 3500
MAXIMUM SEAL TEMP BUNA-N - 225°F
EPT - 300°F
VITON - 400°F
MAXIMUM HORSEPOWER - 15

SPECIFICATIONS

e contractor shall furnish (and install as shown on the plans) a Russell Series A712 close coupled, centrifugal,
bronze tted pump. Each 11⁄4” x 11⁄2” pump shall have the capacity of ____ GPM when operated at a total head
of ____ feet.

e pump casing shall be radially split, end suction with 1/4 npt suction and discharge gauge tappings included.
e casing should be able to accommodate any 90° mounting position. ere shall be four drain/air ports drilled
and tapped 90° apart. e casing design should be of a back pull-out type.

e pump is to be furnished with a mechanical seal which incorporates stainless steel parts. Buna-N elastomers,
ceramic seat, and carbon seal face shall be standard.

e adapter shall be drilled and tapped to allow for the possible addition of a seal ush line.

e pump shall be close coupled to a NEMA C face _____HP _____PHASE _____HERTZ _____VOLTAGE
_____RPM dripproof motor. e motor shall be sized to prevent overloading at the duty point. e motor shall
have a stainless steel sha and sealed bearings.

All external cast parts shall have at least one coat of a high grade baked on powder coat paint. Each unit shall be
checked by the contractor to regulate the correct pressure, voltage, and amp draw.
