Page 1
12950 W.Eight Mile Road • Oak Park,MI 48237-3288 • 248/399-8000 • FAX:248/399-7246 • www.trerice.com
1/1/2001
91

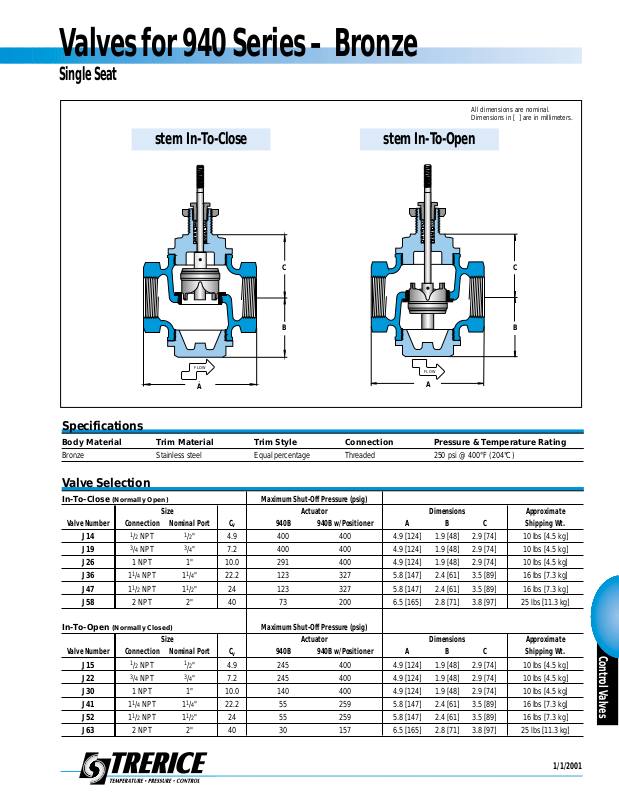

Valves for 940 Series – Bronze
Single Seat
Specifications
Body Material Trim Material Trim Style Connection Pressure & Temperature Rating
Bronze Stainless steel Equal percentage Threaded 250 psi @ 400°F (204°C)
Valve Selection
In-To-Close
(Normally Open)
Maximum Shut-Off Pressure (psig)
Size Actuator Dimensions Approximate
Valve Number Connection Nominal Port C
v
940B 940B w/Positioner A B C Shipping Wt.
J14
1
/
2
NPT
1
/
2
" 4.9 400 400 4.9 [124] 1.9 [48] 2.9 [74] 10 lbs [4.5 kg]
J19
3
/4NPT
3
/4" 7.2 400 400 4.9 [124] 1.9 [48] 2.9 [74] 10 lbs [4.5 kg]
J26 1 NPT 1" 10.0 291 400 4.9 [124] 1.9 [48] 2.9 [74] 10 lbs [4.5 kg]
J36 11/4NPT 11/4" 22.2 123 327 5.8 [147] 2.4 [61] 3.5 [89] 16 lbs [7.3 kg]
J47 11/2NPT 11/2" 24 123 327 5.8 [147] 2.4 [61] 3.5 [89] 16 lbs [7.3 kg]
J58 2 NPT 2" 40 73 200 6.5 [165] 2.8 [71] 3.8 [97] 25 lbs [11.3 kg]
In-To-Open
(Normally Closed)
Maximum Shut-Off Pressure (psig)
Size Actuator Dimensions Approximate
Valve Number Connection Nominal Port C
v
940B 940B w/Positioner A B C Shipping Wt.
J15
1
/2NPT
1
/2" 4.9 245 400 4.9 [124] 1.9 [48] 2.9 [74] 10 lbs [4.5 kg]
J22
3
/4NPT
3
/4" 7.2 245 400 4.9 [124] 1.9 [48] 2.9 [74] 10 lbs [4.5 kg]
J30 1 NPT 1" 10.0 140 400 4.9 [124] 1.9 [48] 2.9 [74] 10 lbs [4.5 kg]
J41 11/
4
NPT 1
1
/
4
" 22.2 55 259 5.8 [147] 2.4 [61] 3.5 [89] 16 lbs [7.3 kg]
J52 11/
2
NPT 1
1
/
2
" 24 55 259 5.8 [147] 2.4 [61] 3.5 [89] 16 lbs [7.3 kg]
J63 2 NPT 2" 40 30 157 6.5 [165] 2.8 [71] 3.8 [97] 25 lbs [11.3 kg]
stem In-To-Close stem In-To-Open
All dimensions are nominal.
Dimensions in [ ] are in millimeters.
C
B
C
B
A
A
Control Valves
FLOW
A
C
B
FLOW
A
C
B
Page 2
12950 W.Eight Mile Road • Oak Park,MI 48237-3288 • 248/399-8000 • FAX:248/399-7246 • www.trerice.com
6/1/2001
9292
Valves for 940 Series – Cast-Iron
Single Seat
Specifications
Body Material Trim Material Trim Style Connection Pressure & Temperature Rating
Cast-iron Stainless steel Equal percentage Class 125 flanged 125 psi @ 350°F (176°C)
Class 250 flanged 250 psi @ 400°F (204°C)
Valve Selection
In-To-Close
(Normally Open)
Maximum Shut-Off Pressure (psig)
Valve Number Actuator Approximate
Class 125 Class 250 S ize C
v
940B 940B w/Positioner 940C 940C w/Positioner Shipping Wt.
K71 L71 21/2" 65 50 142 91 231 50 lbs [23 kg]
K76 L76 3" 90 33 96 61 158 95 lbs [43 kg]
K81 L81 4" 170 16 52 32 87 130 lbs [59 kg]
K86 L86 5" 280 9 31 19 54 150 lbs [68 kg]
K91 L91 6" 360 5 21 12 36 175 lbs [79 kg]
K96 L96 8" 450 x x 11 35 300 lbs [136 kg]
In-To-Open
(Normally Closed)
Maximum Shut-Off Pressure (psig)
Valve Number Actuator Approximate
Class 125 Class 250 S ize C
v
940B 940B w/Positioner 940C 940C w/Positioner Shipping Wt.
K72 L72 21/2" 65 x 111 44 185 50 lbs [23 kg]
K77 L77 3" 90 x 75 28 126 95 lbs [43 kg]
K82 L82 4" 170 x 40 13 68 130 lbs [59 kg]
K87 L87 5" 280 x 24 7 42 150 lbs [68 kg]
K92 L92 6" 360 x 15 4 28 175 lbs [79 kg]
K97 L97 8" 450 x x 3 27 300 lbs [136 kg]
Class 125 Class 250
Size A B C A B C
21/2" 9.0 [229] 4.9 [124] 5.5 [140] 9.6 [244] 4.9 [124] 5.5 [140]
3" 10.0 [254] 5.5 [140] 6.9 [175] 10.8 [274] 5.5 [140] 6.9 [175]
4" 13.0 [330] 6.4 [163] 7.1 [180] 13.6 [345] 6.4 [163] 7.1 [180]
5" 15.8 [401] 5.8 [147] 7.8 [198] 16.6 [422] 5.8 [147] 7.8 [198]
6" 17.8 [452] 6.5 [165] 8.4 [213] 18.6 [472] 6.5 [165] 8.4 [213]
8" 16.3 [414] 8.1 [206] 8.6 [218] 16.3 [414] 8.1 [206] 8.6 [218]
stem In-To-Close
All dimensions are nominal.
Dimensions in [ ] are in millimeters.
stem In-To-Open
C
B
C
B
A
Control Valves
A
C
B
FLOW
C
B
FLOW
A
Page 3
IDNC_reviii.eps
12950 W.Eight Mile Road • Oak Park,MI 48237-3288 • 248/399-8000 • FAX:248/399-7246 • www.trerice.com
6/1/2001
93
Valves for 940 Series – Cast-Iron
Double Seat
Specifications
Body Material Trim Material Trim Style Connection Pressure & Temperature Rating
Cast-iron Stainless steel Equal percentage 11/
2
"-2": Threaded 250 psi @ 400°F (204°C)
2
1
/2"-8": Class 125 flanged 125 psi @ 350°F (176°C)
21/
2
"-8": Class 250 flanged 250 psi @ 400°F (204°C)
stem In-To-Close
stem In-To-Open
Valve Selection
In-To-Close
(Normally Open)
Maximum Shut-Off Pressure (psig)
Valve Number Actuator Approximate
Class 125 Class 250 Size C
v
940B 940B w/Positioner Shipping Wt.
x L50 11/2" 30 400 400 20 lbs [9 kg]
x L61 2" 42 400 400 20 lbs [9 kg]
K73 L73 21/2" 70 400 400 45 lbs [20 kg]
K78 L78 3" 100 400 400 70 lbs [32 kg]
K83 L83 4" 200 400 400 100 lbs [45 kg]
K88 L88 5" 260 302 400 155 lbs [70 kg]
K93 L93 6" 350 233 400 180 lbs [82 kg]
K98 L98 8" 680 123 400 310 lbs [141 kg]
In-To-Open
(Normally Closed)
Maximum Shut-Off Pressure (psig)
Valve Number Actuator Approximate
Class 125 Class 250 Size C
v
940B 940B w/Positioner Shipping Wt.
x L55 11/2" 30 400 400 20 lbs [9 kg]
x L66 2" 42 400 400 20 lbs [9 kg]
K74 L74 21/2" 70 326 400 45 lbs [20 kg]
K79 L79 3" 100 243 400 70 lbs [32 kg]
K84 L84 4" 200 140 400 100 lbs [45 kg]
K89 L89 5" 260 87 400 155 lbs [70 kg]
K94 L94 6" 350 50 400 180 lbs [82 kg]
K99 L99 8" 680 x 386 310 lbs [141 kg]
125 psi 250 psi
Size A B C A B C
11/2" x x x 7.4 [188] 3.8 [97] 4.5 [114]
2" x x x 7.4 [188] 3.8 [97] 4.5 [114]
21/2" 7.8 [198] 4.1 [105] 4.9 [124] 8.4 [213] 4.1 [105] 4.9 [124]
3" 9.0 [229] 4.4 [112] 5.1 [130] 9.8 [249] 4.4 [112] 5.1 [130]
4" 11.4 [290] 5.0 [127] 6.6 [168] 12.0 [305] 5.0 [127] 6.6 [168]
5" 12.0 [305] 6.8 [173] 7.6 [193] 12.9 [328] 6.8 [173] 7.6 [193]
6" 14.1 [358] 7.5 [191] 8.5 [216] 14.5 [368] 7.5 [191] 8.5 [216]
8" 16.3 [414] 8.8 [224] 9.6 [244] 16.3 [414] 8.8 [224] 9.6 [244]
All dimensions are nominal.
Dimensions in [ ] are in millimeters.
Note: Drawing depicts flanged
connection; 11/2" and 2" valves have
threaded connection.
C
B
C
B
A
A
Control Valves
C
B
FLOW
C
B
FLOW
A
Page 4
12950 W.Eight Mile Road • Oak Park,MI 48237-3288 • 248/399-8000 • FAX:248/399-7246 • www.trerice.com
1/1/2001
94
1/1/2001
94

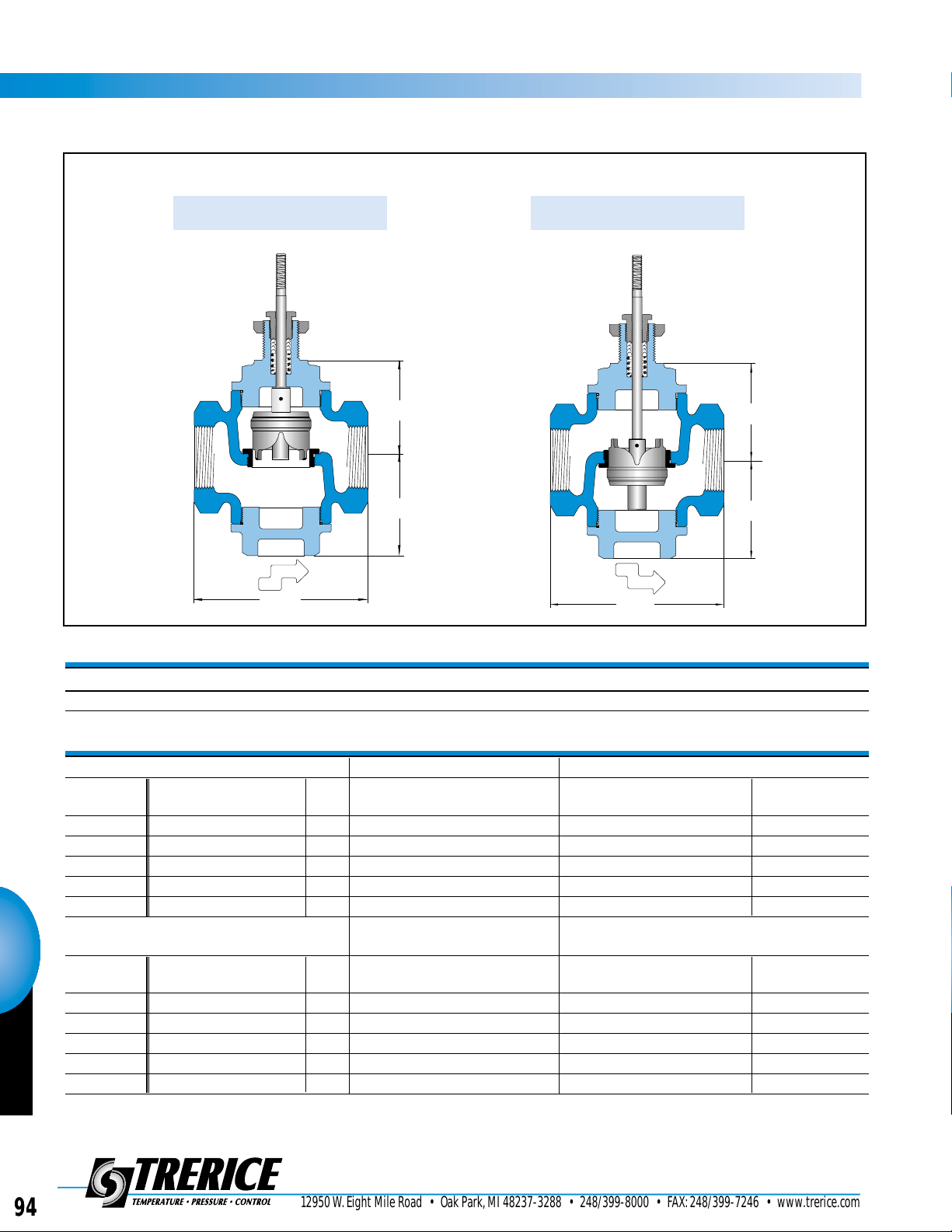

Valves for 940 Series – Stainless Steel
Single Seat
Specifications
Body Material Trim Material Trim Style Connection Pressure & Temperature Rating
Stainless steel Stainless steel Equal percentage Threaded 515 psi @ 400°F (204°C)
Valve Selection
In-To-Close
(Normally Open)
Maximum Shut-Off Pressure (psig)
Size Actuator Dimensions Approximate
Valve Number Connection Nominal Port C
v
940B 940B w/Positioner A B C Shipping Wt.
M14
1
/2NPT
1
/2" 4.9 450 720 5.0 [127] 2.9 [74] 2.9 [74] 10 lbs [4.5 kg]
M19
3
/4NPT
3
/4" 7.2 450 720 5.0 [127] 2.9 [74] 2.9 [74] 10 lbs [4.5 kg]
M26 1 NPT 1" 10.0 255 707 5.0 [127] 2.9 [74] 2.9 [74] 10 lbs [4.5 kg]
M47 11/2NPT 11/2" 24 100 304 6.1 [155] 3.5 [89] 3.5 [89] 16 lbs [7.3 kg]
M58 2 NPT 2" 40 54 181 6.5 [165] 3.9 [99] 3.8 [97] 25 lbs [11.3 kg]
In-To-Open
(Normally Closed)
Maximum Shut-Off Pressure (psig)
Size Actuator Dimensions Approximate
Valve Number Connection Nominal Port C
v
940B 940B w/Positioner A B C Shipping Wt.
M15
1
/2NPT
1
/2" 4.9 200 720 5.0 [127] 2.9 [74] 2.9 [74] 10 lbs [4.5 kg]
M22
3
/4NPT
3
/4" 7.2 200 720 5.0 [127] 2.9 [74] 2.9 [74] 10 lbs [4.5 kg]
M30 1 NPT 1" 10 105 557 5.0 [127] 2.9 [74] 2.9 [74] 10 lbs [4.5 kg]
M52 11/2NPT 11/2" 24 32 236 6.1 [155] 3.5 [89] 3.5 [89] 16 lbs [7.3 kg]
M63 2 NPT 2" 40 12 138 6.5 [165] 3.9 [99] 3.8 [97] 25 lbs [11.3 kg]
stem In-To-Close stem In-To-Open
All dimensions are nominal.
Dimensions in [ ] are in millimeters.
C
B
C
B
A
A
Control Valves
C
B
C
B
FLOW
A
FLOW
Page 5
M
12950 W.Eight Mile Road • Oak Park,MI 48237-3288 • 248/399-8000 • FAX:248/399-7246 • www.trerice.com
1/1/2001
95

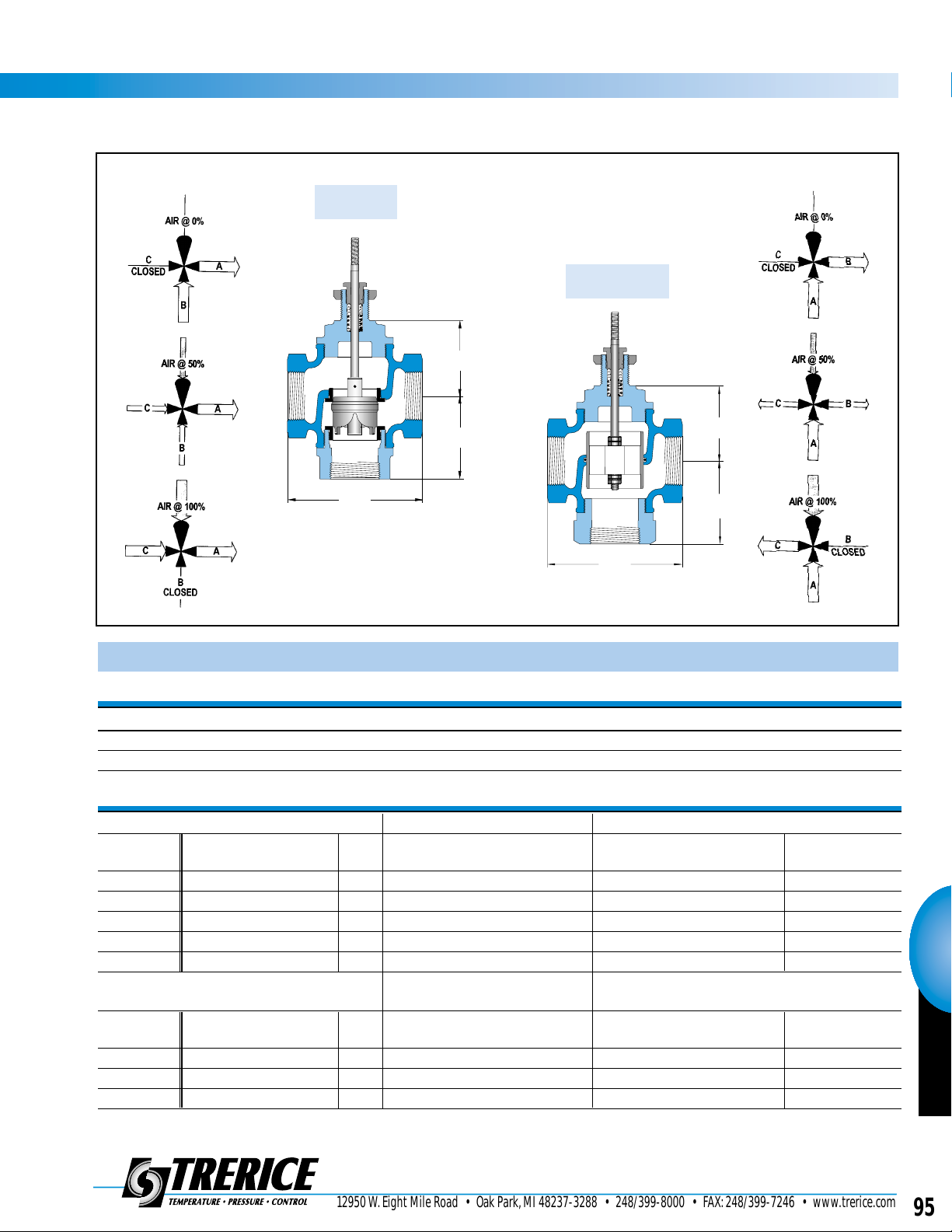

Valves for 940 Series – Bronze
3-Way
Specifications
Action Body Material Trim Material Trim Style Connection Pressure & Temperature Rating
Mixing Bronze Stainless steel Modified linear Threaded 250 psi @ 400°F (204°C)
Diverting Bronze Bronze Modified linear Threaded 250 psi @ 300°F (149°C)
Valve Selection
Mixing
Maximum Shut-Off Pressure (psig)
Size Actuator Dimensions Approximate
Valve Number Connection Nominal Port C
v
940B 940B w/Positioner E F G Shipping Wt.
N18
1
/2 NPT
1
/2" 6.3 140 291 4.9 [124] 2.8 [71] 2.9 [74] 9.0 lbs [4.10 kg]
N25
3
/4NPT
3
/4" 8.2 140 291 4.9 [124] 2.8 [71] 2.9 [74] 9.0 lbs [4.10 kg]
N34 1 NPT 1" 10 140 291 4.9 [124] 2.8 [71] 2.9 [74] 9.0 lbs [4.10 kg]
N56 11/2NPT 11/2" 20 55 123 5.8 [147] 3.8 [97] 3.5 [89] 15.5 lbs [7.05 kg]
N67 2 NPT 2" 40 30 73 6.5 [165] 4.0 [102] 3.8 [97] 20.0 lbs [9.10 kg]
Diverting
Maximum Shut-Off Pressure (psig)
Size Actuator Dimensions Approximate
Valve Number Connection Nominal Port C
v
940B 940B w/Positioner E F G Shipping Wt.
J34 1 NPT 1" 12 125 125 4.9 [124] 3.5 [89] 2.9 [74] 9.0 lbs [4.10 kg]
J56 11/
2
NPT 1
1
/
2
" 22 125 125 5.8 [147] 3.8 [97] 3.5 [89] 16.5 lbs [7.5 kg]
J67 2 NPT 2" 40 125 125 6.5 [165] 4.0 [102] 3.8 [97] 21.0 lbs [9.55 kg]
Mixing
Diverting
All dimensions are nominal.
Dimensions in [ ] are in millimeters.
Trerice 3-Way Valves are not designed for use in steam applications.
G
LOWER PORT
(B)
UPPER
PORT
(C)
COMMON
PORT (A)
F
E
G
LOWER
PORT
(B)
UPPER
PORT
(C)
COMMON PORT (A)
F
E
MIXING FLOW DIAGRAM
DIVERTING FLOW DIAGRAM
Control Valves
G
RT
E
LOWER PORT
(B)
CO
F
P
Page 6
12950 W.Eight Mile Road • Oak Park,MI 48237-3288 • 248/399-8000 • FAX:248/399-7246 • www.trerice.com
6/1/2001
9696

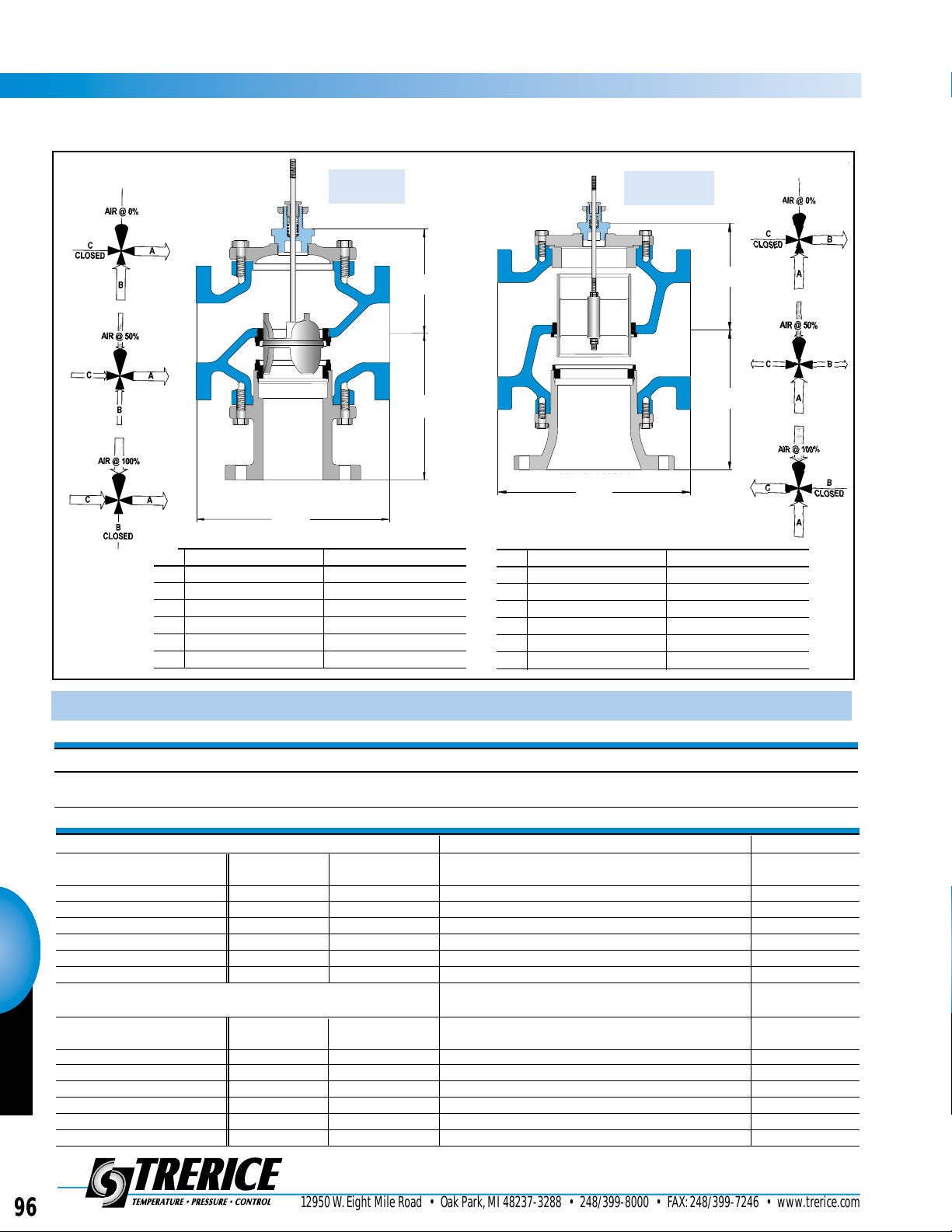

Valves for 940 Series – Cast-Iron
3-Way
Specifications
Body Material Trim Material Trim Style Connection Pressure & Temperature Rating
Cast-iron Stainless steel Equal percentage Class 125 flanged 125 psi @ 350°F (176°C)
Class 250 flanged 250 psi @ 400°F (204°C)
Valve Selection
Mixing
Maximum Shut-Off Pressure (psig)
Valve Number Actuator Approximate
Class 125 Class 250 S ize C
v
940B 940B w/Positioner 940C 940C w/Positioner Shipping Wt.
P75 Q75 21/2" 75 20 111 44 185 62 lbs [30 kg]
P80 Q80 3" 105 11 75 28 126 80 lbs [36 kg]
P85 Q85 4" 190 4 40 13 68 140 lbs [64 kg]
P90 Q90 5" 280 x 24 7 42 157 lbs [71 kg]
P95 Q95 6" 340 x 15 4 28 203 lbs [92 kg]
P100 Q100 8" 450 x x 3 27 324 lbs [148 kg]
Diverting
Maximum Shut-Off Pressure (psig)
Valve Number Actuator Approximate
Class 125 Class 250 S ize C
v
940B 940B w/Positioner 940C 940C w/Positioner Shipping Wt.
K75 L75 21/2" 68 x 125 x x 62 lbs [30 kg]
K80 L80 3" 85 x 125 x x 80 lbs [36 kg]
K85 L85 4" 160 x 125 x x 140 lbs [64 kg]
K90 L90 5" 195 x 125 x x 157 lbs [71 kg]
K95 L95 6" 270 x x x 125 203 lbs [92 kg]
K100 L100 8" 425 x x x 125 329 lbs [150 kg]
Mixing Class 125 Class 250
Size E F G E F G
21/2" 9.0 [229] 7.1 [180] 5.5 [140] 9.6 [244] 7.4 [188] 5.5 [140]
3" 10.0 [254] 8.0 [203] 6.1 [155] 10.8 [274] 8.4 [213] 6.1 [155]
4" 13.0 [330] 9.9 [251] 7.1 [180] 13.6 [345] 10.3 [262] 7.1 [180]
5" 12.0 [305] 10.5 [267] 7.5 [191] 12.9 [328] 11.0 [279] 7.5 [191]
6" 14.1 [358] 11.1 [282] 7.9 [201] 14.5 [368] 11.5 [292] 7.9 [201]
8" 16.3 [414] 11.5 [292] 8.6 [218] 16.3 [414] 12.0 [305] 8.6 [218]
Diverting Class 125 Class 250
Size E F G E F G
21/2" 9.0 [229] 7.1 [180] 5.5 [140] 9.6 [244] 7.4 [188] 5.5 [140]
3" 10.0 [254] 8.0 [203] 6.1 [155] 10.8 [274] 8.4 [213] 6.1 [155]
4" 13.0 [330] 9.9 [251] 7.1 [180] 13.6 [345] 10.3 [262] 7.1 [180]
5" 15.8 [401] 9.3 [236] 6.0 [152] 16.6 [422] 10.4 [264] 6.0 [152]
6" 17.8 [452] 9.9 [251] 6.8 [173] 18.6 [472] 11.0 [279] 6.8 [173]
8" 16.3 [414] 11.5 [292] 8.6 [218] 16.3 [414] 12.0 [305] 8.6 [218]
All dimensions are nominal.
Dimensions in [ ] are in millimeters.
Trerice 3-Way Valves are not designed for use in steam applications.
Diverting
Mixing
G
G
LOWER PORT (B)
LOWER
PORT
(B)
UPPER
PORT
(C)
COMMON PORT (A)
F
F
E
E
DIVERTING FLOW DIAGRAM
Control Valves
MIXING FLOW DIAGRAM
UPPER
PORT
(C)
COMMON
PORT
(A)
COMMON PORT (A)
E
G
LOWER
PORT
(B)
F
RT
COMMON PORT (A)
E
LOWER
PORT
(B)
G
F
Page 7
12950 W.Eight Mile Road • Oak Park,MI 48237-3288 • 248/399-8000 • FAX:248/399-7246 • www.trerice.com
1/1/2001
97

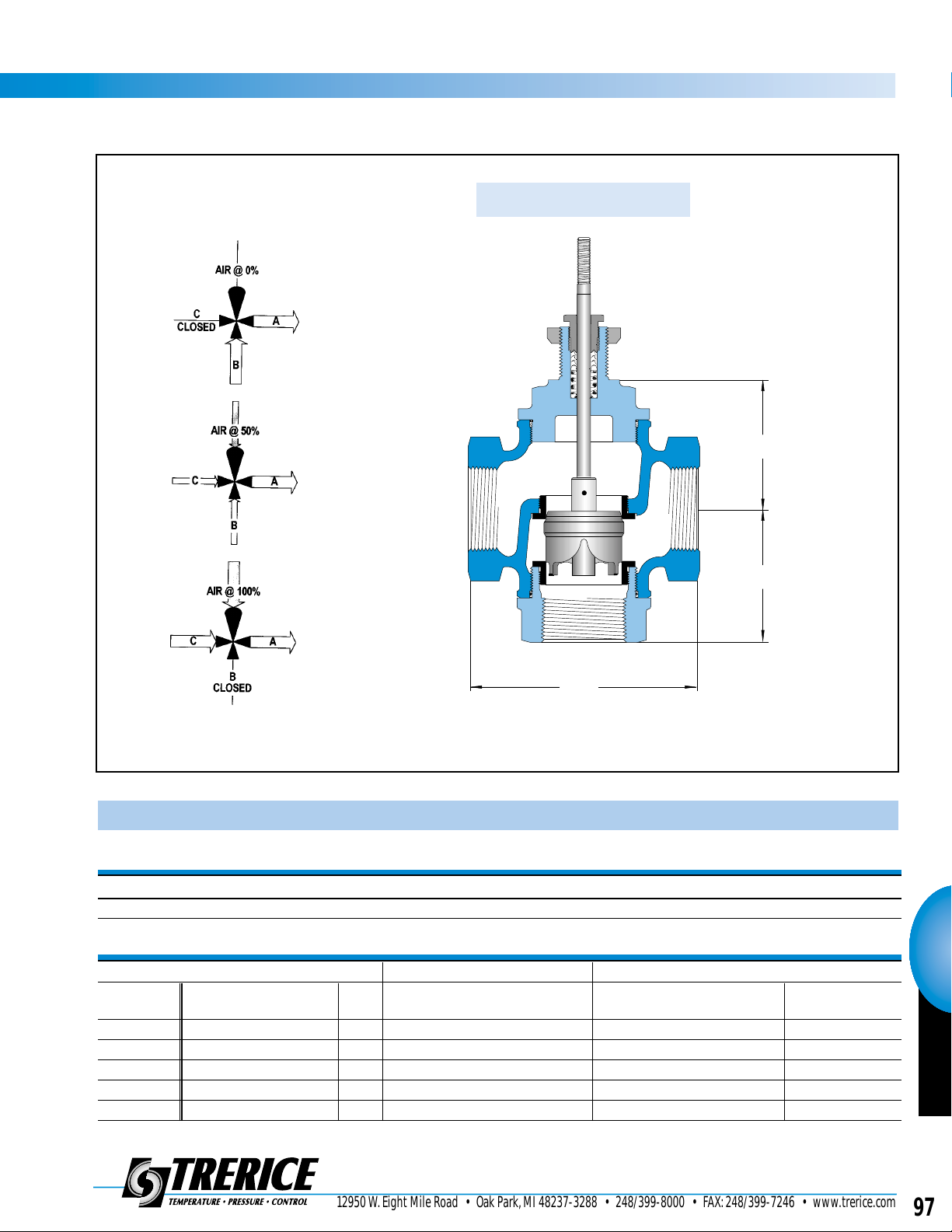

Valves for 940 Series – Stainless Steel
3-Way
Specifications
Body Material Trim Material Trim Style Connection Pressure & Temperature Rating
Stainless steel Stainless steel Modified linear Threaded 515 psi @ 400°F (204°C)
Valve Selection
Mixing
Maximum Shut-Off Pressure (psig)
Size Actuator Dimensions Approximate
Valve Number Connection Nominal Port C
v
940B 940B w/Positioner E F G Shipping Wt.
M18
1
/2NPT
1
/2" 6.3 105 557 5.0 [127] 2.8 [71] 2.9 [74] 7.5 lbs [3.41 kg]
M25
3
/4NPT
3
/4" 8.2 105 557 5.0 [127] 2.8 [71] 2.9 [74] 7.5 lbs [3.41 kg]
M34 1 NPT 1" 10 105 557 5.0 [127] 2.8 [71] 2.9 [74] 7.0 lbs [3.18 kg]
M56 11/
2
NPT 1
1
/
2
" 20 32 236 6.1 [155] 3.4 [86] 3.5 [89] 15.0 lbs [6.82 kg]
M67 2 NPT 2" 40 12 138 6.5 [165] 3.8 [97] 3.8 [97] 18.5 lbs [8.41 kg]
Mixing
All dimensions are nominal.
Dimensions in [ ] are in millimeters.
Trerice 3-Way Valves are not designed for use in steam applications.
G
LOWER PORT
(B)
UPPER PORT
(C)
COMMON
PORT (A)
F
E
MIXING FLOW DIAGRAM
Control Valves
UPPER PORT
(C)
G
COMMON
PORT
(A)
F
E
LOWER PORT
(B)
Loading...
