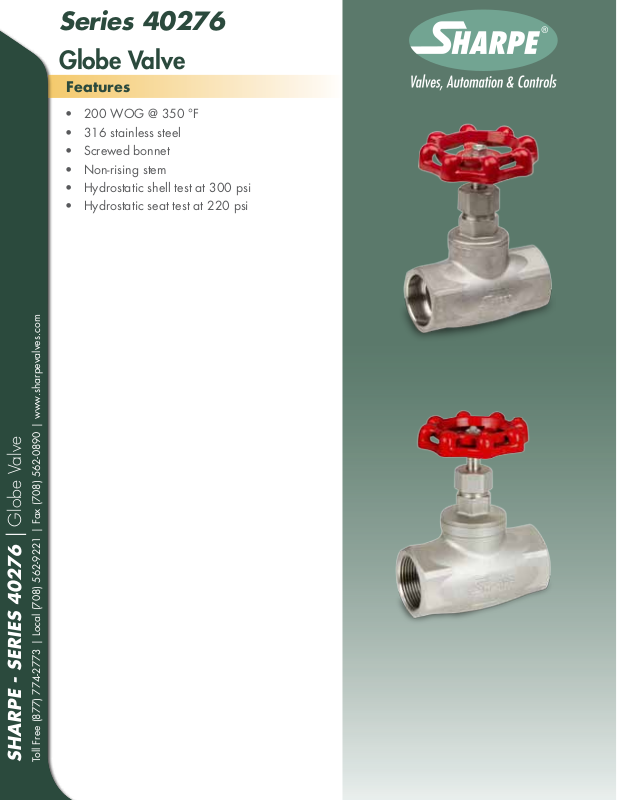

Series 40276

Globe Valve

Features

• 200 WOG @ 350 °F

• 316 stainless steel

• Screwed bonnet

• Non-rising stem

• Hydrostatic shell test at 300 psi

• Hydrostatic seat test at 220 psi

SHARPE - SERIES 40276 | Globe Valve

Toll Free [phone] | Local [phone] | Fax [phone] | www.sharpevalves.com

Dimensions, Parts & Materials

1

2

3

4

5

6

7

8

9

10

11

12

C

A

D

B

SHARPE - SERIES 40276 | Globe Valve

Toll Free [phone] | Local [phone] | Fax [phone] | www.sharpevalves.com

Dimensions (Inches)

Size A B C D

1/4 0.40 2.01 4.41 2.76
3/8 0.49 2.01 4.41 2.76
1/2 0.59 2.56 4.21 2.76
3/4 0.79 2.95 4.59 2.76

1 0.98 3.54 5.16 3.15
1-1/4 1.26 4.13 5.67 3.15
1-1/2 1.57 4.65 6.46 3.94

2 1.97 5.43 6.93 3.94

Ordering

Fig: 1 - 40276 - SW
Description: 1” - Series 40276 - Socket Weld

Size Series Ends

1/4 40276 TE Threaded
3/8 SW Socket Weld
1/2
3/4

1
1-1/4
1-1/2

2

No. Part Name Qty Material

1 Body 1 316 Stainless Steel
2 Core 1 316 Stainless Steel
3 Bonnet 1 316 Stainless Steel
4 Packing 1 PTFE
5 Gland Nut 1 304 Stainless Steel
6 Hand Wheel 1 Aluminum
7 Name Plate 1 Aluminum
8 Nut 1 304 Stainless Steel
9 Stem 1 316 Stainless Steel
10 Metal Padding 1 304 Stainless Steel
11 Washer 1 316 Stainless Steel
12 Seal 1 PTFE

10/12

Due to connuous development of our product range, we reserve the right to change the dimensions and informaon for this product as required.
