PLAY Transmitter 390LMR2V
Community Controls
Thank you for choosing a Community Controls product. Please read
this manual carefully before using the product.
Made in Italy. Copyright © 2017 by Community Controls.
CONTENTS
1 - TRANSMITTER OVERVIEW
1A - General information
1B - Technical specifications
2 - TRANSMITTER TEST
3 - REPLACING THE BATTERY
3A - Adding a visor clip
4 - TROUBLESHOOTING
Manual
1A - General Information
The Community Controls PLAY transmitter is designed for use with gates and door automation systems.
The Community Controls - 390 MHz receiver, which operates with this transmitter has a Wiegand
26-bit format output, the receiver will operate any type of access control system equipped to accept a
26-bit Wiegand input. The CR2032 lithium batteries have a shelf life of about 18 - 24 months. The
product fully complies with Part 15 of FCC Regulations and the European Directives 1999/5/CE.
1B - Technical Specifications
Operating frequency 390 MHz
Number of keys: 2
Battery: 1 x 3V lithium batteries CR2032
Battery life: 18 - 24 months
Number combinations: 65,536
Different Facilities codes 16
Operating temperature: 14°F÷+131°F (-10°C÷+55°C)
Overall dimensions: 2.48”x 1.27”x 0.417”
Weight:
.58 oz. (16.5 gr)
Page 2
CR2032
2 - TRANSMITTER TEST
Press any button on the front of the transmitter and verify that the LED light illuminates. The LED light
flashes when the battery is low. When replacing the battery, ensure the battery polarity is correct as
shown in Figure 7.
To memorize the transmitter to the receiver, please check the instructions on the receiver. The PLAY is
compatible with 390 MHz frequency compatible receivers.

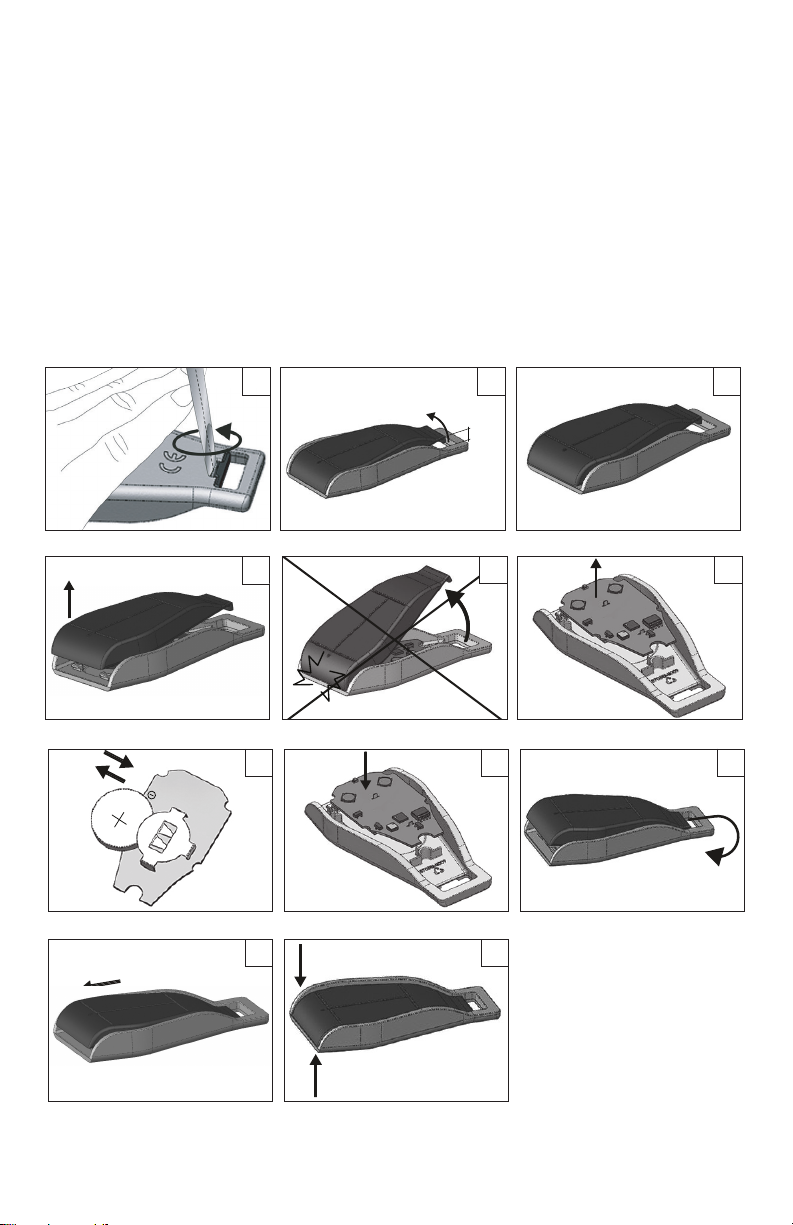

3 - REPLACING THE BATTERY
IMPORTANT: Always open and close the case using the following instructions
to avoid damaging the casing.
1
4
7
10
CLICK
2
MAX
1
¼ in
5
8
3
6
9
11
Page 3
3A - Adding a visor clip
1 2
1 cm
½ in
4 - TROUBLESHOOTING
Problem
The system does not receive the transmitter signal.
The transmitter led is OFF.
The transmitter led is blinking.
The operating range is reduced.
The system does not receive the transmitter signal.
The transmitter led is ON.
Check the power supply of the receiver
Solution
Replace the transmitter battery
NOTICE
This device complies with part 15 of the FCC rules and Industry Canada ICES-003. Operating is
subject to the following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause undesired
operation.
3
CLICK
IMPORTANT! Any changes or modifications not expressly approved by Community Controls could
void the user’s authority to operate this equipment.
WARRANTY
The warranty period of Community Controls PLAY transmitter is twenty-four (24) months. This warranty shall
begin on the date the transmitter is manufactured. During the warranty period, the product will be repaired or
replaced (at the sole discretion of Community Controls) if the product does not operate correctly due to a
defective component. This warranty does not extend to (a) the transmitter case, which can be damaged by
conditions outside the control of Community Controls, or (b) battery life of the transmitter. This warranty is
further limited by the following disclaimer of warranty and liability:
EXCEPT AS SET FORTH ABOVE, COMMUNITY CONTROLS MAKES NO WARRANTIES REGARDING THE GOODS,
EXPRESS OR IMPLIED, INCLUDING WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR
PURPOSE. BUYER MAKES NO RELIANCE ON ANY REPRESENTATION OF COMMUNITY CONTROLS, EXPRESS OR
IMPLIED, WITH REGARD TO THE GOODS AND ACCEPTS THEM “AS-IS/WHERE-IS”. COMMUNITY CONTROLS SELLS
THE GOODS TO BUYER ON CONDITION THAT COMMUNITY CONTROLS WILL HAVE NO LIABILITY OF ANY KIND AS
A RESULT OF THE SALE. BUYER AGREES THAT COMMUNITY CONTROLS SHALL HAVE NO LIABILITY FOR DAMAGES OF
ANY KIND, WHETHER DIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING INJURIES TO PERSONS OR
PROPERTY, TO BUYER, ITS EMPLOYEES OR AGENTS, AS A RESULT OF THE SALE. BUYER ALSO AGREES TO HOLD
COMMUNITY CONTROLS HARMLESS FROM ANY CLAIMS BUYER, OR ANY THIRD PARTY, MAY HAVE AS A RESULT OF
BUYER’S USE OR DISPOSAL OF THE GOODS. BUYER HAS READ THIS DISCLAIMER AND AGREES WITH ITS TERMS IN
CONSIDERATION OF RECEIVING THE GOODS.
