COD. SU7GOBIO/1.0
GOBIO
BIOMETRIC TRANSMITTER FOR OPERATING WITH MOTION RECEIVERS.
More information in www.jcm-tech.com
1
COD. SU7GOBIO/1.0
GOBIO
STARTING UP
TECHNICAL DATA
Operating frequency 868,35 MHz
Power supply 1,5Vdc (1 battery type AAA)
Consumption operating / standby 200mA / 40uA
Radiated power < 2,52uW
Memory Maximum 10 fingerprints
Operating temperature -20ºC to + 55ºC
Dimensions 76x41x15mm
Battery duration (approx) 1,5 years (with lithium battery)
2
COD. SU7GOBIO/1.0
GOBIO
TERMINOLOGY
Default channel: the channel that will be send in biometric activation operating
Authorised channels: The authorised pushbuttons for each of the finger-prints, available in the pushbutton activation + biometric
validation operating
Master fingerprint: fingerprint that allows using operating and configuration modes
Not master fingerprint: fingerprint that only allows using the operating mode

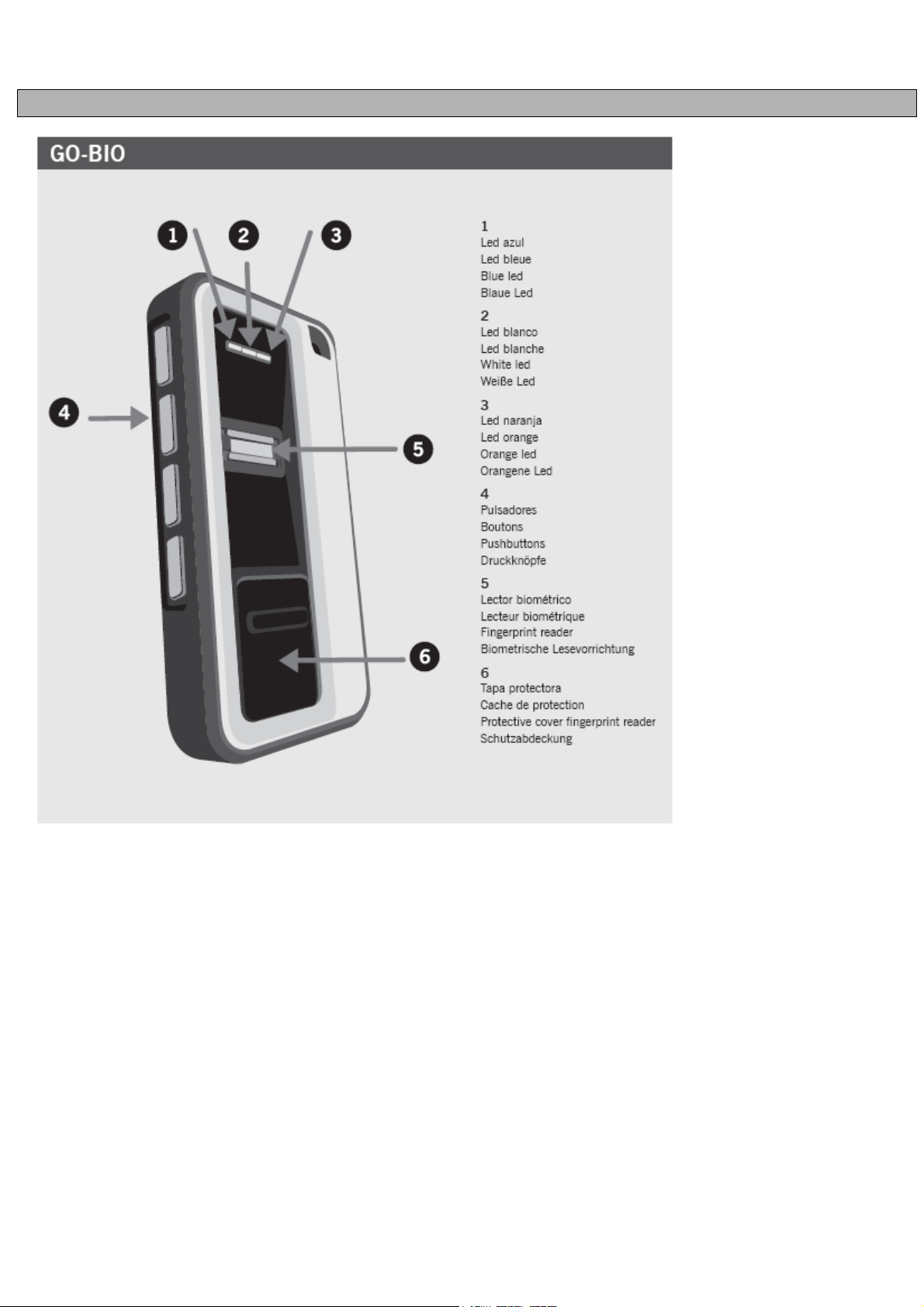

LIGHT AND SOUND INDICATORS
Action Led Blue Led White Led Orange Buzzer
Operating mode
Biometric reader waiting a finger-print ON
Confirmation fingerprint reading ok ON 2 seconds 1 beep
Biometric reader waiting for a fingerprint in pushbutton mode
Unrecognized fingerprint ON 2 beeps
Error in fingerprint reading Flashing 2 beeps
Low battery ON ON 4 beeps
Biometric reader damaged ON 1 long beep
Configuration mode (exclusive actions
in this mode)
Device in configuration mode waiting
for an action
Device waiting for a finger-print Flashing ON Flashing
Confirmation fingerprint reading ok in
configuration mode
Device waiting for authorised channels
or fingerprints
Erasing one fingerprint ON 5 beeps
Advise total reset Flashing 10 beeps
Total reset Flashing 10 fast
Memory full Flashing 10 beeps
Device in MASTER / NOT MASTER
configuration mode
MASTER FINGERPRINT Configuration Flashing 1 beep
NOT MASTER FINGERPRINT
Configuration
CONFIGURATION MODE
Flashing ON
Flashing Flashing Flashing
ON 2 seconds 1 beep
ON ON
beeps
ON ON
ON 2 beeps

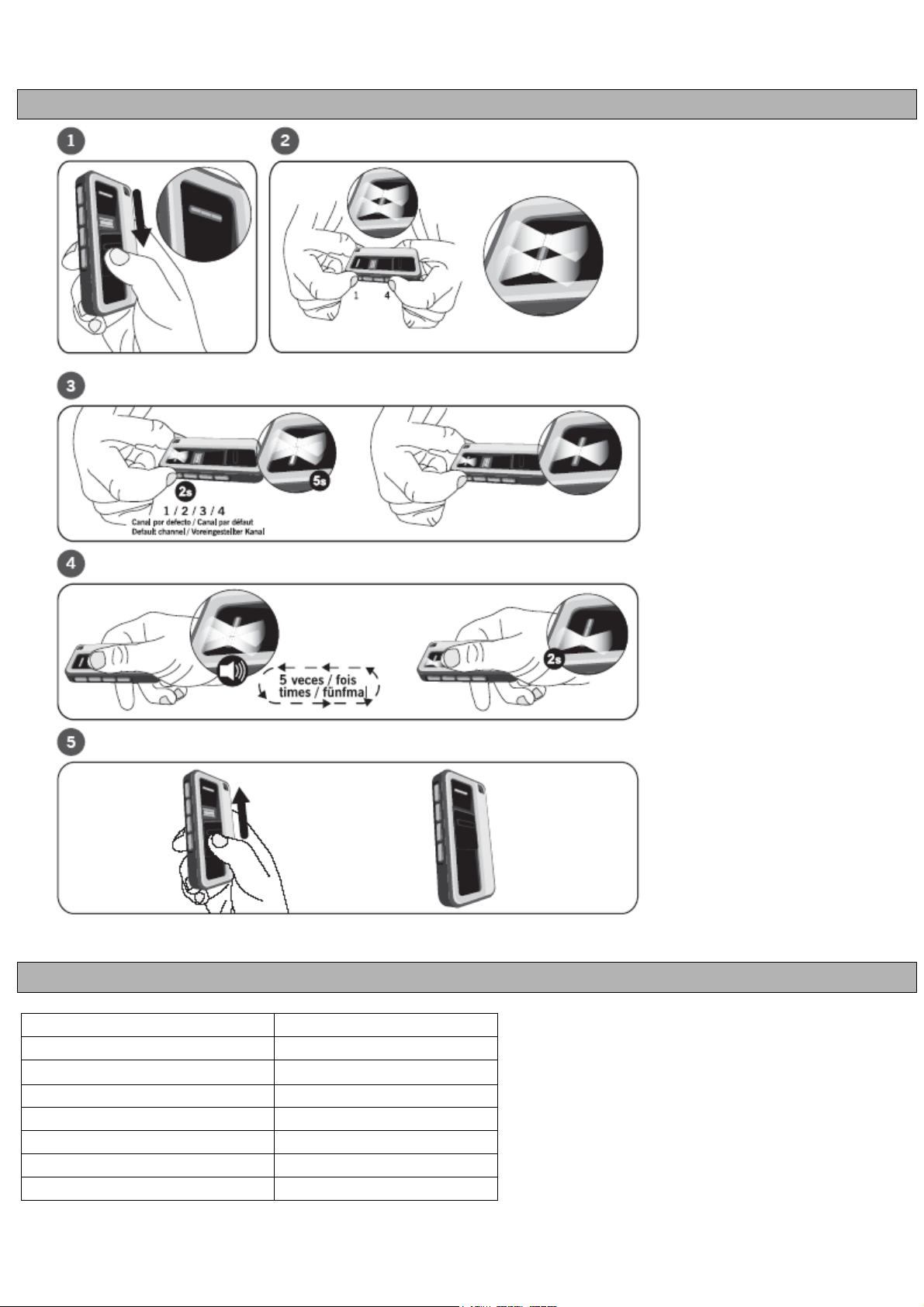

To enter in configuration mode, do the following stops:
