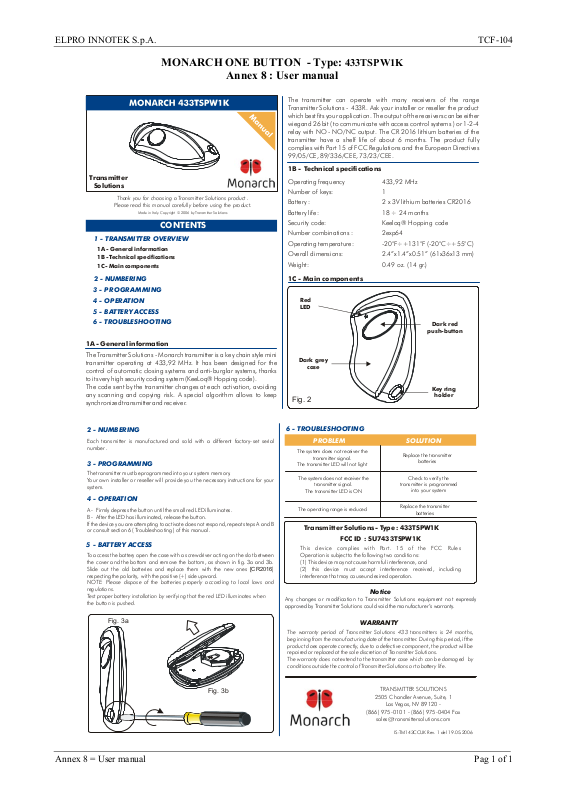

TCF-104
MONARCH ONE BUTTON - Type:
Annex 8 : User manual
Transmitter
Solutions
Thank you f or choosing a Transmitter Solutions produ ct .
Please read th is manual ca refully before u sing the product.
Made in Italy. Copyright
1 - TRANSMITTER OVERVIEW
1A - General information
1B - Technical specifications
1C - Main components
2 - NUMBERING
3 - PROG RAMMING
4 - OPERATION
5 - BATTERY ACCESS
6 - TROUBLESHOOTING
1A - General information
The Transmitter Solutions - Monarch transmitter is a key chain style mini
transmitter operating at 433,92 MHz. It has been designed for the
control of automatic closing systems and anti-burglar systems, thanks
to its very high security coding system (KeeLoq ® Hopping code).
The code sent by the transmitter changes at each activation, avoiding
any scanning and copying risk. A special algorithm allows to keep
synchronized transmitter and receiver.
2 - NUMBERING
Each transmitter is manufac tured and sold with a different factory-s et serial
number .
3 - PROGRAMMING
The tra nsmitter m ust be progr ammed into your syste m memo ry.
Your own installer or reseller will provide you the necessary instructions for your
system.
4 - OPERATION
A - Firmly depress the button until the small red LED illuminates.
B - After the LED has illuminated , release the button.
If the device you are attempt ing to activate doe s not respond, r epeat steps A and B
or consult section 6 ( Troubleshooting ) of this manual.
5 - BATTERY ACCESS
To acc ess the battery open the case with a screwdriver acting on the slot b etween
the cover and the bottom and remov e the bottom , as shown i n fig. 3a and 3b.
Slide out the old batteries and replace them with the new ones ]
respectin g the po larity, wit h the positi ve (+) side upward.
NOTE: Please dispose of the batteries properly according to local laws and
regulations.
Test proper battery installation by verifying that the red LED illuminates when
the button is p ushed.
Fig. 3a
© 2006 by Transmitter Solutions
CONTENTS
[CR2016
433TSPW1K
The transmitter can operate with many receivers of the range
Transmitter Solutions - 433R. Ask your installer or reseller the product
which best fits your application. The output of the receivers can be either
wiegand 26 bit ( to communicate with access control systems ) or 1-2-4
relay with NO - NO/NC output. The CR 2016 lithium batteries of the
transmitter have a shelf life of about 6 months.
complies with the European Directives
Part 15 of FCC Regulations and
The product fully
99/05/CE, 89/336/CEE, 73/23/CEE.
1B - Technical specifications
Operating frequency 433,92 MHz
Number of keys: 1
Battery : 2 x 3V lithium batteries CR2016
Battery life: 18 24 months
Security code: Keeloq Hopping code
÷
®
Number combinations : 2exp64
Operating temperature: -20°F÷+131°F (-20°C
÷+55°C)
Overall dimensions: 2.4”x1.4”x0.51” (61x36x13 mm)
Weight: 0.49 oz. (14 gr.)
1C - Main components
Red
LED
Dark red
push-button
Dark grey
case
Key
ring
Fig. 2
holder
6 - TROUBLESHOOTING
PROBLEM
The syst em does not re ceiver the
transmitter signal.
The transmitter LED will not light
The syst em does not re ceiver the
transmitter signal.
The tr ansmitt er LED is ON
The opera ting rang e is reduced
Transmitter Solutions - Type : 433TSPW1K
FCC ID : SU7433TSPW1K
This device complies with FCC Rules
Operati on is subje ct to the f ollowing two condition s:
(1) This device may not cause harmful interference, and
(2) this device must accept interference received, including
interference that may cause undesired operation.
Any changes or modification to equipment not expressly
approved by could void the manufacturer’s warranty.
Transmitter So lutions
Notice
Transmitter Solutions
WARRANTY
The warranty period of 433 transmitters is 24 months ,
beginning f rom the manu facturing date of the trans mitter. During th is period, if th e
product does operate correctly, due to a defective component, the product will be
repaired o r replaced at t he sole discreti on of .
The warranty does not extend to the transmitter case whi ch can be dam aged by
conditions o utside the control o f Transmitter Solutions or to b attery life.
Transm itter Solut ions
SOLUTION
Replace the transmitter
batte ries
Check to verify the
transmitter is programmed
into your system
Replace the transmitter
batte ries
Part . 1 5 o f th e
Tra ns m itt er S ol ut io ns
Fig. 3b
TRANSMITTER SO LUTIONS
2505 Chandler Av enue, Suite, 1
Las Vegas, NV 89120 -
(866) 975- 0101 - (866 ) 975-0404 Fax
sales@transmittersolutions.com
IS-TM143CCUK Rev. 1 del 19.05.2006
Annex 8 = User manual Pag 1 of 1
