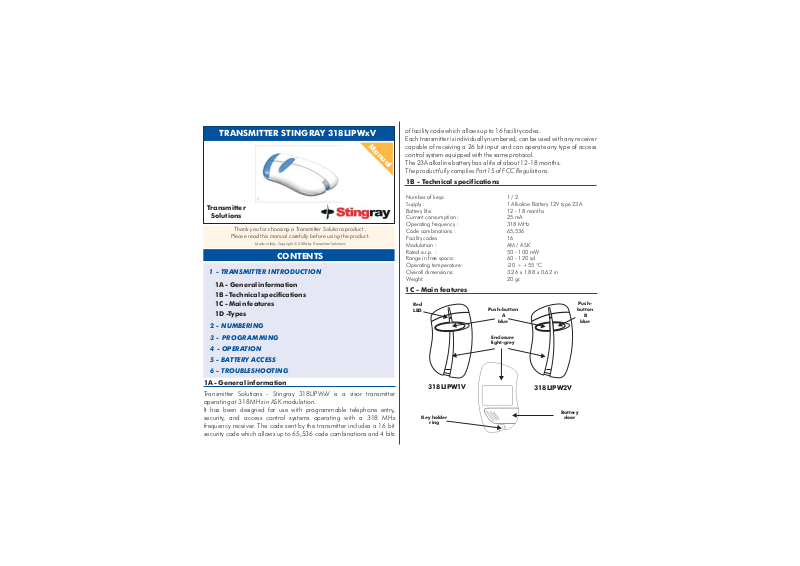

Page 1
TRANSMITTER STINGRAY 318LIPWxV
Manual
Transmitter
Solutions
Thank you for choosing a Transmitter Solutions product .
Please read this manual carefully before using the product.
Made in Italy. Copyright © 2006 by Transmitter Solutions
CONTENTS
1 - TRANSMITTER INTRODUCTION
1A - General information
1B - Technicalspecifications
1C - Main features
1D -Types
2 - NUMBERING
3 - PROGRAMMING
4 - OPERATION
5 - BATTERY ACCESS
6 - TROUBLESHOOTING
1A - General information
Transmitter Solutions - Stingray 318LIPWxV is a visor transmitter
operating at 318 MHz inASKmodulation.
It has been designed for use with programmable telephone entry,
security, and access control systems operating with a 318 MHz
frequency receiver. The code sent by the transmitter includes a 16 bit
security code which allows up to 65,536 code combinations and 4 bits
of facility code which allowsupto16 facility codes.
Each transmitter is individually numbered, can beusedwithanyreceiver
capable of receiving a 26 bit input and can operate any type of access
control system equipped with thesameprotocol.
The 23A alkaline battery hasalifeof about 12-18 months.
The product fully compliesPart 15ofFCCRegulations.
1B - Technical specifications
Number of keys: 1 / 2
Supply : 1 Alkaline Battery 12V type 23A
Battery life: 12 - 18 months
Current consumption : 25 mA
Operating frequency : 318 MHz
Code combinations :
Facility codes 16
Modulation : AM / ASK
Rated e.r.p. : 50 - 100 mW
Range in free space: 60 - 120 yd
Operating temperature: -20 ÷ +55 °C
Overall dimensions: 3.26 x 1.88 x 0.62 in
Weight: 20 gr.
65,536
1C - Main features
Battery
door
Push-
button
B
blue
Red
LED
Key holder
318LIPW1V
ring
Push-button
A
blue
Enclosure
light-grey
318LIPW2V
Page 2
1D - Types
STINGRAY 318LIPW1V:1 button transmitter
STINGRAY 318LIPW2V:2 button transmitter
2 - NUMBERING
Each transmitter is manufactured and sold with a different factory set sequence
number and facilitycode.
3 - PROGRAMMING
The transmitter facility code and sequence number must be programmed into your
system memory. Your own installer or reseller will provide you the necessary
instructions for yoursystem.
4 - OPERATION
a. Firmlydepress either buttonuntil the smallredLED illuminates.
b. Afterthe LED hasilluminated,release the button.Ifthe device youare attempting
to activate does not respond, repeat steps a. and b. or consult section 6
(Troubleshooting)of this manual.

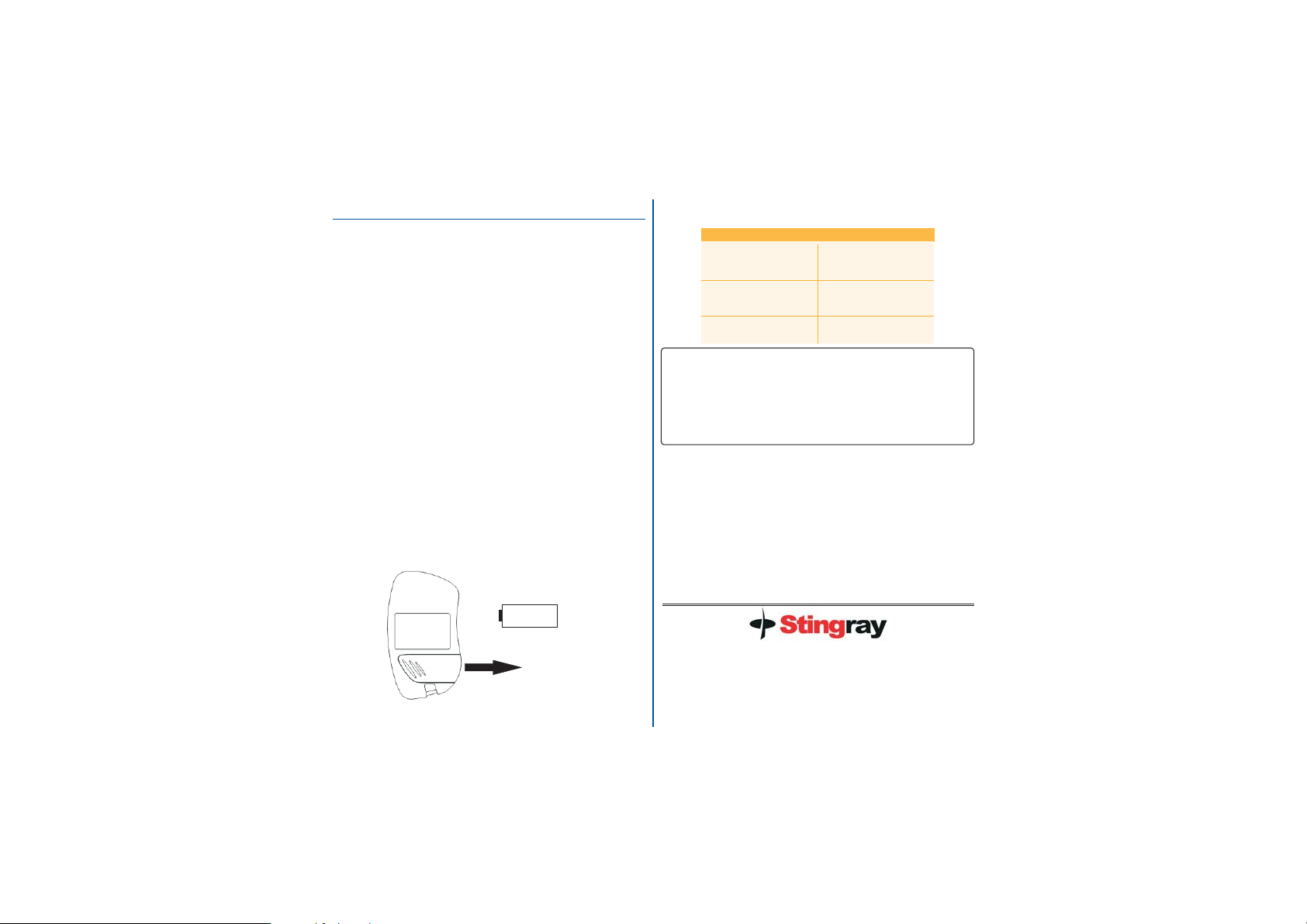

5 - BATTERY ACCESS
To access thebattery slide outthe battery door
Place the alkaline battery betweenthe 2 contacts.
23A
Respect theright polarity asindicatedon the bottomof the box.
NOTE: Please dispose of the batteries properly according to local laws and
regulations.
Test proper battery installation by verifying that the red LED illuminates when
either button is pushed.
Battery
_
+
23A
Polarity
OPEN
6 - TROUBLESHOOTING
FAULT
The system does not receiver the
transmitter signal.
The transmitter LED will not light
The system does not receiver the
transmitter signal.
The transmitter LED is ON
The operating range is reduced
SOLUTION
Replace the transmitter
batteries
Check to verify the
transmitter is programmed
into your system
Replace the transmitter
batteries
FCC ID : SU7318LIPWV
This device complies with FCC Rules
Operation issubjectto thefollowingtwo conditions:
(1) Thisdevicemay notcauseharmful interference, and
(2) this device must accept interference received, including
interference thatmay causeundesiredoperation.
Any changes or modification to equipment not expressly
approved by could void the manufacturer’s warranty and the
user’s authorityto operate thisproduct.
The warranty period of 318 transmitters is 24 months,
beginning fromthe manufacturing dateof the transmitter. Duringthis period, ifthe
product does operatecorrectly, due to adefectivecomponent, the product will be
repaired orreplaced atthesole discretionof .
The warranty does not extend to the transmitter case which can be damaged by
conditions outsidethecontrol of or tobatterylife.
Transmitter Solutions
Transmitter Solutions
TRANSMITTER SOLUTIONS
2505 Chandler Avenue, Suite, 1
(866) 975-0101 - (866) 975-0404 Fax
sales@transmittersolutions.com
Part. 15 of the
Notice
Transmitter Solutions
WARRANTY
TransmitterSolutions
TransmitterSolutions
Las Vegas, NV 89120 -
IS-T11318LCCUK Rev. 0 del 27.06.06
Page 3
TRANSMITTER STINGRAY 318DOPWxV
Manual
Transmitter
Solutions
Thank you for choosing a Transmitter Solutions product .
Please read this manual carefully before using the product.
Made in Italy. Copyright © 2006 by Transmitter Solutions
CONTENTS
1 - TRANSMITTER INTRODUCTION
1A - General information
1B - Technicalspecifications
1C - Main features
1D -Types
2 - NUMBERING
3 - PROGRAMMING
4 - OPERATION
5 - BATTERY ACCESS
6 - TROUBLESHOOTING
1A - General information
Transmitter Solutions - Stingray 318DOPWxV is a visor transmitter
operating at 318 MHz in ASK modulation. It has been designed for use
with programmable telephone entry, security, and access control
systems operating with a 318 MHz frequency receiver. The protocol is
MicroCLIK® compatible andthecodesentbythetransmitter includes a
14 bit security code which allows up to 16384 code combinations and
6 bits of facility code,whichallowsup to 64 facilitycodes.
Each transmitter is individually numbered, can beusedwithanyreceiver
capable of receiving a 26 bit input and can operate any type of access
control system equipped with thesameprotocol.
The 23A alkaline battery hasalifeof about 12-18 months.
The product fully compliesPart 15ofFCCRegulations.
1B - Technical specifications
Number of keys: 1 / 2
Supply : 1 Alkaline Battery 12V type 23A
Battery life: 12 - 18 months
Current consumption : 20 mA
Operating frequency : 318 MHz
Code combinations : 16,384
Facility codes 64
Modulation : AM / ASK
Rated e.r.p. : 50 - 100 mW
Range in free space: 60 - 120 yd
Operating temperature: -20 ÷ +55 °C
Overall dimensions: 3.26 x 1.88 x 0.62 in
Weight: 20 gr.
1C - Main features
Red
LED
318DOPW1V
Key holder
ring
Push-button
A
red
Enclosure
light grey
318DOPW2V
Battery
door
Push-button
B
red
Page 4
1D - Types
STINGRAY 318DOPW1V:1 button transmitter
STINGRAY 318DOPW2V:2 button transmitter
2 - NUMBERING
Each transmitter is manufactured and sold with a different factory set sequence
number and facilitycode.
3 - PROGRAMMING
The transmitter facility code and sequence number must be programmed into your
system memory. Your own installer or reseller will provide you the necessary
instructions for yoursystem.
4 - OPERATION
a. Firmlydepress either buttonuntil the smallredLED illuminates.
b. Afterthe LED hasilluminated,release the button.Ifthe device youare attempting
to activate does not respond, repeat steps a. and b. or consult section 6
(Troubleshooting)of this manual.
5 - BATTERY ACCESS
To access thebattery slide outthe battery door
Place the alkaline battery betweenthe 2 contacts.
23A
Respect theright polarity asindicatedon the bottomof the box.
NOTE: Please dispose of the batteries properly according to local laws and
regulations.
Test proper battery installation by verifying that the red LED illuminates when
either button is pushed.
Battery
_
+
23A
Polarity
OPEN
6 - TROUBLESHOOTING
FAULT
The system does not receiver the
transmitter signal.
The transmitter LED will not light
The system does not receiver the
transmitter signal.
The transmitter LED is ON
The operating range is reduced
SOLUTION
Replace the transmitter
batteries
Check to verify the
transmitter is programmed
into your system
Replace the transmitter
batteries
FCC ID : SU7318LIPWV
This device complies with FCC Rules
Operation issubjectto thefollowingtwo conditions:
(1) Thisdevicemay notcauseharmful interference, and
(2) this device must accept interference received, including
interference thatmay causeundesiredoperation.
Any changes or modification to equipment not expressly
approved by could void the manufacturer’s warranty and the
user’s authorityto operate thisproduct.
The warranty period of 318 transmitters is 24 months,
beginning fromthe manufacturing dateof the transmitter. Duringthis period, ifthe
product does operatecorrectly, due to adefectivecomponent, the product will be
repaired orreplaced atthesole discretionof .
The warranty does not extend to the transmitter case which can be damaged by
conditions outsidethecontrol of or tobatterylife.
Transmitter Solutions
Transmitter Solutions
TRANSMITTER SOLUTIONS
2505 Chandler Avenue, Suite, 1
(866) 975-0101 - (866) 975-0404 Fax
sales@transmittersolutions.com
Part. 15 of the
Notice
Transmitter Solutions
WARRANTY
TransmitterSolutions
TransmitterSolutions
Las Vegas, NV 89120 -
IS-T11318DCCUK Rev. 0 del 27.06.06
