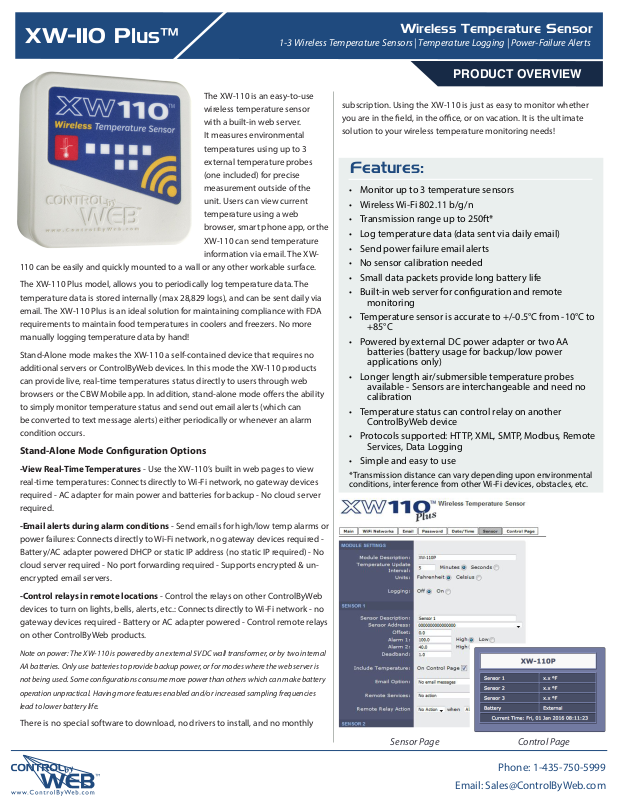

ControlByWeb XW-110 Plus User Manual

XW-110 Plus™

Wireless Temperature Sensor

1-3 Wireless Temperature Sensors | Temperature Logging | Power-Failure Alerts

PRODUCT OVERVIEW

The XW-110 is an easy-to-use

wireless temperature sensor

with a built-in web server.

It measures environmental

temperatures using up to 3

external temperature probes

(one included) for precise

measurement outside of the

unit. Users can view current

temperature using a web

browser, smart phone app, or the

XW-110 can send temperature

information via email. The XW-

110 can be easily and quickly mounted to a wall or any other workable surface.

The XW-110 Plus model, allows you to periodically log temperature data. The

temperature data is stored internally (max 28,829 logs), and can be sent daily via

email. The XW-110 Plus is an ideal solution for maintaining compliance with FDA

requirements to maintain food temperatures in coolers and freezers. No more

manually logging temperature data by hand!

Stand-Alone mode makes the XW-110 a self-contained device that requires no

additional servers or ControlByWeb devices. In this mode the XW-110 products

can provide live, real-time temperatures status directly to users through web

browsers or the CBW Mobile app. In addition, stand-alone mode oers the ability

to simply monitor temperature status and send out email alerts (which can

be converted to text message alerts) either periodically or whenever an alarm

condition occurs.

Stand-Alone Mode Conguration Options

-View Real-Time Temperatures - Use the XW-110’s built in web pages to view

real-time temperatures: Connects directly to Wi-Fi network, no gateway devices

required - AC adapter for main power and batteries for backup - No cloud server

required.

subscription. Using the XW-110 is just as easy to monitor whether

you are in the eld, in the oce, or on vacation. It is the ultimate

solution to your wireless temperature monitoring needs!

Features:

• Monitor up to 3 temperature sensors

• Wireless Wi-Fi 802.11 b/g/n

• Transmission range up to 250ft*

• Log temperature data (data sent via daily email)

• Send power failure email alerts

• No sensor calibration needed

• Small data packets provide long battery life

• Built-in web server for conguration and remote
monitoring

• Temperature sensor is accurate to +/-0.5°C from -10°C to
+85°C

• Powered by external DC power adapter or two AA
batteries (battery usage for backup/low power
applications only)

• Longer length air/submersible temperature probes
available - Sensors are interchangeable and need no
calibration

• Temperature status can control relay on another
ControlByWeb device

• Protocols supported: HTTP, XML, SMTP, Modbus, Remote
Services, Data Logging

• Simple and easy to use

*Transmission distance can vary depending upon environmental
conditions, interference from other Wi-Fi devices, obstacles, etc.

-Email alerts during alarm conditions - Send emails for high/low temp alarms or

power failures: Connects directly to Wi-Fi network, no gateway devices required -

Battery/AC adapter powered DHCP or static IP address (no static IP required) - No

cloud server required - No port forwarding required - Supports encrypted & un-

encrypted email servers.

-Control relays in remote locations - Control the relays on other ControlByWeb

devices to turn on lights, bells, alerts, etc.: Connects directly to Wi-Fi network - no

gateway devices required - Battery or AC adapter powered - Control remote relays

on other ControlByWeb products.

Note on power: The XW-110 is powered by an external 5VDC wall transformer, or by two internal

AA batteries. Only use batteries to provide backup power, or for modes where the web server is

not being used. Some congurations consume more power than others which can make battery

operation unpractical. Having more features enabled and/or increased sampling frequencies

lead to lower battery life.

There is no special software to download, no drivers to install, and no monthly

Sensor Page

Control Page

Phone: [phone]

Email: [e-mail]

XW-110 Plus™

APPLICATIONS & SPECS

Models:

• XW-110P

Power Requirements

• Voltage: 2AA batteries, or external 5VDC power
supply

• Max Current: 500ma max (via DC power wall adapter)

• DC Jack: 5.5mm barrel x 2.5mm center pin (positive)

Wireless Temperature Sensor

1-3 Wireless Temperature Sensors | Temperature Logging | Power-Failure Alerts

Monitoring temperature on a computer/smart phone

Local Network

Power
Supply

Internet

Email

From:
To:
Subject:

Message:

Or

or

Battery

• Internal: Two replaceable 1.5V “AA” cells

• Power Consumption: 27-770uA sleep, 59mA active
RX, 229mA TX (at +12dBm)

• Battery Life: Up to 1-year, depending on mode,
security and reporting frequency. Battery life is
aected by mode, reporting interval, security, DHCP,
DNS, battery temperature, and other variables.

• Battery Usage: Battery voltage is measured and
periodically reported

Wireless

• Network Standards: IEEE 802.11 b/g/n

• Frequency Band: 2.412 - 2.462 GHz

• Wi-Fi Security Standards: Open, WEP, WPA, WPA2

• Network Settings: DHCP or Static

• Wireless Range: Up to 250ft (typical for Wi-Fi devices)
depends on environment

• Antenna: Integral chip antenna, 1.9 dBi.

• RF Output Power (typ): 14dBM (802.11b/g), 12dBM
(802.11n)

Operation

• Provisioning: Via internal web server (no cables or PC
utilities needed)

• Access Point: Yes, push button activated (setup via
web page)

• WPS: Yes, push button activated (Wi-Fi Protected
Setup)

• Connectivity: Intermittently connected or always
connected

• XCD Data Packet: UDP, 10-bytes (See Appendix A)

• Remote Server: ControlByWeb’s X-600M™, X-300™ or
cloud-based server

• Polling: state.xml (only with always-connected)

Internal Push Buttons

• Button 1: Force access-point mode

• Button 2: Activate WPS mode

Temperature Sensors:

• Number of Sensors: 1-3

• Type: Digital “1-wire” thermometer probe

• Temperature Range: -67°F to 257°F (-55°C to +125°C)

• Accuracy: ±0.5°C (from -10°C to +85°C)

• Sensor Functions: Monitor Temperature, Email Alerts,
Control Remote Relay

Real-Time Clock

• Manual or NTP(Network Time Protocol) setup

• NTP Sync Period: Once, Daily, Weekly, On Power-up

• Auto Daylight Savings Adjustment

Protocols

• HTTP, XML, SMTP, Modbus (XW-110 Plus), Remote
Services, Data Logging (XW-110 Plus)

Logging

• Log File Size: 1,800 Entries

• Buer Architecture: Circular Buer

• (Log data can be emailed every 24 hours)

Physical

• Location: Indoor use or NEMA-4 protected location

• Using Alkaline Batteries: -18°C to 55°C (0°F to 130°F)

• Operating Temperature: -40°C to 65°C (-40°F to 150°F)

• Storage Temperature: -40°C to 85°C (-40°F to 185°F)

• Humidity: 5-95%, non-condensing

• Size:

º 3.16 (80mm) wide

º 3.04in (77mm) tall

º 0.91in (23mm) deep

• Weight: 2.4 oz (68g), no batteries

• Enclosure Material: Lexan 940 Polycarbonate Plastic

• Enclosure Flame Rating: UL94 V0

Password Settings

• Password protection on setup page: Yes

• Password protection on control page: Optional

• Password Encoding: Base 64

• Max Password Length: 13 Characters

Electromagnetic Compliance

• FCC ID: 2AE4Z-XWD001

• IC: 21441-XWD001

• FCC 47CFR15 (Class B)

• IEC CISPR 22, CISPR 24

• EN55024 ITE Immunity (2010)

• EN55022 Emissions (2010)

Product Safety Compliance

• IEC 61010-1
