X-600MTitle
Page Goes
Here
X-600M User Manual Revisions
Revision Description
1.0 Initial release
1.1 Changed Assign a Temporary IP Address example from Windows-XP to Windows-8
1.2 Added information about new Application Specific component type and Custom Web Page
component type.
Added information about new I/O Types: indoorTemp, outdoorTemp, indoorHumidity, coolRelay,
heatRelay, and fanRelay (all found on the X-300 in thermostat mode.)
1.3 Corrected logging screenshot labels.
Added text about how to check if a number is NaN in a Lua script.
1.4 Corrected wireless adapter information.
Add information on the new IP Filtering settings.
Added information about external log files.
Corrected erase system log's url
Added information about new I/O Types: Barometric Pressure, Dew Point, Heat Index, Irrigation
Valve, Rain Last Hour, Solar Radiation, Total Rain, Wind Chill, Wind Direction, Wind Speed, Wind
Gust Direction, Wind Gust Speed (all found on the X-320M), and Irrigation valves (found on the X-
340).
Added information about the new Gauge component on the dashboard.
Added information about two new application specific components for the X-320M and X-340.
Updated LUA section with new functions for sending emails with information about which user
accessed an I/O.
1.5 Added information on how to read/write custom files using LUA and how to access those files
through custom web pages.
Added information on how to read/write custom SQLITE3 database files using LUA and how to
access those file through custom web pages.
X-600M Users Manual
Table of Contents
Section 1: Introduction......................................................................................................................................... 5
1.1 X-600M™ Features................................................................................................................................. 6
1.2 Applications............................................................................................................................................. 8
1.3 Accessing X-600M................................................................................................................................... 9
1.4 Connectors & Indicators......................................................................................................................... 9
1.5 Security.................................................................................................................................................... 9
1.6 X-600M, Accessories, and Expansion Models.................................................................................... 10
Section 2: Installation and Wiring .................................................................................................................... 12
2.1 Installation Guidelines.......................................................................................................................... 12
2.2 Mounting................................................................................................................................................ 12
2.2.1 Wall Mounting................................................................................................................................... 12
2.2.2 DIN-Rail Mounting............................................................................................................................ 12
2.3 Making Wiring Connections................................................................................................................. 13
2.3.1 Wiring Procedure: ............................................................................................................................ 13
2.3.2 Power Supply Connections............................................................................................................... 13
2.3.3 System Start Up................................................................................................................................ 14
2.3.4 Expansion Module Connections....................................................................................................... 14
2.3.5 Optional Power Injector.................................................................................................................... 15
2.3.6 Temperature/Humidity Sensor Connections ..................................................................................... 15
2.3.7 Network Connection......................................................................................................................... 17
2.3.8 External USB Flash Drive................................................................................................................. 17
Section 3: Configuration and Setup.................................................................................................................. 18
3.1 Establishing Communications Over Wired Network.......................................................................... 18
3.1.1 Method 1: Use DHCP and NetBios................................................................................................... 18
3.1.2 Method 2: Assign a Temporary IP Address to the Configuration Computer .....................................19
3.2 Establishing Communications Over a Wireless Network.................................................................. 23
...................................................................................................................................................................... 23
3.2.1 Ad-Hoc Wireless Connection............................................................................................................ 23
3.2.2 Wireless Connection Using Access-Point......................................................................................... 23
3.3 Configuration and Setup Access......................................................................................................... 24
3.4 Basic Setup Strategy............................................................................................................................. 24
3.5 Setup Example....................................................................................................................................... 26
3.6 Making Changes.................................................................................................................................... 28
3.7 Dashboard Access - Users and Access Groups................................................................................. 29
3.7.1 Access Groups.................................................................................................................................. 29
Section 4: Setup Pages...................................................................................................................................... 31
4.1 System Tab............................................................................................................................................ 31
4.1.1 System > Access Groups (Edit access groups)................................................................................ 32
4.1.2 System > User Accounts (Add, edit, and delete user accounts)....................................................... 33
4.1.3 System > Date & Time (Configure system date and time)................................................................ 35
4.1.4 System > Backup/Restore (Backup and Restore Settings)............................................................... 37
4.1.5 System > SSL Certificates................................................................................................................ 38
Default Self-Signed SSL Certificate
Generating a New Certificate
Signing Certificates with a Certificate Authority
Xytronix Research & Design, Inc. Page 1
X-600M Users Manual
Importing self-signed certificates
4.1.6 System > Custom Web Pages.......................................................................................................... 40
4.1.7 System > System Log....................................................................................................................... 42
4.2 Network Tab (Current network configuration of a device)................................................................. 43
4.2.1 Network > Ethernet (Configure Ethernet Settings)............................................................................ 43
4.2.2 Network > Wireless (Configure wireless adapter)............................................................................. 45
4.2.3 Network > Advance Network Tab...................................................................................................... 47
Network > Advance Network > Web Server (Configure web server settings)
Network > Advanced Network > Modbus (Configure Modbus settings)
Network > Advanced Network > Remote Services Server (Configure remote services server)
Network > Advanced Network > Remote Services Client (Configure remote services client settings)
Network > Advanced Network > SNMP (Configure device to communicate with SNMP manager)
Network > Advanced Network > Email (Configure Email (smtp) settings)
Network > Advanced Network > FTP (Configure FTP settings)
Network > Advanced Network > NetBIOS / mDNS (Setup)
4.3 Devices Tab............................................................................................................................................ 55
4.3.1 Devices > Find New Devices............................................................................................................ 57
4.4 I/O Tab (Add, edit and delete I/O)......................................................................................................... 58
4.4.1 I/O > 1-Wire Sensors (Add, edit and delete 1-wire sensors)............................................................. 61
4.4.2 I/O > Registers (Add, edit, and delete Registers)............................................................................. 63
4.4.3 I/O > Serial Ports (Add, Edit, and Delete Serial Ports)...................................................................... 65
4.5 Control/Logic Tab.................................................................................................................................. 68
4.5.1 Control/Logic > Conditional Events................................................................................................... 68
Digital Event
Analog Event
Complex Event
4.5.2 Control/Logic > Calendar Events...................................................................................................... 71
4.5.3 Control/Logic > Actions (Add, edit, and delete Actions).................................................................... 75
4.5.4 Control/Logic > Scripts (Add, edit, and delete Scripts)......................................................................78
4.6 Logging Tab........................................................................................................................................... 82
4.7 Edit Dashboards Tab............................................................................................................................. 85
4.7.1 Edit Dashboards (Add dashboard).................................................................................................... 85
4.7.2 Edit Dashboards (Add Panel)........................................................................................................... 86
4.7.3 Edit Dashboards (Add Widget)......................................................................................................... 87
4.7.4 Edit Dashboards (Add Component).................................................................................................. 89
4.8 View Dashboards Tab........................................................................................................................... 98
Section 5: Modbus Operation............................................................................................................................ 99
5.1 X-600M Function Code Summary...................................................................................................... 100
5.2 PLC Device Addressing...................................................................................................................... 100
5.3 Modbus Function Codes..................................................................................................................... 102
5.3.1 Read Coils - Modbus Function Code 01 (0x01).............................................................................. 102
5.3.2 Read Discrete Inputs – Modbus Function Code 02 (0x02)............................................................. 103
5.3.3 Read Holding Register – Modbus Function Code 03 (0x03) .......................................................... 103
5.3.4 Write Single Coil – Modbus Function Code 05 (0x05).................................................................... 104
5.3.5 Write Multiple Coils - Modbus Function Code 15 (0x0F)................................................................. 104
5.3.6 Write Multiple Registers – Modbus Function Code 16 (0x10)......................................................... 105
Section 6: XML/JSON Operation..................................................................................................................... 106
6.1 XML/JSON Monitor.............................................................................................................................. 106
6.2 XML/JSON Control.............................................................................................................................. 107
Page 2 Xytronix Research & Design, Inc.
X-600M Users Manual
Section 7: Email Notification........................................................................................................................... 109
7.1 Email Notification................................................................................................................................ 109
7.2 Email Notification Setup .................................................................................................................... 109
Appendix A: Restoring Factory Default Settings........................................................................................... 111
Appendix B: Installing New Firmware............................................................................................................. 112
Appendix C: Accessing X-600M Over the Internet......................................................................................... 115
Appendix D: Log Files ..................................................................................................................................... 119
Appendix E: External Server and Remote Services...................................................................................... 121
Appendix F: SNMP Requests, Objects and Security..................................................................................... 123
Appendix G: Lua Scripts.................................................................................................................................. 124
Appendix H: Custom Web Pages.................................................................................................................... 137
Appendix I: Specifications............................................................................................................................... 149
Appendix J: Trademark and Copyright Information...................................................................................... 152
Appendix K: Warranty...................................................................................................................................... 153
Appendix L: FCC Statement............................................................................................................................ 154
Appendix M: Licensing..................................................................................................................................... 155
Appendix N: Mechanical Dimensions............................................................................................................. 156
Xytronix Research & Design, Inc. Page 3
X-600M Users Manual
Page 4 Xytronix Research & Design, Inc.
X-600M Users Manual Introduction
Section 1: Introduction
The X-600M™ is a multifunction web-enabled industrial I/O controller. The X-600M performs control,
logic, and monitoring functions similar to that of a Programmable Logic Controller (PLC). However,
unlike a PLC, the X-600M is designed for web based applications from the ground up. No add-on
software or hardware is required. The X-600M can be fully configured, programmed and tested using its
built-in web server. The web page setup is intuitive, easy to use, and does not require special
programming skills.
Many control and monitor applications begin by selecting a Programmable Logic Controller or similar
hardware device. You must then write the control logic in ladder-logic or other vendor specific
programming language. Next, you must purchase and develop a graphical user interface to run on a PC
or design a web page with dynamic content for the control and status elements. Finally you must specify
and test the communications between the graphical user interface and the control device. This
specialized work is often done by system integrators and others with the necessary skills and software.
With the X-600M you can bypass all of this work. The X-600M comes out of the box with a web server,
IP communications and working web pages. In a few minutes you can turn relays on and off, monitor
analog sensors, and check the status of digital inputs. With a little experimentation you can re-arrange
the web page format and customize the buttons and status fields with your own labels.
In comparison to other ControlByWeb™ products, the X-600M does not have built in relays or digital
inputs. Instead, it functions as a powerful master “controller” for other ControlByWeb modules. The X600M can control and monitor devices such as the WebRelay™, WebRelay-Quad™, X-310™, X-320™,
etc. anywhere on the Internet. In addition, the X-600M has a ribbon cable expansion bus connector
which allows a family of add-on modules to be connected directly to the X-600M. Expansion modules
are available with relays, digital inputs, thermocouples and other industrial inputs and outputs. Up to 64
expansion modules can be connected directly to the X-600M with a ribbon cable. The X-600M can
control and monitor a mix of expansion modules and ControlByWeb devices up to a maximum of 128
total devices.
The X-600M can be controlled and/or monitored over any Ethernet
network including private networks, and the Internet. Users can
operate the X-600M using a web browser, or custom applications
can be written to control the X-600M from a computer, PLC, or other
automation controller. In addition, custom control scripts are
supported using the Lua scripting language. Lua is a lightweight,
extensible programming language used in many industrial
applications.
Many powerful features are integrated into the X-600M including:
Email notification (encrypted and non-encrypted), event scheduling,
logging, and graphing. The X-600M supports a number of Ethernet
protocols including HTTP, HTTPS, Modbus/TCP, SNMP, NTP, SMTP,
FTP, XML and JSON.
Xytronix Research & Design, Inc. Page 5
Introduction X-600M Users Manual
1.1 X-600M™ Features
Xytronix Research & Design continually works to improve its products in response to customers needs
and suggestions. The X-600M is a new revolutionary product which employs a powerful processor
together with industrial Flash memory. With increased processing power, applications such as sending
encrypted Email and wireless access are now feasible in a small industrial package.
High Reliability Design
Designed from the ground up for reliability rather than cost optimization. Built with industrial grade,
wide temperature range components. Uses Industrial grade SLC (Single Level Cell) flash memory
which offers higher reliability than the ultra dense components used in consumer products such as
cell phones. Includes transient protection on all I/O. Includes circuitry for reliability and protection
such as an independent hardware watchdog and voltage supervisor.
Easy Start Up
After making the power and Ethernet connections, you can have the X-600M automatically scan for
the presence of any ControlByWeb Ethernet modules (on the same sub-net) and for any expansion
modules connected to the X-600M ribbon cable connector. You can also automatically create a
“Dashboard” web page and populate it with all of the resources (components) supported by the
Ethernet and expansion modules. This makes it easy to start experimenting with the web page user
interface and to try out the relays and sensors.
Expandable
The X-600M provides a flexible, system level solution for monitoring and control. The X-600M can
control and monitor remote devices such as the WebRelay, WebRelay-Quad, X-310, X-320, etc.
anywhere on the Internet. A family of add-on modules can be connected directly to the X-600M.
Remote devices and expansion modules are added as needed to provide a customizable and highly
flexible monitoring and control system.
File System
The Flash file system provides a major upgrade in flexibility and capability for web based control and
monitoring. With the embedded file system, users can add custom web pages. The file system
allows data to be logged to multiple named files. Setups can be imported and exported as a file.
Dashboards, Panels, Widgets and Components
The X-600M serves dynamic web pages which are used to control and monitor relays, sensors and
other I/Os. The control/status pages are called Dashboards and are highly flexible. The user can
create multiple dashboards as needed and customize them by placing panels, widgets and
components on the dashboard. Panels are used to group widgets together. Widgets are used to
group components together. A component is the smallest unit found on a dashboard and represents
a single I/O (a relay or temperature sensor for example.) The dashboards, panels, widgets, and
components can have custom labels. The web pages can be created, edited and tested directly from
the web browser.
A widget can represent a single external device such as a WebRelay or X-12s Eight-relay module,
or a widget may be composed of components which represent I/Os found on many different devices
across the network. Within a widget the user places components. A component can be an on/off
button with a custom label, a temperature readout, or other resources. Components are available for
control, status, and graphing. Components can be buttons, sliders, spinners, display boxes and
graphs.
Page 6 Xytronix Research & Design, Inc.
X-600M Users Manual Introduction
Ethernet Switch
The X-600M has two IEEE std 802.3 Ethernet connectors with an internal L2 switch. The internal
Ethernet switch allows multiple modules to be daisy chained together or a second Ethernet device to
be connected without the need for an external Ethernet hub or switch. The X-600M does not tie up
an Ethernet port. Normally when two ports of the same configuration are connected, an Ethernet
crossover cable is needed to cross the transmit and receive signals in the cable. With the X-600M
both Ethernet connectors support Auto MDI-X which automatically detects the required cable
connection type and configures the connection appropriately.
Wireless Options
Plug an IEEE 802.11/B/G/N WIFI module into the USB Host connector and the X-600M can connect
to a wireless access point. The X-600M also supports a wireless “ad hoc” network which allows you
to connect directly to the X-600M with a smart phone, tablet, or PC.
USB Host and Device Connectors
The USB 2.0 Host controller allows connectivity with industry standard computer peripherals.
Currently the X-600M has support for USB flash memory drives and WIFI adapters.
1-Wire bus
Connector terminals provide communication with 1-wire sensors to monitor temperature and
humidity. A 1-wire ultrasonic sensor is also available for measuring distance or liquid levels.
Internal Temperature Sensor
An internal digital temperature sensor measures the internal temperature (-40°C to +85°C). This
sensor can be accessed from the overview page.
Expansion Bus
A ribbon cable expansion bus connector allows a family of add-on modules to be connected directly
to the X-600M without the need for an Ethernet switch. Various expansion modules are available
with relays, digital inputs, thermocouples and other industrial inputs and outputs. The ribbon cable
provides both communication and power connections to the expansion modules. The expansion bus
can provide up to 1.7 Amps for powering the attached expansion modules. The maximum number of
expansion modules depends on the module type and power requirements. The input current for the
various expansion modules is listed in the expansion module user manuals.
Power Supply
The X-600M works with 9 to 28V DC power. The power supply voltage (Vin+) is monitored internally.
This value can be displayed, logged, and used to control local/remote relays. It can also be
configured to send Email notifications. This feature is convenient for monitoring the system battery in
solar powered applications.
Real-time Clock
The real time clock is powered with an internal super capacitor which provides backup power for a
minimum of 30-days (no internal batteries need to be maintained). The time and date can be set
manually, or a time server can be used to periodically sync the time.
Event Scheduler
Program up to 1024 calendar events using a familiar calendar-based configuration page.
Automatically switch from weekday to weekend or holiday schedules.
Logging
Periodic and event based logging of any of the I/O configured on the X-600M is possible. Up to 5
separate log files can be created and stored either internally or externally on a USB flash drive.
Xytronix Research & Design, Inc. Page 7
Introduction X-600M Users Manual
Graphing
Logged data can be graphed directly inside any HTML 5 compatible web browser by adding a graph
component to any widget on the dashboard.
Email and Text Notification
Send Email and text alerts based on any sensor or input conditions, such as temperature, time,
frequency, digital inputs, power supply levels, and more. Text messages are sent through a cell
phone through a wireless carrier's Email bridge. Emails can be sent using SMTP servers requiring
SSL/TLS encryption. Send Emails to an individual user or to all members of an Access Group.
Scripts
Much flexibility and advanced control is provided through custom scripts using powerful easy-tolearn Lua scripts. The scripting language can be used to generate custom alarm conditions and
specialized control functions.
Web Server and Protocols
Simple web pages to display monitoring and control dashboards can be made by using drag-anddrop tools in the setup pages. In addition, custom pages can be created from scratch using HTML,
CSS, and Javascript. The X-600M supports both HTTP and HTTPS protocols. Additional
communication options include Modbus/TCP, and SNMP.
Access Groups
Users can be assigned to one of five Access Groups. Each group is assigned specific access
privileges. Access groups can be used to limit what control users might have. For example, the X600M might be used as a thermostat. The administrators can configure upper and lower limits on the
set temperature, while other users might only be able to adjust the set temperature within that range.
1.2 Applications
The X-600M was designed to meet a broad range of industrial applications. It works well as a standalone
device or system that can be controlled using a web browser. It is also a convenient way to add I/O to a
computer. It can be configured using simple menus and drop-down lists, or it can run Lua scripts. Many of its
features such as scheduling, logging, input state monitoring, and the ability to control external relays on
other devices, make the X-600M a very powerful, yet simple controller.
You can use the X-600M to control motors, lights, coils, pumps, valves, bells, etc. You can also use it to
monitor alarms sensors, switches, fluid level switches, battery voltage, temperature, humidity, and much
more. A few example applications include:
• Server or telemetry system “watchdog”
• I/O Extender for a PLC
• Industrial Thermostat
• Solar Energy Controller
• Process Monitor
• Server for other ControlByWeb products: provide a single web page which controls other
ControlByWeb devices.
• Process Controller
Page 8 Xytronix Research & Design, Inc.
X-600M Users Manual Introduction
1.3 Accessing X-600M
The X-600M has a built-in web server that provides simple web pages that can be accessed directly
using a standard web browser. This allows users to access the unit with NO SPECIAL SOFTWARE
installed on their computer. The configuration is simple to setup, simple to use, and can be accessed
from just about any computer or smart phone.
Note: Network routers may need to be configured to allow access from computers outside of the local
network (see Appendix C: Accessing X-600M Over The Internet).
1.4 Connectors & Indicators
Network Connectors
The X-600M has two RJ-45 Ethernet connectors. An internal L2 switch allows multiple modules to
be daisy chained together or second Ethernet device to be connected without the need for an
external Ethernet hub or switch. The green LINK LED is illuminated when the module is properly
connected to an Ethernet network and is ready to communicate. Network communications will only
occur if this LED is illuminated. The LINK LED blinks when activity is detected on the network. The
yellow 10/100 speed LED is illuminated when the network speed is 100Mbps.
Normally when two ports of the same configuration (MDI to MDI or MDI-X to MDI-X) are connected,
an Ethernet crossover cable is needed to cross the transmit and receive signals in the cable. With
the X-600M both Ethernet connectors support Auto MDI-X which automatically detects the required
cable connection type and configures the connection appropriately. The X-600M can be connected
to either a hub/switch or a computer with a straight-thru connector. There is no need for a special
crossover cable when making connections directly to a computer.
I/O Connector
A 5-position plug-in screw terminal connector is used to provide power to the module and
connections for external 1-wire temperature/humidity sensors.
Expansion Bus Connector
A ribbon cable expansion bus connector allows for a family of expansion modules to be directly
connected to the X-600M. The ribbon cable provides both communication and power connections to
the expansion modules. The cable can be a daisy chain with multiple connectors.
USB Host Connector (Type A)
The USB2.0 Host controller allows connectivity with industry standard computer peripherals. The X600M has support for USB flash memory drives and WIFI adapters.
USB Device Connector(mini-B)
The USB Device connector is primarily used for firmware upgrades.
Power Indicator
The green Power LED indicator is illuminated whenever the module is powered.
1.5 Security
The X-600M has built in security features normally employed with industrial applications. The operating
system is stored in a read-only file partition and cannot be changed or “hacked” by malicious users. The
Xytronix Research & Design, Inc. Page 9
Introduction X-600M Users Manual
device supports multiple communication protocols such as FTP (client only), SNMP, and Modbus over
TCP/IP, but these ports are only open when the service has been enabled. By default, the only ports that
are open are 80 and 443, which are the web server ports. If Dashboard and I/O protection is enabled,
users must log in using a predetermined username and password. This authentication takes place over
an encrypted connection when using HTTPS.
The simplicity of the X-600M makes it an inherently secure device. Nevertheless, as with any device
installed on a network, appropriate security precautions should be observed. If the X-600M is installed
on the Internet, it is recommended that the device only be accessed using HTTPS so that all
communication with the device is encrypted.
1.6 X-600M, Accessories, and Expansion Models
X-600M Module
Part Number Power Supply Requirements
X-600M-I 9-28VDC
Optional Accessories
Accessory Description Part Number
Power Supply Regulated, 24V DC, 1.75Amp, 100-240V AC Input,
DIN mount
Temperature Sensor 1-Wire Digital temperature sensor with 12 inch wire leads.
Note: Leads may be extended
Temperature Sensor 1-Wire Digital temperature sensor with 36 inch weather
resistant cable
Temperature Sensor
(Wall Mount)
Temperature/Humidity
Sensor (Wall Mount)
Ultrasonic distance
sensor
Spare Connector 5-Pin Connector X-1827004
USB WiFi Adapter USB WIFI adapter (ASUS USB-N10)
USB WiFi Adapter
USB Flash Drive USB Flash Drive, industrial temperature range (-40°C to 85C),
1-Wire Digital temperature sensor housed in vented plastic
enclosure
1-Wire Digital temperature and humidity sensor housed in
vented plastic enclosure
1-Wire Ultrasonic distance sensor. Measure object proximity to
5-meters with 1-mm resolution.
IEEE 802.11 b/g/n, 150Mbps
USB WIFI adapter (EDImax EW-7811Un)
IEEE 802.11b/g/n, 150Mbps
Hi-Speed USB 2.0, 128MB, single level cell (SLC), 5-Year
warranty
(Delkin UY12TFJSY-XN000-D)
PS24VW1.75-B
X-DTS-U
X-DTS-S3C
X-DTS-WM
X-DTHS-WM
Page 10 Xytronix Research & Design, Inc.
X-600M Users Manual Introduction
Expansion Modules and Accessories
See www.ControlByWeb.com for an up-to-date list of available expansion modules and accessories.
Expansion Module Description Part Number
X-11s 2-Relay module, Form C (SPDT), 20Amp, 277VAC,
with mating connector
X-12s 8-Relay module, Form C (SPST), 2.5-Amp, 120VAC, with
mating connector
X-13s 2-Channel thermocouple module, Type-K, -200°C to 1250°C
(thermocouple not included)
X-15s 8-Channel input module, optically isolated X-15s
X-11s
X-12s
X-13s-K
X-16s Analog module, 8-channel, 0-5V, 24-bit, single or differential
inputs, 5V reference output
Accessories
Expansion Cable 10-conductor ribbon cable with connectors,
1-32 positions, 2.5-inches between connectors
For example:
EXPCBL-1 for 1 expansion module (cable with 2-connectors)
EXPCBL-2 for 2 expansion modules (cable with 3-connectors)
EXPCBL-3 for 3 expansion modules (cable with 4-connectors)
Power Injector Optional connector module for supplying external power to the
expansion bus ribbon cable X-PINJECT
X-16s
EXPCBL-X
(where X=1-32)
Xytronix Research & Design, Inc. Page 11
Installation and Wiring X-600M Users Manual
Section 2: Installation and Wiring
Installation consists of mounting the X-600M, connecting it to an Ethernet network, and providing power.
The setup is completed by using the web browser to configure the web pages, inputs, and outputs for
your specific needs.
2.1 Installation Guidelines
• This unit must be installed by qualified personnel.
• This unit must not be installed in unprotected outdoor locations.
• This unit must not be used for medical, life saving purposes, or for any purpose where its failure
could cause serious injury or the loss of life.
• This unit must not be used in any way where its function or failure could cause significant loss or
property damage.
This equipment is tested to UL 61010-1 safety requirements for equipment to be supplied from the
building wiring (i.e. thru a circuit breaker). It is not rated for installation within or as part of the circuit
breaker panel. When used with expansion modules to control AC line voltages, the X-600M and the
expansion modules must be mounted and protected in a suitable electrical enclosure.
2.2 Mounting
X-600M can be mounted to a standard (35mm by 7.55mm) DIN-Rail. Or it can also be wall mounted. It
should be located in a clean, dry location (NEMA 4) where it is protected from the elements. Ventilation
is recommend for installations where ambient air temperatures are expected to be high
See Appendix N: Mechanical Information for additional mechanical details.
2.2.1 Wall Mounting
Mount the X-600M to a wall by using two #8 screws. Attach the screws to the wall vertically spaced
exactly 2.5 inches apart. The head of the screw should be about 1/10 inch away from the wall.
2.2.2 DIN-Rail Mounting
Attach the X-600M to the DIN-Rail by hooking the top hook on the back of the enclosure to the DIN-Rail
and then snap the bottom hook into place. To remove the X-600M from the DIN-Rail, use a flat-head
screwdriver. Insert the screw driver into the notch in the release tab and pry against the enclosure to
release the bottom hook.
Page 12 Xytronix Research & Design, Inc.
X-600M Users Manual Installation and Wiring
2.3 Making Wiring Connections
MIS-WIRING OR MIS-CONFIGURATION COULD CAUSE PERMANENT DAMAGE
TO THE X-600M, THE EQUIPMENT TO WHICH IT IS CONNECTED, OR BOTH.
CAUTION: MAKE SURE POWER IS SHUT OFF BEFORE WIRING!
CAUTION: THIS UNIT SHOULD BE INSTALLED BY A QUALIFIED TECHNICIAN.
2.3.1 Wiring Procedure:
The correct wiring procedure is as follows (a removable terminal connector is provided for making the
power connections):
1. Make sure power is turned off.
2. Remove the terminal connector from the X-600M and make wiring connections to the terminals.
This technique avoids stressing the internal components while torquing the screws.
3. Reconnect the terminal connector.
4. Apply power.
It is recommended that any load (device to be controlled) not be connected to the expansion modules
until after the X-600M has been configured and tested. By doing this, wiring and configuration mistakes
will not cause the load device to turn on unexpectedly.
Make sure the wires are properly inserted into to the terminals and that the screws are tight.
● Use wire rated for 75ºC (min) for connections to the terminal blocks
● See Appendix I for wire size and connector terminal torque specifications
2.3.2 Power Supply Connections
X-600M requires power for its internal logic circuits. Power is provided by connecting a 9 to 28 VDC
power supply to the Vin+ and Vin- terminals. A regulated power supply is recommended, verify that the
power supply is rated for the operating current of the X-600M (See Appendix I: Specifications for
current requirements.) Multiple X-600M units may be connected to a single power supply by connecting
the power supply input terminals in parallel. The power supply must have a high enough current rating to
power all units connected.
The expansion modules draw their power from the X-600M thru the expansion bus ribbon cable. If
expansion modules are connected to the X-600M, the power supply must have enough capacity to
power both the X-600M and any expansion modules connected to the X-600M. The expansion bus can
provide up to 1.70 Amps for powering the attached expansion modules. The maximum number of
expansion modules you can attach depends on the module type and power requirements of the
modules. The expansion modules employ modern switch-mode power supplies. With this type of power
supply the current draw decreases as the voltage increases. As such, you can add more expansion
modules by using a 24-volt power supply than you can with a 12-volt power supply. If additional power is
needed for modules on the expansion bus, please see Section 2.3.4
As an example, an X-11s (2 relay expansion module) would use 105 mA with a 24VDC power supply
Xytronix Research & Design, Inc. Page 13
Installation and Wiring X-600M Users Manual
when connected to the X-600M. The X-600M would be able to support up to 16 modules under this
configuration (16 X 105mA = 1.68A). This example is workable because the expansion bus load current
is less than 1.70 Amps. For this example the power supply must be capable of providing 1.76A at
24VDC (80mA for the X-600M plus 1.68A for the devices on the expansion bus).
If only using a 12VDC power supply, each X-11s (2 relay expansion module) would use 196mA. The X600M would be able to support 8 modules under this configuration (8 x 196mA = 1.57A). This
configuration is workable because the expansion bus load current is less than 1.70 Amps. For this
example the power supply must be capable of providing 1.72A at 12VDC (150mA for the X-600M plus
1.57A for the devices on the expansion bus).
5-pin Connector
Pin Description
Vin+
Vin- Power supply (-) input. (Internally connected to the Gnd terminal)
Gnd Ground connection for 5VDC output
Data 1-Wire bus data connection for digital temperature and humidity sensors.
+5V Out
9-28VDC (+) power supply input.
Caution: DO NOT EXCEED MAXIMUM POWER SUPPLY VOLTAGE.
This output voltage is used to provide power for the 1-wire digital
temperature/humidity sensors.
2.3.3 System Start Up
At power-up, the green Power LED should be illuminated. The X-600M requires 10 to 15 seconds for the
operating system to load before it becomes operational.
2.3.4 Expansion Module Connections
Expansion modules are connected to the X-600M with a 10-conductor ribbon cable. Normally the X600M and the expansion modules are mounted side by side as shown in the photo below. The ribbon
cable connectors have a polarization lug to ensure correct connections.
Page 14 Xytronix Research & Design, Inc.
X-600M Users Manual Installation and Wiring

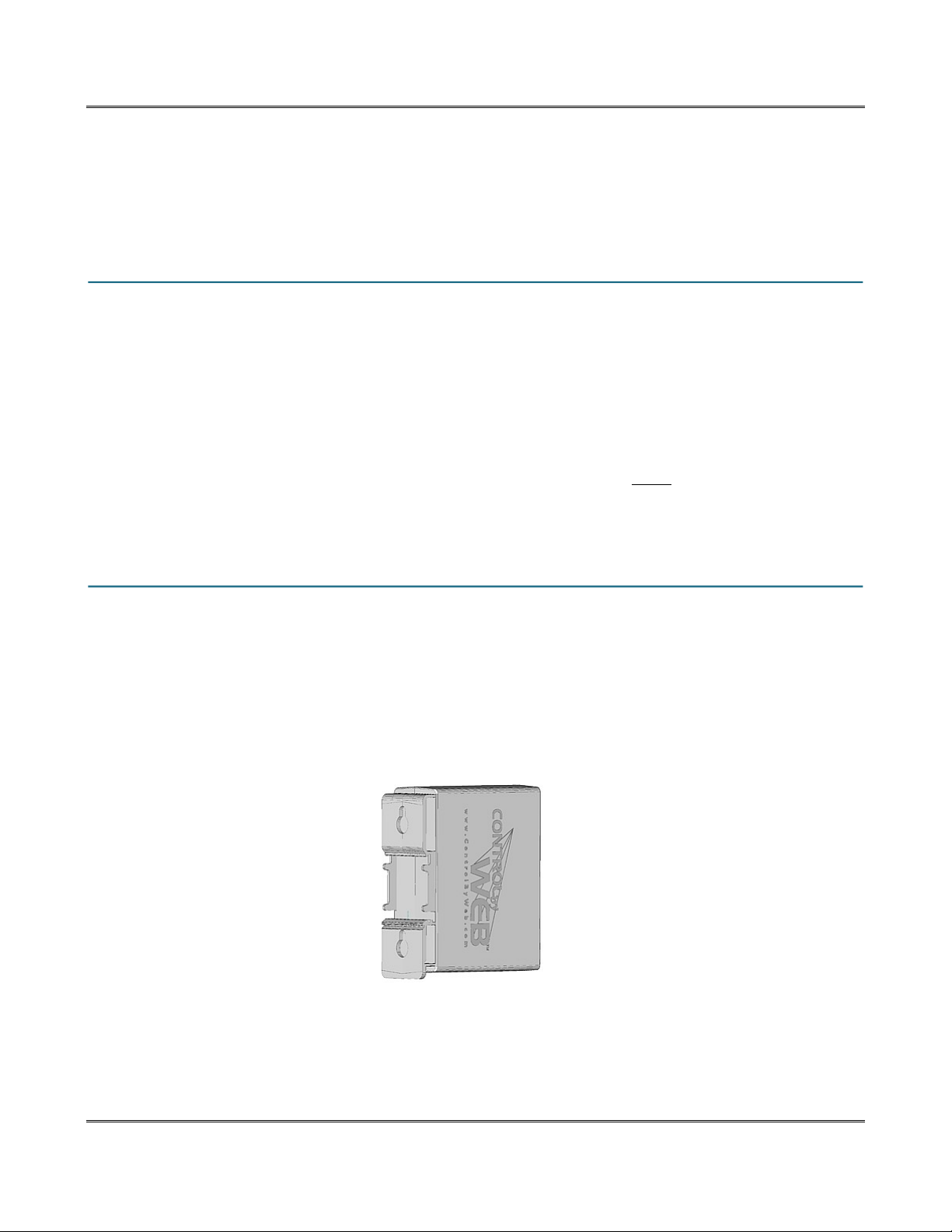

2.3.5 Optional Power Injector
As described in Section 2.3.2 above, the expansion modules draw their power from the X-600M thru the
expansion bus ribbon cable. The X-600M can provide up to 1.7 Amps for powering the attached
expansion modules. In applications where a large number of expansion modules are used and additional
current capacity is needed, a DC power injector can be employed. This accessory has two ribbon cable
connectors and a connector for supplying 9-28V to the expansion bus separately from the X-600M. The
communication signals pass-thru the power injector but the DC power from the X-600M does not. The
power injector thus provides power for all of the expansion modules to the left side of the injector. The
ribbon cable itself can only carry 1.7Amps maximum. Install one or more power injectors such that no
portion of the ribbon cable carries more than 1.7Amps
Note: It is recommended to power the X-600M and power injectors using the same power supply.
2.3.6 Temperature/Humidity Sensor Connections
The X-600M can communicate with external digital temperature or humidity sensors for monitoring
environmental conditions. The “1-Wire” data bus allows up to 32 temperature sensors to share the same
terminals. Together with power and ground the 1-wire bus requires three connections (+5V, Ground,
Data). Every sensor on the 1-Wire bus is assigned a unique serial number when it is manufactured. That
number is used to address the device during communication. The sensors have three wires as shown in
the table below.
Sensor Wire Color Connection
Red 5V Out
Black Gnd
Temperature Sensor
Multiple sensors can be connected in two ways: Directly connected (star topology) or “daisy chained”
(linear topology) as shown below.
A linear (daisy chain) topology minimizes signal reflections, providing a more reliable connection and will
allow longer cable length than a star topology. Appropriate strain relief should be used at the X-600M
and other connections that may be subjected to vibration, movement, or repeated handling.
Many factors determine the maximum length of the cable. Some of these include, but are not limited to
the type of cable used, the number of sensors, ambient electromagnetic noise, and/or sensor network
topology.
Combined cable lengths (to all sensors) of 600 ft using Cat 5e cable have been successful; however,
due to the uniqueness of installation environments, results may vary. Please test in the desired
Blue, White, Yellow Data
Xytronix Research & Design, Inc. Page 15
Installation and Wiring X-600M Users Manual
environment before making a permanent installation.
Star vs Linear Connections
The following are general recommendations that will maximize sensor runs and minimize
problems:
• Avoid sensor runs adjacent to industrial equipment power cables. These cables can have high
voltage spikes that may induce noise on the sensor signals. Similarly, avoid running sensor
cables near any radio transmission antennas or coaxial feed-lines.
• Protect any exposed electrical connections with appropriate weather protection.
• Do not “hot plug” wall mount Temperature/Humidity sensors into a powered X-600M. Use the
internal jumpers in the Temperature/Humidity module to enable/disable the sensors as needed
during discovery and test.
• Due to the broad range of applications and environments where the X-600M may be employed,
successful installations of long sensor runs may vary significantly.
Cat 5 and Cat 5e network cable have proven to be an effective and low-cost solution for long runs. Other
cable types can be used, but cable capacitance may limit the length. The illustration below shows the
recommended connections using Cat 5 network cable. Connect all unused conductors to ground.
Figure 1: 1-Wire Connections With CAT-5 Cable
Page 16 Xytronix Research & Design, Inc.
X-600M Users Manual Installation and Wiring
2.3.7 Network Connection
Connect the Ethernet port to a 10 Base-T or 10/100 Base-T Ethernet connection. Typically an Ethernet
hub, switch, or router. For configuration, the X-600M may be temporarily connected directly to the
Ethernet port on a computer by using a standard Ethernet cable (crossover cable not necessary).
The X-600M can be used on a wireless network by making a connection through an Ethernet bridge or a
wireless router. The X-600M also works with an 802.11b/g/n USB wireless adapter (see section 3.2 for
supported wireless USB adapters).
Note: The wireless Ethernet bridge or router must be properly configured for the wireless network. Refer
to the installation instructions for the wireless device.
USB WiFi Adapter
2.3.8 External USB Flash Drive
An external USB flash memory drive can be plugged into the USB socket for data logging and other
applications. The USB flash memory drive must be formatted with a FAT32 file system architecture.
Drives with NTFS (New Technology File System) or EXT2-4 will NOT work. The X-600M only
accesses the 1st primary file partition. Be aware that many low cost consumer and commercial USB
flash drives employ MLC (Multi Level Cell) technology and are designed for high capacity, 0ºC to
70ºC applications. If your application requires industrial temperature (-40ºC to 65.5ºC) operation or
increased reliability, consider selecting a USB Flash Drive with industrial temperature specifications.
Look for an industrial flash drive with SLC (Single Level Cell) components and a 5-year warranty.
SLC components have the highest endurance and longest life cycles. See Optional Accessories.
The System > Overview menu shows the capacity and amount of memory currently used on the
external USB Flash Drive. Normally the external USB Flash Drive can be unplugged at any time.
However, since data logs are buffered before written to the Flash Drive, when the Flash Drive is
unplugged there is risk of loosing the most recent data log. If this is of concern, click the Eject
button on the System > Overview menu to force all buffered data logs to be written and any open
files to be closed before unplugging the USB Flash Drive.
Xytronix Research & Design, Inc. Page 17
Configuration and Setup X-600M Users Manual
Section 3: Configuration and Setup
3.1 Establishing Communications Over Wired Network
In order to configure the X-600M using its built-in web browser, the X-600M and computer must be
addressed on the same network. This can be done by one of two methods:
Method 1 – Use NetBIOS/mDNS to access the X-600M after it has obtained an ip address using DHCP.
-OR-
Method 2 – Temporarily change the IP address of a connected computer to the match the default IP
address used by the X-600M.
Note: If multiple ControlByWeb products are used on the same network, install one at a time and set the
IP address and NetBIOS/mDNS name (or disable NetBIOS/mDNS) of each unit before connecting the
next unit to the network. This avoids having multiple devices on the network with the same factory
default IP address at the same time. If this approach is used, be sure to clear the arp cache after
disconnecting each unit (arp -d) and clear the NetBIOS/mDNS cache (“nbstat -RR” on Windows “sudo
killall -HUP mDNSResponder” on OS X Mountain Lion).
3.1.1 Method 1: Use DHCP and NetBios
This option can be used on a new X-600M. For this to work, the X-600M needs to be installed on a
network which has a DHCP server. Most routers have a DHCP server installed and enabled by default.
This method works as follows:
1. Connect X-600M to local network using an Ethernet Cable.
2. After the network is connected, apply power (See wiring diagram top-right).
3. Wait about 15 seconds and enter http://x600.local/setup.html into the address bar of
your browser.
4. Enter the username (admin) and password (webrelay).
5. Click on the Network setup pages and change the IP address to the desired setting.
Once connected, make sure to go to the Network > Advanced Network > NetBIOS / mDNS settings tab
and change the Local Host Name from x600 to another name, especially if you have multiple X-600M
units to configure. Also, you will need to clear the NetBIOS or mDNS cache before configuring another
unit using this method. In Windows, this can be achieved by opening a command prompt as an
administrator and typing “nbtstat -RR”. In MAC OS X, stale mDNS entries will be flushed after a
failed communication attempt after about 15 seconds.
If you are not using a router (no DHCP server), or are using a direct connection between the X-600M
and your computer you must use Method 2 described below.
Note: After power-up the X-600M attempts to obtain an IP address from your DHCP server up to three
times in a nine second period. If all attempts fail, the IP address reverts to 192.168.1.2 and you must
use Method 2 as described below.
Page 18 Xytronix Research & Design, Inc.
X-600M Users Manual Configuration and Setup
3.1.2 Method 2: Assign a Temporary IP Address to the Configuration Computer
If the first option above is not used, you can use this option to communicate with the X-600M. By default,
the X-600M comes from the factory with an IP address of 192.168.1.2. Communication with the X-600M
may be established by assigning an IP address to the configuration computer such that it is on the same
network as the X-600M (for example, the configuration computer could be assigned to 192.168.1.50)
The following example is for those running the Windows-8 operating system:
1. Apply Power, wait 15 seconds for the X-600M to become operational, and then connect the Ethernet
cable.
2. Open the Windows 8 start screen
3. Type “Control Panel” and press enter (the search box opens automatically when you begin typing).
4. Click or touch View network status and tasks.
Xytronix Research & Design, Inc. Page 19
Configuration and Setup X-600M Users Manual
5. Click or touch Change adapter settings
6. Your machine may have more than one Internet connection shown. Right click on the adapter for
your connection to the internet. A drop down box will appear, choose Properties to view/edit the
settings for this internet connection.
Page 20 Xytronix Research & Design, Inc.
X-600M Users Manual Configuration and Setup
7. Select Internet Protocol Version 4 (TCP/IPV4) and then click the Properties button.
8. If “Use the following IP address” is already selected, the computer has been setup with a static IP
address. Record these values so that the current IP address of the computer can be restored once the IP
address of the X-600M has been successfully changed.
Xytronix Research & Design, Inc. Page 21
Configuration and Setup X-600M Users Manual
Select the radio button labeled "Use the following IP address" and type in the IP address:
192.168.1.50
Type in the subnet mask:
255.255.255.0
No need to change the default gateway field. Click OK to accept the new settings.
9. Open the setup pages by entering the following URL in the address bar of a web browser:
http://{ipaddress}/setup.html
(For example: http://192.168.1.2/setup.html)
Note: If the setup pages are not accessible, verify that the X-600M is powered on and that the LINK light
is illuminated. Check all network connections and settings.
Another way to check communications is to ping the X-600M from the command prompt by typing:
ping [ipaddress] (e.g. ping 192.168.1.2)
Page 22 Xytronix Research & Design, Inc.
X-600M Users Manual Configuration and Setup
3.2 Establishing Communications Over a Wireless Network
The X-600M can be accessed using either Ad-Hoc or Access Point wireless connections. Both access
methods requires a compatible USB WiFi adapter to be plugged into the X-600M's USB port. The X600M currently includes drivers for the following WiFi adapters:
• EDIMAX EW-7811Un
• ASUS USB-N10
ASUS USB-N10
EDImax Nano
3.2.1 Ad-Hoc Wireless Connection
With an Ad-Hoc network connection you can access the X-600M directly using a smart phone or other
compatible WiFi-enabled device. With an Ad-Hoc connection the network does not rely on a pre-existing
infrastructure such as routers or access points. With Ad-Hoc, the devices are free to associate with any
Ad-Hoc network device in link range.
By default, the name of the Ad-Hoc connection is X600M with password 0123456789. This password
may be changed from the setup pages as described later on. The device name X600M should appear in
the list of available wireless networks on the computer or tablet. Once a device makes a connection, the
X-600M will give the device an IP address via DHCP. The X-600M can be accessed at x600.local or
192.168.3.1 through a web browser.
Note: Not all smart phones or other devices support Ad-Hoc connections. In these cases, the network
will not appear in your list of choices.
3.2.2 Wireless Connection Using Access-Point
With an Access Point connection, the X-600M attempts to connect to a wireless access point. For
Access Point connectivity the X-600M must have been previously configured to connect to a wireless
access point.
For a new device you must access the X-600M using the Ad-Hoc mode or one of the wired access
methods described in the previous section. After establishing a temporary wired connection, to
configure an Access Point connection, select ▼Access Point from the drop-down menu in the
Network>Wireless (Configure wireless adapter) tab. See Section 4.2.2
Xytronix Research & Design, Inc. Page 23
Configuration and Setup X-600M Users Manual
3.3 Configuration and Setup Access
The X-600M is configured using a web browser. To access the setup pages, enter the following URL in
the address bar of a web browser:
http://{ipaddress}/setup.html
For example, using the default IP address, enter:
http://192.168.1.2/setup.html
If you are using the “config via DHCP” method described in Method 1 above enter:
http://X600.local/setup.html
Before editing the setup pages, you will need to enter a username and password. The default username
is admin and the default password is webrelay (password is case sensitive).
The left side of the configuration and setup pages have click-able menu tabs (above right) which provide
access to specific configuration and setup settings. With all of the setup pages, if no activity is detected
for 30-minutes the user is automatically logged out. If this happens, your browser page should
automatically be redirected to the login page. To restore the setup session again, enter the setup URL
(http://{ipaddress}/setup.html) into address bar of your web browser (if not already there) and reenter the
username/password. The control and display (non-setup) pages are called dashboard pages
(http://192.168.1.2/index.html) and are not monitored for inactivity. The dashboard pages can remain
open indefinitely.
The setup pages are divided into seven setup sections: System, Network, Devices, I/O,
Control/Logic, Logging, and Edit Dashboards. The eighth section, View Dashboards, is for viewing
and testing the dashboards. Each of the setup tabs is described in the following sections.
Note: The X-600M setup pages require a modern web browser with javascript enabled to function
correctly. These browsers include Internet Explorer 9 and above, and latest versions of Chrome, Firefox
and Safari. If configuring the X-600M on a mobile device make sure to use a web browser that supports
pop-up windows. Once the X-600M is configured, the Dashboards are viewable by all modern web
browsers on mobile devices.
3.4 Basic Setup Strategy
The X-600M is configured and programmed using its built-in web pages. The configuration can be quick
and simple for small systems or require more design and thought for complex systems. The X-600M is
both easy to use and yet still has the resources to handle complex applications. You can start with the
Page 24 Xytronix Research & Design, Inc.
X-600M Users Manual Configuration and Setup
built-in logic functions and dashboards and progress to scripts and custom web pages as needed.
The configuration and setup consists of the following basic steps:
Step 1. Configure the network parameters.
Begin by setting the IP address and making the associated network settings. These settings are
made under the Network tab. The goal is to get the X-600M accessible on your network. Test
your settings by accessing the X-600M with your web browser.
Step 2. Add new devices.
The X-600M has no built-in relays or inputs. Instead, it functions as a powerful master controller
for other ControlByWeb modules. The X-600M can control up to 128 ControlByWeb devices.
These devices can be physically located anywhere in the world with internet access. In addition,
the X-600M has a ribbon cable expansion bus connector which allows a family of add-on
modules to be connected directly to the X-600M. Expansion modules are available with relay,
digital input, thermocouple and other industrial inputs and outputs. Before these devices can be
controlled or accessed they must be entered into the X-600M's database. This is done with the
Devices tab. For modules on the IP network you either automatically scan for devices on the
same subnet or manually enter the IP address. With expansion modules you either automatically
scan for devices or manually enter the serial number of the module. Normally you enter a user
friendly name and description for each device. For example you might name a WebRelay-Quad
“PanelBoardA” with a description of “Warehouse Lights”. When complete, the Devices menu tab
will show a list of all the devices (modules) you wish to monitor or control.
Step 3. Add I/O (Inputs & Outputs).
Devices have inputs and outputs. Before the inputs and outputs can be monitored or controlled
they must be entered into the X-600M's database. This is done with the I/O tab. You add I/O
objects to the I/O list one by one. To add an I/O, click on the I/O tab in the left hand menu to see
a list of all available I/O types based on the devices that have already been configured in step 2.
Select the I/O type to add and click Add New I/O to add an instance of that I/O. A popup window
will then appear where the I/O can be specified and a name and description can be assigned to
the I/O. Normally you enter a user friendly name and description for each I/O object. For
example you might name one relay of a WebRelay-Quad “circuitA1” with a description of
“Loading Dock Lights”. When complete, the I/O menu tab will show a list of all the I/O objects
you wish to monitor or control.
Step 4. Add Conditional Events
Conditional Events occur when certain criteria are met, such as a temperature reaching a certain
value. The conditions which generate an event can be both simple and complex. If you are
simply monitoring inputs and controlling outputs with a web page you can skip this step.
Step 5. Add Actions
Conditional Events in turn trigger Actions. An Action can include sending an Email, turning a
relay on or off, or initiating a data log. Of importance an Event can trigger more than one Action.
For example, a Conditional Event could occur when the temperature exceeds a certain value,
the Event could trigger two Actions. One Action could turn a relay on to illuminate an alarm light
and a second Action could send an Email alert. The scheme of keeping Events and Actions
separate and distinct allows for complex conditions and reporting needed by many real world
applications. If you are simply monitoring inputs and controlling outputs with a web page you can
skip this step.
Step 5. Create/Edit a Dashboard
A dashboard is a web page that users can access to view and control I/O. You customize
dashboards by placing widgets, panels and components. The widgets and panels can be
customized and labeled. For example, a widget might be labeled “Upper floor”. Within a widget
Xytronix Research & Design, Inc. Page 25
Configuration and Setup X-600M Users Manual
the user places components. A component can be an on/off button labeled “Suite #1 lights”, a
temperature readout or other resources. Components are available for control, status, logging
and graphing. Components can be buttons, sliders, display boxes, etc.
Step 6. View Dashboards
The View Dashboards menu tab presents a display similar to what users will normally see
when accessing the X-600M. Use this page to test and debug the dashboards, panels, widgets
and components in real time.
3.5 Setup Example
The Quick Start Demo
After making the power and Ethernet connections, the X-600M can automatically scan for the presence
of any ControlByWeb Ethernet devices (on the same sub-net) and also for of any expansion modules
connected to the X-600M via the ribbon cable connector. It can also automatically create a dashboard
web page and populate it with all of the resources (components) supported by the Ethernet devices and
expansion modules.
To quickly add a device do the following:
1. Click on the Devices menu tab to pull up the Devices Overview page. Then click on the Find New
Devices button to scan the expansion bus and the local network for ControlByWeb devices and
expansion modules.
2. In this example we are going to add an X-11s (2 Relay expansion module.) Click the Add button for the
X-11s.
Page 26 Xytronix Research & Design, Inc.
X-600M Users Manual Configuration and Setup
3. In the Select column, click the check boxes of the I/O components you would like to configure and select
the Create Device Widget check box (This will display the status of the I/O on the Dashboard). Click
Add Checked I/O to submit these changes.
4. Click Commit Changes - Once clicked, the X-600M begins to monitor the newly added device. Note:
You can make changes to multiple pages before you need to Commit Changes.
Xytronix Research & Design, Inc. Page 27
Configuration and Setup X-600M Users Manual
5. On the main menu, click the View Dashboards menu tab. The View Dashboards page shows a display
similar to what users will see when accessing the X-600M's control page. Use this page to test and
debug the dashboards, panels, widgets and components in real time. A pull-down menu allows access to
other dashboards. Within minutes you can experience the power and flexibility of the dashboard's user
interface and experiment/test the buttons, sliders, and data entry boxes to meet the needs of your
specific application.
3.6 Making Changes
The settings for the X-600M are maintained in an internal database. As you make changes you must
submit those changes (the Submit button on the bottom of each page) which stores those settings into a
temporary database in RAM. Whenever you make a change to a setting, the Commit Changes link at
the top, right-hand corner of the page will be highlighted. When you have finished making changes, click
Commit Changes to save your work permanently and to cause the new settings to become functional.
You can submit multiple setup pages before you commit changes. If you click on Abandon Changes all
changes in the temporary database will be deleted (all changes made since the last time changes were
committed)
You can click the Commit Changes button after making every change; however, it takes 5-10 seconds
Page 28 Xytronix Research & Design, Inc.
X-600M Users Manual Configuration and Setup
to save the settings to the database and this can soon become tedious. You will find it more efficient to
make all of the changes, and then click the Commit Changes button to save all of the changes to the
database at once. New or edited settings will not become functional until the Commit Changes button is
pressed.
If you click the View Dashboards menu tab and discover that the components are blank or don't work,
the problem could be that you have not committed your changes to the database. If this occurs you have
not lost your settings, simply go back to one of the configuration tabs and click the Commit Changes
button.
3.7 Dashboard Access - Users and Access Groups
The X-600M has flexible and advanced access control features needed for real-world applications.
Access to the setup pages described in the sections below always requires administrator privilege with a
username and password. User access to the Dashboards is configurable. The System>Overview
setup page has a global setting for Dashboard and I/O Password Protection. See Section 4.1
This setting can be used to enable or disable password access to the Dashboards and I/O. The default
setting is Disabled. Check the Enabled setting if you wish to require users to enter a username and
password to access the Dashboards. If password protection is enabled, Access Groups and other
menus used to manage password access are displayed in subsequent menus. If password protection is
disabled, Access Groups and other menus used to manage password access are not displayed in
subsequent menus. This global setting helps keep the setup pages simple and easy to use for those
who do not need password protection.
3.7.1 Access Groups
The X-600M supports five different access groups. All groups can be configured as a Read Only group
or Read Writable group. Read Only groups allow monitoring of I/O only. Read Writable groups allow
Xytronix Research & Design, Inc. Page 29
Configuration and Setup X-600M Users Manual
monitor and control of I/O. The admin and cbw groups have special features.
admin: Users who log-in and have admin privileges will see the setup page(s), all others will not have
access to these pages and cannot change the configuration of the device. If you want to configure
dashboards, connected devices, etc, you must belong to the admin Group. All I/O and dashboards
belong to this group by default.
user: Users who log-in and have user privileges will, by default, have access to all of the dashboards
and I/O, but will not have access to the setup pages.
group1: This is a general purpose group that can be customized and renamed as needed.
group2: This is a general purpose group that can be customized and renamed as needed.
cbw: This Group uses a legacy password scheme employed by older ControlByWeb products.
Only I/O that belong to this group can be controlled by older ControlByWeb products.
The X-600M can support up to 30 individual user accounts. Each user is assigned a name and
password, and can be assigned to one or more access groups. Users assigned to a group will have the
access privileges of that group. Users have passwords, groups do not.
Users, I/O, and dashboards can be assigned to an access group. When users and I/O belong to the
same access group, those I/O can be controlled and monitored by those users. When a user and
dashboard belong to the same access group, that dashboard can be viewed by that user. If a user, I/O,
or dashboard do not belong to the same group, those items cannot be controlled/monitored by that user.
Page 30 Xytronix Research & Design, Inc.
X-600M Users Manual Setup Pages
Section 4: Setup Pages
The left side of the configuration and setup pages have click-able tabs which provide access to specific
configuration and setup settings. Each of the tabs are explained the following sections.
4.1 System Tab
The Overview page displays basic information about the X-600M module and its operating system. Note
the Serial Number is the same as the MAC address for the wired Ethernet adapter. The Up Time is the
elapsed time since the last system reset. The Internal Temperature is measured with an internal digital
temperature sensor. Note: The internal temperature is normally higher than the ambient temperature.
External Storage shows the capacity and amount of memory used on the external USB Flash Drive.
Normally the external USB Flash Drive can be unplugged at any time. However, since data logs are
buffered before written to the Flash Drive, when the Flash Drive is unplugged there is risk of loosing the
most recent data log. If this is of concern, click the Eject button to force all buffered data logs to be
written and any open files to be closed before unplugging the USB Flash Drive.
The Dashboard and I/O Password Protection setting can be used to enable or disable password access
for all users. The default setting is Disabled. Check the Enabled setting if you wish to require all users to
enter a password to access the dashboards. If password protection is enabled, Access Groups and
other menus needed to manage password access are displayed in subsequent menus. If password
protection is disabled, Access Groups and other menus needed to manage password access are not
displayed in subsequent menus. Note: If password protection is disabled, access to the X-600M's setup
pages still require an administrator password.
To access other system settings, click System on the menu bar on the left side of the setup screen.
Several subsections will appear.
Xytronix Research & Design, Inc. Page 31
Setup Pages X-600M Users Manual
4.1.1 System > Access Groups (Edit access groups)
This menu and its tab are only displayed if Dashboard Password Protection in the System>Overview page
is set to Enabled. Users, I/O, and dashboards are assigned to one or more Access Groups. Users can only
access I/O and dashboards that belong to the same group that they do. Only users that belong to the admin
Access Group are allowed to configure the X-600M settings. Only I/O that belong to the CBW Access Group
can be controlled remotely by other ControlByWeb devices. All other Access Groups are generic and can be
used for any purpose.
The following example illustrates the use of access groups.
The image above depicts a scenario where 3 access groups are being used. There are 6 users
configured on the X-600M and 7 relays. To determine if a user has access to one or more of the relays
examine the access group. (depicted as a circle). The 3 users in the Admin access group, Mark, John,
and Sara, have access to any relay also found in the Admin group: relay 1, relay 2, relay 3, and relay4.
The 3 users in the User access group, Jennifer, Ryan, and Mike, have access to any relay also found in
the User access group: relay 2, relay 4, relay 5, and relay 6. There are no X-600M users in the CBW
access group. The CBW access group is a special group. All other ControlByWeb products that can
Page 32 Xytronix Research & Design, Inc.
X-600M Users Manual Setup Pages
control remote relays belong to the CBW group. This means in this example that a ControlByWeb
device that is configured to control a remote relay on the X-600M, can only control relay 3, relay 4, relay
6, or relay 7.
Another thing to mention is that each access group has a read/write setting. In the previous example,
each group was configured for read and write, meaning that the I/O belonging to those access groups
could be monitored and controlled by the users in those same access groups. If, on the other hand, the
User access group was configured as a read only access group, then Jennifer, Ryan and Mike would
only be able to monitor relay 2, relay 4, relay 5, and relay 6. No control would be available.
4.1.2 System > User Accounts (Add, edit, and delete user accounts)
The X-600M can support up to 250 individual User Accounts. Each user account is shown in a separate line.
Click Add New User to create a new user account. The settings and passwords for each user account can
be changed by clicking the Edit icons.
Each user is assigned a password and one or more Access Groups (enable Dashboard and I/O
Password Protection under the System > Overview menu tab in order to view and change Access
Group settings). Users who are assigned to an access group will have access to any I/O and
dashboards that also belong to that particular access group. Users have passwords, Groups do not.
Note: Email alerts can be sent to users (or groups) - These users can be set up to receive email alerts
only while having no access to the dashboards and I/O.
Xytronix Research & Design, Inc. Page 33
Setup Pages X-600M Users Manual
Full Name:
This is a simple description of the user account for documentation purposes.
Email:
The email address for this user.
Username:
This is the user name for this user account (used for logging in).
Password:
The Password for a specific user can be modified by entering a new password here. Passwords that
are 8 characters or longer (up to 20 characters can be entered in this field) with both alphabetic and
numeric characters are recommended. For security purposes, the password will not be displayed
when entered.
Note: The default user name required for accessing the setup pages is admin (all lowercase). The
default Setup Password is webrelay(all lowercase).
Confirm Password:
When the password is changed, it must be entered twice for verification. If the password is not
entered identically in both fields, the password will not be changed.
Access Groups:
This setting is only displayed if Dashboard Password Protection in the System>Overview page is
set to Enabled. Access groups have a descriptive name as well as a member title used to describe
the members of the group. Access groups can also be declared Read Only or Read Writable. Users
in groups that are read only will be able to monitor I/O in the same group, but not control them.
Page 34 Xytronix Research & Design, Inc.
X-600M Users Manual Setup Pages
4.1.3 System > Date & Time (Configure system date and time)
X-600M uses the date and time for scheduled events, such as turning relays on or off at scheduled
times, as well as for logging (a time stamp is included with each logged event). The X-600M has a
capacitor backed real-time-clock circuit that will keep track of time for several weeks in the event of
a power failure.
Date/Time:
This is the current date and time stored in the X-600M. The time is stored and displayed in 24-hour
format.
Timezone Offset:
Time servers return the current time in Universal Time (GMT). It is common for many servers and
data loggers to use GMT as their official time, even when they are not located within the GMT time
zone. The default value for this field is -7 (Mountain Standard Time). For convenience, the time can
be converted to local standard time by entering the offset here. This manual cannot include the UTC
Offset for all parts of the world, but the offset for GMT time and the four major US Time zones are
listed here:
GMT Time: 0
Eastern Standard Time: -5
Central Standard Time: -6
Mountain Standard Time: -7
Pacific Standard Time: -8
Sync With NTP Server:
This selection offers two options for setting the time: YES (sync with NTP server) or NO (manually)
If Yes is selected, the Date/Time is grayed out and cannot be manually changed. If No is selected,
the current date and time can be entered by selecting the appropriate drop-down box.
• Sync with NTP server allows the user to set the clock automatically by using an NTP
(Network Time Protocol) server.
Xytronix Research & Design, Inc. Page 35
Setup Pages X-600M Users Manual
• Manually requires the user to enter the time and date
NTP Host Name:
This field is used to specify the name or IP address of the NTP server. If a name is specified, a
working DNS server address must be entered into the Network > Ethernet settings page. If the IP
address is specified, it should be entered in the following format aaa.bbb.ccc.ddd where each of the
letters represents a number between 0 and 255. This field can be up to 60 characters. There is no
default value for this field.
Many NTP Internet servers are available. In addition, many desktop computers can function as an
NTP server (both Mac and PC). If a desktop computer is used, firewall settings may need to be
adjusted to allow for NTP communications on port 123.
Public NTP servers can be found at www.pool.ntp.org. Some of these are listed below:
US Servers (http://www.pool.ntp.org/zone/us):
0.us.pool.ntp.org
1.us.pool.ntp.org
2.us.pool.ntp.org
3.us.pool.ntp.org
North America (http://www.pool.ntp.org/zone/north-america):
0.north-america.pool.ntp.org
1.north-america.pool.ntp.org
2.north-america.pool.ntp.org
3.north-america.pool.ntp.org
Europe (http://www.pool.ntp.org/zone/europe):
0.europe.pool.ntp.org
1.europe.pool.ntp.org
2.europe.pool.ntp.org
3.europe.pool.ntp.org
Australia (http://www.pool.ntp.org/zone/au):
0.au.pool.ntp.org
1.au.pool.ntp.org
2.au.pool.ntp.org
3.au.pool.ntp.org
South America (http://www.pool.ntp.org/zone/south-america):
0.south-america.pool.ntp.org
1.south-america.pool.ntp.org
2.south-america.pool.ntp.org
3.south-america.pool.ntp.org
Africa (http://www.pool.ntp.org/zone/africa):
1.africa.pool.ntp.org
1.pool.ntp.org
3.pool.ntp.org
NTP Sync Interval:
This setting allows the user to specify how often the time on the X-600M will be synchronized with
the time server. When the Submit button on this page is pressed, the X-600M will immediately
Page 36 Xytronix Research & Design, Inc.
X-600M Users Manual Setup Pages
synchronize with the time server. The next NTP sync will occur X minutes after the time this
configuration page was submitted (where X = NTP Sync Interval in minutes). The default value for
this field is set to 1440 minutes.
Daylight Savings:
In many parts of the United States and in some other countries, the time is shifted forward by one
hour during the summer months. This is an effort to conserve energy by making the daylight last
longer into the evening hours. If this option is set to Enabled, the time on X-600M will automatically
be shifted forward by one hour between the DST Start date and time and the DST End date and
time. The default setting is Enabled.
Note: Enabling the daylight savings time adjustment, scheduled events will be adjusted for the new
time, possibly leading to duplicate events. Logged data uses a GMT time stamp that does not
account take into effect daylight savings. When viewing the logged data, these timestamps are
adjusted to the timezone configured for the X-600M and could also present duplicate logs around
daylight savings time changes.
DST Start:
This is the date that daylight savings will start. At this date and time, the time will be shifted forward
by one hour (i.e. the time will jump from 12:02 AM [00:02] to 1:02 AM [01:02]). By default this is set
to the 2nd Sunday in March which is the date used in the United States.
DST End:
This is the date that daylight savings will end. On this date and time, the time will be shifted
backward by one hour (i.e. time will jump from 12:02 AM [00:02] to 11:02 PM [23:02] the day before).
By default this is set to the 1st Sunday in November which is the date used in the U.S.
4.1.4 System > Backup/Restore (Backup and Restore Settings)
The Network settings, Conditional Events, Actions, Scripts, Registers and other settings for the X-600M
are stored in a database. The entire database can be exported or imported as a file. The
Backup/Restore page is used for archiving the settings and can also be used to move the settings from
one module to another.
To export the database, click the Export button. A window pops up in the browser where you can name
and save the file on your computer. To import a database, click Choose File. A File-Upload window will
pop up in your browser. Navigate to the desired file and click Open. Next, click Import to import the file.
The import feature has two additional options. The first, Use Default Network Settings, allows a
settings file to be imported with the network settings forced to their default values. This option is useful
Xytronix Research & Design, Inc. Page 37
Setup Pages X-600M Users Manual
for setting up multiple units that will function similarly, but will require different network configurations.
The second option, Use Default Password, allows a settings file to be imported with the username and
password forced to their default values. This option is useful when the settings need to be loaded to a
device and the username and/or password for the administrator have been forgotten.
When importing settings, they must be Committed before taking effect. Remember to backup your
settings to a file in case the unit ever needs to be reset to factory defaults and you wish to preserve the
settings.
4.1.5 System > SSL Certificates
The X-600M supports secure connectivity to the internal web server using a Secure Sockets Layer
(SSL) certificate. An SSL certificate works to establish a secured and encrypted connection between the
X-600M and the web browser. With this secured connection, all data passed back and forth to the X600M will be encrypted and protected from interception.
SSL certificates have three components. The Certificate Signing Request (CSR), the public key, and the
private key. When a new certificate is created on the X-600M, it will automatically generate all three of
these components. The CSR is used to allow a Certificate Authority (CA) to digitally sign and create a
public key. This public key will be sent to web browsers that access the X-600M. The private key is
generated by the X-600M when the certificate is made and is intended to never be accessed outside of
the X-600M. The private key will be used to decrypt data that has been encrypted by the public key in
the remote web browser. Conversely, the public key is needed to decrypt data the X-600M encrypts with
the private key.
When a web browser initiates the handshake to establish a secure connection, it tries to validate the
authenticity of the SSL certificate. Primarily, it looks to ensure the name on the certificate matches the
domain name used to connect with the X-600M. Additionally, it will ensure the certificate is valid for the
current date and time and that the certificate has been digitally signed by a trusted Certificate Authority
(CA). If any of these conditions are not met, the web browser will show the user a warning stating that
the web server may not be secure or that it cannot be verified.
An SSL certificate needs to be either self-signed or signed by a CA. Self-signed SSL certificates will
cause the web browser to issue a warning to the user unless the self-signed certificate is added to the
list of trusted certificates kept by the operating system. SSL certificates signed by a trusted CA (such as
DigiCert, VeriSign, Comodo, etc.) will not show a warning to the user and is what you will find on many
commercial websites. However, both certificate signing options will behave the same in how they secure
the data being transferred across the network. Additionally, multiple SSL certificates can be stored on the
X-600M, but only one may be in use at any given time.
Page 38 Xytronix Research & Design, Inc.
X-600M Users Manual Setup Pages
4.1.5.1 Default Self-Signed SSL Certificate
The X-600M includes a default, self-signed SSL certificate uniquely generated and ready for use;
however, since this certificate is self-signed, you will see a warning page from your web-browser
stating the web server may be untrusted. This self-signed certificate has an expiration date of 200
years from the time it was generated and cannot be deleted. It is recommended to generate a new
self-signed SSL certificate.
4.1.5.2 Generating a New Certificate
Generating a new SSL certificate is not required for using HTTPS or securing the connection as a
default certificate is already available. However, generating a new SSL certificate will allow you to
use your organizations information as well as to get it signed by a CA. To start, click on the
Generate New Certificate button in the top right corner of the SSL Certificates screen. A pop-up will
open and allow you to fill in the information. Once the information has been filled out and submitted,
the X-600M will self-sign the certificate for immediate use. Instructions on having the certificate
signed by a CA are in the next section.
Certificate Name:
This is the name you will use to identify the certificate in the X-600M web interface. These
names must start with a letter, and contain only letters, numbers or the underscore character.
(e.g. testing_cert)
Country Code:
Two letter country code for the country where the X-600M will be used. (e.g. US)
State or Province Name:
Full name of the state or province the X-600M will be used in. (e.g. Utah)
City or Locality Name:
Full name of the city or locality the X-600M will be in. (e.g. Nibley)
Organization Name:
Full exact name of your organization with no abbreviations. (e.g. Xytronix Research & Design,
Inc.)
Organizational Unit Name:
Full organizational unit name. This is less important and can be something simple. (e.g. IT)
Common Name:
This is the domain name you will be accessing the X-600M from. If this does not match what is
placed in the browser when accessing the X-600M, your web browser will return a warning. (e.g.
X600.ControlByWeb.com)
No special work is needed in the X-600M to assign it a (sub)domain name. So long as an “A”
record exists in your DNS server to map the (sub)domain name to the X-600M IP address.
Email Address:
Allows you to place your e-mail address in the certificate information.
Encryption Strength:
This option allows you to specify the encryption strength of the data during the handshake phase
between the X-600M and the web browser. Some CA's have a restriction on this value. The
trend for the CA's is to have 2048-bit encryption strength. Certificates generated using 2048-bit
encryption can take up to six minutes to generate.
Xytronix Research & Design, Inc. Page 39
Setup Pages X-600M Users Manual
4.1.5.3 Signing Certificates with a Certificate Authority
Once a new certificate has been made, you can click on the Edit link to access the Certificate
Signing Request (CSR) as well as the signed certificate. Most CA's will have you copy and paste the
CSR from the X-600M web pages directly in to their web site. Once the CSR and the other
information requested by the CA have been submitted, the CA will generate and digitally sign a
certificate.
Once the signed certificate has been received, you will need to copy and paste the contents into the
Signed Certificate field of the respective certificate. If the CA has also included a CA bundle or
intermediate certificates, they can be appended to the end of the signed certificate in reverse order
with the root certificate being the last. For example, if the signed certificate has two intermediate
certificates, they would be placed in the Signed Certificate in the following order:
Signed Certificate
Intermediate 2
Intermediate 1
Root certificate
You will need to include all the starting and ending tags for each certificate.
4.1.5.4 Importing self-signed certificates
As an option, you may import the self-signed certificate in to the computers certificate store. This will
remove warnings about the certificate not being trusted. To do this, download the certificate from the
X-600M System > SSL Certificate pages for the certificate you would like to import. Once the
certificate has been downloaded, double-click the file and your computer will launch the wizard for
importing the certificate. Once it has been completed, restart your web browser. The certificate has
now been imported. This procedure will only remove warnings about the authenticity of the
certificate for the local computer.
4.1.6 System > Custom Web Pages
For most users and applications, the built-in control web pages with Dashboards, Panels, Widgets and
Components will be more than adequate; however, for users with more specific needs or where more
complex graphics are needed, the X-600M supports custom web pages. Custom web pages are built
with HTML, CSS, Javascript and PNG images files which are stored in the X-600M's file system. The
Custom Web Pages page displays a list of files currently stored in the file system.
Page 40 Xytronix Research & Design, Inc.
X-600M Users Manual Setup Pages
Clicking on a file's name will cause the file to be immediately opened by your browser in a new tab. The
Edit button opens a simple, web-based text editor which allows you to edit the contents of HTML, CSS,
JS, and other similar ASCII files.
Clicking the New HTML File, New CSS File, or New JS File buttons will create a new file with the
respective file extension. You then use the web-based text editor to edit the new file(s).
Note: Custom web pages require programming skills with HTML, JavaScript and other web
programming languages - specific details of these programming languages are not covered in this
manual.
Xytronix Research & Design, Inc. Page 41
Setup Pages X-600M Users Manual
To download a file from the X-600M to your PC, click a file's Download button and then Save File. To
upload a file(s) from your PC to the X-600M, click Browse/Choose Files, select the file(s) to upload,
then click Upload. The new file(s) should appear in the file name list. To delete a file, click on its
respective Delete button. Only HTML, CSS, JS, and PNG files will be allowed for upload.
Custom web pages normally include dynamic content to provide both real time display and control. See
Appendix-H for specific details on how to add dynamic content to custom web pages.
4.1.7 System > System Log
The System Log menu tab displays the current contents of the system log file. The system log file is a
real-time list of system-level messages and events, as well as information about various user interaction
with the X-600M. The log file is useful for troubleshooting Email, NTP, and remote services connections.
It can also be used for security purposes. Read/writable I/O can be configured such that any activity for
that I/O will be logged to the system log, including user interaction. This can be useful for monitoring
what user changed what I/O at what time.
Page 42 Xytronix Research & Design, Inc.
X-600M Users Manual Setup Pages
4.2 Network Tab (Current network configuration of a device)
To access the network settings, click Network on the menu bar (left side of the setup screen). The
Overview section displays the general status and settings of the network interface.
4.2.1 Network > Ethernet (Configure Ethernet Settings)
These settings are used to configure the X-600M for operation with a wired network. After entering
settings press Submit and then Commit Changes. When Commit Changes is clicked the new network
settings will take effect immediately. If you have changed the IP address the X-600M will no longer
respond to the current IP address.
Use DHCP:
This option allows DHCP to be enabled or disabled. If this option is set to Yes, the X-600M will wait
Xytronix Research & Design, Inc. Page 43
Setup Pages X-600M Users Manual
for an IP address from a DHCP server each time it is powered up. The default for this setting is Yes
to facilitate assigning a temporary IP address to the X-600M (See Section 3.1.1.) For most
installations, we recommend assigning it a static IP address.
If you set DHCP to Yes, press Submit and then Commit Changes. When Commit Changes is
clicked the X-600M will immediately request a new DHCP address from the server. Once the X600M is assigned an IP address by the DHCP server, the new IP address can be found through the
list of clients kept by the DHCP server (for most instances, the DHCP server is the local gateway or
router). Three DHCP requests will be sent out over a nine second window. If no DHCP server is
found within this nine second window, the X-600M will revert back to the static network settings.
Brief Notes About DHCP
All devices on an IP network require an IP address. This is a unique address that identifies each
device on the network. DHCP (Dynamic Host Control Protocol) is a mechanism that automatically
assigns an IP address to a computer (or other devices) when it is connected to a network. This
eliminates the need to manually enter the IP address. Devices using DHCP will request an ip
address and other network settings from the DHCP server on the network. On many small networks,
the DHCP server is built into the router.
DHCP works well for "client" devices such as computers, but is not ideal for servers. This is because
servers usually don't initiate communications with other devices, but rather they wait for a request
from "clients." To make this request, the client must know the IP address of the server. If a server
gets its IP address dynamically, the IP address may not always be the same so client devices may
not be able to find the server. For this reason, servers usually use an IP address that is fixed and
does not change. The X-600M is a server and manual IP address assignment is usually
recommended.
IP Address:
Enter the IP address for the X-600M in this field. The IP address is specific to the network where the
X-600M will be installed, and must be obtained from the network administrator. The default setting
for this field is 192.168.1.2. If the IP address is changed, remember to press Submit and then
Commit Changes as explained above. For more information on IP addresses and remotely
accessing the X-600M over the Internet, see Appendix C: Accessing X-600M Remotely Over the
Internet.
Netmask:
The Netmask (subnet mask) defines the size of the local network. This can be obtained from the
network administrator. For additional information about sub-netting and IP networking, many tutorials
are available on the Internet. The default setting for this field is 255.255.255.0.
Gateway:
This specifies the IP address of the gateway router. This can be obtained from the network
administrator. The default setting for this field is 192.168.1.1. This filed must be valid for the X-600M
to communicate with devices outside the local network.
Preferred DNS Server:
The IP address of the Primary DNS server is specified here. When DNS services are required, this
is the address that will be used. The default setting for this field is 192.168.1.1.
This field is required when any host name settings are fully qualified domain names. If IP addresses
are used for all host names, the DNS server will not be used. Note: This is the same DNS setting
found on the Wireless setup page.
Alternate DNS Server:
This field is used to specify the IP address of a Secondary DNS server. This is used when the X600M requires DNS services and the preferred DNS server is not available. The default setting for
Page 44 Xytronix Research & Design, Inc.
X-600M Users Manual Setup Pages
this field is 192.168.1.1. Note: This is the same DNS settings found on the Wireless setup page.
IP Filter Range 1:
This option specifies a range of ip addresses on the subnet that should be allowed access to the X600M. By default all ip addresses on the subnet are allowed.
IP Filter Range 2:
This option specifies another range of ip addresses on the subnet that should be allowed access to
the X-600M. By default all ip addresses on the subnet are allowed.
Speed:
This option sets the speed of the Ethernet port - either 10 Mbps or 100 Mbps. The 100 Mbps option
offers faster communications but the amount of data to and from the X-600M is so small that users
will not likely notice much (if any) difference between that and 10 Mbps. The default setting for this
field is 100 Mbps.
Mode:
This option allows the Ethernet port to be set to Half Duplex or Full Duplex. Legacy Ethernet
operates in Half Duplex mode which means that devices can either send data or receive data, but
not both at the same time. Full Duplex means that devices can send and receive data at the same
time. The default setting for this field is Full Duplex.
4.2.2 Network > Wireless (Configure wireless adapter)
These settings are used to configure the X-600M for operation with a wireless network. The X-600M
supports both Ad-Hoc and Access Point connections. For wireless networking, a USB network
adapter is required.
With an Ad-Hoc connection users can access the X-600M directly using a smart phone or other
compatible WiFi-enabled devices. The network does not rely on a pre-existing infrastructure, such
as routers or access points. The devices are free to associate with any other ad-hoc network device
in link range. To configure an Ad-Hoc wireless network, select ▼Ad-Hoc from the drop-down menu
and enter a security key for the network. The security key must be exactly 10 hexadecimal
characters.
For an Access Point connection, the X-600M attempts to connect to a wireless access point. To
configure an Access Point connection, select ▼Access Point from the drop-down menu.
Xytronix Research & Design, Inc. Page 45
Setup Pages X-600M Users Manual
Network Name (SSID):
The SSID (Service Set Identifier) is the name of your access point.
Security Level:
Type of authentication used by the access point for connections.
Security Key:
If a password (i.e. security key) is required to access your wireless access point, enter it here.
Encryption Type:
Select the data encryption type from the drop-down menu. This setting must be identical with the
setting of wireless access point you wish to connect.
Use DHCP:
This option allows DHCP to be enabled or disabled. If this option is set to Yes, X-600M will attempt
to obtain an ip address from the access point each time it is powered. The default setting is No (this
is recommended for most installations). If you set DHCP to Yes, press Submit and then Commit
Changes. When Commit Changes is clicked the X-600 will immediately request a new DHCP
address from the server. Once X-600M is assigned an IP address by the DHCP, the new IP address
can be found through the list of clients kept by the DHCP server. For most instances, the DHCP
server is the local gateway or router.
IP Address:
The IP address must be unique to your wireless network.
Netmask:
The Netmask (subnet mask) defines the size of the local network. This can be obtained from the
network administrator. For additional information about sub-netting and IP networking, many tutorials
are available on the Internet. The default setting for this field is 255.255.255.0.
Gateway:
This specifies the IP address of your network's wireless access point (Router, etc.).
Preferred DNS:
Page 46 Xytronix Research & Design, Inc.
X-600M Users Manual Setup Pages
The IP address of the Primary DNS server is specified here. When DNS services are required, this
is the address that will be used. Note: This is the same DNS setting found on the Ethernet setup
page.
Alternate DNS:
This field is used to specify the IP address of a secondary DNS server. This is used when X-600M
requires DNS services and the preferred DNS server is not available. Note: This is the same DNS
setting found on the Ethernet setup page.
4.2.3 Network > Advance Network Tab
To access the advanced network settings, click Network on the menu bar (left side of the setup screen)
and then click on the Advanced Network sub-menu bar.
4.2.3.1 Network > Advance Network > Web Server (Configure web server settings)
The HTTP port for the built-in web server can be changed with this menu.
HTTP Port :
The TCP port used for HTTP communications (web browser, xml, get commands) with X-600M is
specified here. The default setting for this field is 80, which is the standard HTTP port. It is
recommended that the port be left unchanged unless the user has an understanding of TCP/IP and
ports. For more information on TCP ports and IP addressing see Appendix C: Accessing X-600M
Remotely Over the Internet.
HTTPS Port :
The TCP port used for HTTPS communications (Hypertext Transfer Protocol Secure). The default
setting for this field is 443.
4.2.3.2 Network > Advanced Network > Modbus (Configure Modbus settings)
The X-600M can support Modbus/TCP as a slave device. Modbus is a messaging structure protocol
used in industrial manufacturing control and automation. It is an open protocol and offers interoperability
with software and devices from other manufacturers. With Modbus/TCP a Programmable Logic
Controller (PLC) or other Modbus master can control and monitor the X-600M and all of the devices
logically or physically attached to the X-600M. For more information on Modbus see Section 5: Modbus
Operation.
Xytronix Research & Design, Inc. Page 47
Setup Pages X-600M Users Manual
Modbus Enabled:
Modbus/TCP is enabled by selecting Yes in this field. The default setting for this field is No. (See
Section 5 Modbus Operation for more information on using X-600M on a Modbus network.)
Modbus Port:
This specifies the port used for Modbus/TCP communications with X-600M. By default this is set to
port 502 which is the standard Modbus port. It can be set within the range of 0 to 65535.
Endianness:
32-bit data is treated as two individual 16-bit words using IEEE 754 floating point format. Floating
point format is used for sensor, pulse counter, analog, and frequency data as well as for setting
output pulse duration. If the check box is set, the X-600M will use big-endian format, and the most
significant 16-bit word (big end) is sent first. If the box is cleared, then the X-600M will use littleendian format, and the least significant word (little end) is sent first. The default setting for this box is
little-endian. For example, in little-endian format, a 32-bit floating point number represented by '1234
ABCD' is sent as 'ABCD 1234'.
To make I/O available over Modbus TCP/IP, a mapping must be created. I/O can be added to the
three tables in order to make them available. For example, to make a temperature sensor available
as a holding register at Modbus address 0010, click on the “---” next to address 0010 in the Holding
Register table. A drop down list of I/O will appear. Select the temperature sensor and click Submit.
Now the Modbus master can access the value of the temperature sensor by reading Holding
Register 0010. Similarly relays and outputs can be mapped to coils by adding them to the Coils
table, and digital inputs can be mapped to discrete inputs by adding them to the Discrete Inputs
table.
4.2.3.3 Network > Advanced Network > Remote Services Server (Configure remote services server)
This is a new feature available with the X-600M. This feature is sometimes referred to as “web services”
and allows other ControlByWeb devices to initiate a connection to the X-600M instead of the other way
around. Once connected, the X-600M can communicate with these devices just as if it had established
the connection. The benefit of this method of communication is that the remote ControlByWeb devices
can bypass firewalls without any extra configuration of the local network. This also eliminates the need
Page 48 Xytronix Research & Design, Inc.
X-600M Users Manual Setup Pages
for port forwarding to be set up to allow access to the remote ControlByWeb device.
Other ControlByWeb devices can be configured to connect to the X-600M using remote services through
the Advanced Network tab on that device. The Server Name/IP Address should be that of the X-600M,
the Server Port should be the Remote Services port set on the X-600M, and the connection string
should be of the format “[00:0C:C8:00:00:00]:ControlByWeb,X-320”, where the mac address is the mac
address of the device attempting to connect to the X-600M.
Before the device can communicate with the X-600M, it needs to be added to the device list on the X600M under the Device menu page on the X-600M, and it's Ethernet Comm. Type must be set to
Remote Services.
Remote Services Server Setup Enabled:
Remote services server setup is enabled by selecting Yes in this field. The default setting for this
field is No.
Listen Port:
The X-600M will listen for incoming remote services messages on this port. The default is 8000.
4.2.3.4 Network > Advanced Network > Remote Services Client (Configure remote services client settings)
The X-600M can act as a remote services client just like other ControlByWeb products.
Remote Services initiates the connection to the external web server (rather than the web server initiating
communications to the X-600M). This has two main benefits. First, the web server does not need to
know the IP address of the X-600M. This means that the X-600M can get its IP address dynamically
from a DHCP server, simplifying the installation. Second, since the connection from the X-600M is
outgoing, rather than incoming, the local router on the network where the X-600M resides does not need
to be configured for port forwarding. For more information about the Remote Services see Appendix E:
External Server and Remote Services.
Xytronix Research & Design, Inc. Page 49
Setup Pages X-600M Users Manual
Remote Services Enabled:
This option enables or disables Remote Services. If Yes is selected, Remote Services will be
enabled as soon as settings are committed. Once enabled, the X-600M will immediately attempt to
make a connection with the remote server (power cycle not required).
Once a connection is established, the connection will remain until it is disconnected by the remote
server. Proper connection with the remote server can be verified by viewing the system status log
file (see Appendix D: Log Files). The default setting for this field is No. Most users should leave this
setting at its default. (See Appendix E: External Server and Remote Services for more information.)
Host Name:
Specify the name or IP address of the Remote Services server here. If the IP address is specified,
enter it in this format aaa.bbb.ccc.ddd. For numbers that are less than 100, preceding zeros should
not be included (for example, enter 80 rather than 080). This field can be up to 40 characters long
and has no default setting.
Remote Port:
Enter the TCP port used for the Remote Services server. This can be set within the range of 0-
65535. The default setting for this field is 8000.
Connection String:
This text is sent to the Remote Services server when the connection is established. This string
should include any information required by the server at connection. For example, it may include an
ID number, customer number, password, etc. The format is entirely dependent upon the server
requirements. This field can be up to 80 characters long. The default text is the connection string
used by other X-600M's that have been configured as remote services servers. The default text is
[<Serial Number>]:ControlByWeb,X-600M.
Connection Interval:
This field specifies the periodic interval in which the X-600M attempts to connect to the remote
server, or if the X-600M is already connected, it is the interval in which the X-600M sends the
connection string. This field can be set within the range of 1 to 34452 minutes. The default setting for
this field is 1 minute.
Page 50 Xytronix Research & Design, Inc.
X-600M Users Manual Setup Pages
4.2.3.5 Network > Advanced Network > SNMP (Configure device to communicate with SNMP manager)
Simple Network Management Protocol (SNMP) is used to manage and administer network devices. The
X-600M supports SNMP V3.0 for SNMP requests and SNMP V2.0 for sending traps. Using SNMP, the
I/O states of devices connected to the X-600M can be read and controlled through SNMP manager
software. See Appendix F: SNMP Requests for information about how to request information from the X600M using an SNMP manager.
SNMP Enabled:
When this option is set to Yes, the X-600M will support SNMP. The default setting for this option is
No. (See Appendix F: SNMP Requests, Objects and Security for more information.)
Host Name:
This is the address of the machine where the SNMP manager software is running.
Server Port:
When SNMP is used, this field is used to specify the SNMP port that X-600M listens on. The default
setting for this field is 161.
Trap Port:
When SNMP is used, this field is used to specify the SNMP Trap/Notification port of the SNMP
manager. The default setting for this field is 162.
Username:
This is the username used when setting up SNMP V3 security settings.
Authentication Protocol:
This is the authentication protocol used when establishing a connection with the SNMP manager.
Authentication Password:
The authentication password used when establishing a connection with the SNMP manager.
Xytronix Research & Design, Inc. Page 51
Setup Pages X-600M Users Manual
Privacy Protocol
This is the type of encryption used by SNMP V3.
Privacy Password:
This is the encryption password used by SNMP V3.
4.2.3.6 Network > Advanced Network > Email (Configure Email (smtp) settings)
The X-600M can send Email alerts based on any sensor or input conditions, such as temperature,
time, frequency, digital inputs, power supply levels, and more. It can send text messages to a cell
phone through a wireless carrier's Email bridge. Emails are initiated by an Action (See
Control/Logic > Actions for further details). The message's text that is sent is defined in the Action.
This page is used to configure the Email server used to send outgoing email messages.
Host Name:
The name of the SMTP (Simple Mail Transfer Protocol) mail server (for example mail.example.com)
or the IP address of the mail server (for example 192.10.10.10) should be entered in this field. There
is no default setting for this field.
Note: If the server name is entered and not the IP address, a DNS server must be set up under the
Network menu tab.
Server Port:
This field is used to specify the SMTP Mail Server Port. The default setting is 25, which is the
standard SMTP port.
Return Email:
The X-600M will not receive email messages, but when the X-600M sends email messages, it must
include a return email address. This field is used to specify the return email address. Note that
although the X-600M will send email messages with any email address specified in this field, some
email filters (spam filters) will not allow messages through that include an invalid email address.
There is no default setting for this field.
Page 52 Xytronix Research & Design, Inc.
X-600M Users Manual Setup Pages
Connection Security:
If the SMTP server supports SSL/TLS encryption, then enable it here. SMTP servers that require
SSL/TLS encryption will not work unless this option is enabled.
User Name (If Required):
If the SMTP mail server requires authentication, the user name must be entered here. There is no
default setting for this field.
Password (If Required):
If the SMTP mail server requires authentication, the password must be entered here. There is no
default setting for this field.
Test Email
Click this button to test your SMTP settings by sending an email to the email address associated
with the admin account.
4.2.3.7 Network > Advanced Network > FTP (Configure FTP settings)
The X-600M can be configured to upload log files to an FTP server. The X-600M functions as an
FTP client (not a server). FTP settings are configured here.
Host Name:
The IP address or host name of the FTP server.
Port:
The TCP port to which the FTP server listens on. The default value is port 21, as most servers will
listen on this port.
User Name and Password:
These are the credentials that are submitted to the server when the connection is established. Both
are case sensitive. For anonymous login, leave the User name at its default value, and leave the
Password field blank.
4.2.3.8 Network > Advanced Network > NetBIOS / mDNS (Setup)
To configure a new X-600M using its built-in web pages, you must either temporarily change the IP
address of the connected computer or use NetBIOS/mDNS to access the X-600M after it has obtained
an IP address using DHCP (see Section 3.1). These settings enable/disable NetBIOS and mDNS, as
well as configure the name to be used when addressing the device using this service. Both services
Xytronix Research & Design, Inc. Page 53
Setup Pages X-600M Users Manual
allow the X-600M to be accessed through a web browser using a human readable name instead of an IP
address. This name is only valid on the local network. NetBIOS is used with computers running
Windows OS. mDNS is used on computers running MAC OS X.
NetBIOS Enabled:
Allow Windows machines to locate the X-600M by name.
mDNS Enabled:
Allow MAC OS X machines to locate the X-600M by name.
Local Host Name:
The X-600M broadcasts information about itself to services running on your PC (NetBIOS and
mDNS) and identifies itself with the URL defined by this setting. The default name is “x600”. When
accessing the X-600M using this name from a web browser, append “.local” to the name. For
example: http://x600.local/setup.html will open the setup pages of the device when
NetBIOS/mDNS are enabled and there are no devices with conflicting names on the network.
Page 54 Xytronix Research & Design, Inc.
X-600M Users Manual Setup Pages
4.3 Devices Tab
The X-600M controls and monitors I/O found on other ControlByWeb devices such as WebRelay,
WebRelay-Quad, X-310, X-320, etc. These devices can be located anywhere in the world that is
connected to the Internet. The X-600M does not have any built in I/O, but local I/O can be added by
adding devices to the expansion bus and universal serial bus (USB). Currently these devices include the
X-11s (2-Relay), X-12s (8-Relay), X-13s (Thermocouple), X-15s (8-Digital Input), X-16s (8-Analog Input)
and X-17s (4-Relay 4-Digital Input), and USB to Serial Port adapters using FTDI chips. Between the
Ethernet devices, expansion devices, and USB devices, the I/O capability of the X-600M can be
extended to meet the needs of many different applications.
Before devices and expansion devices can be used with the X-600M they must first be registered with
the X-600M. This is done under the Devices menu tab. Each device is shown in a separate line. For a
new X-600M the display will only show one device: device1 (the X-600M itself). Depending on your
preference, you can change the sorting order of the rows by clicking the ▲▼ symbols at the top of a
column.
Once devices are shown in the Device List, you can identify expansion modules during installation, click
the Identify button of a specific device. The X-600M will send a blink command to the respective
expansion module which will cause its power LED to blink for three seconds. Having identified a specific
device, you will want to enter a distinctive Name and Description for the device.
To add a new device, click the Add New Device button.
The editor (shown below) will appear. The settings for existing devices can be viewed or edited by
clicking the appropriate Edit icon. Use this editor to add both Ethernet-enabled ControlByWeb devices
and expansion bus devices.
Xytronix Research & Design, Inc. Page 55
Setup Pages X-600M Users Manual
Model Number:
The model number of the device being added/edited.(The X-300 has two model number options: X300-I and X-300-TSTAT. Select X-300-I for an X-300 in temperature monitor mode. Select X-300TSTAT for an X-300 in thermostat mode.)
Name:
A short (20 characters max), descriptive name made up of only alphanumeric characters. Names
must begin with a lowercase letter. The names are used by the internal logic and Lua scripts.
Description:
The device description must be 60 characters or less. The device's description appears in
Dashboards and Email messages.
Serial Number:
The serial number for the ControlByWeb device. When the Ethernet Communication Type for the
device is Remote Services, the X-600M uses the serial number to communicate with the device.
Address:
For Ethernet-enabled devices, this field holds either the IP address of the device, or a fully qualified
domain name. When the Ethernet Communication Type for the device is IP Address, the X-600M
uses the address field to communicate with the device. See the section Remote Services Server for
more information.
Port:
For Ethernet-enabled devices, this field holds the port number that the device listens on. For
expansion bus devices, this field is not used.
Ethernet Comm. Type:
For Ethernet-enabled devices, this field determines how the X-600M will establish a connection with
Page 56 Xytronix Research & Design, Inc.
X-600M Users Manual Setup Pages
the device. By selecting IP Address, the X-600M will connect directly to the device. By selecting
Remote Services, the X-600M will wait for the remote device to connect to it. For this to work, the
remote services server needs to be enabled on the X-600M, and the remote device needs to
configure remote services to connect to the X-600M. By selecting Xytronix Compact Data Protocol
(XCD), the X-600M will listen for message coming from devices configured to use the XCD protocol.
(The XCD protocol is a non human readable protocol with small packet sizes that is used with
battery operated wireless devices such as the XW-100 and XW-111.)
Password:
If an Ethernet-enabled device requires a password, enter that password here.
Diagnostic Email Recipient:
When a user or group of users is selected to receive diagnostic message, emails will be sent to
notify the users when the device is unresponsive. Emails will also be sent to notify users when
battery operated devices have low batteries (lower than 15%).
Refresh Rate:
This field determines how fast the X-600M will poll devices to retrieve the current status of the
device's I/O. By default this field is three seconds for Ethernet devices and one second for
expansion modules. Devices on the expansion bus that have digital inputs will update whenever the
digital inputs change state, not just when the refresh rate indicates it is time. This allows digital
inputs state changes to be more responsive.
4.3.1 Devices > Find New Devices
When expansion modules are first connected to the X-600M ribbon cable connector, each of the
modules must be registered and programmed with an internal expansion bus device address. This can
be done by clicking the Find New Devices button. At the same time the X-600M scans its same subnet
for the presence of other ControlByWeb devices and scans for attached USB to Serial port adapters. All
of the discovered devices appear in a list.
To add a device (register it), click the device's Add button. Special care is needed when adding
expansion modules if there are more than one of the same model. In this case you must pay special
attention to the serial number field in order to determine which specific device you are adding. The serial
numbers are marked on the labels of the expansion modules.
Xytronix Research & Design, Inc. Page 57
Setup Pages X-600M Users Manual
4.4 I/O Tab (Add, edit and delete I/O)
Resources within a device are called “I/O” (Input/Output). An I/O object is a specific relay, digital input,
sensor, etc. For example, each of the four relays in a WebRelay-Quad are separate I/O objects. I/O
objects can be displayed on a web page or accessed with scripts by name. I/O must be registered in the
same manner as devices are registered in order for the X-600M to know how to monitor and control
them. The I/O sub-menu automatically updates with the I/Os from any registered devices.
There are currently 13 basic I/O types that are found on ControlByWeb devices. These are: relays,
digital inputs, analog inputs, analog outputs, 1-Wire sensors, thermocouples, frequency inputs, counters,
AC outlets, internal supply voltage, input high times, input on times and external variables. There are 6
application specific I/O types that are only available when an X-300 in thermostat mode has been
configured under the devices tab. These are Cool Relays, Heat Relays, Fan Relays, Indoor
Temperatures, Indoor Humidities, and Outdoor Temperatures. There is a special serial port I/O type that
is available when a USB to serial port converter is connected to the X-600M. There is also a special I/O
type for irrigation valves found on the SmartStorm X-340 which mimics the behavior of the irrigation
valves on the X-340 (Timer countdown, etc.). Finally, there are 13 I/O types that are available when an
X-320M has been configured under the devices tab. These I/O deal with weather data: Barometric
Pressure, Dew Point, Heat Index, Irrigation Valve, Rain Last Hour, Solar Radiation, Total Rain, Wind
Chill, Wind Direction, Wind Speed, Wind Gust Direction, Wind Gust Speed.
Internal registers are another form of I/O found on the X-600M. These are virtual I/O and can be thought
of as a scratch pad in memory. They can hold any value. Registers can be monitored and changed
through the Dashboards, and can be changed by a Lua script. Generally they are used with a formula to
process raw I/O into a value with user or engineering units.
The tabs on the left side of the I/O overview screen list I/O resources that are available on the devices
you have registered. If for example, no modules with relays are registered, the I/O menu list will not
have a relay tab.
Page 58 Xytronix Research & Design, Inc.
X-600M Users Manual Setup Pages
To add I/O, first select the type of I/O from the side menu. Then select Add [I/O Type] in the top right
hand corner of the window. The following window (or one similar) will appear. The following images show
how to add a relay.
Xytronix Research & Design, Inc. Page 59
Setup Pages X-600M Users Manual
Device:
This is the device that the I/O resides on. Only registered devices will appear in this list.
Device Relay (Input, Analog Input, Etc.) Number:
This is the I/O number on the device itself. For example, if this I/O represents the third relay on the
WebRelay-Quad, then this number would be 3. If it were to represent the fifth 1-Wire temperature
sensor on an X-300, then this number would be 5.
Name:
Names are short identifiers (20 character max) that are used in Lua scripts to reference I/O. They
may not contain spaces or special characters, and must begin with a lowercase letter.
Description:
The text in this field (60 character max) appears to the left of the I/O component on the Dashboard.
This text also appears in the Email status message when email are sent.
Decimal Places:
This determines the number of digits displayed to the right of the decimal point for this I/O's data in
the Dashboard and in Emails. For example, if the resolution of a temperature sensor is 0.1C°, you
would want to set Decimal Places = 1. This field is only available for analog I/Os.
Power Up Mode:
This setting is only available for devices with relays and for WebSwitch outlets. This setting
determines the initial state of relays when the X-600M first turns on. The options are Off, On, and
Last State. Off, and On are self explanatory, the Last State option allows the relay to be set to the
state it was in before it lost power. This option is available for up to 40 relays.
Page 60 Xytronix Research & Design, Inc.
X-600M Users Manual Setup Pages
Access Groups:
This determines to which access groups this I/O belongs. Only users who belong to the same
access group will have access to the I/O when Dashboard and I/O Password Protection is enabled.
Log Activity:
When this option is enabled, any changes in this I/O's state will be logged to the system log.
Attempts to change the I/O state by a user will also be logged along with the user's name. This
feature is useful for security applications as well as general monitoring of a system.
4.4.1 I/O > 1-Wire Sensors (Add, edit and delete 1-wire sensors)
1-Wire temperature and humidity sensors can be connected directly to the X-600M's connector
terminals, and can also be found on external devices. These sensors must be registered, similar to other
I/O objects as described in the previous section, but they differ slightly when the device selected is the
X-600M itself. To add a 1-wire sensor connected directly to the X-600M, click the Add New 1-Wire
Sensor icon.
Up to 32, 1-wire sensors can be connected to the X-600M (the “1-wire” sensors share the same data,
power and ground conductors) and are accessed using a unique hardware address. Similar to other I/O
objects, you will want to rename these objects to more useful names such as “outdoorTemp”. When you
subsequently configure the components on the Dashboard, you will appreciate the more descriptive I/O
name.
Xytronix Research & Design, Inc. Page 61
Setup Pages X-600M Users Manual
Device:
This is the device where the 1-Wire sensor resides. This is the only I/O that can be found on the X600M itself, hence, the first option will be device1, or the X-600M.
Device 1-wire Sensor Number:
Every temperature/humidity sensor comes from the factory with a unique, non-changeable address.
To configure a new 1-wire sensor you must identify which sensor on the bus you wish to add. This is
done by clicking the Scan 1-Wire Bus button. The X-600M will initiate a roll-call procedure to
discover all of the sensors on the bus. With the pull-down menu you can view all of the sensors
discovered on the bus. If you know the address of the sensor to be added, click on the address. If
you don't know the specific address you will need to add the sensors to the bus one by one and note
which addresses respectively appear. The procedure is to start with one sensor and associate it with
the appropriate sensor number by selecting the sensor address within the appropriate drop-down
list. Submit the page, connect a second sensor, and press the Refresh List button. Associate the
second sensor to the appropriate sensor number. Continue this procedure until all sensors are
registered. The ControlByWeb wall-mount temperature/humidity sensor has two push-on jumpers to
facilitate enabling the two internal sensors, one at a time.
Name:
Names are short identifiers (20 character max) that are used in Lua scripts to reference I/O. They
may not contain spaces or special characters. Names must begin with a lowercase letter.
Description:
The text in this field (60 character max) appears to the left of the corresponding
temperature/humidity reading on the dashboard. This text also appears in the Email status message
when email is enabled.
Decimal Places:
This setting determines the number of digits displayed to the right of the decimal point when the data
for this register appears in the dashboards and Emails. For example, if the resolution of a
temperature sensor is 0.1C°, you would want to set Decimal Places = 1.
Page 62 Xytronix Research & Design, Inc.
X-600M Users Manual Setup Pages
Access Groups:
This determines to which access groups this I/O belongs. Only users that belong to the same
access group will have access to this I/O when Dashboard and I/O Password Protection is enabled.
If the 1-Wire sensor is found on another device, a similar set of options will be presented. For these
sensors an 1-Wire sensor address will not need to be defined, but the units for the remote sensor will.
4.4.2 I/O > Registers (Add, edit, and delete Registers)
Programmable logic devices use memory locations to store data and status values. These user-defined
locations have various names in the automation industry (RAM, Variables, Tags, Registers, etc.). The X600M designates these as “Registers”. Registers are created and defined by the user to work as a local
scratch-pad memory to hold data. For example, perhaps you would like a temperature sensors data to
be displayed in both °C and °F, so you would create a register for the °F value and imbed an expression
(script) in it to update the °F register based on the °C value of another register or I/O.
The Registers menu tab presents a list of the current registers. To add a new register, click Add New
Register
Xytronix Research & Design, Inc. Page 63
Setup Pages X-600M Users Manual
Name:
This is the name of the register. Names are short (20 character max) identifiers that are used in Lua
scripts to reference Registers. They may not contain spaces or special characters. Names must
begin with a lowercase letter.
Description:
This is a simple description of the register for documentation purposes. The description will appear
in emails and on the dashboard when this register is associated with a component.
Type:
Constant: Fixed constant
Boolean: 1 or 0 (TRUE or FALSE)
Float: IEEE 754 floating point number
Expression: Lua expresson
Timer: Countdown timer
If Expression is selected a text box opens. Type the text for a Lua expression into this box.
Alternatively, you can create the script with a text editor, then copy and paste it into the text box.
When you click Add, the script is checked for correct syntax. If an error occurs the first error will be
highlighted. You will not be able to add a script with faulty syntax. For further information see
Section: Control/Logic - Lua Scripts.
If Timer is selected, this will cause the register to act as a countdown timer. Values can be assigned
to timer registers, after which the register value will decrement by 1 every second until it reaches 0.
Whenever an expression (function) Register is read (accessed), the Lua script is executed and the
register is set to the results. This is useful for a scaling a raw sensor value into engineering units,
usually with a Y=mX+b equation. For example, if you wanted to convert a 1-Wire temperature
sensor (owSensor1) from Fahrenheit to Celsius, you would create a new register and enter the
Page 64 Xytronix Research & Design, Inc.
X-600M Users Manual Setup Pages
following Lua expression:
(io.owSensor1-32)*5/9
Units:
This is an optional descriptor such as °C, Volts, Meters, Ft, etc.
Decimal Places:
This setting determines the number of digits displayed to the right of the decimal point when the data
for this register appears in dashboards and Emails. For example, if the resolution of a temperature
sensor is 0.1C°, you would want to set Decimal Places = 1.
Initial Value:
This setting determines the initial start up value of the register. The default is 0. This value will be
used when the X-600M first powers-up.
Access Groups:
This setting only displayed if Dashboard Password Protection in the System>Overview page is set
to Enabled. This setting determines to which access groups this I/O belongs. Only users that belong
to the same access group will have access to this I/O.
4.4.3 I/O > Serial Ports (Add, Edit, and Delete Serial Ports)
Serial port adapters can be connected directly to the X-600M's USB A-Type connector. Once connected,
these adapters appear to the X-600M as devices and the serial ports appear as I/O. Once configured,
the serial ports can be accessed by their name in the Lua scripts just like other I/O. There are special
Lua functions built into the X-600M to read and write to the serial ports.
The Serial Port menu tab presents a list of the current serial ports. To add a new serial port, click Add
New Serial Port.
Xytronix Research & Design, Inc. Page 65
Setup Pages X-600M Users Manual
Device:
This is the USB to Serial port adapter device that the Serial port belongs to.
Name:
This is the name of the serial port. Names are short (20 character max) identifiers that are used in
Lua scripts to reference serial ports. They may not contain spaces or special characters. Names
must begin with a lowercase letter. Names are given to the serial ports so that if the USB to serial
adapter is replaced, the Lua scripts do not need to be updated. The new adapter can be renamed to
match the old one.
Description:
This is a short description that can be given to the serial port to convey the actual functionality of the
serial port.
Baud Rate:
The default baud rate of the serial port when the X-600M powers on.
Data bits:
The default number of data bits the serial port will use when the X-600M powers on.
Stop bits:
The default number of stop bits the serial port will use when the X-600M powers on.
Parity:
The parity of the serial port when the X-600M powers on.
Flow Control:
Page 66 Xytronix Research & Design, Inc.
X-600M Users Manual Setup Pages
The type of flow control the serial port uses when the X-600M powers on.
Access Groups:
What access groups have access to the serial port through the dashboards.
Xytronix Research & Design, Inc. Page 67
Setup Pages X-600M Users Manual
4.5 Control/Logic Tab
In addition to displaying data, the X-600M can execute logic and control actions. These settings are
made under the Control/Logic menu tab.
With the X-600M control logic it is important to understand the distinction between Events and
Actions. Events occur when certain criteria are met, such as a temperature reaching a certain value,
or a calendar schedule setting an event. Events are either true or false, true when the condition is
met, and false otherwise. The conditions which generate an event can be both simple and complex.
Events, in turn, trigger Actions. Actions are triggered whenever the corresponding event changes
state. An Action can include sending an Email, turning a relay on or off, or initiating a data log. An
Event can trigger more than one Action. For example, an Event can occur when the temperature
exceeds a certain value, the Event then can trigger two Actions. One Action could turn a relay on to
illuminate an alarm light and a second Action could send an Email alert. The scheme of keeping
Events and Actions separate and distinct allows for complex conditions and reporting which is
needed by many real world applications.
The X-600M makes a distinction between conditional events and calendar-based events. Actions can
be triggered by both event types. Calendar-based events are periodic in nature and occur based on
the current time. Conditional events are dependent on the status of I/O, or a more complicated Lua
script.
4.5.1 Control/Logic > Conditional Events
Conditional Events occur when certain criteria are met (e.g. a temperature exceeding a certain value).
The conditions which generate a conditional event can be either simple or complex.
The Conditional Events menu tab presents a list of the current conditional events. To add a new
conditional event, click Add New Event.
Page 68 Xytronix Research & Design, Inc.
X-600M Users Manual Setup Pages
Name:
This is the name of the conditional event.
Description:
This is a simple description of the conditional event for documentation purposes.
Type:
Digital
Analog
Complex
Select Digital if the conditional event can be done with a Boolean (logic) operation (On, Off, Etc).
Select Analog if the conditional event can be done with a magnitude compare between two values.
Select Complex if the basic logic or magnitude compare offered is insufficient and you wish to
generate the event with a more flexible Lua script.
Eval on powerup:
This check box determines if the conditional event is evaluated on power-up or not.
Duration:
The conditional event can be further qualified with a “glitch” or “de-bounce” filter. The conditional
event will not trigger until (1) the condition has changed states and (2) the condition has remained in
that state for a user-specified duration (in seconds). The default duration is 0-seconds (no glitch
filter).
Event Group:
Events can be grouped together. Select here which event group this event should belong to. Event
groups can be Enabled and Disabled. When an event group is disabled, all events belonging to
that group will stop being evaluated until the event group is enabled again.
4.5.1.1 Digital Event
If Digital is selected, several digital-specific settings appear.
Xytronix Research & Design, Inc. Page 69
Setup Pages X-600M Users Manual
I/O:
The I/O object that triggers the event.
Condition:
On: Test the I/O object to be True
Off: Test the I/O object to be False
Changes State: Test the I/O object for a change of state
Equals: Test the I/O object to match the state of another I/O object
4.5.1.2 Analog Event
If Analog is selected, several analog-specific settings appear
Condition: This setting selects the magnitude compare for the conditional event.
X Equals A X=A
X Does Not Equal A X~=A
X Greater Than A X>A
X Less Than A X<A
X Greater Than B and X Less Than A B<X<A
X Less Than B and Greater Than A B>X>A
X: The “X” argument for the conditional event.
A: The “A” argument (trigger threshold) for the conditional event.
Constant: A fixed constant
Variable: A Register or I/O
B: The “B” argument (trigger threshold) for the conditional event.
Constant A fixed constant
Variable: A Register
Delta (Hysteresis):
The hysteresis prevents conditions and alarms from triggering excessively when the register value
vacillates around the trigger point. With high alarms, the measurement must fall below the high
alarm point minus the dead band before the high alarm will be triggered again. Likewise the
deadband on the low alarm requires the measurement to rise above the low alarm point plus the
deadband before the low alarm will be triggered again.
For example, if the dead band is set to 0.5 V, and a high alarm is set at 13 V - The high alarm will
occur at 13 V; however, it will not turn off until the voltage drops below 12.5 V (13 V - 0.5 V).
4.5.1.3 Complex Event
If Complex is selected a text box opens. This text box allows a small Lua expression to be entered.
The script must be an expression script which runs to completion and then stops. Generally, this Lua
expression should evaluate some logic and change the conditional event to the desired state. For
example, to set the event to true whenever an input is on, we could enter something like:
event.condEvent1 = (io.input1 == 1)
In this example condEvent1 is the name of the conditional event, and input1 is the name of an input
that has been previously configured. If the name of the conditional event is changed, this Lua
expression will be updated automatically with the new event name. Note: Lua expressions created
for Conditional Events are only evaluated when any of the I/O referenced in the expression changes
state.
Page 70 Xytronix Research & Design, Inc.
X-600M Users Manual Setup Pages
When you click Add, the expression is checked for correct syntax. If an error occurs, the first error
will be highlighted. You will not be able to add an expression with faulty syntax. You will notice that a
Lua expression might already exist. This Lua expression is automatically generated when the
Digital and Analog types are used. For further information see Section: Control/Logic - Lua
Scripts.
4.5.2 Control/Logic > Calendar Events
Calendar Events occur at specific times or time intervals. Use Calendar Events to unlock a door at a
specific time in the morning or to turn off equipment during the night. Calendar Events can trigger
Actions which turn Relays On or Off at specific times, send emails, etc. You must define an Action to
determine what specific effect the Calendar Event will have. A Calendar Event can trigger one or more
Actions and can occur at one specific time or can repeat multiple times. Calendar Events are scheduled
based on 24-hour time format.
The Calendar Events menu tab presents a list of the current Calendar Events. A list of all scheduled
events and information about each event is displayed one row at a time. Clicking the button Switch
View changes the display to show the currently configured events on an actual calendar.
To add a new calendar event, click Add New Event on the Calendar Event List, or, in the Calendar
View, click on the day that the event begins.
Xytronix Research & Design, Inc. Page 71
Setup Pages X-600M Users Manual
Name:
This is the name of the calendar event.
Page 72 Xytronix Research & Design, Inc.
X-600M Users Manual Setup Pages
Description:
This is a simple description of the conditional event for documentation purposes.
Event Group:
Events can be grouped together. Select here which event group this event should belong to. Event
groups can be Enabled and Disabled. When an event group is disabled, all events belong to that
group will stop being evaluated until the event group is enabled again.
Start / Stop:
These settings control when a calendar event is to start and stop. If All Day is checked, the
beginning and ending dates can be entered. If All Day is not checked, the beginning and ending
date and time can be entered. Clicking the Date field causes a pop-up calender to appear. Clicking
the Time field causes a pull-down menu to appear with 30-minute AM to PM increments. You can
then manually edit the value to the nearest minute. The start/stops times are with respect to the
current date and time as specified in the Date & Time menu tab. The event will be considered true if
it's in between the start and stop date and times. The options for this field will changed based on the
selected repeat option. For example, an event that repeats every 10 seconds can only have a max
start and stop time that are 10 seconds apart, otherwise the start and stop times would overlap as
the event repeated itself.
Repeat:
Calendar Events can occur automatically at repeating intervals (the time between the start of
successive events). The choices for the interval units include: Secondly (seconds), Minutely,
Hourly, Weekly, Monthly or Yearly. The Every setting sets the time interval depending on the
selected units. If Weekly is selected, check boxes for Sunday – Saturday appear (i.e. Su, Mo, Tu,
We, Th, Fr and Sa). These allow an event to occur weekly (e.g. Every Monday, Wednesday, and
Friday).
Ends:
Three options are available for when calendar events end:
Never: This calendar event occurs forever.
After Occurrence: This calendar event repeats a specific number of times then stops.
On Date/Time: This calendar event ends (is discontinued) on day/time.
Disabling Event Instances And Groups (For Holiday's, Etc.)
To disable an event instance or event group that normally occurs daily, weekly, or monthly, click on the
event on the day that it is to be disabled. A dialog box will appear with 6 to 9 options for disabling either
that instance of the event or the event group that event belongs to. The instance or event group will be
disabled for that entire day. Event instances that have been disable will appear on the calendar in a
lighter color than normal. To enable an event instance that has previously been disabled, click on the
disabled event instance and choose the Enable option. The following screenshot shows the menu that
appears if a daily event instance on the 31st of August is clicked.
Xytronix Research & Design, Inc. Page 73
Setup Pages X-600M Users Manual
There are nine options given. If this event instance belonged to event group 1, there would only be six
options since event group 1 cannot be disabled. In this example, the event belongs to event group 2
which can be disabled. The options are:
Edit Event
This will open a popup window for editing the event settings.
Delete Event
This will remove the event from the event scheduler.
Disable Event (August 31st, 2014)
This option will disable the event instance on August 31st, 2014 for the entire day.
Disable Event (August 31st Every Year)
This option will disable the event instance every year on August 31st for the entire day. This is useful for
holidays that occur on a day of the month every year. (New Year's Day for example occurs on January
1st)
Disabled Event (5th Sunday in August Every Year)
This option will disable the event instance every year on the 5th Sunday in August if it exists. This is
useful for holidays that occur on a day of the week as opposed to a day of the month. (The US holiday
Labor Day for example occurs on the first Monday in September)
Disable Event Group 2 (August 31st, 2014)
This option will disable event group 2 on August 31st, 2014 for the entire day. Any other event belonging
to event group 2 (colored red) will also be disabled on this day. Note that only the event instance that
disables the event group will show up as a lighter color red.
Page 74 Xytronix Research & Design, Inc.
X-600M Users Manual Setup Pages
Disable Event Group 2 (August 31st Every Year)
This option will disable event group 2 every year on August 31st for the entire day. This is useful for
holidays that occur on a day of the month every year. (New Year's Day for example occurs on January
1st) Any other event belonging to event group 2 (colored red) will also be disabled on this day. Note that
only the event instance that disables the event group will show up as a lighter color red.
Disable Event Group 2 (5th Sunday in August Every Year)
This option will disable the event instance every year on the 5th Sunday in August if it exists. This is
useful for holidays that occur on a day of the week as opposed to a day of the month. (The US holiday
Labor Day for example occurs on the first Monday in September) Any other event belonging to event
group 2 (colored red) will also be disabled on this day. Note that only the event instance that disables the
event group will show up as a lighter color red.
Cancel
Close the dialog box.
When a previously disabled event instance is clicked on, a different menu will appear. This menu will all
the event instance to be re-enabled.
Calendar Event Example
The following is an example of how calendar events might be used:
A door lock is to be unlocked daily at 8 pm and locked at 6 am, Monday through Friday except on
New Year's Day.
1. Click on a day in the calendar to create a Calendar Event with Name = “unlockDoor”. The
start day can be any day Monday through Friday when this event should execute for the first
time.
2. Uncheck All Day
3. Set the Start Date to the current day, and Start Time to 8:00 P.M.
4. Set the Stop Date to the next day, and End Time to 6:00 A.M.
5. Set Repeat to Weekly, check Mo, Tu, We, Th, Fri
6. Set the Ends field to Never
7. Create an Action to turn a relay on when “unlockDoor” is true. (It will automatically lock the
door when “unlockDoor” is false.
8. Disable the event instance on New Year's Day every year by clicking on the event instance
on New Year's Day of the following year. Select the option Disable Event (January 1st Every
Year) The “unlockDoor” event can be disabled for other holidays by clicking on the event
instance on those holidays in the calendar and doing the same thing.
4.5.3 Control/Logic > Actions (Add, edit, and delete Actions)
Actions are simple “work orders” which do specific things when activated. Actions can “do things” without
the need for more complex Lua scripts. You use actions to turn a relay on or off, pulse a relay, force a
data log, send an Email, run a Lua expression, etc. Actions occur in response to a specific Event
selected within the Action. The Actions menu tab presents a list of the current Actions.
To add a new action, click Add New Action.
Xytronix Research & Design, Inc. Page 75
Setup Pages X-600M Users Manual
Name:
This is a unique user-assigned designator for this Action. This name appears in the action list.
Description:
This is a simple description of what the action does for documentation purposes.
Type:
This setting controls what an Action does. The selection options include:
Page 76 Xytronix Research & Design, Inc.
X-600M Users Manual Setup Pages
Action Type Description
Turn Relay On Turn relay ON when Event is true, otherwise, turn relay OFF
Turn Relay Off Turn relay OFF when Event is true, otherwise, turn relay ON
Toggle Relay State Toggle (change) the state of a relay
Turn Relay On (Latch) Relay turns on when the event source changes to true. The relay
change does not turn back off when event source changes back to
false.
Turn Relay Off (Latch) Relay turns off when the event source changes to true. The relay
change does not turn back on when event source changes back to
false.
Pulse Relay Pulse a relay for a specific time interval when the event source
changes to true.
Send Email Send an Email when the event source changes to true.
Log Initiate a forced data log when the event source changes to true.
Send SNMP Trap Send a SNMP Trap when the event source changes to true.
Set X equal to A Set a Register or I/O to a fixed constant or the value of another
Register or I/O when the event source changes to true.
Enable Event Group Enable a specific Event Group when the event source changes to
true.
Disable Event Group Disable a specific Event Group when the event source changes to
true.
Evaluate Expression Run an embedded Lua script when the event source changes to
true.
Event Source:
Events trigger Actions. Once an Event has been defined (see previous section) it will appear in the
Event Source pull-down menu. For each Action, select a Conditional Event or Calendar Event to
trigger the Action.
If Turn Relay On, Turn Relay Off or Toggle Relay is selected, select the relay object with the
Relay pull-down menu.
If Turn Relay On (Latch) or Turn Relay Off (Latch) is selected, select the relay object with the
Relay pull-down menu.
If Pulse Relay is selected, select the relay object with the Relay pull-down menu and set the Pulse
Time.
If Send Email is selected, fields for Recipients, Subject and Body appear. The recipients field
specifies what user, or group of users are to receive the email. The subject field is the subject of the
email, and the body field is what will appear in the email. To display the current value of a register or
I/O in the email subject, or body, enter [io.ioName] or [reg.regName] into the field. When the X-600M
parses the email it looks for io and register names surround by square brackets and replaces them
with the actual value of the I/O or register. For example to send an email that indicates the internal
temperature of the device, enter the following into the body field: “The outdoor temperature is
currently [io.owSensor1].” This will send an email with body: “The outdoor temperature is currently
103.5.” Also, if labels should be displayed in the email instead of the raw values, the label function
Xytronix Research & Design, Inc. Page 77
Setup Pages X-600M Users Manual
can be used inside the square brackets. For example to send an email that shows the status of a
relay as either On or Off, the following would be entered into the body field: “The relay is
[label(“io.relay1”,”On”,”Off”)].” This will send an email with body: “The relay is On.” when the relay is
on and “The relay is Off.” when the relay is off.
If Log is selected, a field called Log File appears. Select the log file that you would like to log. All I/O
associated with the log file will be logged when the event occurs.
If Set X equal to A is selected, you can set (force) a register or I/O to either a fixed constant or the
value of another register or I/O.
If Enable Event Group is selected, a box for the Event Group appears. Select the Event Group to
be enabled.
If Disable Event Group is selected, a box for the Event Group appears. Select the Event Group to
be disabled.
If Evaluate Expression is selected a text box opens. Type the text for a Lua expression into this
box. The script must be a Lua Expression which runs to completion and then stops. When you click
Add, the script is checked for correct syntax. If an error occurs, the first error will be highlighted. You
will not be able to add an expression with faulty syntax. For further information see Section:
Control/Logic - Lua Scripts.
4.5.4 Control/Logic > Scripts (Add, edit, and delete Scripts)
Scripts are small non-compiled programs written in the Lua scripting language. Scripts are are used to
implement more complex Events and Actions. Scripts provide power and flexibility to solve real world
applications. They allow the X-600M user interface to be relatively simple and still provide enhanced
capability for those users who need it.
Lua is a lightweight scripting language used for many web-based and industrial applications among
other things. Unlike BASIC, Lua is a modern, dynamically typed, structured language. Features include:
loops, functions, tables, arrays, and comments. With the X-600M, certain elements of Lua which allow
access to the operating system and to read/write files have been removed.
In the X-600M there are two types of scripts; expressions which run once to completion and are event
driven, and scripts which run continuously.
Expressions
Scripts which do not run in a loop are called expressions. Expressions perform a simple, specific
mathematical or logic function and then stop. Expressions have a similar look and feel of algebraic
equations. Expressions can be embedded in specific Conditional Events (complex events) or Actions
(evaluate expression) or defined here in the Scripts menu tab. If an Expression is entered here, it will run
once when the X-600M first turns on. Expressions are generally event driven and only run when needed.
If an Expression get stuck or runs too long, the X-600M shuts it down. The X-600M supports one
expression script for each conditional event and one expression script for each action. Each Lua
expression can be up to 1.5-Kbytes.
Scripts
Lua Scripts can run continuously in the background if designed to do so. The X-600M can run up to five
Lua scripts concurrently. Each script can be up to 8-Kbytes. Scripts generally poll inputs, make logic
decisions and control outputs. These scripts are created and edited here with the Scripts menu tab.
The Scripts menu tab presents a list of the current Scripts. To add a new script, click Add New Script.
Clicking on the button Open Debug Console will open a popup window with a text console that can be
used to view run time errors as well as output from print statements. This can be useful for debugging
scripts, but should only be used during configuration as it has a small performance penalty. The debug
Page 78 Xytronix Research & Design, Inc.
X-600M Users Manual Setup Pages
feature is always disabled after committing settings. It can be enabled/disabled from the Debug Console
or programmatically in the Lua scripts. The print function will output text to this Debug Console when it
is enabled. The Debug Console can hold up to 20Kbytes of text before it will automatically erase itself.
The Debug Console can be erased from the console itself or programmatically.
A popup window appears with several fields to add a new script.
Name:
This is a unique user assigned designator for this script. The name appears in the script list.
Description:
This is a simple description of what the script does for documentation purposes.
Xytronix Research & Design, Inc. Page 79
Setup Pages X-600M Users Manual
Script:
Type the text for your script into this box. When you click Add, the script is checked for correct
syntax. If an error occurs, the first error will be highlighted. You will not be able to add a script with
faulty syntax. To cause the script to run continually, it must contain an all encompassing loop,
otherwise when the X-600M first turns on the script will run to completion and then end. Scripts can
be up to 8K in length.
Lua Documentation
The Lua reference manual can be found at www. ControlByWeb.com /x600m/downloads.html. For more
detailed information please see Appendix G on Lua Scripts. Several example scripts are shown below:
The following Lua expression converts a 1-Wire temperature sensor named “owSensor1” from
Fahrenheit °F to Centigrade °C and assigns it to the register named “register1”.
reg.register1 = (io.owSensor1-32)*5/9
The following Lua expression changes the raw data from an analog I/O named “analog1” to engineering
units with the linear equation Y=mX+b and places the result in a register named “register1”.
reg.register1 = io.analog1*0.75 + 5
The following Lua script runs continually. This script monitors a counter in several remote ControlByWeb
X-320 modules for activity (counter1 - counter4). If the counters quit advancing or the communications
fail, the script sends an Email warning that a production machine has jammed.
-- wait for X600 to get current values of counters
-- before starting
sleep(10000)
-- initialize previous counter values
prevCount1 = io.counter1
prevCount2 = io.counter2
prevCount3 = io.counter3
prevCount4 = io.counter4
-- warningFlag indicates if an email needs to be sent
warningFlag = 0
-- prevent sending multiple emails. Make flag a register so it can be reset
-- from the dashboard. This register is configured under the register tab and
-- named emailSent
reg.emailSent = false
-- define the email to send
emailDef = {
rcpt = "grp.admin",
subj = [[WARNING!! Production machine has jammed.]],
body = [[Production machine needs attention.]]
}
-- loop forever
while true do
-- wait 10 seconds before checking counters
sleep(10000)
-- check to see if the counters have changed
if prevCount1 ~= io.counter1 then
warningFlag = 1
Page 80 Xytronix Research & Design, Inc.
X-600M Users Manual Setup Pages
prevCount1 = io.counter1
end
if prevCount2 ~= io.counter2 then
warningFlag = 2
prevCount2 = io.counter2
end
if prevCount3 ~= io.counter3 then
warningFlag = 3
prevCount3 = io.counter3
end
if prevCount4 ~= io.counter4 then
warningFlag = 4
prevCount4 = io.counter4
end
if (reg.emailSent ~= 1) and (warningFlag ~= 0) then
email(emailDef)
reg.emailSent = 1
end
warningFlag = 0
end
Xytronix Research & Design, Inc. Page 81
Setup Pages X-600M Users Manual
4.6 Logging Tab
The X-600M can log up to 5 separate data log files, each with different data and log intervals. The
logged data is stored in internal flash memory or an external USB Flash drive. Internal files can be up to
20MB, external (USB Flash drive) files can be 4GB in size when the drive is formatted with the FAT32
file system. The data is stored using a circular buffer (old date is over written). The Logging menu tab
displays the log configurations.
X-600M can be configured to record data such as changes in I/O state, sensor data, and events. Both
periodic and event-based logging are also supported. The contents of a log file can be viewed by
clicking on the link under Log Name. For more information on logging, see Appendix D: Log Files.
Logs are viewed as a CSV (Comma Separated Variable) file.
Note: Changing the log settings will erase the current log file.
Note: This option controls data logging, but not system logging. System logging is always enabled.
To create a new data log file, click the Add New Log icon. The editor shown below will appear. Any
existing log configurations can be viewed or edited by clicking its Edit icon.
Page 82 Xytronix Research & Design, Inc.
X-600M Users Manual Setup Pages
Name:
This is the file name to be used for the logged data.
Description:
A short description of the log file and the information contained within. The description will appear at
the top of the logX.txt files.
Location:
This field selects where you would like to save the logging data, either internally or on an external
USB storage device.
Start Time:
If a logging interval is specified (periodic logging rather than event logging), logging will occur
relative to this start time. For example, if the start time is 1:00AM and the logging rate is 6 hours,
logging will occur at 1:00AM, 7:00AM, 1:00PM, and 7:00PM. Start time is specified in a standard
time format.
Log Interval:
This field is used to specify the logging interval. A numerical value is entered into the text field, and
the interval is selected using the pull-down menu. The range of values in this field is 1-20864. Time
units are Minutes, Hours, and Days. Periodic logging can be disabled by selecting the Event
Logging Only option.
When Event Logging Only is chosen as the Log Interval, logging will only occur if an event and
action combination has been configured to log. For example, a conditional event can be configured
for whenever an input is on. An action can be configured to log whenever the previous event occurs.
See the sections on Conditional Events and Actions for more information.
Log File Contents:
This section has two windows. The window on the left lists the System I/O and Register resources
Xytronix Research & Design, Inc. Page 83
Setup Pages X-600M Users Manual
which are available to be logged. The window on the right lists the Logged I/O and Registers which
have been selected to be logged. Make the logging selections by first clicking the desired I/O or
register and then clicking the forward arrow buttons (“>>” or “<<”) to move the I/O or resource back
and forth between the lists. When you have completed making the changes, click the Add or
Update button to create the new data log.
FTP Upload Interval:
Enabled or disable periodic uploading of the log file to an FTP server. When enabled, the log file will
be uploaded to a FTP server periodically. When the log file is successfully uploaded, it is erased
from the X-600M. The FTP server settings are configured on the FTP page under Network >
Advanced Network > FTP.
FTP Path/Filename:
This is the filename and path to use when uploading the log file to an FTP server. A time stamp is
appended to the filename every time an upload occurs. Each upload creates a new file.
Page 84 Xytronix Research & Design, Inc.
X-600M Users Manual Setup Pages
4.7 Edit Dashboards Tab
The X-600M employs powerful and flexible web-based tools to configure the user web page format and
content. The index.html web page supports up to ten Dashboards. Click the Edit Dashboards menu
tab to view and edit the Dashboards. Each Dashboard behaves like a separate web page.
The X-600M has no built-in relays or inputs. As such, you can configure the dashboards for your specific
application with a mix of ControlByWeb devices and X-600 series expansion modules. The Edit
Dashboards menu tab has many tools you will need for creating professional and functional web pages
without needing HTML, Javascript or other programming skills.
The control page includes a hierarchy of elements, namely Dashboards, Panels, Widgets and
Components. Each of these elements are described below.
Each Dashboard has a title at the top. A pull-down menu in the upper right-hand corner provides access
to other dashboards.
When you finish adding or editing elements of a Dashboard, click Commit Changes to save your work.
4.7.1 Edit Dashboards (Add dashboard)
In addition to providing access to other dashboards the pull-down menu has an option to Add New
Dashboard. With this selection you can add and name a new dashboard.
Once created, use the edit icon to edit the title, name and permissions of an existing dashboard.
Use the trash icon to delete the dashboard. You can create up to 10 dashboards. For example, you
can make a dashboard for each floor of an office building, or perhaps a dashboard for each room of a
greenhouse.
Xytronix Research & Design, Inc. Page 85
Setup Pages X-600M Users Manual
Title:
This field sets the dashboard title which appears at the top of each dashboard. Choose dashboard
titles which make the web page intuitive and easy to use.
Name:
A unique name that identifies the dashboard.
Access Groups:
This setting assigns the dashboard to one or more Access Groups by selecting its respective
checkbox. Only users who are members of the same Access Groups will be able to view this
dashboard. This setting is the easiest method of controlling access to features of the X-600M.
Perhaps one Dashboard allows the temperature setting of a thermostat to be adjusted between 72
and 75°F. Another Dashboard with different Access Group permissions could allow the temperature
to be adjusted between 65 and 80°F.
4.7.2 Edit Dashboards (Add Panel)
Within dashboards, you place one or more Panels. Panels are smaller, framed boxes which represent
logical groups of widgets. To add a new panel to the dashboard, click the “+” icon on the dashboard title
bar.
Page 86 Xytronix Research & Design, Inc.
X-600M Users Manual Setup Pages
Once you have clicked Add, click on the panel's title and drag it to re-arrange the display as you please.
Click the wrench icon in the Panel title to edit the Panel name. The panel name will only appear
only while editing the dashboard. When viewing the actual dashboard, only the dashboard and the
widgets have names/titles.
4.7.3 Edit Dashboards (Add Widget)
Within Panels, you place one or more Widgets. Widgets are framed boxes which represent more specific
groups of controls and sensors. Widgets allow the X-600M's web pages to have dynamic content. To
add a new Widget to a Panel, Click the “+” icon on the Panel title bar.
Xytronix Research & Design, Inc. Page 87
Setup Pages X-600M Users Manual
Title:
The title of the widget will appear in the upper left-hand corner of the widget.
Name:
A unique identifying name for the widget that will be used when updating the widget's component(s)
states. This field must also begin with a lowercase letter and contain only alphanumeric characters.
Width:
This setting selects how wide the widget is inside the panel as a percentage of the panel width. The
options are: Whole width of panel, half width of panel, two-thirds of panel, one-third of panel, one-
fourth of panel.
Height:
This setting selects how tall the widget is inside the panel. The options are: auto, fixed.
Auto Add Device I/O:
Select a registered device, and the widget will automatically add one component for each of the
registered I/O(s) of that device. Some devices, like the X-300 in thermostat mode, will preset the
option to generate a application specific widget instead of the standard I/O(s) widget. In this case the
widget created will be a specific widget designed for the X-300 in thermostat mode. The following
image shows a standard I/O populated widget and an application specific widget for the same X-300
configured for thermostat mode.
Page 88 Xytronix Research & Design, Inc.
X-600M Users Manual Setup Pages
Once you have created a Widget, click on its title bar and drag it to re-arrange its position.
Click the Edit icon in the widget title bar to edit the widget. Click on the Trash icon to delete
the widget along with all of its components.
4.7.4 Edit Dashboards (Add Component)
Components are located within Widgets. Components are graphical elements such as buttons, sliders,
and readouts for controlling and displaying I/O. These make the web page intuitive and easy to use.
Click the Add “+” icon on the panel title bar to add a new Component to the Widget. Use the pull-down
menu to select from six different Component types. Components which have no compatible resource in
the database are grayed out and cannot be selected. For example, if no relays or digital devices have
been registered in the database, the On/Off component will be grayed out. Once you have created a
Component, click inside the Component frame and drag it to re-arrange the position as desired.
Once a Component has been added, Click its Edit icon to edit the specific settings of the
Component. Click on the Trash icon to delete the component from the Widget.
Xytronix Research & Design, Inc. Page 89
Setup Pages X-600M Users Manual
Seven different Components are available and are shown below together with their respective Edit
Component settings. You have tremendous flexibility in how the components appear and work. It's best
to keep the components simple. Use appropriate colors and choose descriptive labels and field titles.
When you have finished adding Components, click Commit Changes to save your work.
On/Off Status
The On/Off Status Component displays the status of input objects such as digital inputs. You can specify
the text and color for both the true and false conditions of the input. Click on the color swatch to select
other colors.
On/Off Control
The On/Off Control Component provides button controls for output objects such as relays. On, Off,
Toggle and Pulse buttons are available. You can enable or disable any of these elements. You can
specify the text and color for both the true and false conditions of the output. Click on the color swatch to
select other colors.
Numeric Status
The Numeric Status Component displays the value of analog sensors, 1-Wire sensors, counters,
Page 90 Xytronix Research & Design, Inc.
X-600M Users Manual Setup Pages
registers and analog inputs. You can automatically control the color of the display value by linking the
color to a Conditional or Calendar Event. Click on the color swatch to select other colors. For example,
this feature is useful to set the color to red if the value has reached an alarm condition. When
determining the color to use for the background, the X-600M checks the state of each event source
specified starting with Event Source 1 and working down to Event Source 4. The last event source to
evaluate to true takes precedence.
Numeric Control
The Numeric Control component allows the value of registers and expansion registers to be controlled
(changed). The user can increase (+) the value, decrease (-) the value, set it to zero (Reset), set it to a
specific value (Set), or adjust the value with a graphic slider. You can also set maximum and minimum
limits for data values entered by the user. You can enable or disable any of these elements.
Data Visualization – Graph and Gauge
These components offer ways to graphically present the I/O states and history.
Xytronix Research & Design, Inc. Page 91
Setup Pages X-600M Users Manual
Graph
The Graph component allows logged data to be displayed in a graph inside a widget. Select the log file
to use as the data source, and the time zone to use when displaying the graph. Select the width of the
graph (auto, or a number of pixels), and a height (also in pixels). The Max Data Points field indicates
how many data points to display on the graph at one time. Lastly, select the Logged I/O and Register
items found in the log file that you would like displayed on the graph and click the forward arrows “>>” to
be actively logged. Click Add to add the graph to the widget.
Gauge
The Gauge component allows I/O states to be viewed in a linear or radial gauge format. Each gauge can
have one I/O specified to be the data source. Gauges can be given a descriptive title and the width of
the gauges can be automatic (adjusting to the screen size,) or a fixed number of pixels in width and
height. The number of minor ticks between major ticks can be configured between 0 and 4, and each
gauge can have 11 major ticks, each with their own label and color.
Page 92 Xytronix Research & Design, Inc.
X-600M Users Manual Setup Pages
Application Specific Component
These Components are application specific components that is only useful for certain ControlByWeb
devices such as the X-300 in thermostat mode.
Thermostat (X-300)
The Thermostat (X-300) component allows interaction with the X-300 thermostat in a manner similar to
that found on the X-300 itself. The only option for this component is the Data Source. The data source
will be a previously configured X-300. This component will interact directly with the device using the
method setup under the devices tab: direct access or remote services.
Xytronix Research & Design, Inc. Page 93
Setup Pages X-600M Users Manual
Weather Station (X-320M)
The Weather Station (X-320M) component allows interaction with the X-320M weather station in a
manner similar to that found on the X-320M itself. The only option for this component is the Data Source.
The data source will be a previously configured X-320M. This component will interact directly with the
device using the method setup under the devices tab: direct access or remote services.
Page 94 Xytronix Research & Design, Inc.
X-600M Users Manual Setup Pages
SmartStorm Irrigation Controller (X-340)
The SmartStorm Irrigation Controller (X-340) component allows interaction with the X-340 irrigation
controller in a manner similar to that found on the X-340 itself. The only option for this component is the
Data Source. The data source will be a previously configured X-340. This component will interact directly
with the device using the method setup under the devices tab: direct access or remote services.
Xytronix Research & Design, Inc. Page 95
Setup Pages X-600M Users Manual
Custom Web Page Component
This Component allows web pages from other servers to be embedded into the X-600M dashboard.
Custom Web Page
A custom web page can be almost anything. All that is required is a valid url, and the minimum width
and height required to view the custom web page correctly. This component is useful for embedding ip
camera live feeds among other things. Custom web pages loaded into the X-600M can be used as well
as web pages from remote servers. An example url for embedding a ip camer live feed might look
something like: http://username:password@192.168.1.90/video.cgi?
displayWidth=640&displayHeight=480
The user-name and password required to access the camera are specified in the url, and the display
width and height are passed as parameters with the request for the file video.cgi. The exact url required
to access an ip camera's live feed via a web page will be dependent on the manufacture of the camera.
Page 96 Xytronix Research & Design, Inc.
X-600M Users Manual Setup Pages
Xytronix Research & Design, Inc. Page 97
Setup Pages X-600M Users Manual
4.8 View Dashboards Tab
The View Dashboards menu tab presents a display similar to what users will normally see when
accessing the X-600M. Use this page to test and debug the dashboards, panels, widgets and
components in real time. Experiment with and test the buttons, sliders and data entry boxes. With this
menu tab you don't need to hop back and forth between http://192.168.1.2/setup.html and
http://192.168.1.2/ index .html to test your work.
If you discover that the components are blank or don't work, the problem could be that you have
neglected to save your changes to the database. If this occurs you have not lost your settings, simply go
back to one of the configuration menu tabs and click the Commit Changes button.
