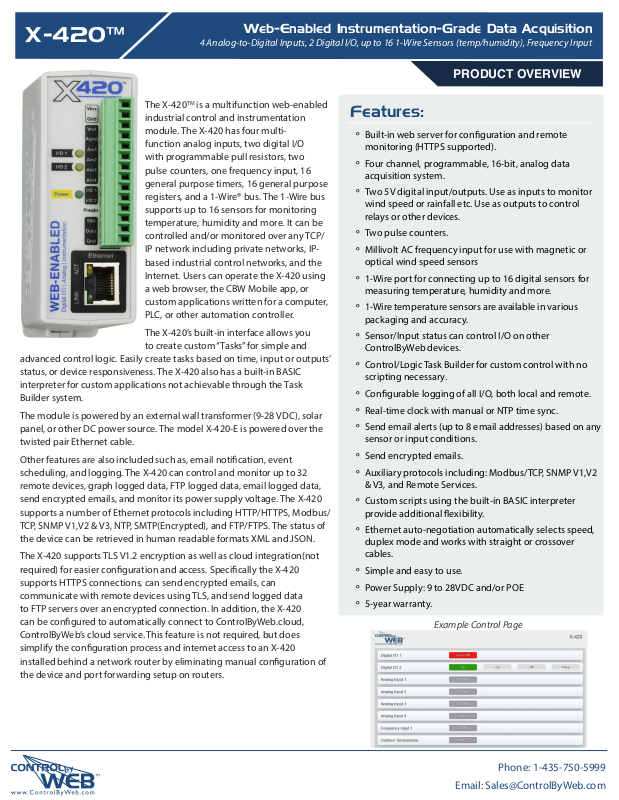

ControlByWeb X-420 User Manual

X-420™

Web-Enabled Instrumentation-Grade Data Acquisition

4 Analog-to-Digital Inputs, 2 Digital I/O, up to 16 1-Wire Sensors (temp/humidity), Frequency Input

PRODUCT OVERVIEW

The X-420TM is a multifunction web-enabled
industrial control and instrumentation
module. The X-420 has four multi­function analog inputs, two digital I/O
with programmable pull resistors, two
pulse counters, one frequency input, 16
general purpose timers, 16 general purpose
registers, and a 1-Wire® bus. The 1-Wire bus
supports up to 16 sensors for monitoring
temperature, humidity and more. It can be
controlled and/or monitored over any TCP/
IP network including private networks, IP­based industrial control networks, and the
Internet. Users can operate the X-420 using
a web browser, the CBW Mobile app, or
custom applications written for a computer,
PLC, or other automation controller.

The X-420’s built-in interface allows you

to create custom “Tasks” for simple and
advanced control logic. Easily create tasks based on time, input or outputs’
status, or device responsiveness. The X-420 also has a built-in BASIC
interpreter for custom applications not achievable through the Task
Builder system.

The module is powered by an external wall transformer (9-28 VDC), solar
panel, or other DC power source. The model X-420-E is powered over the
twisted pair Ethernet cable.

Other features are also included such as, email notication, event
scheduling, and logging. The X-420 can control and monitor up to 32
remote devices, graph logged data, FTP logged data, email logged data,
send encrypted emails, and monitor its power supply voltage. The X-420
supports a number of Ethernet protocols including HTTP/HTTPS, Modbus/
TCP, SNMP V1,V2 & V3, NTP, SMTP(Encrypted), and FTP/FTPS. The status of
the device can be retrieved in human readable formats XML and JSON.

The X-420 supports TLS V1.2 encryption as well as cloud integration(not
required) for easier conguration and access. Specically the X-420
supports HTTPS connections, can send encrypted emails, can
communicate with remote devices using TLS, and send logged data
to FTP servers over an encrypted connection. In addition, the X-420
can be congured to automatically connect to ControlByWeb.cloud,
ControlByWeb’s cloud service. This feature is not required, but does
simplify the conguration process and internet access to an X-420
installed behind a network router by eliminating manual conguration of
the device and port forwarding setup on routers.

Features:

º Built-in web server for conguration and remote

monitoring (HTTPS supported).

º Four channel, programmable, 16-bit, analog data

acquisition system.

º Two 5V digital input/outputs. Use as inputs to monitor

wind speed or rainfall etc. Use as outputs to control
relays or other devices.

º Two pulse counters.

º Millivolt AC frequency input for use with magnetic or

optical wind speed sensors

º 1-Wire port for connecting up to 16 digital sensors for

measuring temperature, humidity and more.

º 1-Wire temperature sensors are available in various

packaging and accuracy.

º Sensor/Input status can control I/O on other

ControlByWeb devices.

º Control/Logic Task Builder for custom control with no

scripting necessary.

º Congurable logging of all I/O, both local and remote.

º Real-time clock with manual or NTP time sync.

º Send email alerts (up to 8 email addresses) based on any

sensor or input conditions.

º Send encrypted emails.

º Auxiliary protocols including: Modbus/TCP, SNMP V1,V2

& V3, and Remote Services.

º Custom scripts using the built-in BASIC interpreter

provide additional exibility.

º Ethernet auto-negotiation automatically selects speed,

duplex mode and works with straight or crossover
cables.

º Simple and easy to use.

º Power Supply: 9 to 28VDC and/or POE

º 5-year warranty.

Example Control Page

Phone: [phone]

Email: [e-mail]

X-420™

APPLICATIONS & SPECS

Power Requirements

• Voltage:

• X-420-I: 9-28 VDC

• X-420-E: POE and/or 9-28VDC

• Max Current: 175mA Max (2-Digital I/O=On, no 1-wire
sensors. See users manual for typical values at 25°C)

Output Mode

• Logic output to external controllers 5V high through

49.9 Ohm resistor

Digital Inputs

• Number of Inputs: 2 (Congurable)

• Type: Non-Isolated

• Voltage Range: 0-5VDC

• Current: Switchable 47K Pullup/Pulldown

• Vin Hi (Min): 3.5V

• Vin LO (Max): 1.5V

• Debounce: 0 to 250mS (congurable)

• Minimum Hold Time: 1mS

• Number of Counter Inputs: 0-2 (congurable)

• Max Count Rate: 200Hz Max

• Input Functions: Monitor State, Control Digital I/O,

Control Remote Relays, Scalable Counter, On Timer,
Total On Timer, Frequency

• Edge Trigger: Rising, Falling or Both

Frequency Input

• Type: AC coupled, sine or square wave (works with
millivolt magnetic wind speed sensors)

• Input Voltage: +/-12 VDC, 30Vpp AC max

• Hysteresis: 25mV

• 0-20 kHz input frequency

• Sine or Square Wave

• 1 second average

• Minimum input level:

Input Frequency Min Vin

Vin @ 1 Hz 50mVpp

Vin @ 10 Hz 50mVpp

Vin @ 100 Hz 60mVpp

Vin @ 1 kHz 80mVpp

Vin @ 10 kHz 700mVpp

Vin @ 20 kHz 1.7Vpp min

Web-Enabled Instrumentation-Grade Data Acquisition

4 Analog-to-Digital Inputs, 2 Digital I/O, up to 16 1-Wire Sensors (temp/humidity), Frequency Input

Generator Monitoring and Control

Connectors

Analog Inputs

• Number of Inputs: 4

• Resolution: 16-bit, SAR

• Type: Single-ended, dierential, 4-20mA (0-20mA),

or a combination

• Input Range: ±1.28V, ±2.56V, ±5.12V, ±10.24V

• Max Input Voltage (Vin): -12.5V < Vin < +12.5V

• Input Impedance (Zin): > 500Meg Ohm

• Channel O Leakage: ±0.6nA (typ)

• Input Common Mode Rejection: >100dB

• Total Unadjusted Error: -9LSB (min), +9LSB (max)

• Voltage Reference Drift: ±5 ppm/°C

• Internal 4-20mA input shunt: 200-ohm, ±0.1%,

25ppm (uses ±5.12V range)

• Logging Rate: 25 Hz

Temperature Sensors

• Maximum Number of Sensors: 16

• Type: Dallas Semiconductor DS18B20

• Temperature Range: -67°F to 257°F (-55°C to

+125°C)

• Accuracy: ±0.5°C (from -10°C to +85°C)

• Sensor Functions: Monitor Temperature, Log

Temperature, Email Alerts, SNMP Traps

• Humidity Type: Xytronix Model X-DTHS-P sensor

• Humidity Range: 0-100% RH

• Accuracy: ±2%

• Max Cable Length: 600 feet (180m) maximum

combined cable length

Real-Time Clock

• Manual or NTP(Network Time Protocol) setup

• NTP Sync Period: Once, Daily, Weekly, On Power-up

• Auto Daylight Savings Adjustment

Capacitor Power Backup

• Backup Functions: Retain Real-Time Clock, External
Variables, Relay State, and Counters

• Backup Duration: 3 days minimum

Network

• Type: 10/100 Base-T Ethernet Port

• Setup: Static IP address assignment. TCP port

selectable

• Power/Input/Relays: 14-Position, 3.81mm, Removable

• Network: 8-pin RJ-45

LED Indicators

• Number of LEDs: 5

º Power on, I/O (1-2), Network linked, Network activity

Physical

• Operating Temperature: -40°F to 150°F (-40°C to

65.5°C)

• Size:

º 1.41in (35.7mm) wide x 3.88in (98.5mm) tall x 3.1in

(78mm) deep (not including connector)

• Weight: 5 oz (142 grams)

• Enclosure Material: Lexan 940 Polycarbonate Plastic

• Enclosure Flame Rating: UL94 V0

Protocols

• HTTP, HTTPS, SSL, XML, Modbus TCP/IP, SNMP, SMTP,
Remote Services

Logging

• Log File Size: 3072K (up to 50,688 log entries
depending on conguration)

• Storage: Nonvolatile Flash

• Buer Architecture: Circular Buer

• Log data can be periodically read and stored on a
computer

Advanced Features

• Task Builder, BASIC interpreter, Remote services

Password Settings

• Password protection on setup page: Yes

• Password protection on control page: Optional

• Password Encoding: Base 64

• Max Password Length: 18 Characters

Electromagnetic Compliance

• IEC CISPR 22, CISPR 24

• EU EN55024, EN55022

• X-418-I: FCC 47CFR15 (Class B)

• X-418-E: FCC 47CFR15 (Class A)

Product Safety Compliance

• IEC 61010-1
