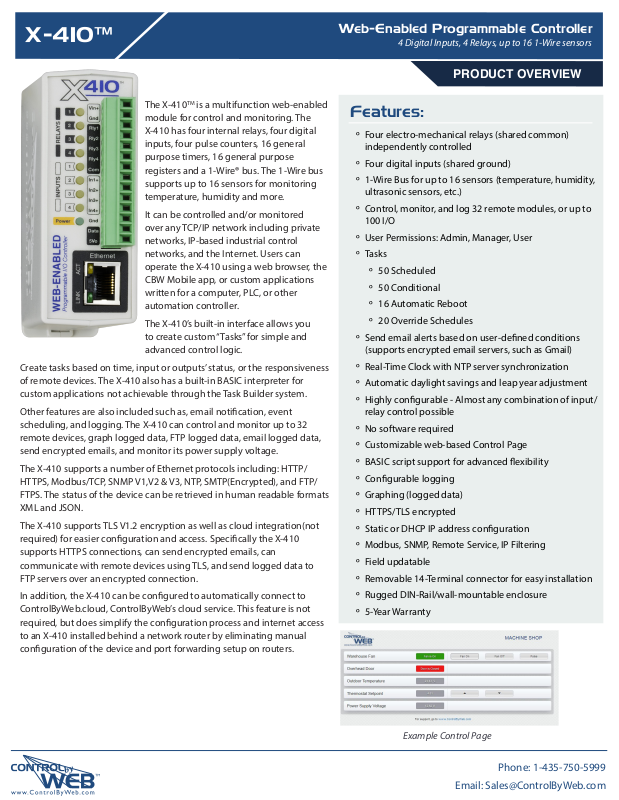

ControlByWeb X-410 PRODUCT OVERVIEW

X-410™

Web-Enabled Programmable Controller

4 Digital Inputs, 4 Relays, up to 16 1-Wire sensors

PRODUCT OVERVIEW

The X-410TM is a multifunction web-enabled
module for control and monitoring. The
X-410 has four internal relays, four digital
inputs, four pulse counters, 16 general
purpose timers, 16 general purpose
registers and a 1-Wire® bus. The 1-Wire bus
supports up to 16 sensors for monitoring
temperature, humidity and more.

It can be controlled and/or monitored
over any TCP/IP network including private
networks, IP-based industrial control
networks, and the Internet. Users can
operate the X-410 using a web browser, the
CBW Mobile app, or custom applications
written for a computer, PLC, or other
automation controller.

The X-410’s built-in interface allows you
to create custom “Tasks” for simple and
advanced control logic.

Create tasks based on time, input or outputs’ status, or the responsiveness
of remote devices. The X-410 also has a built-in BASIC interpreter for
custom applications not achievable through the Task Builder system.

Other features are also included such as, email notication, event
scheduling, and logging. The X-410 can control and monitor up to 32
remote devices, graph logged data, FTP logged data, email logged data,
send encrypted emails, and monitor its power supply voltage.

The X-410 supports a number of Ethernet protocols including: HTTP/
HTTPS, Modbus/TCP, SNMP V1,V2 & V3, NTP, SMTP(Encrypted), and FTP/
FTPS. The status of the device can be retrieved in human readable formats
XML and JSON.

The X-410 supports TLS V1.2 encryption as well as cloud integration(not
required) for easier conguration and access. Specically the X-410
supports HTTPS connections, can send encrypted emails, can
communicate with remote devices using TLS, and send logged data to
FTP servers over an encrypted connection.

In addition, the X-410 can be congured to automatically connect to
ControlByWeb.cloud, ControlByWeb’s cloud service. This feature is not
required, but does simplify the conguration process and internet access
to an X-410 installed behind a network router by eliminating manual
conguration of the device and port forwarding setup on routers.

Features:

º Four electro-mechanical relays (shared common)

independently controlled

º Four digital inputs (shared ground)

º 1-Wire Bus for up to 16 sensors (temperature, humidity,

ultrasonic sensors, etc.)

º Control, monitor, and log 32 remote modules, or up to

100 I/O

º User Permissions: Admin, Manager, User

º Tasks

º 50 Scheduled

º 50 Conditional

º 16 Automatic Reboot

º 20 Override Schedules

º Send email alerts based on user-dened conditions

(supports encrypted email servers, such as Gmail)

º Real-Time Clock with NTP server synchronization

º Automatic daylight savings and leap year adjustment

º Highly congurable - Almost any combination of input/

relay control possible

º No software required

º Customizable web-based Control Page

º BASIC script support for advanced exibility

º Congurable logging

º Graphing (logged data)

º HTTPS/TLS encrypted

º Static or DHCP IP address conguration

º Modbus, SNMP, Remote Service, IP Filtering

º Field updatable

º Removable 14-Terminal connector for easy installation

º Rugged DIN-Rail/wall-mountable enclosure

º 5-Year Warranty

Example Control Page

Email: [e-mail]

Phone: [phone]

X-410™

APPLICATIONS & SPECS

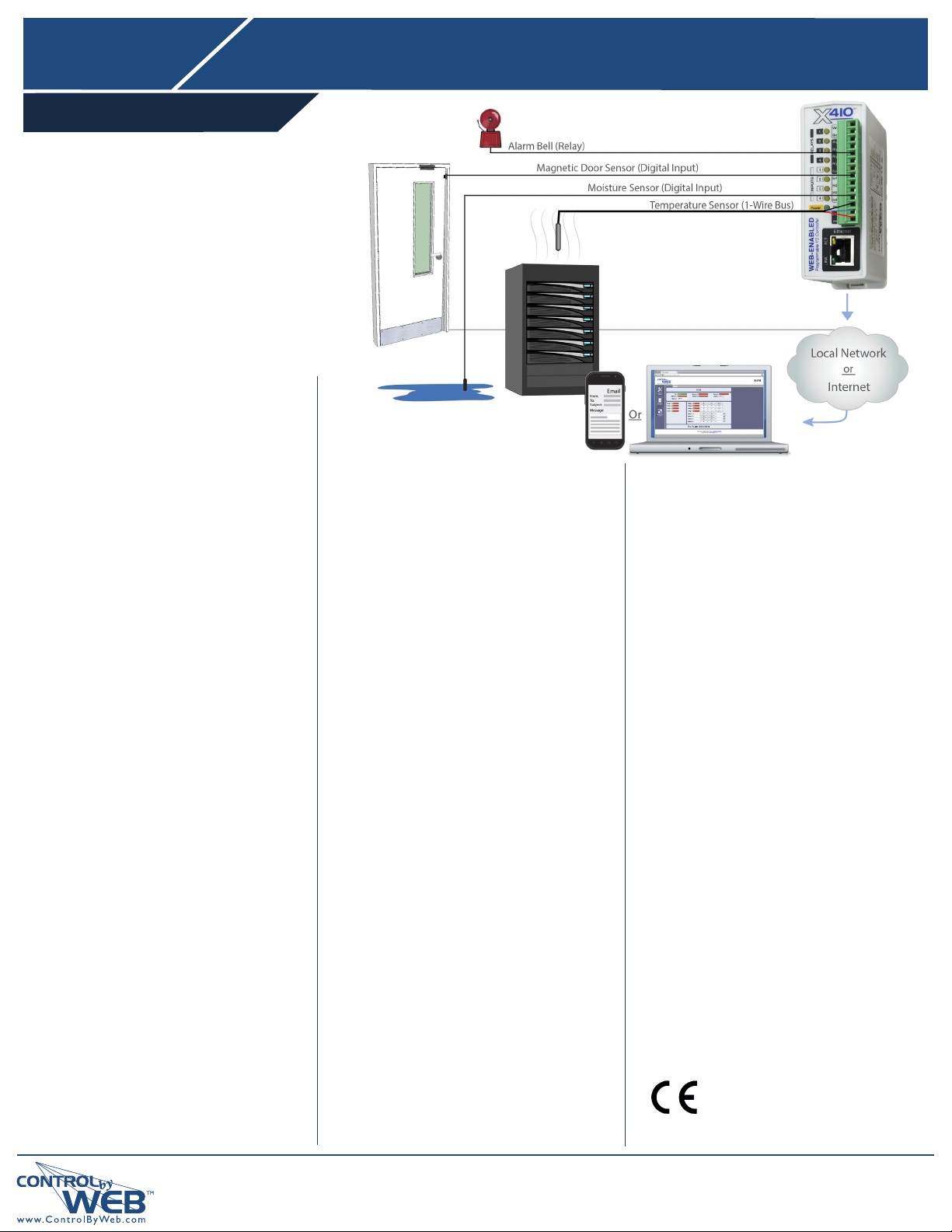

Server Room

Control & Monitoring

Power Requirements

• Voltage:

• X-410-I: 9-28 VDC

• X-410-E: POE and/or 9-28VDC

• Max Current: 240mA

Relays

• Number of Relays: 4

• Max Voltage: 28VAC, 24VDC

• Max Current: 1A

• Contact Type: SPST (Form 1A) - All relays have a

shared common

• Load Type: General Purpose

• Contact Resistance: 1 milliohm max

• Contact Material: AgNi

• Electrical Life: 100K operations (Min)

• Mechanical Life: 5M cycles (Min)

• Environmental Rating: Over voltage Category II,

Pollution Degree 2

• Relay Modes: ON/OFF or Pulsed

• Pulse Timer Duration: 0.1 to 86,400 Seconds (1-day)

Digital Inputs

• Number of Inputs: 4

• Type: Non-Isolated

• Voltage Range: 4-26 VDC

• Current: 950uA @ 4V, 8.5mA @ 26V

• Minimum Hold Time: 20mS

• Input Functions: Monitor State, Control Relays,

Control Remote Relays, Scalable Counter, On Timer,
Total On Timer, Frequency

• Maximum Count: 24-bit

• Max Count Rate: 20Hz Max (Dependent on

Conguration)

• Edge Trigger: Rising, Falling or Both

Temperature Sensors

• Maximum Number of Sensors: 16

• Type: Dallas Semiconductor DS18B20

• Temperature Range: -67°F to 257°F (-55°C to +125°C)

• Accuracy: ±0.5°C (from -10°C to +85°C)

• Sensor Functions: Monitor Temperature, Log

Temperature, Email Alerts, SNMP Traps

• Humidity Type: Xytronix Model X-DTHS-P sensor

Web-Enabled Programmable Controller

• Humidity Range: 0-100% RH

• Accuracy: ±2%

• Max Cable Length: 600 feet (180m) maximum

combined cable length

Real-Time Clock

• Manual or NTP(Network Time Protocol) setup

• NTP Sync Period: Once, Daily, Weekly, On Power-up

• Auto Daylight Savings Adjustment

Capacitor Power Backup

• Backup Functions: Retain Real-Time Clock, External
Variables, Relay State, and Counters

• Backup Duration: 3 days minimum

Network

• Type: 10/100 Base-T Ethernet Port

• Setup: Static IP address assignment. TCP port

selectable

Connectors

• Power/Input/Relays: 14-Position, 3.81mm,
Removable

• Network: 8-pin RJ-45

LED Indicators

• Number of LEDs: 11

º Power on

º Relay coil energized 1-4

º Digital Input 1-4

º Network linked

º Network activity

Physical

• Operating Temperature: -40°F to 150°F (-40°C to

65.5°C)

• Size:

º 1.41in (35.7mm) wide

º 3.88in (98.5mm) tall

º 3.1in (78mm) deep (not including connector)

4 Digital Inputs, 4 Relays, up to 16 1-Wire sensors

• Weight: 5 oz (142 grams)

• Enclosure Material: Lexan 940 Polycarbonate Plastic

• Enclosure Flame Rating: UL94 V0

Protocols

• HTTP, HT TPS, SSL, XML, Modbus TCP/IP, SNMP, SMTP,
Remote Services

Logging

• Log File Size: 512K (up to 8,448 logs)

• Storage: Nonvolatile Flash

• Buer Architecture: Circular Buer

• Log data can be periodically read and stored on a
computer

Advanced Features

• Task Builder

• BASIC interpreter

• Remote services

Password Settings

• Password protection on setup page: Yes

• Password protection on control page: Optional

• Password Encoding: Base 64

• Max Password Length: 18 Characters

Electromagnetic Compliance

• IEC CISPR 22, CISPR 24

• EU EN55024, EN55022

• X-410-I: FCC 47CFR15 (Class B)

• X-410-E: FCC 47CFR15 (Class A)

Product Safety Compliance

• IEC 61010-1
