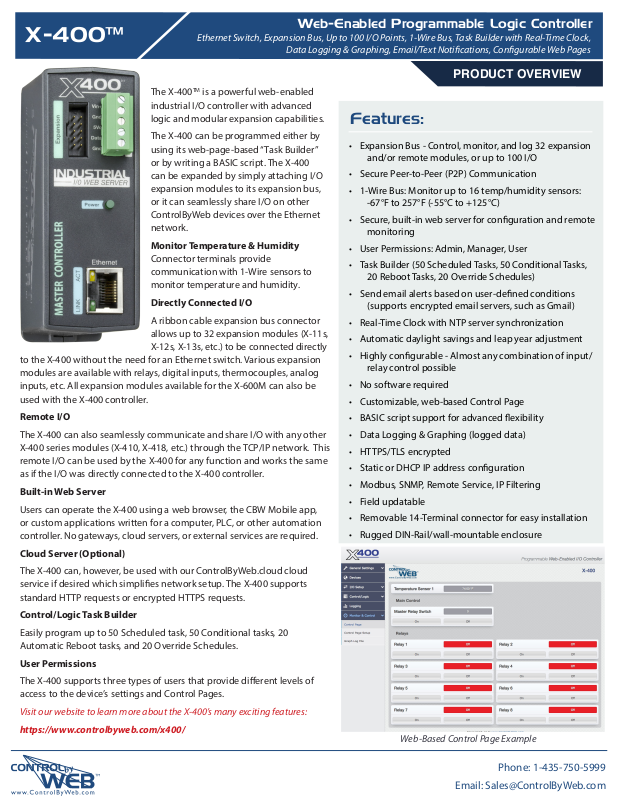

ControlByWeb X-400 PRODUCT OVERVIEW

Web-Enabled Programmable Logic Controller

X-400™

The X-400TM is a powerful web-enabled
industrial I/O controller with advanced
logic and modular expansion capabilities.

The X-400 can be programmed either by
using its web-page-based “Task Builder”
or by writing a BASIC script. The X-400
can be expanded by simply attaching I/O
expansion modules to its expansion bus,
or it can seamlessly share I/O on other
ControlByWeb devices over the Ethernet
network.

Monitor Temperature & Humidity
Connector terminals provide
communication with 1-Wire sensors to
monitor temperature and humidity.

Directly Connected I/O

A ribbon cable expansion bus connector
allows up to 32 expansion modules (X-11s,

X-12s, X-13s, etc.) to be connected directly
to the X-400 without the need for an Ethernet switch. Various expansion
modules are available with relays, digital inputs, thermocouples, analog
inputs, etc. All expansion modules available for the X-600M can also be
used with the X-400 controller.

Remote I/O

The X-400 can also seamlessly communicate and share I/O with any other
X-400 series modules (X-410, X-418, etc.) through the TCP/IP network. This
remote I/O can be used by the X-400 for any function and works the same
as if the I/O was directly connected to the X-400 controller.

Built-in Web Server

Users can operate the X-400 using a web browser, the CBW Mobile app,
or custom applications written for a computer, PLC, or other automation
controller. No gateways, cloud servers, or external services are required.

Ethernet Switch, Expansion Bus, Up to 100 I/O Points, 1-Wire Bus, Task Builder with Real-Time Clock,

Data Logging & Graphing, Email/Text Notications, Congurable Web Pages

PRODUCT OVERVIEW

Features:

• Expansion Bus - Control, monitor, and log 32 expansion
and/or remote modules, or up to 100 I/O

• Secure Peer-to-Peer (P2P) Communication

• 1-Wire Bus: Monitor up to 16 temp/humidity sensors:

-67°F to 257°F (-55°C to +125°C)

• Secure, built-in web server for conguration and remote
monitoring

• User Permissions: Admin, Manager, User

• Task Builder (50 Scheduled Tasks, 50 Conditional Tasks,
20 Reboot Tasks, 20 Override Schedules)

• Send email alerts based on user-dened conditions
(supports encrypted email servers, such as Gmail)

• Real-Time Clock with NTP server synchronization

• Automatic daylight savings and leap year adjustment

• Highly congurable - Almost any combination of input/
relay control possible

• No software required

• Customizable, web-based Control Page

• BASIC script support for advanced exibility

• Data Logging & Graphing (logged data)

• HTTPS/TLS encrypted

• Static or DHCP IP address conguration

• Modbus, SNMP, Remote Service, IP Filtering

• Field updatable

• Removable 14-Terminal connector for easy installation

• Rugged DIN-Rail/wall-mountable enclosure

Cloud Server (Optional)

The X-400 can, however, be used with our ControlByWeb.cloud cloud
service if desired which simplies network setup. The X-400 supports
standard HTTP requests or encrypted HTTPS requests.

Control/Logic Task Builder

Easily program up to 50 Scheduled task, 50 Conditional tasks, 20
Automatic Reboot tasks, and 20 Override Schedules.

User Permissions

The X-400 supports three types of users that provide dierent levels of
access to the device’s settings and Control Pages.

Visit our website to learn more about the X-400’s many exciting features:

https://www.controlbyweb.com/x400/

Web-Based Control Page Example

Phone: [phone]

Email: [e-mail]

X-400™

ON

ON

ON

ON

ON

ON

Web-Enabled Programmable Logic Controller

Ethernet Switch, Expansion Bus, Up to 100 I/O Points, 1-Wire Bus, Task Builder with Real-Time Clock,

Data Logging & Graphing, Email/Text Notications, Congurable Web Pages

APPLICATIONS & SPECS

Additional Features

Expandable, up to 100 I/O points



Task Builder for light scheduling



Easy, congurable web pages



Custom email/text notications



More...



Models:

• X-400-I

Power Requirements

• Voltage: 9-28VDC

• Max Current: See table below for typical values at
25°C,10/100Mbps.

Power

Supply

9 VDC

12 VDC

24 VDC

Voltage Outputs

• Expansion Bus (X-400-I): 1.7A max

Temperature Sensors

• Maximum Number of Sensors: 16

• Type: Dallas Semiconductor DS18B20 digital 1-Wire
thermometer

• Temperature Range: -67°F to 257°F (-55°C to +125°C)

• Accuracy: ±0.5°C (from -10°C to +85°C)

• Sensor Functions: Monitor Temperature, Log
Temperature, Email Alerts, SNMP Traps

• Humidity Type: Xytronix Model X-DTHS-P sensor

• Humidity Range: 0-100% RH

• Accuracy: ±2%

• Max Cable Length: 600 feet (180m) maximum
combined cable length

Real-Time Clock

• Manual or NTP(Network Time Protocol) setup

• NTP Sync Period: Once, Daily, Weekly, On Power-up

• Auto Daylight Savings Adjustment

• Battery (capacitor) Power Backup

Capacitor Power Backup

• Backup Functions: Retain Real-Time Clock, 1 Register,
2 Counters, 64 Relay States (local and expansion
relays only)

• Backup Duration: 2 week minimum




Input Current

(no expansion
modules)

134 mA

101 mA

55 mA

Input Current

(X-400 + 1.7A for
expansion modules)

1.834 A

1.801 A

1.755 A

Sports Web-Based Lighting Controller with Scheduling

Light 5Light 3Light 1

Light 4Light 2

X-11s X-400X-11sX-11s

Nonvolatile Memory

• Industrial grade eMMC NANDrive, single level cell
(SLC)

• All user settings are stored in nonvolatile memory.
Settings will not be lost when power is disconnected.

Network

• Type: 10/100 Base-T Ethernet Port

• Setup: Static or DHCP IP address conguration

Connectors

• Power and 1-Wire Bus: 5-Position, 3.81mm,
Removable

• Expansion Bus: Ribbon cable, 10-conductor,
polarized, 2x5-position, 0.100” pitch Provides
power and communications for expansion modules
(Communications: RS-485)

• Network: 8-pin RJ-45

LED Indicators

• Number of LEDs: 5

º Power on

º Network linked

º Network activity

Physical

• Operating Temperature: -40°F to 150°F (-40°C to

65.5°C)

• Size:

º 1.41in (35.7mm) wide

º 3.88in (98.5mm) tall

º 3.1in (78mm) deep (not including connector)

• Weight: 4.8 oz (136 g)

• Enclosure Material: Lexan 940 Polycarbonate Plastic

• Enclosure Flame Rating: UL94 V0

Light 6

Or

Local Network

or

Internet

X-15s

Protocols

• HTTP, HTTPS, SSL, XML, Modbus TCP/IP, SNMP V1,2C,V3,
SMTP

Logging

• Log File Size: 3,072-Kbyte (up to 50,688 logs)

• Storage: Nonvolatile Flash

• Buer Architecture: Circular Buer (Log data can be
periodically read and stored on a computer)

Advanced Features

• Task Builder

• BASIC interpreter (up to 4-Kbytes script le size)

• Remote services

Password Settings

• Password protection on setup page: Yes

• Password protection on control page: Optional

• Password Encoding: Base 64

• Max Password Length: 20 Characters

Electromagnetic Compliance

• IEC CISPR 22, CISPR 24

• FCC 47CFR15 (Class B)

• EN55024 ITE Immunity (2010)

• EN55022 Emissions (2010)

Product Safety Compliance

• IEC 61010-1

X-400
