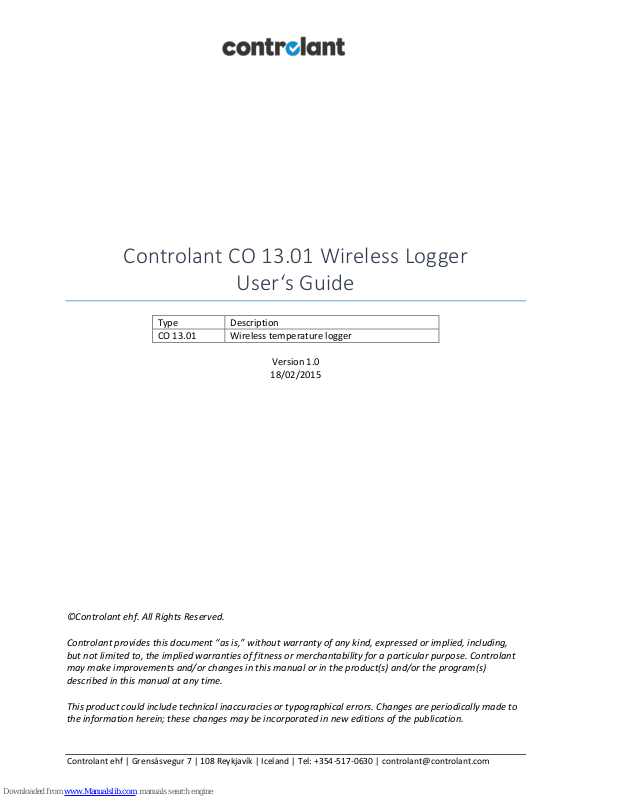

Controlant CO 13.01 User Manual
Controlant ehf | Grensásvegur 7 | 108 Reykjavík | Iceland | Tel: +354-517-0630 | controlant@controlant.com
Controlant CO 13.01 Wireless Logger
User‘s Guide
Type
Description
CO 13.01
Wireless temperature logger
Version 1.0
18/02/2015
©Controlant ehf. All Rights Reserved.
Controlant provides this document “as is,” without warranty of any kind, expressed or implied, including,
but not limited to, the implied warranties of fitness or merchantability for a particular purpose. Controlant
may make improvements and/or changes in this manual or in the product(s) and/or the program(s)
described in this manual at any time.
This product could include technical inaccuracies or typographical errors. Changes are periodically made to
the information herein; these changes may be incorporated in new editions of the publication.
2 | P a g e
Contents
General Information .......................................................................................................................................... 3
About this guide ............................................................................................................................................ 3
Scope ............................................................................................................................................................. 3
Warranty exception for batteries .................................................................................................................. 3
Ratings ........................................................................................................................................................... 3
Additional reference material ....................................................................................................................... 3
Questions and Technical Support .................................................................................................................. 3
Controlant Industrial Wireless Logger - CO 13.01 ............................................................................................. 4
Overview ........................................................................................................................................................ 4

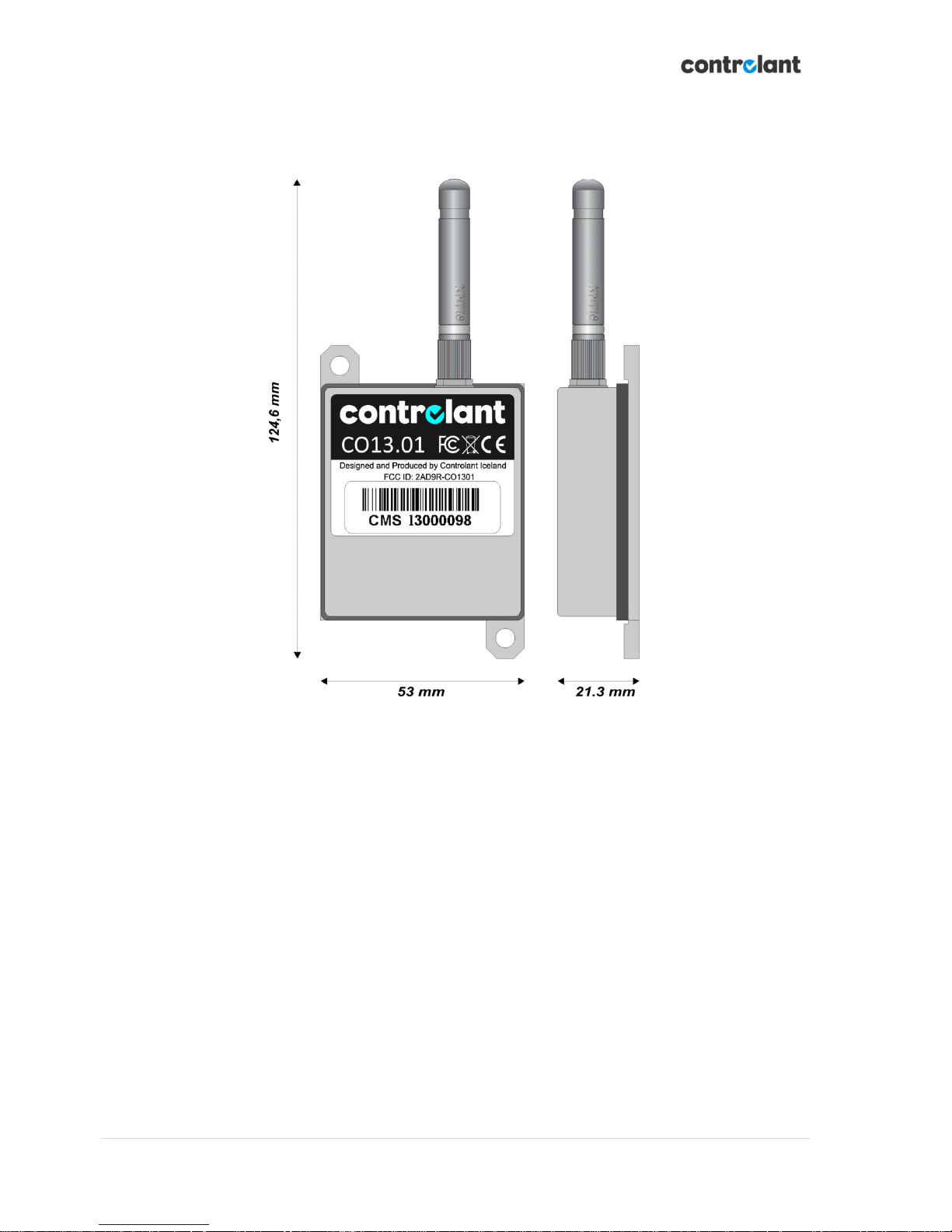

Enclosure ....................................................................................................................................................... 4
Battery ........................................................................................................................................................... 4
LED behavior and turning the logger off ....................................................................................................... 6
Specifications and Measurement Characteristics ......................................................................................... 7
Environment range .................................................................................................................................... 7
Measurement Specifications ..................................................................................................................... 7
Mounting and connectors ............................................................................................................................. 8
Handling and Installation ........................................................................................................................... 8

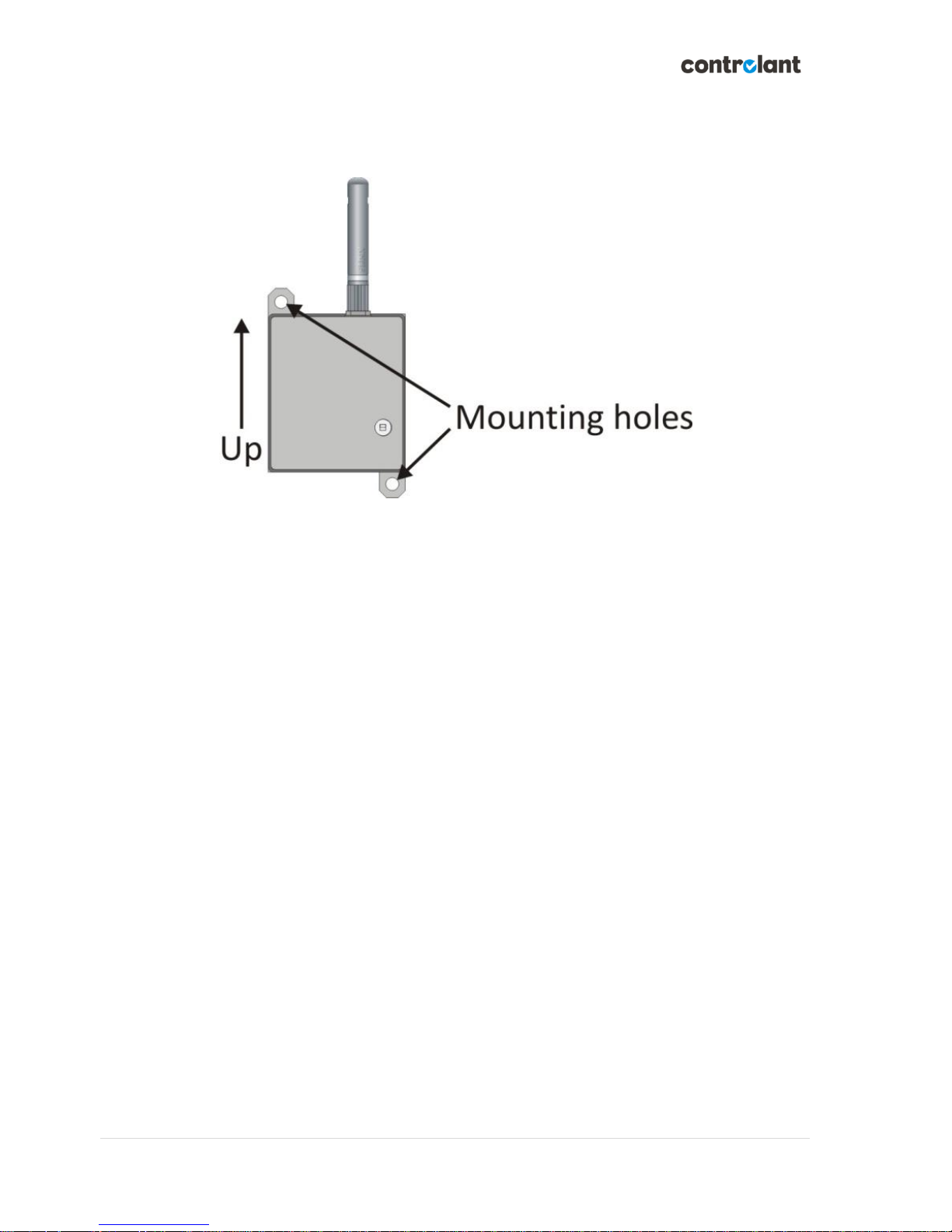

Mounting Orientation ................................................................................................................................ 8
Antenna ..................................................................................................................................................... 9
Wireless Connectivity .................................................................................................................................... 9
FCC Regulatory notices .................................................................................................................................... 10
Note: ............................................................................................................................................................ 10
FCC Antenna Gain Restriction:..................................................................................................................... 10
Warning: ...................................................................................................................................................... 10
3 | P a g e
General Information
About this guide
This guide describes the features and functions of a Controlant industrial wireless logger product, including
connection and setup information, data retrievals, LEDs and switches.
Scope
This guide covers Controlant wireless logger CO 13.01.
Warranty exception for batteries
Controlant’s CO 13.01 logger ships with battery included. Battery must be replaced by qualified service
personnel approved by Controlant. No warranty is on the behavior of Controlant’s equipment in case of
wrong battery installation by non-qualified personnel or in case of usage of batteries which Controlant does
not approve of.
Ratings
The CO 13.11 wireless logger has IP 54 rating – dust protected and protected against spraying water. It is
capable of operating in humidity levels of up to 99%. Note that long term exposure to water in varying
temperature environment can affect enclosure.
Absolute maximum operating range is from -35°C to 80°C. Recommended operating range is -30°C to 40°C.
Operation outside recommended range may affect the function of the device, such as battery capacity and
wireless communications.
Additional reference material
Additional information on the features and functions of Controlant logger products can be found online at
www.controlant.com
Questions and Technical Support
For technical assistance with your product, contact Controlant Technical Support at +354-517-0630 or
support@controlant.com.
