Control 4 Multi Channel Amplifier16 Installtion And User Manual
Disclaimer
Control4® makes no representations or warranties with respect to this
publication, and specifically disclaims any express or implied warranties of
merchantability or fitness for any particular purpose. Control4 reserves the
right to make changes to any and all parts of this publication at any time,
without any obligation to notify any person or entity of such changes.
Trademarks
Control4, EZ ID, and the Control4 logo are trademarks or registered
trademarks of Control4 Corporation. Other product and company names
mentioned in this document may be the trademarks or registered
trademarks of their respective owners.
Copyright
© 2009Control4. All rights reserved. Control4, the Control4 logo and
Everyday Easy are registered trademarks or trademarks of Control4
Corporation in the United States and/or other countries. All other names or
brands may be claimed as property by their respective owners. Pricing and
specifications subject to change without notice.
No part of this publication may be reproduced, photocopied, stored on a
retrieval system, or transmitted without the express written consent of the
publisher.
Contact Us
Control4 Corporation
11734 S. Election Road
Salt Lake City, UT 84020 USA
http://www.control4.com
Multi Channel Amplifier - 16 Installation and User Guide
Part Number: 200-00038 Rev C
Hardware Model Number: C4-16AMP3-B
6/05/2009
Contents
Preface Important Information .................................... 1
Graphical Symbols in this Guide............ 1
Graphical Symbols on the Device.......... 1
Safety Instructions .................................2
Additional Resources............................. 3
Chapter 1 Introduction to Multi Channel Amplifier - 16...5
Features and Benefits............................ 5
Requirements ........................................ 6
What’s in the Box................................... 6
About the Multi Channel Amplifier ......... 6
Front View......................................... 6
Back View ......................................... 7
Chapter 2 Installing the Multi Channel Amplifier ............9

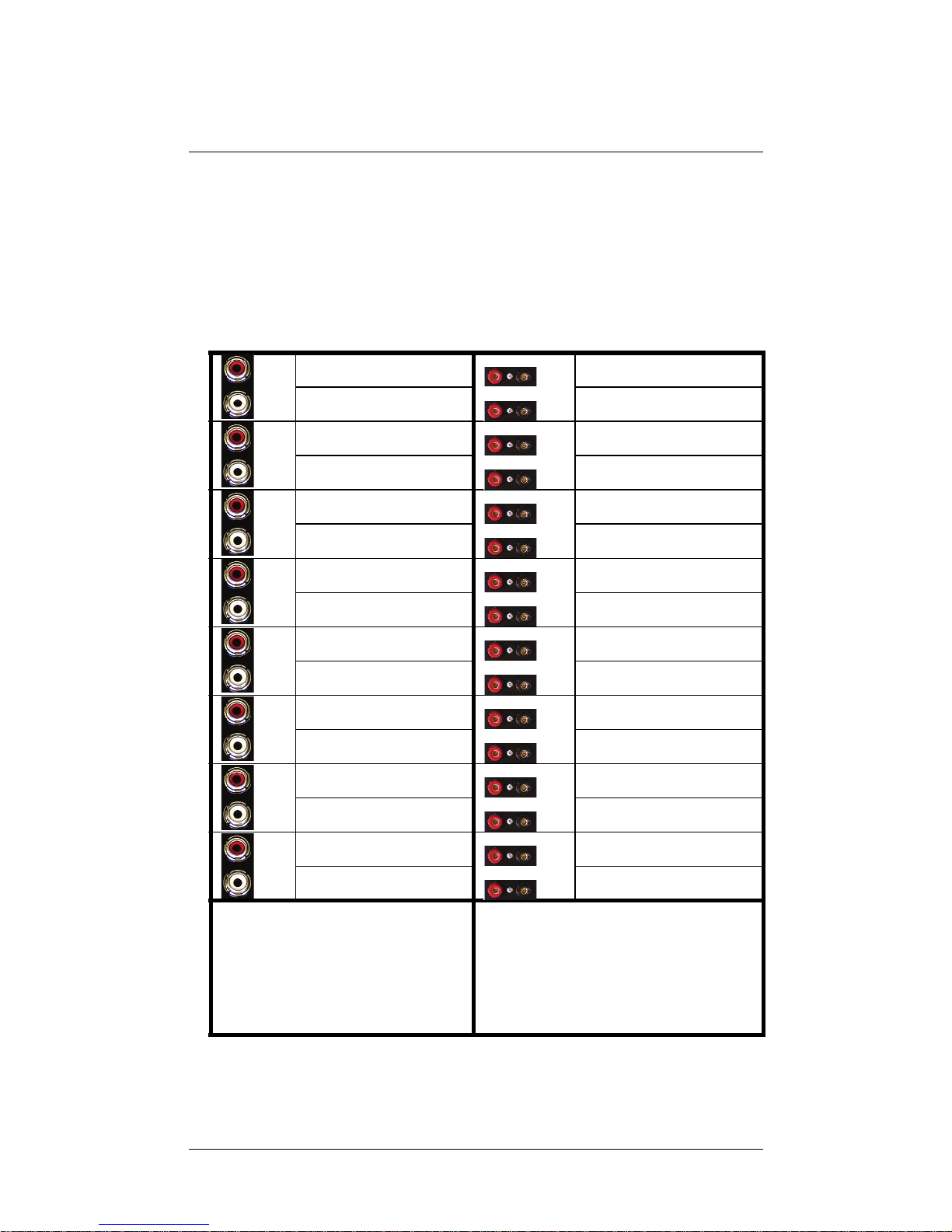

Plan Your Physical Layout................... 10
Connect Audio Input Sources and
Speakers.............................................. 11
Connect to the Network and Power ..... 12
Set Up Logical Connections ................ 12
Set Network Settings ........................... 13
Chapter 3 Using Multi Channel Amplifier ..................... 15
Chapter 4 Regulatory Compliance ............................... 23
View Output Assignments.................... 15
Manage Amplifier Output Zones .......... 17
View or Change Output Settings ....17
View or Change Input Settings ....... 19
View Network Settings......................... 20

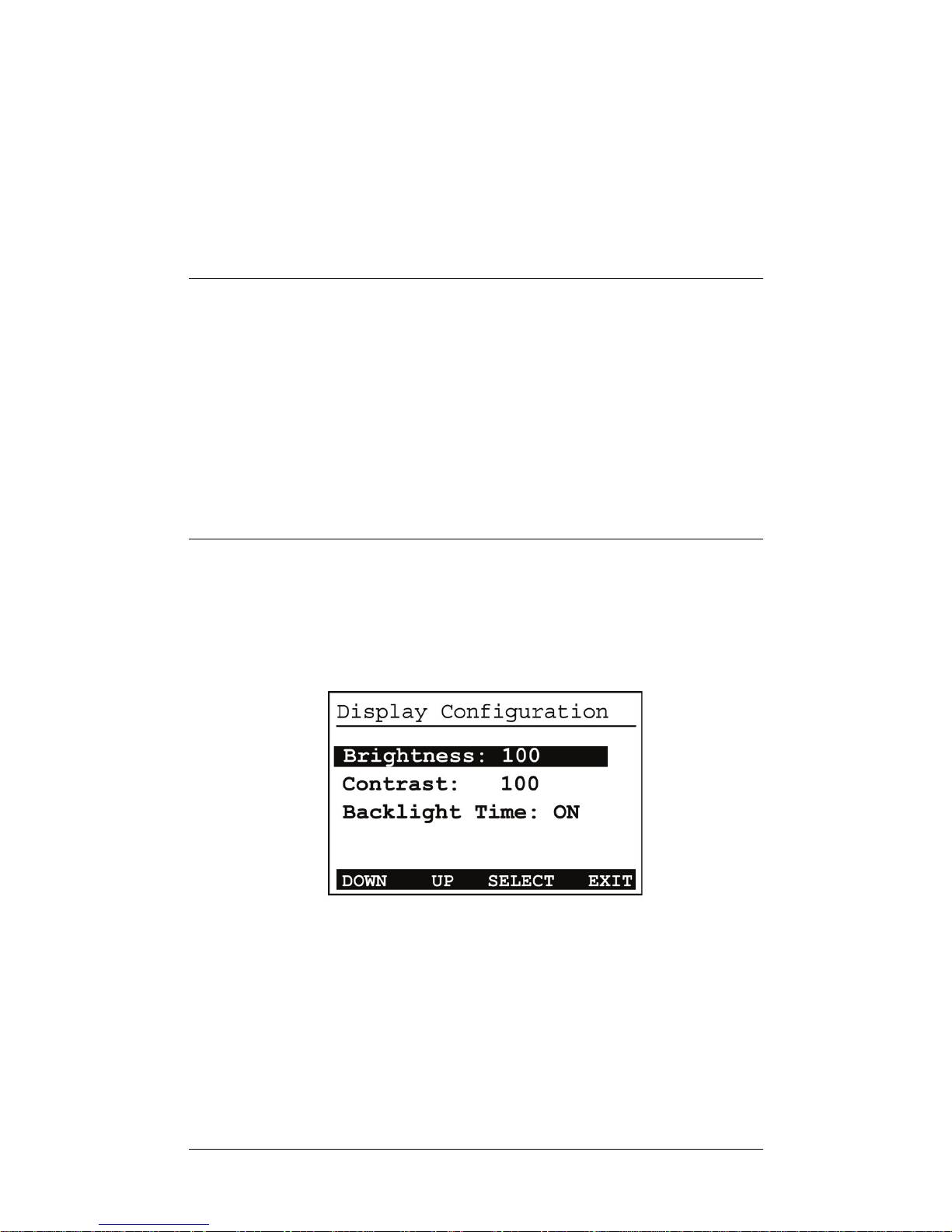

Set Display Preferences ...................... 20
Options Available in Composer ........... 21
North America...................................... 23
iii
FCC Interference Statement........... 23
Industry Canada Statement ............ 23
Recycling Information ..................... 24
Warranty ......................................... 24
Index .....................................................................................25
iv
PREFACE
Important Information
Graphical Symbols in this Guide
Warning, Important, and Note paragraphs draw your
attention to important safe practices and additional
information which may help you avoid injury, death, or loss
of material or time.
WARNING! This indicates a potentially hazardous
situation that, if not avoided, may result in death or serious
injury. DO NOT IGNORE A WARNING!
IMPORTANT! This indicates information that will help
you avoid damage to your equipment, loss of materials, or
loss of time. PAY ATTENTION TO THESE IMPORTANT
STATEMENTS!
NOTE: This indicates a note on related information
about the current topic.
Graphical Symbols on the Device
The following information has been placed on the device:
1
Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including other amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A grounding-type plug has two
blades and a third grounding prong. The wide blade
or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
11. Only use attachments/accessories specified by the
manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lighting storms or when
unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus have been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
2
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
15. Do not install in a cabinet that is smaller than
20” wide x 20” deep x 12” high.
WARNING! Do not expose the apparatus to dripping or
splashing. Do not place objects filled with liquids near the
apparatus.
WARNING! To reduce the risk of fire or electrical shock,
do not expose this apparatus to rain or moisture.
WARNING! Equipment must be connected to a Mains
socket outlet with a protective earthing connection.
WARNING! To reduce the risk of fire, do not install in a
cabinet that is smaller than 20” wide x 20” deep x 12” high.
If you do, the device may overheat.
Additional Resources
The following resources are available:
Your Control4-authorized reseller
Control4 Web Site: http://www.control4.com/
3
4
CHAPTER
1 Introduction to Multi
Channel Amplifier - 16
Control4 systems are uniquely configured for every
customer and every site. A popular component among
music lovers is the Control4 Multi Channel Amplifier.
This chapter introduces the Control4 Multi Channel
Amplifier - 16 and its features.
Features and Benefits
Receives up to eight stereo inputs with full audio
switching on inputs.
Outputs eight stereo class D amplified channels at
120 W per channel at 8 ohms or at 220 W per channel
at 4 ohms (not all channels driven simultaneously).
Adjustable gain, treble, and bass for each zone
Master Volume Control for all outputs
Control4 EZ ID
connections easy to identify
Device chassis is three standard rack spaces and
rack mountable using 4 standard rack spaces
configuring to EIA 19” rack standards. The optional
Control4 Rack Mount Kit (C4-4URMK-B) provides 1/2
U spacing above and below the chassis. If the
Control4 Rack Mount Kit is not used, allow ½ rack
space above and below the chassis for ventilation.
Communicates via Ethernet 10/100 port and ZigBee
mesh networking (IEEE 802.15.4).
™
LEDs for every I/O to make
5
Requirements
1
2
3
Ensure that your home network wiring is in place
before starting your system setup. The Multi Channel
Amplifier can be controlled through Ethernet or
through ZigBee mesh networking (IEEE 802.15.4).
Device must not be installed in a cabinet that is
smaller than 20” wide x 20” deep x 12” high.
What’s in the Box
The following hardware and software is required and
included in your Control4 Multi Channel Amplifier box.
Control4 Multi Channel Amplifier - 16
IEC power cord
This manual
About the Multi Channel Amplifier
Front View
1. Front Display—LCD for displaying or setting
Multi Channel Amplifier settings and
navigating system menus. The front display
is used to view or modify audio source
6
Back View
3
4
routing and zone settings for gain, bass, and
treble. The display also shows zone activity.
2.
Buttons—Provides access to menu options
displayed on the LCD.
3.
Select Dial—Rotate to scroll through list
items and options displayed on the LCD.
Press to make selections.
1. Power Plug Port—For use with a standard
IEC equipment power cord. Use the supplied
power cord or ensure the power cord you are
using is at least 18 AWG or larger.
2.
Ethernet Port—RJ-45 for a 10/100 BaseT
Ethernet connection
3.
Audio Inputs 1-16—RCA jacks for 8 stereo
analog sources, and their supporting light
emitting diodes (LEDs) for EZ ID™ during
setup
4.
Amplifier Outputs 1-16—5-way binding post
pair for 8 stereo class D amplified channels,
and their supporting LEDs for EZ ID™ during
setup
7
