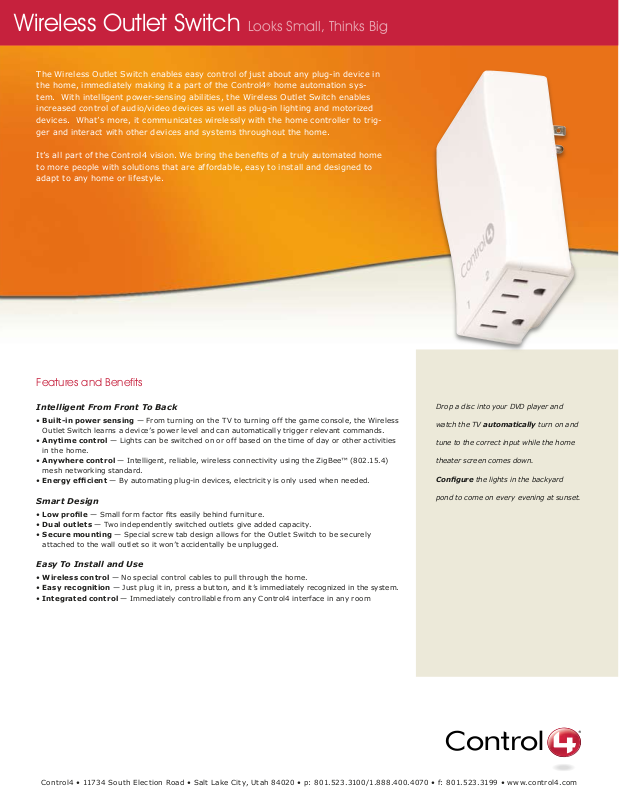

Control4 LOZ-5S1-W User Manual

Wireless Outlet Switch

Looks Small, Thinks Big

The Wireless Outlet Switch enables easy control of just about any plug-in device in
the home, immediately making it a part of the Control4® home automation sys­tem. With intelligent power-sensing abilities, the Wireless Outlet Switch enables
increased control of audio/video devices as well as plug-in lighting and motorized
devices. What’s more, it communicates wirelessly with the home controller to trig­ger and interact with other devices and systems throughout the home.

It’s all part of the Control4 vision. We bring the benets of a truly automated home

to more people with solutions that are affordable, easy to install and designed to
adapt to any home or lifestyle.

Features and Benets

Intelligent From Front To Back

• Built-in power sensing — From turning on the TV to turning off the game console, the Wireless
Outlet Switch learns a device’s power level and can automatically trigger relevant commands.

Anytime control — Lights can be switched on or of f based on the time of day or other activities

•
in the home.

Anywhere control — Intelligent, reliable, wireless connectivity using the ZigBee™ (802.15.4)

•
mesh networking standard.

Energy efc ient — By automating plug-in devices, electricity is only used when needed.

•

Smart Design

• Low prole — Small form factor ts easily behind furniture.
Dual outlets — Two independently switc hed outlets give added capacit y.

•
Secure mounting — Spec ial scr ew tab design allows for the Outlet Switch to be securely

•

attached to the wall outlet so it won’t accidentally be unplugged.

Easy To Install and Use

• Wireles s control — No special control c ables to pull through the home.
Easy recognition — Just plug it in, press a button, and it’s immediately recognized in the system.

•
Integrated control — Immediately contr ollable from any Control4 interface in any room

•

Drop a disc into your DVD player and

watch the TV automatically turn on and

tune to the correct input while the home

theater screen comes down.

Congure the lights in the backyard

pond to come on every evening at sunset.

Control4 • 11734 South Elec tion Road • Salt L ake Cit y, Ut ah 8 4020 • p: 8 01.523.3100/1.888.400.4 070 • f: 801.523.3199 • www.control4.c om

Wireless Outlet Switch

Technical Specications

Model Number

• LOZ-5S1-W

Power requirements

• Power Requirements: 120 VAC, 50/60 Hz, 1.7 W

• Power sensing range: 690 mA

• Power sensing resolution: 52 mA (5W)

Load Ratings (total across both outlets)

• 120 VAC, 1000 VA, Inductive, Total

• 120 VAC, 1/3 HP (7.2 FL A), Total

• 120 VAC, 7.2 A, Ballast, Total

Communications

• Wireless ZigBee (802.15.4) mesh networking

Environmental

• Operational 0°C to 40°C

• Humidit y 5% to 95% Non-Condensing

• Storage -20°C to 70°C

Dimensions & Weight

• H x W x D: 4.5” x 2.6” x 1.6” (115mm x 67mm x 42mm)

• Weight: 8 oz (227 g)

Available Colors

• White

Related Control4 Products

In addition to the Wireless Outlet
Switch, Control4 offers:

Wireless Outlet Dimmer — Ideal for
dimmable plug-in devices rated up to
400 watts.

Wireless Dimmer — For new or retrot

home automation solutions using
ZigBee wireless connectivity.

©2006 Contr ol4. All right s reserved. Cont rol4 and the C ontrol4 lo go are registere d trademar ks. All othe r trademar ks are prop erty of their res pective owners. C 4-CSP-1
