4- and 8-Zone Power
Amplifier Installation and
Setup Guide
Supported Models
• C4-AMP104 4-Zone Power Amplifier
• C4-AMP108 8-Zone Power Amplifier
Box Contents
The following items are included in the box:
• Control4® 4-Zone or 8-Zone Power Amplifier
• IEC power cable
• Phoenix-style audio connectors (8)
• Phoenix-style trigger connectors (2)
• Warranty card
• 3U vented rack mount
• Eight (8) 8-32 x 3/8" flat-head screws
Requirements and Specifications
Requirements
Ensure that your home network wiring is in place
before starting your system setup.
WARNING! To reduce the risk of fire, do not
install this device in a cabinet that is smaller
than 20" (50.8 cm) wide x 20" (50.8 cm) deep
x 12" (30.5 cm) high. If you do, the device may
overheat.
AVERTISSEMENT ! Pour réduire les risques
d’incendie, ne pas installer cet appareil dans
une armoire qui est plus petit que 20" (50.8
cm) de large x 20" (50.8 cm) de profondeur
x 12" (30.5 cm) de haut. Si vous le faites,
l’appareil peut surchauer.
Specifications
C4-AMP104 4-Zone Power Amplifier
Zone line inputs 4 stereo, RCA style
Zone speaker outputs 4 stereo, Phoenix style
Zone line outputs 4 stereo, RCA style
Global line input 1 stereo, RCA style
Global line output 1 stereo, RCA style
Rated wattage/channel
(two channels driven)
Rated wattage/channel
(all channels driven)
Rated wattage (bridged) 200W @ 8 ohms
Frequency response 20 Hz ~ 40 kHz (+/- 3dB)
Signal-to-noise ratio >-86dB A-weighted
THD <0.3% at 1 kHz
Zone input gain Yes
Global input gain Yes
Voltage input trigger 5 ~ 30V AC or DC
Voltage output trigger 5 ~ 30V AC or DC
Rack-mount kit Included—3U vented
Power requirements 100-240VAC, 50-60 Hz
Shipping weight 11 lbs (4.99 kg)
C4-AMP108 8-Zone Power Amplifier
Zone line inputs 8 stereo, RCA style
Zone speaker outputs 8 stereo, Phoenix style
Zone line outputs 8 stereo, RCA style
Global line input 1 stereo, RCA style
Global line output 1 stereo, RCA style
Rated wattage/channel
(two channels driven)
Rated wattage/channel
(all channels driven)
Rated wattage (bridged) 200W @ 8 ohms
Frequency response 20 Hz ~ 40 kHz (+/- 3dB)
Signal-to-noise ratio >-86dB A-weighted
THD <0.3% at 1 kHz
Zone input gain Yes
Global input gain Yes
Voltage input trigger 5 ~ 30V AC or DC
Voltage output trigger 5 ~ 30V AC or DC
Rack-mount kit Included—3U vented
Power requirements 100-240VAC, 50-60 Hz
Shipping weight 11 lbs (4.99 kg)
55W @ 8 ohms
100W @ 4 ohms
45W @ 8 ohms
60W @ 4 ohms
55W @ 8 ohms
100W @ 4 ohms
30W @ 8 ohms
40W @ 4 ohms
1
Environmental
Operational
temperature
Humidity 5% to 95% non-condensing
Storage -4°F ~ 158°F (-20°C ~ 70°C)
Dimensions without
rack-mount kit
(H×W×D)
Dimensions with rackmount kit (H×W×D)3U20.79" × 5.39" × 9.69"
Power requirements 115/230 VAC, 50~60 Hz
32°F ~ 104°F (0°C ~ 40°C)
Miscellaneous
2U
17.32" × 3.43" × 9.69"
(440 mm × 87 mm × 246 mm)
(528 mm × 137 mm × 246 mm)
WARNING! Do not expose the apparatus to
dripping or splashing. Do not place objects
filled with liquids near the apparatus.
Outputs 200W per zone at eight (8) ohms in
bridged mode. Amplifier cannot support 4-ohm
loads in Bridge mode.
• Manually adjustable input gain for each zone.
• Manually adjustable input gain for global input.
• Each zone has independent line level inputs and
outputs.
• Each zone has Phoenix-style amplified outputs
for reliable connectivity.
• Auto-sense inputs when Trigger is o.
• Trigger enables discrete standby control of
amplifier.
• Device chassis is two (2) standard rack spaces
and rack mountable using three (3) standard rack
spaces configuring to EIA 19” rack standards.
AVERTISSEMENT ! N’exposez pas l’appareil à
l’égoutture ou à l’éclaboussement. Ne placez
pas les objets remplis de liquides près de
l’appareil.
WARNING! To reduce the risk of fire or
electrical shock, do not expose this apparatus
to rain or moisture.
AVERTISSEMENT ! Pour réduire le risque du
feu ou de choc électrique, n’exposez pas cet
appareil à la pluie ou à l’humidité.
IMPORTANT! Using this product in a manner
other than outlined in this document voids
your warranty. Further, Control4 is NOT liable
for any damage incurred with the misuse of
this product. See “Warranty.”
IMPORTANT ! Employer ce produit en quelque
sorte autre que décrit dans ce document vide
votre garantie. De plus, Control4 n’est pas
responsable d’aucun dommage encouru avec
l’abus de ce produit. Voyez que « garantie. »
Installing a Rack-mount Bracket
1 Slide the rack-mount bracket onto the amplifier.
Align the holes on the bracket edge with the
holes on the amplifier.
2 Mount the bracket using eight (8) 8-32 x 3/8”
flat-head screws (included).
Features and Benefits
• Receives up to four (4) (4-Zone Power Amplifier)
or eight (8) (8-Zone Power Amplifier) stereo
inputs, plus one global input.
• Outputs four (4) (4-Zone Power Amplifier)
or eight (8) (8-Zone Power Amplifier) class D
amplified stereo zones at 55W per channel at
eight (8) ohms or at 100W per channel at four
(4)ohms (two channels driven simultaneously).
2

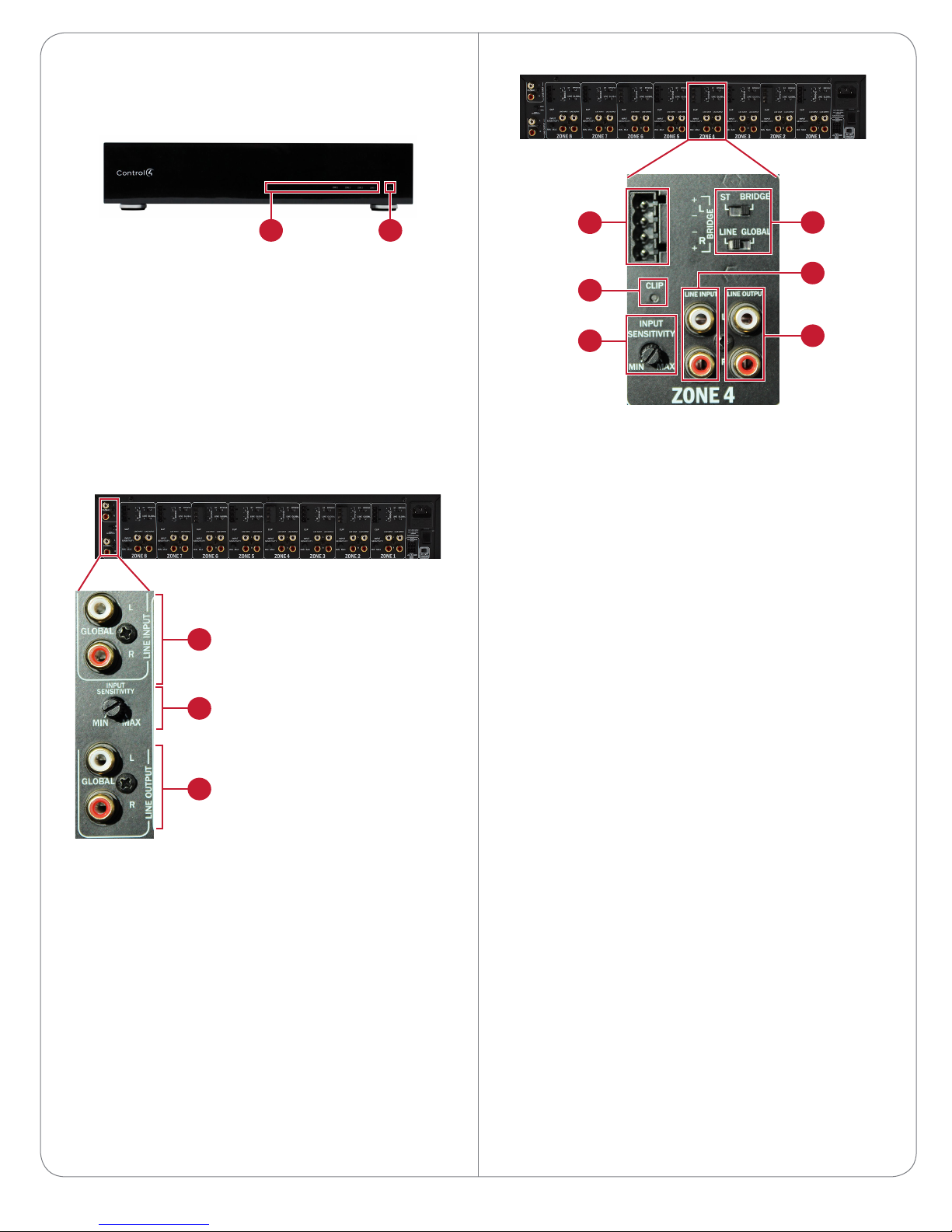

Front and Rear Panel
Front Panel
Back Panel: Zone I/O
A B
A Zone indicators (LED)—Displays only when zone
has an active audio input. Lights blue when
audio is being output, and lights red when signal
processing encounters a fault.
B Power indicator (LED)—Lights blue for on, and
red for standby.
For general information about the product, see the
Product pages at www.control4.com.
Back Panel: Global I/O
A
B
A
D
E
B
C
A Input Phoenix connector.
B CLIP indicator—When clipping (caused by overly
strong signal or gain) is detected, this lights red.
C INPUT SENSITIVITY (gain).
D Zone stereo and source selectors—While ST is
selected, inputs and outputs process L and R
channels separately. While BRIDGE is selected,
the zone amplifies only the L channel (R channel
is disabled). With LINE selected, the source for
the zone is the source connected to the zone’s
LINE INPUT jacks. With GLOBAL selected, the
source for the zone is the GLOBAL LINE INPUT
source.
E LINE INPUT L and R jacks.
F LINE OUTPUT L and R jacks.
F
C
A Global line input
B Global line input sensitivity (gain)
C Global line output (unamplified, unaected by
gain)
3
Back Panel: Power Cluster
A
B
C
WARNING! Connecting speaker wires or input
cables while the amplifier is powered may
cause electrical shock and could damage
the amplifier. Unplug the power cord before
making connections.
AVERTISSEMENT ! Les fils se reliants de
haut-parleur ou les câbles entrés tandis
que l’amplificateur est actionné, peuvent
causer le choc et pourraient endommager
l’amplificateur. Débranchez le cordon de
secteur avant d’établir des rapports.
D
E
A Power Plug Port—For use with a standard IEC
equipment power cord. Use the supplied power
cord or ensure the power cord you are using is at
least 18 AWG or larger.
B Fuse—Replace only with 6.3A 250V fuse.
C POWER switch
D Trigger Input / Output Controls
E ON/OFF TRIGGER
Install the Amplifier
This device operates as part of the Control4 home
system which requires physical connections to
function as designed. This section describes how
to set up the physical connections required for the
amplifier and all of the devices associated with it.
CAUTION! To prevent damage, maintain
adequate ventilation space above and below
the amplifier. Space of ½U on top and bottom
is adequate. The rack mount ears provide the
necessary ½U ventilation space. Do not place
other components on top of the amplifier.
Doing so will block ventilation openings.
ATTENTION ! Pour éviter tout dommage,
maintenir un espace de ventilation adéquate
au-dessus et en dessous de l’amplificateur.
Espace de ½ U sur le dessus et le bas est
adéquate. La monture oreilles pour rack
fournissent des ½ U d’espace de ventilation. Ne
placez pas d’autres éléments sur le dessus de
l’amplificateur. Ceci bloquerait les ouvertures
de la ventilation.
1 Connect up to four (4) (4-Zone Power Amplifier)
or up to eight (8) (8-Zone Power Amplifier)
audio sources to the audio input jacks. You can
also connect an additional audio source to the
GLOBAL input jacks.
2 Connect speakers to the Phoenix-style
connectors.
CAUTION! Check the polarity of the
speakers and wires before connecting to
the amplifier.
ATTENTION ! Vérifiez la polarité des
enceintes et des câbles avant de brancher
à l’amplificateur.
3 Set the individual Zone Input settings. Select Line
In or Global In depending on system setup. If
zone is configured for a bridge, see “Setting Up
Bridge Mode” below.
4 Connect the power cord provided to the back of
the amplifier and to the power outlet.
5 Press the top of the POWER switch to turn on
the amplifier. The amplifier powers on.
Setting Up Stereo Mode
In Stereo mode, connect the L and R channels as
usual.
1 In the zone you are connecting speakers to, slide
the ST/BRIDGE switch to ST.
2 Connect the audio source’s L channel to the LINE
INPUT (L) jack and the R channel to the LINE
INPUT (R) jack.
4
3 Connect the left speaker to the LINE OUTPUT
(L) jack, and the right speaker to the LINE
OUTPUT(R) jack. If you are using a Phoenix-style
connector, wire it as shown below.
Stereo Mode
L
R
Zone
Setting Up Bridge Mode
In Bridge mode, the R channel is disabled. This
eectively doubles the power output of the
remaining L channel, but at the cost of outputting
only a mono signal. To set up a stereo signal while
using Bridge mode, you will need to set up two (2)
separate zones:
L
R
BRIDGE
4 In Zone B’s port cluster, connect the audio
source’s R channel to the LINE INPUT (L) jack.
Again, you must use the + signals of the Phoenixstyle connector. Make sure to note speaker
polarity. You should connect the positive speaker
polarity to the top + and the negative speaker
polarity to the bottom +.
Bridge Mode
L
L
BRIDGE
R
Zone A
L
R
BRIDGE
R
Zone B
NOTE: In Bridge mode, outputs are rated for
only eight (8) ohm loads and will not function
correctly for four (4) ohm loads.
1 In two (2) neighboring zones (for ease of
connections), called Zone A and Zone B in
this example, slide each ST/BRIDGE switch to
BRIDGE.
2 In Zone A’s port cluster, connect the audio
source’s L channel to the LINE INPUT (L) jack.
3 Also in Zone A’s port cluster, connect the speaker
for the L channel output to the LINE OUTPUT (L)
jack. You must use the + signals of the Phoenixstyle connector. Make sure to note speaker
polarity. You should connect the positive speaker
polarity to the top + and the negative speaker
polarity to the bottom +.
5 Also in Zone B’s port cluster, connect the speaker
for the R channel output to the LINE OUTPUT (L)
jack.
NOTE: Phoenix-style connectors, if used in
Bridge mode, need to be wired identically
(left channel, identical polarity wiring) for
each zone.
Setting Up Trigger Mode
NC OUT GND
IN+5 GND
Trigger input/output controls:
When Trigger is ON:
• - NC = No connection.
• - OUT = Trigger Output. Driven High when
device is NOT in standby mode.
• - GND = Ground connection.
• - +5 = Constant +5V output.
• - IN = Trigger input. When Low, device will be
forced into standby; when High, device will
be forced to ON.
• - GND = Ground connection.
5
™
When Trigger is OFF:
Amp 1 Amp 2
• - NC = No connection.
• - OUT = Trigger output not used.
• - GND = Ground connection.
• - +5 = Constant +5V output.
• - IN = Trigger input not used.
• - GND = Ground connection.
Example
Control4 Relay
COM
NC
NO
NC OUT GND
IN+5 GND
NC OUT GND
IN+5 GND
To set an amplifier to power on from a relay’s trigger,
connect the amplifier’s +5 and IN trigger contacts to
a relay’s COM contacts. Polarity does not matter.
To set multiple amplifiers to power on with the same
relay trigger, connect the first amplifier’s NC and OUT
trigger contacts to the second amplifier’s +5 and IN
trigger contacts. Continue using this pattern for any
additional amplifiers.
Regulatory/Safety Information
To review Regulatory information for your particular Control4
products, see the information located on the Control4 website at:
http://www.control4.com/regulatory/.
Patent Information
Applicable patents are available at http://www.control4.com/legal/
patents.
Warranty
For complete warranty information, including details on consumer
legal rights as well as warranty exclusions, review the Warranty card
or visit www.control4.com/warranty.
control4.com |
6
©2013 Control4. All rights reserved. Control4, the Control4 logo, the Control4 iQ logo and the Control4 certified logo are registered trademarks or trademarks of Control4 Corporation in
the United States and/or other countries. All other names and brands may be claimed as the property of their respective owners. Document 200-00034-HAN Rev B 2013-09-20 MS
Loading...
