Control M6004 Instruction Manual

Page 1

5+1+1 Day Programmable Thermostat

For single stage heating, cooling or millivolt heating systems

IMPORTANT: This thermostat is NOT compatible with any 120V or 240V high voltage control system. Read and understand this manual before installation or use.

Instruction Manual

model: M6004

Low-voltage (24 V or millivolt)

system control

BY/PAR

CANARM

Page 2

Table of Contents

7-10

14-15

18-20

21-24

25-27

30-32

Introduction and Features Warning and Safety Precautions Compatibility Choosing the Location for the New Thermostat Tools Required for Installaton Replacing Old Thermostat Wiring Connecting the Wires to the Terminals Mounting the Thermostat Back-cover Buttons LCD Display Changing Batteries Memory backup for the Programs and Thermostat Settings Backlight Pre-programmed settings Program Heating and Cooling Functional settings Optional settings Reset Specications Troubleshooting Warranty

Features

Installation

Operation

Programming

Supplementary Information

Page 3

Introduction This thermostat can replace common residential thermostats for homes with central heating and air conditioning that use LOW VOLTAGE (24V or millivolt) control wires.

Features

• Temperature display in Centigrade or Fahrenheit (°C or °F)

• Automatic temperature control – changing the temperature up to four times a day.

• Humidier control – When connected to control wires for a central humidier.

• Temperature setting in half degrees.

• Large LCD display with back light.

• 12 or 24 hour clock display.

• Automatic, manual and extra ventilation fan modes.

• Cycling rates to customize the efciency for your home heating system.

• Usage monitor and lter change reminder.

• Note this thermostat uses two AA batteries (not included) and a Lithium ion (installed) back up to function

WARNING – Not for high voltage (120V or 240V) systems. Do not wire directly to household electricity.

Features

Package Contents: M6004 Thermostat Instruction Manual (This Document) 2 Screws 2 Wall Anchors

FOR LOW-VOLTAGE CONTROL SYSTEMS DO NOT CONNECT TO HIGHVOLTAGE LINE

Page 4

Features

Warning & Safety Precautions

• Read this instruction manual thoroughtly prior to the installation and the use of the thermostat.

• Follow all instructions in this manual.

• Keep this instruction manual for future reference.

• Only clean this thermostat with a dry cloth.

• Do not operate this thermostat with wet hands.

• Do not block any ventilation openings of the thermostat.

• Do not expose this thermostat to dripping or splashing.

• Do not expose this thermostat to excess heat.

• Do not attempt to disassemble, repair or modify this thermostat.

THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE CANADIAN ELECTRICAL CODE. IN QUEBEC, THIS PRODUCT MUST BE INSTALLED BY A QUALIFIED ELECTRICIAN.

The manufacturer assumes no responsibility for imporper wiring, or any resulting damages. Improper installation by a non-professional automatically voids the warranty.

Page 5

Features

Compatibility This thermostat is designed to be connected to low voltage (24 volt and milivolt) control wires only! Do not connect directly to wires carrying regular household voltage (120V /240V) as it would be dangerous. For details on compatibility of your particular equipment, please call our technical assistance line.

HEATING/COOLING SYSTEMS COMPATIBILTY

Gas – Standing Pilot

•

Gas – Electronic Ignition

•

Gas – Fire Boiler Some Models

Gas – Millivolt System

•

Oil – Fire Boiler Some Models

Oil – Fire Furnace

•

Electric Furnace

•

Electric Air Conditioner

•

Baseboard Electric Heater (120/240V)

Heat Pump / Single-Stage equipment

Heat Pump / Multi-Stage equipment

WARNING – Not for high voltage (120V or 240V) systems. Do not wire directly to household electricity.

Page 6

Choosing Location for the New Thermostat

Thermostat should be mounted:

• Approximately 5 ft (1.5m) from oor.

• Near or in a frequently used room, preferably on an inside partitioning wall.

• On a section of wall without pipes or duct-work.

Thermostat should NOT be mounted:

• Near a window, on an outside wall, or next to a door leading outside.

• With exposure to direct light or heat from a lamp, sun, replace, or other temperature-radiating objects which may cause false readings.

• Near or in direct airow from supply registers and return-air grills.

• Near concealed pipes and chimneys.

• In areas with poor air circulation, such as behind a door or in an alcove.

After choosing a location for the new thermostat, you must arrange to have a heating contractor install the control wiring for you.

Tools required for installation:

• Flathead screwdriver

• Masking tape

• Wire stripper/cutter

• Power drill with a 3/16" bit

• Level

• 2 x AA batteries (sold separately)

Installation

Page 7

Replacing Old Thermostat

Prior to replacing an old thermostat please test the system to make sure your heating and air conditioning systems are in working order. If there is any concern please consult a specialist.

WARNING: Many old thermostats contain MERCURY and should be removed with caution and disposed of as a HAZARDOUS WASTE. Consult your local authorities or Fire Department.

Note: Do not operate the cooling system when outside temperature is below 10ºC (50ºF) to avoid damaging the compressor.

• Test the system to make sure that your heating and cooling are working properly before installation. If either does not work, contact your local heating/air-conditioning dealer to x the problem before installation.

• TURN OFF POWER to system at the furnace, or at the fuse/circuit breaker panel.

• Carefully unpack your new thermostat and mounting place; save packaging of screws, instructions and receipt.

Installation

TO AVOID FIRE, SHOCK OR DEATH, SHUT OFF POWER

SUPPLY AT THE CIRCUIT BREAKER OR FUSE AND TEST

THAT THE POWER IS OFF BEFORE WIRING.

Page 8

Installation

Wiring

NOTE: Please note the wire colours and terminal letters they are attached to on the old thermostat.

WIRING COLOURS ARE NOT ALWAYS STANDARDIZED, IT IS VERY IMPORTANT TO LABEL ALL WIRES ACCORDING TO THE LETTER DESIGNATION ON YOUR OLD THERMOSTAT. (The wires are usually designated ‘W’, ‘Y’, ‘G’, ‘RH’, ‘RC’, ‘B’, ‘O’ or humidistat wires)

• Disconnect wires from old thermostat or sub-base.

• As you disconnect each wire, use masking tape to label it with the old terminal designation.

• Take care not to let the wires fall back into the wall or let the ends of the wires touch one another.

• If there is an extra wire that is not connected to your old thermostat, then you won’t need to connect it to the new thermostat.

Page 9

Wiring Key

Regular Wiring G - Fan output Y - Cool output H1 / H2 - Humidifer control Rc - Common for Cooling and Fan Rh - Common for Heating W - Heat output

2-Wire Heating Rc / Rh - Common (Rc and Rh jumper is optional)

3-Wire Heating Rc / Rh - Common (Rc and Rh must be connected with jumper)

Wiring Diagrams

Installation

Page 10

Installation

Wiring Key

4-Wire Heating/Cooling Rc / Rh - Common (Rc and Rh must be connected with jumper)

5-Wire Heating/Cooling 2 separate transformers (Heat / Cool) Rc / Rh - Common (wire separately, jumper must not be installed)

Wiring Diagrams

5-Wire Heating/Cooling

Heat Transformer Cool Transformer

4-Wire Heating/Cooling

Page 11

Humidifier Wiring

• To wire a humidifier, the 2 wires connecting the original humidistat need to be connected to the 2 terminals marked 'H1' and 'H2' on the thermostat.

• The original humidistat should be removed or set to 'OFF' position.

• The 2 humidifier control terminals 'H1' and 'H2' are electrically isolated from the Heat / Cool terminals.

• 'H1' and 'H2' terminals are non-polarized, and there is no function difference between 'H1' and 'H2'.

Installation

Page 12

Connecting the Wires to the Terminals Connect the previously labeled wires to the corresponding terminals, matching the designations. Use a screwdriver to loosen the terminal, wrap the wires around the terminal, and then tighten to securely fasten the wires. Make sure the wires do not touch or short-circuit with other terminals.

• Depending on your heating/cooling equipment, you may need to connect between 2 and 7 wires.

• If you have 2 ‘R’ wires, then connect each wire to its corresponding terminal, and remove the JUMPER between the RC and RH terminals.

• If you are unsure of the connections, please consult a certified HVAC contractor for the correct installation of your thermostat.

Installation

Page 13

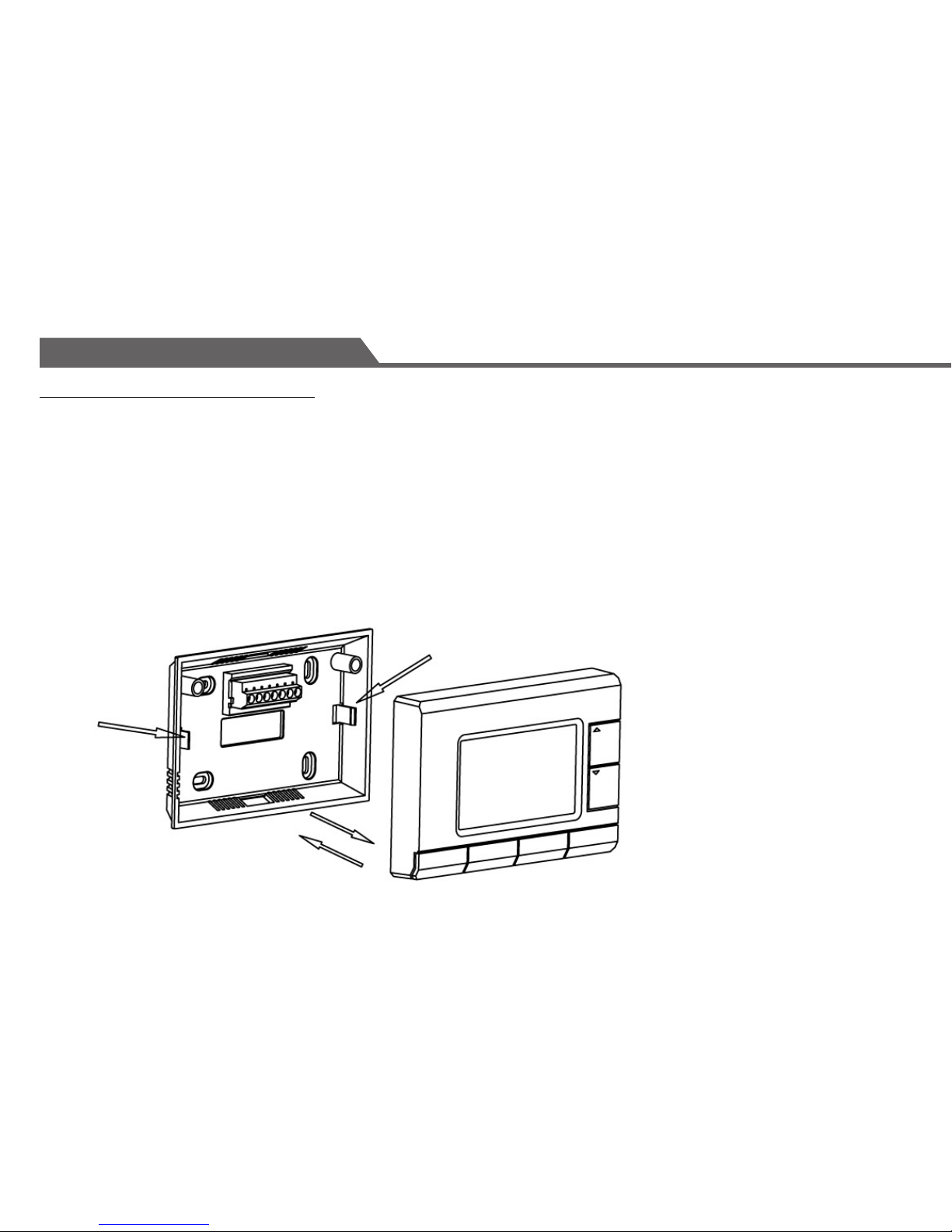

Mounting the Thermostat Back-cover

• The back-cover should be mounted horizontally with the terminals on the top.

• Thread the existing wiring through the big center hole from the back and set the back-cover vertically on the wall.

• Select two appropriate mounting holes, and mark the locations with a pencil. If necessary, use a level to make sure the thermostat is positioned straight.

• Remove the back-cover from the wall and drill two 3/16" (4.8mm) holes in the marked screw positions.

• Insert the wall-anchors into the holes completely. If necessary, use a hammer to tap-in lightly.

• Mount the back-cover to the wall using the two screws. Make sure the metal terminals are on the top.

• Attach the thermostat body to the back cover (that is already mounted on the wall) by carefully aligning the two pieces and pressing firmly until they snap together.

Installation

Page 14

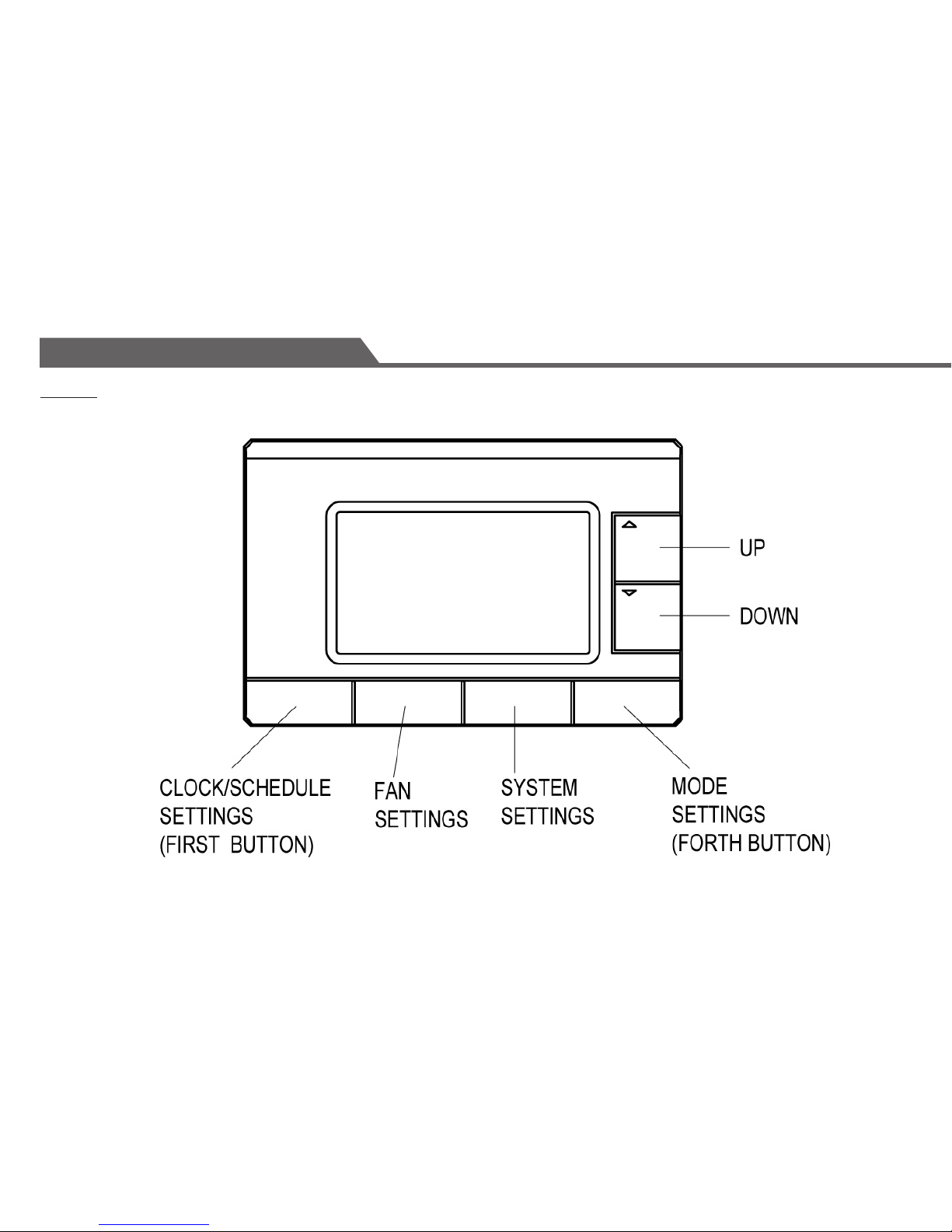

Buttons

Operation

Page 15

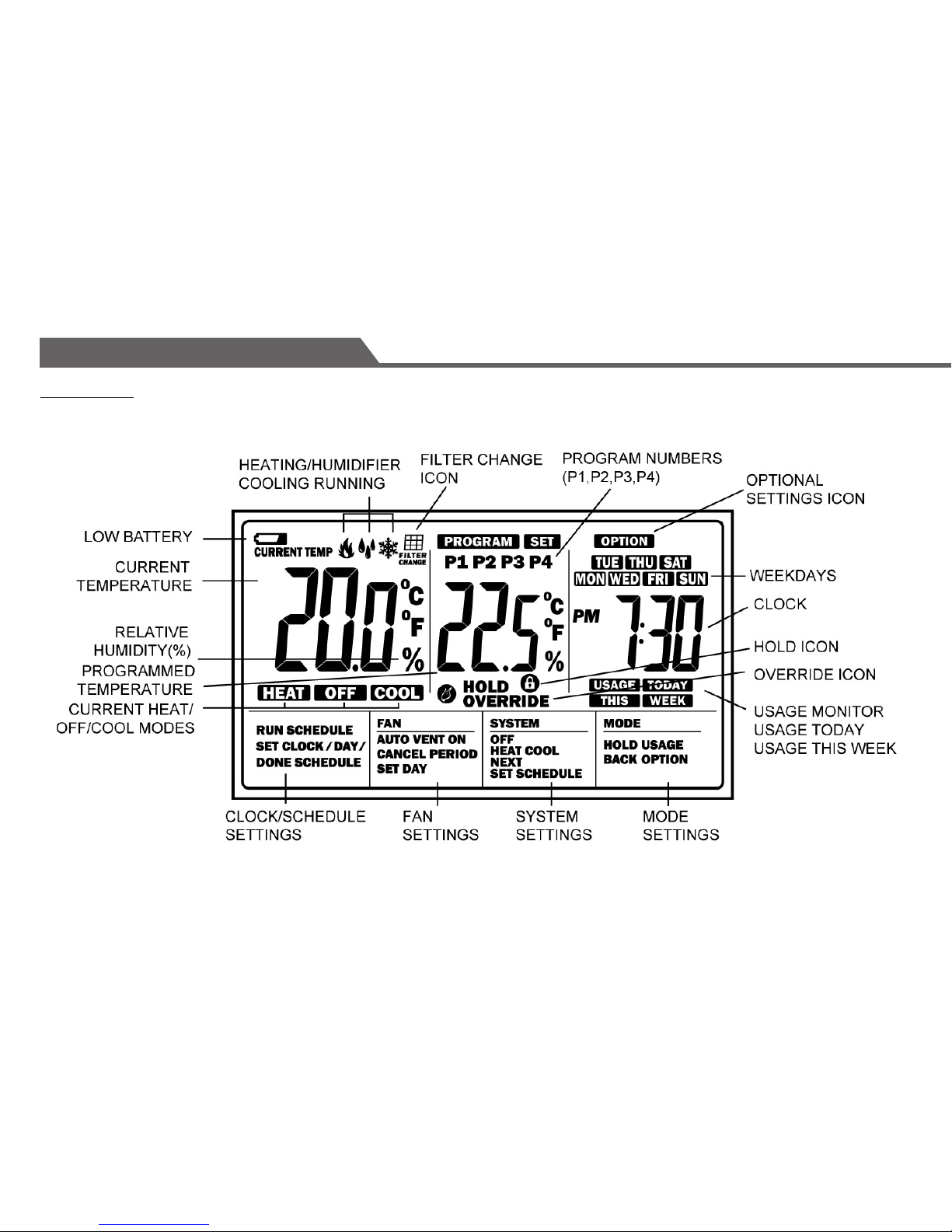

LCD Display

Operation

Page 16

Operation

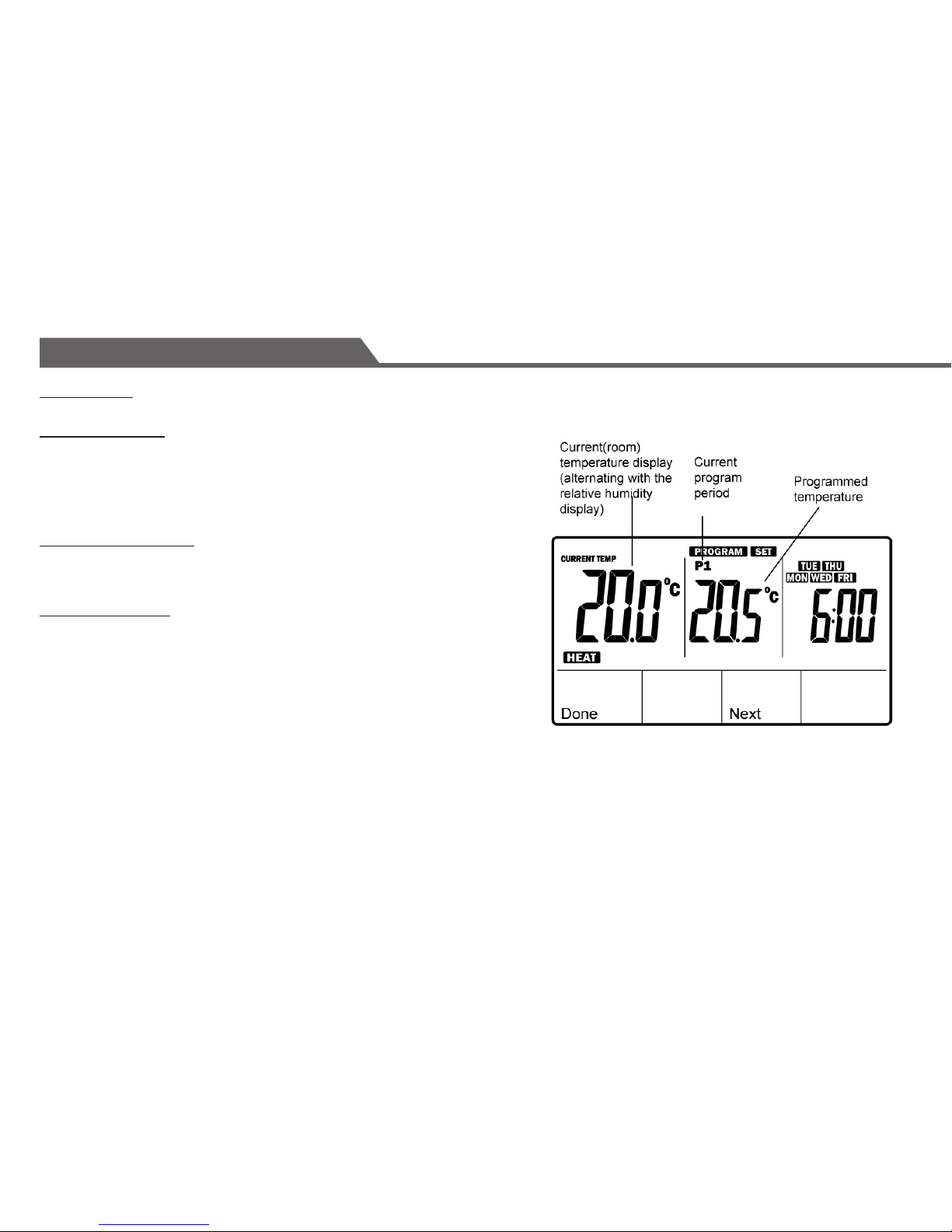

LCD Display

Check Programs

• Press SET CLOCK/DAY/SCHEDULE, then SET SCHEDULE.

• Press NEXT two times to view the next program setting.

• Continue to press NEXT to view the rest of the program settings, press DONE when nished viewing.

Current Temperature

• The current room temperature is displayed on the left of the LCD screen.

Relative Humidity

• Relative humidity is displayed on the left of the LCD screen.

• It is shown alternatively with current (room) temperature (the display alternates: 2 seconds humidity display, 4 seconds temperature display).

Page 17

Operation

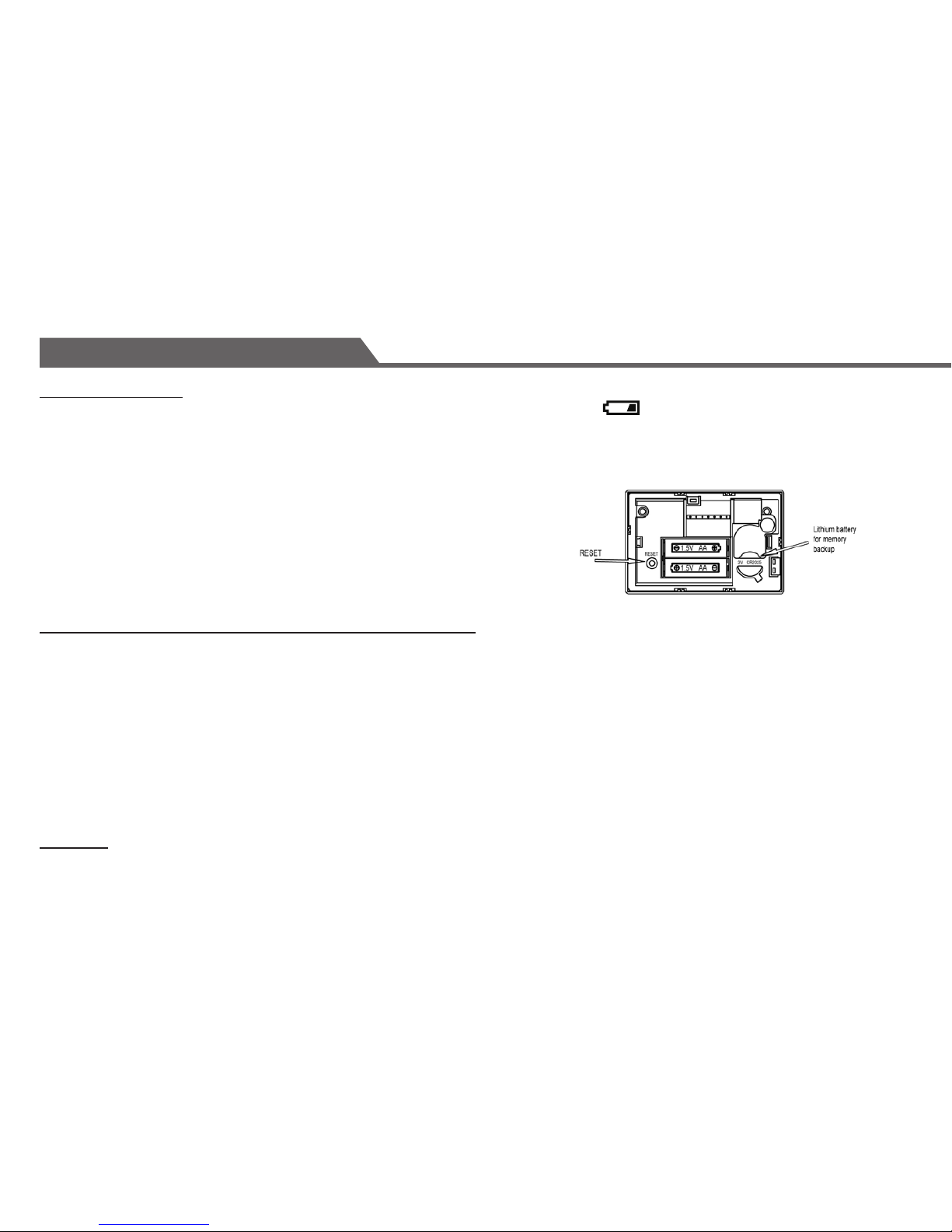

Changing Batteries When the AA batteries are low and need to be replaced, the battery symbol will appear on the LCD screen, the current temperature will ash and a beep will sound every hour, it indicates that the batteries are running low and have to be replaced immediately. However, it is recommended that the batteries be replaced every year even if this warning does not appear.

To replace batteries:

• Select OFF to change the thermostat to OFF mode.

• Remove the thermostat from its mounting plate (back cover) carefully.

• Remove the old AA batteries, and install new ones.

• Place the thermostat back to its original position.

Memory backup for the Programs and Thermostat Settings In case of power outages, this thermostat has a memory backup powered by a 3V (CR2025) lithium battery. The lithium battery will typically last for several years. Memory storage includes all set programs and the thermostat settings. Do not remove the lithium battery and the AA batteries at the same time, otherwise all memory and settings will be lost.

If only the 3V (CR2025) lithium battery is low, the low battery symbol will ash slowly. This will not affect the normal operation of the thermostat, but it should be replaced soon to ensure memory backup is maintained. Use a screwdriver to remove and replace the lithium battery (see diagrams for the location of the lithium battery).

Backlight The backlight helps you to clearly see the thermostat display at night. However, frequent backlight use will reduce your battery life. To disable the backlight, see the 'Optional Settings' section (Page 25).

Page 18

CELSIUS DEFAULT: Since Celsius (ºC) is the default mode, no action is required to use the thermostat in this mode. However, if you wish to choose Fahrenheit (ºF), you must do so before you begin using the thermostat, because this is a one-time process. The temperature scale of the thermostat CANNOT be changed afterwards unless you reset the thermostat.

INSTALL BATTERIES / SELECT ºF DISPLAY: Detach the back cover to install the 2 'AA' size batteries, or if the batteries are already installed, do a HARD RESET by pressing and holding the FORTH button while also pressing and releasing the RESET (R) button on the inside panel of the thermostat. The LCD display with blank out, and the show the temperature of the room in Celsius (ºC) with the display ashing. Press UP or DOWN to permanently change the temperature to ºF.

Set Clock

• Press SET CLOCK/DAY/SCHEDULE, then press UP or DOWN to set time.

• Press the SET DAY button, then press UP or DOWN to select the day of the week.

• Press DONE to save clock settings and to exit. Note: If the SET CLOCK/DAY/SCHEDULE option is not displayed, press DONE or RUN SCHEDULE.

Set 12- or 24-hour format 12-hour mode is the default - no action is required to use the thermostat in this mode To select 12- or 24-hour format:

• Press SET CLOCK/DAY/SCHEDULE, then press OPTION to enter the optional setting mode.

• Press UP or DOWN to select 12- or 24-hour format.

• Press DONE to save settings and to exit.

Programming

Page 19

Program Heating and Cooling

This thermostat is equipped with 5+1+1 DAY PROGRAMMING - separate programming for weekdays, Saturday and Sunday, with four settings per day. This thermostat is pre-programmed for your convenience or you can set your own programs as desired.

PROGRAM 1: MORNING This is typically for the morning when you may prefer a warmer temperature.

PROGRAM 2: DAY This is an energy-savings mode for the time you are away from home.

The setting can be adjusted to minimize energy consumption. PROGRAM 3: EVENING This is for the time you return home and want the house at a comfortable temperature, typically warmer settings during winter and cooler settings during summer. PROGRAM 4: NIGHT This is a sleep mode. You may choose to set temperature for energy savings or comfort as desired.

Default pre-programmed time and temperature settings

Programming

Note: Program periods can be set to different or the same temperature. For example: Period 1, 2 or 3 can all be set to 22ºC if you are home all day and want the temperature to stay warm, but at night it can be set cooler to 17ºC.

PERIOD P TIME HEAT SETPOINT COOL SETPOINT

MORNING P1 6:00 a.m. 20.5ºC (69.0ºF) 25.0ºC (77.0ºF)

DAY P2 8:00 a.m. 17.5ºC (63.5ºF) 29.0ºC (84.0ºF)

EVENING P3 5:00 p.m. 21ºC (70.0ºF) 25.0ºC (77.0ºF)

NIGHT P4 10:00 p.m. 17.0ºC (62.5ºF) 26.0ºC (79.0ºF)

Page 20

Heating Program

1. Press the SYSTEM button until the HEAT symbol appears.

2. Press SET CLOCK/DAY/SCHEDULE, then SET SCHEDULE.

3. Start time of P1 will blink, indicating that the time can be changed.

4. Press UP or DOWN to adjust the start time for P1.

5. Press NEXT to adjust the temperature setting for P1.

6. Temperature for P1 will blink, indicating that the temperature setting can be changed.

7. Press UP or DOWN to adjust the temperature.

8. Press NEXT to advance to settings for P2.

9. Continue to press NEXT to view or adjust the rest of the program settings. Press DONE once programming is completed.

• Tip: Press and hold down the UP/DOWN buttons to scroll through the numbers quickly.

• Program times can be set in increments of 10 minutes.

• Temperature can be set in increments of 0.5ºC.

• The temperature range for heating is 5ºC to 35ºC (41ºF to 95ºF).

Programming

Page 21

Cooling Program

1. Press the SYSTEM button until the COOL symbol appears.

2. Press SET CLOCK/DAY/SCHEDULE, then SET SCHEDULE.

3. Start time of P1 will blink, indicating that the time can be changed.

4. Press UP or DOWN to adjust the start time for P1.

5. Press NEXT to adjust the temperature setting for P1.

6. Temperature for P1 will blink, indicating that the temperature setting can be changed.

7. Press UP or DOWN to adjust the temperature.

8. Press NEXT to advance to settings for P2.

9. Continue to press NEXT to view or adjust the rest of the program settings. Press DONE once programming is completed.

• The temperature range for heating is 5ºC to 35ºC (41ºF to 95ºF).

Programming

Page 22

Humidifier Control

1. Verify that the humidifier is correctly wired to the thermostat (see installation guide or contact an electrician).

2. Ensure the thermostat is in HEAT mode. While in HEAT mode, at the end of Sunday P4 program, press NEXT to view humidity setting.

3. Set humidity level using the UP/DOWN buttons.

4. Press DONE to save setting and to exit.

Note:

• The humidifier will automatically turn on if the relative humidity is lower than the humidity setting.

• Humidity is set in increments of 5%.

• The humidity level can be set from 20% to 70%

• The humidifer setting only functions when thermostat is in HEAT mode.

• Humidity is not pre-programmable; it must be set manually.

• When the humidifier is on, the HUMIDITY symbol will appear.

• To de-activate the humidifer, scroll DOWN to the lowest setting, displayed as OFF%.

Programming

Page 23

Fan Control / Ventilation

• For automatic control of the fan, press FAN until the AUTO symbol appears. In cooling mode, the fan starts/stops with the cooling equipment. In heating mode, the fan is controlled by the heating equipment if HG is selected.

• For the fan to run continuously, press FAN until the ON symbol appears.

• For the Automatic Ventilation feature - where the thermostat will turn the fan on periodically for better ventilation, press FAN until the VENT symbol appears.

System Mode: HEAT / COOL / OFF

• In normal schedule running mode, press SYSTEM button to toggle between the modes HEAT - The system is in HEAT mode, and furnace or heating system is activated. COOL - The system is in COOL mode, and air conditioner or cooling system is activated. OFF - If the thermostat is in the OFF mode, both the heating and cooling system will be turned off, and all programs will be disabled.

When the heating or cooling systems are ON, the following symbols will display:

• will flash when the heating system is activated.

• will flash when the cooling system is activated.

Programming

Page 24

Temporary OVERRIDE This function will change the temperature temporarily, until the next program period starts. Press UP or DOWN to set the desired temperature.

• The OVERRIDE symbol will display, indicating the the OVERRIDE function is active.

• Only the currently active mode (heat or cool) setting will be changed

• The thermostat has an automatic delay function to protect the heating and cooling systems from irregular on/off sequences, so there may be a delay of several minutes before the override settings will activate the heating/cooling system.

HOLD FUNCTION The HOLD function will maintain a constant temperature, similar to a non-programmable manual thermostat. It disables all program settings and new temperature will remain the same until the RUN SCHEDULE button is pressed.

1. Press UP or DOWN buttons to override the current temperature setting. The HOLD symbol will appear above the FOURTH button.

2. Press the button under the HOLD symbol to enable the hold function.

3. Press the RUN SCHEDULE button to disable the hold function.

Programming

Page 25

Pre-comfort Recovery

• This thermostat is equipped with a 'Pre-Comfort Recovery' system that will activate the heating or cooling in advance of the actual set program time, so that the room will be at the desired temperature at the start of the program time.

• When the thermostat is in 'recovery', the OVERRIDE symbol will be flashing.

• It is normal for the system to be activated earlier than the actual set program time (up to one hour).

•The Pre-comfort Recovery can be disabled if desired. Please refer to Optional Settings.

Usage Monitor

• The thermostat tracks the system 'ON' time; the time the heating/cooling equipment is running In Schedule running mode (right side of the LCD screen), the USAGEsymbol will appear. Press the button once to view USAGE TODAY. Press the button again to view USAGE THIS WEEK.

- USAGE TODAY automatically resets itself daily at midnight.

- USAGE THIS WEEK automatically resets itself at midnight on Sunday.

- A new week begins Monday morning.

Filter change

• The FILTER CHANGE indicator will display on the LCD screen when the system 'ON' time (HEAT, COOL or FAN) has accumulated to approximately 500 hours. It is an indication that the filter should be changed at this time.

• To reset the FILTER CHANGE counter, press and hold USAGE for 3 seconds until the buzzer beeps, this will bring the counter back to zero.

Programming

Page 26

Optional Settings The thermostat has a number of OPTIONS that the user can change. (*NOTE: Adjust these settings before programming in the thermostat, becasue changing certain options will erase all programming.) There are 5 OPTIONS. To begin, press SET CLOCK/DAY/SCHEDULE, then press OPTION to enter the optional setting mode. Press UP or DOWN to select the VALUE. Once the correct value is displayed, press the OPTION button again to the next option.

OPTIONAL SETTINGS:

1) 12/24 12- or 24-hour display format

2) CR Cycle Rate setting (select cycle rate to match the heating equipment)

3) HE/HG Fan setting

4) BL Backlight setting

5) RE Pre-comfort Recovery ON or OFFIf new batteries are inserted within 20 seconds of removing the old ones, the existing time and programs will not be cleared. Otherwise, the display will show 9:00 and the thermostat will have to be re-programmed.

Programming

Page 27

Optional Settings

1) 12/24 - 12- or 24-hour display format

• Press SET CLOCK/DAY/SCHEDULE, then press OPTION.

• Select your preference between 12hr or 24hr display format by presing UP or DOWN.

• Press OPTION to confirm the setting and to advance to the next option.

2) CR - Cycle Rate setting (select cycle rate to match the heating equipment)

• Choose from Cr-0 to Cr-4 by pressing UP or DOWN (See Chart 1).

• Press OPTION to confirm the setting and to advance to the next option.

Note: The default setting is Cr-3 for gas or oil forced air. Cr-0 is a fixed span operation (no cycle rate) for heating and cooling. Choosing the correct cycle rate for your system promotes energy efficiency and a more stable temperature.

Programming

CR System Cycles per Hour

Cr-0 -

+ 0.3ºC (0.6ºF) xed span

Cr-1 Hydronic (hot water) heat, condensing gas furnaces 2

Cr-2 Commercial unit 3

Cr-3 Gas or oil forced air 5

Cr-4 Electric furnace 7

Page 28

Optional Settings

3) HE / HG

• Select the setting by presing UP or DOWN.

• Press OPTION to confirm the setting and to advance to the next option.

HE: Use this setting for electric furnaces. With this setting, the thermostat will turn the fan on immediately with the heating system. HG: Use this setting for gas or oil-fired furnaces. This setting allows the fan operation to be controlled by the heating system; not the thermostat. This is the correct setting for most systems. (Note: the HG display on LCD looks like H9.)

4) BL - Backlight setting

• Select the setting by presing UP or DOWN. BL2 = ON Pressing any button will turn the backlight on for 8 seconds. BL1 = ON (Default) Pressing any button will turn the backlight on in dark for 8 seconds. BL0 = OFF

• Press OPTION to confirm the setting and to advance to the next option.

5) RE - Pre-comfort Recovery ON ot OFF

• Select the setting by presing UP or DOWN. RE1 = ON (Default) RE0 = OFF

• Press OPTION to confirm the setting, and to exit the optional settings mode.

Programming

Page 29

Reset

SOFT RESET If the thermostat has an abnormal display, press the RESET (R) button located at the back of the thermostat. The programs and thermostat settings will remain stored in memory, but the clock will have to be set again.

HARD RESET To clear the permanent memory (including all stored programs and settings) or to change the temperature scale (ºC or ºF), a hard reset must be performed. Press and hold the fourth button, and at the same time press and release the RESET (R) button located on the back of the thermostat. The LCD screen will blank out momentarily. When the display reappears, release the fourth button; the thermostat will be back to its default settings.

Programming

Page 30

Supplementary Information

Specications

Number of Programs: 5+1+1 Day Programming with 4 programs per day Temperature display range: 0ºC - 55ºC (32ºF - 131ºF) Temperature setting range: 5ºC - 35ºC (41ºF - 95ºF) Humidity display range: 15% to 95% Humidity setting range: 20% to 70% Battery: 2 x AA size batteries (not included) and 1 x CR2025 size battery (installed)

Page 31

Problem Solution

LCD screen is blank. •Check if the batteries are installed correctly.

•Check if the batteries are fresh and of the correct type.

•Press the RESET button on the back of the unit.

Battery symbol and current temperature is ashing.

• This is an indication that the AA batteries are running low and need to be replaced.

• Switch to OFF mode before changing the batteries.

• Use new AA batteries to replace the old batteries.

Only the battery symbol is ashing .

This is an indication that the 3V (CR2025) lithium battery is running low. This will not affect the normal operation of the thermostat, but it should be replaced soon to ensure memory backup is maintained. Use a screwdriver to remove and replace the lithium battery (see diagrams for the location of the lithium battery).

Heat will not come on. • Check and ensure that the thermostat is set to HEAT mode.

• Check and ensure that the set temperature is higher than the current (room) temperature

• You may have to wait up to 5 minutes before the heat will turn on. The thermostat has a built-in time delay to prevent undesirable on/off sequences.

• After a 5-minute wait, the heat should now be on. Whenever the heating system is running, the heating symbol will be ashing.

Heat will not come on but the heating symbol is ashing .

• Check if the furnace switch and/or pilot ame is turned on, as it may have been turned off.

• Allow several minutes for the heating system to heat up and the fan to activate. Most heaters will heat up the system for a short while before warm air can be ventilated by the fan. Also check that the HE/HG setting is set correctly (see optional settings).

• If the heat still does not come on, check the wiring installation again.

Supplementary Information

Troubleshooting

Page 32

Problem Solution

Air-conditioning will not come on.

• Check and ensure that the thermostat is set to COOL mode.

• Check and ensure that the set temperature is lower than the current (room) temperature

• You may have to wait up to 5 minutes before the air conditioning will turn on. The thermostat has a built-in time delay to prevent undesirable on/off sequences.

• After a 5-minute wait, the air conditioning should now be on. Whenever the cooling system is running, the cooling symbol will be ashing.

Air-conditioning will not come on but the cooling symbol is ashing .

• It is common for the setting and the displayed temperature to differ occasionally. The thermostat will be activated if this difference persists.

• There is a temporary override by the user.

• The sysytem is on HOLD. Press HOLD once to resume normal setting.

The thermostat turns the heating or cooling systems on before my programmed set times.

This is normal if the Pre-comfort Recovery system is enabled. The Pre-comfort Recovery will activate the heating/cooling in advance of the actual programmed set time, so that the room will be at the desired temperature at the start of the program time. See the 'optional settings' section.

Cannot change the thermostat scale from ºC to ºF or vice-versa.

Selecting the temperature scales is a one-time start-up process. After the rst battery installation, you must HARD RESET the thermostat and choose the desired display in ºC or ºF. Otherwise, you CANNOT change the temperature scale (ºC or ºF) later on unless you perform another HARD RESET, which will clear all the programs and thermostat settings. The perform a HARD RESET and select ºC to ºF, rst press and hold the fourth button, and at the same time press and release the RESET button on the back of the thermostat. The LCD screen will blank out momentarily. To select ºF, see the'optional settings' section.

Supplementary Information

Troubleshooting

Page 33

Problem Solution

Heating system seems to cycle too often.

• Check and ensure that you have selected a Cycle Rate that matches your particular heating system. If you nd that it is still cycling too often, you may wish to try a slower cycle rate or disable the cycling.

Humidier will not come on.

• Check and ensure that the thermostat is set to HEAT mode.

• Check and ensure that the set temperature is higher than the current (room) temperature.

• Whenever the humidifer is running, the humidity symbol will be ashing.

Supplementary Information

Troubleshooting

Page 34

Supplementary Information

Limited Four-year Repair Warranty

This product carries a four-year manufacturer's warranty against defects in workmanship and materials. This product is not guaranteed against wear or breakage due to misuse and/or abuse.

If the product is defective, return it with a dated proof of purchase, to the retailer from which you purchased it.

NOT COMPATIBLE WITH ANY 120/240 VOLT CIRCUIT.

CONTROL by/par Canarm™ Customer Service number (English) 1-800-265-1833 Numéro du Service à la Clientèle de Canarm (Français) 1-800-567-2513

Made in China

Imported by/Importé par CONTROL™ by Canarm, CANARM Ltd/ltée., 2157 Parkedale Avenue, Brockville, Ontario K6V 5V6 www.canarm.com
