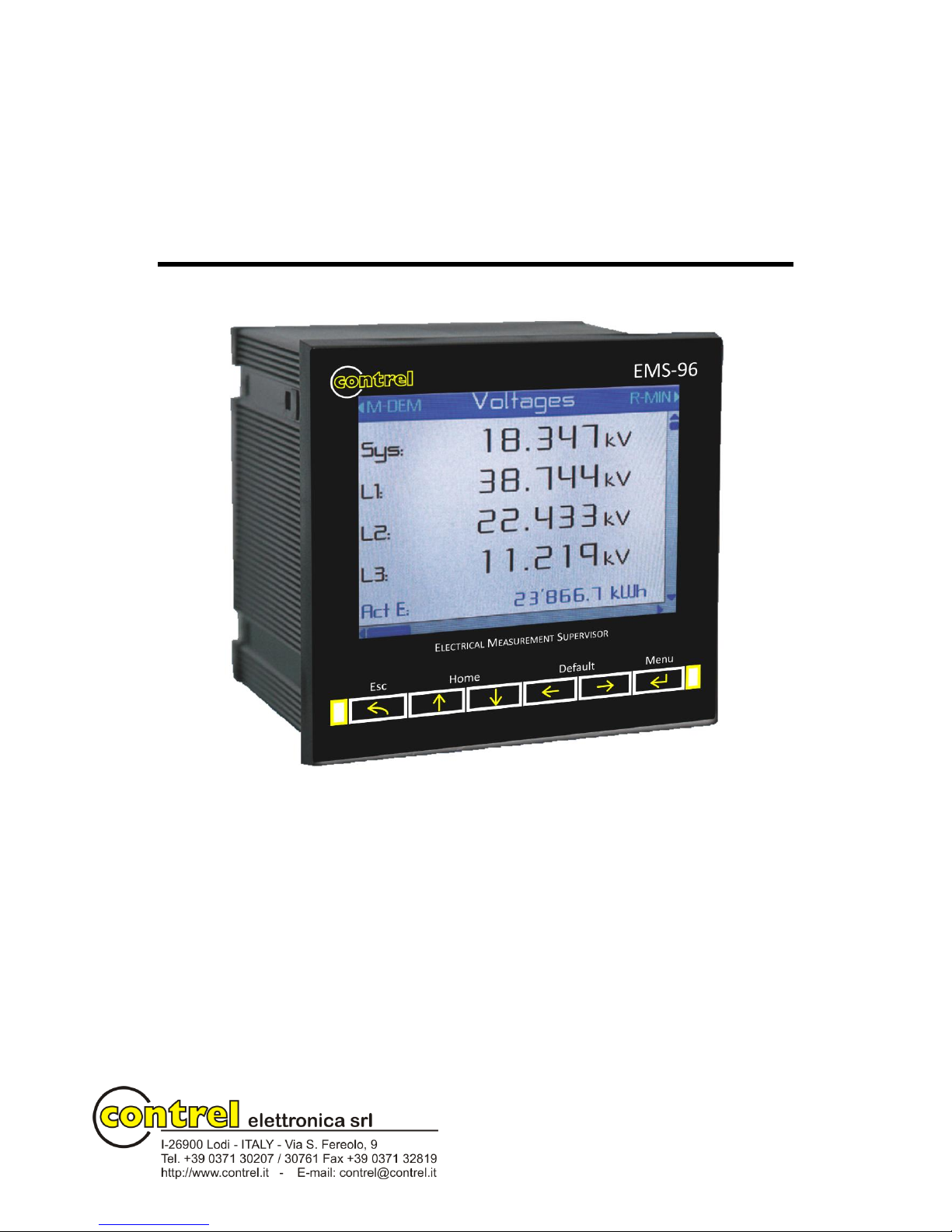

EMS-96

Electrical Measurement Supervisor

User Manual

IM1200-U v1.6

Page 2

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 2 / 48

Index

Description .......................................................................................................................................................................................... 4

Configuration Models ..................................................................................................................................................................... 4

Software Options ............................................................................................................................................................................ 4

Measures Table ............................................................................................................................................................................... 4

Installation .......................................................................................................................................................................................... 5

Connections ........................................................................................................................................................................................ 5

Auxiliary power supply .................................................................................................................................................................... 6

Voltage Inputs ................................................................................................................................................................................. 6

Current Inputs ................................................................................................................................................................................. 6

Digital Outputs ................................................................................................................................................................................ 9

Digital Inputs (option) ..................................................................................................................................................................... 9

Analog outputs (option) .................................................................................................................................................................. 9

I/O options .................................................................................................................................................................................... 10

Serial ports (option) ...................................................................................................................................................................... 12

Profibus port (option) ................................................................................................................................................................... 12

Ethernet port (option)................................................................................................................................................................... 13

MBUS (option)............................................................................................................................................................................... 13

Function keys .................................................................................................................................................................................... 14

Frontal led ......................................................................................................................................................................................... 14

First configuration ............................................................................................................................................................................. 14

Maps ................................................................................................................................................................................................. 15

Menu ............................................................................................................................................................................................. 15

Measures....................................................................................................................................................................................... 17

Graphics ........................................................................................................................................................................................ 19

User Pages ..................................................................................................................................................................................... 20

Setup ............................................................................................................................................................................................. 21

Information ................................................................................................................................................................................... 23

Setup Items ....................................................................................................................................................................................... 24

General .......................................................................................................................................................................................... 24

Measure ........................................................................................................................................................................................ 26

Energies and Counters .............................................................................................................................................................. 30

User pages ..................................................................................................................................................................................... 32

Communication ............................................................................................................................................................................. 34

I/O ................................................................................................................................................................................................. 36

Setpoint ......................................................................................................................................................................................... 38

Log ................................................................................................................................................................................................. 41

Math .............................................................................................................................................................................................. 45

Acronym tables ................................................................................................................................................................................. 46

Acronyms group table ................................................................................................................................................................... 46

Acronyms table of Instantaneous group ....................................................................................................................................... 46

Acronyms table of Energies and TB (from 1 to 16) groups ........................................................................................................... 46

Acronyms table of Average group ................................................................................................................................................ 46

Dimensions ....................................................................................................................................................................................... 47

Technical features ............................................................................................................................................................................. 47

Page 3

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 3 / 48

Information in this document is subject to change without notice and does not represent a commitment on the part of Contrel Elettronica Srl.

This documentation is consigned to the customer to enable the correct and safe operation of the instrument; any other use of documentation is strictly prohibited.

The information contained herein is the property of Contrel Elettronica Srl, and by law, no part of it may be reproduced, transcribed, stored in any retrieval system, or translated into any language by means (even for internal purposes by the customer) without the express written permission of Contrel Elettronica Srl.

In addition, no part of this manual may be transmitted in any form by any means, including photocopying and recording, for any purposes, without the express written permission of Contrel Elettronica Srl.

In case of Copyright violation the customer is directly responsible.

TERMS OF WARRANTY The warranty is valid for the period of twelve months after material receipt. The warranty covers free repair or replacement of equipment parts, which are recognized as faulty due to manufacturing defects. Warranty does not cover those parts which results defective due to misuse or improper use, incorrect installation or maintenance, operation by unauthorized personnel, damage during transportation, or which in any case do not show manufacturing defects of the equipment. Not included in the warranty terms are technical interventions regarding equipment installation to electrical systems. The manufacturer declines any responsibility for eventual injury or damage to persons, animals or things as result of failure to follow the instructions in the user manual or caused by improper use of equipment. The expenses of transport as well as the relative risks of same both to and from the place of repair, will be the sole responsibility of the user. This warranty expires after the date of purchase and any assistance required after said date including spare parts, labour, transport of personnel and material will be charged to the user following the tariffs in force for Technical Assistance Service at the time of such requested service. In any case the replacement of the equipment as well as the extension of warranty after such breakdown is excluded.

Page 4

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 4 / 48

Description

The EMS (Electrical Measurement Supervisor) has advanced analysis functions that allow the measurement of the main electrical parameters: voltage, current, frequency, power factor, active and reactive power, active and reactive energy. The instrument allows the measurement and analysis in real time of electrical parameters, also verifying the quality of the energy thanks to THD measurement. Bidirectional metering of energy allows both production and consumption of energy to be monitored with a single device. All information monitored by the analyzer can be transmitted to remote locations through communication interfaces RS485, Ethernet with the support of numerous protocols including Modbus RTU, Modbus TCP/IP and Profibus DP. Interaction with the control and supervision systems is possible using inputs and outputs, all programmable. EMS reads and displays the energy values measured in other energy meters connected to the network. This is achieved thanks to digital inputs, which are able to acquire the impulses generated by the counters. In this case, EMS acts as a data concentrator. It not only collects information from the electricity meters but also from the water, gas meters or other. EMS allows a complete, in-depth analysis of the network quality thanks to the measurement of the harmonic distortion (20

order) of the voltage and current signals.

Configuration Models

Model

Class

4th current input

Supply

I/O

COM1

COM2

Exp. Mem.

EMS-96

TTA50

TTA100

Neutral current

Differential input 1A

Differential input 5A

Differential input 50A

90÷250

Vac/dc

20÷60

Vac/dc

2DO

2AO

2AO+2DO

4AO

4AO+2DO

RS485

Profibus

MBUS

LON

ETH/Modbus*

ETH/Modbus* + Wifi

---

EMS-96H

0.5S

0.2S

2DO

2DO+4DI 4DO+2DI

6DO 2AO

2AO+2DO

4AO

4AO+2DO

RS485

Option

EMS-96-ETH/WEB**

RS485

/S***

Wifi

/S*** + Wifi

OPTION STANDARD

* Ethernet port with Modbus TCP/IP protocol

** Ethernet port with Modbus TCP/IP protocol and Web server *** RS485 managed by ETH port

Software Options

Model

Timeband* & Preset

Harmonics & SAG

Energy Graphics & Log

EMS-96

to enable

EMS-96H

enabled

EMS-96-ETH/WEB

enabled

* 4 Timebands, optionally is possible to choose 8 or 16 Timebands

To enable one or more options it’s necessary to input a code (Enable option item) in the instrument setup. If the options are requested at the moment of the order the code is already loaded and showed on the instrument report. After the installation, to enable one or more options it is necessary to request the code to the seller, sending the serial number. The seller will deliver the new code to load in the instrument setup.

Measures Table

Parameters

System

Min-Max Rel.

Min-Max Abs.

Average

Max Demand

Voltage L-N

X X X X X X X

Voltage L-L

X X X X X X Current X X X X X X X X

Power Factor

X X X X X X X

Cos

X X X X X X X

Tan

X X X X X X X

Active Power

X X X X X X X

Reactive Power

X X X X X X X

Apparent Power

X X X X X X X

Frequency

X X X X X X X

THD Voltage

X X X X X X THD Current

X X X X X X

Harmonics

Active Energy OUT

X X X X

Reactive Energy IN

X X X X

Reactive Energy OUT

X X X X

Apparent Energy

X X X X

Expected Power

X X X X SAG (X)*

(X)*

(X): only the selected electric line *: option

Page 5

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 5 / 48

Installation

Warning for the user

Read carefully the instructions/indications contained in this manual before installing and using the instrument. The instrument described in this manual is intended for use by properly trained staff only.

Safety

This device has been manufactured and tested in compliance with EN 61010-2 standards. In order to maintain these conditions and to ensure safe operation, it need to comply with the indications and markings contained in the manual. When the device is received, before beginning installation, check that it's O.K. And it has not suffered any damage during transport. When starting installation make sure that the operating voltage and mains voltage are compatible with the device instructions. The device power supply must not be earthed. Maintenance and/or repair must be carried out only by qualified and authorized personnel. If there is ever the suspicious that, that there is a lack of safety, during operation, the device must be disconnected and cautions taken against accidental use.

Operation is no longer safe when:

- The instrument doesn't work.

- The measured value are obviously wrong or unreasonable.

- There is visible damage.

- After serious damage incurred during transport.

- After a storage under unfavourable conditions.

During normal operation of the devices, hazardous voltages at its terminals and in particular on the terminals of voltage and current transformers connected and on the terminals of the digital input and outputs. The secondary circuits of the voltage and current transformers are capable of generating hazardous voltages and currents when their primary circuit is powered. Follow the standard safety precautions when performing any installation or service (such as making sure that the power supply is disconnected, disconnecting the fuses of the transformer voltages, short-circuiting the secondary of current transformers etc.). Don’t use the instrument when failure may cause injury or death, or generate sufficient energy to cause a fire. The instrument is equipped with a fuse on the power supply type: 5x20mm 1A 250V time lag.

Connections

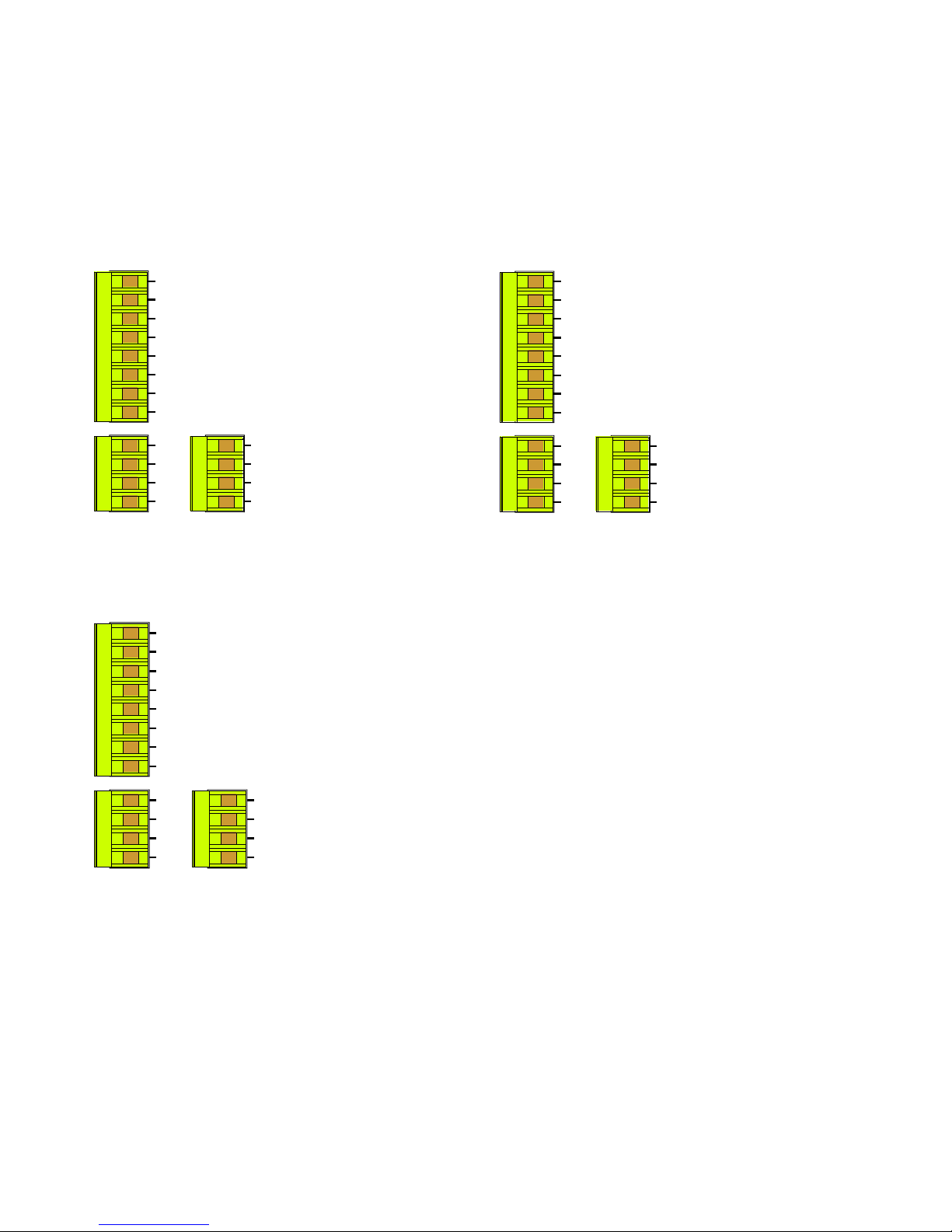

EMS-96-ETH with all I/O and COM ports terminal boards. EMS-96 or EMS-96H with all I/O, COM port terminal boards

and profibus port.

ETHERNET PORT

COM PO RTS

I/O

VL3

VL2

VL1

Do Do

I/O

VL3

VL2

VL1

Do Do

Page 6

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 6 / 48

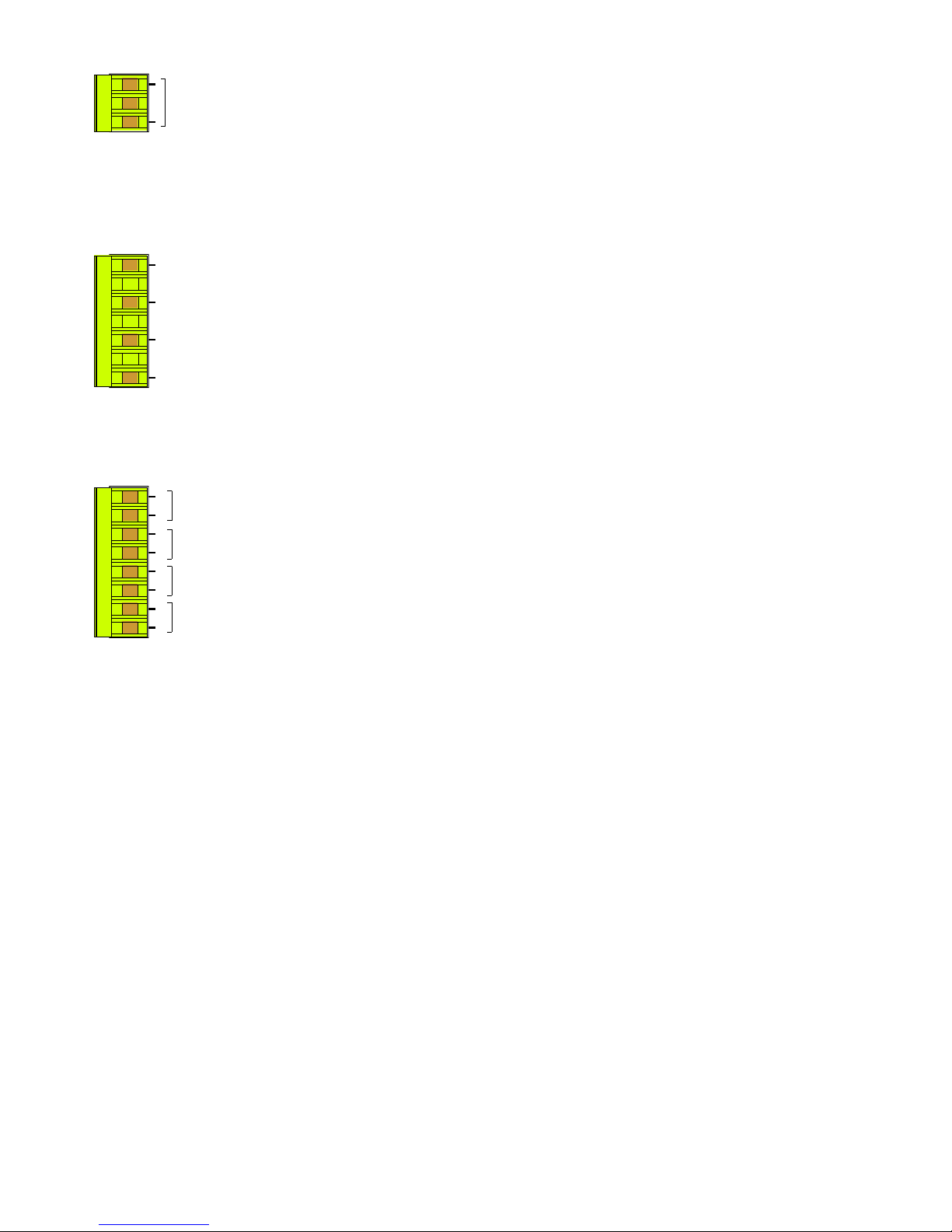

Auxiliary power supply

The instrument can be supplied with a voltage independent by the monitoring line. In this case, the instrument continues to operate independently by the voltage present on the lines under control. Alternatively, only for 90÷250Vca/cc version, it is possible to take the power from the network under test, using

the phase and neutral for a 4-wire network, phase to phase in a 3-wire system without neutral or from a VT in a MT application. In this case when the voltage of the monitored line falls below the minimum limit, the instrument turns off. The instrument can be supplied in two different configurations of power supply:

Standard Version

90÷250 Vac/dc

Option Version

20÷60 Vac/dc

Voltage Inputs

4 terminals are available for direct connection to 3 phase network with neutral. In case of a 3 phase balanced

system without neutral, or non distributed neutral to leave terminal N free.

3 inputs, range 30 ÷ 400Vac phase to neutral - 52 to 693Vac phase to phase (see Technical Features table for

details); over these values must used the external voltage transformers.

Frequency range: 50/60Hz.

Permanent overvoltage allowed: 480Vac phase to neutral - 830VAC phase-phase.

Overvoltage category: II (permanent installations).

Pollution degree: 2 (normally non-conductive, conductive condensation temporary). Input resistance: > 1.8MΩ. Load (Burden) for each voltage input: 0.09VA. Note: To detect the frequency of the network the terminal VL1 must be always connected.

Current Inputs

Current measurements can be performed by connecting the terminals of Current inputs. All current inputs are isolated by current transformers with different ranges depending on the model of the instrument. They can be interfaced directly to the line to be monitored or to be connected to the output of external CT with higher range. The connections to the lines to be monitored are described in chapter “Wiring diagrams”. With neutral current input option installed, the instrument allows the direct measurement of neutral current in the same way described for the line inputs.

NOTE: it is essential to observe the correct phase sequence, not invert the connections between the phases of the current inputs and voltage (i.e. the CT placed on L1 phase must absolutely match at I1 Current and VL1 voltage). Do not invert the terminals S1 and S2 of the CT because the measurement of power factors, and the powers would no longer be trusted.

Version 5A

Three-phase current inputs isolated by 3 internal current transformers. Nominal current range 50mA÷5A; over these values must be used the external current transformers. Load (Burden) for each current input: 0.0009VAmax.

Version 1A

Three-phase current inputs isolated by 3 internal current transformers. Nominal current range 10mA÷1A; over these values must be used the external current transformers. Load (Burden) for each current input: 0.0009VAmax.

Version TTA50

Three-phase current inputs isolated by 3 external current transformer (openable). Nominal current range 500mA÷50A.

Version TTA100

Three-phase current inputs isolated by 3 external current transformer (openable). Nominal current range 1A÷100A.

Neutral Current: the nominal current range depends by the version.

AUX

S2 S1

S2 S1 S2 S1 S2 S1

VL3

VL2

VL1

Page 7

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 7 / 48

In case of connection in a 3 phase network (without

neutral or with neutral not distributed) don’t connect the

N terminal.

WARNING: If the instrument has the TTA on the current inputs, DON’T connect the S2 terminals to the earth.

This connection with only 2 CT allows to measure accurately the three-phase currents.

WARNING: If the instrument has the TTA on the current inputs, DON’T connect the S2 terminals to the earth.

This connection can be used with distributed and equal loads. It is possible to measure the current on one phase (using only one CT). The unmonitored phase currents are mathematically calculated. The measurement of neutral current is optional.

WARNING: If the instrument has the TTA on the current inputs, DON’T connect the S2 terminals to the earth.

In presence of multiple balanced loads in a three-phase network, the instrument calculates the electrical parameters checking a single phase current for each load, allowing to limit the number of CT used.

WARNING: If the instrument has the TTA on the current inputs, DON’T connect the S2 terminals to the earth.

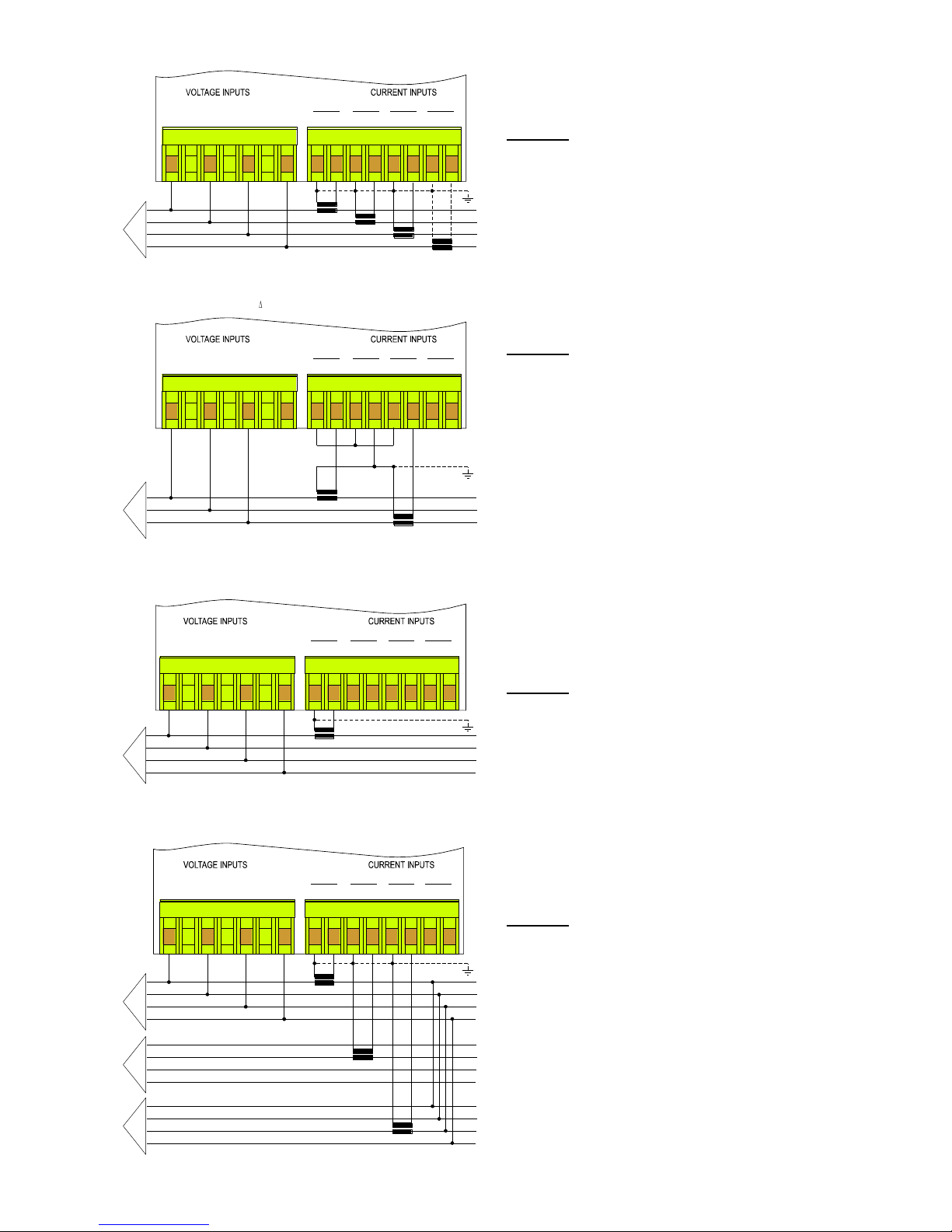

Three-P hase, balanced loads, 4-W ires Configuration

Three-P hase, balanced multiple loads, 4-Wires Configuration

Three-P hase, 4-Wires Y Configuration

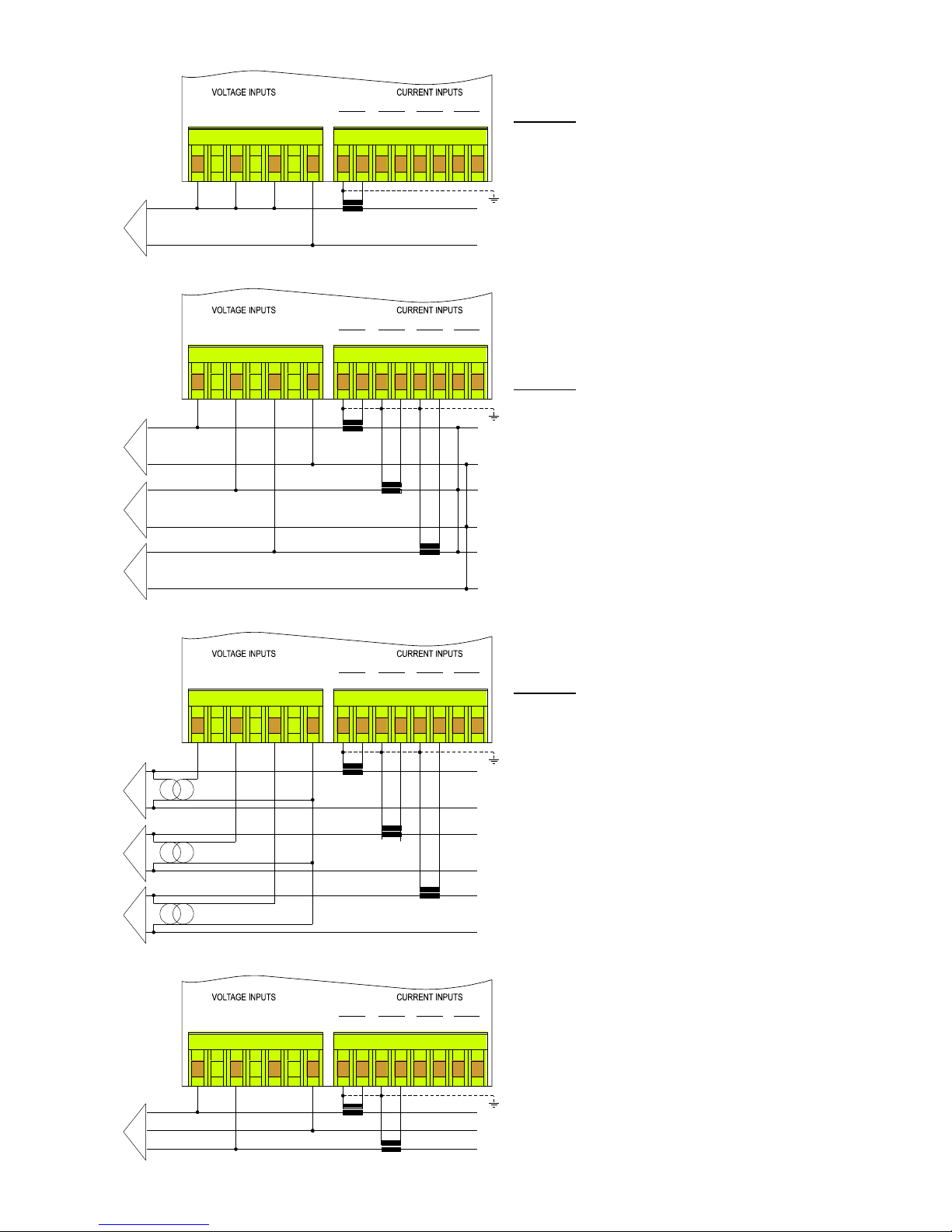

Three-P hase, 3-Wires Configuration. AR ON ins ertion (2CT)

LOAD

L1 L2 L3

EMS

P2S2P1

VL3

VL2

VL1

LOAD

L1 L2 L3

EMS

VL3

VL2

VL1

L1 L2 L3

LOAD

EMS

VL3

VL2

VL1

P2S2P1

L1 L2 L3

LOAD

EMS

VL3

VL2

VL1

P2S2P1

Page 8

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 8 / 48

It is mandatory to connect the current input I1 and voltage input VL1.

WARNING: If the instrument has the TTA on the current inputs, DON’T connect the S2 terminals to the earth.

The electrical parameters are measured for individual loads. For correct calculation of power and energy, is mandatory to connect the voltage inputs related to the used current inputs.

WARNING: If the instrument has the TTA on the current inputs, DON’T connect the S2 terminals to the earth.

If necessary to apply a multiplier factor “K” to adapt the

measure read, please consider that only one K for voltages and only one K for currents can be set.

WARNING: If the instrument has the TTA on the current inputs, DON’T connect the S2 terminals to the earth.

Single-Phase, 3 loads in 3 different netw orks, 6-Wire s Configuration

Two-Phas e, 3-W ires Configuratio n

Single-Phase, 2 -Wires Config uration

Single-Phase, m ultiple loads in the same network, 2-Wires Configuration

LOAD

EMS

P2S2P1

VL3

VL2

VL1

LOAD

EMS

VL3

VL2

VL1

P2S2P1

LOAD

EMS

VL3

VL2

VL1

LOAD

P2S2P1

LOAD

EMS

P2S2P1

VL3

VL2

VL1

P2S2P1

Page 9

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 9 / 48

Digital Outputs

2 pulse / state digital outputs are available on the device. In option it is possible to have others pulse / state

digital outputs or simply others state digital outputs.

The technical features are:

- Compliance with CEI EN62053-31 (Class A devices)

- Maximum of digital output available: 8

- Isolation level: 4KV

RMS

for 60 sec.

- Output type: Photo-MOS (solid state); a “non-closed Output” is comparable to an open contact

- Output voltage/current: 10÷300V

150mA

max

; 12÷250VAC 150mA

max

- R

= 8Ωtyp. (12Ω

MAX

)

- “Pulse” output mode:

- T

ON_min

30ms; T

OFF_min

30ms

- Pulse output period adjustable from 60ms to 1000ms

- Pulse polarity programmable (active closed or active open)

- Programmable pulse “weight”.

Output protections: varistor for transients; current limiting to be provided externally. The PhotoMOS have a behaviour identical to a mechanical contact which closes. Therefore, there are not problems with the polarity.

Digital Inputs (option)

The EMS can be equipped with isolated Digital Inputs. The Digital Inputs are available only with the relative option. The technical feature are:

- Number of Digital Input: 2 or 4 depending on the option version

- Input Configuration: independent inputs (no common pins)

- Isolation level 3.5KV

RMS

for 60 sec

- Voltage Input Range: 24, 48, 115, 230Vac/dc (only one of the available options to choose in the order)

- Nominal Input Current: max 5mA each @ all nominal voltages

- Input Filter: Digital

- Basic Operation Mode: pulse counter, status, change of time-band

- T

ON_min

30ms; T

OFF_min

30ms; The Voltage input must be defined before to order the instrument. The AC/DC digital input are independent (no common pin) and can be wired without polarity care.

Analog outputs (option)

The instrument can be equipped with analog outputs. The options available allow to have 2 or 4 analog outputs matched or not with 2 digital outputs. Each output can operate independently of others in voltage or current. The technical features are:

- Isolation level: 3.5KV

RMS

for 60 sec

- Lenght of connection: up to 1200m

- Resolution: 12 bit (4096 values)

- Range*: 0÷20mA or 4÷20mA 0÷10V or -10÷10V or 0÷5V or -5÷5V

- Load*: Max: 600Ω Min: 1KΩ

- Settling time*:

50µs (0÷20mA) @R

LOAD

=1K ,

LOAD

=200pF, L

LOAD

=1mH

50µs (-10 ÷10V) @R

LOAD

=1K ,

LOAD

=200pF

- Error*: Max 0.5 on E.S. Max 0.3 on E.S.

Typical 0.2 on E.S. Typical 0.1 on E.S.

- Linearity:0.01 on E.S.

- Thermal stability: 0.01 on E.S.

* The values indicated in the left column are referred to the current analog output; in the right column to the voltage analog output.

The analog outputs are polarized.

Do1Do1+

Do2Do2+

Page 10

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 10 / 48

I/O options

It’s possible to add 7 optional configurations of I/O at the standard configuration:

a) 4 digital inputs and 2 digital outputs b) 6 digital outputs c) 2 digital inputs, 4 digital outputs d) 2 analog outputs

e) 2 analog outputs and 2 digital outputs f) 4 analog outputs g) 4 analog outputs and 2 digital outputs

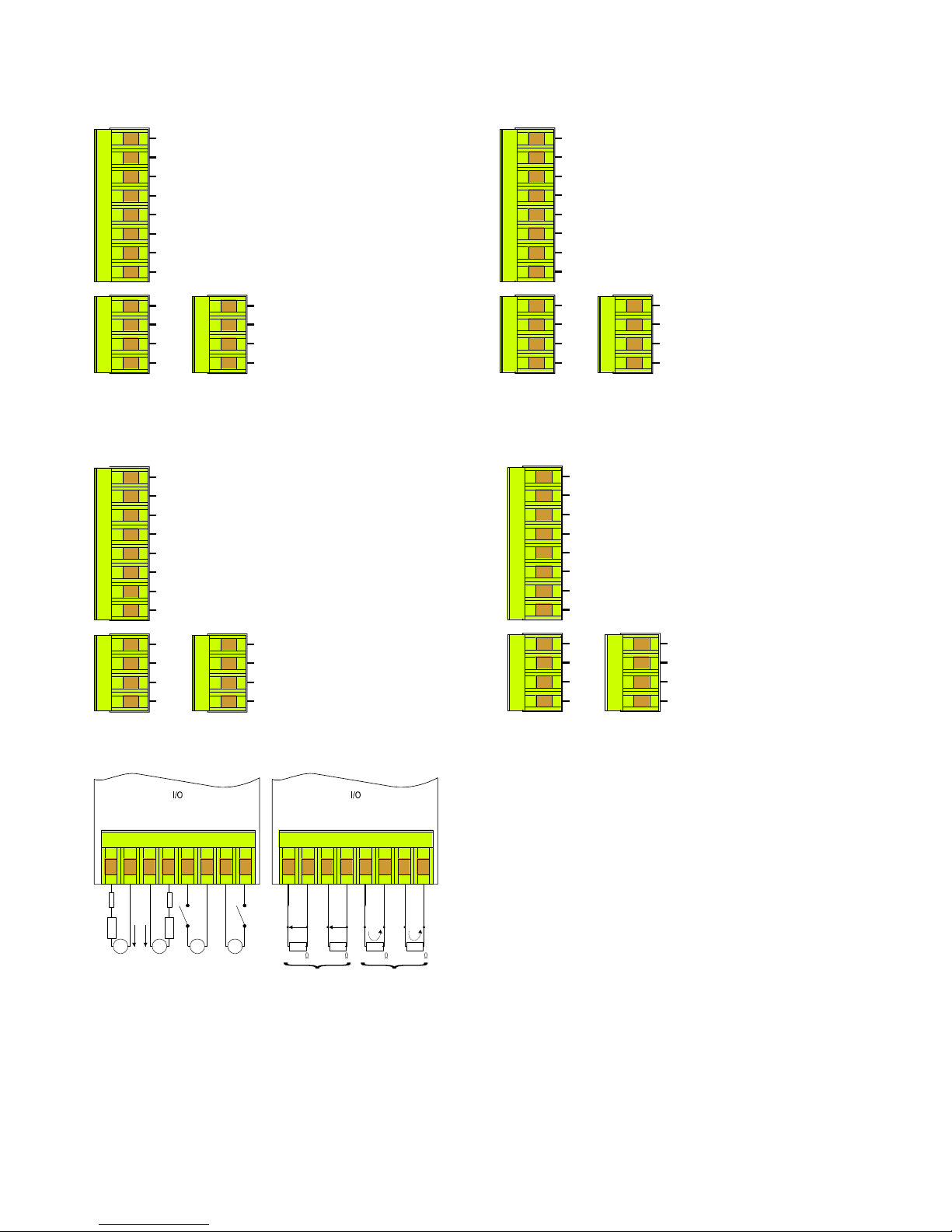

4 digital inputs and 2 digital outputs (option)

With this option the instrument will be equipped with:

- 4 digital inputs

- 4 pulse / state digital outputs.

6 digital outputs (option)

With this option the instrument will be equipped with 8 digital outputs divided in the following way:

- 4 digital outputs

- 4 pulse / state digital outputs.

2 digital inputs, 4 digital outputs (option)

With this option the instrument will be equipped with:

- 2 digital inputs

- 2 digital outputs

- 4 pulse / state digital outputs.

Di1Di1+

Di2Di2+ Do6Do6+ Do5Do5+

Do3Do3+

Do4Do4+

Do1Do1+

Do2Do2+

Di1Di1+

Di2Di2+ Di3Di3+ Di4Di4+

Do3Do3+

Do4Do4+

Do1Do1+

Do2Do2+

Do8Do8+

Do7Do7+ Do6Do6+ Do5Do5+

Do3Do3+

Do4Do4+

Do1Do1+

Do2Do2+

Page 11

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 11 / 48

2 analog outputs (option) With this option the instrument will be equipped with:

- 2 pulse / state digital outputs

- 2 analog outputs.

2 analog outputs, 2 digital outputs (option) With this option the instrument will be equipped with:

- 4 pulse / state digital outputs

- 2 analog outputs.

4 analog outputs (option) With this option the instrument will be equipped with:

- 2 pulse / state digital outputs

- 4 analog outputs.

4 analog outputs, 2 digital outputs (option)

With this option the instrument will be equipped with:

- 4 pulse / state digital outputs

- 4 analog outputs.

Ao1Ao1+

Ao2Ao2+

Do1Do1+

Do2Do2+

Ao1Ao1+

Ao2Ao2+

Do3Do3+

Do4Do4+

Do1Do1+

Do2Do2+

Ao1Ao1+

Ao2Ao2+ Ao3Ao3+ Ao4Ao4+

Do1Do1+

Do2Do2+

Ao1Ao1+

Ao2Ao2+ Ao3Ao3+ Ao4Ao4+

Do3Do3+

Do4Do4+

Do1Do1+

Do2Do2+

Digital Inp uts/Outputs

Ao1-

Ao2-

Ao3-

Ao4+

Ao1+

Ao2+

Ao3+

Ao4-

Voltage analog outputs

EMS

Di1-

Di2-

Do2-

Do1+

Di1+

Di2+

Do2+

Do1-

24, 48,

115, 230 Vaa/d c

dependin g by the version

fuse

150mA ma x

12÷230

Vac/dc

12÷230

Vac/dc

EMS

out

Load

out

Min 1K Min 1K

Current anal og outputs

out

Max 600 Max 600

Analog O utputs

LoadLoadLoadLoad

Load

Page 12

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 12 / 48

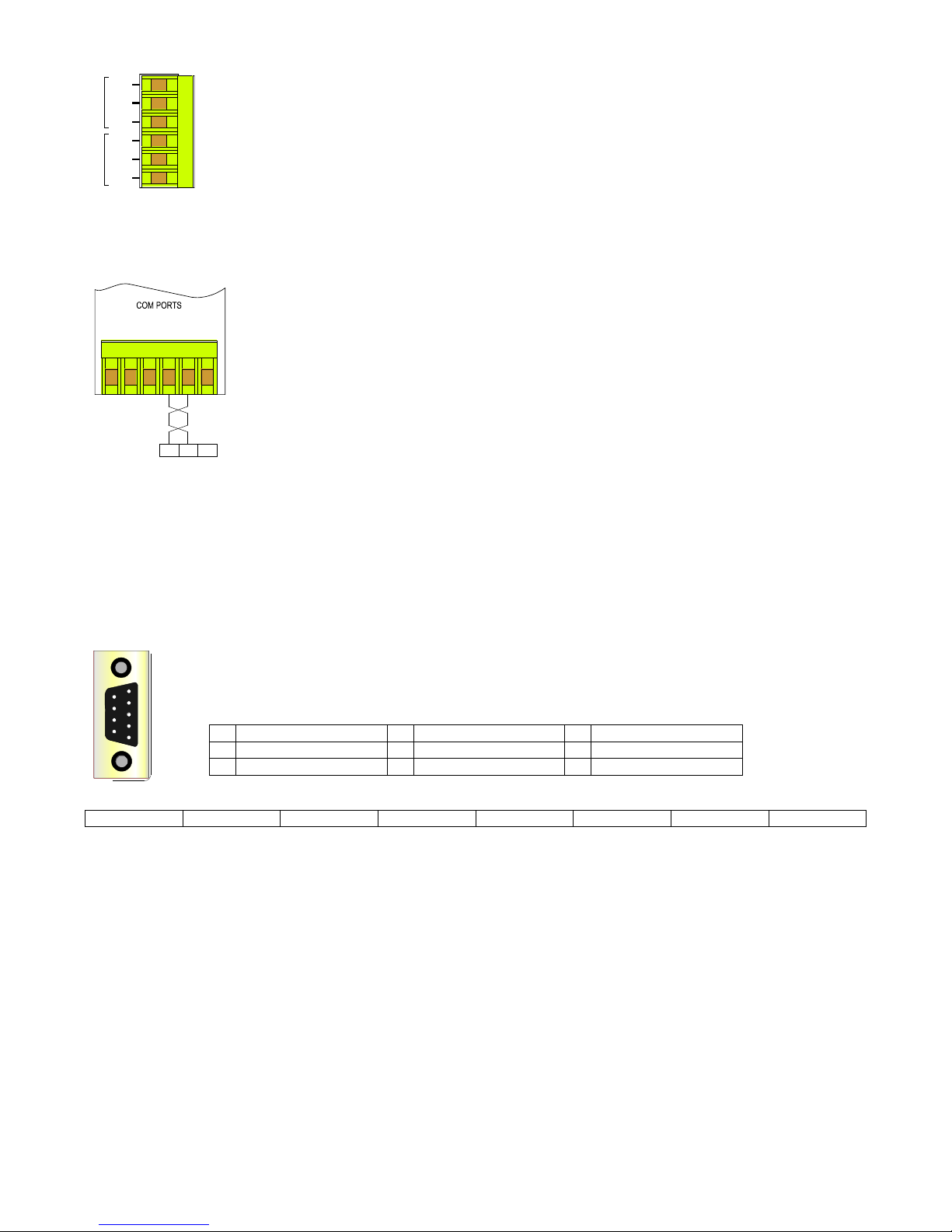

Serial ports (option)

Depending on the version, the instrument can be equipped with one or two isolated half duplex RS485 serial interface. Two options are available: 1 serial port RS485 2 serial ports RS485 With these options the instrument can communicate with the external with the Modbus protocol. The two ports are independent and they can perform the same operations. The presence of the serial port RS485 allows the software update.

COM1 A1: +data B1: -data C1: common

COM2 A2: +data B2: -data

C2: common The instrument communicates via a asynchronous isolated serial interface in the standard RS485 Halfduplex that allows a connection in a network up to 247 nodes. This allows to implement a communication network between different instruments and a master unit (data concentrator) for a detailed control of an electrical installation. The maximum length of the line depends on variables such as the transmission rate and characteristics of the cables used. It’s recommend to use a shielded twisted pair cable with low attenuation, with a minimum section of 0.36mm2 (22AWG) and capacity of less than 60pF / m.

The maximum length is about 1200m. For longer distances it’s need to use signal amplifiers (repeaters).

High networking length and/or where environments are electrically "noisy", it requires the use of two termination resistors (at the beginning and end of the line) of 100 -120Ω. The use of repeaters is also necessary in the case of networks with more than 32 nodes. At each repeater can be connected 32 units. Please note that complex networks with large number of nodes cause a slower speed of response by

the instruments. Connection type: half-duplex (2 wires + common). Isolation: opto-couples (3750 Vrms min.). In the figure is showed a connection with a not shielded cable. In the shielded cable connection it’s necessary to connect th e shield to COM terminal.

Profibus port (option)

Profibus-DP is a multi-master systems. In the networks it’s possible to have up to 126 devices on the same bus. In profibus-DP networks, the interchange of data between peripheral modules and the master is made automatically by the profibus controller, which ‘virtualise’ the data exchange memory of the DP devices in the memory of the master. In the following picture the pin-out of the Profibus-DP port:

The profibus interface detects automatically the baud rate of the network; the baud rate available are:

9.6 Kbit/s

19.2 Kbit/s

45.45 Kbit/s

93.75 Kbit/s

187.5 Kbit/s

500 Kbit/s

1.5 Mbit/s

3 Mbit/s

It’s possible to request to the manufacturer application examples, GSD files and protocol manual (IM157).

The 3 yellow led on the back have the following meanings:

- instrument not parameterized: the 3 led turn on continuously in the sequence PAR - ExB - ExA

- instrument parameterized: led PAR turned on

- instrument parameterized and in communication: led PAR on, led ExA and ExB turn on independently

Service: port used by the manufacturer only.

Not connected

RTS

Not connected

Gnd

RxD/TxD-N (A)

RxD/TxD-P (B)

Power Supply (+5V)

Not connected

A2 B2

C2 A1 B1 C1

COM2-RS485COM1-RS485

EMS

A1+

A2+

B1-

B2-

Master

Concentrator

Other instrument

COMA+ B-

Page 13

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 13 / 48

Ethernet port (option)

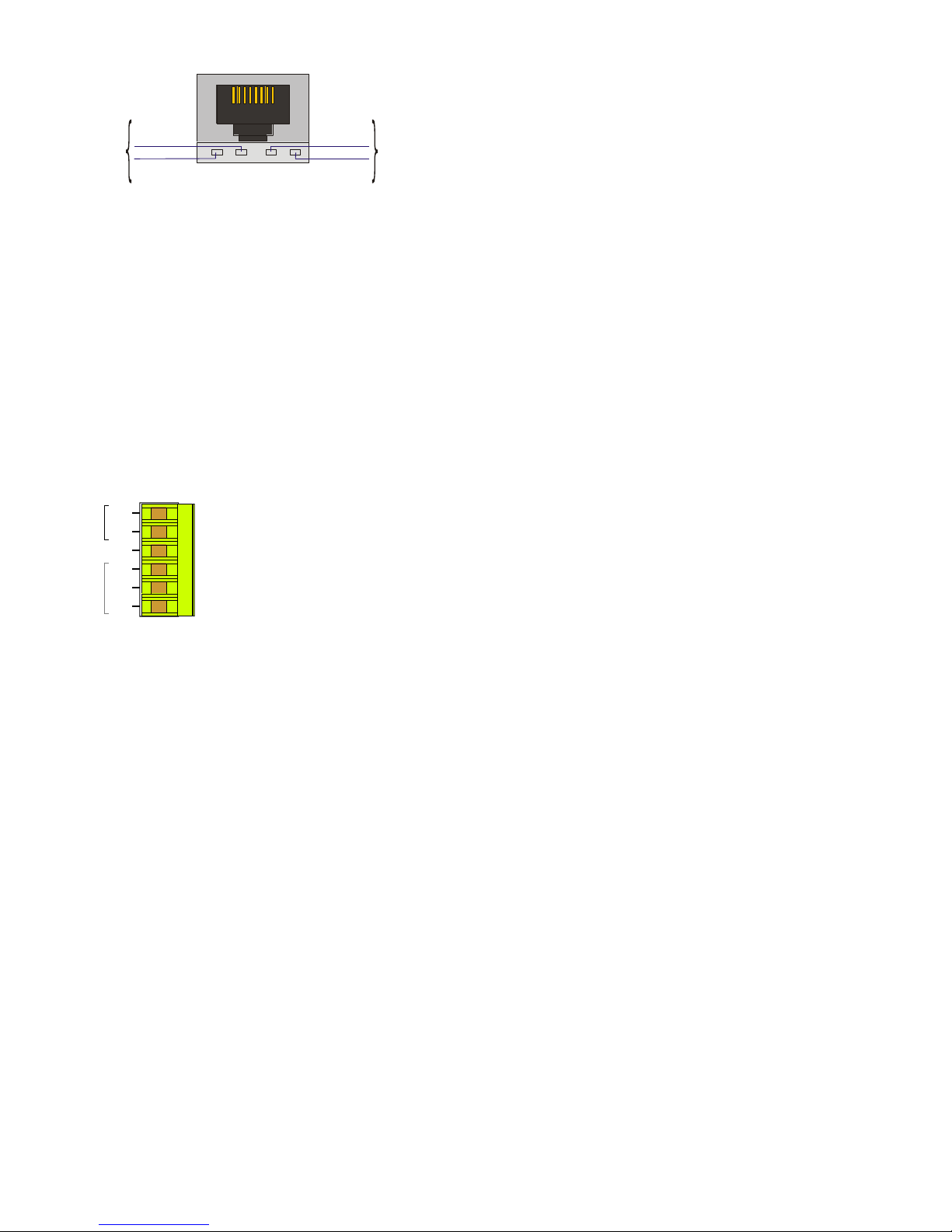

The Ethernet port (RJ45 connector) of EMS96 incorporates 4 LED (2 status LED and 2 Ethernet status LED). The green LED of Ethernet status, Link/Data, is turned on when the Ethernet cable is plugged into the device. The LED blinks whenever an Ethernet pack is received. The yellow LED of the Ethernet status, 100BaseT, is turned on when the device links with the hub at 100Mb. The LED is off when the link is established at 10Mb.

The status LED indicates the communication in transmission TX (green LED) and the communication in receiving RX (red LED).

The SERVICE button has the function to restore the factory parameters following this steps: turn off the instrument, turn on the instrument, wait for end of blinking green LED, press and hold the button for at least 10 seconds, turn off and turn on the instrument.

The options available with the Ethernet port are:

a) Ethernet port with Modbus TCP/IP protocol b) Ethernet port and Wifi with Modbus TCP/IP protocol c) Ethernet port with Modbus TCP/IP protocol and Web server built d) Ethernet port with Modbus TCP/IP protocol, Web server and an additional RS485 serial port used as Modbus RTU-TCP/IP

converter

e) Ethernet port and Wifi with Modbus TCP/IP protocol, Web server and an additional RS485 serial port used as Modbus RTU-

TCP/IP converter.

MBUS (option)

The wiring is performed using two conductors (MBUS1 and MBUS2 connected to A2 and B2) that are used for the data transmission and power supply of the MBUS communication module. The connection is independent of the polarity.

Green Led Red Led

Status

Led

Ethernet

status

led

Green Led

Yellow Led

A2 B2

C2 A1 B1 C1

MBUSCOM1-RS485

Page 14

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 14 / 48

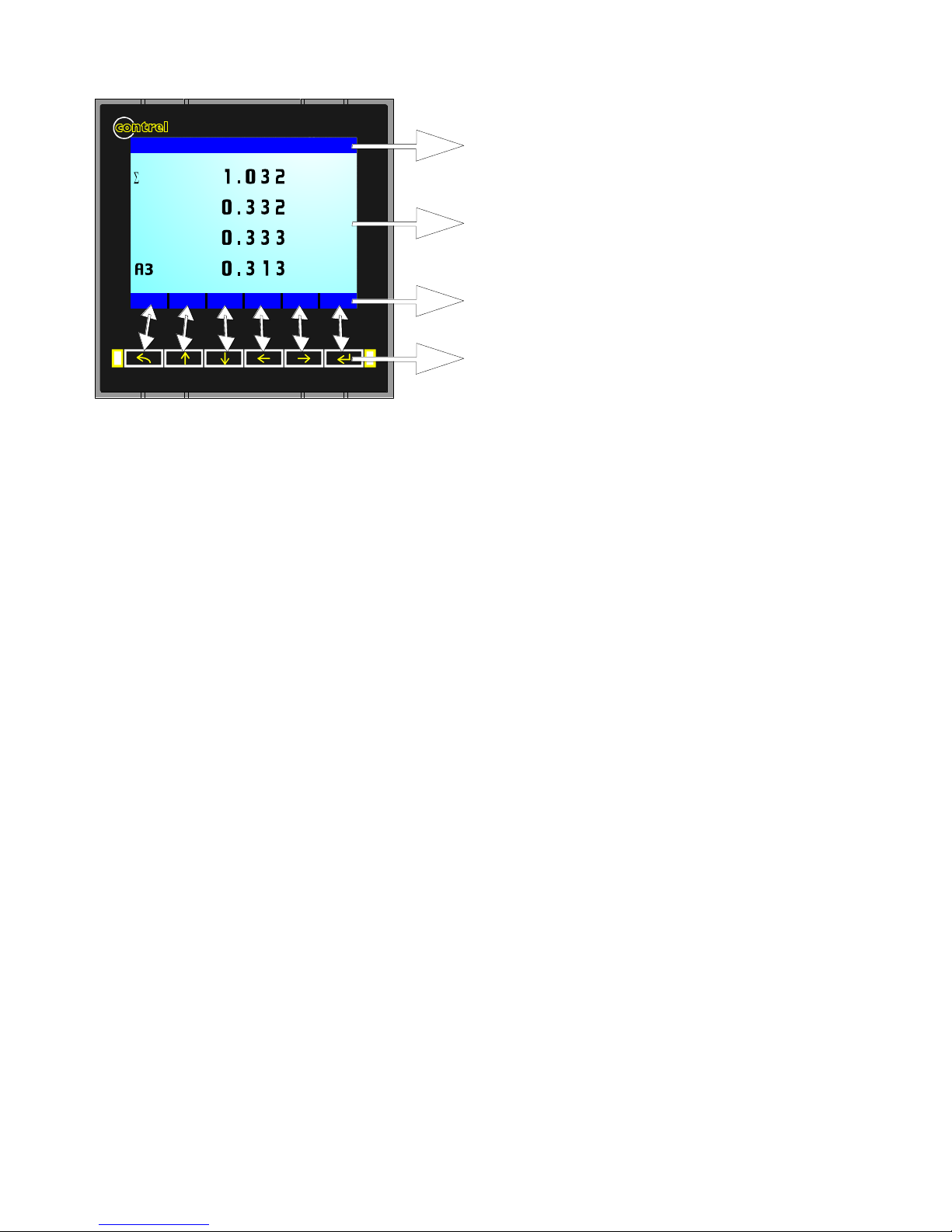

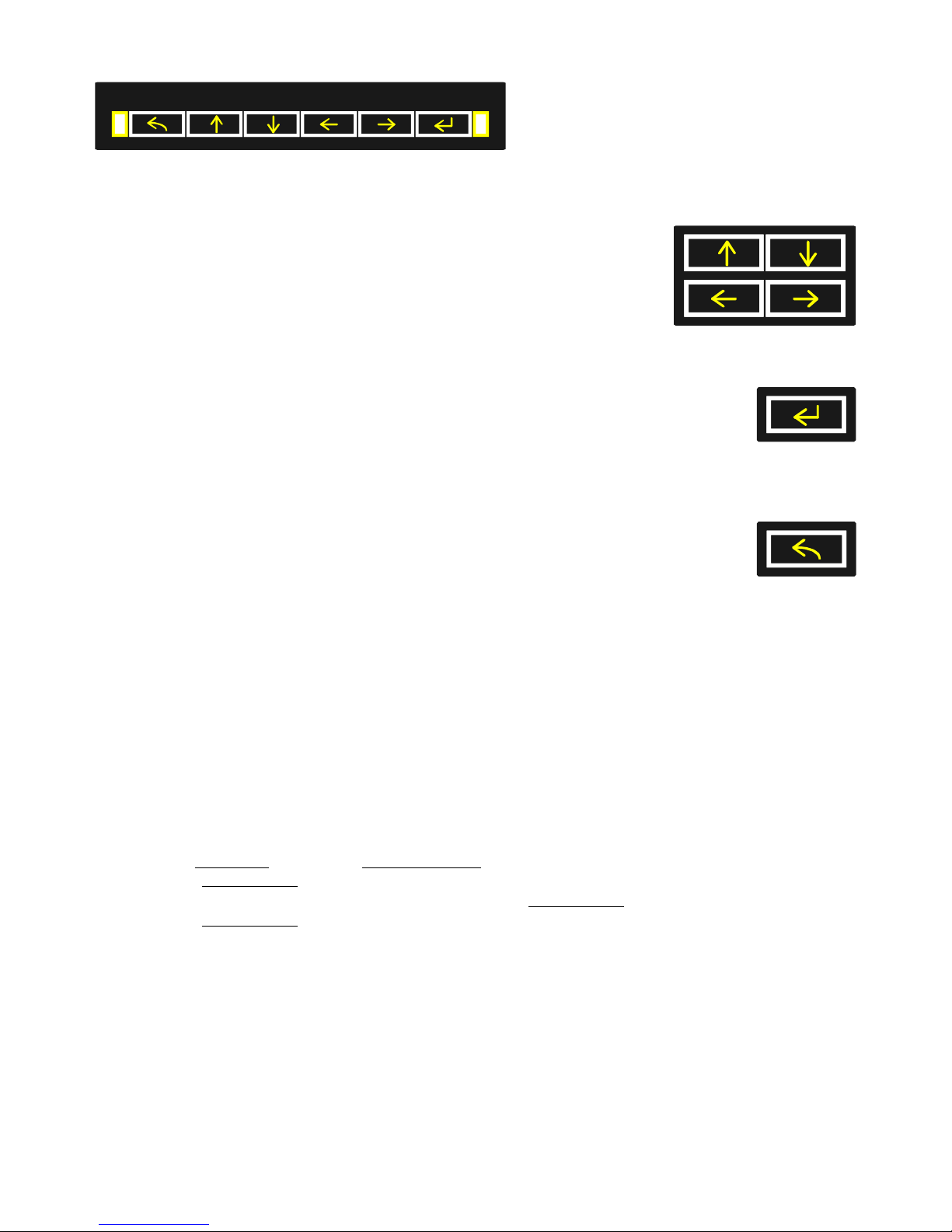

Function keys

Directional keys (Up/Down/Left/Right)

The directional keys are used to change the pages in Measures, Graphics, Info Device e Setup. In the next chapters the maps show how to move between pages. At the same time the directional keys allow to move and select items inside the Menu. The Up and Down keys are used to increases and decrease or simply to change the set values in the Setup pages. Pressing at the same time the Up and the Down keys to return from the actual to default page. Pressing at the same time the Left and the Right keys it’s possible to define the default page. The title page will change the colour and the “home icon” will appear near the text to confirm the new default.

Enter key

When the Enter key is pressed in Measures, Graphics, Info Device and Setup pages it allows to enter in the Menu and it is used to confirm the item selected. In the Setup it allows to modify and to confirm the new value. In the Measures and Graphics pages, when the key is released after a long press (more than 4 seconds) the map of the pages is showed on the display; in the User Pages, instead, it allows to escape by opening the menu.

Esc key

This key is used:

- to skip without to confirm the modify

- when a page of Measures, Graphics, Info Device and Setup is displayed, pressing Esc the display will show

all levels path to reach the last page opened by using the menu from the turning on of the instrument.

Frontal led

On the frontal panel there are two led that blink proportionally to the energy read. For default the right red led shows the “System Active Energy IN” and the left red led shows the “System Reactive Energy IN”. In the setup is possible to modify the default set with the following parameters:

- System Active Energy IN

- System Active Energy OUT

- System Reactive Energy IN

- System Reactive Energy OUT

- System Apparent Energy

The weight of the pulses of these led is 0.1 Wh, VArh, VAh for each pulse. This value is not modifiable.

First configuration

At the first switch on and after every Global Reset the instrument allows to set the main parameters for a correct used:

1) Language selection

2) Wiring (see Connections paragraph and Wiring/Conventions table)

3) CT ratio (see Transform Ratio table)

4) CT-N ratio (only if the neutral CT is mounted on the instrument, see Transform Ratio table)

5) VT ratio (see Transform Ratio table)

6) Hour

7) Minutes

8) Seconds

9) Day of week

10) Day

11) Month

12) Year

Home MenuEsc DefaultHome MenuEsc Default

Page 15

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 15 / 48

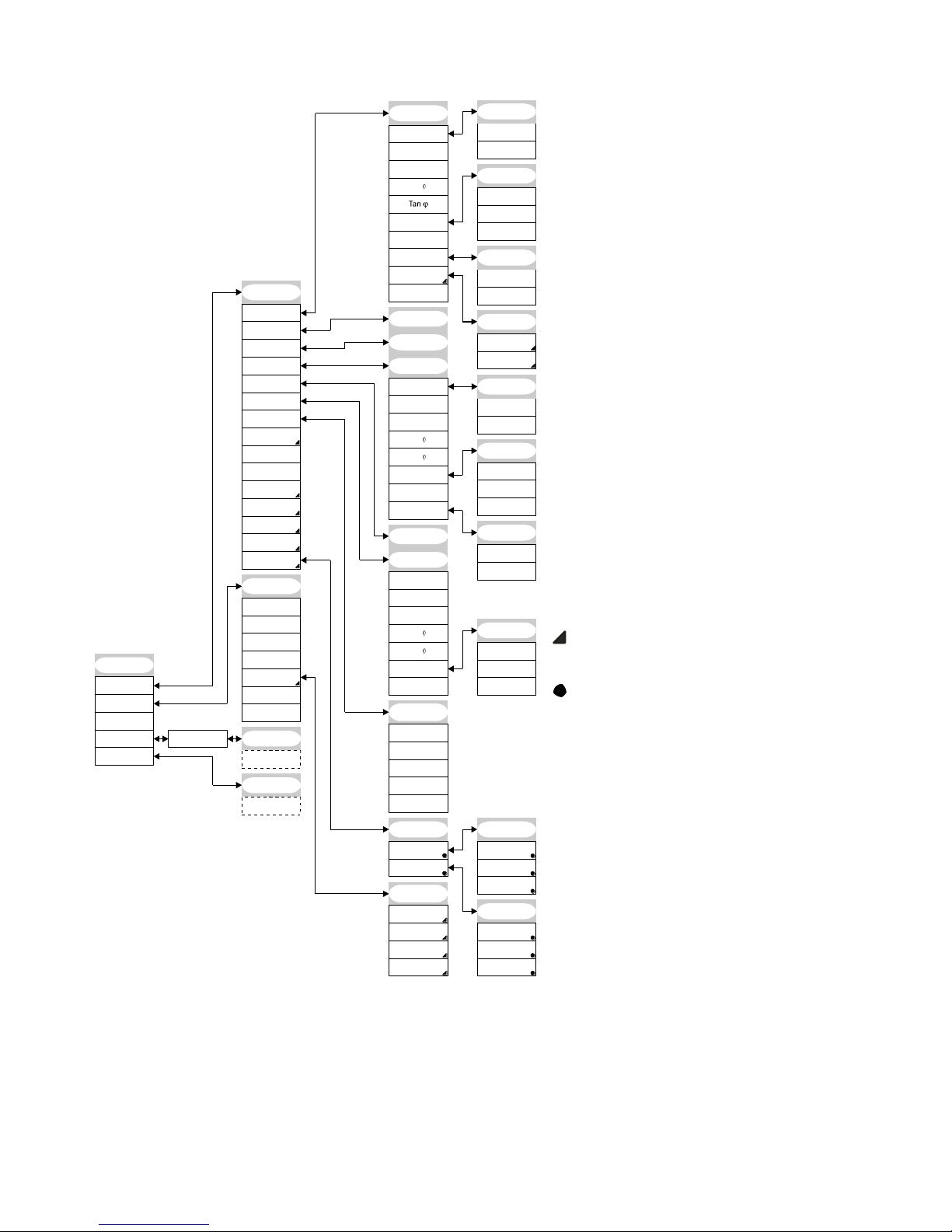

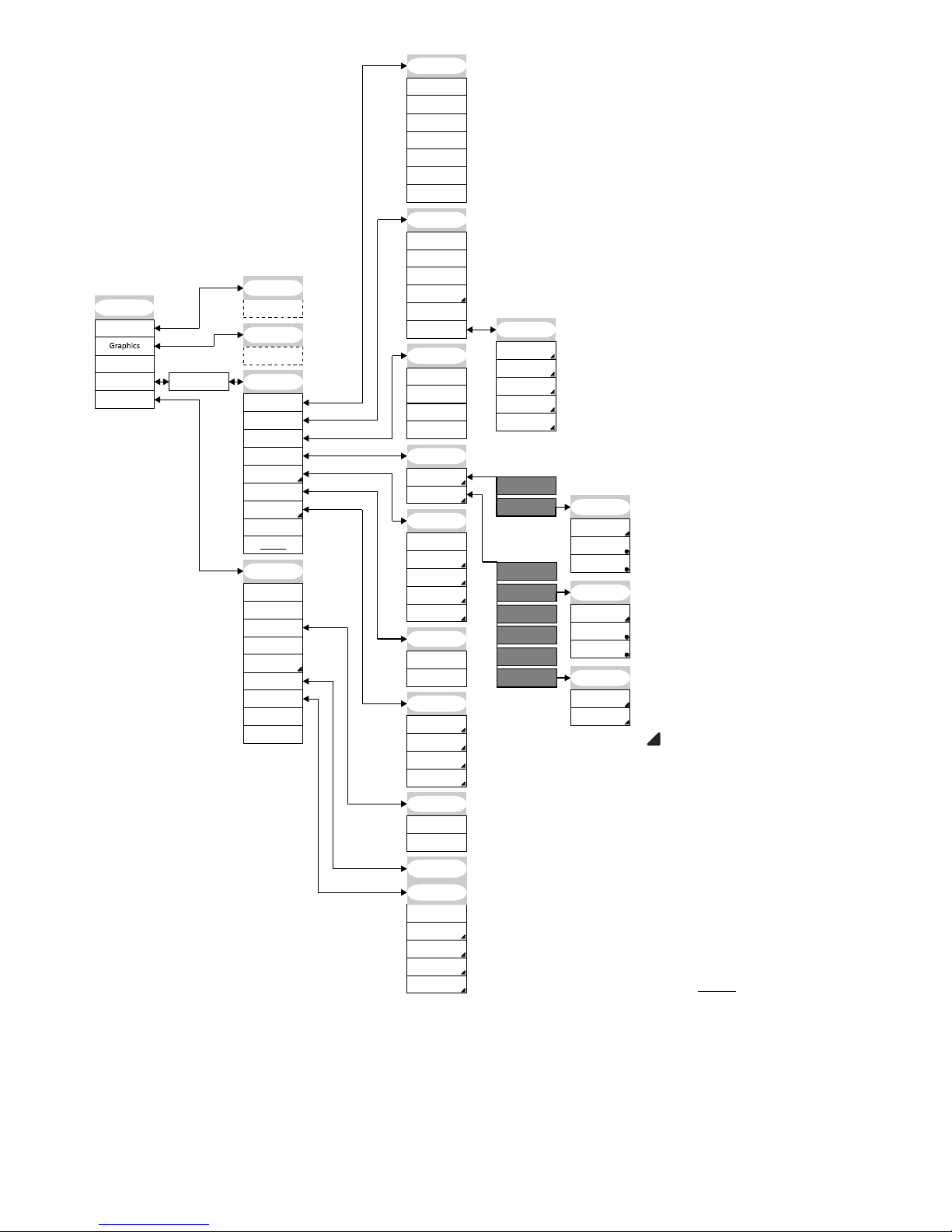

Maps

: this item is selectable only with the presence of

relative option.

: this item is selectable only if the relative COM is set as Master mode. The number of instruments displayable (from 1 to 20) depends on the setting of the "Slaves to read".

***: this item is selectable only if COM1 or COM2 is present and in Master mode.

To move inside the menu it’s necessary to use the directional keys.

The arrow near the items indicates the presence of submenu (with right or enter key it’s possible to enter).

Pressing Enter key to go to show the page or the item selected.

The cursor position is showed with different color text.

Absol ute Min

Absol ute Max

-------------------

COM 1

Slave 1

...........

Slave 20

COM 2

Slave 1

...........

Slave 20

Information

(Password)

Men u

User pages

Math

SAG

Slaves read***

Insulation

Temperature

Analog Inputs

Relat . min/max

COM1

COM2

-------------------

Measures

Graphics

Setup

Measu res

Instantaneous

Relative

min/max

Absolute Min

Absolute Max

Counters

Average

Max Demand

Energies

Expected Power

Inform ation

Energies

Powers

Load Bars

Currents trend

Voltages trend

Harmonics

Phasor diagram

Graph ics

Power Factor

Cos

Tan

Power

Frequency

THDs

Currents

Voltages

Instan taneous

Currents

Power Factor

Cos

Powers

Frequency

THDs

Voltages

Harmonics

Phase angles

Max Demand

Average

Power Factor

Cos

Tan

Power

Frequency

Currents

Voltages

Energ ies

Active IN

Reactive IN

Reactive OUT

Apparent

Active OUT

Powe r

Active

Reactive

Apparent

Phase-Neutral

Phase-Phase

Voltages

THDs

Voltage

Current

Powe rs

Active

Reactive

Apparent

Phase-Neutral

Phase-Phase

Voltages

THDs

Voltage

Current

Harm onics

Voltage

Current

Powe r

Active

Reactive

Apparent

Setu p

Slaves read

Energ ies

Daily

Weekly

Monthly

Yearly

Page 16

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 16 / 48

: this item is selectable only with the

presence of relative option.

* options:

- No COM1

- COM1 RS485

** options:

- No COM2

- COM2 RS485

- Profibus

- Ethernet

- Ethernet wifi

- MBUS

The item Service is underlined because it is available only for the constructor.

-------------------

Information

Men u

User pages

(Password)

-------------------

Log

Math

Service

Setpoint

I/O

General

User pages

Communication

Inform ation

Setpoint

COM Monitor

Digital I/O

Password

Reset

Display

Gen eral

Editing contacts

SAG

Type

Energ ies

Coun ters

Mode

Period plan

Holiday

Daily plan

Preset Energies

COM1 RS485

No COM1

I/O

DPO

I/O

DO 1, 2, 3, 4

DI 1, 2, 3, 4

AO 1, 2, 3, 4

AI 1, 2

DO 5, 6, 7, 8

COM1*

COM2**

Log

COM 1 RS485

No COM2

COM2 RS485

Profibus

Ethernet

Ethernet Wifi

MBUS

MBU S

COM 2 RS485

Readout data

Setp oint

Summary

Details

Parameters

Texts

Setp oint

Measures

Setup

Measure

Measu re

User pages

Composition

Setting

Slave typology

Slave name

Setting

Slave typology

Slave name

Measu res

Graph ics

Setu p

Generic

Smart

Trigger

Timed

Time window

Trasform Ratio

Frequency

Wiring

Energies Counters

Graphics

Utility

Titles

Keys texts

Date/Time

Device

Date / Time

Log summary

Log Details

On/Off Events

Contacts

Com municati on

Log s ummary

Setpoint

Generic

Log D etails

Smart

Trigger

Timed

Page 17

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 17 / 48

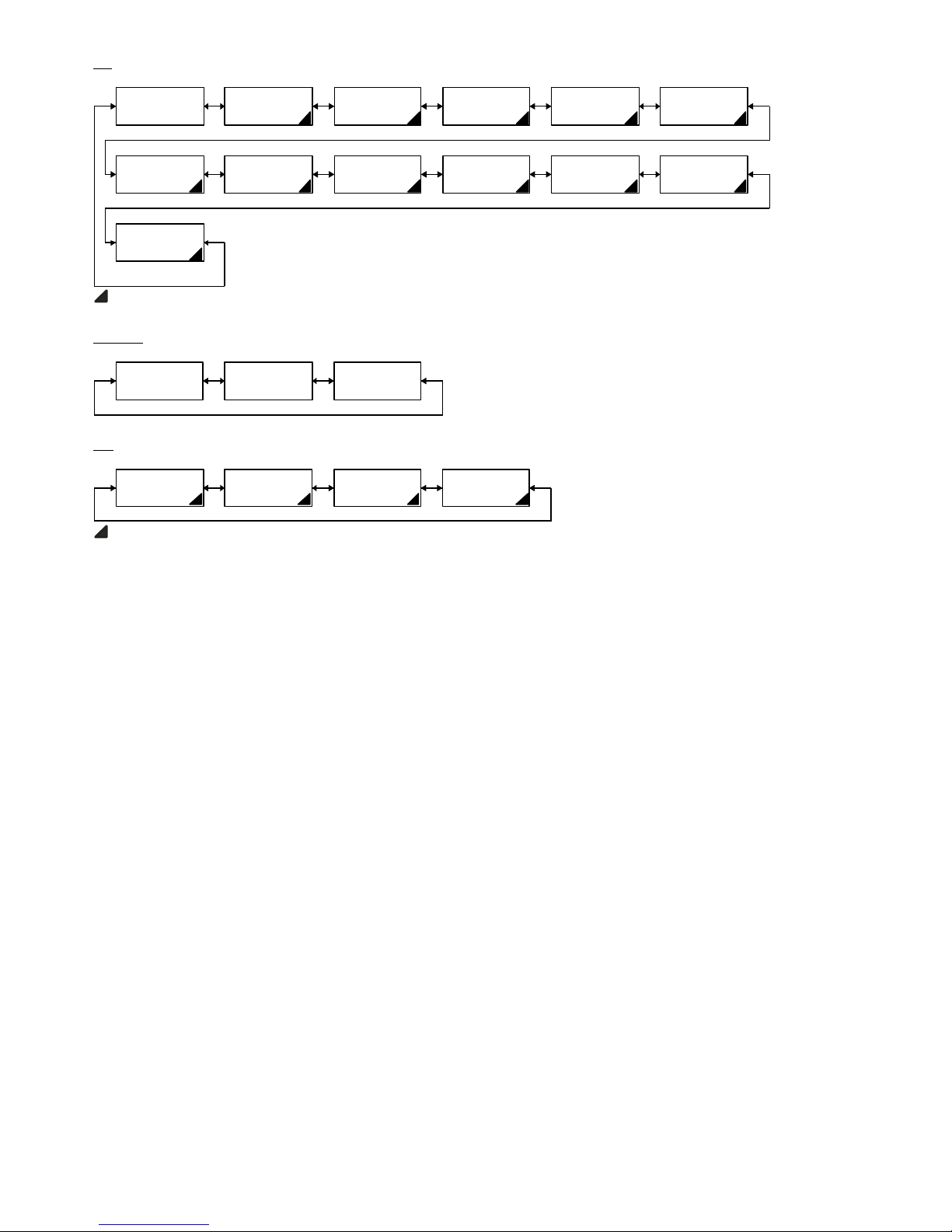

Measures

The default page showed at the power on is “Phase Voltage”. It’s possible to change it using the keys (left and right pressed at the same time).

Max Demand

Min/Max Relative

Phase-Phase

Min/Max Rel ative

Currents

Min/Max Relative

Cos

Min/Max Rel ative

Power Factor

Min/Max Rel ative

Tan

Min/Max Rel ative

Active Power

Min/Max Rel ative

Reactive Power

Min/Max Rel ative

Apparent Power

Min/Max Rel ative

Frequenc y

Min/Max Rel ative

THD Voltages

Min/Max Rel ative

THD Currents

Min/Max Relative

Voltages

Min/Max relative

HARMONICS

SAG (1-5)

SAG (6 -10)

Instanta neous

Phase-Phase

Voltages

Min Abs olute

Phase-Phase

Max Absol ute

Phase-Phase

Currents

Min Abs olute

Currents

Max Absol ute

Currents

Average Currents

Max Demand

Currents

Cos

Min Abs olute

Cos

Max Absol ute

Cos

Average

Cos

Max Demand

Cos

Power Factor

Min Abs olute Power Factor

Max Absol ute

Power Factor

Average

Power Factor

Max Demand Power Factor

Tangent

Min Abs olute

Tan

Max Absol ute

Tangent

Average

Tan

Max Demand

Tan

Active Power

Min Abs olute Active Power

Max Absol ute

Active Power

Average

Active Power

Max Demand Active Power

Reactive Power

Min Abs olute

Reactive Power

Max Absol ute

Reactive Power

Average

Reactive Power

Max Demand

Reactive Power

Apparent Power

Min Abs olute

Apparent Power

Max Absol ute

Apparent Power

Average

Apparent Power

Max Demand

PowerApparent

Frequenc y

Min Abs olute

Frequency

Max Absol ute

Frequency

Average

Frequency

Max Demand

Frequency

THD Voltages

Min Abs olute THD Voltages

Max Absol ute

THD Voltages

THD Currents

Min Abs olute THD Currents

Max Absol ute

THD Currents

Voltages

Min Abs olute

Voltages

Max

Voltages

Absolute

Ave rage Voltages

Absolute Maximum

Max Demand

Voltages

Absolute Minimum

Avera ge

Voltage Harmonics

(1-5)

VoltageHarmonics

(6-10)

VoltageHarmonics

(11-15)

VoltageHarmonics

(16-20)

CurrentHarmonics

(1-5)

CurrentHarmonics

(6-10)

CurrentHarmonics

(11-15)

CurrentHarmonics

(16-20)

Active Power Max D em and

Page 18

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 18 / 48

: this item is selectable only with

the presence of relative option.

Slaves read

: this item is selectable only if the relative

COM is present and in Master mode.

The number of Slaves displayable (from 1 to 20) depends from the set of “Slaves to read”.

SAG (1-5)

Phase Voltage

Total Counters

Expected Power

Total Active

Energy IN

Timeband 1 Timeband 2 Timeband 16

Total Active Energy OUT

Timeband 1 Timeband 2 Timeband 16

Total Reactive

Energy IN

Total Reactive

Energy OUT

Total Apparent

Energy

ENERGIES

Timeband 1 Timeband 2 Timeband 16

Active Power Max Demand

Timeband 1 Timeband 2 Timeband 16

Reactive Power

Max Demand

Timeband 1 Timeband 2 Timeband 16

MAX DEMAND

Phase Angles

Slave 1 Slave 3

Slave 2

..........

Slave 4

Slave 17

..........

Slave 19

Slave 18 Slave 20

Page 19

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 19 / 48

Graphics

Currents Trend

Load Bars

Voltages Trend

Monday Power Sunday Power

Voltages Trends

Daily Energy

(Active-Reactive)

Voltage

Harmonics L1

Voltage

Harmonics L2

Current

Harmonics L1

Voltage

Harmonics L3

Current

Harmonics L2

Jan Energy

(Active-Reactive)

Jan Energy

(Active-Reactive

(Table) (1-16)

Jan Energy

(Active-Reactive)

(Table) (17-31)

Dec Energy

(Active-Reactive)

Dec Energy

(Active-Reactive)

(Table) (1-16)

Dec Energy

(Active-Reactive)

(Table) (17-31)

Energy

Year YYYY

Energy

Year YYYY-1

Energy

Year YYYY-3

Energy

Year YYYY-2

Energy

Year YYYY-4

Energy

Year YYYY-5

Weekly Energy

(Active-Reactive)

Phasor

diagram

Current

Harmonics L3

Page 20

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 20 / 48

User Pages

6 user pages are available to be displayed, selecting the item User Pages in the Menu.

In Setup  User pages  Titles it is possible to set the name of the page to display.

In Setup  User pages  Composition it is possible to select up to 6 measure to display.

In Setup  User pages  Keys texts it is possible to modify the 4 chars that indicate what is showed in the relative page.

The keys lose the meaning given in the frontal side and they are used to move from one user page to another. Each key is

associated to one page. At the bottom of the display there are the indications of the content of each page. The indication of the user page displayed has a different color from the others. When the Enter key is released after a long press (more than 4 seconds) the instrument escape from the user page mode.

EMS-96

Home MenuEsc Default

LECTRICAL MEASUREMENT SUPERVISOR

L-N L-L

P.F. W Vr

CORRENTI

Page 21

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 21 / 48

Setup

To move inside the Setup pages it’s necessary to use left and the right keys. Press the Enter key to go to see the item to set.

General

Setup  General

Password Reset

Display

Editing

contacts

Date/Time

Utility Graphics

Measure

Setup  Measure

Wiring

Conventions

SAG

Frequency

Transform

ratio

Time

window

: this item is selectable only with the presence of relative option.

Setup  Measure  Energies/Counters

................

Modalità

Timeband

................

Daily

plan 16

Period

plan 1

Daily

plan 1

Period

plan 16

Holiday

Preset

Energies

Mode

: this item is selectable only with the presence of relative option.

User pages

Setup  User pages

User page 4Type TitlesComposition

Keys texts

Communication

Setup  Communication

: this item is selectable only with the presence of relative option.

: this item is selectable only if the relative COM is present and in Master mode.

COM1 setting

COM2 editing

slaves name

COM1

slaves read

Profibus

COM1 editing

slaves name

Mbus setting

COM2 setting

COM2

slaves read

Mbus

Readout Data

Ethernet

Page 22

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 22 / 48

I/O

Setup  I/O

Digital outputs

1, 2, 3, 4

Digital output

Analog

out put 1

Digital input 3

Digital output

Digital input 4

Analog

out put 2

Analog

out put 3

Analog

out put 4

Digital input 2

Digital input 1

: this item is selectable only with the presence of relative option.

Setpoint

Setup  Setpoint

Setpoint 32

................

Setpoint 1

Log

Setup  Log

Tr igger logSmart log

Generic log

Tr igger log

: this item is selectable only with the presence of relative option.

Page 23

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 23 / 48

Information

Device Version

Info Setpoint Log

Smart Log

page 1

Smart Log

page 2

Smart Log

page XXXX

Info

Setpoint 1 Setpoint 2

COM2 Monitor

Date/Time

COM1 Monitor

Setpoint 32

Digital I/O Status

Setpoints Summary

Info Smart Log

Info Generic Log

Setpoint Log

page 2

Setpoint Log

page 1

Setpoint Log

page 32

Generic Log

page 2

Generic Log

page 1

Generic Log

page XXXX

Options 3/5

Info Device

Events 1/4 Events 2/4 Events 3/4 Events 4/4

Options 5/5

Info Trigger Log

Trigger Log

page 1

Trigger Log

page 2

Trigger Log

page XXXX

Info Timed Log

Timed Log

page 1

Timed Log

page 2

Timed Log page XXXX

Contacts

Page 24

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 24 / 48

Setup Items

General

Setup  General  Password

Password

Range

Default

Access key

0 ÷ 999999999

By setting an Access key with a value different by zero, it’ll be necessary to input it to accede to Setup.

Validity key [minutes]

1 ÷ 60

Time of free use of the setup after one access with password.

Keys protect

Yes / No

If is enabled, to modify the setup (from keys) it’s necessary insert the password.

Communication protect

Yes / No

If it’s enabled, to modify the setup (from communication interface) send the password command before another setup command.

Enable options

0 ÷ 999999999

After the insertion of the code, switch off/on the instrument to enable software options.

Setup  General  Reset

Reset

Range

Default

Global

Yes / No

Reset to factory settings.

Default setup

Yes / No

Reset all settings in setup.

All energies

Yes / No

Reset all energies counted.

TB energies

Yes / No

Reset all energies timebands (not total energies).

Counters

Yes / No

Reset all counters.

TB counters

Yes / No

Reset all counters timebands. (not total counters).

Min-Max

Yes / No

Reset all min and max values.

Max demand

Yes / No

Reset max demand values.

Energies log

Yes / No

Reset energies log.

Setpoint log

Yes / No

Reset setpoint log.

G/S/T/T log

Yes / No

Reset generic, smart, trigger and timed log.

Events log

Yes / No

Reset events log.

Manual reset SP-DO

Yes / No

Manual Reset of the digital outputs used in Setpoint mode.

Setup  General  Date/Time

Date/Time

Range

Default

Hour

0 ÷ 23

Actual hour.

Minute

0 ÷ 59

Actual minutes.

Second

0 ÷ 59

Actual seconds.

Day of Week

Monday ÷ Sunday

Actual day of week.

Day

1 ÷ 31

Actual day.

Month

January ÷ December

Actual month.

Year

2000 ÷ 2099

Actual year.

Page 25

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 25 / 48

Setup  General  Utility

Utility

Range

Default

Language

english / (optional language)

english

Language used for the display text.

Theme

blue-white / blue-black / yellow-white / yellow-black / red-

white / red-black / gray-white / gray-black

blue-white

Theme is a different combination of colour.

Text dimension

Normal / Big

Normal

Set the dimension of the char of the instantaneous values showed in the display.

Led left 0.1 Wh/VArh/VAh

See Acronym table of Energy

Varh IN

Measured associated at the left frontal led.

Led right 0.1 Wh/VArh/VAh

See Acronym table of Energy

Wh IN

Measured associated at the right frontal led.

LED min period [ms]

10 ÷ 100

Pulse period associated at frontal led.

Setup  General  Display

Display

Range

Default

Brightness

1 ÷ 15

Factory

Set the brightness of the display.

Return default page [min]

1 ÷ 30

After this time the instrument comes back to default page.

Backlight keys

Off / In standby / Always on

In standby

Set the type of the key illumination.

Standby

No / Yes / Short bright / Change page

Yes

Set the type of the standby mode.

Standby entry [min]

1 ÷ 60

After this time the instrument goes in the standby mode, as selected in the previous item.

Refresh measure [s]

1 ÷ 10

Time to refresh the display for displaying instantaneous measurements.

Setup  Instrument  Graphics

Graphics

Range

Default

V/A sampling [Seconds]

1 ÷ 60

Sampling time for the voltage and current graphic trend.

Clear max bar

Yes / No

Reset the maximum signal on the graphic bars.

Page 26

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 26 / 48

Measure

Setup  Measure  Transform ratio

Transform Ratio

Range

Default

CT ratio

1 ÷ 5000

It’s the ratio between the primary and the secondary circuit of the external current transformers.

I-D ratio

1 ÷ 5000

4th current input transform ratio.

VT ratio

1 ÷ 5000

It’s the ratio between the primary and the secondary circuit of the voltage transformers.

Setup  Measure  Time window

Time window

Range

Default

Upgrade time [minutes]

1 / 2 / 3 / 5 / 6 / 10 / 12 / 15 / 20 / 30 / 60

The time used to calculate the average, maximum, minimum values and the expected power.

Type

shifting / fixed

shifting

The type of the window to calculate the average values and expected power.

Setup  Measure  Frequency

Frequency

Range

Default

Fundamental [Hz]

50 / 60

Select the base frequency of the inputs (voltages and currents).

Phase monitored

L1 / L2 / L3

It’s the phase that will be monitored to detect of SAG and to read the actual frequency.

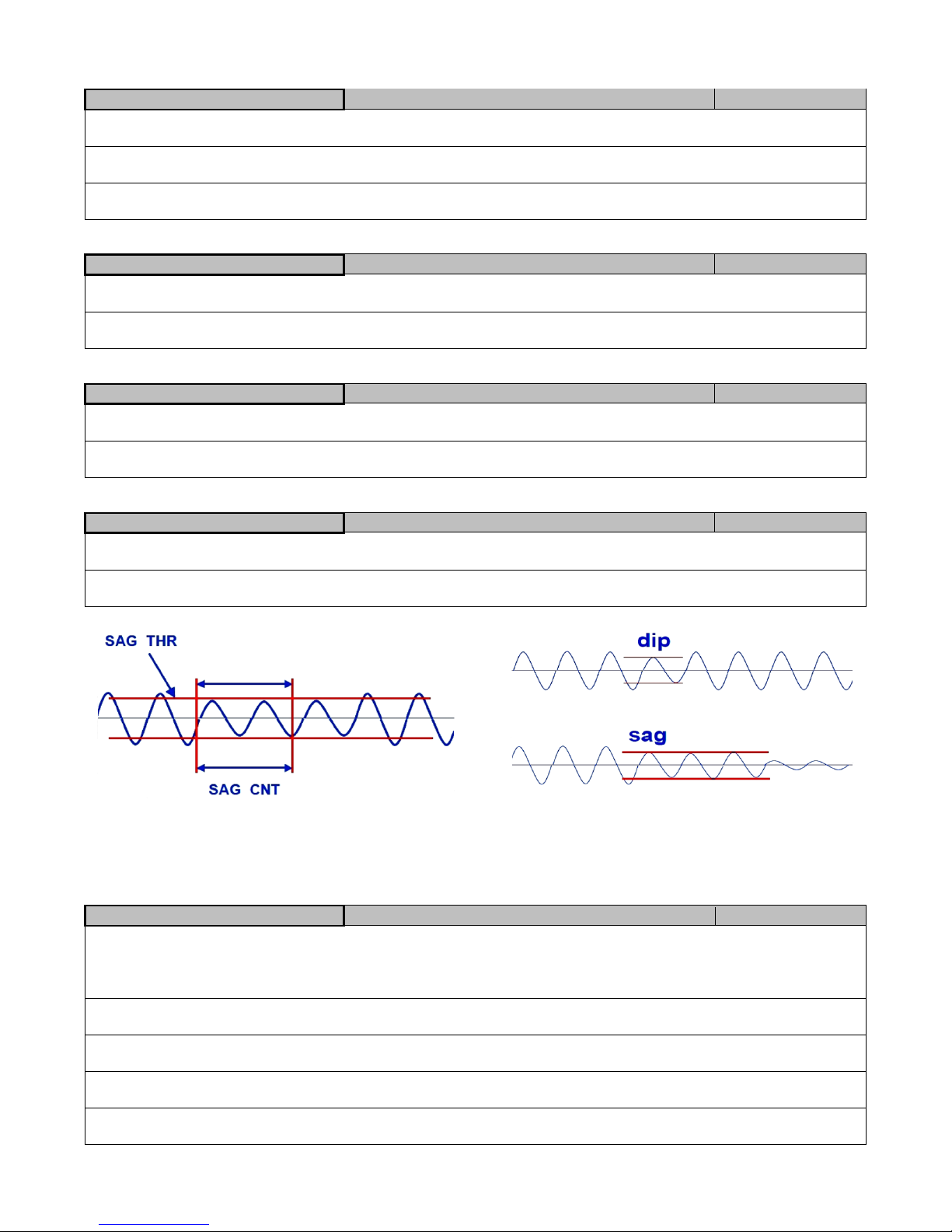

Setup  Measure  SAG

SAG (option)

Range

Default

Threshold [RMS voltage]

30 ÷ 400

210

If the voltage value drops below the setting, the software considers the event as SAG.

Time [ms]

1 ÷ 1000

If the voltage value drops below for a time greater than the setting, the software considers the event as SAG.

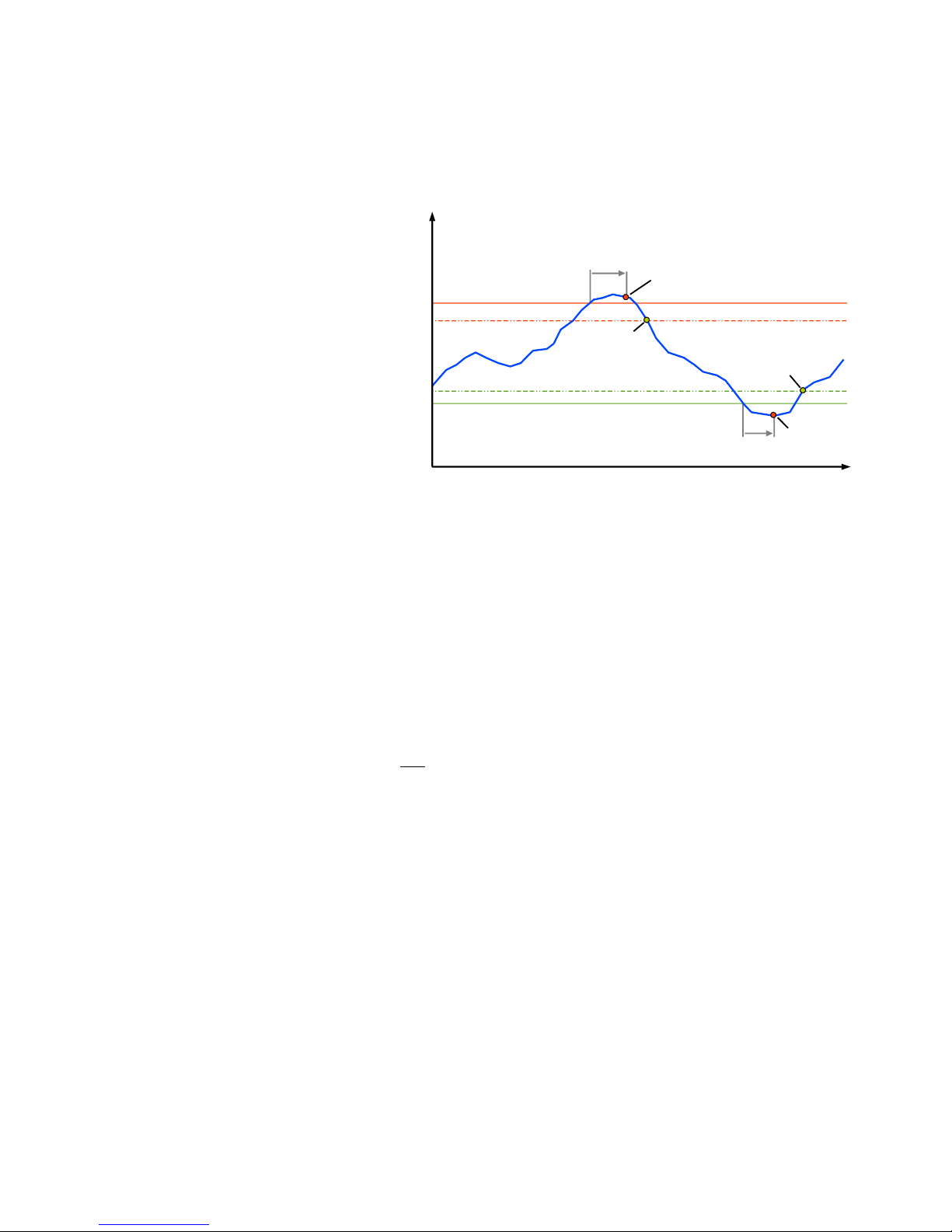

Fig.1: Sag parameters Fig.2: Sag Explanation

A sag is defined as an under voltage condition that persists for more than one period of base frequency. A shorter under voltage condition is called a dip (see Fig. 2). The occurrence of sag could announce an impending loss of power. To set the sag register the voltage must be under the Threshold value for a minimum time defined in Time.

Setup  Measure  Wiring/Conventions

Wiring/Conventions

Range

Default

Type of wiring

3 phase [4 or 3 wires] / ARON / balanced 3-phase / 3-ph multiload balanced / single-phase / 1-phase multiload /

multi single-phase / 2-phase 3 wires

3 phase [4 or 3 wires]

See table below.

Neutral current

Measured / Computed

See below

On this item appears Measured if the CT is present or Computed if the CT is not present. The user can change the set showed.

Power factor convention

SIGN / IEC / DIN IEEE

SIGN

See the following picture for details on the selected configuration.

Powers measurement

W, VAr / mW, mVAr

W, VAr

It allows to modify the basic unit of measure of the powers (showed and read by the communication interface).

Energy measurement

kWh, kVArh / MWh, MVArh

kWh, kVArh

It allows to modify the basic unit of measure of the energies (showed and read by the communication interface).

Page 27

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 27 / 48

Wiring Parameters

Description Wiring

3 phase [4

or 3 wires]

ARON

balanced

3-phase

3- Ph

multiload

balanced

single-

phase

1-phase

multiload

multi

Single-

phase

2-phase

3 wires

SYSTEM VOLTAGE

X X X X

PHASE VOLTAGE L

1-N

X X X X X X X X PHASE VOLTAGE L

2-N

X X X X X X

PHASE VOLTAGE L

3-N

X X X X X X LINE TO LINE VOLTAGE L

1-2

X X X X

LINE TO LINE VOLTAGE L

2-3

X X X X LINE TO LINE VOLTAGE L

3-1

X X X X SYSTEM CURRENT

X X calculated

LINE CURRENT L1

X X X

x3 X X X X

LINE CURRENT L2

calculated

x3 X X X

LINE CURRENT L3

calculated

x3 X X

SYSTEM POWER FACTOR

calculated

POWER FACTOR L1

X X X X X X X X POWER FACTOR L2

calculated

X X X X

POWER FACTOR L3

calculated

X X X

SYSTEM COS φ

calculated

PHASE COS φ1

X X X X X X X

PHASE COS φ2

calculated

X X X X

PHASE COS φ3

calculated

X X X

SYSTEM APPARENT POWER

calculated

APPARENT POWER L1

X X X

x3 X X X X

APPARENT POWER L2

calculated

x3 X X X

APPARENT POWER L3

calculated

x3 X X

SYSTEM ACTIVE POWER

calculated

ACTIVE POWER L1

X X X

x3 X X X X

ACTIVE POWER L2

calculated

x3 X X X

ACTIVE POWER L3

calculated

x3 X X

SYSTEM REACTIVE POWER

calculated

REACTIVE POWER L1

X X X

x3 X X X X

REACTIVE POWER L2

calculated

x3 X X X

REACTIVE POWER L3

calculated

x3 X X

NEUTRAL CURRENT

calculated or measured (option)

DIFFERENTIAL CURRENT

option: alternatively to the neutral current

THD VOLTAGE L1

X X X X X X X X THD VOLTAGE L2

X X X X X X

THD VOLTAGE L3

X X X X X X THD CURRENT L1

X X X X X X X

THD CURRENT L2

calculated

X X X X

THD CURRENT L3

calculated

X X X

ANGLE

1-2

X X X X X X X

ANGLE

2-3

X X X X X X X X ANGLE

3-1

X X X X X X X X SYSTEM TANGENT φ

X X calculated

PHASE TANGENT φ1

X X X X X X X

PHASE TANGENT φ2

calculated

X X X X

PHASE TANGENT φ3

calculated

X X X

SAG X X X X X X X X

SYSTEM ACTIVE ENERGY IN

calculated

x3 X X X X

SYSTEM ACTIVE ENERGY OUT

calculated

x3 X X X X

SYSTEM REACTIVE ENERGY IN

calculated

x3 X X X X

SYSTEM REACTIVE ENERGY OUT

calculated

x3 X X X X

SYSTEM APPARENT ENERGY

calculated

x3 X X X X

ACTIVE ENERGY IN L1

X X X

x3 X X X X

ACTIVE ENERGY OUT L1

X X X

x3 X X X X

REACTIVE ENERGY IN L1

X X X

x3 X X X X

REACTIVE ENERGY OUT L1

X X X

x3 X X X X

APPARENT ENERGY L1

X X X

x3 X X X X

ACTIVE ENERGY IN L2

calculated

x3 X X X

Page 28

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 28 / 48

ACTIVE ENERGY OUT L2

calculated

x3 X X X

REACTIVE ENERGY IN L2

calculated

x3 X X X

REACTIVE ENERGY OUT L2

calculated

x3 X X X

REACTIVE ENERGY OUT L2

calculated

x3 X X X

APPARENT ENERGY L2

calculated

x3 X X X

ACTIVE ENERGY IN L3

calculated

x3 X X

ACTIVE ENERGY OUT L3

calculated

x3 X X

REACTIVE ENERGY IN L3

calculated

x3 X X

REACTIVE ENERGY OUT L3

calculated

x3 X X

APPARENT ENERGY L3

calculated

x3 X X

: the values read in this configuration aren’t significant.

In the WIRING setup page it’s possible to modify the wiring type and in the DEVICE STATUS page it’s showed the voltage and current wiring state.

For the voltage wiring item it is possible to have the following option:

- Correct.

- Not Correct.

The order of voltage connections is not correct (the angles between phases is different by 120°) in the following insertion: Three phase, Three phase balanced, Three phase multi load balanced, Single phase multi load and Multi single phase.

- Not applied.

All voltage inputs must be apply.

For the current wiring item it possible to have the following option:

- Correct.

- Not correct: the order of current connections not be correct in the following insertion: Three phase, Three phase balanced,

Three phase multi load balanced, Single phase multi load and Multi single phase. L1 reverse: the current of the L1 phase has the opposite sign respect others two phases. L2 reverse: the current of the L2 phase has the opposite sign respect others two phases. L3 reverse: the current of the L3 phase has the opposite sign respect others two phases.

- Not applied.

All current must be apply and the loads must be balanced.

Sign power factor convention

IEC Power Factor Sign Convention

Active Power

Reactive

Power

Q1Q2

Q4Q3

W(+)

VAR(+)

W(+)

VAR(-)

W(-)

VAR(+)

W(-)

VAR(-)

P.F.(+)

P.F.(-)

P.F.(+)

P.F.(-)

DIN/IEEE Power Factor Sign Convention

Active Power

Reactive

Power

Q1Q2

Q4Q3

W(+)

VAR(+)

W(+)

VAR(-)

W(-)

VAR(+)

W(-)

VAR(-)

P.F.(-)

P.F.(+)

SIGN Power Factor Sign Convention

Active Power

Reactive

Power

Q1Q2

Q4Q3

W(+)

VAR(+)

W(+)

VAR(-)

W(-)

VAR(+)

W(-)

VAR(-)

P.F.(+)

P.F.(-)

P.F.(+)

Page 29

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 29 / 48

Setup  Measure  Energies/Counters Preset energies

Preset energies

Range

Default

Wh IN [0.1kWh]

0 ÷ 1000000000

Value to add at the actual system active energy IN counter.

Wh OUT [0.1kWh]

0 ÷ 1000000000

Value to add at the actual system active energy OUT counter.

VArh IN [0.1kVArh]

0 ÷ 1000000000

Value to add at the actual system reactive energy IN counter.

VArh OUT [0.1kVArh]

0 ÷ 1000000000

Value to add at the actual system reactive energy OUT counter.

VAh [0.1kAh]

0 ÷ 1000000000

Value to add at the actual system apparent energy counter.

Wh IN L1

0 ÷ 1000000000

Value to add at the actual L1 active energy IN counter.

Wh OUT L1

0 ÷ 1000000000

Value to add at the actual L1 active energy OUT counter.

VArh IN L1

0 ÷ 1000000000

Value to add at the actual L1 reactive energy IN counter.

VArh OUT L1

0 ÷ 1000000000

Value to add at the actual L1 reactive energy OUT counter.

VAh L1

0 ÷ 1000000000

Value to add at the actual L1 apparent energy counter.

Wh IN L2

0 ÷ 1000000000

Value to add at the actual L2 active energy IN counter.

Wh OUT L2

0 ÷ 1000000000

Value to add at the actual L2 active energy OUT counter.

VArh IN L2

0 ÷ 1000000000

Value to add at the actual L2 reactive energy IN counter.

VArh OUT L2

0 ÷ 1000000000

Value to add at the actual L2 reactive energy OUT counter.

VAh L2

0 ÷ 1000000000

Value to add at the actual L2 apparent energy counter.

Wh IN L3

0 ÷ 1000000000

Value to add at the actual L3 active energy IN counter.

Wh OUT L3

0 ÷ 1000000000

Value to add at the actual L3 active energy OUT counter.

VArh IN L3

0 ÷ 1000000000

Value to add at the actual L3 reactive energy IN counter.

VArh OUT L3

0 ÷ 1000000000

Value to add at the actual L3 reactive energy OUT counter.

VAh L3

0 ÷ 1000000000

Value to add at the actual L3 apparent energy counter.

Page 30

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 30 / 48

Energies and Counters

The EMS-96 has 4, 8 or 16 timebands (depending of the option) to differentiate the power consumption. You can schedule the exchange of the timebands using manual (Modbus command), from DI (digital inputs) or Preset (Setup  Timeband  Mode  Preset). With from DI it’s necessary to set the use of digital inputs for this purpose (Setup  I/O  DI 1, 2, 3, 4  Mode  Change TB). With Preset it is necessary to define a Daily plan in which you set the time of transition (maximum 16) from one to the next timeband. In the setting of Period plan (Setup  Timeband  Preset  Daily/Period Plan) it will be selected the month and the day of the start and the end, and it will be necessary to link each Daily Plan to one or more days of the week. At the end of settings the Period Plan will be enabled. Any holidays will be set in the menu Holidays (Settings  Timeband  Preset  Holidays).

Setup  Measure  Energies/Counters  Mode

Mode Timeband (option)

Range

Default

Energy changing

manual / from DI / preset

manual

It’s possible to select the modality to change the timeband:

- Manual.

- From DI: the combination of digital inputs select the actual timeband (TB) used (see the following table).

- Preset (see timeband Daily and Period plan for more information).

Counter changing

manual / from DI

manual

It’s possible to select the modality for change the timeband:

- Manual.

- From DI: the combination of digital input select the actual timeband (TB) used (see the following table).

DI4

DI3

DI2

DI1

TB used

DI4

DI3

DI2

DI1

TB used

DI4

DI3

DI2

DI1

TB used

DI4

DI3

DI2

DI1

TB used

0 0 0 0 1 0 1 0 0 5 1 0 0 0 9 1 1 0 0 13

0 0 0 1 2 0 1 0 1 6 1 0 0 1 10 1 1 0 1 14

0 0 1 0 3 0 1 1 0 7 1 0 1 0 11 1 1 1 0 15

0 0 1 1 4 0 1 1 1 8 1 0 1 1 12 1 1 1 1 16

Setup  Measure  Energies/Counters  Daily plan

Daily Plan X (from 1 to 16) (option)

Range

Default

Start Hour 1

00 ÷ 23

Hour at which the timeband will be changed.

Start Minute 1

00 ÷ 59

Minute at which the timeband will be changed.

Timeband Used 1

not used ÷ TB-XX* (band)

not used

New Timeband set.

………………..

Start Hour 16

00 ÷ 23

Hour at which the timeband will be changed.

Start Minute 16

00 ÷ 59

Minute at which the timeband will be changed.

Timeband Used 16

not used ÷ TB-XX* (band)

not used

New Timeband set.

* XX in TB-XX, depends from the number of the Timeband enabled.

Setup  Measure  Energies/Counters  Period plan

Period Plan X (from 1 to 16) (option)

Range

Default

Enable

yes / no

Enable or disable the plan. WARNING: Set all the following parameters before to enable it.

Start Month

January ÷ December

January

Month at which the period start.

Start Day

1 ÷ 31

Day at which the period start.

End Month

January ÷ December

December

Month at which the period finish.

End Day

1 ÷ 31

Day at which the period finish.

Monday Plan

Plan 1 ÷ Plan 16

Plan 1

Plan used for this day.

………………..

Sunday Plan

Plan 1 ÷ Plan 16

Plan 1

Plan used for this day.

Page 31

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 31 / 48

Setup  Measure  Energies/Counters  Holiday

Holiday (option)

Range

Default

Month Holiday 1

January ÷ December

January

Month in which the holiday is present.

Day Holiday 1

1 ÷ 31

Day in which the holiday is present.

Plan Holiday 1

--- ÷ plan 16

---

Plan used for this holiday. When the plane setting is different from --- the Holiday Plan is enabled.

………………..

Month Holiday 48

January ÷ December

January

Month in which the holiday is present.

Day Holiday 48

1 ÷ 31

Day in which the holiday is present.

Plan Holiday 48

--- ÷ plan 16

---

Plan used for this holiday. When the plane setting is different from --- the Holiday Plan is enabled.

Example of using the Preset function to plan the timebands consumption. 2 daily plans are defined, the first is used for weekdays, the second for Saturdays and Sundays. Enabling is executed after the end of these settings (Daily Plan and Period Plan). For two days (January 6 and April 21) as exceptions to the standard weekly schedule you used the menu Holidays.

Setup  Measure  Energies/Counters  Daily plan Daily Plan 1

Start hour 1 8 Start minute 1 30 Timeband used 1 TB-1 Start hour 2 18 Start minute 2 30 Timeband used 2 TB-2

Setup  Timeband  Preset  Daily Daily Plan 2

Start hour 1 7 Start minute 1 00 Timeband used 1 TB-1 Start hour 2 12 Start minute 2 00 Timeband used 2 TB-2

Setup  Timeband  Preset  Period Period Plan 1

Start month January Start day 1 End month July End day 31 Monday plan plan 1 Tuesday plan plan 1 Wednesday plan plan 1 Thursday plan plan 1 Friday plan plan 1 Saturday plan plan 2 Sunday plan plan 2 Enable yes

Setup  Timeband  Preset  Holiday Month holiday 1 January

Day holiday 1 6 Plan holiday 1 plan 2 Month holiday 2 April Day holiday 2 21 Plan holiday 2 plan 2

Page 32

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 32 / 48

User pages

The EMS-96 provides the user with six pages configurable. You can choose the type of page (instantaneous values, average values, energies, graphics and setpoint) and its composition (up to 6 measurements for page). If you choose the type setpoint, the text associated to each setpoint can be changed in Setup  Setpoint  Texts in order to have a clearer association between the alarm and its visualization. In the user pages it’s possible to change the title (Setup  User pages  Titles) so to have a clear view of the contents. For example, in the case of systems composed of several independent phases it’s possible to group voltage, current and power of the L1 phase, in a single page with a title that can highlight the belonging to the same user.

Setup  User page  Type

Type

Range

Default

User page 1

instant / averages / energies / setpoint

instant

To enable the visualization of the user page 1.

User page 2

instant / averages / energies / setpoint

instant

To enable the visualization of the user page 2.

User page 3

instant / averages / energies / setpoint

instant

To enable the visualization of the user page 3.

User page 4

instant / averages / energies / setpoint

instant

To enable the visualization of the user page 4.

User page 5

instant / averages / energies / setpoint

instant

To enable the visualization of the user page 5.

User page 6

instant / averages / energies / setpoint

instant

To enable the visualization of the user page 6.

Impostazioni  Pagine utente  Composizione

User Page X (from 1 to 6)

Range

Default

Row 1

If the type is:

instant see Acronym table of Instantaneous group

averages  see Acronym table of Averages group

energies  see Acronym table of Energy group

setpoint  1 ÷ 32

Page 1: V

Page 2: V1-V2

Page 3: A Page 4: PF Page 5: W

Page 6: VAr

Selection of the measure displayed on the 1st row of the user page X.

Row 2

See Row 1

Page 1: V1

Page 2: V2-V3

Page 3: A1 Page 4: PF1

Page 5: W1

Page 6: VAr1

Selection of the measure displayed on the 1st row of the user page X.

Row 3

See Row 1

Page 1: V2

Page 2: V3-V1

Page 3: A2 Page 4: PF2

Page 5: W2

Page 6: VAr2

Selection of the measure displayed on the 1st row of the user page X.

Row 4

See Row 1

Page 1: V3

Page 2: ---

Page 3: A3 Page 4: PF3

Page 5: W3

Page 6: VAr3

Selection of the measure displayed on the 1st row of the user page X.

Row 5

See Row 1

---

Selection of the measure displayed on the 1st row of the user page X.

Row 6

See Row 1

---

Selection of the measure displayed on the 1st row of the user page X.

Page 33

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 33 / 48

Setup  User pages  Titles

Edit title

Range

Default

User page 1

---

VOLTAGES

Title displayed in the User Page.

User page 2

---

PHASE PHASE

Title displayed in the User Page.

User page 3

---

CURRENTS

Title displayed in the User Page.

User page 4

---

POWER FACTOR

Title displayed in the User Page.

User page 5

---

ACTIVE POWER

Title displayed in the User Page.

User page 6

---

REACTIVE POWER

Title displayed in the User Page.

Setup  User pages  Keys Text

Edit keys texts

Range

Default

Key 1

---

L-N

Text associated with the function of the key.

Key 2

---

L-L

Text associated with the function of the key.

Key 3

---

Text associated with the function of the key.

Key 4

---

P.F.

Text associated with the function of the key.

Key 5

---

Text associated with the function of the key.

Key 6

---

VAr

Text associated with the function of the key.

Example: Setup  User pages  Titles User page 1 Warehouse

Setup  User pages  Type User page 1 instant Setup  User pages  Composition Row 1 W1 Setup  User pages  Composition Row 2 VAr1 Setup  User pages  Composition Row 3 W2 Setup  User pages  Composition Row 4 VAr2 Setup  User pages  Composition Row 5 W3 Setup  User pages  Composition Row 6 VAr3

With these set the user page will be this:

Warehouse

X.XXX kW

VAr1

X.XXX kVAr

X.XXX kW

VAr2

X.XXX kVAr

X.XXX kW

VAr3

X.XXX kVAr

Page 34

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 34 / 48

Communication

Setup  Communication  COM1/2  Setting

COM1/2 setting (option)

Range

Default

Mode

Slave / Master

Slave

Slaves to read

1 ÷ 20

Number of slave connected in master mode.

Master Timeout [ms]

0 ÷ 10000

800

Time after than it will be set the no slave response flag and increase the NO RESPONSE COUNTER if the answer isn’t received (Master Mode).

Scan rate [ms]

0 ÷ 10000

1000

Delay between two master request (Master mode).

Note: this value must be greater than TIMEOUT.

Node address

1 ÷ 247

Instrument identifier on the modbus network.

Note: valid only in Slave Mode.

Baud rate [kbit/s]

4800 / 9600 / 19200 / 38400 / 57600 / 115200

38400

The communication speed.

Stop bits

1 / 2 stop

1 stop

Communication parameters.

Parity

None / Odd / Even

None

Communication parameters.

Min. response delay [ms]

5 ÷ 100

Modify this value if use a slow external converter.

Setup  Communication  COM1/2  Slave tipology

COM1/2 Slave read (option)

Range

Default

Slave node 1

TTC-V / CTT-4 / CTT-8 / HRI / EMM-h / EMT-4s / EMS-96 / RI-SM

---

Type of slave (instrument) connected to the address 1.

………………..

Slave node 20

TTC-V / CTT-4 / CTT-8 / HRI / EMM-h / EMT-4s / EMS-96 / RI-SM

---

Type of slave (instrument) connected to the address 20.

Note: Accessible only with COM in master mode. The number of slave node is equal of the value set in “Slave to read”.

Setup  Communication  COM1/2  Slave name

COM1/2 Editing Slaves name (option)

Range

Default

Slave node 1

Slave 1

Edit the name of the slave.

………………..

Slave node 20

Slave 20

Edit the name of the slave.

Note: Accessible only with COM in master mode.

Setup  Communication  Profibus

Profibus (option)

Range

Default

Address [node]

1 ÷ 126

Instrument identifier on the profibus network.

Page 35

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 35 / 48

Setup  Communication  Ethernet

Ethernet (option)

Range

Default

Address [node]

1 ÷ 247

Identification instrument in the Modbus network.

IP address

0.0.0.0 ÷ 255.255.255.255

10.0.0.100

IP address associated to the instrument.

Subnet mask

0.0.0.0 ÷ 255.255.255.255

255.0.0.0

Subnet mask associated to the instrument.

IP gateway

0.0.0.0 ÷ 255.255.255.255

10.0.0.254

IP address of the gateway associated to the instrument.

IP Port

0 ÷ 65535

502

Number of the TCP port for the Modbus communication.

IP Wifi

0.0.0.0 ÷ 255.255.255.255

1.0.0.1

IP Wifi address associated to the instrument.

Setup  Communication  M-Bus

M-Bus (option)

Range

Default

Address [node]

0 ÷ 250

Instrument identifier on the M-BUS network.

Baud rate [kbit/s]

300 / 600 / 1200 / 2400 / 4800 / 9600 / 19200 / 38400

2400

Communication speed.

Stop bits

1 / 2 stop bits

1 stop

Communication parameters.

Parity

None / Odd / Even

Even

Communication parameters.

Min Response delay [ms]

0 ÷100

If set 0 the instrument responds as soon as possible.

Setup  Communication  M-Bus  Readout data

M-Bus Readout Data (option)

Range

Default (*)

Group 1

See Acronym Group table

Instantaneous

Group of the 1

measure read.

Measure 1

See acronym in the table of the group selected

measure read.

………………..

Group 20

See Acronym Group table

Energies

Group of the 20

measure read.

Measure 20

See acronym in the table of the group selected

VArh OUT

measure read.

(*) Default Table Group / Measure of M-BUS Readout Data

Number of Group and Measure

Group

Measure

Number of Group and Measure

Group

Measure

Instantaneous

PF2

Instantaneous

PF3

Instantaneous

VAR

Instantaneous

Energies

Wh IN

Instantaneous

Energies

Wh OUT

Instantaneous

Energies

VArh IN

Instantaneous

PF1

Energies

VArh OUT

Page 36

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 36 / 48

I/O

Setup  I/O  DO 1, 2, 3, 4

Digital Outputs 1, 2, 3, 4 (pulse/state)

Range

Default

Level

Active low / Active high

Active high

Active Low: initial state high level. Active High: initial state low level.

Mode

Status / Pulse / Setpoint

Status

Status: see the Status item set. Pulse: see the measure associated (Associated DO-1).

Setpoint: the digital output is controlled by setpoint function.

Pulse weight [Wh-VArh]

1 ÷ 10000

100

The pulse is generated every time that the energy selected is increased of the selected value.

Duration [ms]

60 ÷ 1000

500

The pulse has a duty cycle of 50% (Ton equal Toff) and the duration selected.

Status DO-1

0 / 1

Select ON to close the output, OFF to open it.

Associated DO-1

See Acronym table of Energy

Wh IN

Associated measure to the digital output DO-1.

Status DO-2

0 / 1

Select 1 to close the output, 0 to open it.

Associated DO-2

See Acronym table of Energy

Wh OUT

Associated measure to the digital output DO-2.

Status DO-3

0 / 1

Select 1 to close the output, 0 to open it.

Associated DO-3 (option)

See Acronym table of Energy

VArh IN

Associated measure to the digital output DO-3.

Status DO-4

0 / 1

Select 1 to close the output, 0 to open it.

Associated with DO-4 (option)

See Acronym table of Energy

VArh OUT

Associated measure to the digital output DO-4.

Setup  I/O  DO 5, 6, 7, 8

Digital output X* (option)

Range

Default

Status

0 / 1

Select 1 to close the output, 0 to open it.

Level

Active low / Active high

Active high

Active Low: initial state high level. Active High: initial state low level.

Mode

Status / Not used / Setpoint

Status

Status: see the Status item set. Not used. Setpoint: the digital output is controlled by setpoint function.

* These settings are used for the optional digital outputs from DO-5 to DO-8.

Setup  I/O  DI 1, 2, 3, 4

Digital input X* (option)

Range

Default

Mode

See below

Status

- Status - Change energy and counter timeband actually used (see example)

- Counter - External trigger

- Change energy timeband actually used (see example) - Reset SP-DO

- Change counter timeband actually used (see example) Example:

DI‐4 = 1, DI‐3, = 0 DI‐2 = 0, DI‐1 = 1: the timeband selected is 1001bin -> TB 9 DI‐4 = 0, DI‐3, = 0 DI‐2 = 1, DI‐1 = 1: the timeband selected is 0011bin -> TB 3

Multiplier

1 ÷ 100000

If the digital inputs mode is Counter this parameter multiply the input pulse for the coefficient set.

Divider

1 ÷ 100000

If the digital input mode is Counter this parameter divide the input pulse for the coefficient set.

SP-DO level

active high / active low

active high

The output set in SP-DO reset will go backt to the initial status.

SP-DO reset

DO-1, 2, 3, 4, 5, 6, 7, 8

disabled

If is set SP-DO reset mode on the input, this parameter allows to set the outputs that will be reset when the input status is the same indicated in the SP-DO Level set.

Measure unit

---

[-]

Measure unit displayed during the use of the Digital Input in the Counter mode.

* These settings are used for the optional digital inputs from DI-1 to DI-4.

Page 37

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 37 / 48

Setup  I/O  AO 1, 2, 3, 4

Analog output X* (option)

Range

Default

Range

0÷5V / 0÷10V / ±5V / ±10V / 4÷20mA / 0÷20mA

0 ÷5V

Selection of the modality of the output (current or voltage) and relative limits.

Measure group

See Acronyms Group table

Selection of the group for the actual analog output.

Measure associated

See acronym in the table of the group selected

---

Selection of the measure to associate of the actual analog output, inside the selected Measure group.

High threshold

± 9999

Maximum value associated to the high threshold associated.

High threshold unit

See below

See below underlined

Unit measure of threshold. Voltage: mV-V-kV-MV Active Power: W-kW-M-GW Temperature: °C Current: mA-A-kA-MA Reactive Power: VAr-kVAr-MVAr-GVAr THD and harmonics: %*100 Apparent Power: VA-kVA-MVA-GVA Frequency: mHz Angle: degree*10

Low threshold

± 9999

Minimum value associated to the low threshold.

Low threshold unit

See below

See below underlined

* These settings are used for the optional analog outputs from AO-1 to AO-4. Example: to associate the L1 phase voltage to the analog output it is necessary select instantaneous for the item Measure group and the acronym V1 for the item Measure associated. If the maximum value is set to 300V and 100V to the minimum, with the scale of 0÷20mA, it will have that with 200V as measured voltage, the output will be 10 mA.

Only for the power factor, cos and tan is used a different logic (see the following example).

Selecting the cos or the power factor as a measure to associate to the analog output, the intermediate output value (10 or 12 mA) is set to cos =1 (and coinciding with cos =-1). The value of the output signal will trend to increase when the positive values of cos decrease from 1 to 0 while for the negative values, it will decrease when the value trend to 0.

Example: Setting +800 and -800 as maximum and minimum values when cos =0.9 the value will be 15 mA, while when the cos =-0.9 it will be 5 mA.

In the case of selection of tan the intermediate output value (10 or 12 mA) is set to tan =0 and the output signal will be directly proportional to the variation of the measure.

Page 38

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 38 / 48

Setpoint

The EMS-96 provides to the user, functionality that perform multiple actions when a measure exceeds the set limits, in the way to take automatic corrective actions. The setpoint (32 available) are made by 3 main areas:

- parameter to be controlled with its limits;

- logic to be used;

- action to be taken.

To use the setpoints correctly, it’s necessary to follow these points:

- Select the Source of the measure to control

between internal measures and external (COM in Master mode).

- Select the Group and the Item (the measure

inside the group).

- Define what are the limits that the measure

must not exceed (High threshold + High

threshold unit and Low threshold + Low threshold unit) and the time spent out of the limits themselves (Over debounce, Entry debounce and Hysteresis) in order to avoid

continuous changes the state of alarm when the read value is near the thresholds set.

- If the limits are exceeded and if it’s

necessary to control more parameters simultaneously and to have a single action, there is the possibility to link more setpoints using the two main logical operations (AND and OR). To use this feature you must set only one setpoint as "primary" with the following setup:

- limits;

- debounce (Over / Entry);

- logic (Over / Entry);

- operands (secondary setpoints to be included in the logic);

- action (Over / Entry);

and others setpoint as "secondary" in which only the limits and the debounces will be set.

- Set the action or the actions to be taken (Action over / Action entry) in the case of pass / return of the limits previously set,

between the following items:

- save the event;

- change the status of one or more digital outputs;

- increase the counter of exceeding limits;

- start the timer whenever the measure exceeds the limits.

- After setting the parameters of the set point, and only at the end, it’s necessary to select yes for the voice Enable.

Debounce High (Sec)

High Threshold

DO ACTION

Hysteresis

RECOVERY ACTION

Thrend Measure

Sec

Debounce Low (Sec)

DO ACTION

RECOVERY ACTION

Low Threshold

Hysteresis

Page 39

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 39 / 48

Setup  Setpoint

Setpoint XX (from 1 to 32)

Range

Default

Enable

Yes / No

Enable or disable the setpoint function.

Source

Internal measures / Measures node X

Internal measures

Select the instrument from which the measure to analyze it will be read.

Group

See Acronyms Group table

---

Selection of the group for the actual setpoint if it is set Internal measures as Source.

Item

See acronym in the table of the group selected

---

Selection of the measure in the selected Measure Group of the actual setpoint.

High threshold

± 9999

The Action is executed if the measure exceed the set value.

High threshold unit

See below

See below underlined

With Measure node X as Source, the multiplier factor will be 1, 1000, 1000000 while with Internal measures there will be: Voltage: mV-V-kV-MV Reactive power: VAr-kVAr-MVAr–GVAr Angle: degree*10 Current: mA-A-kA-MA Frequency: mHz Apparent energy: VAh*100-kVAh-MVAh-GVAh Apparent power:VA-kVA-MVA-GVA Temperature: °C Active energy: Wh*100-kWh-MWh-GWh Active power: W-kW-MW-GW THD and harmonics: %*100 Reactive energy: VArh*100-kVArh-MVArh-GVArh

Low threshold

± 9999

The Action is executed if the measure is lower than the set value.

Low threshold unit

See below

See below underlined

See the description of High threshold unit.

Over debounce [seconds]

0 ÷ 10000

0: instantaneous execution of the Action 1÷10000: execution of the Action if the condition is kept for the time set

Entry debounce [seconds]

0 ÷ 10000

0: instantaneous execution of the Action 1÷10000: execution of the Action if the condition is kept for the time set

Hysteresis (for high & low threshold)

See below

Setting a value different by 0, the hysteresis is enabled with a percentage value set.

Logic operation over

See below

no logic

- No logic: the Action is executed without to verify the status of others setpoint [Default].

- OR logic: the Action is execute after the check of result of the OR logic operation with the setpoint selected in operands.

- AND logic: the Action is execute after the check of result of the AND logic operation with the setpoint selected in operands. WARNING: it’s not possible to set OR logic for logic operation over and logic operation entry at the same time.

Logic operation entry

See below

no logic

- No logic: the Action is executed without to verify the status of others setpoint [Default].

- OR logic: the Action is execute after the check of result of the OR logic operation with the setpoint selected in operands.

Operands (1-16)

See below

No Operands

Setpoint 1: select Yes to include the setpoint 01 in the logic.

- - - - - - - - - - - - - - - - - - Setpoint 16: select Yes to include the setpoint 16 in the logic.

Operands (17-32)

See below

No Operands

Setpoint 17: select Yes to include the setpoint 17 in the logic.

- - - - - - - - - - - - - - - - - - Setpoint 32: select Yes to include the setpoint 32 in the logic.

Action over

See below

None

It possible to select one, more or anything action:

- Display and save the event. - Increase a variable that indicates the number of events.

- Change the DO-X state. - Increase a variable that indicates the duration time of the event.

Action entry

See below

None

It possible to select one, more or anything action:

- Display and save the event. - Change the DO-X state

DO used

See below

None

It possible to select (with Yes) one or more DO: DO-1, DO-2, DO-3, DO-4, DO-5, DO-6, DO-7, DO-8.

WARNING: for a correct functioning before to select the output it’s necessary to set the SETPOINT mode under the item MODE in the setup page of the DO group (DO-1, 2, 3, 4 or DO-5, 6, 7, 8).

Page 40

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 40 / 48

Example of setting (in the correct order) to set an alarm when the voltage exceed 230V on the phases 1, 2 and 3 (V1 AND V2 AND V3) with saving the event and the switching of a digital output when the alarm is present and when it disappear.

SETPOINT 1 (primary) Source: Internal measures Group: instant Item: V1 High threshold: 230 High threshold unit: V Over debounce: 10 (sec.) Logic operation over: AND Operands 1-16:

- Setpoint 2: yes

- Setpoint 3: yes

Action over:

- save event: yes

- DO change: yes Action entry:

- save event: yes

- DO change: yes DO used:

- DO-1: yes

Enable: yes

SETPOINT 2 (secondary) Source: Internal measures Group: instant Item: V2 High threshold: 230 High threshold unit: V Over debounce: 10 (sec.) Enable: yes

SETPOINT 3 (secondary) Source: Internal measures Group: instant Item: V3 High threshold: 230 High threshold unit: V Over debounce: 10 (sec.) Enable: yes

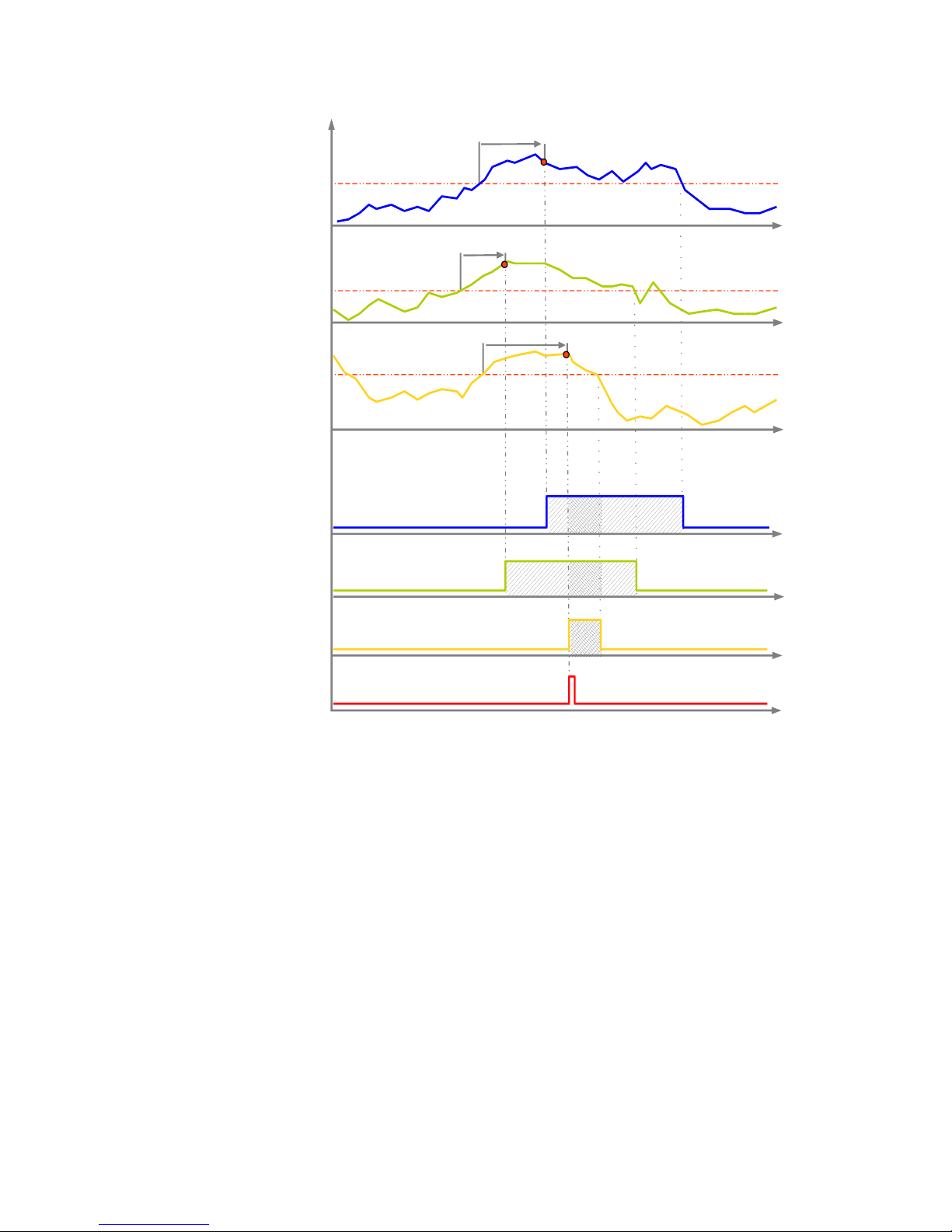

Threeshold

Thrend Measure

Sec

Threeshold

Debounce

State Set Point 1

State Set Point 2

State Set Point 3

DO ACTION

Page 41

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 41 / 48

Log

The EMS-96 can sample up to 15 measures with 4 different log types.

Warning: only at the end of the Log settings you can proceed to the enabling (see examples).

Generic It’s possible to sample with frequency from 1 second to once a month between instantaneous measurements, medium and energies.

Setup  Log  Generic

Generic Log (option)

Range

Default

Enable

yes / no

Enable or disable the generic log. Before to enable the log functionality, it’s necessary to disable any other activated log. It is possible to use only one type of log at a time.

Sampling

1sec / 2sec / 3sec / 5sec / 6sec / 10sec / 12sec / 15sec / 20sec / 30

sec / 1min / 2min / 3min / 5min / 6min / 10min / 12min / 15min / 20

min / 30min / 60min / end of day / end of week / end of month

15 min

Acquisition timing.

Storage Type

FIFO / end memory

end memory

Type of storage. Note: FIFO after 10 consecutive cycles is automatically disabled.

Group 1

See Acronym Group table

---

Selection of the group for the 1st measure sampled for the generic log.

Measure 1

See acronym in the table of the group selected

---

Selection of the 1st measure sampled for the generic log.

………………..

Group 15

See Acronym Group table

---

Selection of the group for the 15st measure sampled for the generic log.

Measure 15

See acronym in the table of the group selected

---

Selection of the 15st measure sampled for the generic log.

Warning: All recordings for all log will be lost if any parameter is changed.

Example: Setup  Log  Generic Sampling 20 sec

Storage type end memory Group 1 instant Measure 1 W1 Group 2 instant Measure 2 W2 Group 3 instant Measure 3 W3 Group 4 instant Measure 4 COS1 Group 5 instant Measure 5 COS2 Group 6 instant Measure 6 COS3 Enable yes

To display how many log were acquired and the remaining storing time: Information  Log summary  Generic. To display the single log: Information  Log detail  Generic.

Page 42

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 42 / 48

Smart It’s possible to define the measures which will be calculated the average, the minimum and the maximum in the period set (from 1 minute to end of year).

Setup  Log  Smart

Smart Log (option)

Range

Default

Enable

yes / no

Enable or disable the smart log. Before to enable the log functionality, it’s necessary to disable any other activated log. It is possible to use only one type of log at a time.

Analyse window

1 min / 2 min / 3 min / 5 min / 6 min / 10 min / 12 min / 15

min / 20 min / 30 min / 60 min / end of day / end of week /

end of month / end of year

15 min

Acquisition timing

Storage Type

FIFO / end memory

end memory

Type of storage. Note: FIFO after 10 consecutive cycles is automatically disabled.

Group 1

See Acronym Group table

---

Selection of the group for the 1st measure sampled for the smart log.

Measure 1

See acronym in the table of the group selected

---

Selection of the 1st measure sampled for the smart log.

………………..

Group 15

See Acronym Group table

---

Selection of the group for the 15st measure sampled for the smart log.

Measure 15

See acronym in the table of the group selected

---

Selection of the 15st measure sampled for the smart log.

Warning: All recordings for all log will be lost if any parameter is changed.

For an example, see the Generic Log.

To display how many log were acquired and the remaining storing time: Information  Log summary  Smart. To display the single log: Information  Log detail  Smart.

Page 43

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 43 / 48

Trigger The measures you select will be sampled at intervals from 1 to 3600 seconds, but only after the occurrence of a specific event, detected by the instrument. The events can be set are of two types:

- digital input change state;

- Setpoint "exceeded limits".

Setup  Log  Trigger

Trigger Log (option)

Range

Default

Enable

yes / no

Enable or disable the trigger log. Before to enable the log functionality, it’s necessary to disable any other activated log. It is possible to use only one type of log at a time.

Sampling [seconds]

1 ÷ 3600

Acquisition timing.

Storage Type

FIFO / end memory

end memory

Type of storage. Note: FIFO after 10 consecutive cycles is automatically disabled.

Trigger input

DI active high, DI active low, Setpoint

DI active high

Input that active the log.

DI used

1 ÷ 4

Digital input used for the trigger.

Setpoint used

1 ÷ 32

Setpoint used for the trigger.

Group 1

See Acronym Group table

---

Selection of the group for the 1st measure sampled for the trigger log.

Measure 1

See acronym in the table of the group selected

---

Selection of the 1st measure sampled for the trigger log.

………………..

Group 15

See Acronym Group table

---

Selection of the group for the 15st measure sampled for the trigger log.

Measure 15

See acronym in the table of the group selected

---

Selection of the 15st measure sampled for the trigger log.

Warning: All recordings for all log will be lost if any parameter is changed.

Example: Setup  Log  Trigger Sampling [s] 5

Storage type end memory Trigger input setpoint Setpoint used 1 Group 1 instant Measure 1 W1 Enable yes

To display how many log were acquired and the remaining storing time: Info  Log summary  Trigger. To display the single log: Info  Log detail  Trigger.

Page 44

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 44 / 48

Timed The selected measures will be sampled at intervals from 1 second to once a month, but only in the days and times set by the user in order to avoid unnecessary log.

Setup  Log  Timed

Timed Log (Option)

Range

Default

Enable

yes / no

Enable or disable the timed log. Before to enable the log functionality, it’s necessary to disable any other activated log. It is possible to use only one type of log at a time.

Sampling

1sec / 2sec / 3sec / 5sec / 6sec / 10sec / 12sec / 15sec / 20sec / 30

sec / 1min / 2min / 3min / 5min / 6min / 10min / 12min / 15min /

20min / 30min / 60min / end of day / end of week / end of month

15 min

Acquisition timing.

Storage Type

FIFO / end memory

end memory

Type of storage. Note: FIFO after 10 consecutive cycles is automatically disabled.

Start hour

0 ÷ 23

Start time of log.

Start minute

0 ÷ 59

Start time of log.

End Hour

0 ÷ 23

End time of log.

End minute

0 ÷ 59

End time of log.

Monday

yes / no

Enable or disable the log in this day of the week.

………………..

Sunday

yes / no

Enable or disable the log in this day of the week.

Group 1

See Acronym Group table

---

Selection of the group for the 1st measure sampled for the timed log.

Measure 1

See acronym in the table of the group selected

---

Selection of the 1st measure sampled for the timed log.

………………..

Group 15

See Acronym Group table

---

Selection of the group for the 15st measure sampled for the timed log.

Measure 15

See acronym in the table of the group selected

---

Selection of the 15st measure sampled for the timed log.

Warning: All recordings for all log will be lost if any parameter is changed.

Example: Setup  Log  Timed Sampling 15 min

Storage type end memory Start hour 8 Start minute 15 End hour 17 End minute 45 Monday yes Tuesday yes Wednesday yes Thursday yes Friday yes Saturday no Sunday no Group 1 avrage Measure 1 AVG W Group 2 avrage Measure 2 AVG VAr Enable yes

To display how many log were acquired and the remaining storing time: Info  Log summary  Timed. To display the single log: Info  Log detail  Timed.

Page 45

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 45 / 48

Math

In the 8 “maths” available, it will be possible to define the measures and the mathematic operation (sum, subtraction, multiplication, division) to perform to obtain a result that can showed, read (communication interfaces) and used in the setpoint or as an argument in another mathematic for operation more complex.

Setup  Math

Math X (from 1 to 8)

Range

Default

Enable

yes / no

Enable or disable the math X.

Compute timing

1sec / 2sec / 3sec / 5sec / 6sec / 10sec / 12sec / 15sec / 20sec / 30

sec / 1min / 2min / 3min / 5min / 6min / 10min / 12min / 15min / 20

min / 30min / 60min / end of day / end of week / end of month

1 sec

Time to update the results of math.

Source 1

Internal measures / Measure node X

Internal measures

Select the instrument from which the measure to analyze is required.

Group 1

--- / instantaneous / average / energies / digital input / counters /analog input / math

---

Selection of the group for the first operand if it is set Internal measures as Source.

Item 1

If the selected Group is instantaneous or average or

energies, see the acronym in the relative table.

---

Inside the Group chosen before, select the measure to check.

Multiplier 1

1 ÷ 100000

Setting of the multiply factor for the operand before to perform the operation.

Divisor 1

1 ÷ 100000

Setting of the division factor for the operand before to perform the operation.

Operation

sum / subtraction / multiplication / division

sum

Select the operation to be performed.

Source 2

Internal measures / Measure node X

Internal measures

Select the instrument from which the measure to analyze is required.

Group 2

--- / instantaneous / average / energies / digital input / counters /analog input / math

---

Selection of the group for the first operand if it is set Internal measures as Source.

Item 2

If the selected Group is instantaneous or average or

energies, see the acronym in the relative table.

---

Inside the Group chosen before, select the measure to check.

Multiplier 2

1 ÷ 100000

Setting of the multiply factor for the operand before to perform the operation.

Divisor 2

1 ÷ 100000

Setting of the division factor for the operand before to perform the operation.

Page 46

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 46 / 48

Acronym tables

Acronyms group table

Acronym

Instantaneous

Average

Energies

Setpoint

Acronyms table of Instantaneous group

Acronym

Explanation

Acronym

Explanation

Acronym

Explanation

System Voltage

System Apparent Power

THD A2

THD Current L2

Voltage L1

VA1

Apparent Power L1

THD A3

THD Current L3

Voltage L2

VA2

Apparent Power L2

DEG V1-V2

Phase Angle L1-L2

Voltage L3

VA3

Apparent Power L3

DEG V2-V3

Phase Angle L2-L3

V1-V2

L1-L2 Voltage

W System Active Power

DEG V3-V1

Phase Angle L3-L1

V2-V3

L2-L3 Voltage

Active Power L1

TAN

System Tan

V3-V1

L3-L1 Voltage

Active Power L2

TAN1

Tan L1

System Current

Active Power L3

TAN2

Tan L2

Current L1

VAr

System Reactive Power

TAN3

Tan L3

Current L2

VAr1

Reactive Power L1

EXP W

System Expected Power

Current L3

VAr2

Reactive Power L2

EXP W1

Expected Power L1

System Power Factor

VAr3

Reactive Power L3

EXP W2

Expected Power L2

PF1

Power Factor L1

4° A

4th Current Input

EXP W3

Expected Power L3

PF2

Power Factor L2

FREQ

Frequency

DEG V-A 1

Phase Angle V1-A1

PF3

Power Factor L3

INT TEMP

internal temperature

DEG V-A 2

Phase Angle V2-A2

COS

System COS

THD V1

THD Voltage L1

DEG V-A 3

Phase Angle V3-A3

COS1

COS L1

THD V2

THD Voltage L2

Insulation

COS2

COS L2

THD V3

THD Voltage L3

PT-100

Ext. temperature from PT-100

COS3

COS L3

THD A1

THD Current L1

Acronyms table of Average group

Acronym

Explanation

Acronym

Explanation

Acronym

Explanation

AVG V

System Average Voltage

AVG COS

Average COS L1

AVG VAr

System Average Reactive Power

AVG V1

Average Voltage Phase 1

AVG COS1

Average COS L2

AVG VAr1

Average Reactive Power L1

AVG V2

Average Voltage Phase 2

AVG COS2

Average COS L3

AVG VAr2

Average Reactive Power L2

AVG V3

Average Voltage Phase 3

AVG-COS3

System Average Apparent Power

AVG VAr3

Average Reactive Power L3

AVG A

System Average Current

AVG VA

Average Apparent Power L1

AVG 4° A

4th Current Input

AVG A1

Average Current L1

AVG VA1

Average Apparent Power L2

AVG Hz

Average Frequency

AVG A2

Average Current L2

AVG VA2

Average Apparent Power L3

AVG TAN

Average System Tan

AVG A3

Average Current L3

AVG VA3

System Average Active Power

AVG TAN1

Average Tan L1

AVG PF

System Average Power Factor

AVG W

Average Active Power L1

AVG TAN2

Average Tan L2

AVG PF1

Average Power Factor L1

AVG W1

Average Active Power L2

AVG TAN3

Average Tan L3

AVG PF2

Average Power Factor L2

AVG W2

Average Active Power L3

AVG PF3

Average Power Factor L3

AVG W3

Average COS L1

Acronyms table of Energies and TB (from 1 to 16) groups

Acronym

Explanation

Acronym

Explanation

Acronym

Explanation

Wh IN

System Active Energy IN

VArh IN 1

Reactive Energy L1 IN

VAh 2

Apparent Energy L2

Wh OUT

System Active Energy OUT

VArh OUT 1

Reactive Energy L1 OUT

Wh IN 3

Active Energy L3 IN

VArh IN

System Reactive Energy IN

VAh 1

Apparent Energy L1

Wh OUT 3

Active Energy L3 OUT

VArh OUT

System Reactive Energy OUT

Wh IN 2

Active Energy L2 IN

VArh IN 3

Reactive Energy L3 IN

VAh

System Apparent Energy

Wh OUT 2

Active Energy L2 OUT

VArh OUT 3

Reactive Energy L3 OUT

Wh IN 1

Active Energy L1 IN

VArh IN 2

Reactive Energy L2 IN

VAh 3

Apparent Energy L3

Wh OUT 1

Active Energy L1 OUT

VArh OUT 2

Reactive Energy L2 OUT

Page 47

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 47 / 48

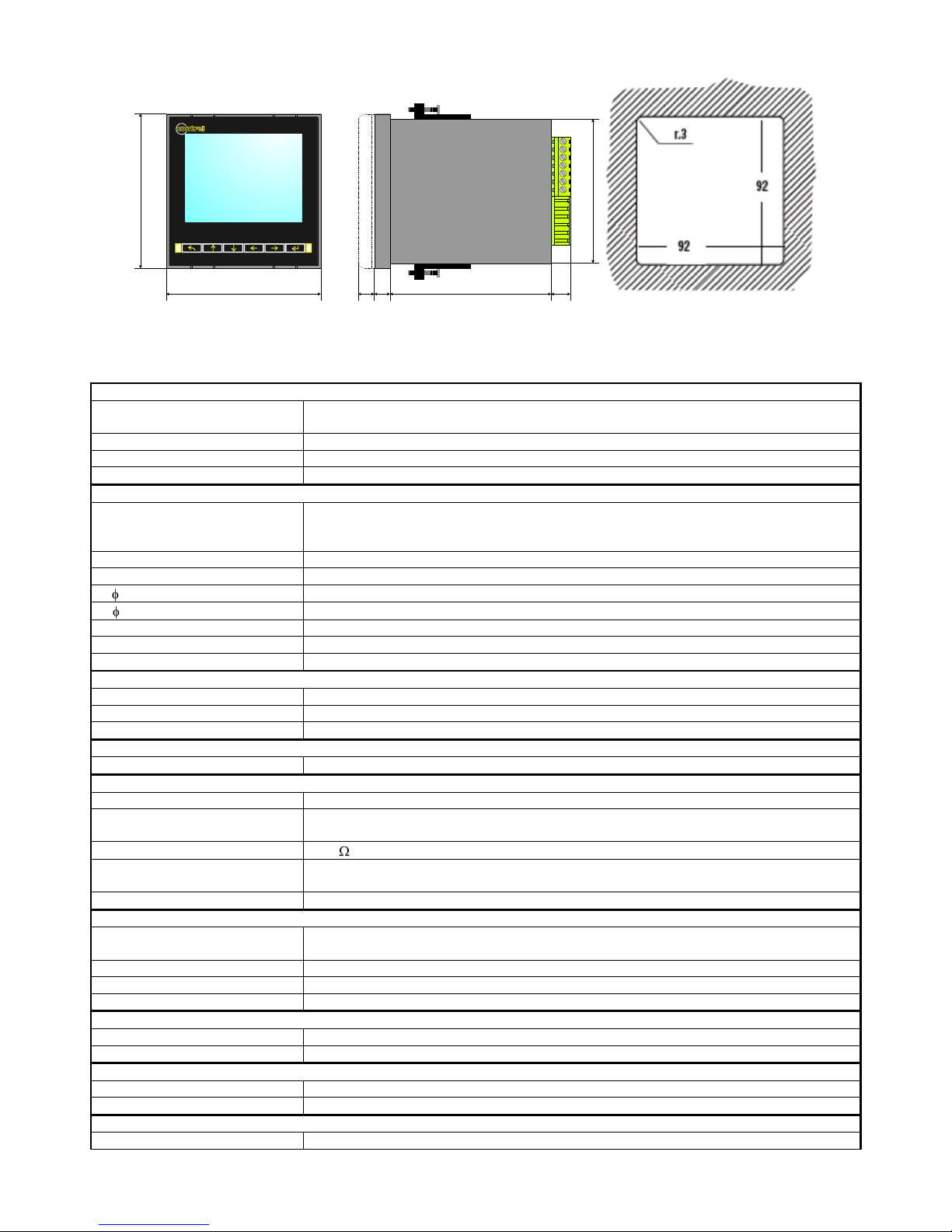

Dimensions

For fixing the flush mount version instrument to the panel, use the fixing devices supplied, by inserting them in the side groves of the enclosure and tighten the screws.

For safety reasons, place an external fuse protection at the input voltages, and use adequate cables for the working voltages and currents, with a section from 0.5 to 2.5 mm2.

Technical features

Auxiliary power supply

Voltage range

90÷250 Vac/dc 20÷60 Vac/dc

Frequency range

50/60 Hz

Protection fuse

1A Time Lag

Power consumption

8VA max – 1VA min (depending on the options and activities)

Measures / precision

Energy

Factory Default: CEI EN 62053-21 compliant – Class 1 (1%) CEI EN 62053-22 compliant – Class 0.5 S (0.5%) CEI EN 62053-22 compliant – Class 0.2 S (0.2%)

Frequency

40÷70 Hz

Power factor

± 1.000

Cos

± 1.000

Tan

± tan 89.9°

THD

IEC62053-22 Compliant

Harmonics

Up to 20th Harmonics – IEC62053-22

Refresh rate

Once per second (all measures)

Measurement range

Voltage

30÷400VAc phase to neutral (52÷693 Vac phase to phase)

Current 1A

10mA÷1A (for 1, 0.5S or 0.2S Class accuracy, depending on the option)

Current 5A

50mA÷5A (for 1, 0.5S or 0.2S Class accuracy, depending on the option)

Installation

Distribution networks

low and medium voltage - single phase connection - three phase with neutral - three phase without neutral

Voltage inputs

Inputs type

3 phase inputs + Neutral

Permitted over voltage

480 Vac phase to neutral (830Vac continuous phase to phase) Over-voltage category: III (permanent installations)

Input resistance

>1.8M

Frequency range

50/60 Hz Note: V1 terminal must be connected

Load (Burden) for each input

0.09 VA

Current inputs

Inputs type

3 inputs isolated by internal current transformers additional input for neutral current with the same characteristics to the phase inputs

Maximum continuous overload 1A

1.3A

Maximum continuous overload 5A

6.5A

Load (Burden) for each input

0.00055 VA

MAX

Mechanical

Overall dimension

96x96x130 mm

Weight

450 gr

Environment conditions

Operating temperature

-10… +60°C

Storing temperature

-15… +70°C

Communication RS485

Protocol

Modbus RTU

9.8 100

89.5

10 12

EMS-96

Home MenuEsc Default

LECTRICAL MEASUREMENT SUPERVISOR

Page 48

EMS-96 Instruction Manual IM1200-U v1.6 Pag. 48 / 48

Standard

RS485 half-duplex with optical isolation

Baud rate

4.8 - 9.6 - 19.2 - 38.4 - 57.6 - 115.2 kbps

Node ID

1÷247

Parity

Even - Odd – None

Stop bit

1, 2

Communication Profibus

Protocol

Profibus with slave DP-V0

Baud rate

9.6Kbits/s - 3Mbits/s

Address

0-126

Connector

DB 9 female connector

Communication Ethernet

Protocol

ModbusTCP, SNMP

Connector

RJ45, WiFi

Communication Mbus

Baud rate

0.3 - 0.6 - 1.2 - 2.4 - 4.8 - 9.6 - 19.2 - 38.4 kbps

Address

0-250

Parity

Even - Odd - None

Stop bit

1, 2

Digital Inputs

Number of digital inputs

2, 4

Input voltage range

Input rated voltage V

INPUT

24, 48, 115, 230 Vac/dc (only one defined in the order)

Input current

Rated input current I

INPUT

@ V

INPUT

: 5mA

MAX

@ V

INPUT

=all voltages

Inputs configuration

2 terminals (A-K) for each input: NPN, PNP

Isolation voltage

3.5KV for 60 sec.

Input filter

Digital

Pulse duration

ON_min

30ms, T

OFF_min

30ms

Digital Outputs

Number of digital outputs

2, 4, 6, 8

Type

Photo-MOS (solid state); RON= 8 typ. (12 MAX)

Voltage/Current range

10÷300Vdc 150mA

MAX

; 12÷250Vac 150mA

MAX

Voltage isolation

4KV for 60 sec.

Output functionality

Digital Output programmed as alarm Selectable pulse period 60ms÷1000ms Programmable pulse polarity (active close or active open) Programmable pulse “weight”

Pulse duration

ON_min

30ms, T

OFF_min

30ms

Analog outputs

Number of analog outputs

2, 4

Auxiliary power supply

Not required

Insulation level

3.5KV for 60 sec.

Maximum lenght of connection

1200m

Resolution

12bit (4096 valori)

Analog outputs type

Current

Voltage

Mode

0÷20mA or 4÷20mA

0÷10V or -10÷10V or 0÷5V or -5÷5V

Load

Max 600

Min 1K

Error

Max: 0.5% on E.S. – Typical 0.2% on E.S.

Max: 0.3% on E.S. – Typical 0.1% on F.S.

Linearity: 0.01 on F.S. - Thermal stability: 0.01 on F.S.

Settling time

50µs(0÷20mA)@R

LOAD

=1K , C

LOAD

=200pF, L

LOAD

=1mH

50µs(-10 ÷10V)@R

LOAD

=1K , C

LOAD

=200pF

Clock calendar

Date and time

Hours, minutes, seconds, day of week, date, month, year

Update

Through modbus command and keys

Retention (in absence of voltage)

7 days backup guaranteed

Storage

Memory

100KB

CE COMPLIANCE AND STANDARDS

The instrument was tested in compliance with EMC 89/336/EEC and complies with the following standards: EMISSIONS = EN 50081-2, 1992 - EN 55022-CLASS B CISPR 22 IMMUNITY = EN 50082-1, 1992 - EN 61000-6-2 SAFETY = EN 61010-2

Contrel EMS-96 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
