Contrec 202D User Manual

Download

202D-M-V3.1

FIELD MOUNTED

RATE TOTALISER

MODEL 202D

June 2017

202D-M-V3.1

IMPORTANT NOTICE

To preserve battery life, the batteries may have been

disconnected and may need to be reconnected. To do this follow the steps outlined in section 9.3.

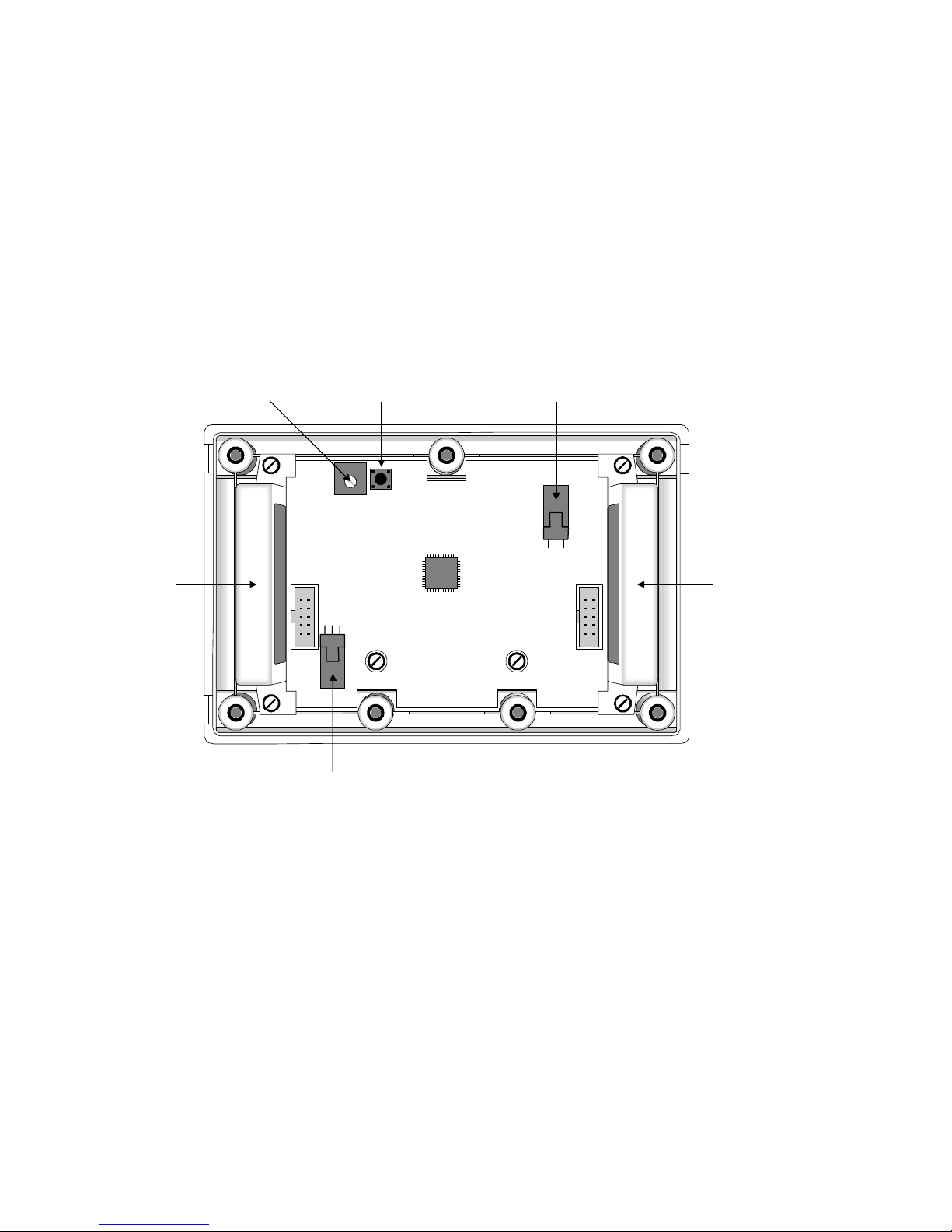

There are two battery packs (see the diagram in section 9.4)

and both packs must be connected.

202D-M-V3.1

CONTENTS

1. Introduction 1

1.1 Model Number Designation 3

1.2 Intrinsic Safety Approvals 4

2. Specification 6

3. Operation 8

3.1 Display 8

3.2 Test Mode 9

3.3 Filtering 10

3.4 Calculation of Rate and Total 12

3.5 Total Conversion 13

3.6 Frequency Cutoff 13

3.7 Linearisation 14

4. Programming 15

4.1 Program Steps 16

5. Example 19

6. Versions 20

6.1 Battery Powered Version 21

6.2 DC Power Version 22

6.3 Relay and 4-20mA Output Version 24

7. Flowmeter Input 26

8. Intrinsic Safety Connections 31

8.1 Coils 31

8.2 Simple Apparatus 32

8.3 Namur Proximity Switches 32

8.4 4-20mA Output 34

8.5 Alarm Outputs 36

9. Installation 38

9.1 Wall Mounting 38

9.2 Panel Mount Version 39

9.3 Removing the Front Panel 40

9.4 The Main Electronics 42

9.5 Wiring 43

9.6 Maintenance 43

9.7 Terminal Designations 44

Index

202D-M-V3.1

Introduction 1

1. INTRODUCTION

The Model 202Di Rate Totaliser is a microprocessor based instrument

which accepts a frequency or pulse input from a wide range of flowmeters. The instrument displays flow Rate, a Resettable Total and an Accumulated Total directly in engineering units.

The instrument is compatible with a wide range of flowmeters including

turbine, paddlewheel and positive displacement flowmeters.

Three different versions of the Model 202Di are available:

1. A Battery Powered Version with no output.

2. A DC Powered Version with either:

i. high and low flow alarms or

ii. a low flow alarm and pulse output.

3. A Loop Powered Version with 4-20mA output and alarms as above.

The instrument is fully programmable from the front panel; the user can

program scaling factors, decimal point positions, filter constants and timebase.

The Model 202Di Rate Totaliser conforms to the EMC-Directive of the Council of

European Communities 2014/30/EU, the LVD directive 2014/35/EU and the following standards:

EN61326:2013 Electrical equipment for measurement, control

and laboratory use – EMC requirements :

Residential, Commercial & Light Industry Environment & Industrial Environment.

EN61010:2010 Safety requirements for electrical equipment for

measurement, control, and laboratory use.

In order to comply with these standards, the wiring instructions in Section 9.5 must be adhered to.

202D-M-V3.1

Introduction

The following improvements have been made in the Model 202D:

Ÿ The 202D output board can have both ALARMS and a 4-20mA OUTPUT.

Ÿ The voltage drop across the alarm outputs in the 202D is ONLY 0.8 VOLTS.

Ÿ The voltage supply for the DC and loop powered versions can go AS LOW

AS 9 VOLTS.

Ÿ The 202D has an overall LOWER CURRENT CONSUMPTION than the

previous model with an IMPROVED BATTERY LIFE - the battery life in the new model is typically 5 years regardless of the time the unit spends in totalising mode.

Ÿ In the 4-20mA output version of the 202D, the ACCURACY HAS BEEN

IMPROVED to 0.05% of span and the linearity to 0.05% of span at 25°C.

Ÿ The millivolt input can accept signals AS LOW AS 15mV P-P.

Ÿ The 202D has a WIDE FREQUENCY RANGE - 0.01Hz to 10kHz.

Ÿ The 202D has a WIDER K-FACTOR RANGE - K-factors from 0.000001 to

999,999 can be programmed.

Ÿ Flowmeter Linearisation up to 10 points is now standard.

Ÿ Unlike the previous Model 202, the 202D has an additional mounting

option - it is available in a PANEL MOUNT version.

202D-M-V3.1

Introduction

1.1 MODEL NUMBER DESIGNATION

The Model Number of the 202Di describes the power & output options

installed and the mounting options.

Model 202Di . 2 3 C

Mounting options Version

0 No holes drilled for cable entry 0

Battery powered version

1 Panel mount 2 Wall mount (standard) 3 DC powered with battery backup 4 Turbine adaptor and alarm outputs 6 2" pipe mount (galvanised)

4 Loop powered with 4-20mA

output, alarm outputs and backup batteries

Approvals

C CSA USA/Canada approval

M ATEX/IECEx Approval

202D-M-V3.1

Introduction

1.2 INTRINSIC SAFETY APPROVALS

The Model 202Di is certified for use in hazardous areas and has IECEx, ATEX

and CSA U S /C approvals.

The Model 202Di certification details are:

IECEx Approval IECEx BVS 15.0099X Rating Ex ia IIB T4 Gb

ATEX Approval BVS 15 ATEX E 106 X Rating II 2G Ex ia IIB T4 Gb

Ambient Temperature: Maximum ambient temperature of 60°C.

CSA NRTL/C Approval LR 104 840-5.

Type: Class 1, Groups C and D.

When installing in hazardous areas, the instrument must be installed

according to the guidelines in Section 2 and in accordance with standards for wiring and installation in hazardous areas.

4-20 mA/DC Power

The input can be connected to IS circuits with the following maximum

values:

Ui = 28V Ii = 93mA Pi = 653mW

The internal capacitance and inductance seen on these terminals is 0.1uF

and 0mH.

202D-M-V3.1

Introduction

Relay Outputs

The outputs can be connected to IS circuits with the following

maximum values:

Ui = 28V Ii = 93mA Pi = 653mW

The internal capacitance and inductance seen on these terminals is 0.1uF

and 0mH.

Flowmeter Input

Entity parameters on the flowmeter enable connection to a wide range of approved sensors.

Input parameters are:

Ui = 24V Ii = 20mA Pi = 320mW

The internal capacitance and inductance seen on these terminals is 0.02uF

and 0mH.

Output parameters are:

Uo = 10.0V (open circuit) Io = 9.0mA (short circuit) Po = 23mW

Maximum allowed external capacitance is 20µF. Maximum allowed external inductance is 1.5H.

202D-M-V3.1

Specification

2. SPECIFICATION

General

Display: LCD which is continuously powered.

Resettable Total: 7 digits with 10mm (0.4") high digits. Resettable from front panel.

Accumulated Total: Displayed when the ACCUM TOTAL button is

pressed.

Rate: 4½ digits with 8.5mm (0.33") high digits.

K-factor: The pulses per unit of measure (eg. pulses/gallon) is programmable in the range 0.000001 to 999,999.

Calibration up to ten user selected points.

Decimal Points: Decimal point positions are fully programmable for both rate and total.

Timebase: Rate can be displayed in units per second, minute,

hour or day.

Frequency Range: 0.01Hz to 10kHz.

Signal Type: Link settable for sinewave (15mV P-P minimum), open collector, reed switch, pulse or Namur proximity switch.

Battery Powered Version

Type: Two lithium battery packs.

Battery Life: 5 years typical.

Loop Powered 4-20mA Output Version

Scale: The 4mA and 20mA points are programmable.

Resolution and Linearity: 0.05% of span.

Accuracy: 0.05% of span at 25°C.

0.1% (typ) of span, full temperature range.

Update Time: 0.5 second.

Connection: Two-wire.

Loop Power Supply: 9-28 Volts.

Supply Backup: Lithium battery.

202D-M-V3.1

Specification

DC Power/Alarm Version

Outputs: Two open collector outputs suitable for driving

DC solenoids or external relays. The outputs can be programmed to provide high and low flow alarms or pulse output and low flow alarm.

Switching Power: 200mA. 30VDC maximum.

DC Power Input: 9-28 Volt at 4mA maximum.

Supply Backup: Lithium battery.

Pulse Duration: 1ms if CAL0 = 2 (unscaled pulse output).

If CAL0 = 1 (scaled pulse output) the duration of the pulse automatically adjusts to the output frequency:

a. 1ms if output > 50Hz.

b. 10ms if output = 5...50Hz.

c. 100ms if output < 5Hz.

Physical

Temperature: Operating temperature: -20°C to 60°C.

Dimensions: 97mm (3.8") high x 150mm (5.9") wide x 41mm (1.6") deep (cable glands not included).

Protection: Sealed to Nema 4X or IP67 standards.

Cable Entry: By cable glands.

Wall Mounting: Universal mounting bracket supplied as standard.

Pipe Mounting: A galvanised metal bracket is available which enables the Model 202D to be attached to a 2" vertical or horizontal pipe.

Turbine Meter Adaptor: An optional mounting stem is available for

mounting the Model 202D directly on turbine flowmeters which have a 1" NPT boss or 1" BSP boss.

Panel Mounting: Supplied with mounting brackets. Terminals accessible from rear. The panel mount version is not watertight.

Cutout: 141mm (5.6") wide x 87mm (3.4" high).

202D-M-V3.1

Operation

3. OPERATION

The Model 202D Rate Totaliser accepts a frequency or pulse input from a

wide range of flowmeters. The instrument is fully programmable with all operating parameters and calculation constants programmable from the front panel. The setup parameters are stored in a non-volatile memory and are retained for at least 40 years in the event of a power loss.

3.1 DISPLAY

The Model 202D displays:

Rate Resettable Total

Accumulated Total

Both the Rate and Resettable Total are displayed continuously. The

Accumulated Total is displayed only when the ACCUM TOTAL key is pressed.

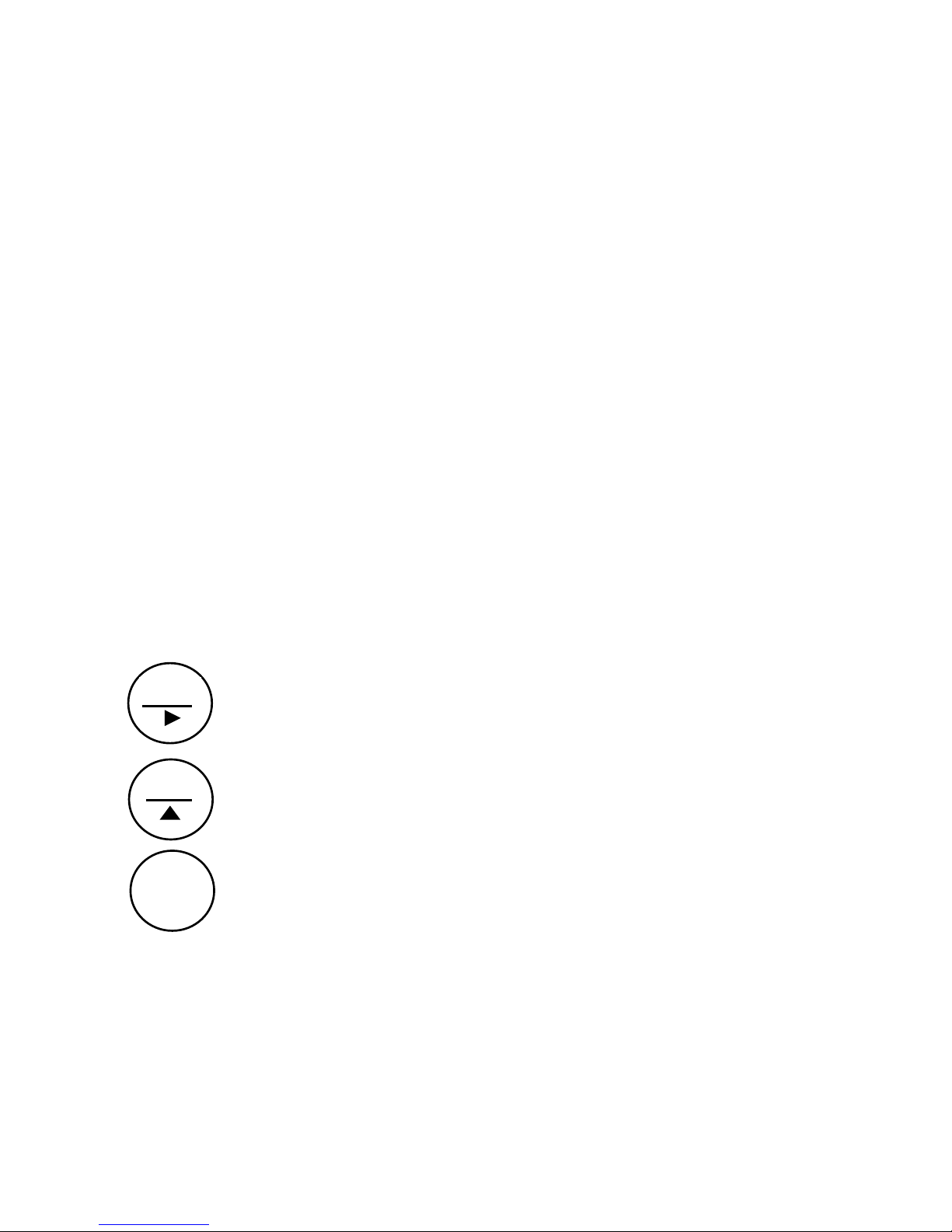

The keys on the front of the 202D have the following functions:

Pressing this key will display the

Accumulated Total.

This key resets the Resettable Total

at any time.

This key is used during the Program

Mode.

RESET

PROGRAM

ACCUM

TOTAL

202D-M-V3.1

Operation

3.2 TEST MODE

The 202D has a Test Mode which can be entered by simultaneously pressing all

3 front panel keys. The tests are as follows:

Low Test By pressing the ACCUM TOTAL key, the low

alarm output (if installed) will go low. If a 420mA option is installed, the output will go

to 4mA.

High Test By pressing the RESET key, and depending on the

programmed pulse output mode, the high alarm output (if installed):

a. will go low if CAL0 = 0 (high alarm output). b. will output 100ms pulses every 0.5 sec if CAL0

= 1 (scaled pulse output).

c. will output 1ms pulses every 0.5 sec if CAL0 =

2 (unscaled pulse output).

If a 4-20mA option is installed, the output will go to 20mA.

Display Test By pressing the PROGRAM key, all segments of

the display will flash.

To exit Test Mode, all three front panel keys are pressed simultaneously.

202D-M-V3.1

Operation

3.3 FILTERING

Frequency fluctuations caused by pulsating flow through a flowmeter can interfere with the precision of the rate. For this reason, the Model 202D has a digital filter which will average out these fluctuations and enable accurate readings.

The degree of filtering of the input signal can be adjusted depending on the

amount of fluctuation and the particular application. Values from 1 to 99 can be programmed where 1 corresponds to no filtering and 99 corresponds to heavy filtering. Such flexibility in filtering means that highly accurate and stable readings can be obtained.

When programming the degree of filtering, it is advisable to start with no

filtering (the factor equals 1) and gradually increase until a steady reading is obtained. It is important that the filtering is not too heavy because this will cause an over-damped response.

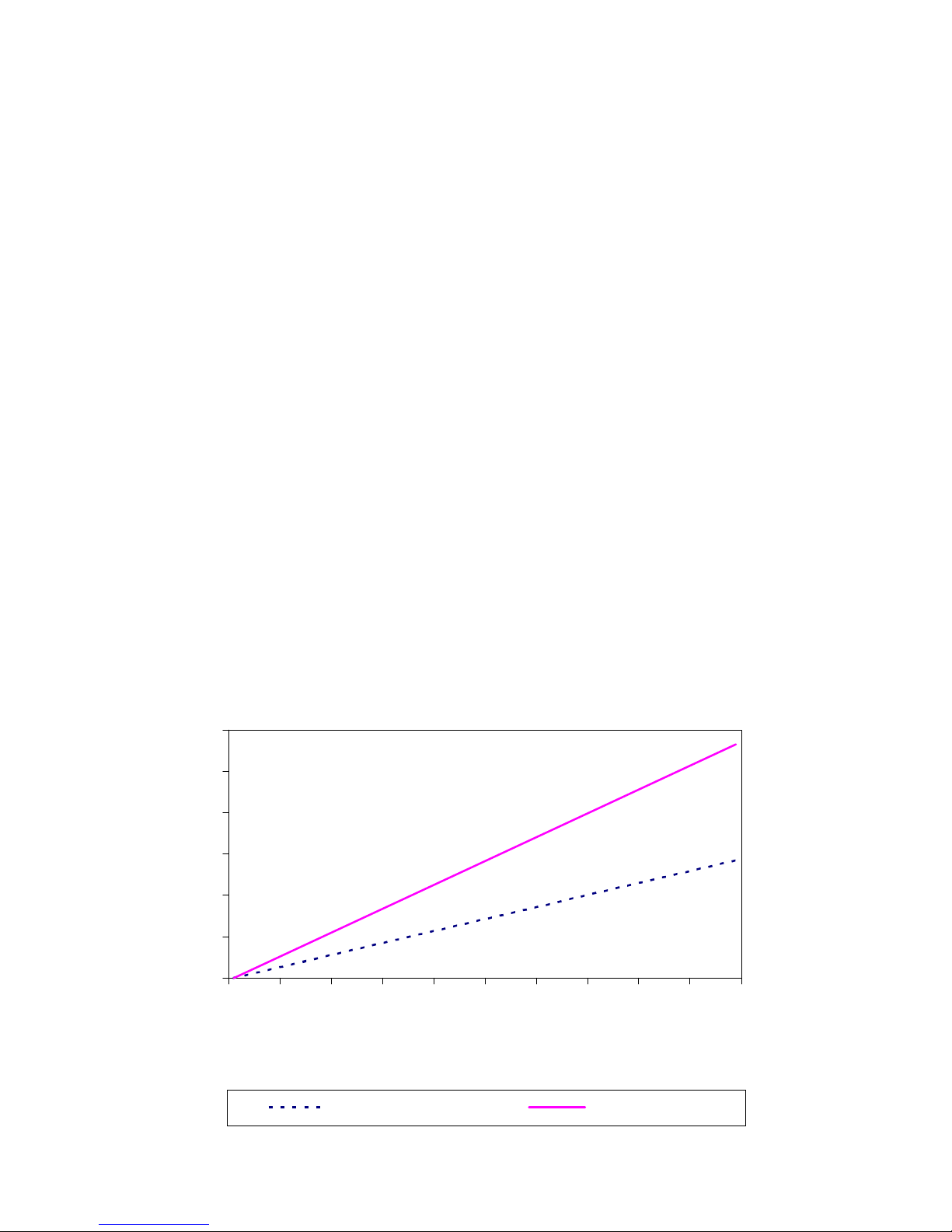

The following graph shows the time to reach 90% and 99% of a new reading

for a step change in input signal.

Filter Factor vs Time to Reach New Reading

(for a step change in input signal)

100

120

0 10 20 30 40 50 60 70 80 90 100

Filter Factor

Time to Reach % of

New Reading (seconds)

90% of New Reading 99% of New Reading

202D-M-V3.1

Operation

3.4 CALCULATION OF RATE AND TOTAL

The flow rate, R, is calculated as follows:

where f is the input frequency in Hz (pulses/second).

H is the timebase of rate and is 1 for seconds, 60 for minutes, 3600 for

hours and 86,400 for days.

S is the scaling factor (pulses/unit volume).

The scaling factor, S, is equal to the K-factor of the flowmeter expressed in pulses

per unit volume. The K-factor is flowmeter dependant and is supplied with the flowmeter. It will be either on a calibration certificate or stamped on the body of the meter.

The user programs the scaling factor and selects the timebase during the

programming procedure.

R =

f x H

202D-M-V3.1

12 Operation

3.5 TOTAL CONVERSION

The Total Conversion Factor is programmed to enable the rate to be displayed

in one engineering unit and the totals to be displayed in another. For example, the rate can be displayed in gallons/minute and the totals in barrels.

The Total Conversion Factor is a division factor which is used to convert the

totals to a different unit. Therefore, it only affects the totals (both resettable and accumulated).

Example.

If the Rate is required in gallons/minute:

1. The Scaling Factor would be programmed as pulses per gallon.

2. The Timebase would be programmed as minutes.

If the Totals are required in barrels:

1. The Total Conversion Factor is programmed as 42 because there are 42 gallons in a barrel. All totals will now totalise in barrels.

Below is a table containing common units and their corresponding

Total Conversion constants:

Rate/Unit Time Totals Total Conversion Factor

Gallons (US)/Unit Time Barrels (oil) 42.000 Litres/Unit Time Kilolitres 1000 Litres/Unit Time m3 1000 ml/Unit Time Litres 1000

Mgallons/Unit Time Acre-feet 0.32587

202D-M-V3.1

Operation 13

3.6 FREQUENCY CUTOFF

A frequency cutoff can be programmed below which flow rate is not registered.

Input frequencies at or below the cutoff are totalised, however, the rate is displayed as zero.

The frequency cutoff has a default value of 0.25Hz. The cutoff should be left

as 0.25Hz unless the flowmeter in use has a lower frequency.

Note that a low cutoff frequency will result in a correspondingly low response of flow rate update. For example, if the cutoff is set to 0.01Hz the 202D will continue to display the flow rate for 100 seconds even if the signal stops. This is because a cutoff frequency of 0.01Hz means that the time interval between signals is 100 seconds (period = 1/frequency). Therefore, the Model 202D must wait 100 seconds before it can determine that the flow has actually stopped.

202D-M-V3.1

Operation

3.7 NON-LINEARITY CORRECTION

Non-linearity correction enables the instrument to correct for known nonlinearities in the flowmeter.

Up to 10 frequencies and scaling factors can be programmed. Data on the flowmeter non-linearity can usually be supplied by the flowmeter manufacturer in the form of a Calibration Certificate, and is the result of individual tests on a flowmeter over a range of flowrates. The Certificate will list a number of flowrates or frequencies with the measured K-factor (e.g. pulses per gallon or litre) at each flowrate.

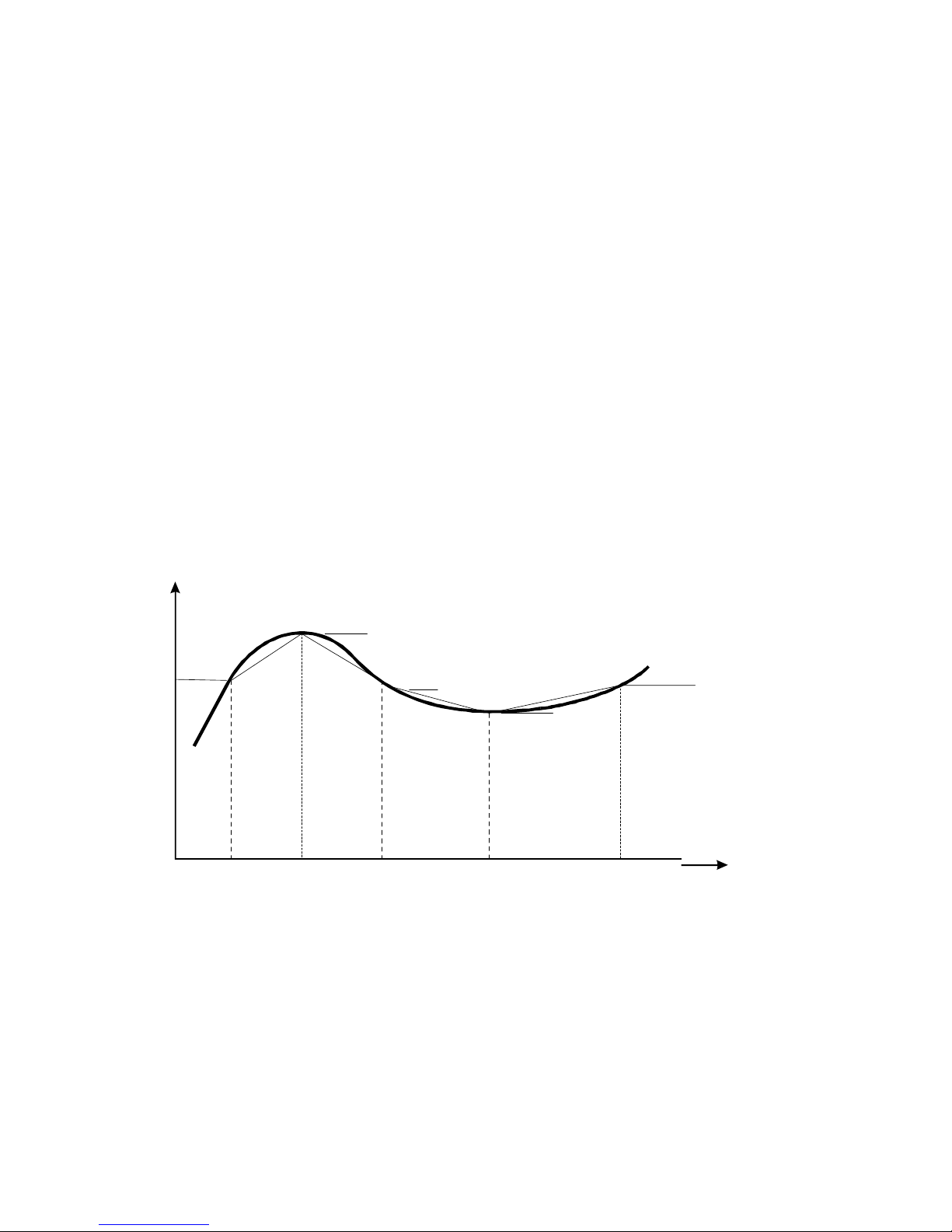

The following diagram graphs the change in scaling factor with frequency for

a hypothetical flowmeter. The heavy black line represents the actual scaling factor of the flowmeter as read from the Calibration Certificate, while the light black line is the approximation used in the instrument.

Linear Interpolation is used between points on the curve, except for Factor 1 which maintains a constant value between Frequency 1 and any Frequency below Frequency 1.

Note that the display update time will be increased to 1 second when the non linear correction option is selected with the battery powered version of the 202D.

Scaling

Fact 1

Fact 2

Fact 3

Fact 4

Fact 5

Frequency

Freq 1 F r e q 2 Freq 3 Freq 4 Freq 5

202D-M-V3.1

Programming

4. PROGRAMMING

The Model 202D is fully programmable with all parameters being stored in

non-volatile memory.

The Program Mode can be entered in one of two ways:

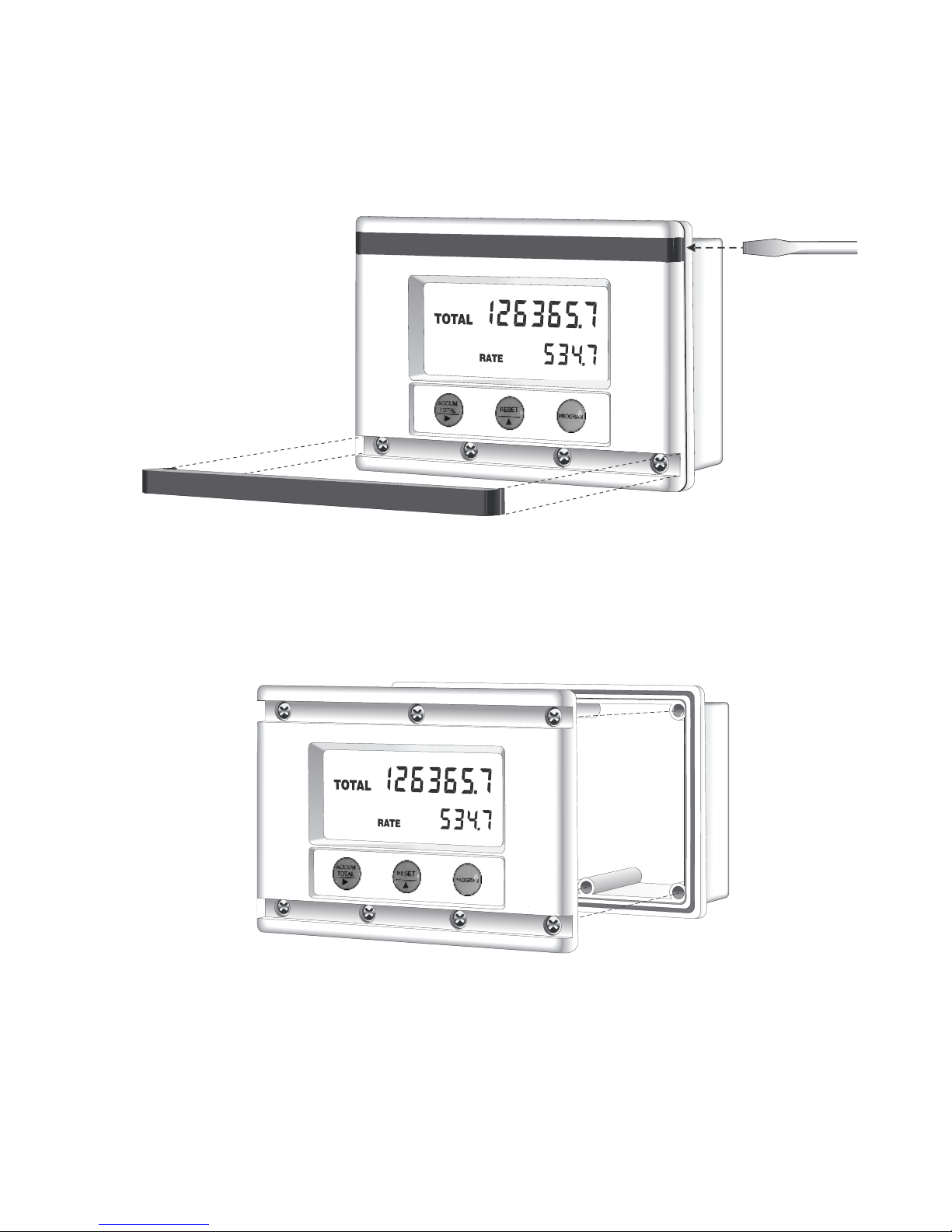

1. By removing the lower cover strip (ie. the dark grey strip along the bottom of the enclosure) and replacing it the wrong side up. This brings a small magnet on the inside of the cover strip in contact with a reed switch inside the instrument.

2. By removing the front section of the enclosure which contains the main processor board and batteries.

The PROGRAM switch is used to step through the program (CAL sequences)

and the ∆ (ACCUM TOTAL) and > (RESET) keys on the front panel are used to change and increment the flashing digits. Note that only flashing digits can

be changed.

Up to eighteen CAL steps are accessible depending on which options are installed.

The CAL number is displayed on the lower display and the parameter is

displayed above it.

Parameters in Program Mode that consist of the two parts, whole numbers and digits after the decimal point, are restricted to having a maximum of 6 significant digits. Therefore the number of significant digits entered in the whole numbers determines the number of digits that are able to be entered in the digits after the decimal point.

For Example

000001 in the whole numbers makes 00000 available after the decimal place. 000100 in the whole numbers makes 000 available after the decimal place. 010000 in the whole numbers makes 0 available after the decimal place.

202D-M-V3.1

Programming

4.1 PROGRAM STEPS

Step Comment

CAL 0

Pulse Output (applies to DC Power/Alarm version only).

0 = No pulse output, low and high alarms.

1 = Scaled pulse output and low alarm.

2 = Unscaled pulse output and low alarm.

CAL 1

Scaling Factor - whole numbers.

CAL 2

Scaling Factor - digits after the decimal point.

The scaling factor is the pulses per unit of measure

(e.g. pulses/litre, pulses/gallon, etc). The scaling factor can be programmed in the range of 0.000001 999,999.

See Section 3.4.

CAL 3

Cutoff Frequency.

This determines the cutoff frequency in the range of 0.01

-0.99Hz. The default setting is 0.25HZ.

Note that care must be taken when programming this value because a low value may cause a slow update time.

CAL 4

Decimal Point for Rate Display.

The flow rate can be displayed with 0, 1, 2 or 3 decimal

point places.

CAL 5

Timebase for Rate.

The rate can be displayed in units per second, minute, hour

or day.

0 = second

1 = minute

2 = hour

3 = day

CAL 6

Filter.

The filter constant for filtering the input signal.

1 No filtering.

99 Very heavy filtering.

202D-M-V3.1

Programming

Step Comment

CAL 7

Decimal Point for Total Display.

The totals can be displayed with 0, 1, 2 or 3 decimal points.

CAL 8

Total Conversion Factor - whole numbers.

CAL 9

Total Conversion Factor - digits after the decimal point.

The total conversion factor enables the rate to be displayed

in one engineering unit and the totals to be displayed in another engineering unit. The total conversion factor can be programmed in the range of 0.000001 - 999,999.

Set to 1.000 if totals and rate are in the same unit, e.g. litres.

See Section 3.5.

CAL 10

Low Alarm - whole numbers.

CAL 11

Low Alarm - digits after the decimal point.

CAL 10 to CAL 13 are displayed regardless of whether the

high and low alarms are installed. If the high and low alarms are not installed, these parameters can be ignored.

CAL 10 & 11 program the flow rate below which the

low alarm relay will close. The value can be programmed in the range 0.000000 to 999,999.

CAL 12

High Alarm or Pulse Output Factor - whole numbers.

CAL 13

High Alarm or Pulse Output Factor - digits after the decimal

point.

CAL 12 & 13 program the flow rate above which the high

alarm relay will close. The value can be programmed in the range 0.000000 to 999,999.

If the scaled pulse output is selected (see CAL0 = 1), then the value will represent the total per pulse, e.g. 5 litres per pulse.

202D-M-V3.1

Programming

Step Comment

CAL 14

4mA Retransmission - whole numbers.

CAL 15

4mA Retransmission - digits after the decimal point.

CAL 14 to CAL 15 represent the flow rate at which 4mA will

be output. If the 4-20mA retransmission is not installed, these parameters can be ignored.

CAL 16

20mA Retransmission - whole numbers.

CAL 17

20mA Retransmission - digits after the decimal point.

CAL 16 & 17 are the flow rates at which the output will reach

20mA.

CAL 18 Enabling and number of points for linearisation.

‘00’ = Linearity Disabled; ‘02’ - ‘10’ number of points.

If Linearity is enabled by entering a number 02 to 10, then the programming will request data as per the table below. Input points are entered in ascending order.

INP 01 Input Frequency ‘01’ whole number

INP .00 Input Frequency ‘01’ digits after decimal point OUT 01 Scaling Factor ‘01’ whole number OUT .00 Scaling Factor ‘01’ digits after decimal point

Repeat the above for the remaining scaling factors.

Any frequency greater than that of the last linearity point will

be scaled at the last Scaling Factor.

SOFT

Software Version.

202D-M-V3.1

Example

5. EXAMPLE

A flowmeter produces 20.538 pulses per litre and has a maximum output

frequency of 200Hz. It is required to display the flow rate in litres/min with 1 decimal point and the total in litres with no decimals. A 4-20mA output is installed and 4mA is to represent 0 litres/m and 20mA is to represent 500 litres/m. The instrument is then programmed as follows:

Calibration mode is entered by removing the lower cover strip (i.e. the dark

grey strip along the bottom of the enclosure) and replacing it the wrong side up.

The following values are then entered:

Step

Value of

Parameter Description

CAL00

0 No Pulse Output

CAL01

00020 Scaling Factor (whole numbers)

CAL02

5380 Scaling Factor (decimals)

CAL03

0.25 Cutoff Frequency

CAL04

1 Rate decimal position

CAL05

1 Timebase

CAL06

01 Filter disabled

CAL07

0 Total decimal position

CAL08

0001 Total Conversion (set to 1.0000)

CAL09

0000 Total Conversion (decimals)

CAL10

00000 Low Alarm (not installed)

CAL11

0000 Low Alarm (not installed)

CAL12

00000 High Alarm (not installed)

CAL13

0000 High Alarm (not installed)

CAL14

00000 4mA Output (whole numbers)

CAL15

0000 4mA Output (decimals)

CAL16

00500 20mA Output (whole numbers)

CAL17

0000 20mA Output (decimals)

CAL18

00 Linearity number of points

SOFT

1.01 Software Version

202D-M-V3.1

6. VERSIONS

The following table summarises the features of each of the different versions of

the Model 202D:

Where X denotes the mounting options and will be replaced by one of

the following numbers:

0 No holes drilled for cable entry 1 Panel mount 2 Wall mount (standard) 4 Turbine adaptor 6 2" pipe mount (galvanised)

Model Number

202DI.X0 202DI.X3 202DI.X4

Version

Battery

Powered

DC Powered

Loop Powered

Power Lithium

DC Powered;

9-28V at 4mA

Maximum

Loop

Powered; 9-28

Volts with 4-

20mA Output

Output None

Alarms - two open collector

outputs

Pulse Output and Low Flow

Alarm

Supply

Backup

N/A Lithium Lithium

20 Versions

202D-M-V3.1

Versions

6.1 BATTERY POWERED VERSION

The battery powered version of the Model 202Di is designed for operation in

the field without external power sources. Lithium batteries provide sufficient power to operate the instruments for up to 5 years and the operator is warned of a low power condition by a message on the LCD display.

New batteries can be purchased via Contrec or our distributors and replaced in the field without compromising the IS approvals. There are two battery packs

in each instrument and care must be taken to replace only one pack at a time so that there is always power connected to the memory. Failure to do this may

result in loss of totals.

Please note that only Contrec supplied replacement batteries can be used

Please contact your local Contrec distributor for more information

202D-M-V3.1

Versions

6.2 DC POWER VERSION

The DC power version will operate from an external power source between

9-28VDC and draws no more than 4mA. This enables the instrument to be powered from AC mains adaptors and eliminates the need to run mains voltages in the field.

The instrument uses lithium batteries for backup if the DC power is

interrupted.

However, alarms and/or pulse outputs are not supported if the DC power is interrupted.

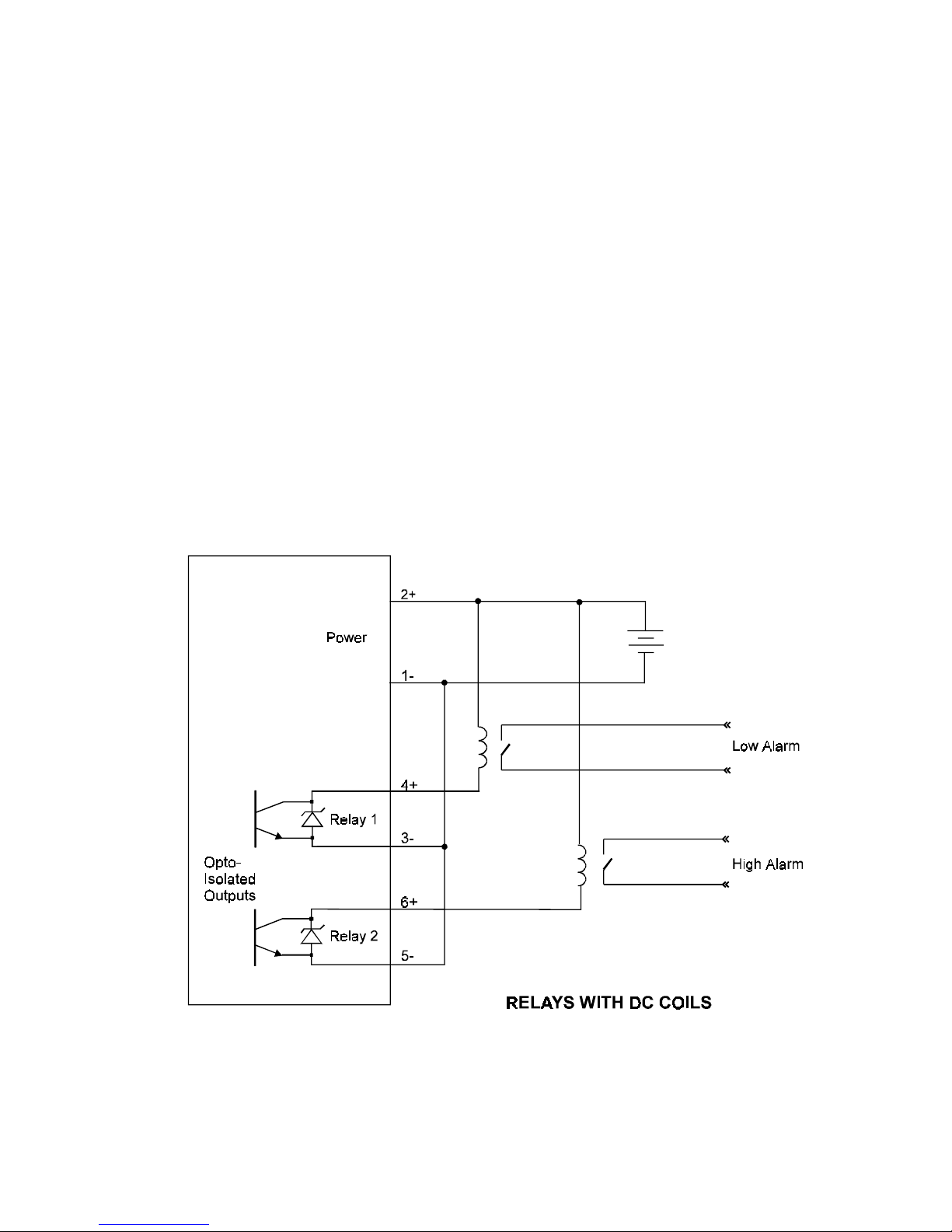

Open collector outputs are also provided for high and low flow rate alarms.

If a pulse output is programmed, terminals 6 and 5 will act as a pulse out.

The output can sink up to 200mA and can be used to power external relays,

lights or audible alarms. The outputs are internally protected against voltage spikes caused by relays and coils.

Both outputs are separately isolated via opto-isolators.

The switching points can be programmed during the setup mode and the low

flow alarm will switch on whenever the flow rate drops below the programmed flow rate. Similarly, the high alarm switches on whenever the flow exceeds the high setpoint.

If a scaled pulse output is programmed, a pulse will be output every preset value of the total. For example, if the total is in litres, then programming 5 will output one pulse every 5 litres. If an unscaled pulse output is programmed, output pulses will follow input frequency from a flowmeter.

202D-M-V3.1

Versions

Specification for Alarm Outputs

Maximum Current (sink): 200mA. Maximum Voltage: 30Vdc. Saturation Voltage: 0.8Vdc across outputs when in the "on" state. Isolation: Both outputs are separately isolated. Pulse Frequency: 500Hz maximum. Pulse Duration: 1ms if CAL0 = 2 (unscaled pulse output).

If CAL0 = 1 (scaled pulse output) the duration of the pulse automatically adjusts to the output

frequency: a. 1ms if output > 50Hz. b. 10ms if output = 5...50Hz. c. 100ms if output < 5Hz.

202D-M-V3.1

Versions

6.3 RELAY AND 4-20mA OUTPUT VERSION

This version combines features of the DC powered with a 4-20mA output.

The 4-20mA output provides a two-wire retransmission of the flow rate. Both

the 4mA and 20mA points are fully programmable so that the output can span across the entire operating range or, alternatively, across a small section of the operating range.

The instrument draws its operating power from the 4-20mA loop and uses

lithium batteries for backup if the 4-20mA loop is interrupted. The alarm/pulse outputs are not supported if the 4-20mA loop is interrupted.

Specification

Resolution and Linearity: 0.05% of span.

Accuracy: 0.05% of span at 25°C.

0.1% (typ) of span, full temperature range. Response (4-20mA): 0.5 second. Loop Power Supply: 9-28 Volts.

Since the 4-20mA output is designed to provide power to the Model 202D, it is not isolated from the input. Hence, all sensors must be self-powering (such as reed switches and coils). If external power is required to power the sensor (e.g. Namur switches, Hall effect sensors or opto-sensors), the power supply delivering the external power must be isolated from the 4-20mA loop supply.

202D-M-V3.1

Versions

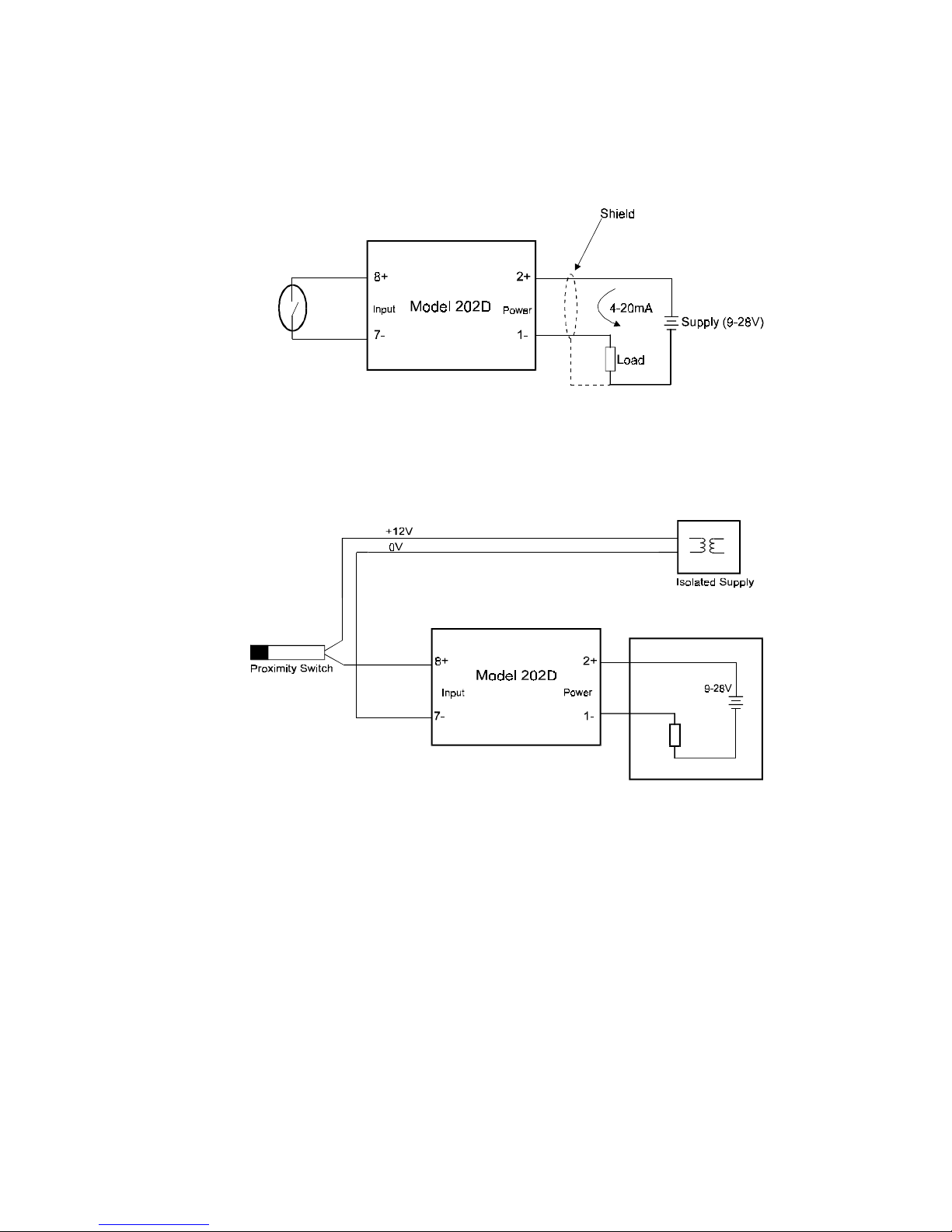

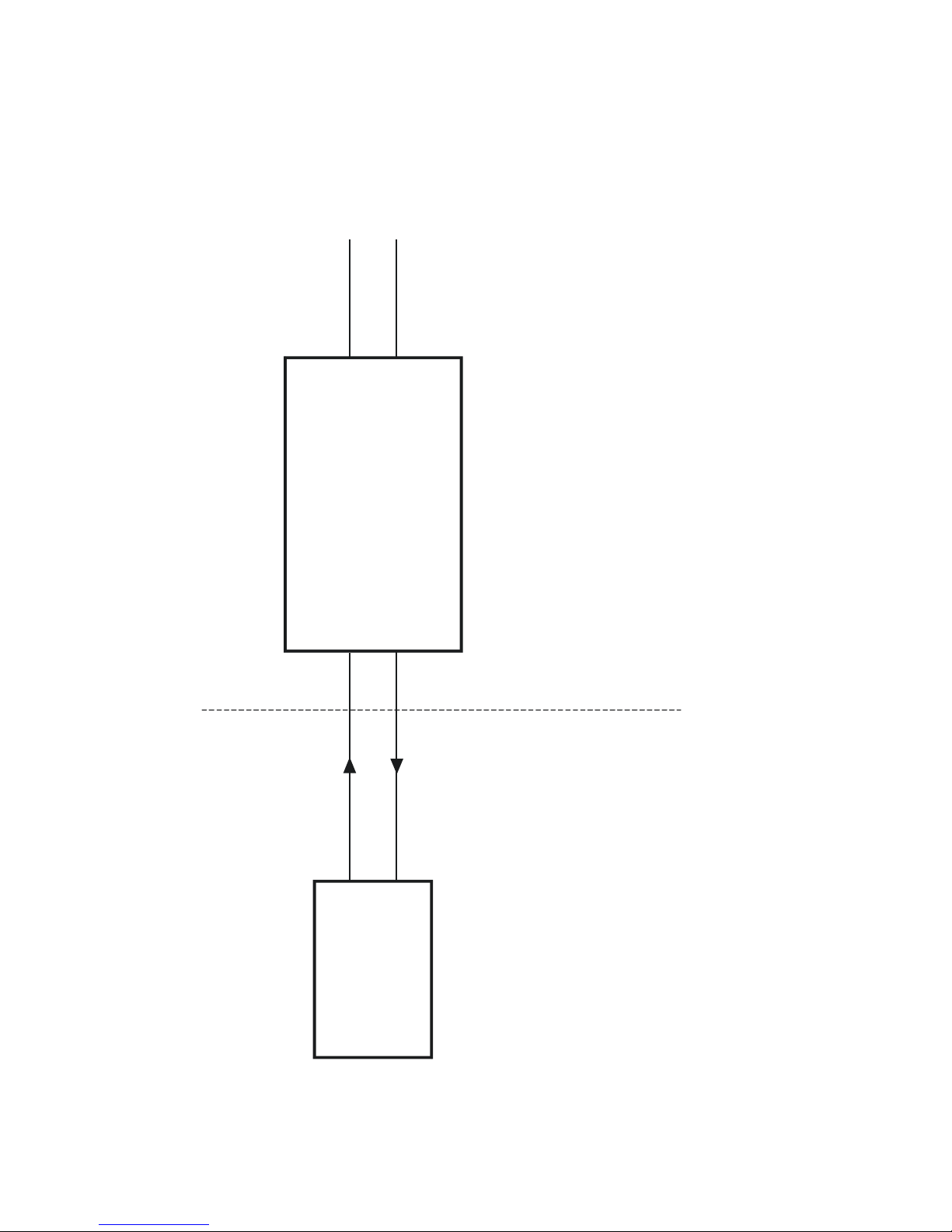

Typical Connection

Connection to a Sensor requiring External Power

202D-M-V3.1

26 Flowmeter Input

7. FLOWMETER INPUT

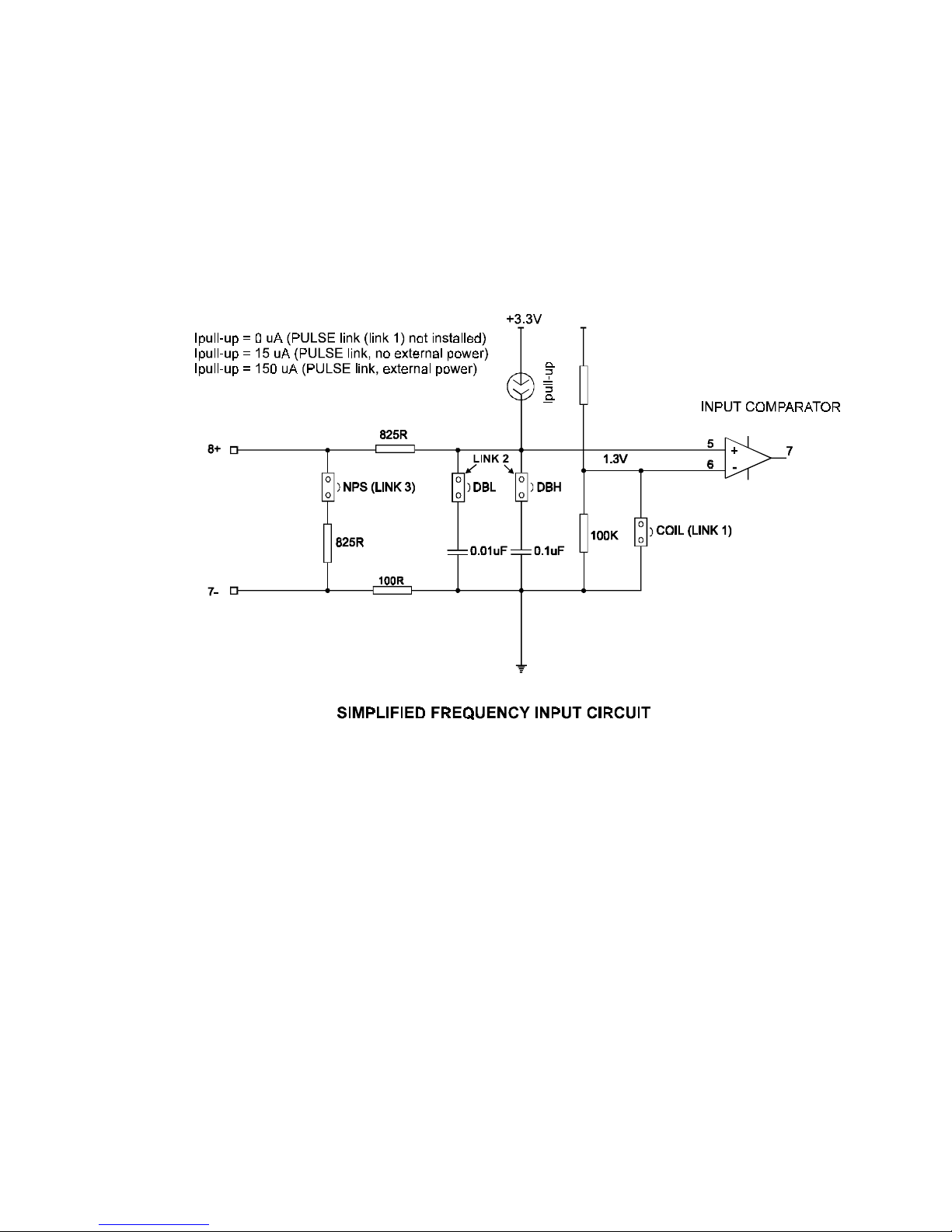

The Model 202D has an input conditioning circuit which will accept signals

from most pulse or frequency producing flowmeters. Links on the rear panel enable the input circuit to be configured for different signal types.

The input will interface directly to:

Turbine flowmeters. Open collector outputs.

Reed switches. Logic signals.

Two-wire proximity switches.

The following pages give examples of interconnection to various signal outputs. A circuit diagram of the input is also provided.

For pulse or logic type signals, the input switching threshold is 1.3 volts. That is, the input signal must have a "low" voltage of less than 1.2 volts and a "high"

voltage of greater than 1.4 volts.

For flowmeters with coils, the minimum input voltage is 15mV P-P.

All inputs are protected for over voltage up to 28 volts.

202D-M-V3.1

Flowmeter Input

202D-M-V3.1

Flowmeter Input

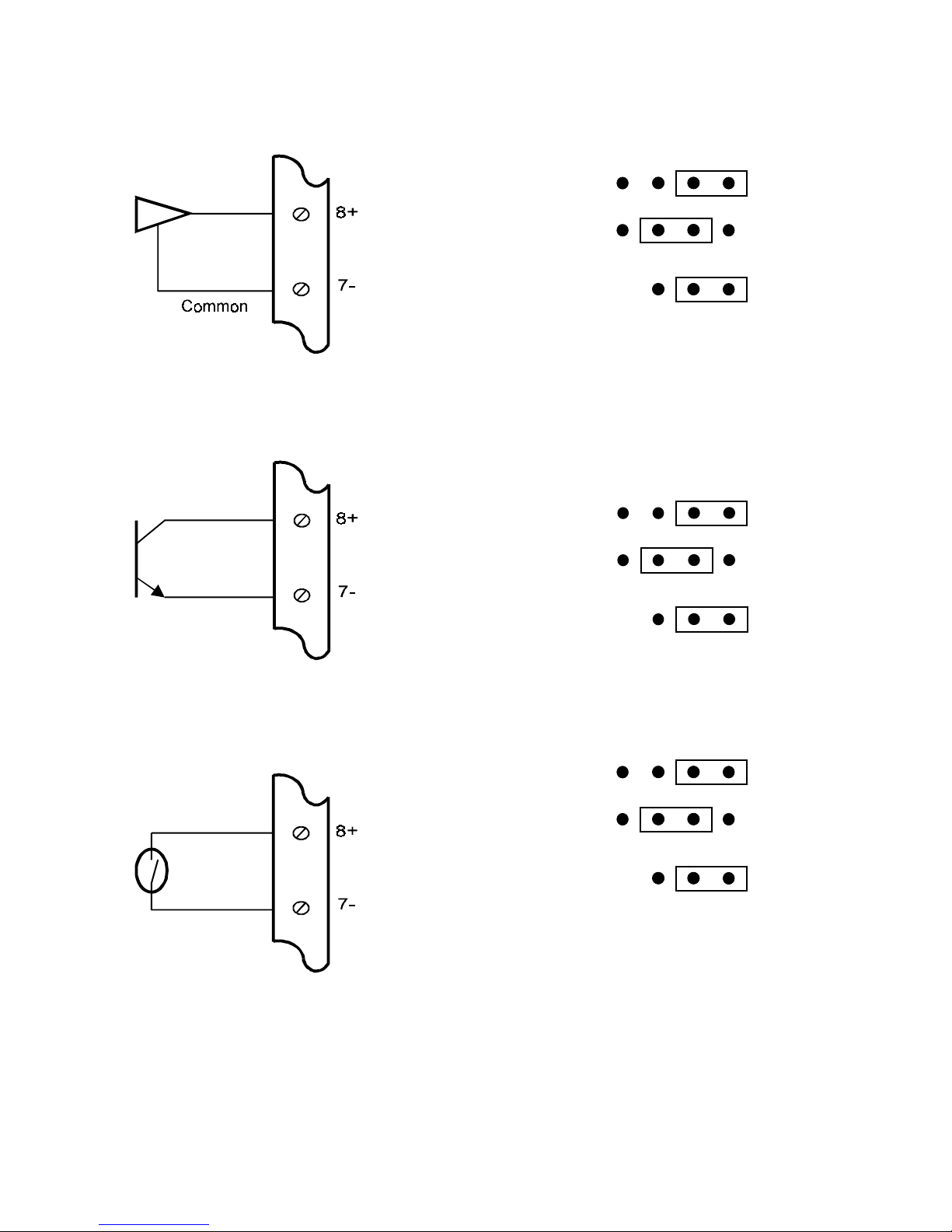

1. Squarewave, CMOS or Pulse

2. Open Collector

With 15µA/150µA internal pull up current

3. Reed Switch - Battery Powered

With 15µA internal pull up current

Note: For a switch or reed input with contact bounce link DBL can be switched "on". This will eliminate the effect of switch bounce while limiting the input frequency to 200Hz.

Link Settings

Link 1

Link 2

Link 3

COIL PULSE

DB DBH

NPS

Switching threshold voltage is 1.3 volts.

Link Settings

Link 1

Link 2

Link 3

COIL PULSE

DBL DBH

NPS

Link Settings

Link 1

Link 2

Link 3

COIL PULSE

DBL DBH

NPS

eg. Positive displacement flowmeters with reed switch outputs.

202D-M-V3.1

Flowmeter Input

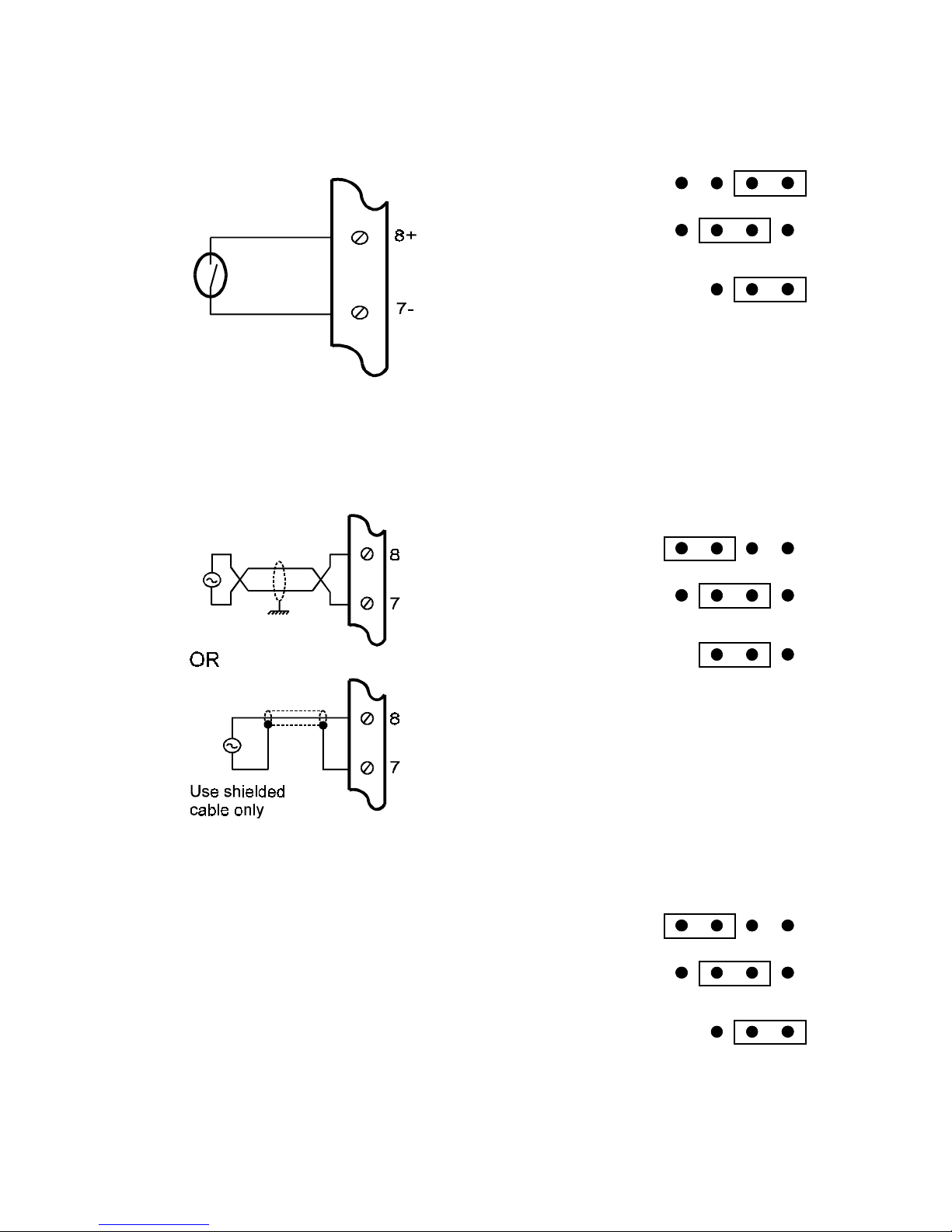

4. Reed Switch - External DC Power

With 150µA internal pull up current

Note: For a switch or reed input with contact bounce link DBH can be switched "on". This will eliminate the effect of switch bounce while limiting the input frequency to 200Hz.

5. Coils

Note: If the input has a very high impedance, the following link settings should be used:

Link Settings

Link 1

Link 2

Link 3

COIL PULSE

DBL DBH

NPS

Link Settings

Link 1

Link 2

Link 3

COIL PULSE

DB DBH

NPS

825R input impedance

eg. Millivolt signal from paddlewheel or turbine (15mV P-P minimum).

Link Settings

Link 1

Link 2

Link 3

COIL PULSE

DBL DBH

NPS

202D-M-V3.1

Flowmeter Input

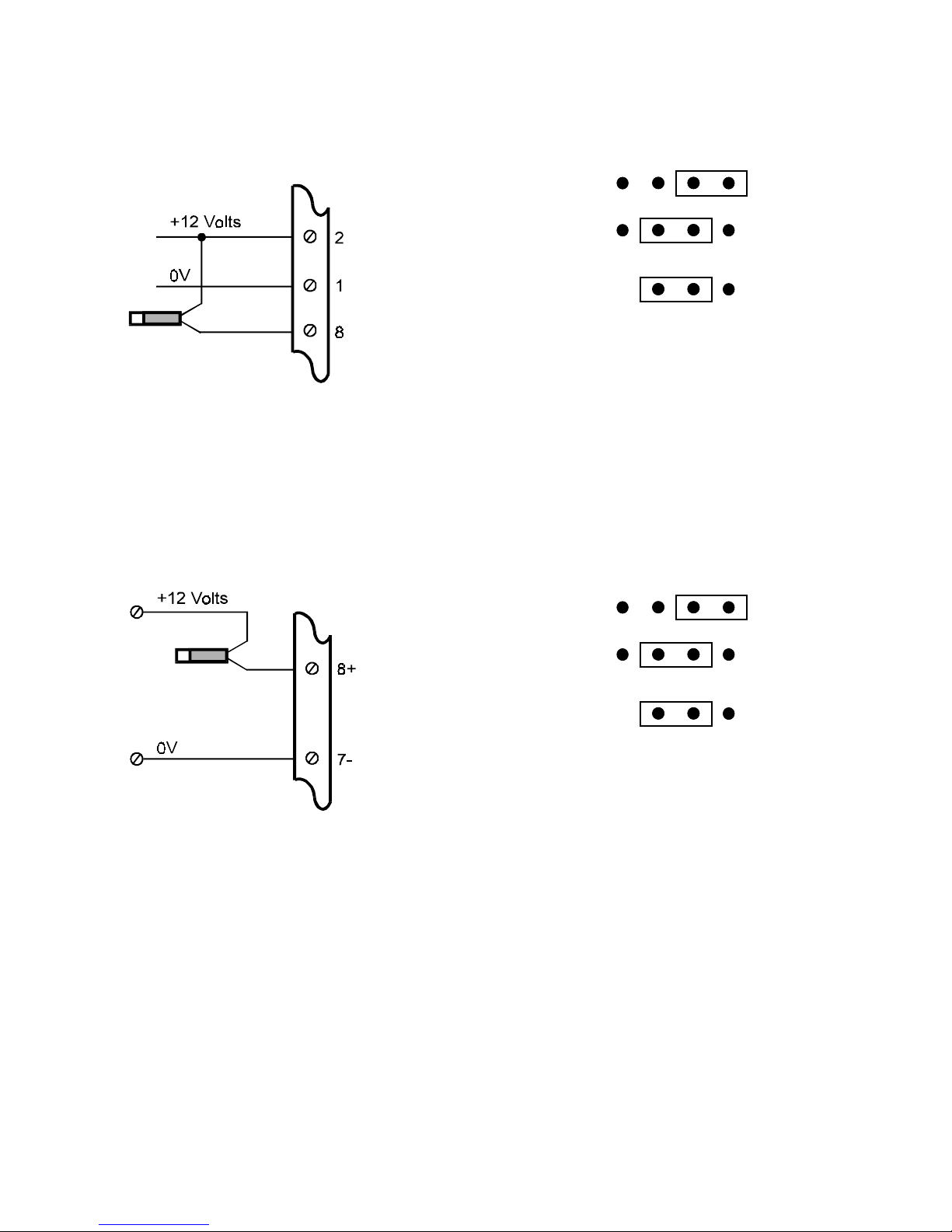

6. Namur Proximity Switch

Note: Use this connection for a DC powered version of the Model 202D.

7. Namur Proximity Switch - External DC Power

Note: Use this connection for battery or loop powered versions of the Model 202D.

If a 4-20mA output is installed, the supply to the proximity switch must be isolated.

Link Settings

Link 1

Link 2

Link 3

COIL PULSE

DBL DBH

NPS

825R input impedance

For IS connections of Namur switches see Section 8.

Link Settings

Link 1

Link 2

Link 3

COIL PULSE

DBL DBH

NPS

825R input impedance

For IS connections of Namur switches see Section 8.

202D-M-V3.1

Intrinsic Safety Connections

8. INTRINSIC SAFETY CONNECTIONS

When installing the Model 202Di in hazardous areas, the wiring and

installation must comply with appropriate installation standards.

The approval uses entity parameters on the input for connections to the

flowmeter and associated apparatus type approval for the 4-20mA output.

The 4-20mA output must, therefore, only be connected to barriers with the

specified safety parameters as shown on the following page.

8.1 COILS

The Model 202Di will connect directly to a turbine flowmeter or paddlewheel

with a certified Intrinsically Safe (IS) coil or other certified IS sensor which produce a pulse input provided they do not exceed the following input parameters:

Ui = 24V Ii = 20mA Pi = 320mW

The maximum allowed capacitance and inductance of the pulse or coil

including the cabling is:

Cext = 20µF

Lext = 1.5H

The internal capacitance and inductance of the Model 202Di seen on the input

are negligibly small with Ci = 0.02uF and Li = 0mH. The maximum voltage and current produced by the Model 202Di on its inputs (terminals 8 & 7) are:

Uo = 10.0V (open circuit) Io = 9.0mA (short circuit) Po = 23mW

202D-M-V3.1

Intrinsic Safety Connections

8.2 SIMPLE APPARATUS

Devices such as reed switches which can be classed as "simple apparatus", as defined in the CENELEC standards EN60079, can be connected to the Model 202D without certification.

8.3 NAMUR PROXIMITY SWITCHES

Connection to certified Namur proximity switches is permitted as shown on

the following page with the following maximum input parameters:

Ui = 24V Ii = 20mA Pi = 320mW

202D-M-V3.1

Intrinsic Safety Connections

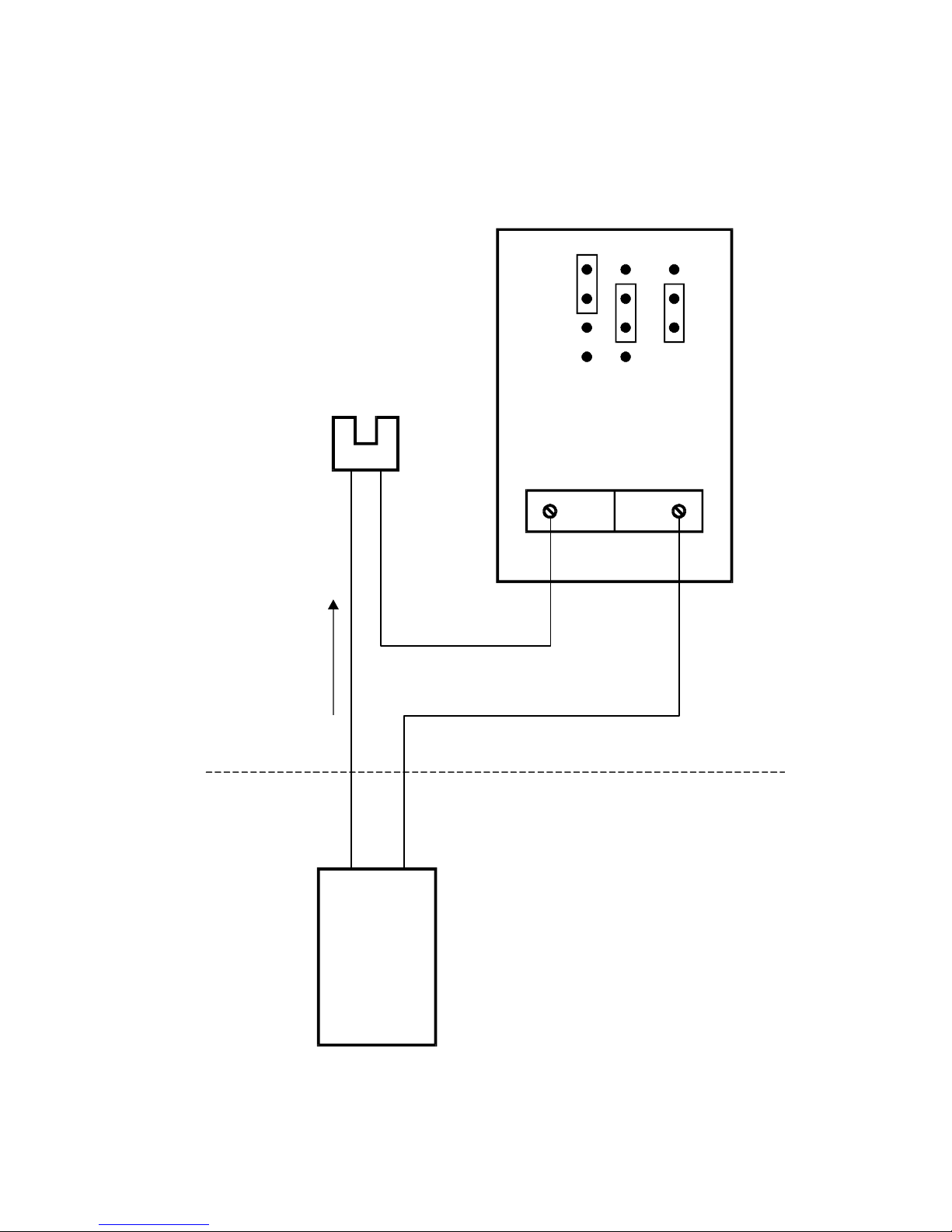

MODEL 202D

SAFE AREA

HAZARDOUS AREA

Input

Namur Proximity Detector

IS Certified

Link Settings

Link 1

Link 2

Link 3

COIL PULSE

DBL DBH

NPS

IS CERTIFIED BARRIER

Uo = 24 V maximum

Io = 20 mA maximum

Po = 320 mW maximum

L/R < specified for selected barrier

A Namur Switch Input

202D-M-V3.1

Intrinsic Safety Connections

8.4 4-20mA OUTPUT

The 4-20mA anaolg output can be connected to suitably certified devices

providing the circuit is protected with a barrier with the maximum safety parameters:

Uo = 28V Io = 93mA Pmax = 0.653W

The input capacitance on these terminals is 0.1uF max and the inductance

is negligible.

202D-M-V3.1

Intrinsic Safety Connections

(

)

202D-M-V3.1

Intrinsic Safety Connections

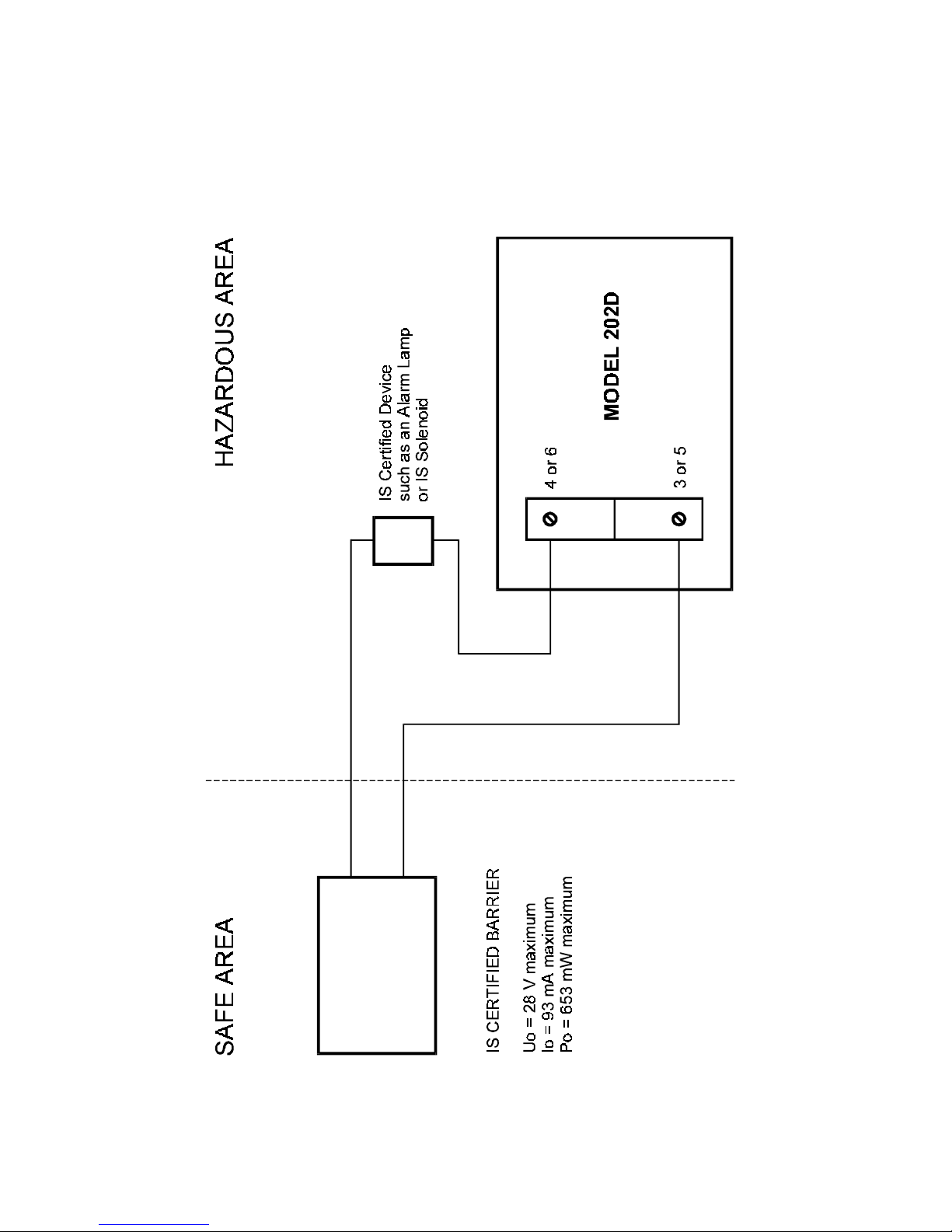

8.5 ALARM OUTPUTS

The low alarm and high alarm/pulse output can be connected to suitably

certified devices providing the circuit is protected with a barrier with the maximum safety parameters:

Uo = 28V Io = 93mA Pmax = 0.653W

The input capacitance on these terminals is 0.1uF max and the inductance

is negligible.

Note that the two alarm outputs must be kept as independent IS circuits and each protected with their own barrier. It is not permissible to connect these circuits via a common barrier.

202D-M-V3.1

Intrinsic Safety Connections

202D-M-V3.1

9. INSTALLATION

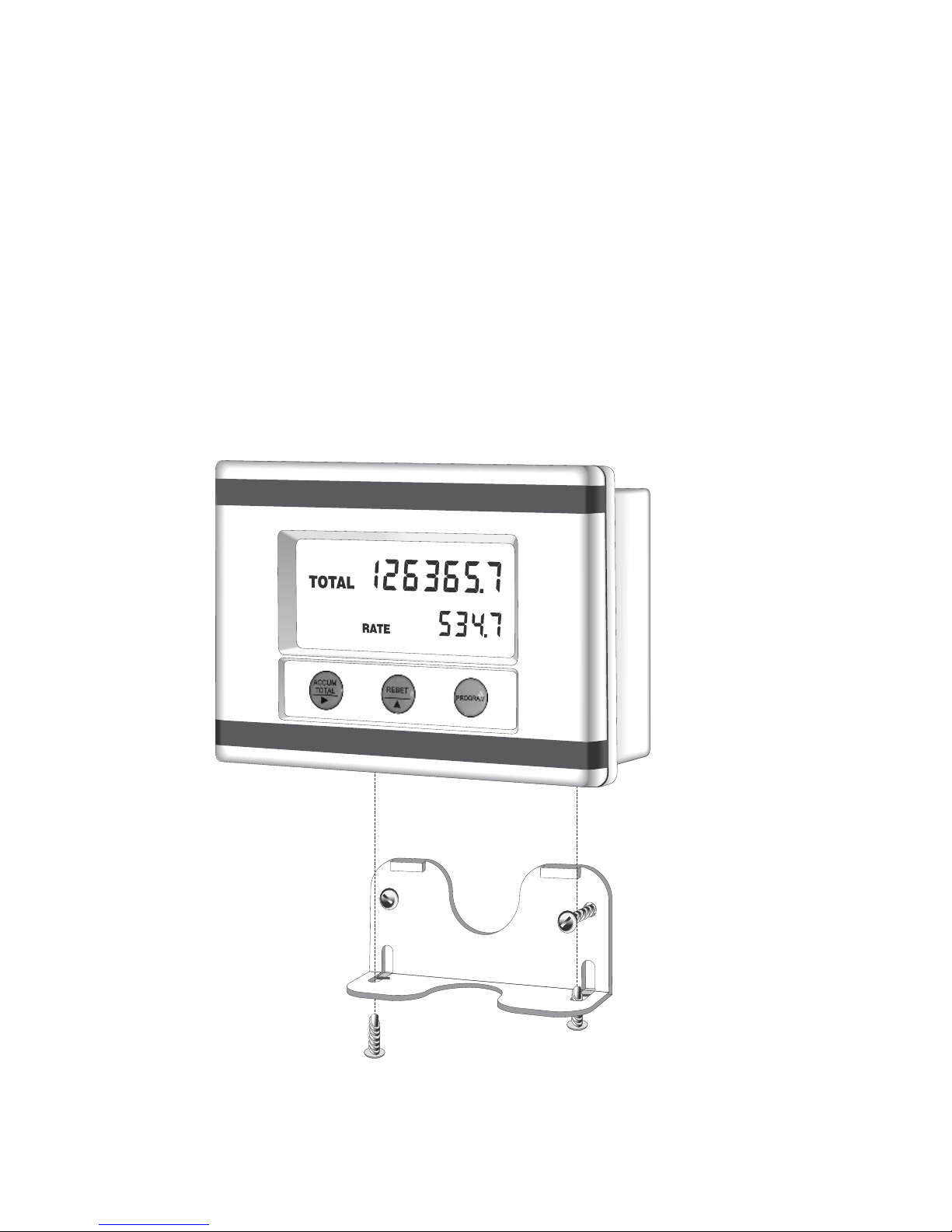

9.1 WALL MOUNTING

A wall mounting bracket is supplied with each instrument. Round head

screws should be used to attach the bracket to the wall (countersunk screws should not be used). The bracket is mounted first with the tray section at the bottom. The instrument is then mounted on the bracket with two screws as shown below.

38 Installation

202D-M-V3.1

Installation

9.2 PANEL MOUNT VERSION

The panel mount version of the Model 202D is supplied with two panel

mount brackets and plug-in terminals which are accessible from the rear of the instrument.

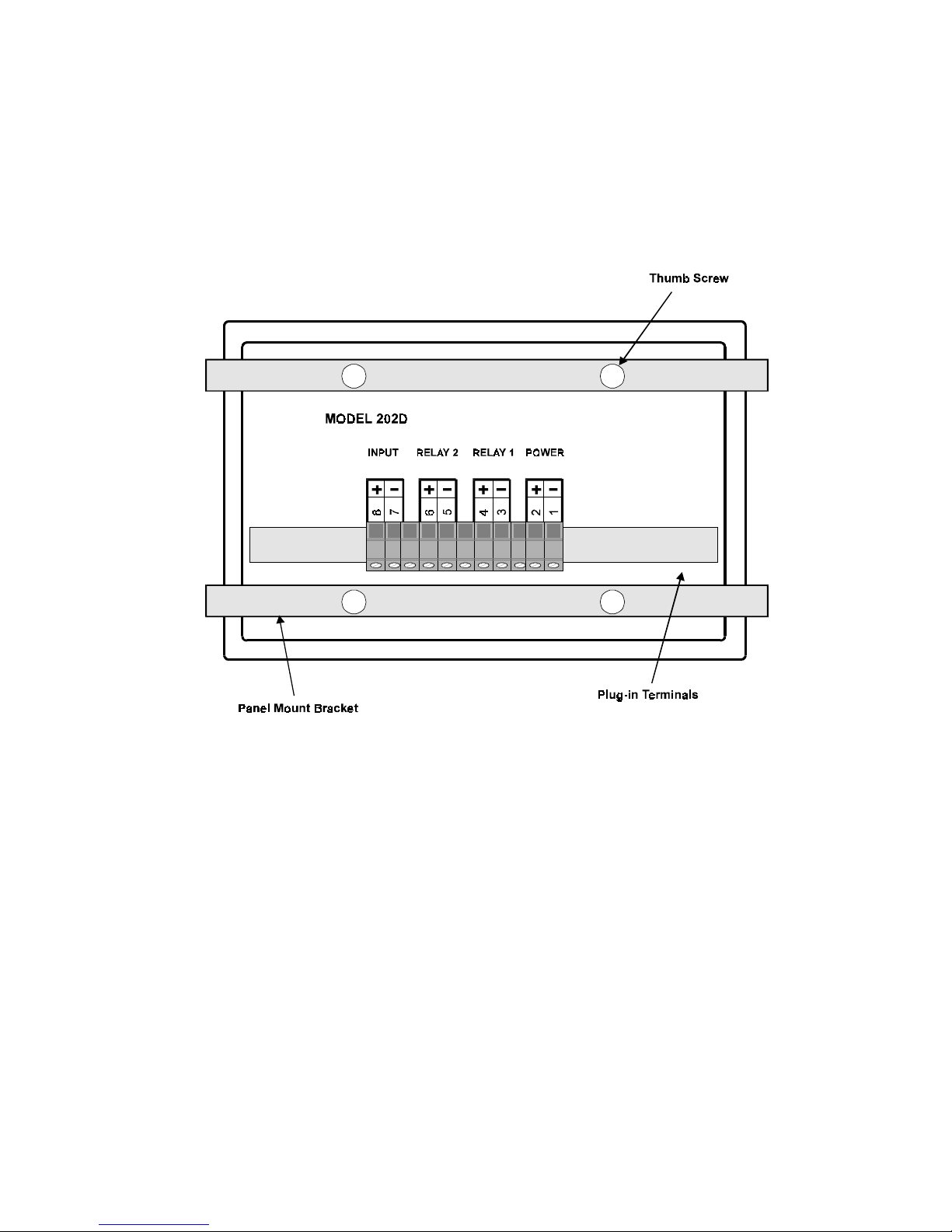

Rear View of 202D Panel Mount Case

The cutout for the panel mount version is 141mm (5.55") wide x 87mm

(3.43") high.

202D-M-V3.1

Installation

9.3 REMOVING THE FRONT PANEL

The front panel should be removed as follows:

1. Remove the top and bottom cover strips (ie. the dark plastic strip) by levering a screwdriver under one end.

2. Undo the screws retaining the front. Do not remove the screws, they are retained by O-rings.

3. Remove the front panel from the housing.

To replace the front cover, follow the above procedure in reverse. Ensure that

the front panel is aligned at connector points before tightening the screws.

202D-M-V3.1

Installation

202D-M-V3.1

Installation

9.4 THE MAIN ELECTRONICS

The front section of the housing contains the microprocessor and display. It

is possible to adjust the display contrast via a small potentiometer on the board. The Display Contrast is shown below and this can be adjusted for optimum contrast.

Adjacent to this control is a RESET switch which can be used to reset

the microprocessor. Note that pressing this button will set all totals to

zero.

BATTERY BATTERY

Battery Connector

Display Contrast

RESET

CO NT RE C

SYS T EMS

202D-M-V3.1

Installation

9.5 WIRING

When connecting the 202D it is good practice to use shielded cable. The

shield should be connected to earth at one end of the cable. The other end of the shield should not be connected.

This wiring practice is mandatory in order to comply with the requirements

for Electromagnetic Compatibility as per EMC-Directive 2004/108/EC of the

Council of the European Community.

9.6 MAINTENANCE

All printed circuit boards must be repaired by Contrec. In the case of a fault,

no attempt should be made to repair the board as the intrinsically safe certification may be impaired.

All batteries for use in hazardous areas must be supplied by Contrec.

No substitute batteries are permitted as the battery packs contain certified energy limiting devices and insulation protection.

SPECIAL CONDITIONS FOR SAFE USE

To comply with this products ATEX/IECEx certification the special conditions

for safe use must be followed.

The Instrument type 202Di shall be mounted in an area where electrostatic

charge/discharge will be avoided.

202D-M-V3.1

Installation

9.7 TERMINAL DESIGNATIONS

All versions

7 Pulse (-) / Coil Input 8 Pulse (+) / Coil Input

5 High Alarm (-) or Pulse Output (-) if installed 6 High Alarm (+) or Pulse Output (+) if installed

3 Low Alarm (-) if installed 4 Low Alarm (+) if installed

4-20mA Output

2 4-20mA (+) 1 4-20mA (-)

DC Power Versions

2 DC Power +9 to 28V 1 DC Power 0V

202D-M-V3.1

Index

4-20mA Output, 24

Accumulated Total, 8 Alarm Outputs, 36

Battery Powered, 21

CAL Sequences, 15 Cutoff Frequency, 16

DC Power, 22 Decimal Point, 16,

17 Display, 6, 8 Display Test, 9

Filtering, 10 Flow Rate, 12 Frequency Cutoff, 14

High Alarm, 18 High Test, 9

Input Signal, 26 Installation, 38 Intrinsic Safety, 4, 31

Linearity 14 Link Settings, 28 Low Alarm, 17 Low Test, 9

Model Number, 3

Operating

Temperature, 7

Operation, 8

Panel Mount, 39 Programming, 15 Protection, 7 Pulse Output, 16

Rate, 8 Removing the Front

Panel, 40

Resettable Total, 8

Scaling Factor, 12, 16 Specification, 6

Temperature, 9 Terminal

Designations, 44 Test Mode, 9 Timebase, 16 Total Conversion, 13

Wall Mounting,

Contrec 202D User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
