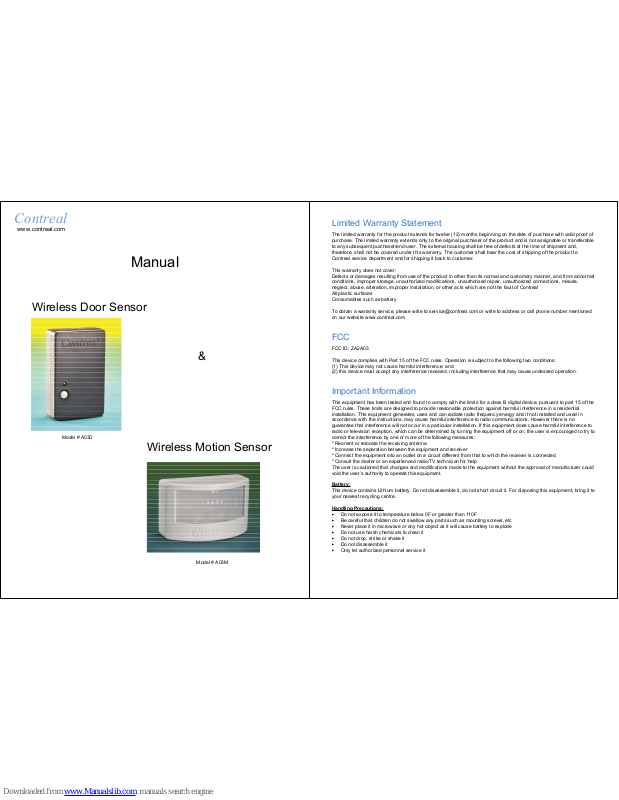

Contreal
www.contreal.com
Manual
Wireless Door Sensor
Wireless Motion Sensor
&
Model # A03D
Model # A03M
Limited Warranty Statement
FCC
FCC ID: ZA2A03
This device complies with Part 15 of the FCC rules. Op eration is subject to the following two conditions:
(1) This device may not cause harmful interference, an d
(2) this device must accept any interference received , including interference that may cause undesired operation.
Important Information
This equipment has been tested and found to compl y with the limits for a class B digital device, pursuan t to part 15 of the
FCC rules. These limits are designed to provide reas onable protection against harmful interference in a r esidential
installation. This equipment generates, uses and can r adiate radio frequency energy and if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However there is no
guarantee that interference will not occur in a partic ular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off or on, the user is encouraged to try to
correct the interference by one or more of the followi ng measures:
* Reorient or relocate the receiving antenna
* Increase the separation between the equipment an d receiver
* Connect the equipment into an outlet on a circuit dif ferent from that to which the receiver is connected
* Consult the dealer or an experienced radio/TV tech nician for help
The user is cautioned that changes and modification s made to the equipment without the approval of ma nufacturer could
void the user’s authority to operate this equipment.
Battery:
This device contains Lithium battery. Do not disassemb le it, do not short circuit it. For disposing this equipment, bring it to
your nearest recycling centre.
Handling Precautions:
Do not expose it to temperature below 0F or greater than 110F
Be careful that children do not swallow any parts suc h as mounting screws, etc
Never place it in microwave or any hot object as it wi ll cause battery to explode
Do not use harsh chemicals to clean it
Do not drop, strike or shake it
Do not disassemble it
Only let authorized personnel service it
The limited warranty for the product extends for twelv e (12) months beginning on the date of purchase w ith valid proof of
purchase. The limited warranty extends only to the or iginal purchaser of the product and is not assignabl e or transferable
to any subsequent purchaser/end-user. The externa l housing shall be free of defects at the time of shipmen t and,
therefore, shall not be covered under this warranty. Th e customer shall bear the cost of shipping of the product to
Contreal service department and for shipping it back to customer.
This warranty does not cover:
Defects or damages resulting from use of the product in other than its normal and customary manner, a nd from abnormal
conditions, improper storage, unauthorized modificat ions, unauthorized repair, unauthorized connection s, misuse,
neglect, abuse, alteration, improper installation, or o ther acts which are not the fault of Contreal
All plastic surfaces
Consumables such as battery
To obtain a warranty service, please write to service@ contreal.com or write to address or call phone nu mber mentioned
on our website www.contreal.com

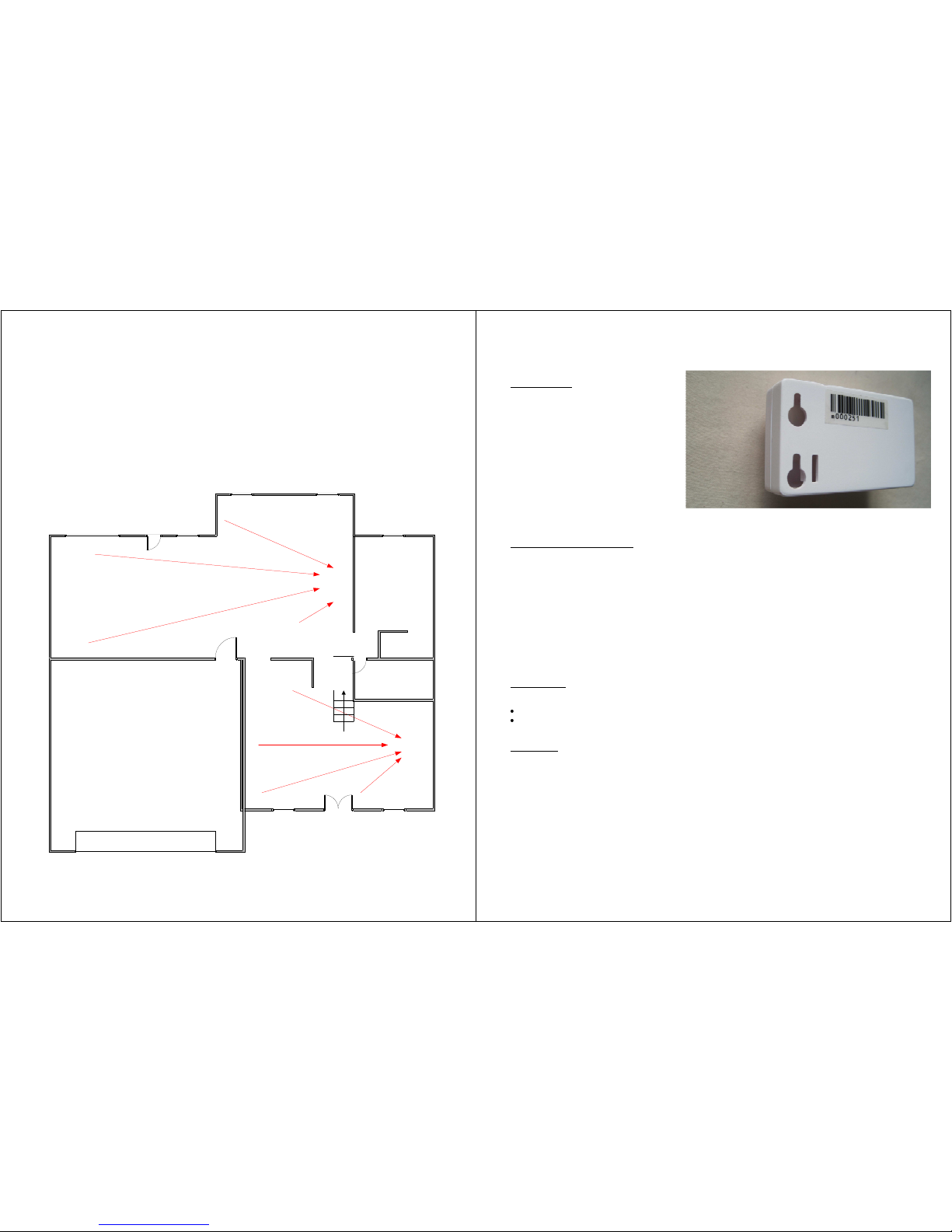

Selecting a perfect location:
For the most effective security, we suggest focusing on intruder path instead of windows and doors. For ex ample, in the
following layout, intrusion thru any of the 7 windows or 3 doors can be covered by just 2 motion sensors. A ny intruder
breaking-in thru front side, either thru Window 1 or Wi ndow 2 or Main Door, will anyway fall in the path o f Motion Sensor
1 even if there is a blind spot near the corner of Windo w 2. Similarly, any intruder breaking in thru any opening on rear
side or thru garage door will fall in the path of Motio n Sensor 1. If there is a room that has nothing worth stealing, such as
play area, then you can avoid putting any sensor in it
Blind
Spot
Motion
Sensor
2
Motion
Sensor
1
Blind
Spot
Window
1
Window
2
Window
3
Window
4
Window
5
Window
6
Window
7
Main
Door
Garage
Entrance
Rear
Door
Garage
Kitchen
Family
Room
Play Area/
Guest Room
Dining
Foyer
Living
Installation
Step 1: Mounting
A motion sensor can simply be placed on top
of book-shelf or can be mounted on wall. To
mount it on wall:
Put 2 screws on the wall such that they align
with 2 holes as shown in picture
Gently push the motion sensor & slide down
A door sensor should be mounted similarly on
door-frame, and its magnet should be
mounted on door near the round notch on
right side
Step 2: Linking with Control Panel
Go to advance menu in cPad by using “menu” butto n
After entering password, keep pressing menu button till you reach “Add Wireless Sensor”
Press ‘#’ for selecting this option
Trigger the sensor (by making movement in front of motion sensor or by opening/closing door for the door sensor)
Press ‘#’ for Yes.
Refer cPad manual for more detail
Operating Modes
Motion Sensor:
When a motion is sensed by motion sensor, it blinks t he red light and communicates motion sense information to cPad.
There are two patterns of LED blinking:
One blink: The sensor sensed the motion and has comm unicated it to cPad
Two blinks: The sensor sensed the motion but is not c ommunicating it to cPad because same information has been
communicated two times in the last 2 minutes
Door Sensor:
When a door is opened or closed, or panic button is pressed, this sensor blinks the red LED once and co mmunicates this
information to cPad
