Product Manual

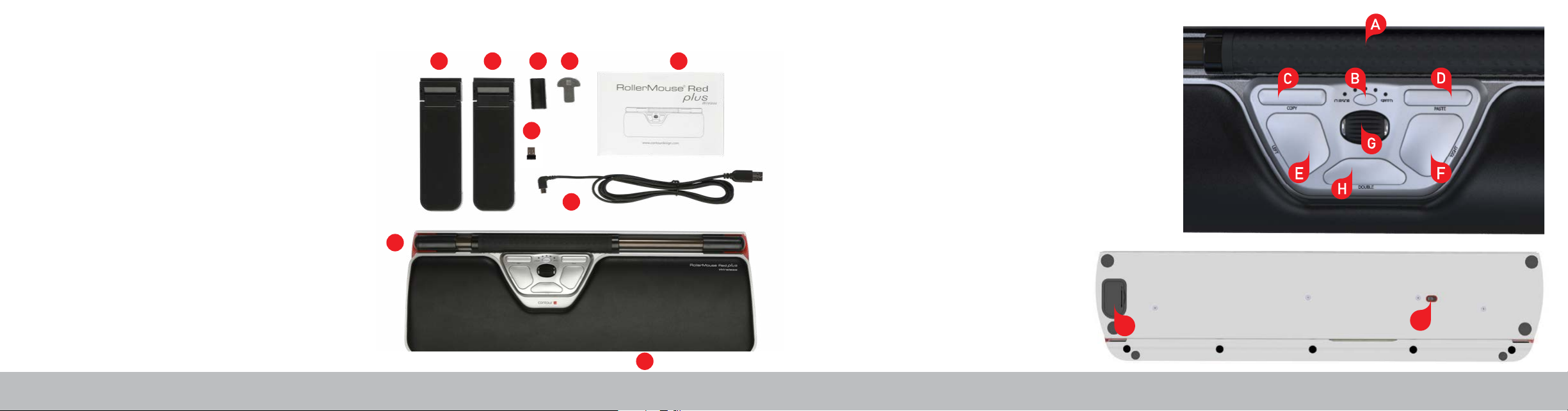

Box Contents
2 3
5
7
9
RollerMouse funktioner
1. RollerMouse Red plus Wireless
2. Two short keyboard risers
3. Two long keyboard risers
4. Wrist rest
5. Wrist rest removal key
6. Dongle (Wireless receiver)
7. USB 2.0 cable adapter
8. USB to Micro USB cable / Charging cable
9. User Guide

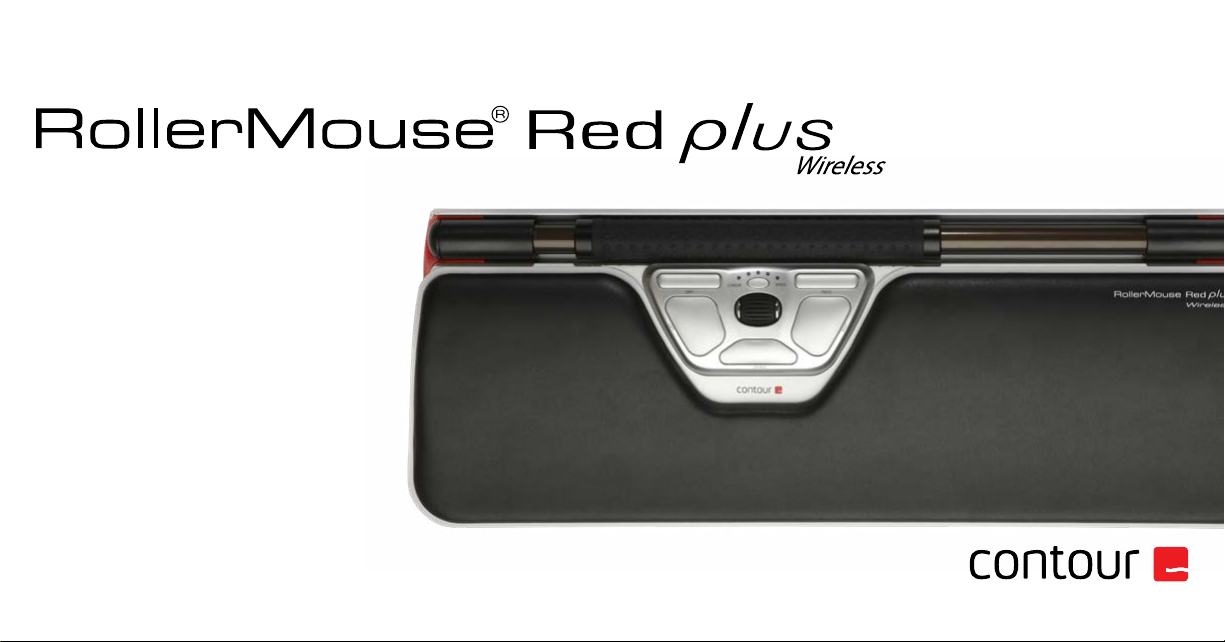

RollerMouse Red plus Wireless
A. Rollerbar
B. Cursor speed / Battery level indicator (LED)
6
8
C. Copy
D. Paste
E. Left-click
F. Right-click
G. Scroll wheel
H. “One Touch” double-click
I. On-O switch
J. Dongle storage compartment
1
For additional mouse features and specic
Mac settings, please download our driver at
http://support.contour-design.co.uk
J
4
/1
RollerMouse Red plus Wireless
I
/2
Keyboard Positioning
Before plugging in the unit, take a moment to check the height and angle of
your keyboard, and nd the arrangement that’s most comfortable for you.
Use the risers to achieve the correct angle and height regardless of the type
of keyboard you are using. The spacebar on your keyboard should come just
above your rollerbar. To achieve a proper ergonomic position, the front edge
of the keyboard should be as close as possible to the rollerbar.
Balance Keyboard is designed specically for the RollerMouse. The keyboard
sits level with the rollerbar and can be easily adjusted to a positive, neutral, or
negative tilt.
Positive Tilt
Neutral TiltNegative Tilt

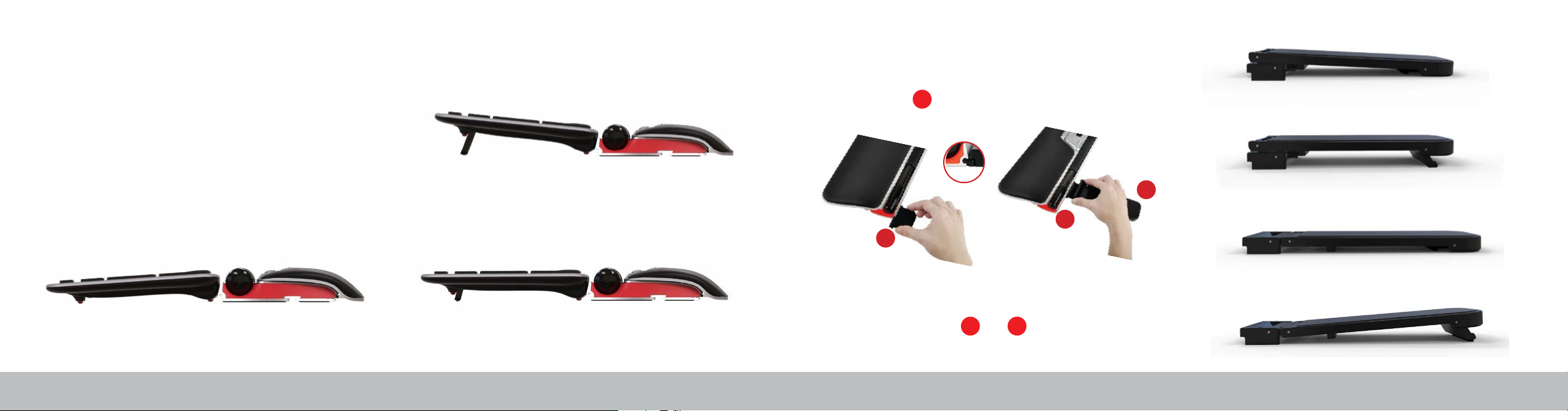

Inserting the Keyboard Risers
Fit the end of the riser into the slot on the back of
the RollerMouse Red.
2
2
2
Adjusting Risers
Line up the short and long risers and then
press the two parts together until you hear them snap into place.
2 3
Negative Tilt
3
Neutral Elevated
Neutral Flat
Positive Tilt
RollerMouse Red plus Wireless
RollerMouse Red plus Wireless
/4/3

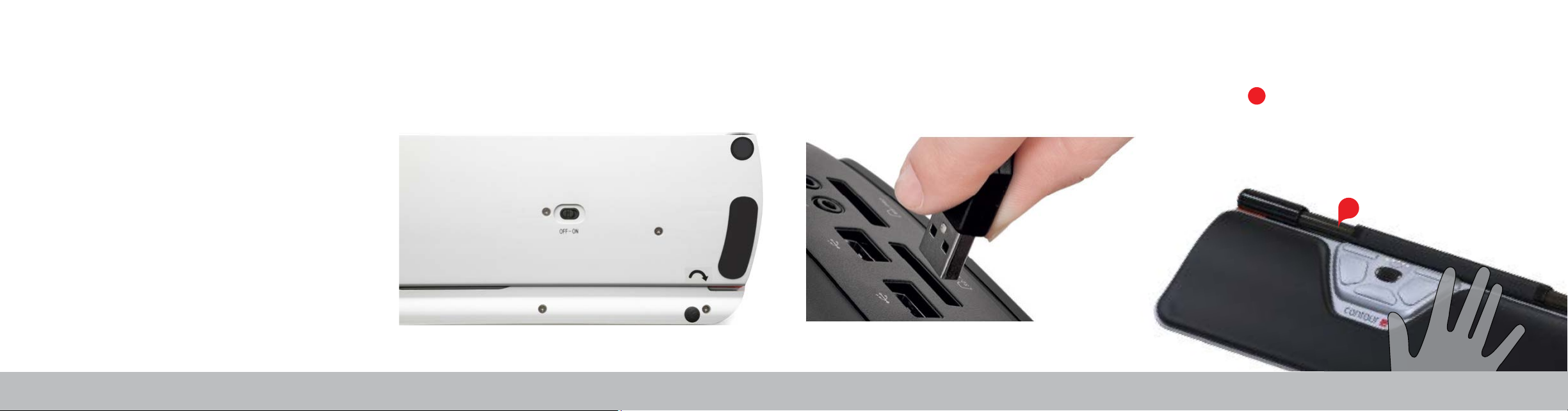

Power Switch
The power switch can be found on the underside of the RollerMouse Red.
Before using the RollerMouse Red please make sure the power switch is set to
the ON position. Turning o the device is only necessary for long-term storage
or during travel.
Connecting to a computer
Plug the wireless receiver or the charging cable into the computer’s USB port.
Allow your computer a few seconds to automatically install.
Using the rollerbar
The rollerbar provides two functions:
• Pressing down on the rollerbar performs a left click.
• Moving the rollerbar from side to side and up and down performs cursor
movement.
A
A
RollerMouse Red plus Wireless
/5
RollerMouse Red plus Wireless
/6

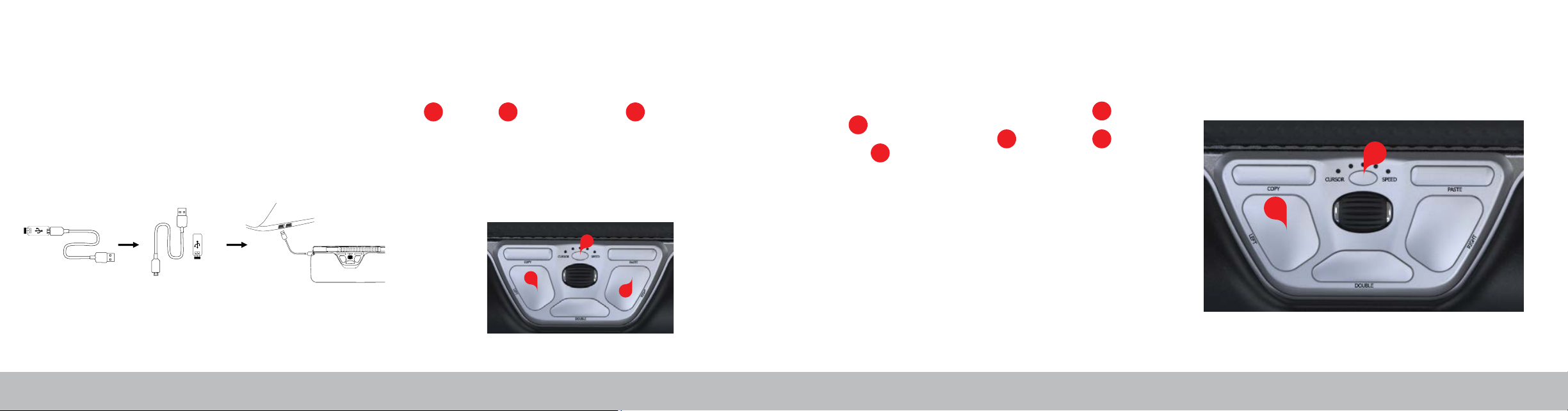

Charging
To charge your RollerMouse Red remove the dongle from the extender cable
and plug the Micro USB into the RollerMouse Red. Your RollerMouse Red will
charge in 6 hours and you may continue to use your RollerMouse Red while it
charges.
Pairing
With the RollerMouse Red in close proximity to the dongle, hold left
click , right click and the cursor speed buttons at the
1 32
same time until the LED indicator turns green and pulses twice in
succession.
3
Rollerbar Click Force Adjustment
Click force refers to the level of resistance when clickin g the
rollerbar. To change the click force, press and hold both the
and the buttons, the LED light will show the current click force
setting. While continuing to hold button release button ,
and click the button in succession. Release both buttons once
the desired click force tension has been reached.
Note: The rollerbar click function can be turned o using the above
adjustment method, by moving the scroll wheel until all LEDs are lit.
B
B E
E
E
B
E
RollerMouse Red plus Wireless
1
2
/7
RollerMouse Red plus Wireless
/8
Battery Level
Your RollerMouse Red comes pre-charged and has an expected battery life of
up to 3 months with average daily use.*
RollerMouse Red has a built-in rechargeable battery. To see the battery level
on your device, press the cursor speed button once. The RollerMouse will rst
display the current cursor speed (DPI), then display the current battery level.
If your RollerMouse Red is running low on battery, the center LED light will
start blinking red.
100% 80%
Change cursor speed hastighet

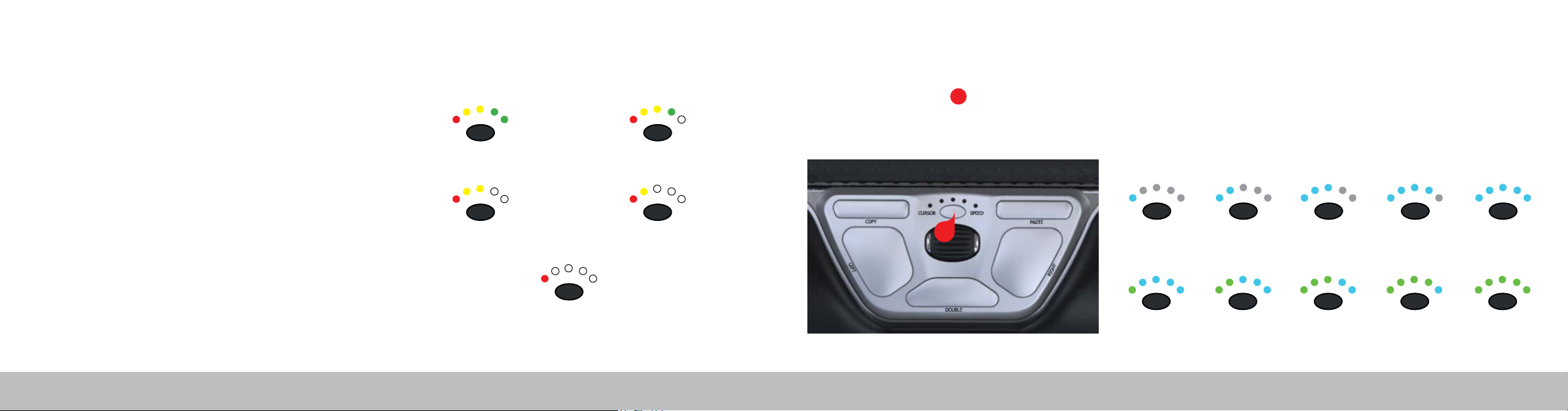

Press the Cursor Speed button to cycle through cursor speeds. There are
ten speed selections which range from slow (600 DPI) to fast (2400 DPI). Speed
can be identied by the LED lights as shown.
B
To charge your battery, plug the charging cable into your RollerMouse Red and
connect it to a USB port on your computer (see page 5). The RollerMouse Red
will charge in 6 hours and you may use your RollerMouse Red as it charges.
*Battery life may vary based on user and computing conditions.
RollerMouse Red plus Wireless
60% 40%
20%
/9
B
RollerMouse Red plus Wireless
600 DPI 800 DPI 1000 DPI 1200 DPI 1400 DPI
1600 DPI 1800 DPI 2000 DPI 2400 DPI 2800 DPI
/10
Operating System
RollerMouse Red as 3 modes. PC-Mode, Mac-Mode and HID-Mode. The
default setting on your RollerMouse, is PC-Mode.
Press and hold the button and click the button to see the LED lights
ash for the respective mode. To toggle between the other available modes,
hold the button, release the button and click the button in
succession. Release both buttons once the desired mode has been reached.
B
B
C C
C

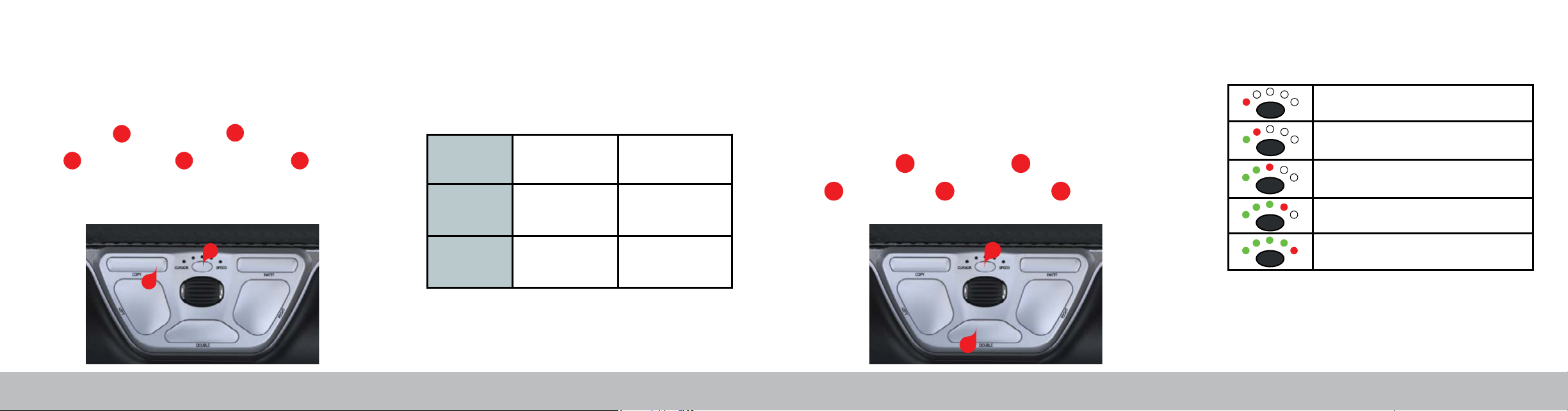

Dierent Mode Settings
PC-Mode
MAC-Mode
LEDs light up from
left to right.
LEDs light up from
right to left
Windows
OS
Alternate Functions for the Double Click Button
There are 5 alternate functions for the Double Click Button. Each function is
indicated by the position of the red LED within the Cursor Speed/Battery Level
Indicator.
To change the double click function to one of the other available functions,
press and hold the button and click the button to see the LED lights
display the respective mode. To toggle between the other available modes, hold
the button, release the button and click the button in succession.
B
Release both buttons once the desired mode has been reached.
B
H
H H
Middle click
Double click
Left click
Right click
C
RollerMouse Red plus Wireless
B
HID-Mode
LEDs light up from
both sides towards
the middle
eg. Linux
/11
RollerMouse Red plus Wireless
B
*The freese click function can be used to recenter or reposition your rollerbar
without moving the cursor.
H
An example of a situation where freeze click would be usefull is in a multimonitor setup where the cursor has landed on the third monitor and the user
wishes to center the rollerbar to better work that monitor.
Freeze click*
/12

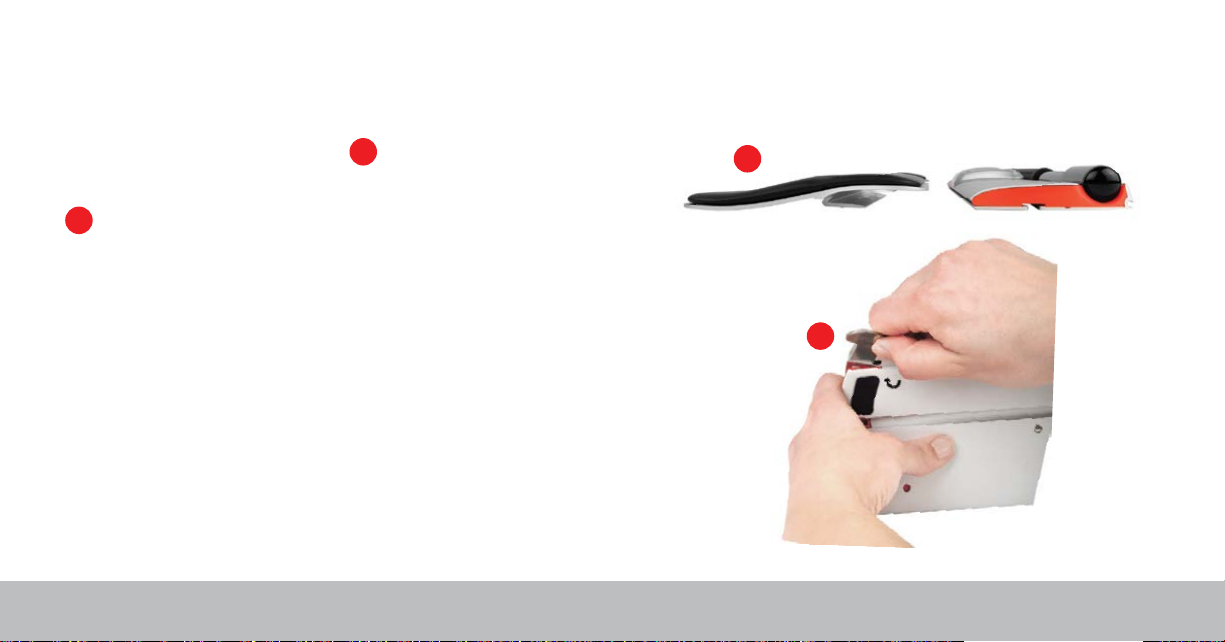

Wrist rest
We recommend that you use the wrist rest , however, if for any
reason you would like to remoe the wrist rest, lift the front edge of
the RollerMouse and rest it in your hand. Fit the wrist rest removal
key into the slot at the end of the unit and twist the key.
5
To install the wrist rest after removal, snap it nito the slot on the front
edge of your RollerMouse Red.
4
4
5
RollerMouse Red plus Wireless
/13
For more information please visit:
www.contour-design.co.uk
Contour Design Nordic A/S
Borupvang 5B, st.tv.
2750 Ballerup
Denmark
Telefon: +45 70 27 02 27
E-mail: info@contour-design.com
Tested to comply with FCC
and IC standards.
FCC Statement
Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
IC Statement
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
The term “IC: “ before the certication/registration number only signies that the Industry Canada technical specications were met. This product
meets the applicable Industry Canada technical specications.
Le présent appareil est conforme aux CNR d’Industrie Canada applicable aux appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes : (1) l’appareil ne doit pas produire de brouillage,
et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le
fonctionnement
Warranty
If there is a functional defect due to faulty manufacturing, we will replace the product. This warranty does not cover damage that results from misuse
of the product.
Attention!
If you attempt to dismantle your RollerMouse, you will invalidate your warranty.
