Continuous Dual Feed DC Telecom Installation And User Manual

Dual Feed DC Telecom

Power Supply

Installation and User’s Guide

9380 Carroll Park Drive

San Diego, CA 92121-2256

858-882-8800

www.ccpu.com

Continuous Computing Corp. Page 1 File: CC00313-00
San Diego, CA Dual Feed DC Telecom Power Supply User’s Guide Last saved: 2/12/01 4:57 PM

©2000-2001 Continuous Computing Corporation. All rights reserved.

The information contained in this document is provided “as is” without any express representations of warranties. In addition,
Continuous Computing Corporation disclaims all implied representations and warranties, including any warranty of merchantability,
fitness for a particular purpose, or non-infringement of third party intellectual property rights.

This document contains proprietary information of Continuous Computing Corporation or under license from third parties. No part of
this document may be reproduced in any form or by any means or transferred to any third party without the prior written consent of
Continuous Computing Corporation.

Continuous Computing, the Continuous Computing C orporation logo, Continuous Control Node (CCN), Continuous System Controller,
CCPUnet, CCNtalk, Field Replaceable Microprocessor (FRµ), and Field Replaceable System are trademarks or registered trademarks of
Continuous Computing Corporation in the United States and other countries.

Sun, the Sun logo, SPARCengine, Solaris, and OpenBoot are trademarks or registered trademarks of Sun Microsystems Inc. in the
United States and other countries. All SPARC trademarks are used under license and are trademarks or registered trademarks of SPARC
International, Inc. in the United States and other countries. Products bearing SPARC trademarks are based upon an architecture
developed by Sun Microsystems, Inc.

CompactPCI is a registered trademark of PICMG.

The information contained in this document is not designed or intended for use in human life support systems, on-line control of aircraft,
aircraft navigation or aircraft communications; or in the design, construction, operation or maintenance of any nuclear facility.
Continuous Computing Corporation disclaims any express or implied warranty of fitness for such uses.

Continuous Computing Corp. Page 2 File: CC00313-00
San Diego, CA Dual Feed DC Telecom Power Supply User’s Guide Last saved: 2/12/01 4:57 PM

Table of Contents

1 INTRODUCTION ...........................................................................................................5

DESCRIPTION...........................................................................................................................................5

USING THIS GUIDE..................................................................................................................................6

TYPOGRAPHIC CONVENTIONS .................................................................................................................6

DEFINITIONS OF TERMS...........................................................................................................................7

POWER SUPPLY WIDTHS .........................................................................................................................7

SYSTEM BLOCK DIAGRAM ......................................................................................................................7

PHOTOS ...................................................................................................................................................8

2 UNPACKING, INSTALLING, AND STARTING UP .......................................................10

ELECTROSTATIC DISCHARGE (ESD)......................................................................................................10

STORAGE...............................................................................................................................................10

UNPACKING...........................................................................................................................................10

INSTALLING THE POWER SUPPLY ..........................................................................................................10

INSTALLING THE POWER INPUT MODULE..............................................................................................11

3 GROUNDING YOUR SYSTEM..................................................................................... 13

DEFINITIONS OF TERMS.........................................................................................................................13

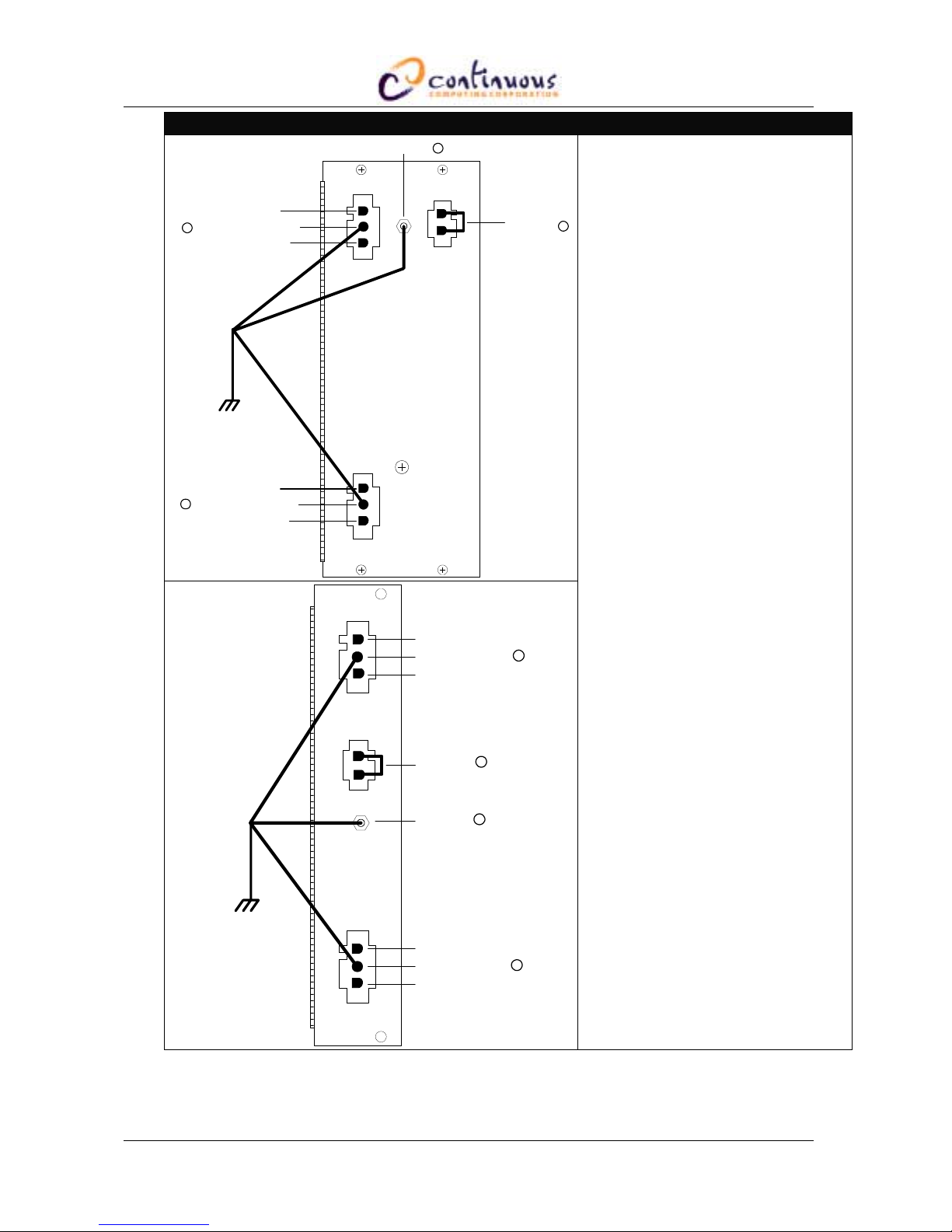

SYSTEM GROUNDING OPTIONS..............................................................................................................13

Frame Ground to Digital Ground Connected .............................................................................13

Frame Ground to Digital Ground Isolated .................................................................................15

POWERING ON THE SYSTEM..................................................................................................................17

Enabling system from CCN front panel.......................................................................................17

Enabling system from Craft console............................................................................................17

POWERING OFF THE SYSTEM.................................................................................................................18

Disable system from CCN front panel.........................................................................................18

Disable system from Craft console..............................................................................................18

4 TROUBLESHOOTING ................................................................................................. 19

TROUBLESHOOTING SCENARIOS............................................................................................................19

CHECK THE LEDS .................................................................................................................................19

USE THE CCN .......................................................................................................................................19

Use the faults command.........................................................................................................19

Use the voltages command....................................................................................................20

CHECK THE FUSES.................................................................................................................................20

REMOVING THE POWER SUPPLY ............................................................................................................21

REMOVING THE POWER INPUT MODULE ...............................................................................................21

CONTACT TECHNICAL SUPPORT ............................................................................................................21

5 LEDS, CONNECTOR USAGE, AND SPECIFICATIONS ................................................ 22

LEDS ....................................................................................................................................................22

The INPUT LED..........................................................................................................................22

The ON LED................................................................................................................................23

The FLT LED ..............................................................................................................................23

CONNECTOR USAGE..............................................................................................................................23

J1000 Pinout ...............................................................................................................................23

SPECIFICATIONS ....................................................................................................................................24

6 TECHNICAL SUPPORT............................................................................................... 26

CONTACTING TECHNICAL SUPPORT ......................................................................................................26

Continuous Computing Corp. Page 3 File: CC00313-00
San Diego, CA Dual Feed DC Telecom Power Supply User’s Guide Last saved: 2/12/01 4:57 PM

TABLE OF FIGURES

FIGURE 1 SYSTEM BLOCK DIAGRAM.......................................................................................................7

F

IGURE 2 100W DUAL FEED DC TELECOM POWER SUPPLY..................................................................8

F

IGURE 3 150W DUAL FEED DC TELECOM POWER SUPPLY..................................................................9

IGURE 4 350W DUAL FEED DC TELECOM POWER SUPPLY..................................................................9

F
F

IGURE 5 CARD INSTALLATION AND REMOVAL....................................................................................11

F

IGURE 6 CONNECTING THE POWER INPUT MODULE CONNECTOR TO MIDPLANE.................................12

F

IGURE 7 CCN FRONT PANEL...............................................................................................................17

F

IGURE 8 LEDS FOR 100W, 150W, AND 350W POWER SUPPLIES .......................................................22

F

IGURE 9 J1000 PINOUT VIEWED FROM BOARD EDGE...........................................................................23

TABLE OF TABLES

TABLE 1 TYPOGRAPHIC CONVENTIONS ..................................................................................................6

T

ABLE 2 POWER SUPPLY SLOT WIDTHS..................................................................................................7

T

ABLE 3 FRAME GROUND TO DIGITAL GROUND CONNECTED WITH BARRIER STRIP POWER ENTRY.....13

ABLE 4 FRAME GROUND TO DIGITAL GROUND CONNECTED WITH POWER ENTRY CONNECTORS .......14

T
T

ABLE 5 FRAME GROUND TO DIGITAL GROUND ISOLATED WITH BARRIER STRIP POWER ENTRY.........15

T

ABLE 6 FRAME GROUND TO DIGITAL GROUND ISOLATED WITH BARRIER STRIP ENTRY.....................16

T

ABLE 7 VOLTAGES COMMAND OUTPUTS.............................................................................................20

T

ABLE 8 SPECIFICATIONS .....................................................................................................................25

Continuous Computing Corp. Page 4 File: CC00313-00
San Diego, CA Dual Feed DC Telecom Power Supply User’s Guide Last saved: 2/12/01 4:57 PM

1 Introduction

Welcome to the Dual Feed DC Telecom Power Supply User’s Guide. This guide contains information
about the installation and use of Continuous Computing Corporation’s 100W, 150W, and 350W Dual
Feed DC Telecom Power Supplies.

This guide includes the following information related to the 100W, 150W, and 350W Dual Feed DC
Telecom Power Supplies:

• Unpacking, install ing, and starting up

• Grounding your system

• Troubleshooting

• Connector usage and specifications

Description

The Continuous Computing Telecom Power Supply offers 100, 150, or 350 watts of Hot Swappable,
load-sharing power for a CompactPCI system. The Power Supply is designed for the Central Office,
with dual input feeds and –48V DC input. Typical systems combine two Supplies to provide redundant
power. Each Power Supply also provides a standby power output for use by a Continuous Control Node
(CCN).

Features of the Dual Feed DC Telecom Power Supply include:

• Hot Swap and Load Sharing

The Power Supply is designed for redundant operation. A failed Power Supply can be
replaced without application downtime. Load sharing ensures that supplies run cooler,
leading to increased system reliability.

• Standby Power

Standby power provides an output that is always on to power a Continuous Control Node.
This enables remote power cycling and system diagnostics even when the Power Supply is
off.

• Over Temperature and Short Circuit Protection

Protection features reduce the possibility of hardware damage during extreme temperatures
or fault conditions.

• Remote Sense on +5 and +3.3V

Remote sense provides high-quality power to critical system components.

• Dual Input Feeds

Dual power feeds allow the system to continue runni ng even if one feed d rops out.

• 6U CompactPCI Form-Factor

Standard 6U form-factor allows for easy integration into CompactPCI system without
awkward divider rails.

The Telecom Power Supply is a Basic Hot Swap device. PICMG 2.1 R1.0 describes Basic Hot Swap as
a board powered and enabled for access by the PCI bus in configuration space only upon insertion. The
board’s configuration space is not yet initialized. You must initiate software connection at the system
console. The power circuitry is controlled so that inserting in or extracting from a live redundant system
will not cause any electrical damage. If the system is not redundant, it must be halted before servicing.

Continuous Computing Corp. Page 5 File: CC00313-00
San Diego, CA Dual Feed DC Telecom Power Supply User’s Guide Last saved: 2/12/01 4:57 PM

Using This Guide

This guide is written for computer technicians and hardware and software engineers.

It is assumed that the user of the Power Supply is:

• Familiar with the handling of ESD-sensitive electronic equipment.

• Standard -48V wiring techniques and safety precautions.

Typographic Conventions

A summary of the typographic conventions used in this guide is listed in Table 1 below.

Typeface/Symbol Meaning Example

AaBbCc123

AaBbCc123

<AaBbCc123>

[AaBbCc123]

{<a><b>}

AaBbCc123 Book titles, new words or

ABC Acronyms Locate the On / Off toggle

!

The names of commands,
files and directories; on-

Edit your .login file.

At the ok prompt….
screen computer output
What you type, contrasted
with on-screen computer
output
Command-line placeholder or
token to be replaced with a

To turn the unit on, type on

at the ccpu> prompt. i.e.,

ccpu>:on

To delete a file, type rm

<filename>.
real name or value (do not
type brackets)
Optional argument (do not
type brackets)

Required argument (do not
type brackets)

[help]

dir [<filename>]

{<na> <cmd>}

grade {a, b, c, d, f}

• This manual is used in

terms, or words to be
emphasized

• You must be grounded

switch on the CCN front

panel.
Caution Failure to heed the

instructions that follow the

Caution symbol may result

in damage to the equipment.

conjunction with the

SPARCengine CP1500
User’s Manual.

to avoid ESD damage to
the equipment.

Table 1 Typographic conventions

Continuous Computing Corp. Page 6 File: CC00313-00
San Diego, CA Dual Feed DC Telecom Power Supply User’s Guide Last saved: 2/12/01 4:57 PM

Definitions of Terms

Power Supply Refers to the larger card installed in the front of the

Power Input Module Refers to the interface module installed at the back of the

Continuous Control Node (CCN) Refers to the module that monitors and controls a

Power Supply Widths

Power Supply Width

100W 1 slot (4HP)
150W 1 ½ slots (6HP)
350W 2 slots (8HP)

Table 2 Power Supply slot widths

System Block Diagram

system. Power Supply also refers to the larger card and
Power Input Module as a unit.

system.

compute node in a CompactPCI system.

Figure 1 System block diagram

Continuous Computing Corp. Page 7 File: CC00313-00
San Diego, CA Dual Feed DC Telecom Power Supply User’s Guide Last saved: 2/12/01 4:57 PM

Photos

Feed A & B fuses

Alarm/Standby (STBY)
power fuse

Figure 2 100W Dual Feed DC Telecom Power Supply

Continuous Computing Corp. Page 8 File: CC00313-00
San Diego, CA Dual Feed DC Telecom Power Supply User’s Guide Last saved: 2/12/01 4:57 PM

Feed A & B fuses

Alarm/Standby

(STBY) power fuse

Figure 3 150W Dual Feed DC Telecom Power Supply

Feed A & B fuses

Alarm/Standby

(STBY) power fuse

Figure 4 350W Dual Feed DC Telecom Power Supply

Continuous Computing Corp. Page 9 File: CC00313-00
San Diego, CA Dual Feed DC Telecom Power Supply User’s Guide Last saved: 2/12/01 4:57 PM

2 Unpacking, Installing, and Starting Up

Electrostatic Discharge (ESD)

!

Caution – The Power Supply contains electronic components that

are extremely sensitive to static electricity. Ordinary amounts of
static from clothing and the surrounding environment may destroy
components.

What to do

• Use an antistatic mat.

• Use an antistatic wrist or foot strap.

Storage

• If the Power Supply is to be stored before unpacking, see Table 8 for environmental storage

specifications.

Unpacking

!

Caution – Always maintain an ESD-safe environment when handling

the Power Supply. It contains many components that can be
destroyed by ESD.

• Inspect the shipping container for any in-transit damage and report it to shipping agent if

necessary.

• Carefully unpack the Power Supply from its shipping containe r.

Installing the Power Supply

!

Caution – You may only install the Power Supply in a slot

specifically provided for it by Continuous Computing. The Power
Supply is not interchangeable with supplies from other
manufacturers, even if they use the same connector.

Continuous Computing Corp. Page 10 File: CC00313-00
San Diego, CA Dual Feed DC Telecom Power Supply User’s Guide Last saved: 2/12/01 4:57 PM

1. Slide the card into its slot in the system chassis. As the card’s ejector latches engage the chassis,
apply forward pressure while pushing the ejector latch handles toward each other. See Figure 5
for an illustration of Power Supply installation.

2. When properly installed, the connectors of each card will be fully engaged with the chassis’
midplane. The Power Supply’s front panel will sit flush with the front panels of the other cards.

3. Install and tighten the captive screw (supplied with the Power Supply) of each ejector latch
handle to secure the card to the system chassis.

Captive Screw

Card

Latch Handle Cam

Ejector Latch
Handle

Card

Connector

Alignment Pin

Front Side

Closed

Open

Open

Closed

Figure 5 Card installation and removal

Installing the Power Input Module

1. Connect the Power Input Module’s 6-pin connector to the midplane.
Note: There are two available midplane options. Each has a 6-pin connector. See Figure 6 for
location details.

Continuous Computing Corp. Page 11 File: CC00313-00
San Diego, CA Dual Feed DC Telecom Power Supply User’s Guide Last saved: 2/12/01 4:57 PM

Two
available
midplane

options

Figure 6 Connecting the Power Input Module connector to midplane

2. Press the Power Input Module faceplate in between the adjacent faceplates and tighten the
Module’s four captive screws using a #1 Phillips screwdriver.

3. Connect 48V according to the instructions listed in Section 3, “Grounding Your System.”

Continuous Computing Corp. Page 12 File: CC00313-00
San Diego, CA Dual Feed DC Telecom Power Supply User’s Guide Last saved: 2/12/01 4:57 PM

3 Grounding Your System

Definitions of Terms

Earth Ground Connects to earth to protect from damage due to lightening or static

electricity; also establishes a zero voltage reference.

Frame Ground Grounds the system chassis usually via an external ground pin located on

the rear of the rack. Normally connected to Earth Ground.

Digital Ground The internal circuitry ground used in processor and peripheral cards and

other system electronics. This ground may be directly connected to Frame
Ground or left isolated depending on your preference.

System Grounding Options

Your system can be grounded in two ways: connected or isolated. Identify the type of power entry your
system has and the grounding o ption you desire i n t he diagrams below. Once you have identified your power
entry and chosen a grounding option, follow the instructions for gro unding your system.

Frame Ground to Digital Ground Connected

Barrier strip power entry

Feed A

Feed B

Digital Ground (bla ck)

Frame Ground (green)

1

-48V (red)

Return (black)

-48V (red)

Return (black)

RTN ARTN B -48 A-48 B FGND DGND

RTN ARTN B -48 A-48 B FGND DGND

shorting bar

(optional)

earth ground

2

1. Required: Connect Frame Ground to

Earth Ground using ground wire.

2. Additional option: Connect Digital

Ground to Frame Ground with metal
shorting bar (available fr om Continuous
Computing Corporation).

Table 3 Frame Ground to Digital Ground Connected with barrier strip power entry

Continuous Computing Corp. Page 13 File: CC00313-00
San Diego, CA Dual Feed DC Telecom Power Supply User’s Guide Last saved: 2/12/01 4:57 PM

PIN 1: -48V (red)
PIN 2: FGND (green)

1

PIN 3: RTN (black)

earth ground

PIN 1: -48V (red)

1

PIN 2: FGND (green)
PIN 3: RTN (black)

FEED A

FEED B

FEED A

Power entry connectors

ground stud

2

DGND

FGND

PIN 1: -48V (red)
PIN 2: FGN (green)

PIN 3: RTN (black)

shorting plug

(optional)

1

3

1. Required: Connect Frame Ground

to Earth Gr ound with ground wire.

or

2. Use ground stud to connect to Earth
Ground.

3. Additional option: Use shorting
plug (available from Continuous
Computing Corporation) to short
Digital Ground to Frame Ground.

DGND

earth ground

FGND

FEED B

shorting plug

(optional)

ground stud

PIN 1: -48V (red)
PIN 2: FGN (green)

PIN 3: RTN (black)

3

2

1

Table 4 Frame Ground to Digital Ground Connected with power entry connectors

Continuous Computing Corp. Page 14 File: CC00313-00
San Diego, CA Dual Feed DC Telecom Power Supply User’s Guide Last saved: 2/12/01 4:57 PM

Frame Ground to Digital Ground Isolated

Barrier strip power entry

Feed A

Feed B

Digital Ground (black)

Frame Ground (green)

1

-48V (red)

Return (black)

-48V (red)

Return (black)

RTN ARTN B -48 A-48 B FGND DGND

RTN ARTN B -48 A-48 B FGND DGND

(optional)

earth ground

DGND

2

1. Required: Connect Frame Ground to Earth

Ground using gro und wire.

2. Additional option: Connect Digital Ground

on barrier strip to Digital Ground to all
systems

Table 5 Frame Ground to Digital Ground Isolated with barrier strip power entry

Continuous Computing Corp. Page 15 File: CC00313-00
San Diego, CA Dual Feed DC Telecom Power Supply User’s Guide Last saved: 2/12/01 4:57 PM

PIN 1: -48V (red)

1

PIN 2: FGND (green)
PIN 3: RTN (black)

earth ground

PIN 1: -48V (red)

1

PIN 2: FGND (green)
PIN 3: RTN (black)

FEED A

FEED B

ground stud

Power entry connectors

2

DGND

DGND

3

(optional)

FGND

earth ground

FEED A

DGND

FGND

FEED B

PIN 1: -48V (red)
PIN 2: FGN (green)

PIN 3: RTN (black)

DGND

3

(optional)

ground stud

PIN 1: -48V (red)
PIN 2: FGN (green)

PIN 3: RTN (black)

2

1. Required: Use ground stud to co nnect

Frame Ground and Earth Ground.

or

2. Use ground stud to connect to Earth Ground.

1

1

3. Additional option: Use connector to connect

Digital Ground to all systems.

Table 6 Frame Ground to Digital Ground Isolated with barrier strip entry

Continuous Computing Corp. Page 16 File: CC00313-00
San Diego, CA Dual Feed DC Telecom Power Supply User’s Guide Last saved: 2/12/01 4:57 PM

Powering On the System

To enable power to your system and, in turn, the Power Supply, you can use two different methods.

• Enabling system from the Continuous Control Node (CCN) front panel

• Enabling system from the Craft console

!

Caution – Ensure proper operating temperature ranges are met!

Permanent damage to the Power Supply may result from
overheating. See Table 8 for operating specifications.

APP

ON

Application (user defined) LED
On LED

On / Off Toggle Switch

OFF

CONS

Off LED

DB9 Seria l F emale DCE
Craft Console Connection

CR
MJ
MN

RST

FLT

SWP

Critical Fault LED
Major Fault LED
Minor Fault LED

Reset Switch (Recessed)
Controller Fault LED
Swap OK LED

Figure 7 CCN front panel

Enabling system from CCN front panel

1. Locate the On/Off toggle switch on the CCN front panel. See Figure 7 for location details.

Note: This switch utilizes a locking mechanism to avoid accidental actuation. Pull the switch lever

out and push up or down as needed.

2. Pull the On/Off toggle switch lever out and push up towards the ON LED and hold for one second.
This will turn the system on.

Enabling system from Craft console

At the 00 ccncli> prompt, type on

Continuous Computing Corp. Page 17 File: CC00313-00
San Diego, CA Dual Feed DC Telecom Power Supply User’s Guide Last saved: 2/12/01 4:57 PM

Powering Off the System

!

Caution – Before removing power from your system, ensure that the

operating system has completely shut down. Failing to do so may
cause disk corruption.

1. Shut down the system’s operati ng system. In Solaris, do this using t he

2. Disable power from your system using one of the methods listed below.

Disable system from CCN front panel

• Locate the On/Off toggle switch on the CCN front panel. See Figure 7 for location details.

Note: This switch utilizes a locking mechanism to avoid accidental actuation. Pull the
switch lever out and push up or down as needed.

• If CCN daemon is installed and configured for shutdown on the CCN: Pull the On/Off

toggle switch lever out and pushing down towards the OFF LED; hold for one second. The
OFF LED will begin to blink. Once the operating system has shut down, the ON LED will
go dark and the OFF LED will stop blinking and stay lit.

• If CCN daemon is not installed on the CCN: Ensure that the operating system is

completely shutdown using the halt co mmand. Pull the On/Off toggle switch lever out
and push down towards the OFF LED; hold for five seconds.

halt command.

Disable system from Craft console

• If CCN daemon is installed:

at the 00 ccncli> prompt, type off

• If CCN daemon is not installed:

at the 00 ccncli> prompt, type forceoff

Continuous Computing Corp. Page 18 File: CC00313-00
San Diego, CA Dual Feed DC Telecom Power Supply User’s Guide Last saved: 2/12/01 4:57 PM

4 Troubleshooting

Troubleshooting Scenarios

In the event that the Power Supply should fail in any way, use the following procedures to troubleshoot.
Note: The Power Input Module contains only passive components and therefore is extremely unlikely to

be the cause of failure.

Check the LEDs

If the INPUT LED is not on, one or more of the following applies:

• The -48V source has not been enabled externally.

• The Power Input Module is not correctly connected or the cables bringing power have

improper polarity.

• Both the Feed A and Feed B fuses have blown on the Power Supply. Use the “Check the

Fuses” procedure below to determine if the fuses have blown.

If the FLT LED is on, one or more of the following applies:

• One of the fuses, or both, have blown. Use the “Check the Fuses” procedure below to

determine if the fuses have blown.

• Feed A or Feed B, or both, have lost power from the external source.

• The onboard convert ers have failed.

Note: The FLT LED will light only if the CCN is connected.

Use the Command Line Interface (CLI) or the GUI to the CCN to further troubleshoot the Power
Supply and find out whether the problem is external or internal. See the section below, “Use the CCN,”
to troubleshoot from the CLI.

Use the CCN

If the above conditions have been checked and do not solve the problem, you can use the CCN to
investigate the status of the Power Supply. If the CCN is receiving alarm power from a redundant
Supply within that system, or from a crossover connection of alarm power from the opposite side of the
system—even if a Power Supply is dead—the CCN can still be used to determine problems with the
Power Supply.

Use the faults command

First, login to the CCN and type faults. The faults command shows what is active at the time,
indicating one or more of the following: a Feed A fault, a Feed B fault, or a power converter fault. The
output from the faults command will look as follows:

samplesys ccncli> faults

# ST Description
1 L Sampled ALM12A out of range (use 'voltages')
2 L Sampled ALM12B out of range (use 'voltages')
8 A Power Supply A not present
9 A Power Supply B not present

Continuous Computing Corp. Page 19 File: CC00313-00
San Diego, CA Dual Feed DC Telecom Power Supply User’s Guide Last saved: 2/12/01 4:57 PM

A

10 L Disk A not present
16 L Power Supply A 48V feed A no power
17 L Power Supply A 48V feed B no power
20 L Power Supply B 48V feed A no power
21 L Power Supply B 48V feed B no power
27 A Application heartbeat not received within timeout period
samplesys ccncli>

Legend:

= Active
L = Latched
M = Masked

Note: If the condition causing the fault is current, then the fault is “active”. Once the condition has been
corrected, then the fault is “latched”. Faults can be cleared using the faults reset command.

If the power switch on the CCN is used to turn the Supply on or off and the Power Supply’s ON LED
does not come on when it should, a communication problem between the CCN and the Power Supply
has occurred. Therefore, either the CCN or the Power Supply will need to be replaced. To d etermine
which is defective, first try swapping in another Power Supply. If the new Supply does not work, try
swapping in another CCN. By doing so, you will be able to figure out if the communication problem is
due to the Supply or the CCN.

Use the voltages command

If the above does not solve the problem, try using the voltages command on the CCN to determine
whether the currents or temperature are out of range. The voltages command lists all sampled
voltages and temperatures along with the minimum and maximum values since the last voltages
reset command (which clears all of the stored min/max values). In addition, the allowable upper and
lower limits for each sampled voltage or temperature are displayed.

Output Indicates

TEMP0

The temperature within the
chassis.
The CCN power feeds

ALM12A and ALM12B

(ALM12B is only present in
multi-node systems).

TEMP1

(the remaining voltages)

An extra sensor that is typically
not connected.
The CompactPCI midplane
voltages.

Table 7 voltages command outputs

Check the Fuses

1. If your system uses a single Po wer Supply, halt the operating system.

2. Remove the Power Supply from the system. To do this, use the “Removing the Power Supply”
procedure below.

3. Using the photo of your Power Supply (see Figure 2, Figure 3, or Fi gure 4), locate the Feed A
and Feed B fuses on your board.

4. With a continuity meter check the fuse on the card. If one or both fuses are blown, return the
Power Supply to Continuous Computing Corporation for analysis and repair.

Continuous Computing Corp. Page 20 File: CC00313-00
San Diego, CA Dual Feed DC Telecom Power Supply User’s Guide Last saved: 2/12/01 4:57 PM

Removing the Power Supply

To remove the Power Supply:

1. If your system uses a single Power Supply, halt the operating system. If your system is
redundant, skip the next step.

2. Power down the system.

3. Loosen the captive screw on each ejector latch handle to disengage the Power Supply from the
system chassis. Refer to Figure 5 for ejector latch handle details.

4. Press the ejector latch handles away from the faceplate.

5. Gently slide the module out of the system chassis.

Removing the Power Input Module

To remove the Power Input Module:

1. Halt the operating system.

2. Power down the system.

3. Disable the 48V at the source to prevent accidental contact with hazardous voltages.

4. Disconnec t the connecto rs from the panel (ring lugs or 3-pin AMP MATE-N-LO K).

5. Unscrew the panel.

6. Disconnect the 6-pin, keyed Molex connector from the midplane.

7. Remove the Power Input Module.

Contact Technical Support

If you continue to experience problems with your Power Supply, contact the Technical Support team at
Continuous Computing. See Section 6 for contact information.

Continuous Computing Corp. Page 21 File: CC00313-00
San Diego, CA Dual Feed DC Telecom Power Supply User’s Guide Last saved: 2/12/01 4:57 PM

5 LEDs, Connector Usage, and

Specifications

INPUT

ON

FLT

Input OK LED (green)

Output ON LED (green)

Fault LED (red)

Figure 8 LEDs for 100W, 150W, and 350W Power Supplies

LEDs

The INPUT LED

The green INPUT LED is activated when –48V are present on Feed A, B, or both. Whenever the
INPUT LED is lighted, the Supply is generating standby power for an attached CCN.

Note: A solder side cover is on the Power Supply. However, if you are ejecting the Power Supply before
removing it completely from the chassis, you should wait for the INPUT LED to go completely dark,
indicating that any hazardous voltages on the board have been discharged.

Continuous Computing Corp. Page 22 File: CC00313-00
San Diego, CA Dual Feed DC Telecom Power Supply User’s Guide Last saved: 2/12/01 4:57 PM

The ON LED

The green ON LED is activated when the Power Supply has been enabled to supply 5V, 12V, 3.3V, and
–12V to the PCI portions of the system circuitry. Therefore, 48V power can be coming in, but the
converters may not be enabled such that they are generating output power from the 48V; this is the
distinction between INPUT and ON.

The FLT LED

The red FLT (fault) LED is activated when one or both of the fuses have blown. The FLT LED is
activated when Feed A, Feed B, or both, have lost power from the external source or, the onboard
converters ha ve failed.

Note: The FLT LED is driven by the CCN. Therefore, if the CCN is not attached, the FLT LED will
never light.

Connector Usage

J1000 Pinout

CBA

1
2
3
4
5
6
7
8

-48V Feed A

-48V Return

-48V Feed B

FGND

DGND

+5V

DGND

Pin # A B C

1 3V sense - Fault LED (A) 3V parallel
2 3V sense + Fault LED (K) PW R enable
3 RSVD Feed A detect 5V parallel
4 +12V stby Feed B detect 5V sense ­5 SDA DGND 5V sense +
6 SCL +12V +12V
7 +12V +12V +12V
8 -12V -12V -12V

+3.3V

Figure 9 J1000 pinout viewed from board edge

Continuous Computing Corp. Page 23 File: CC00313-00
San Diego, CA Dual Feed DC Telecom Power Supply User’s Guide Last saved: 2/12/01 4:57 PM

Specifications

Output Current

+5V

+3.3V

+12V

-12V

Standby 12V

* Note: Due to the use of a shared heatsink, the maximum combined power dissipation for
+5V, +3.3V, and +12V is 150W.

Output Voltage

Input Power Voltage: -42VDC to -56VDC

Front Panel LEDs Input Power Available

100W 150W 350W

12A 30A* 30A
15A 30A* 30A
6A 8.3A* 8.3A

0.5A 0.5A 0.5A
1A 1A 1A

5V 5.0V ± 3%

3.3V 3.3V ± 5%
12V 12.0V ± 5%

-12V -12.0V ± 5%
Standby 12.3 ± 5%

12A maximum steady state
30A maximum inrush

On

Fault
Connectors Type M Hybrid DIN
Mechanical Eurocard 6U

100W 150W 350W

1 slot 1 ½ slot 2 slot
160mm x

233mm x
20mm

Operating Environmental

Temperature
Humidity
Altitude
Airflow

Storage/Transit Environmental

Temperature
Humidity
Altitude

Continuous Computing Corp. Page 24 File: CC00313-00
San Diego, CA Dual Feed DC Telecom Power Supply User’s Guide Last saved: 2/12/01 4:57 PM

-5°C to 50°C (Operating)

5% to 90% relative humidity, noncondensing

3000m

300 LFM

-40°C to 70°C

5% to 95% relative humidity, noncondensing

10000m

160mm x
233mm x
30mm *

160mm x
233mm x
40mm

Safety Compliance

UL/cUL1950 3rd Edition Recognized Component
UL/cUL1950 Listed (Systems only)
European Low Voltage Directive (Systems only)

Electromagnetic Compatibility

FCC Class A
European EMC Directive (Systems only)

Telco Compliance

Telcordia NEBS GR-63-CORE Level 3
Telcordia NEBS GR-1089-CORE Level 3

Marks

UL, cUL, CE (Systems only)

Table 8 Specifications

Continuous Computing Corp. Page 25 File: CC00313-00
San Diego, CA Dual Feed DC Telecom Power Supply User’s Guide Last saved: 2/12/01 4:57 PM

6 Technical Support

Before contacting the Technical Support team at Continuous Computing, be sure you have read Section

4, “Troubleshooting,” of this guide.

If you continue to experience problems with the Power Supply, please contact the Technical Support
team at Continuous Computing by any of the methods listed below.

Note: Please be sure to include the serial numbers for each affected module, system and/or part.

Contacting Technical Support

To contact the Technical Support team at Continuous Computing, do one of the following:

• Email us at [e-mail]

• Visit our support web site at http://support.ccpu.com

(This site features our automatic technical support system. Create a new user profile. Then
submit a new ticket at the “Welcome to SupportWizard” page. This process ensures that our
team delivers a timely solution to any technical problem you have.)

• Call us at [phone], 9:00 a.m. – 5:00 p.m. (PST)

Note: If you have a Gold or Platinum service contract, follow the contact instructions provided with
your contract.

Continuous Computing Corp. Page 26 File: CC00313-00
San Diego, CA Dual Feed DC Telecom Power Supply User’s Guide Last saved: 2/12/01 4:57 PM
