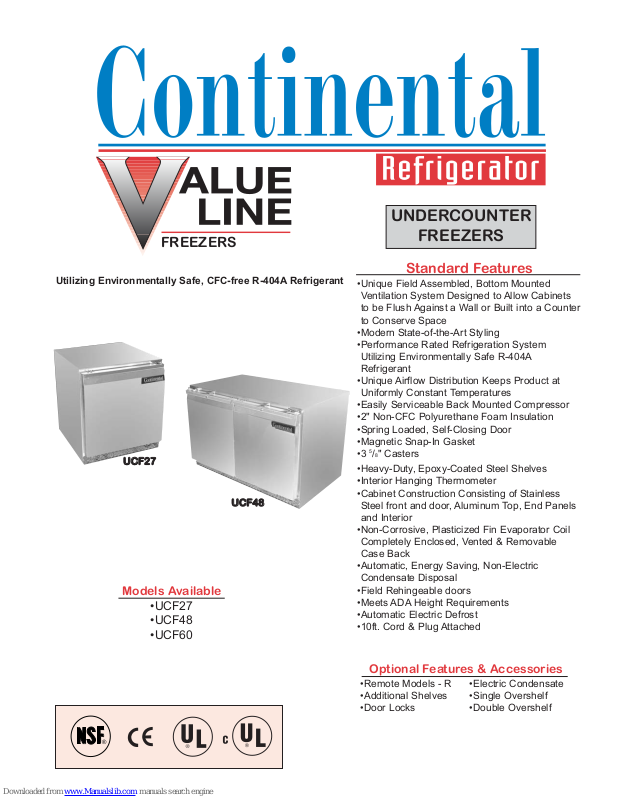

Page 1
2420.83
UNDERCOUNTER
FREEZERS
Utilizing Environmentally Safe, CFC-free R-404A Refrigerant
Standard Features
•Unique Field Assembled, Bottom Mounted
Ventilation System Designed to Allow Cabinets
to be Flush Against a Wall or Built into a Counter
to Conserve Space
•Modern State-of-the-Art Styling
•Performance Rated Refrigeration System
Utilizing Environmentally Safe R-404A
Refrigerant
•Unique Airflow Distribution Keeps Product at
Uniformly Constant Temperatures
•Easily Serviceable Back Mounted Compressor
•2" Non-CFC Polyurethane Foam Insulation
•Spring Loaded, Self-Closing Door
•Magnetic Snap-In Gasket
•3
5
/8" Casters
•Heavy-Duty, Epoxy-Coated Steel Shelves
•Interior Hanging Thermometer
•Cabinet Construction Consisting of Stainless
Steel front and door, Aluminum Top, End Panels
and Interior
•Non-Corrosive, Plasticized Fin Evaporator Coil
Completely Enclosed, Vented & Removable
Case Back
•Automatic, Energy Saving, Non-Electric
Condensate Disposal
•Field Rehingeable doors
•Meets ADA Height Requirements
•Automatic Electric Defrost
•10ft. Cord & Plug Attached
Models Available
•UCF27
•UCF48
•UCF60
Optional Features & Accessories
•Remote Models - R •Electric Condensate
•Additional Shelves •Single Overshelf
•Door Locks •Double Overshelf
FREEZERS
UCF27
UCF48
Page 2
2420.83
FREEZERS
UCF205
A Division of National Refrigeration & A/C Products, Inc.
539 Dunksferry Road Bensalem, PA 19020
(800) 523-7138 Fax: (215) 244-9579
www.continentalrefrigerator.com
DIMENSIONAL DATA
Net Capacity (cu. ft.) 7.4 13.4 17.0
Width, Overall (in.) 27
1
/
4
48 60
Depth, Overall (Incl. Hdls.) (in.) 317/16
31
7
/16
31
7
/16
Height, Overall (Inc. casters)(in.) 3161/
64
3161/
64
3161/
64
No. of Shelves 1 2 2
Shelf Area (sq. ft.) 3.5 6.8 8.1
No. of Doors 1 2 2
Condensing Unit Size (H.P.)
1
/
5
1
/
5
1
/
4
Refrigerant
R-134a R-134a R-134a
Cabinet Electrical
115/60/1 115/60/1 115/60/1
Amps 5.9 7.6 7.8
No. of Fans 1 2 2
Shipping Weight (lbs.) 180 263 300
Shipping Height (in.) 43
1
/
4
431/
4
431/
4
Shipping Length (in.) 353/
4
55 681/
4
Shipping Depth (in.) 371/
4
371/
4
371/
4
SPECIFICATIONS
UCF27
UCF48
UCF60
