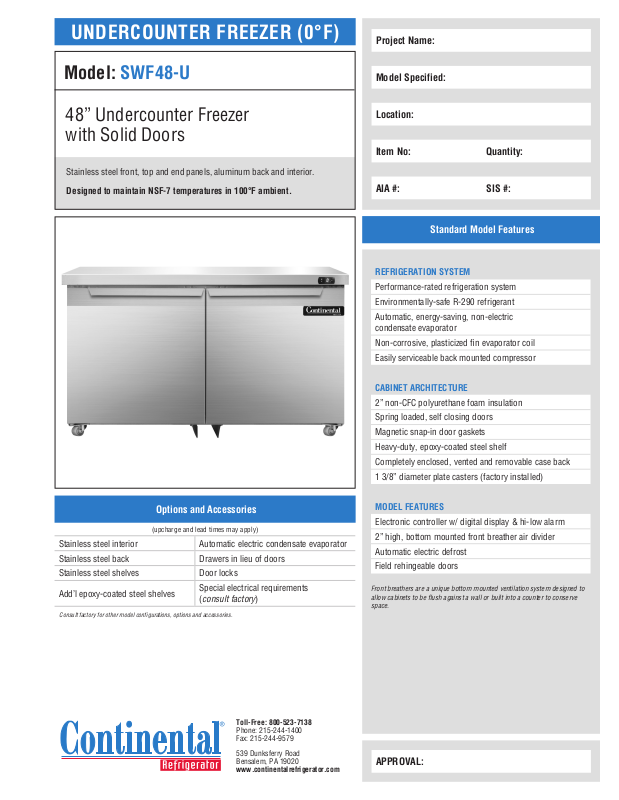

Continental Refrigerator SWF48U Specifications

UNDERCOUNTER FREEZER (0°F)
Project Name:
Model: SWF48-U
48” Undercounter Freezer with Solid Doors
Stainless steel front, top and end panels, aluminum back and interior.
Designed to maintain NSF-7 temperatures in 100°F ambient.
Location:
Item No: Quantity:
AIA #: SIS #:
Standard Model Features
REFRIGERATION SYSTEM
Performance-rated refrigeration system Environmentally-safe R-290 refrigerant Automatic, energy-saving, non-electric
condensate evaporator
Non-corrosive, plasticized n evaporator coil
Easily serviceable back mounted compressor
Options and Accessories
(upcharge and lead times may apply)
Stainless steel interior Automatic electric condensate evaporator Stainless steel back Drawers in lieu of doors Stainless steel shelves Door locks
Add’l epoxy-coated steel shelves
Consult factory for other model configurations, options and accessories.
Special electrical requirements (consult factory)
CABINET ARCHITECTURE
2” non-CFC polyurethane foam insulation Spring loaded, self closing doors Magnetic snap-in door gaskets Heavy-duty, epoxy-coated steel shelf Completely enclosed, vented and removable case back 1 3/8” diameter plate casters (factory installed)
MODEL FEATURES
Electronic controller w/ digital display & hi-low alarm 2” high, bottom mounted front breather air divider Automatic electric defrost Field rehingeable doors
Front breathers are a unique bottom mounted ventilation system designed to allow cabinets to be flush against a wall or built into a counter to conserve space.
Toll-Free: 800-523-7138
Phone: 215-244-1400 Fax: 215-244-9579
539 Dunksferry Road Bensalem, PA 19020
www.continentalrefrigerator.com
APPROVAL:
Model Specifications
Model Plan Views
DIMENSIONAL DATA
Net Capacity (cu. ft.) 13.4 (379 cu l) Width, Overall (in.) 48 (1219 mm) Depth, Overall (in.)
(incl. handles & bumpers)
Height, Overall (in.)
(incl. 1 3/8” plate casters)
31 9/16 (802 mm)
31 13/16 (808 mm)
Shelf Area (sq. ft.) 6.8 (.6 sq m) No. of Shelves 2 No. of Doors 2 Interior Depth (in.) See Drawing Interior Height (in.) 26 1/4 (667 mm) Interior Width (in.) 44 (1118 mm)
REFRIGERANT DATA
Condensing Unit Size (H.P.) 1/2 Capacity (BTU/Hr)* 2078
ELECTRICAL DATA
Voltage (int’l) 115/60/1 (220/50/1) Fans 2 Total Amps (int’l) 7.7 (3.5) Defrost Amps (int’l) 4.4 (2.2) 10 ft. Cord/Plug [attached] (int’l) Yes (No)
48”
(1219 mm)
UC32 - 32” Undercounter Refrigerator with Solid Door
19 5/8”
(498 mm)
DOOR OPENING
FRONT VIEW
31 9/16”
1 1/2”
(38 mm)
(802 mm)
30”
(762 mm)
23 5/8”
(600 mm)
DOOR
OPENING
SHIPPING DATA
Weight (lbs.) 248 (112 kg) Height - Crated (in.) 40 (1016 mm) Width - Crated (in.) 56 (1422 mm) Depth - Crated (in.) 37 1/4 (946 mm)
* Rating @ -15°F evaporator, 90°F ambient
Figures in parentheses reect metric equivalents rounded to the nearest
whole unit.
Equipped with one NEMA-5-15P Plug
(varies by country)
Toll-Free: 800-523-7138
Phone: 215-244-1400 Fax: 215-244-9579
539 Dunksferry Road Bensalem, PA 19020
www.continentalrefrigerator.com
Due to our continued efforts in developing innovative products, specifications subject to change without notice.
19 3/8”
(492 mm)
23 3/4”
(603 mm)
DOOR
OPENING
14 7/8”
(378 mm)
29 3/4”
(756 mm)
31 13/16”
(808 mm)
10 1/4”
(260 mm)
2 1/16”
(52 mm)
SIDE VIEW
NOTE: For proper operation, the area under and in front of the cabinet must not be obstructed in any way.
®
MADE IN THE U.S.A.
© Copyright 2018. Continental Refrigerator. A Division of National Refrigeration & Air Conditioning Products, Inc.
SWF48-U (5/8/18)
