Continental Refrigerator SWF32U Specifications

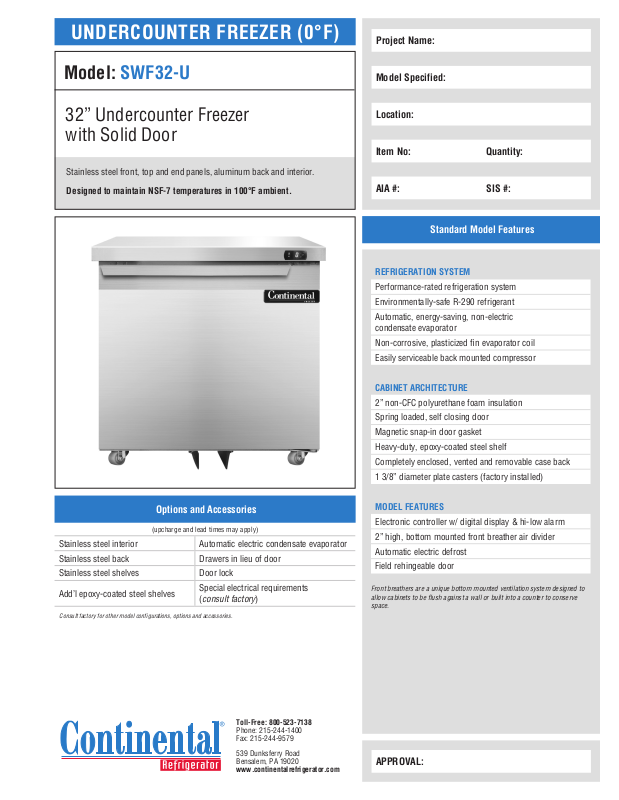

UNDERCOUNTER FREEZER (0°F)
Project Name:
Model: SWF32-U
32” Undercounter Freezer
with Solid Door
Stainless steel front, top and end panels, aluminum back and interior.
Designed to maintain NSF-7 temperatures in 100°F ambient.
Model Specified:
Location:
Item No: Quantity:
AIA #: SIS #:
Standard Model Features
REFRIGERATION SYSTEM
Performance-rated refrigeration system
Environmentally-safe R-290 refrigerant
Automatic, energy-saving, non-electric
condensate evaporator
Non-corrosive, plasticized n evaporator coil
Easily serviceable back mounted compressor
Options and Accessories
(upcharge and lead times may apply)
Stainless steel interior Automatic electric condensate evaporator
Stainless steel back Drawers in lieu of door
Stainless steel shelves Door lock
Add’l epoxy-coated steel shelves
Consult factory for other model configurations, options and accessories.
Special electrical requirements
(consult factory)
CABINET ARCHITECTURE
2” non-CFC polyurethane foam insulation
Spring loaded, self closing door
Magnetic snap-in door gasket
Heavy-duty, epoxy-coated steel shelf
Completely enclosed, vented and removable case back
1 3/8” diameter plate casters (factory installed)
MODEL FEATURES
Electronic controller w/ digital display & hi-low alarm
2” high, bottom mounted front breather air divider
Automatic electric defrost
Field rehingeable door
Front breathers are a unique bottom mounted ventilation system designed to
allow cabinets to be flush against a wall or built into a counter to conserve
space.
Toll-Free: 800-523-7138
Phone: 215-244-1400
Fax: 215-244-9579
539 Dunksferry Road
Bensalem, PA 19020
www.continentalrefrigerator.com
APPROVAL:
Model Specifications
DIMENSIONAL DATA
Net Capacity (cu. ft.) 9.0 (255 cu l)
Width, Overall (in.) 32 (813 mm)
Depth, Overall (in.)
(incl. handle & bumpers)
Height, Overall (in.)
(incl. 1 3/8” plate casters)
Shelf Area (sq. ft.) 3.9 (.4 sq m)
No. of Shelves 1
No. of Doors 1
Interior Depth (in.) See Drawing
Interior Height (in.) 26 1/4 (667 mm)
Interior Width (in.) 28 (711 mm)
REFRIGERANT DATA
Condensing Unit Size (H.P.) 1/3
Capacity (BTU/Hr)* 1800
31 9/16 (802 mm)
31 13/16 (808 mm)
Model Plan Views
32”
(813 mm)
UC32 - 32” Undercounter
Refrigerator with Solid Door
27 3/8”
(695 mm)
DOOR OPENING
ELECTRICAL DATA
Voltage (int’l) 115/60/1 (220/50/1)
Fans 1
Total Amps (int’l) 5.6 (3.3)
Defrost Amps (int’l) 4.8 (2.4)
10 ft. Cord/Plug [attached] (int’l) Yes (No)
SHIPPING DATA
Weight (lbs.) 221 (100 kg)
Height - Crated (in.) 40 (1016 mm)
Width - Crated (in.) 40 (1016 mm)
Depth - Crated (in.) 37 1/4 (946 mm)
* Rating @ -15°F evaporator, 90°F ambient
Figures in parentheses reect metric equivalents rounded to the nearest
whole unit.
Equipped with one NEMA-5-15P Plug
(varies by country)
FRONT VIEW
1 1/2”
(38 mm)
23 3/4”
(603 mm)
DOOR
OPENING
SIDE VIEW
31 9/16”
(802 mm)
(762 mm)
19 3/8”
(492 mm)
14 7/8”
(378 mm)
10 1/4”
(260 mm)
30”
29 3/4”
(756 mm)
2 1/16”
(52 mm)
31 13/16”
(808 mm)
Toll-Free: 800-523-7138
Phone: 215-244-1400
Fax: 215-244-9579
539 Dunksferry Road
Bensalem, PA 19020
www.continentalrefrigerator.com
Due to our continued efforts in developing innovative
products, specifications subject to change without notice.
®
MADE IN THE U.S.A.
© Copyright 2018. Continental Refrigerator.
A Division of National Refrigeration & Air Conditioning Products, Inc.
NOTE: For proper operation, the area under and in front of the cabinet must not be obstructed in any way.
SWF32-U (5/8/18)
