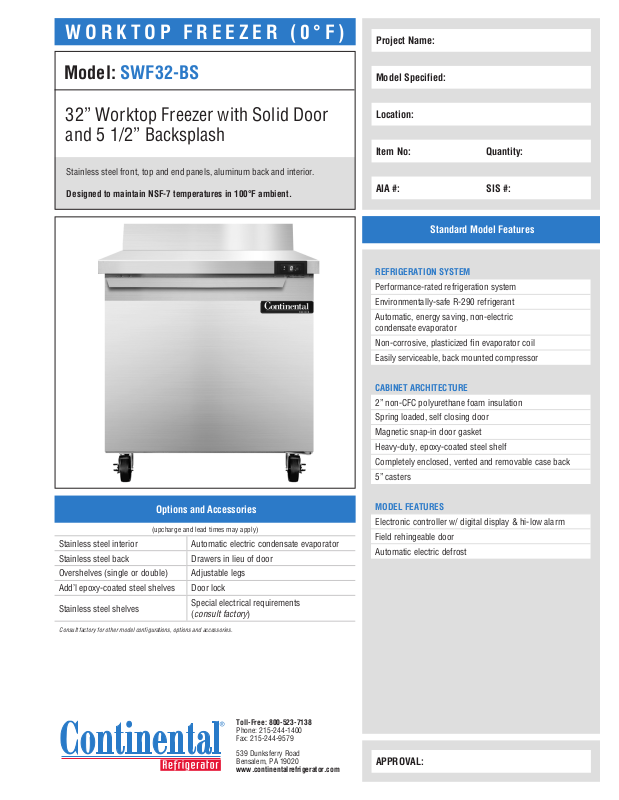

Continental Refrigerator SWF32BS Specifications
WORKTOP FREEZER (0°F)
Project Name:
Model: SWF32-BS
32” Worktop Freezer with Solid Door
and 5 1/2” Backsplash
Stainless steel front, top and end panels, aluminum back and interior.
Designed to maintain NSF-7 temperatures in 100°F ambient.
Model Specified:
Location:
Item No: Quantity:
AIA #: SIS #:
Standard Model Features
REFRIGERATION SYSTEM
Performance-rated refrigeration system
Environmentally-safe R-290 refrigerant
Automatic, energy saving, non-electric
condensate evaporator
Non-corrosive, plasticized n evaporator coil
Easily serviceable, back mounted compressor
Options and Accessories
(upcharge and lead times may apply)
Stainless steel interior Automatic electric condensate evaporator
Stainless steel back Drawers in lieu of door
Overshelves (single or double) Adjustable legs
Add’l epoxy-coated steel shelves Door lock
Stainless steel shelves
Consult factory for other model configurations, options and accessories.
Special electrical requirements
(consult factory)
CABINET ARCHITECTURE
2” non-CFC polyurethane foam insulation
Spring loaded, self closing door
Magnetic snap-in door gasket
Heavy-duty, epoxy-coated steel shelf
Completely enclosed, vented and removable case back
5” casters
MODEL FEATURES
Electronic controller w/ digital display & hi-low alarm
Field rehingeable door
Automatic electric defrost
Toll-Free: 800-523-7138
Phone: 215-244-1400
Fax: 215-244-9579
539 Dunksferry Road
Bensalem, PA 19020
www.continentalrefrigerator.com
APPROVAL:
Model Specifications
Model Plan Views
DIMENSIONAL DATA
Net Capacity (cu. ft.) 9.0 (253 cu l)
Width, Overall (in.) 32 (813 mm)
Depth, Overall (in.)
(incl. handle & bumpers)
31 9/16 (803 mm)
Height, Overall (in.) (incl. 5” casters) 40 3/4 (1035 mm)
Shelf Area (sq. ft.) 3.9 (.4 sq m)
No. of Shelves 1
No. of Doors 1
Interior Depth (in.) See Drawing
Interior Height (in.) 26 1/4 (667 mm)
Interior Width (in.) 28 (711 mm)
REFRIGERANT DATA
Condensing Unit Size (H.P.) 1/3
Capacity (BTU/Hr)* 1800
ELECTRICAL DATA
Voltage (int’l) 115/60/1 (220/50/1)
Fans 1
Total Amps (int’l) 5.6 (3.3)
Defrost Amps (int’l) 4.8 (2.4)
10 ft. Cord/Plug [attached] (int’l) Yes (No)
SHIPPING DATA
Weight (lbs.) 221 (100 kg)
Height - Crated (in.) 48 3/4 (1238 mm)
Width - Crated (in.) 40 (1016 mm)
Depth - Crated (in.) 37 1/4 (946 mm)
* Rating @ -15°F evaporator, 90°F ambient
Figures in parentheses reect metric equivalents rounded to the nearest
whole unit.
FRONT VIEW
23 5/8”
(600 mm)
DOOR
OPENING
31 9/16”
(802 mm)
(762 mm)
19 3/8”
(492 mm)
14 7/8”
(378 mm)
10 1/4”
(260 mm)
32”
(813 mm)
27 3/8”
(695 mm)
DOOR OPENING
30”
1”
(25 mm)
30 1/4”
(768 mm)
40 3/4”
(1035 mm)
Equipped with one NEMA-5-15P Plug
(varies by country)
Toll-Free: 800-523-7138
Phone: 215-244-1400
Fax: 215-244-9579
539 Dunksferry Road
Bensalem, PA 19020
www.continentalrefrigerator.com
Due to our continued efforts in developing innovative
products, specifications subject to change without notice.
®
MADE IN THE U.S.A.
© Copyright 2018. Continental Refrigerator.
A Division of National Refrigeration & Air Conditioning Products, Inc.
5”
(127mm)
27 1/2”
SIDE VIEW
IMPORTANT NOTE: If the cabinet is located directly against a wall, a minimum clearance of 3” is required
on sides, front and rear.
(699 mm)
SWF32-BS (5/8/18)
