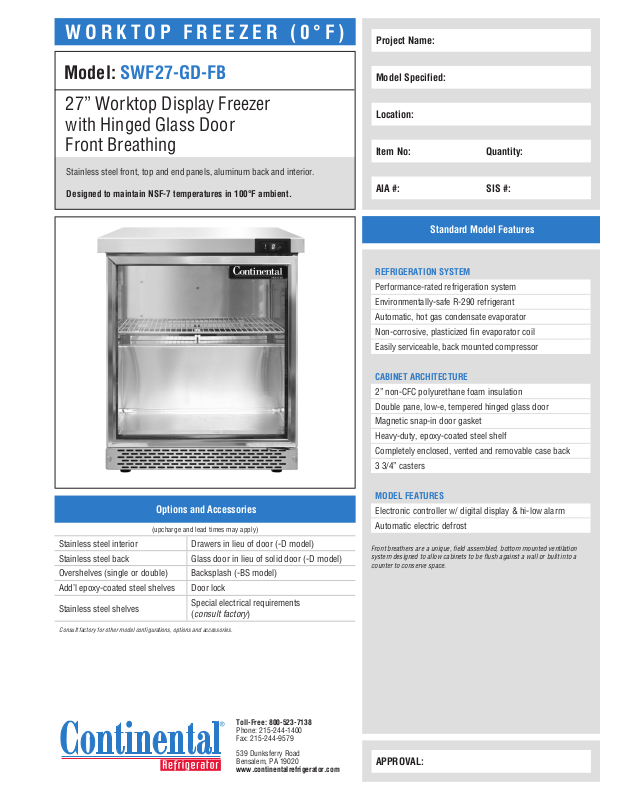

Continental Refrigerator SWF27GDFB Specifications
WORKTOP FREEZER (0°F)
Project Name:
Model: SWF27-GD-FB
27” Worktop Display Freezer
with Hinged Glass Door
Front Breathing
Stainless steel front, top and end panels, aluminum back and interior.
Designed to maintain NSF-7 temperatures in 100°F ambient.
Model Specified:
Location:
Item No: Quantity:
AIA #: SIS #:
Standard Model Features
REFRIGERATION SYSTEM
Performance-rated refrigeration system
Environmentally-safe R-290 refrigerant
Automatic, hot gas condensate evaporator
Non-corrosive, plasticized n evaporator coil
Easily serviceable, back mounted compressor
Options and Accessories
(upcharge and lead times may apply)
Stainless steel interior Drawers in lieu of door (-D model)
Stainless steel back Glass door in lieu of solid door (-D model)
Overshelves (single or double) Backsplash (-BS model)
Add’l epoxy-coated steel shelves Door lock
Stainless steel shelves
Consult factory for other model configurations, options and accessories.
Special electrical requirements
(consult factory)
CABINET ARCHITECTURE
2” non-CFC polyurethane foam insulation
Double pane, low-e, tempered hinged glass door
Magnetic snap-in door gasket
Heavy-duty, epoxy-coated steel shelf
Completely enclosed, vented and removable case back
3 3/4” casters
MODEL FEATURES
Electronic controller w/ digital display & hi-low alarm
Automatic electric defrost
Front breathers are a unique, field assembled, bottom mounted ventilation
system designed to allow cabinets to be flush against a wall or built into a
counter to conserve space.
Toll-Free: 800-523-7138
Phone: 215-244-1400
Fax: 215-244-9579
539 Dunksferry Road
Bensalem, PA 19020
www.continentalrefrigerator.com
APPROVAL:
Model Specifications
Model Plan Views
DIMENSIONAL DATA
Net Capacity (cu. ft.) 7.4 (210 cu l)
Width, Overall (in.) 27 1/2 (699 mm)
Depth, Overall (in.)
(incl. handle & bumpers)
31 7/16 (799 mm)
Height, Overall (in.) (incl. 3 3/4” casters) 34 (864 mm)
Shelf Area (sq. ft.) 3.5 (.3 sq m)
No. of Shelves 1
No. of Doors 1
Interior Depth (in.) See Drawing
Interior Height (in.) 26 1/4 (667 mm)
Interior Width (in.) 24 1/2 (622 mm)
REFRIGERANT DATA
Condensing Unit Size (H.P.) 1/3
Capacity (BTU/Hr)* 1572
ELECTRICAL DATA
Voltage (int’l) 115/60/1 (220/50/1)
Fans 1
Total Amps (int’l) 4.0 (2.8)
Defrost Amps (int’l) 4.8 (2.4)
10 ft. Cord/Plug [attached] (int’l) Yes (No)
SHIPPING DATA
Weight (lbs.) 180 (82 kg)
Height - Crated (in.) 42 (1067 mm)
Width - Crated (in.) 35 1/2 (902 mm)
Depth - Crated (in.) 37 1/4 (946 mm)
* Rating @ -15°F evaporator, 90°F ambient
Figures in parentheses reect metric equivalents rounded to the nearest
whole unit.
FRONT VIEW
23 5/8”
(600 mm)
DOOR
OPENING
31 7/16”
(799 mm)
(762 mm)
19 3/8”
(492 mm)
14 7/8”
(378 mm)
10 1/4”
(260 mm)
27 1/2”
(699 mm)
22 7/8”
(581 mm)
DOOR
OPENING
24 1/2”
(622 mm)
30”
1”
(25 mm)
30 1/4”
34”
(768 mm)
(864 mm)
Equipped with one NEMA-5-15P Plug
(varies by country)
Toll-Free: 800-523-7138
Phone: 215-244-1400
Fax: 215-244-9579
539 Dunksferry Road
Bensalem, PA 19020
www.continentalrefrigerator.com
Due to our continued efforts in developing innovative
products, specifications subject to change without notice.
®
MADE IN THE U.S.A.
© Copyright 2018. Continental Refrigerator.
A Division of National Refrigeration & Air Conditioning Products, Inc.
3 3/4”
(95 mm)
27 1/2”
SIDE VIEW
IMPORTANT NOTE: If the cabinet is located directly against a wall, a minimum clearance of 3” is required
on sides, front and rear.
(699 mm)
SWF27-GD-FB (5/8/18)
