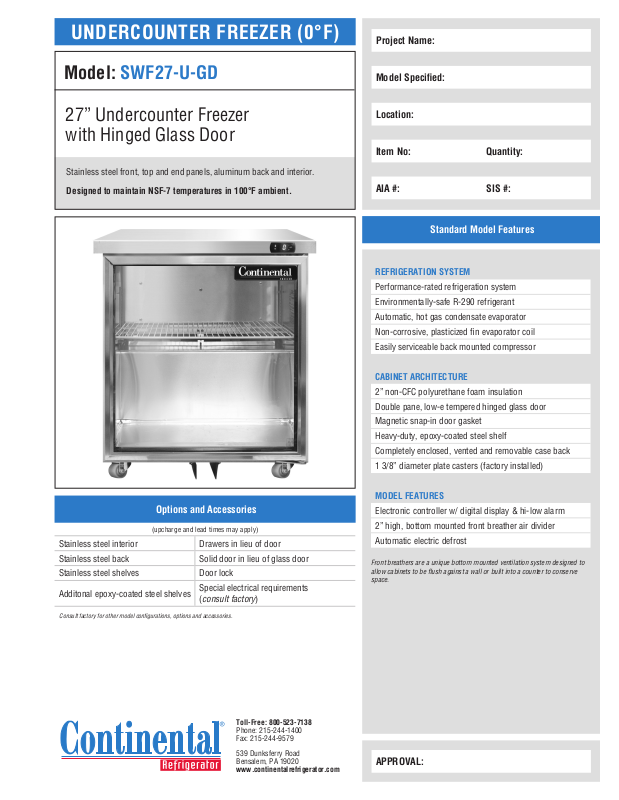

UNDERCOUNTER FREEZER (0°F)
Project Name:
Model: SWF27-U-GD
27” Undercounter Freezer
with Hinged Glass Door
Stainless steel front, top and end panels, aluminum back and interior.
Designed to maintain NSF-7 temperatures in 100°F ambient.
Model Specied:
Location:
Item No: Quantity:
AIA #: SIS #:
Standard Model Features
REFRIGERATION SYSTEM
Performance-rated refrigeration system
Environmentally-safe R-290 refrigerant
Automatic, hot gas condensate evaporator
Non-corrosive, plasticized n evaporator coil
Easily serviceable back mounted compressor
Options and Accessories
(upcharge and lead times may apply)
Stainless steel interior Drawers in lieu of door
Stainless steel back Solid door in lieu of glass door
Stainless steel shelves Door lock
Additonal epoxy-coated steel shelves
Consult factory for other model congurations, options and accessories.
Special electrical requirements
(consult factory)
CABINET ARCHITECTURE
2” non-CFC polyurethane foam insulation
Double pane, low-e tempered hinged glass door
Magnetic snap-in door gasket
Heavy-duty, epoxy-coated steel shelf
Completely enclosed, vented and removable case back
1 3/8” diameter plate casters (factory installed)
MODEL FEATURES
Electronic controller w/ digital display & hi-low alarm
2” high, bottom mounted front breather air divider
Automatic electric defrost
Front breathers are a unique bottom mounted ventilation system designed to
allow cabinets to be ush against a wall or built into a counter to conserve
space.
Toll-Free: 800-523-7138
Phone: 215-244-1400
Fax: 215-244-9579
539 Dunksferry Road
Bensalem, PA 19020
www.continentalrefrigerator.com
APPROVAL:
Model Specications
(52 mm)
Model Plan Views
DIMENSIONAL DATA
Net Capacity (cu. ft.) 7.4 (210 cu l)
Width, Overall (in.) 27 1/2 (699 mm)
Depth, Overall (in.)
(incl. handle & bumpers)
Height, Overall (in.)
(incl. 1 3/8” plate casters)
31 7/16 (798 mm)
31 13/16 (808 mm)
Shelf Area (sq. ft.) 3.5 (.3 sq m)
No. of Shelves 1
No. of Doors 1
Interior Depth (in.) See Drawing
Interior Height (in.) 26 1/4 (667 mm)
Interior Width (in.) 24 1/2 (622 mm)
REFRIGERANT DATA
Condensing Unit Size (H.P.) 1/3
Capacity (BTU/Hr)* 1572
ELECTRICAL DATA
Voltage (int’l) 115/60/1 (220/50/1)
Fans 1
Total Amps (int’l) 4.0 (2.8)
Defrost Amps 4.8 (2.4)
10 ft. Cord/Plug [attached] (int’l) Yes (No)
FRONT VIEW
1 1/2”
(38 mm)
27 1/2”
(699 mm)
22 7/8”
(581 mm)
DOOR
OPENING
24 1/2”
(622 mm)
31 7/16”
(798 mm)
30”
(762 mm)
SHIPPING DATA
Weight (lbs.) 180 (82 kg)
Height - Crated (in.) 43 1/4 (1099 mm)
Width - Crated (in.) 35 3/4 (908 mm)
Depth - Crated (in.) 37 1/4 (946 mm)
* Rating @ -15°F evaporator, 90°F ambient
Figures in parentheses reect metric equivalents rounded to the nearest
whole unit.
Equipped with one NEMA-5-15P Plug
(varies by country)
Toll-Free: 800-523-7138
Phone: 215-244-1400
Fax: 215-244-9579
539 Dunksferry Road
Bensalem, PA 19020
www.continentalrefrigerator.com
Due to our continued efforts in developing innovative
products, specifications subject to change without notice.
19 3/8”
(492 mm)
23 3/4”
(603 mm)
DOOR
OPENING
14 7/8”
(378 mm)
29 3/4”
(756 mm)
31 13/16”
(808 mm)
10 1/4”
(260 mm)
2 1/16”
SIDE VIEW
NOTE: For proper operation, the area under and in front of the cabinet must not be obstructed in any way.
®
MADE IN THE U.S.A.
© Copyright 2017. Continental Refrigerator.
A Division of National Refrigeration & Air Conditioning Products, Inc.
SWF27-U-GD (7/27/17)
