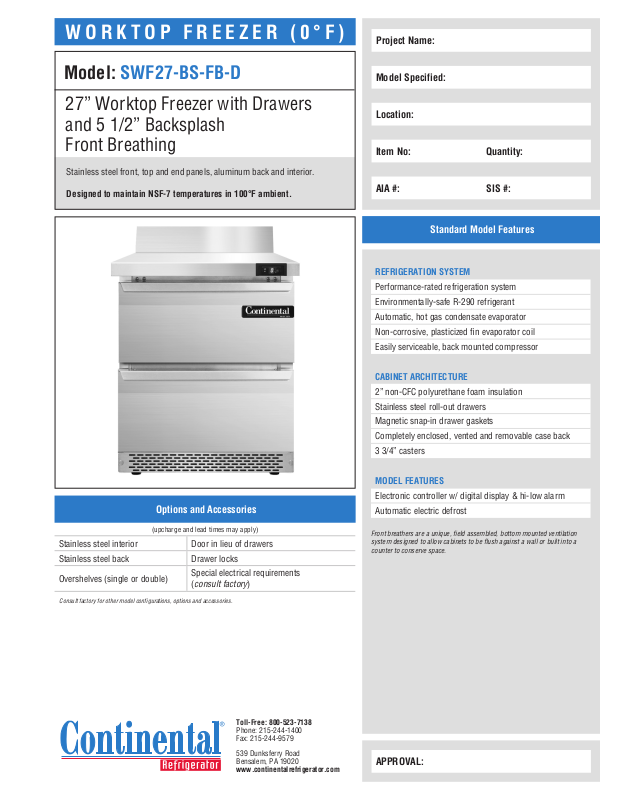

Continental Refrigerator SWF27BSFBD Specifications
WORKTOP FREEZER (0°F)
Project Name:
Model: SWF27-BS-FB-D
27” Worktop Freezer with Drawers
and 5 1/2” Backsplash
Front Breathing
Stainless steel front, top and end panels, aluminum back and interior.
Designed to maintain NSF-7 temperatures in 100°F ambient.
Model Specified:
Location:
Item No: Quantity:
AIA #: SIS #:
Standard Model Features
REFRIGERATION SYSTEM
Performance-rated refrigeration system
Environmentally-safe R-290 refrigerant
Automatic, hot gas condensate evaporator
Non-corrosive, plasticized n evaporator coil
Easily serviceable, back mounted compressor
Options and Accessories
(upcharge and lead times may apply)
Stainless steel interior Door in lieu of drawers
Stainless steel back Drawer locks
Overshelves (single or double)
Consult factory for other model configurations, options and accessories.
Special electrical requirements
(consult factory)
CABINET ARCHITECTURE
2” non-CFC polyurethane foam insulation
Stainless steel roll-out drawers
Magnetic snap-in drawer gaskets
Completely enclosed, vented and removable case back
3 3/4” casters
MODEL FEATURES
Electronic controller w/ digital display & hi-low alarm
Automatic electric defrost
Front breathers are a unique, field assembled, bottom mounted ventilation
system designed to allow cabinets to be flush against a wall or built into a
counter to conserve space.
Toll-Free: 800-523-7138
Phone: 215-244-1400
Fax: 215-244-9579
539 Dunksferry Road
Bensalem, PA 19020
www.continentalrefrigerator.com
APPROVAL:
Model Specifications
27 1/2”
(699 mm)
DIMENSIONAL DATA
Net Capacity (cu. ft.) 7.4 (210 cu l)
Width, Overall (in.) 27 1/2 (699 mm)
Depth, Overall (in.)
(incl. handle & bumpers)
Height, Overall (in.) (incl. 3 3/4” casters) 34 (864 mm)
No. of Drawers (two tier) 2
No. of Drawers (three tier) 3
REFRIGERANT DATA
Condensing Unit Size (H.P.) 1/4
Capacity (BTU/Hr)* 1572
ELECTRICAL DATA
Voltage (int’l) 115/60/1 (220/50/1)
Fans 1
Total Amps (int’l) 4.0 (2.8)
Defrost Amps (int’l) 4.8 (2.4)
10 ft. Cord/Plug [attached] (int’l) Yes (No)
SHIPPING DATA
Weight (lbs.) 165 (75 kg)
Height - Crated (in.) 47 1/2 (1207 mm)
Width - Crated (in.) 35 1/2 (902 mm)
Depth - Crated (in.) 37 1/4 (946 mm)
DRAWER PAN CONFIGURATIONS
Two Tier: (1) 12 x 20 x 6 pan per drawer
Three Tier: (1) 12 x 20 x 4 pan per drawer
* Rating @ -15°F evaporator, 90°F ambient
Figures in parentheses reect metric equivalents rounded to the nearest
whole unit.
31 9/16 (802 mm)
FRONT VIEW
Model Plan Views
31 9/16”
(802 mm)
30”
(762 mm)
1”
(25 mm)
Equipped with one NEMA-5-15P Plug
(varies by country)
Due to our continued efforts in developing innovative
products, specifications subject to change without notice.
© Copyright 2018. Continental Refrigerator.
A Division of National Refrigeration & Air Conditioning Products, Inc.
Toll-Free: 800-523-7138
Phone: 215-244-1400
Fax: 215-244-9579
539 Dunksferry Road
Bensalem, PA 19020
www.continentalrefrigerator.com
®
MADE IN THE U.S.A.
30 1/4”
(768 mm)
(1003 mm)
3 3/4”
(95 mm)
27 1/2”
39 1/2”
SIDE VIEW
IMPORTANT NOTE: If the cabinet is located directly against a wall, a minimum clearance of 3” is required
on sides, front and rear.
(699 mm)
SWF27-BS-FB-D (5/8/18)
