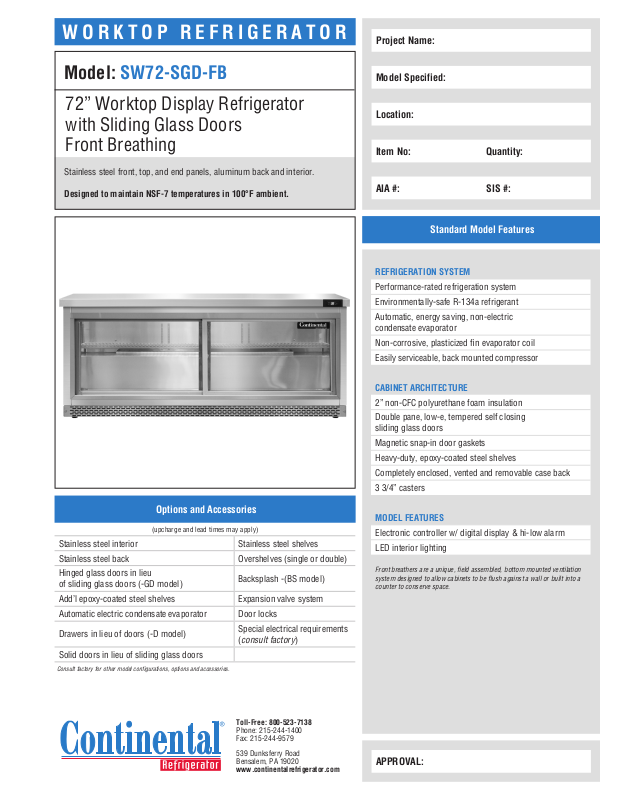

Continental Refrigerator SW72SGDFB Specifications
WORKTOP REFRIGERATOR
Project Name:
Model: SW72-SGD-FB
72” Worktop Display Refrigerator
with Sliding Glass Doors
Front Breathing
Stainless steel front, top, and end panels, aluminum back and interior.
Designed to maintain NSF-7 temperatures in 100°F ambient.
Model Specified:
Location:
Item No: Quantity:
AIA #: SIS #:
Standard Model Features
REFRIGERATION SYSTEM
Performance-rated refrigeration system
Environmentally-safe R-134a refrigerant
Automatic, energy saving, non-electric
condensate evaporator
Non-corrosive, plasticized n evaporator coil
Easily serviceable, back mounted compressor
Options and Accessories
(upcharge and lead times may apply)
Stainless steel interior Stainless steel shelves
Stainless steel back Overshelves (single or double)
Hinged glass doors in lieu
of sliding glass doors (-GD model)
Add’l epoxy-coated steel shelves Expansion valve system
Automatic electric condensate evaporator Door locks
Drawers in lieu of doors (-D model)
Solid doors in lieu of sliding glass doors
Consult factory for other model configurations, options and accessories.
Backsplash -(BS model)
Special electrical requirements
(consult factory)
CABINET ARCHITECTURE
2” non-CFC polyurethane foam insulation
Double pane, low-e, tempered self closing
sliding glass doors
Magnetic snap-in door gaskets
Heavy-duty, epoxy-coated steel shelves
Completely enclosed, vented and removable case back
3 3/4” casters
MODEL FEATURES
Electronic controller w/ digital display & hi-low alarm
LED interior lighting
Front breathers are a unique, field assembled, bottom mounted ventilation
system designed to allow cabinets to be flush against a wall or built into a
counter to conserve space.
Toll-Free: 800-523-7138
Phone: 215-244-1400
Fax: 215-244-9579
539 Dunksferry Road
Bensalem, PA 19020
www.continentalrefrigerator.com
APPROVAL:
Model Specifications
(699 mm)
DIMENSIONAL DATA
Net Capacity (cu. ft.) 20.6 (583 cu l)
Width, Overall (in.) 72 (1829 mm)
Depth, Overall (in.)
(incl. top & bumpers)
Depth, Body Only (in.) (less doors) 27 1/2 (699 mm)
Height, Overall (in.) (incl. 3 3/4” casters) 34 (864 mm)
Shelf Area (sq. ft.) 10.2 (.9 sq m)
No. of Shelves 3
No. of Doors 3
Interior Depth (in.) See Drawing
Interior Height (in.) 26 1/4 (667 mm)
Interior Width (in.) 68 (1727 mm)
REFRIGERANT DATA
Condensing Unit Size (H.P.) 1/3
Capacity (BTU/Hr)* 2050
ELECTRICAL DATA
Voltage (int’l) 115/60/1 (220/50/1)
Fans 4
Total Amps (int’l) 10.9 (4.7)
10 ft. Cord/Plug [attached] (int’l) Yes (No)
SHIPPING DATA
Weight (lbs.) 385 (175 kg)
Height - Crated (in.) 42 (1067 mm)
Width - Crated (in.) 80 (2032 mm)
Depth - Crated (in.) 37 1/4 (946 mm)
* Rating @ +25°F evaporator, 90°F ambient
Figures in parentheses reect metric equivalents rounded to the nearest
whole unit.
31 (787 mm)
FRONT VIEW
Model Plan Views
31”
(787 mm)
30”
(762 mm)
19 3/8”
(492 mm)
72”
(1829 mm)
1”
(25 mm)
Equipped with one NEMA-5-15P Plug
(varies by country)
Toll-Free: 800-523-7138
Phone: 215-244-1400
Fax: 215-244-9579
539 Dunksferry Road
Bensalem, PA 19020
www.continentalrefrigerator.com
Due to our continued efforts in developing innovative
products, specifications subject to change without notice.
®
MADE IN THE U.S.A.
© Copyright 2018. Continental Refrigerator.
A Division of National Refrigeration & Air Conditioning Products, Inc.
SIDE VIEW
14 7/8”
(378 mm)
10 1/4”
(260 mm)
27 1/2”
30 1/4”
(768 mm)
3 3/4”
(95 mm)
34”
(864 mm)
SW72-SGD-FB (5/8/18)
