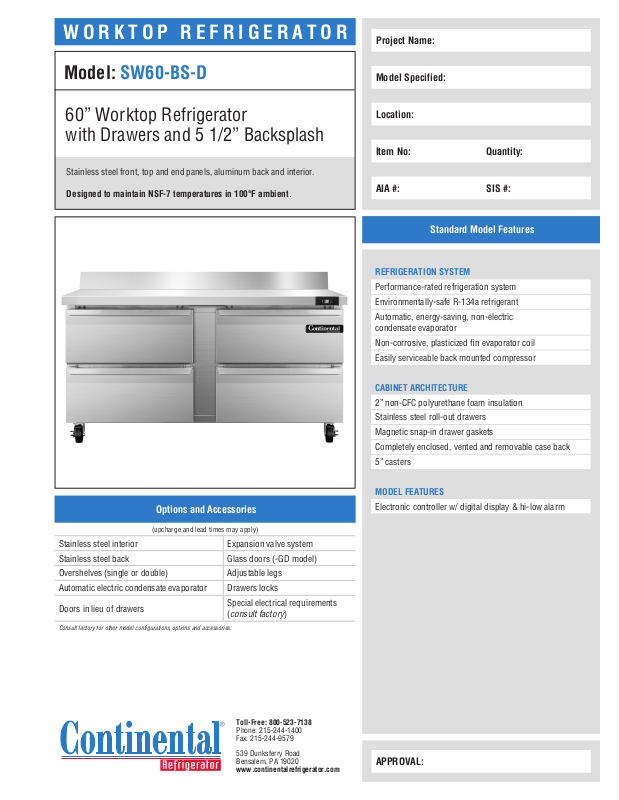

Continental Refrigerator SW60BSD Specifications
WORKTOP REFRIGERATOR
Project Name:
Model: SW60-BS-D
60” Worktop Refrigerator
with Drawers and 5 1/2” Backsplash
Stainless steel front, top and end panels, aluminum back and interior.
Designed to maintain NSF-7 temperatures in 100°F ambient.
Model Specified:
Location:
Item No: Quantity:
AIA #: SIS #:
Standard Model Features
REFRIGERATION SYSTEM
Performance-rated refrigeration system
Environmentally-safe R-134a refrigerant
Automatic, energy-saving, non-electric
condensate evaporator
Non-corrosive, plasticized n evaporator coil
Easily serviceable back mounted compressor
Options and Accessories
(upcharge and lead times may apply)
Stainless steel interior Expansion valve system
Stainless steel back Glass doors (-GD model)
Overshelves (single or double) Adjustable legs
Automatic electric condensate evaporator Drawers locks
Doors in lieu of drawers
Consult factory for other model configurations, options and accessories.
Special electrical requirements
(consult factory)
CABINET ARCHITECTURE
2” non-CFC polyurethane foam insulation
Stainless steel roll-out drawers
Magnetic snap-in drawer gaskets
Completely enclosed, vented and removable case back
5” casters
MODEL FEATURES
Electronic controller w/ digital display & hi-low alarm
Toll-Free: 800-523-7138
Phone: 215-244-1400
Fax: 215-244-9579
539 Dunksferry Road
Bensalem, PA 19020
www.continentalrefrigerator.com
APPROVAL:
Model Specifications
(1035 mm)
Model Plan Views
DIMENSIONAL DATA
Net Capacity (cu. ft.) 17.0 (481 cu l)
Width, Overall (in.) 60 (1524 mm)
Depth, Overall (in.)
(incl. handles & bumpers)
31 9/16 (802 mm)
Depth, Body Only (in.) (less drawers) 27 1/2 (699 mm)
Height, Overall (in.) (incl. 5” casters) 40 3/4 (1035 mm)
No. of Drawers (two tier) 4
No. of Drawers (three tier) 6
REFRIGERANT DATA
Condensing Unit Size (H.P.) 1/4
Capacity (BTU/Hr)* 1940
ELECTRICAL DATA
Voltage (int’l) 115/60/1 (220/50/1)
Fans 3
Total Amps (int’l) 6.6 (4.4)
10 ft. Cord/Plug [attached] (int’l) Yes (No)
SHIPPING DATA
Weight (lbs.) 297 (135 kg)
Height - Crated (in.) 48 3/4 (10238 mm)
Width - Crated (in.) 68 (1727 mm)
Depth - Crated (in.) 37 1/4 (946 mm)
DRAWER PAN CONFIGURATIONS
Two Tier: (1) 12 x 20 x 6 pan per drawer
Three Tier: (1) 12 x 20 x 4 pan per drawer
* Rating @ +25°F evaporator, 90°F ambient
Figures in parentheses reect metric equivalents rounded to the nearest
whole unit.
FRONT VIEW
60”
(1524 mm)
Note: Shown with two tier drawers.
31 9/16”
(802 mm)
30”
(762 mm)
1”
(25 mm)
Equipped with one NEMA-5-15P Plug
(varies by country)
Toll-Free: 800-523-7138
Phone: 215-244-1400
Fax: 215-244-9579
539 Dunksferry Road
Bensalem, PA 19020
www.continentalrefrigerator.com
Due to our continued efforts in developing innovative
products, specifications subject to change without notice.
®
MADE IN THE U.S.A.
© Copyright 2018. Continental Refrigerator.
A Division of National Refrigeration & Air Conditioning Products, Inc.
30 1/4”
(768 mm)
40 3/4”
5”
(127mm)
27 1/2”
SIDE VIEW
IMPORTANT NOTE: If the cabinet is located directly against a wall, a minimum clearance of 3” is required
on sides, front and rear.
(699 mm)
SW60-D (5/8/18)
