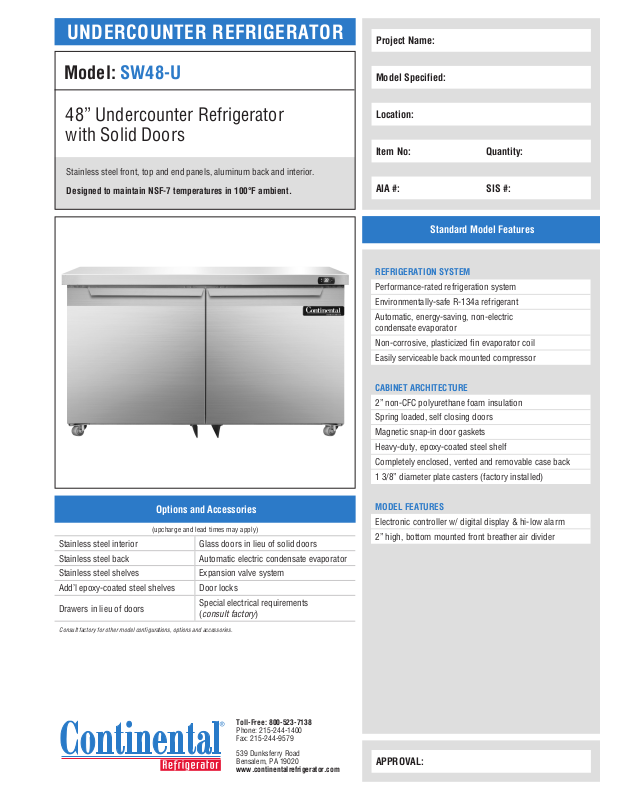

Continental Refrigerator SW48U Specifications
UNDERCOUNTER REFRIGERATOR
Project Name:
Model: SW48-U
48” Undercounter Refrigerator
with Solid Doors
Stainless steel front, top and end panels, aluminum back and interior.
Designed to maintain NSF-7 temperatures in 100°F ambient.
Model Specified:
Location:
Item No: Quantity:
AIA #: SIS #:
Standard Model Features
REFRIGERATION SYSTEM
Performance-rated refrigeration system
Environmentally-safe R-134a refrigerant
Automatic, energy-saving, non-electric
condensate evaporator
Non-corrosive, plasticized n evaporator coil
Easily serviceable back mounted compressor
Options and Accessories
(upcharge and lead times may apply)
Stainless steel interior Glass doors in lieu of solid doors
Stainless steel back Automatic electric condensate evaporator
Stainless steel shelves Expansion valve system
Add’l epoxy-coated steel shelves Door locks
Drawers in lieu of doors
Consult factory for other model configurations, options and accessories.
Special electrical requirements
(consult factory)
CABINET ARCHITECTURE
2” non-CFC polyurethane foam insulation
Spring loaded, self closing doors
Magnetic snap-in door gaskets
Heavy-duty, epoxy-coated steel shelf
Completely enclosed, vented and removable case back
1 3/8” diameter plate casters (factory installed)
MODEL FEATURES
Electronic controller w/ digital display & hi-low alarm
2” high, bottom mounted front breather air divider
Toll-Free: 800-523-7138
Phone: 215-244-1400
Fax: 215-244-9579
539 Dunksferry Road
Bensalem, PA 19020
www.continentalrefrigerator.com
APPROVAL:
Model Specifications
Model Plan Views
DIMENSIONAL DATA
Net Capacity (cu. ft.) 13.4 (379 cu l)
Width, Overall (in.) 48 (1219 mm)
Depth, Overall (in.)
(incl. handles & bumpers)
Height, Overall (in.)
(incl. 1 3/8” plate casters)
31 9/16 (802 mm)
31 13/16 (808 mm)
Shelf Area (sq. ft.) 6.8 (.6 sq m)
No. of Shelves 2
No. of Doors 2
Interior Depth (in.) See Drawing
Interior Height (in.) 26 1/4 (667 mm)
Interior Width (in.) 44 (1118 mm)
REFRIGERANT DATA
Condensing Unit Size (H.P.) 1/5
Capacity (BTU/Hr)* 1620
ELECTRICAL DATA
Voltage (int’l) 115/60/1 (220/50/1)
Fans 3
Total Amps (int’l) 7.3 (3.6)
10 ft. Cord/Plug [attached] (int’l) Yes (No)
SHIPPING DATA
Weight (lbs.) 248 (112 kg)
Height - Crated (in.) 40 (1016 mm)
Width - Crated (in.) 56 (1422 mm)
Depth - Crated (in.) 37 1/4 (946 mm)
* Rating @ +25°F evaporator, 90°F ambient
Figures in parentheses reect metric equivalents rounded to the nearest
whole unit.
FRONT VIEW
1 1/2”
(38 mm)
23 3/4”
(603 mm)
DOOR
OPENING
19 5/8”
(498 mm)
DOOR OPENING
(378 mm)
(802 mm)
(762 mm)
19 3/8”
(492 mm)
14 7/8”
10 1/4”
(260 mm)
48”
(1219 mm)
31 9/16”
30”
23 5/8”
(600 mm)
DOOR
OPENING
29 3/4”
(756 mm)
31 13/16”
(808 mm)
Equipped with one NEMA-5-15P Plug
(varies by country)
Toll-Free: 800-523-7138
Phone: 215-244-1400
Fax: 215-244-9579
539 Dunksferry Road
Bensalem, PA 19020
www.continentalrefrigerator.com
Due to our continued efforts in developing innovative
products, specifications subject to change without notice.
®
MADE IN THE U.S.A.
© Copyright 2018. Continental Refrigerator.
A Division of National Refrigeration & Air Conditioning Products, Inc.
2 1/16”
(52 mm)
SIDE VIEW
NOTE: For proper operation, the area under and in front of the cabinet must not be obstructed in any way.
SW48-U (5/8/18)
