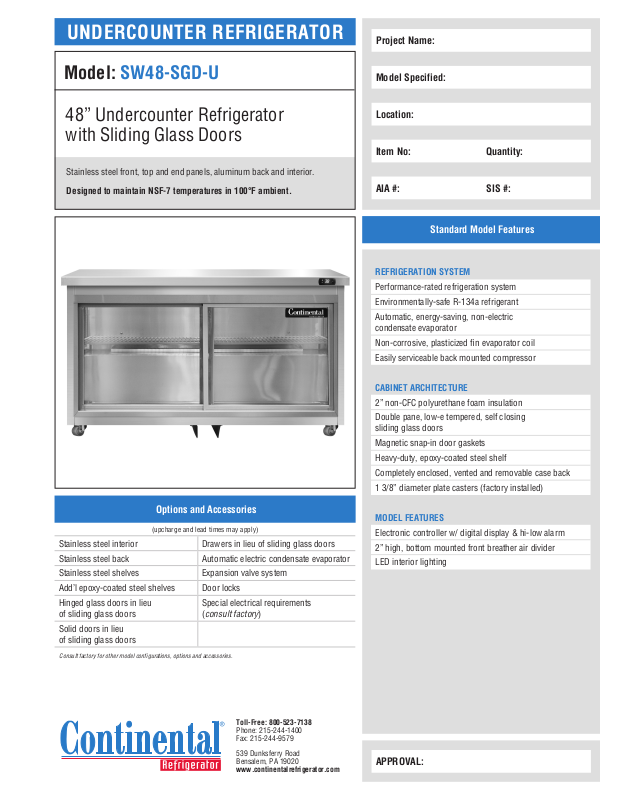

Continental Refrigerator SW48SGDU Specifications
UNDERCOUNTER REFRIGERATOR
Project Name:
Model: SW48-SGD-U
48” Undercounter Refrigerator
with Sliding Glass Doors
Stainless steel front, top and end panels, aluminum back and interior.
Designed to maintain NSF-7 temperatures in 100°F ambient.
Model Specified:
Location:
Item No: Quantity:
AIA #: SIS #:
Standard Model Features
REFRIGERATION SYSTEM
Performance-rated refrigeration system
Environmentally-safe R-134a refrigerant
Automatic, energy-saving, non-electric
condensate evaporator
Non-corrosive, plasticized n evaporator coil
Easily serviceable back mounted compressor
Options and Accessories
(upcharge and lead times may apply)
Stainless steel interior Drawers in lieu of sliding glass doors
Stainless steel back Automatic electric condensate evaporator
Stainless steel shelves Expansion valve system
Add’l epoxy-coated steel shelves Door locks
Hinged glass doors in lieu
of sliding glass doors
Solid doors in lieu
of sliding glass doors
Consult factory for other model configurations, options and accessories.
Special electrical requirements
(consult factory)
CABINET ARCHITECTURE
2” non-CFC polyurethane foam insulation
Double pane, low-e tempered, self closing
sliding glass doors
Magnetic snap-in door gaskets
Heavy-duty, epoxy-coated steel shelf
Completely enclosed, vented and removable case back
1 3/8” diameter plate casters (factory installed)
MODEL FEATURES
Electronic controller w/ digital display & hi-low alarm
2” high, bottom mounted front breather air divider
LED interior lighting
Toll-Free: 800-523-7138
Phone: 215-244-1400
Fax: 215-244-9579
539 Dunksferry Road
Bensalem, PA 19020
www.continentalrefrigerator.com
APPROVAL:
Model Specifications
Model Plan Views
DIMENSIONAL DATA
Net Capacity (cu. ft.) 13.4 (379 cu l)
Width, Overall (in.) 48 (1219 mm)
Depth, Overall (in.)
(incl. top & bumpers)
Height, Overall (in.)
(incl. 1 3/8” plate casters)
31 (787 mm)
31 13/16 (808 mm)
Shelf Area (sq. ft.) 6.8 (.6 sq m)
No. of Shelves 2
No. of Doors 2
Interior Depth (in.) See Drawing
Interior Height (in.) 26 1/4 (667 mm)
Interior Width (in.) 44 (1118 mm)
REFRIGERANT DATA
Condensing Unit Size (H.P.) 1/4
Capacity (BTU/Hr)* 1940
ELECTRICAL DATA
Voltage (int’l) 115/60/1 (220/50/1)
Fans 3
Total Amps (int’l) 7.2 (3.9)
10 ft. Cord/Plug [attached] (int’l) Yes (No)
FRONT VIEW
1 1/2”
(38 mm)
(1219 mm)
31”
(787 mm)
30”
(762 mm)
48”
SHIPPING DATA
Weight (lbs.) 265 (120 kg)
Height - Crated (in.) 40 (1016 mm)
Width - Crated (in.) 56 (1422 mm)
Depth - Crated (in.) 37 1/4 (946 mm)
* Rating @ +25°F evaporator, 90°F ambient
Figures in parentheses reect metric equivalents rounded to the nearest
whole unit.
Equipped with one NEMA-5-15P Plug
(varies by country)
Toll-Free: 800-523-7138
Phone: 215-244-1400
Fax: 215-244-9579
539 Dunksferry Road
Bensalem, PA 19020
www.continentalrefrigerator.com
Due to our continued efforts in developing innovative
products, specifications subject to change without notice.
19 3/8”
(492 mm)
14 7/8”
(378 mm)
29 3/4”
(756 mm)
31 13/16”
(808 mm)
10 1/4”
(260 mm)
2 1/16”
SIDE VIEW
NOTE: For proper operation, the area under and in front of the cabinet must not be obstructed in any way.
(52 mm)
®
MADE IN THE U.S.A.
© Copyright 2018. Continental Refrigerator.
A Division of National Refrigeration & Air Conditioning Products, Inc.
SW48-SGD-U (5/8/18)
