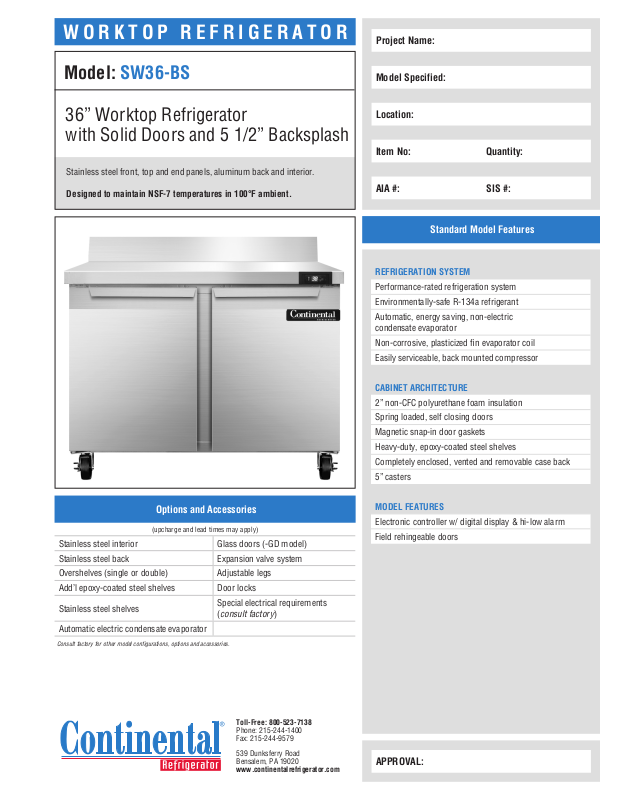

WORKTOP REFRIGERATOR
Project Name:
Model: SW36-BS
36” Worktop Refrigerator
with Solid Doors and 5 1/2” Backsplash
Stainless steel front, top and end panels, aluminum back and interior.
Designed to maintain NSF-7 temperatures in 100°F ambient.
Model Specified:
Location:
Item No: Quantity:
AIA #: SIS #:
Standard Model Features
REFRIGERATION SYSTEM
Performance-rated refrigeration system
Environmentally-safe R-134a refrigerant
Automatic, energy saving, non-electric
condensate evaporator
Non-corrosive, plasticized n evaporator coil
Easily serviceable, back mounted compressor
Options and Accessories
(upcharge and lead times may apply)
Stainless steel interior Glass doors (-GD model)
Stainless steel back Expansion valve system
Overshelves (single or double) Adjustable legs
Add’l epoxy-coated steel shelves Door locks
Stainless steel shelves
Automatic electric condensate evaporator
Consult factory for other model configurations, options and accessories.
Special electrical requirements
(consult factory)
CABINET ARCHITECTURE
2” non-CFC polyurethane foam insulation
Spring loaded, self closing doors
Magnetic snap-in door gaskets
Heavy-duty, epoxy-coated steel shelves
Completely enclosed, vented and removable case back
5” casters
MODEL FEATURES
Electronic controller w/ digital display & hi-low alarm
Field rehingeable doors
Toll-Free: 800-523-7138
Phone: 215-244-1400
Fax: 215-244-9579
539 Dunksferry Road
Bensalem, PA 19020
www.continentalrefrigerator.com
APPROVAL:
Model Specifications
Model Plan Views
DIMENSIONAL DATA
Net Capacity (cu. ft.) 10.3 (292 cu l)
Width, Overall (in.) 36 (914 mm)
Depth, Overall (in.)
(incl. handles & bumpers)
31 9/16 (802 mm)
Depth, Body Only (in.) (less doors) 27 1/2 (699 mm)
Height, Overall (in.) (incl. 5” casters) 40 3/4 (1035 mm)
Shelf Area (sq. ft.) 4.6 (.4 sq m)
No. of Shelves 2
No. of Doors 2
Interior Depth (in.) See Drawing
Interior Height (in.) 26 1/4 (667 mm)
Interior Width (in.) 32 (813 mm)
REFRIGERANT DATA
Condensing Unit Size (H.P.) 1/5
Capacity (BTU/Hr)* 1620
ELECTRICAL DATA
Voltage (int’l) 115/60/1 (220/50/1)
Fans 2
Total Amps (int’l) 6.3 (3.7)
10 ft. Cord/Plug [attached] (int’l) Yes (No)
SHIPPING DATA
Weight (lbs.) 239 (108 kg)
Height - Crated (in.) 48 3/4 (1238 mm)
Width - Crated (in.) 44 (1118 mm)
Depth - Crated (in.) 37 1/4 (946 mm)
* Rating @ +25°F evaporator, 90°F ambient
Figures in parentheses reect metric equivalents rounded to the nearest
whole unit.
FRONT VIEW
23 5/8”
(600 mm)
DOOR
OPENING
13 9/16”
(344 mm)
DOOR
OPENING
31 9/16”
(802 mm)
(762 mm)
19 3/8”
(492 mm)
14 7/8”
(378 mm)
10 1/4”
(260 mm)
30”
36”
(914 mm)
23 5/8”
(600 mm)
DOOR
OPENING
(25 mm)
30 1/4”
(768 mm)
1”
40 3/4”
(1035 mm)
Equipped with one NEMA-5-15P Plug
(varies by country)
Toll-Free: 800-523-7138
Phone: 215-244-1400
Fax: 215-244-9579
539 Dunksferry Road
Bensalem, PA 19020
www.continentalrefrigerator.com
Due to our continued efforts in developing innovative
products, specifications subject to change without notice.
®
MADE IN THE U.S.A.
© Copyright 2018. Continental Refrigerator.
A Division of National Refrigeration & Air Conditioning Products, Inc.
5”
(127mm)
27 1/2”
SIDE VIEW
IMPORTANT NOTE: If the cabinet is located directly against a wall, a minimum clearance of 3” is required
on sides, front and rear.
(699 mm)
SW36-BS (5/8/18)
