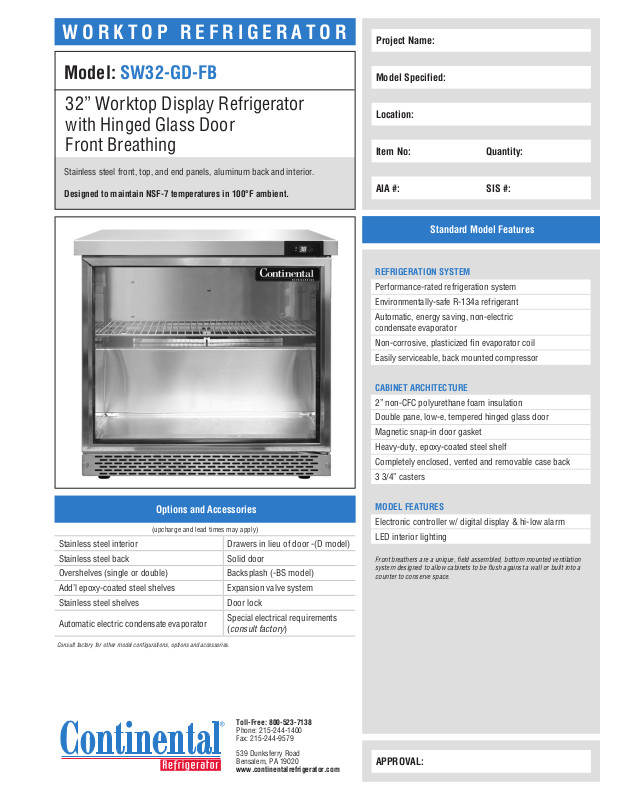

Continental Refrigerator SW32GDFB Specifications
WORKTOP REFRIGERATOR
Project Name:
Model: SW32-GD-FB
32” Worktop Display Refrigerator
with Hinged Glass Door
Front Breathing
Stainless steel front, top, and end panels, aluminum back and interior.
Designed to maintain NSF-7 temperatures in 100°F ambient.
Model Specified:
Location:
Item No: Quantity:
AIA #: SIS #:
Standard Model Features
REFRIGERATION SYSTEM
Performance-rated refrigeration system
Environmentally-safe R-134a refrigerant
Automatic, energy saving, non-electric
condensate evaporator
Non-corrosive, plasticized n evaporator coil
Easily serviceable, back mounted compressor
Options and Accessories
(upcharge and lead times may apply)
Stainless steel interior Drawers in lieu of door -(D model)
Stainless steel back Solid door
Overshelves (single or double) Backsplash (-BS model)
Add’l epoxy-coated steel shelves Expansion valve system
Stainless steel shelves Door lock
Automatic electric condensate evaporator
Consult factory for other model configurations, options and accessories.
Special electrical requirements
(consult factory)
CABINET ARCHITECTURE
2” non-CFC polyurethane foam insulation
Double pane, low-e, tempered hinged glass door
Magnetic snap-in door gasket
Heavy-duty, epoxy-coated steel shelf
Completely enclosed, vented and removable case back
3 3/4” casters
MODEL FEATURES
Electronic controller w/ digital display & hi-low alarm
LED interior lighting
Front breathers are a unique, field assembled, bottom mounted ventilation
system designed to allow cabinets to be flush against a wall or built into a
counter to conserve space.
Toll-Free: 800-523-7138
Phone: 215-244-1400
Fax: 215-244-9579
539 Dunksferry Road
Bensalem, PA 19020
www.continentalrefrigerator.com
APPROVAL:
Model Specifications
Model Plan Views
DIMENSIONAL DATA
Net Capacity (cu. ft.) 9.0 (253 cu l)
Width, Overall (in.) 32 (813 mm)
Depth, Overall (in.)
(incl. handle & bumpers)
31 7/16 (799 mm)
Depth, Body Only (in.) (less door) 27 1/2 (699 mm)
Height, Overall (in.) (incl. 3 3/4” casters) 34 (864 mm)
Shelf Area (sq. ft.) 3.9 (.4 sq m)
No. of Shelves 1
No. of Doors 1
Interior Depth (in.) See Drawing
Interior Height (in.) 26 1/4 (667 mm)
Interior Width (in.) 28 (711 mm)
REFRIGERANT DATA
Condensing Unit Size (H.P.) 1/5
Capacity (BTU/Hr)* 1620
ELECTRICAL DATA
Voltage (int’l) 115/60/1 (220/50/1)
Fans 2
Total Amps (int’l) 7.0 (3.7)
10 ft. Cord/Plug [attached] (int’l) Yes (No)
SHIPPING DATA
Weight (lbs.) 235 (107 kg)
Height - Crated (in.) 42 (1067 mm)
Width - Crated (in.) 40 (1016 mm)
Depth - Crated (in.) 37 1/4 (946 mm)
* Rating @ +25°F evaporator, 90°F ambient
Figures in parentheses reect metric equivalents rounded to the nearest
whole unit.
FRONT VIEW
23 5/8”
(600 mm)
DOOR
OPENING
DOOR OPENING
31 7/16”
(799 mm)
(762 mm)
19 3/8”
(492 mm)
14 7/8”
(378 mm)
10 1/4”
(260 mm)
32”
(813 mm)
27 3/8”
(695 mm)
30”
1”
(25 mm)
30 1/4”
34”
(768 mm)
(864 mm)
Equipped with one NEMA-5-15P Plug
(varies by country)
Toll-Free: 800-523-7138
Phone: 215-244-1400
Fax: 215-244-9579
539 Dunksferry Road
Bensalem, PA 19020
www.continentalrefrigerator.com
Due to our continued efforts in developing innovative
products, specifications subject to change without notice.
®
MADE IN THE U.S.A.
© Copyright 2018. Continental Refrigerator.
A Division of National Refrigeration & Air Conditioning Products, Inc.
SIDE VIEW
3 3/4”
(95 mm)
27 1/2”
(699 mm)
SW32-GD-FB (5/8/18)
