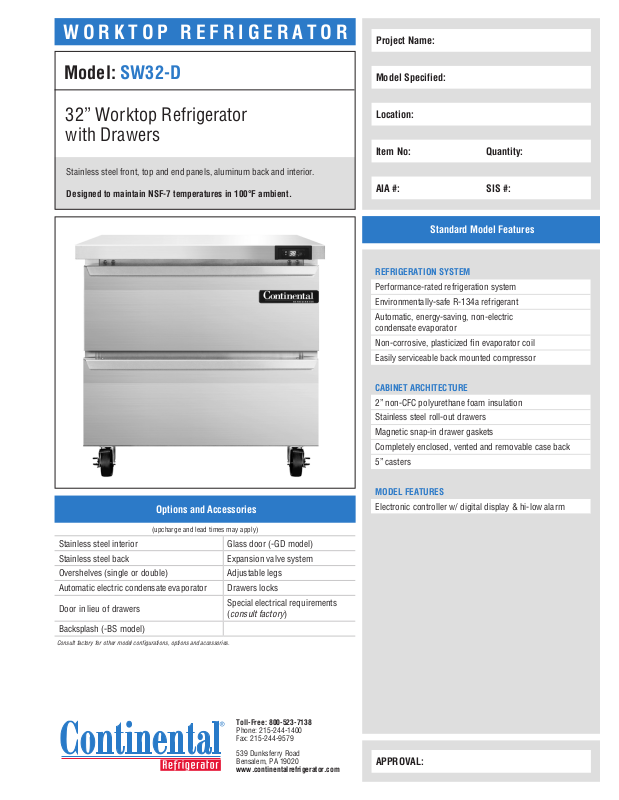

Continental Refrigerator SW32D Specifications

WORKTOP REFRIGERATOR

Project Name:

Model: SW32-D

32” Worktop Refrigerator with Drawers

Stainless steel front, top and end panels, aluminum back and interior.

Designed to maintain NSF-7 temperatures in 100°F ambient.

Model Specified:

Location:

Item No: Quantity:

AIA #: SIS #:

Standard Model Features

REFRIGERATION SYSTEM

Performance-rated refrigeration system Environmentally-safe R-134a refrigerant Automatic, energy-saving, non-electric

condensate evaporator

Non-corrosive, plasticized n evaporator coil

Easily serviceable back mounted compressor

Options and Accessories

(upcharge and lead times may apply)

Stainless steel interior Glass door (-GD model) Stainless steel back Expansion valve system Overshelves (single or double) Adjustable legs Automatic electric condensate evaporator Drawers locks

Door in lieu of drawers

Backsplash (-BS model)

Consult factory for other model configurations, options and accessories.

Special electrical requirements (consult factory)

CABINET ARCHITECTURE

2” non-CFC polyurethane foam insulation Stainless steel roll-out drawers Magnetic snap-in drawer gaskets Completely enclosed, vented and removable case back 5” casters

MODEL FEATURES

Electronic controller w/ digital display & hi-low alarm

Toll-Free: 800-523-7138

Phone: 215-244-1400 Fax: 215-244-9579

539 Dunksferry Road Bensalem, PA 19020

www.continentalrefrigerator.com

APPROVAL:

Model Specifications

Model Plan Views

DIMENSIONAL DATA

Net Capacity (cu. ft.) 9.0 (253 cu l) Width, Overall (in.) 32 (813 mm) Depth, Overall (in.)

(incl. handles & bumpers)

31 9/16 (802 mm)

Depth, Body Only (in.) (less drawers) 27 1/2 (699 mm) Height, Overall (in.) (incl. 5” casters) 35 1/4 (895 mm) No. of Drawers (two tier) 2 No. of Drawers (three tier) 3

REFRIGERANT DATA

Condensing Unit Size (H.P.) 1/5 Capacity (BTU/Hr)* 1620

ELECTRICAL DATA

Voltage (int’l) 115/60/1 (220/50/1) Fans 2 Total Amps (int’l) 6.3 (3.7) 10 ft. Cord/Plug [attached] (int’l) Yes (No)

SHIPPING DATA

Weight (lbs.) 221 (100 kg) Height - Crated (in.) 43 1/4 (1099 mm) Width - Crated (in.) 40 (1016 mm) Depth - Crated (in.) 37 1/4 (946 mm)

DRAWER PAN CONFIGURATIONS

Two Tier: (1) 12 x 20 x 6 pan per drawer

or (1) 1/2 size x 6 & (2) 1/3 x 6 pans per drawer Three Tier: (1) 12 x 20 x 4 pan per drawer

or (1) 1/2 size x 4 & (2) 1/3 x 4 pans per drawer

* Rating @ +25°F evaporator, 90°F ambient

Figures in parentheses reect metric equivalents rounded to the nearest

whole unit.

FRONT VIEW

32”

(813 mm)

Note: Shown with two tier drawers.

31 9/16”

(802 mm)

30”

(762 mm)

1”

(25 mm)

30 1/4”

(768 mm)

35 1/4”

(895 mm)

Equipped with one NEMA-5-15P Plug

(varies by country)

Toll-Free: 800-523-7138

Phone: 215-244-1400 Fax: 215-244-9579

539 Dunksferry Road Bensalem, PA 19020

www.continentalrefrigerator.com

Due to our continued efforts in developing innovative products, specifications subject to change without notice.

MADE IN THE U.S.A.

5”

(127mm)

27 1/2”

SIDE VIEW

IMPORTANT NOTE: If the cabinet is located directly against a wall, a minimum clearance of 3” is required on sides, front and rear.

(699 mm)

SW32-D (5/8/18)
