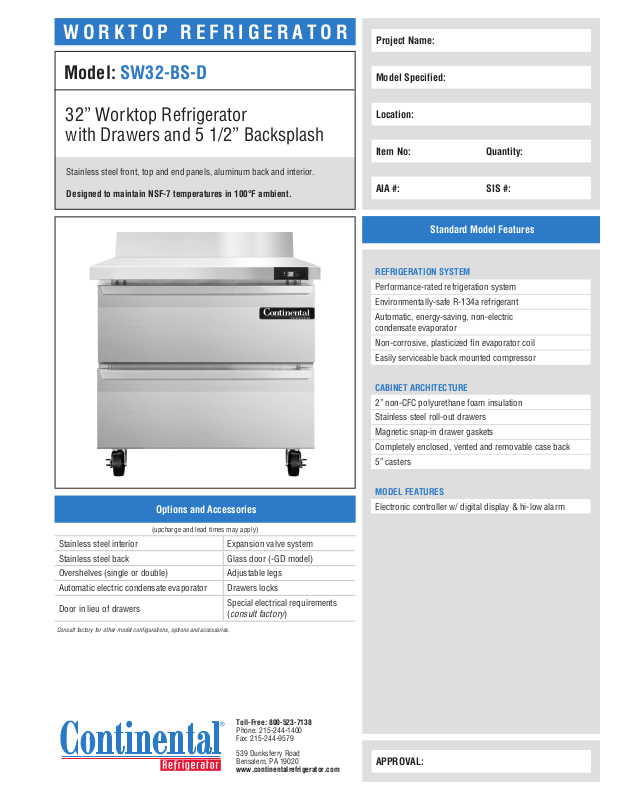

Continental Refrigerator SW32BSD Specifications

WORKTOP REFRIGERATOR

Project Name:

Model: SW32-BS-D

32” Worktop Refrigerator with Drawers and 5 1/2” Backsplash

Stainless steel front, top and end panels, aluminum back and interior.

Designed to maintain NSF-7 temperatures in 100°F ambient.

Model Specified:

Location:

Item No: Quantity:

AIA #: SIS #:

Standard Model Features

REFRIGERATION SYSTEM

Performance-rated refrigeration system Environmentally-safe R-134a refrigerant Automatic, energy-saving, non-electric

condensate evaporator

Non-corrosive, plasticized n evaporator coil

Easily serviceable back mounted compressor

Options and Accessories

(upcharge and lead times may apply)

Stainless steel interior Expansion valve system Stainless steel back Glass door (-GD model) Overshelves (single or double) Adjustable legs Automatic electric condensate evaporator Drawers locks

Door in lieu of drawers

Consult factory for other model configurations, options and accessories.

Special electrical requirements (consult factory)

CABINET ARCHITECTURE

2” non-CFC polyurethane foam insulation Stainless steel roll-out drawers Magnetic snap-in drawer gaskets Completely enclosed, vented and removable case back 5” casters

MODEL FEATURES

Electronic controller w/ digital display & hi-low alarm

Toll-Free: 800-523-7138

Phone: 215-244-1400 Fax: 215-244-9579

539 Dunksferry Road Bensalem, PA 19020

www.continentalrefrigerator.com

APPROVAL:

Model Specifications

(1035 mm)

Model Plan Views

DIMENSIONAL DATA

Net Capacity (cu. ft.) 9.0 (253 cu l) Width, Overall (in.) 32 (813 mm) Depth, Overall (in.)

(incl. handles & bumpers)

31 9/16 (802 mm)

Depth, Body Only (in.) (less drawers) 27 1/2 (699 mm) Height, Overall (in.) (incl. 5” casters) 40 3/4 (1035 mm) No. of Drawers (two tier) 2 No. of Drawers (three tier) 3

REFRIGERANT DATA

Condensing Unit Size (H.P.) 1/5 Capacity (BTU/Hr)* 1620

ELECTRICAL DATA

Voltage (int’l) 115/60/1 (220/50/1) Fans 2 Total Amps (int’l) 6.3 (3.7) 10 ft. Cord/Plug [attached] (int’l) Yes (No)

SHIPPING DATA

Weight (lbs.) 221 (100 kg) Height - Crated (in.) 48 3/4 (1238 mm) Width - Crated (in.) 40 (1016 mm) Depth - Crated (in.) 37 1/4 (946 mm)

DRAWER PAN CONFIGURATIONS

Two Tier: (1) 12 x 20 x 6 pan per drawer

or (1) 1/2 size x 6 & (2) 1/3 x 6 pans per drawer Three Tier: (1) 12 x 20 x 4 pan per drawer

or (1) 1/2 size x 4 & (2) 1/3 x 4 pans per drawer

* Rating @ +25°F evaporator, 90°F ambient

Figures in parentheses reect metric equivalents rounded to the nearest

whole unit.

FRONT VIEW

32”

(813 mm)

Note: Shown with two tier drawers.

31 9/16”

(802 mm)

30”

(762 mm)

1”

(25 mm)

30 1/4”

(768 mm)

40 3/4”

Equipped with one NEMA-5-15P Plug

(varies by country)

Toll-Free: 800-523-7138

Phone: 215-244-1400 Fax: 215-244-9579

539 Dunksferry Road Bensalem, PA 19020

www.continentalrefrigerator.com

Due to our continued efforts in developing innovative products, specifications subject to change without notice.

MADE IN THE U.S.A.

5”

(127mm)

27 1/2”

SIDE VIEW

IMPORTANT NOTE: If the cabinet is located directly against a wall, a minimum clearance of 3” is required on sides, front and rear.

(699 mm)

SW32-BS-D (5/8/18)
